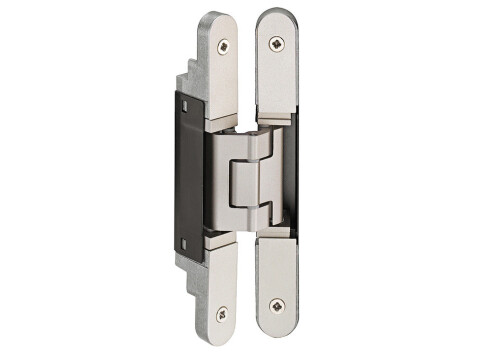

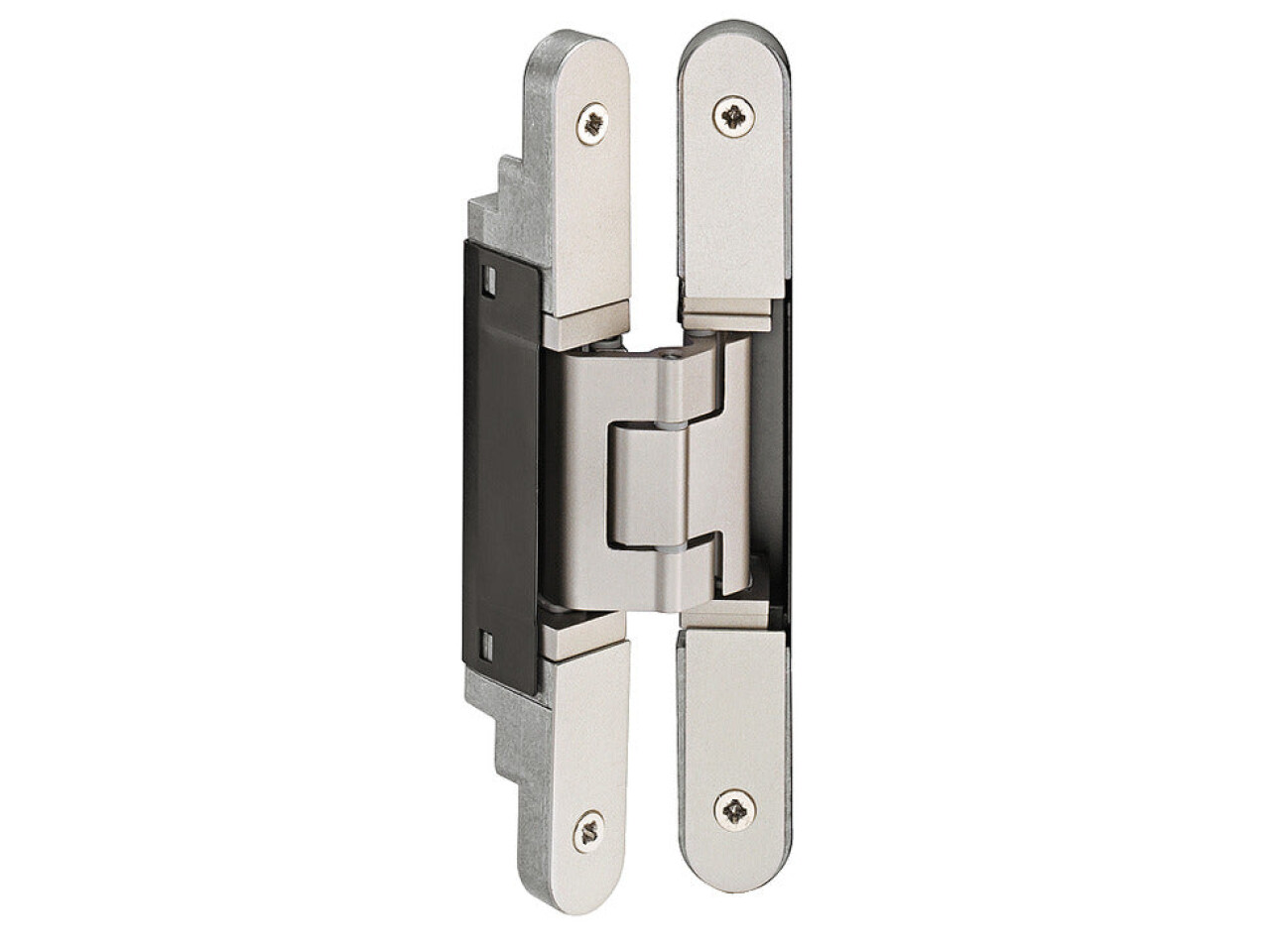

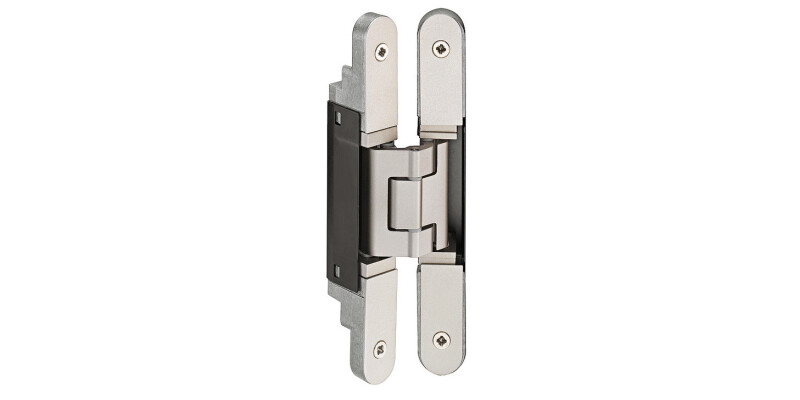

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 240

Part Number: 924.19.073
3-way continuous adjustment, Matt black
Price:
£122.95
Per Item
VAT excluded

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 240 (Part No: 924.19.073) is a premium architectural... Read More

Product Information

Product Details

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 240 (Part No: 924.19.073) is a premium architectural door hinge designed for smooth, reliable performance and a clean, modern finish. Built for flush door applications, this Matt black 3D hinge brings effortless alignment control—ideal for professional installers and homeowners seeking a faultless door fit.

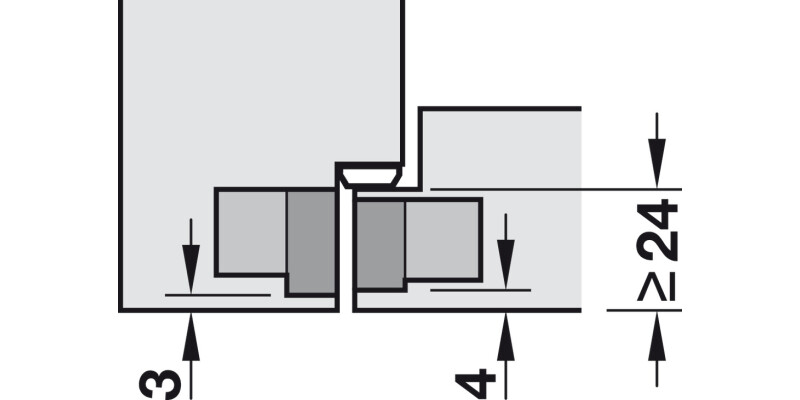

With its 3-way continuous adjustment, the TE240 system lets you fine-tune the door in three key directions: side movement of 3 mm, height adjustment from -3 to +3 mm, and closing pressure tolerance of ±1.5 mm. That means fewer headaches during installation and more confidence that your door will sit perfectly and operate smoothly over time.

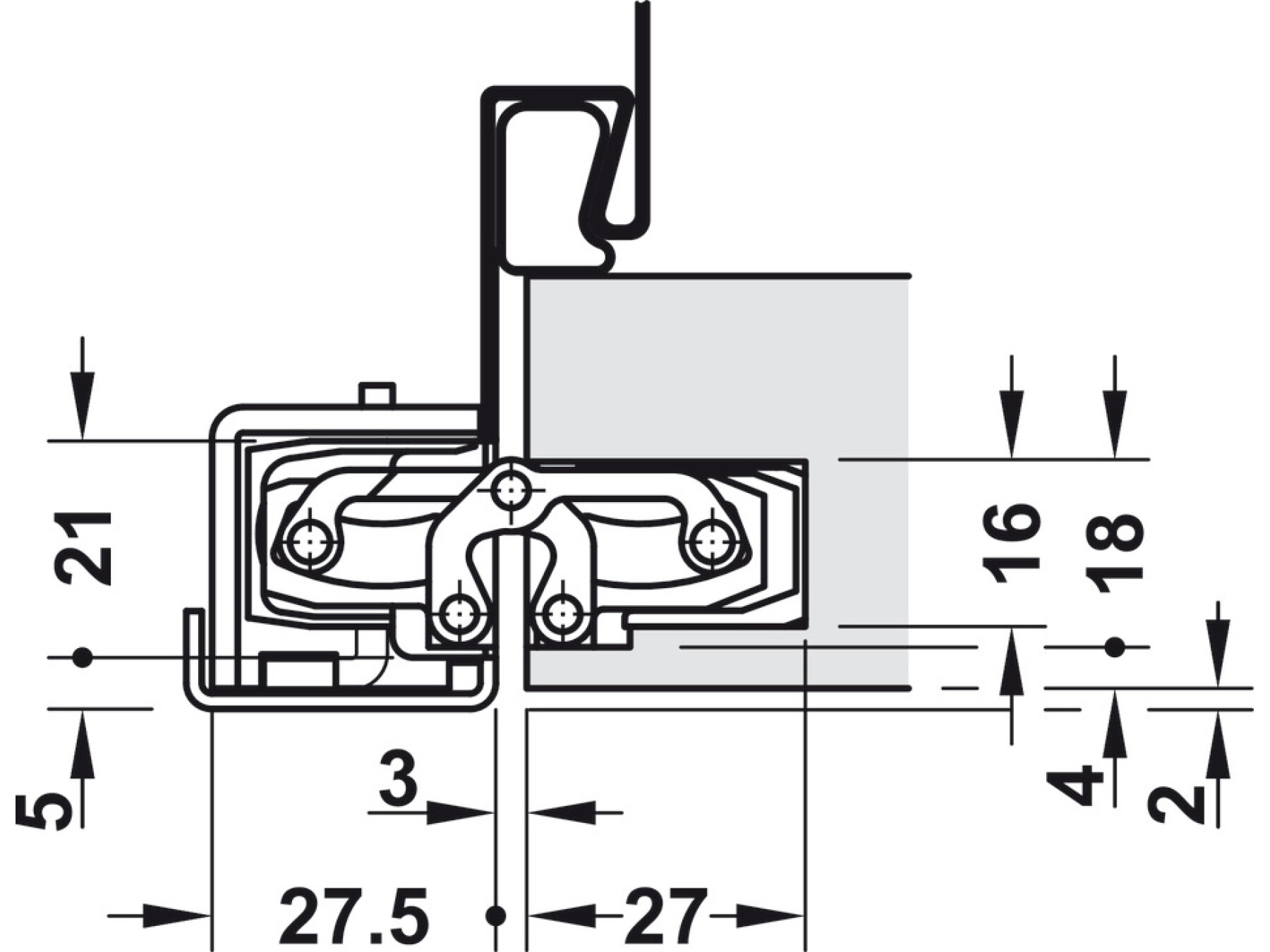

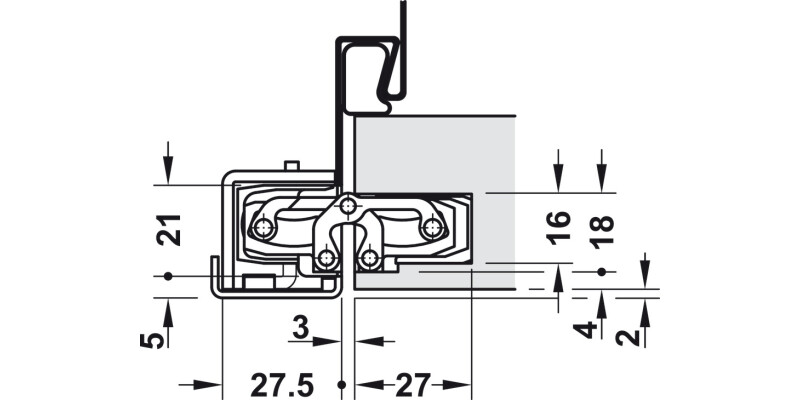

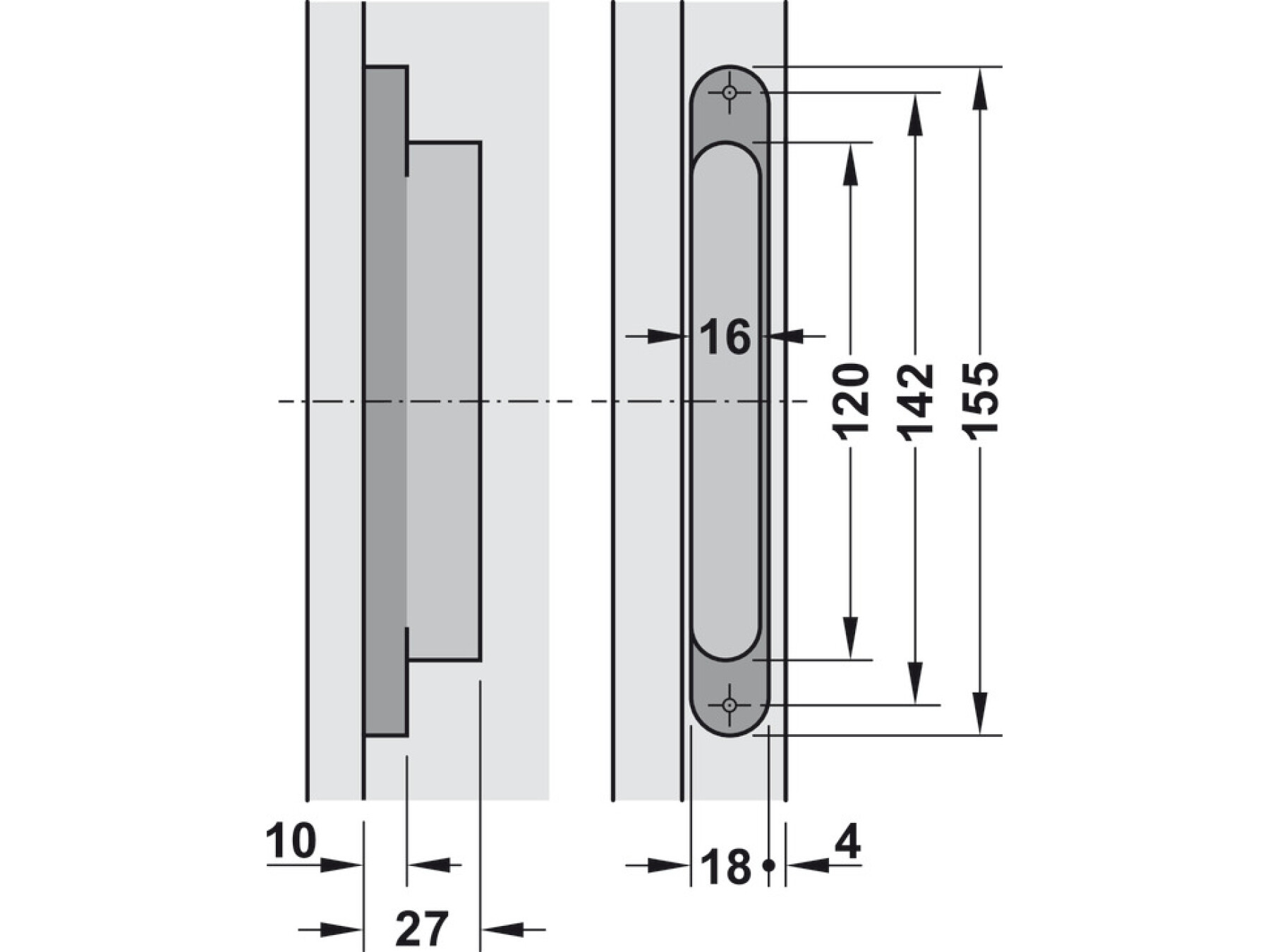

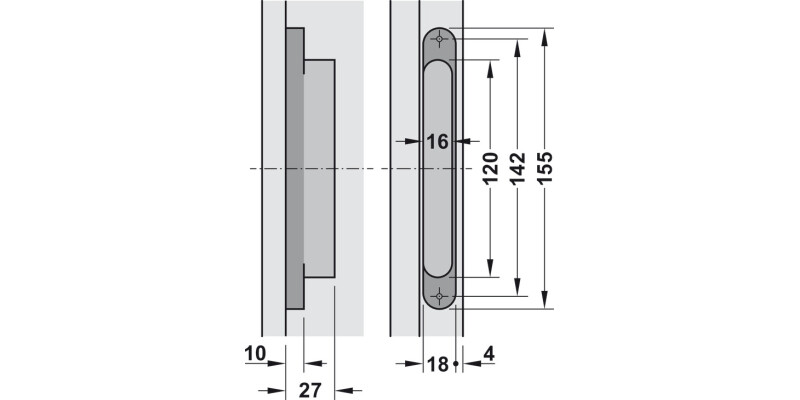

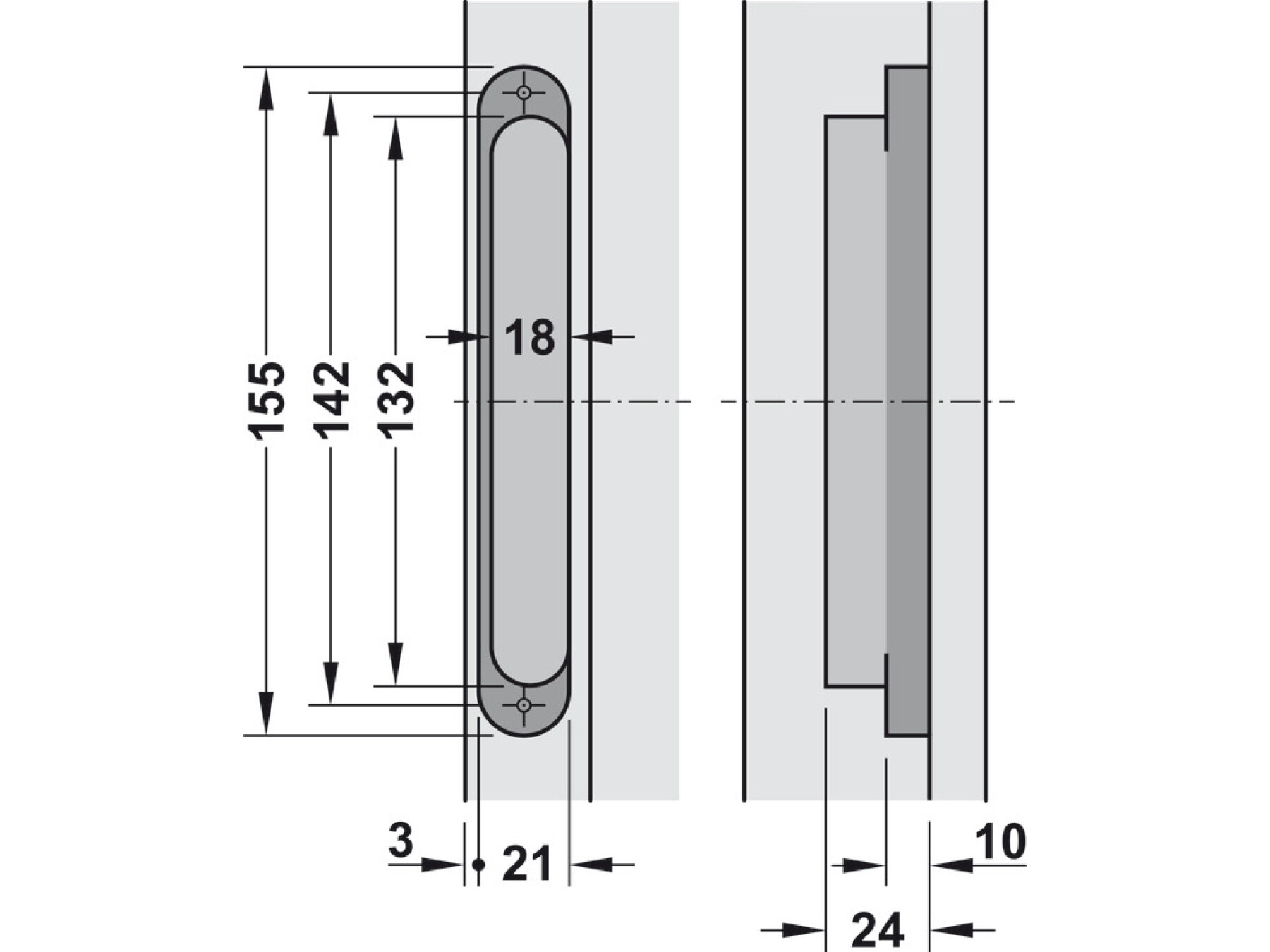

Crafted from a durable combination of aluminium and steel, the rounded-flange design offers an elegant look while delivering strength where it matters. Measuring 155 mm in flange height, with a flange width of 21 mm / 18 mm, it’s matched to the TECTUS TE 240 3D N series standards.

This hinge is suitable for use with wooden, steel, or aluminium frames and supports flush doors with a door thickness of ≥25 mm. It accommodates an 180° opening angle and is a strong option when you’re using two hinges for doors up to 60 kg.

Certified to EN 1935:2002 and using maintenance-free friction bearings, the Tectus TE240 provides a dependable solution—order the 3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 240 today for a smarter fit and a superior finish.

Specifications

Mounting

For DIN left and DIN right hand use

Flange shape

rounded

Flange width

21 mm / 18 mm

Material

Aluminium, Steel

Flange height

155 mm

Model series

TECTUS TE 240 3D N

Area of application

For wooden, steel or aluminium frames
For flush doors

For frame type

Steel frame, Wooden frame, Aluminium frame

Max. door weight for 2 hinges

60.00 kg

Opening angle

180.00 °

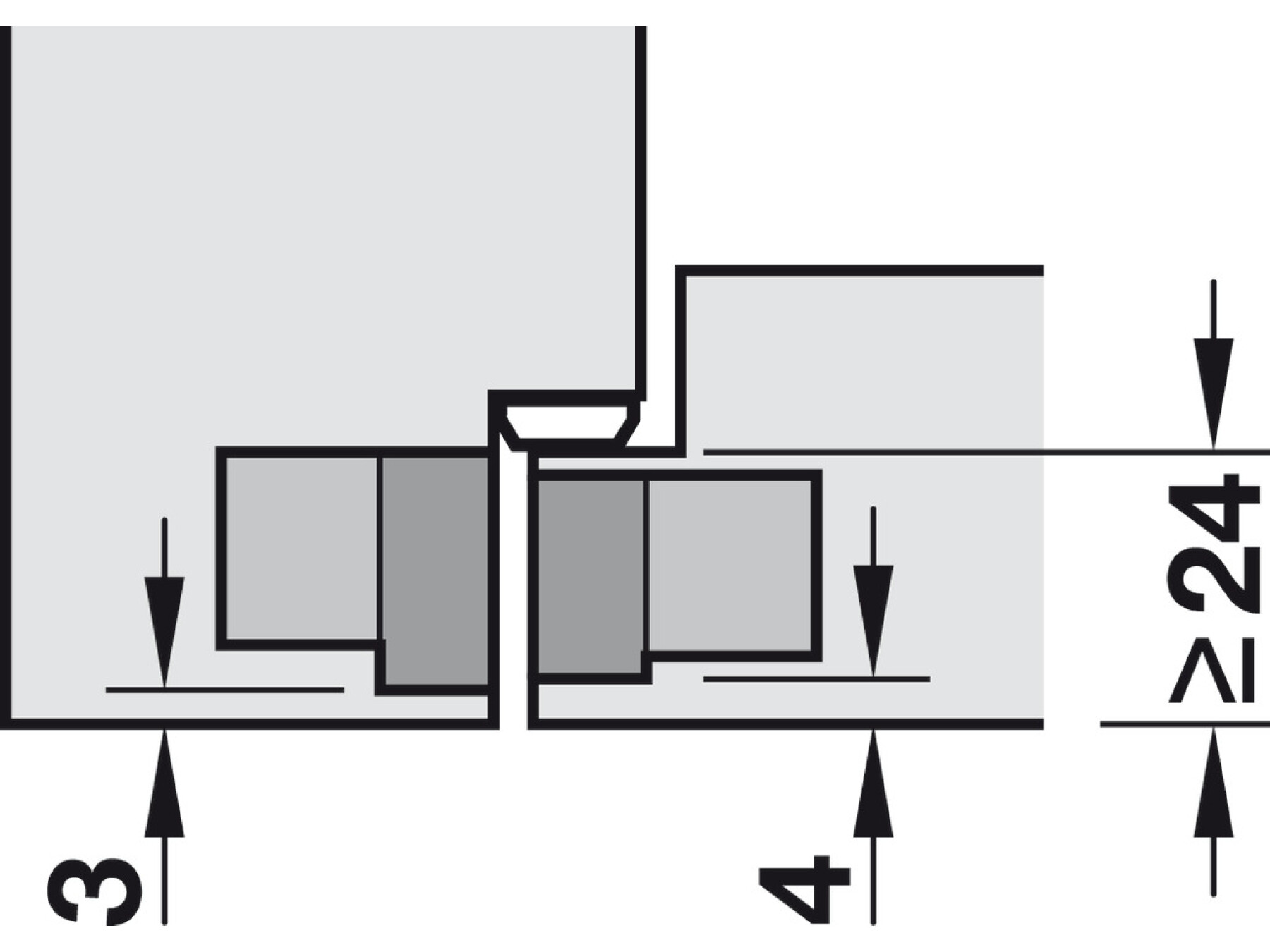

Door thickness

≥25 mm

Router bit Ø

16.00 mm

Thrust ring Ø

30.00 mm

Bearing type

Friction bearing, maintenance-free

Adjustment facility

3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1.5 mm

Standard

Certified in compliance with EN 1935:2002

Grade

3|7|3|1|1|4|0|10
FAQ

Product Details

How does 3D continuous adjustment help when fitting the Tectus TE240 hinge?

The TE240 3D Hinge provides continuous 3D adjustment so you can fine tune the door alignment after installation. This includes side adjustment of 3 mm, height adjustment of minus 3 mm to plus 3 mm, and closing pressure adjustment of plus or minus 1.5 mm, helping achieve consistent closing and even gaps.

Is the Tectus TE240 3D hinge suitable for my door thickness?

This hinge is designed for door thicknesses of 25 mm or more. If your door meets that requirement, the TE240 is a practical choice for clean alignment and smooth operation on flush doors.

What door weight can I use with two TE240 hinges?

For two hinges, the maximum recommended door weight is 60 kg. Choosing the correct number of hinges for your door weight helps maintain safe performance and reliable operation over time.

Will this hinge work on both left and right hand doors?

Yes. The hinge is intended for use as a DIN left or DIN right hand application. During installation, ensure the hinge orientation matches the frame hand to allow correct opening and alignment.

What opening angle does the hinge provide?

The hinge allows an opening angle of 180 degrees. This is useful for wide access openings and for flush doors where you want a full, unobstructed swing.

Do I need a specific router bit size when installing it?

Yes. The required router bit diameter is 16 mm. Using the correct bit size helps ensure the hinge sits properly in the door recess for a neat finish and stable performance.

Which frame types are compatible with the TE240 3D hinge?

The TE240 is suitable for steel, wooden, and aluminium frames. It is also intended for flush doors, making it a good option when you are matching architectural ironmongery across different frame materials.

Is the hinge maintenance free and does it have a certified standard?

The hinge uses a friction bearing that is maintenance free. It is also certified to EN 1935:2002, which supports dependable quality for architectural door applications.
