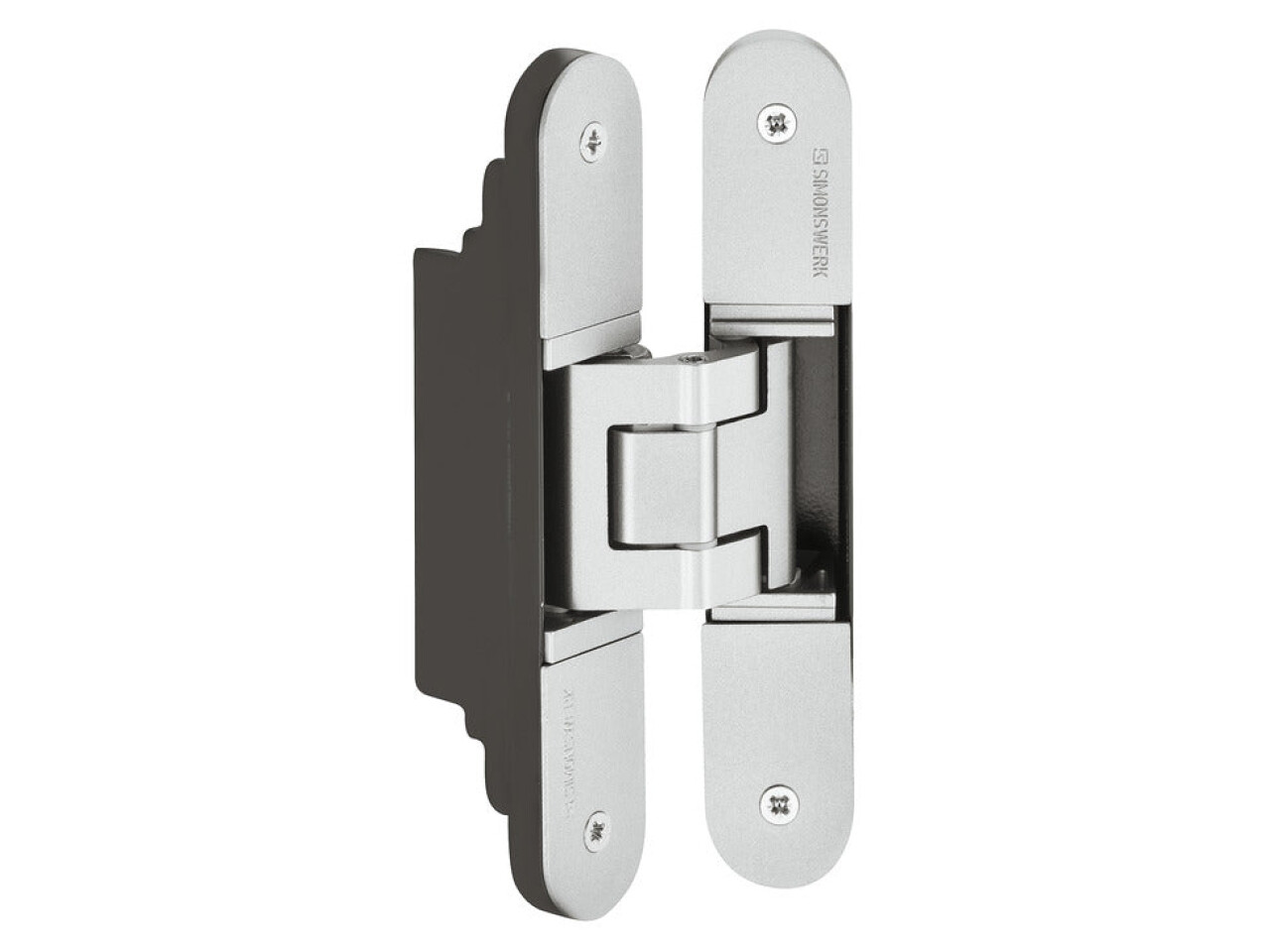

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 340

Product Details

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 340 (Part No: 924.17.104) is a premium architectural door hinge designed to deliver smooth, reliable performance with a refined satin stainless steel effect. Ideal for builders, installers and architects, this hinge combines a modern finish with advanced 3-way adjustment—so you can dial in alignment quickly and keep doors looking perfectly balanced over time.

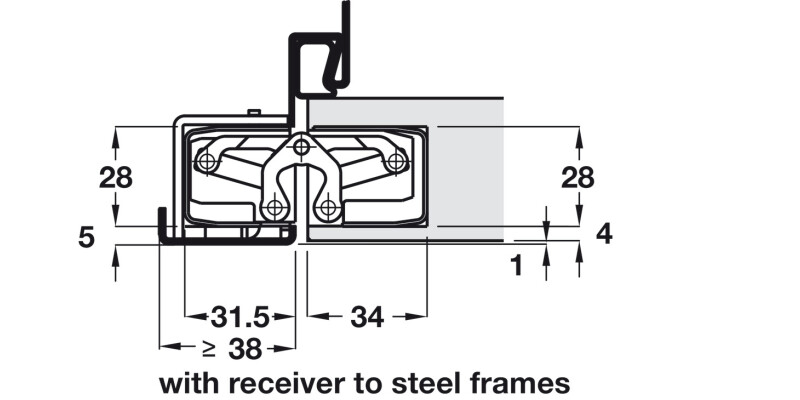

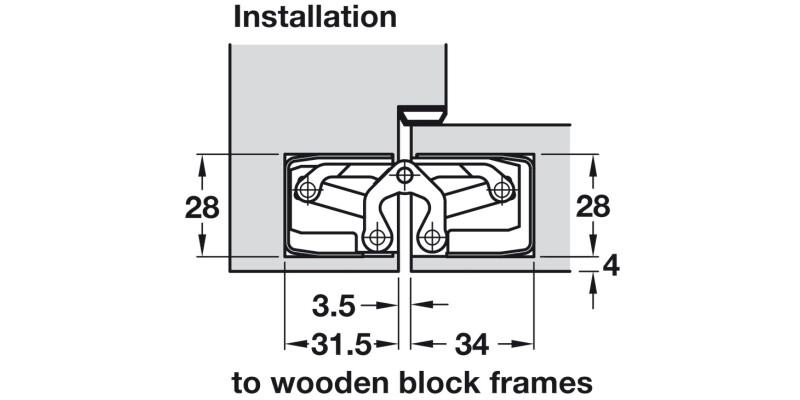

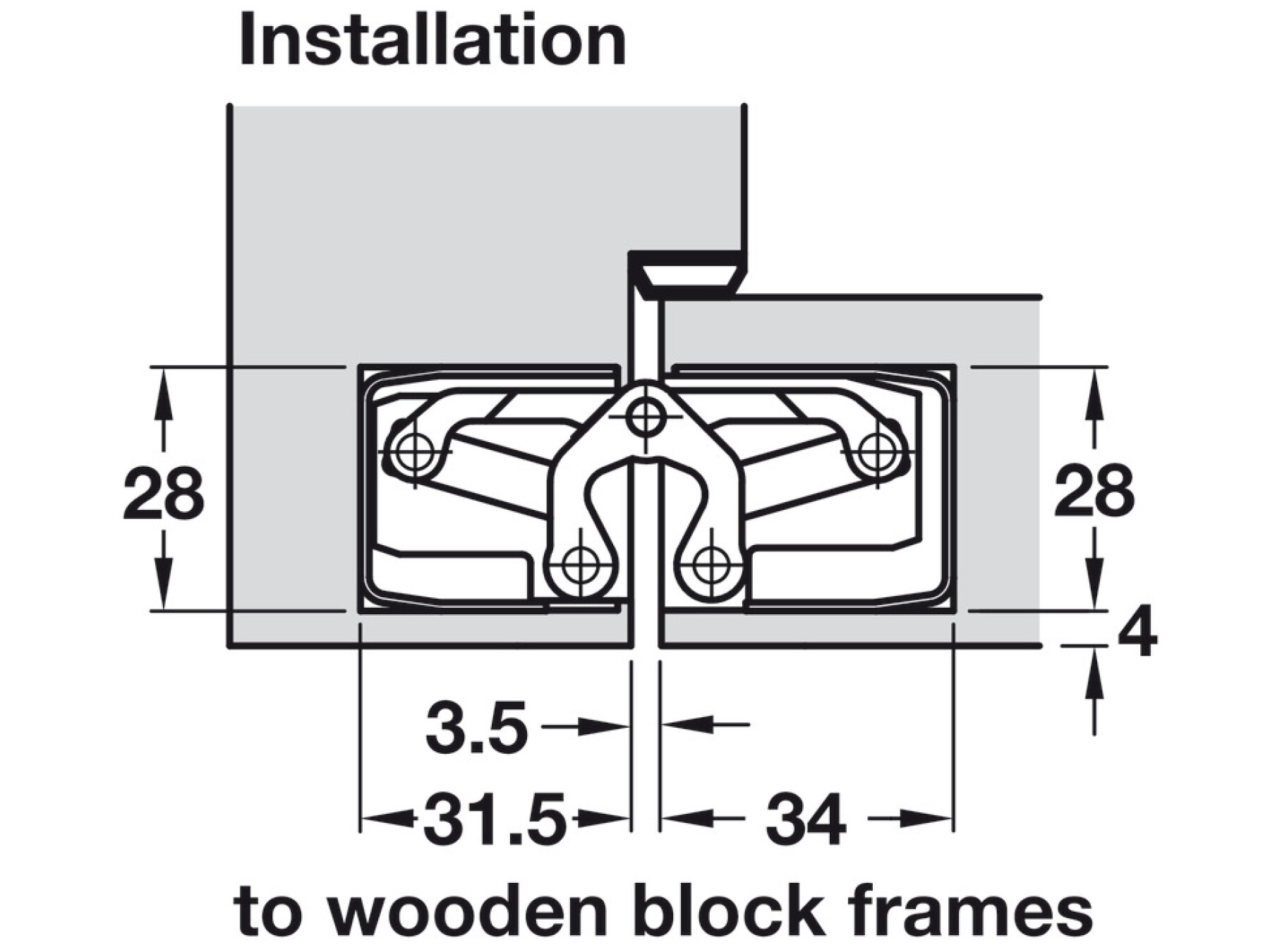

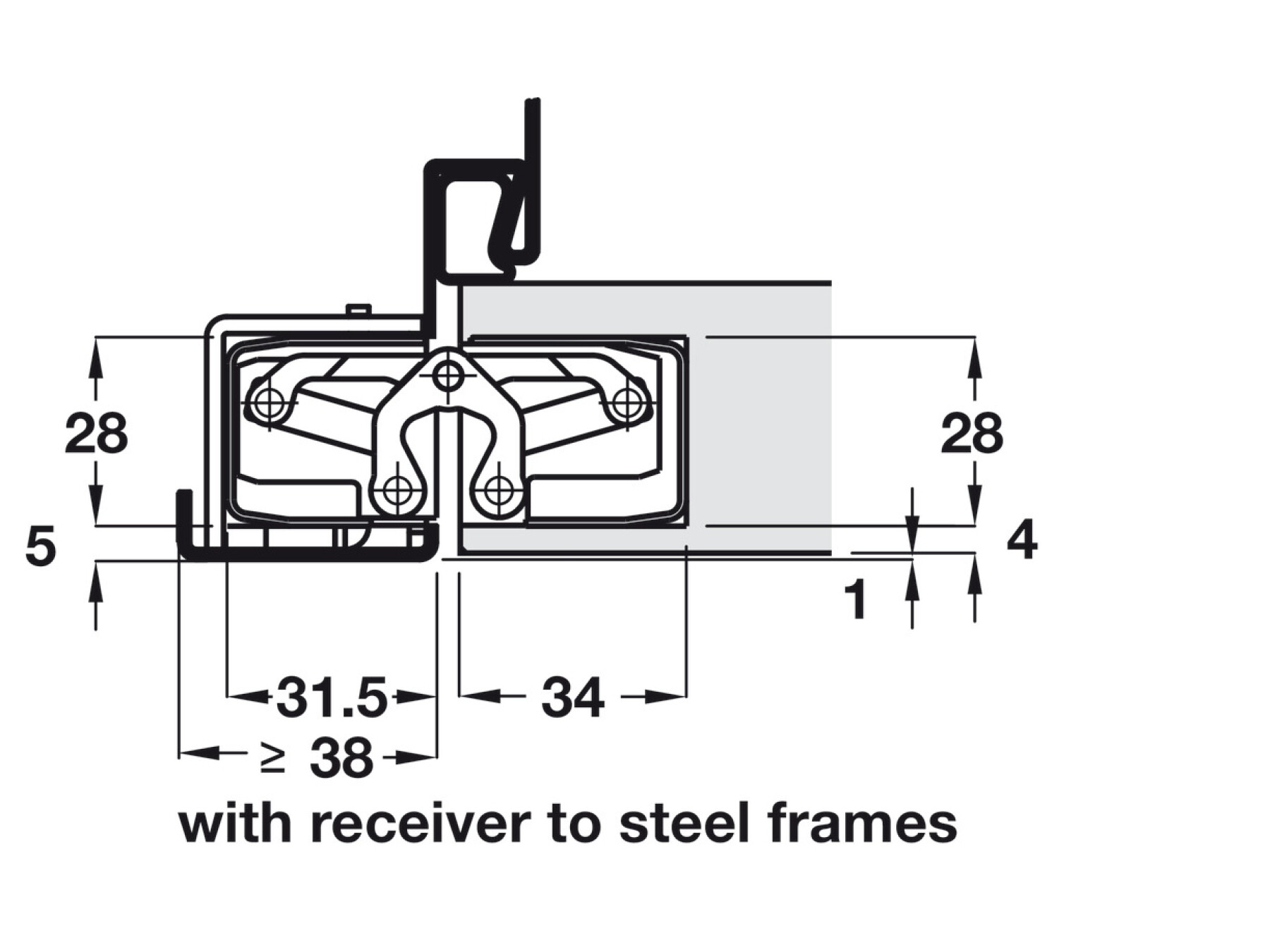

Built for versatility, the TE340 3D is suitable for wooden, steel or aluminium frames and is a great choice for flush doors. With an opening angle of 180°, it’s perfect where full access is required, while the maintenance-free friction bearing helps ensure dependable operation day after day.

Installation is made straightforward thanks to compatibility for DIN left/right fitting. The hinge is constructed from aluminium and steel, offering strong structure and lasting durability. It supports doors up to 80 kg (for 2 hinges), making it well-suited to heavier interior applications.

Precision fit is at the heart of this model. Enjoy 3-dimensional, continuous adjustment with side adjustment of 3 mm, height adjustment from -3 to +3 mm, and closing pressure of ±1 mm. Certified to EN 1935:2002, it’s a hinge you can trust for quality and compliance.

Supplied with fixing screws, the 3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 340 is ready to upgrade your door hardware—choose it for effortless alignment, elegant appearance, and confident performance.

Fixing screws
