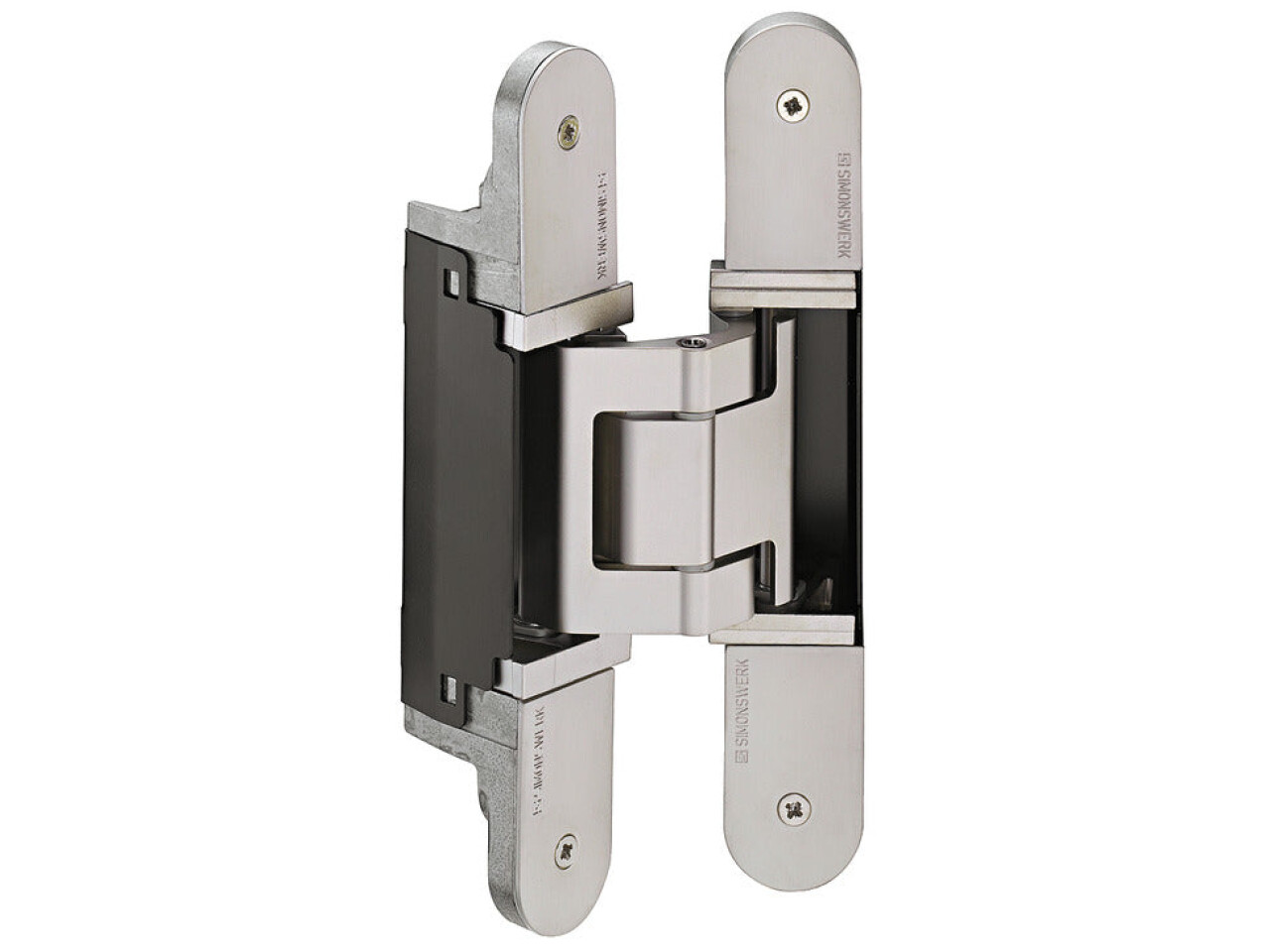

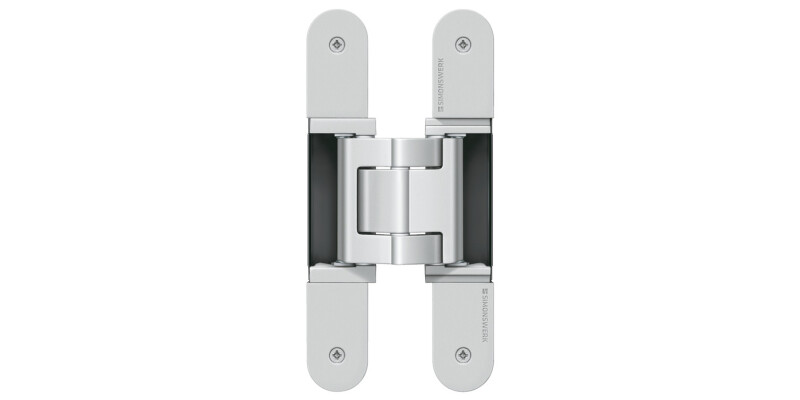

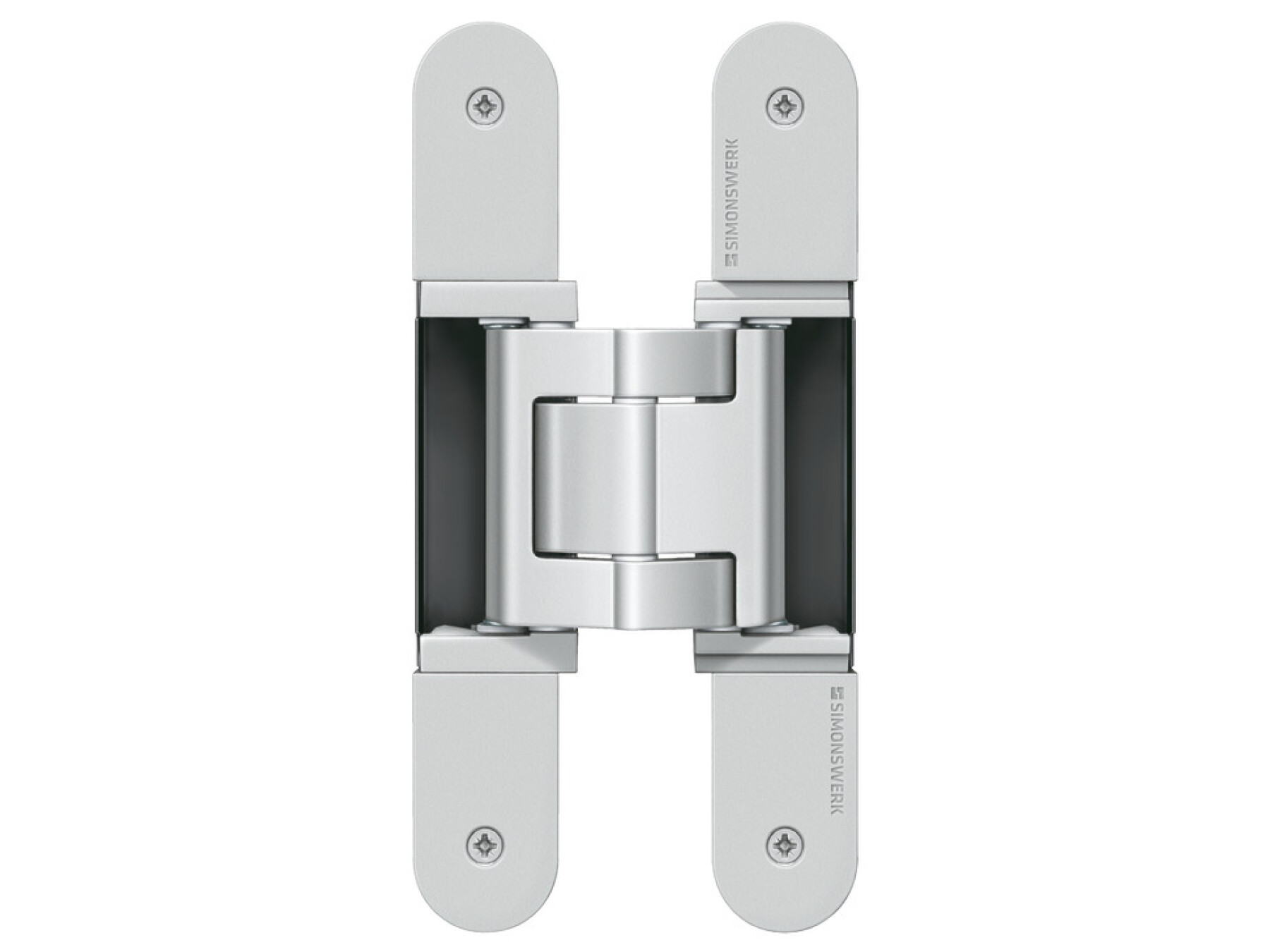

3D Hinge, 180�, Aluminium, Zinc Diecast and Steel, Tectus TE 540 A8

3D Hinge, 180�, Aluminium, Zinc Diecast and Steel, Tectus TE 540 A8

Part Number: 924.17.304

3-way continuous adjustment, Satin stainless steel effect

Price:

£247.71

Per Item

VAT excluded

3D Hinge, 180�, Aluminium, Zinc Diecast and Steel, Tectus TE 540 A8 (Part No: 924.17.304) is a premium... Read More

Product Information

Product Details

3D Hinge, 180�, Aluminium, Zinc Diecast and Steel, Tectus TE 540 A8 (Part No: 924.17.304) is a premium architectural door hinge designed to deliver smooth performance and a clean, satin stainless steel effect finish. As part of the TE 540 3D A8 range, this 3-way adjustable hinge makes alignment quick and precise—ideal for installers and discerning homeowners alike who want professional results.

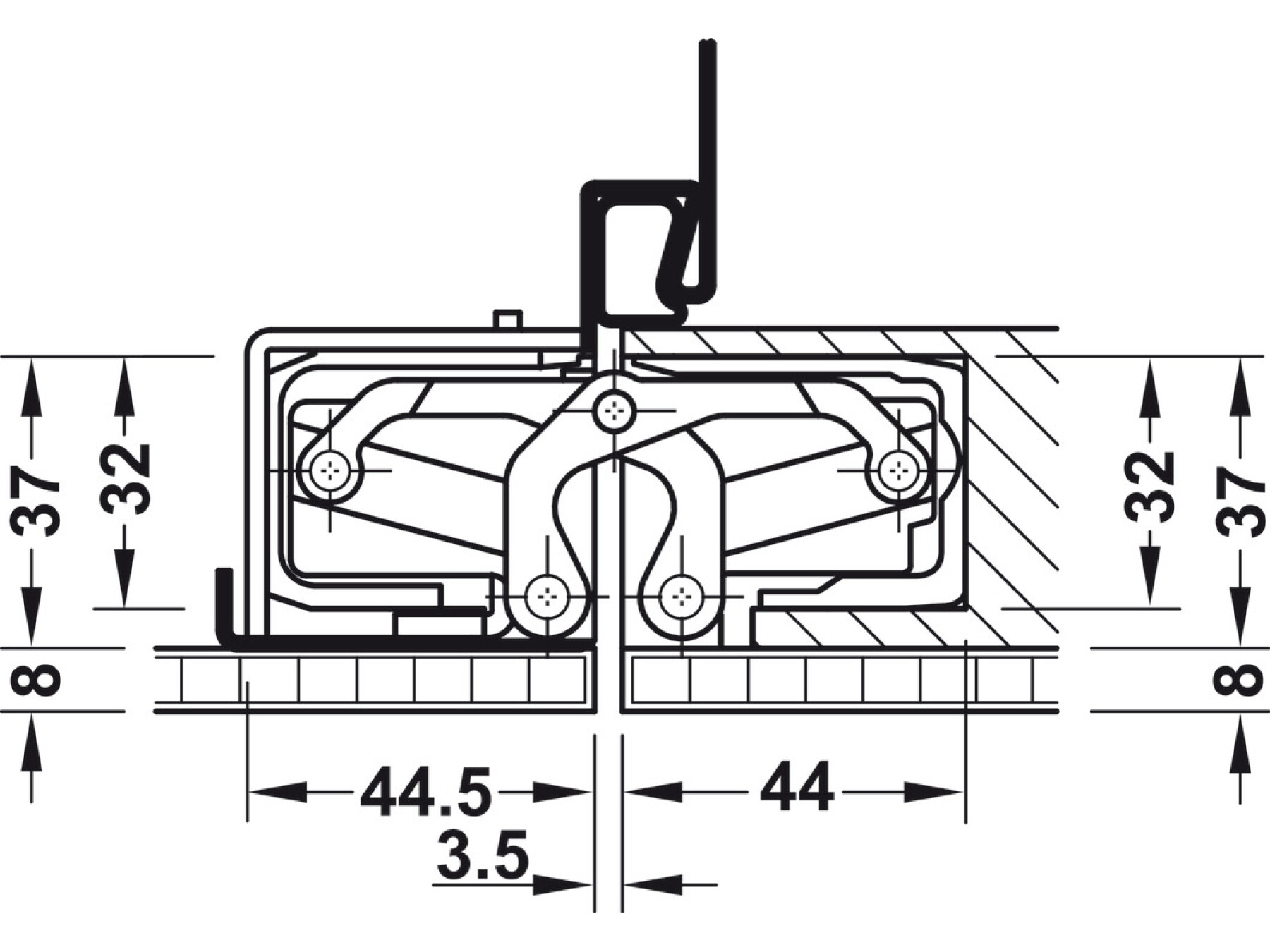

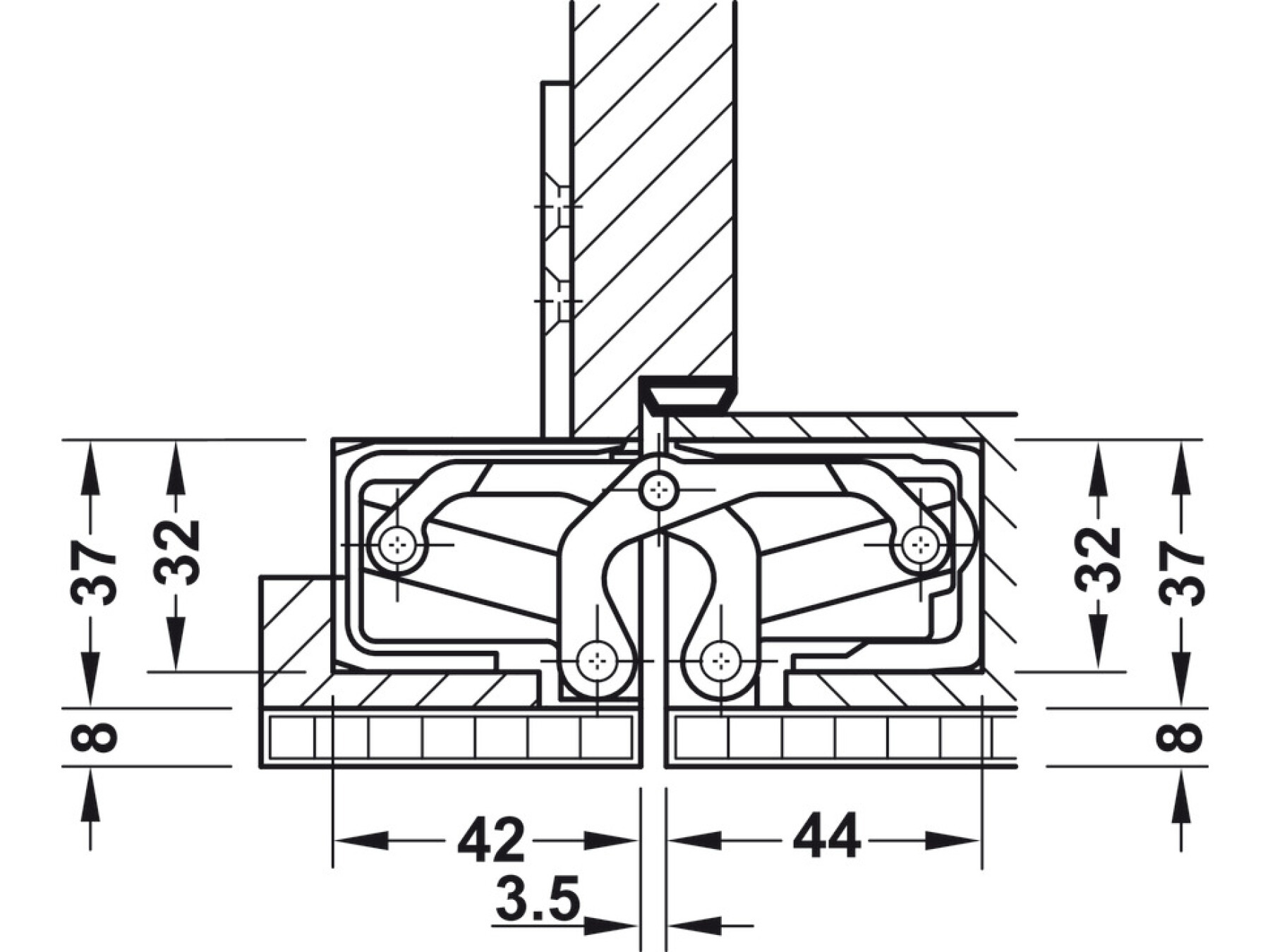

Built for modern, flush door applications, the hinge suits a wide variety of frame types including steel, wooden, and aluminium frames. It’s engineered for doors with a thickness of ≥40 mm and supports an opening angle of 180°. For added confidence on stability, the maximum door weight is 100 kg for two hinges.

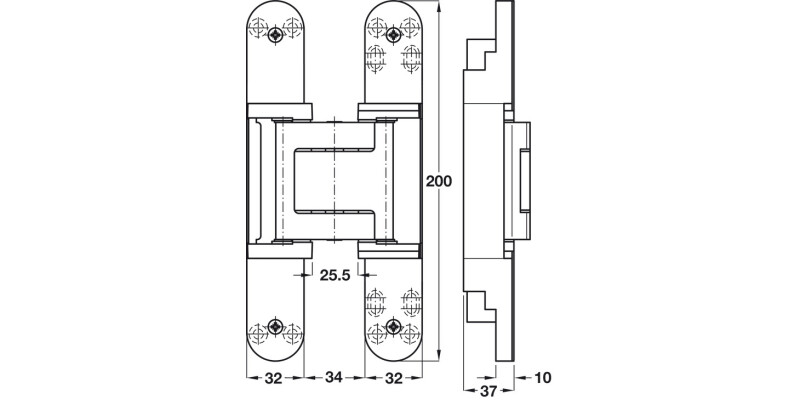

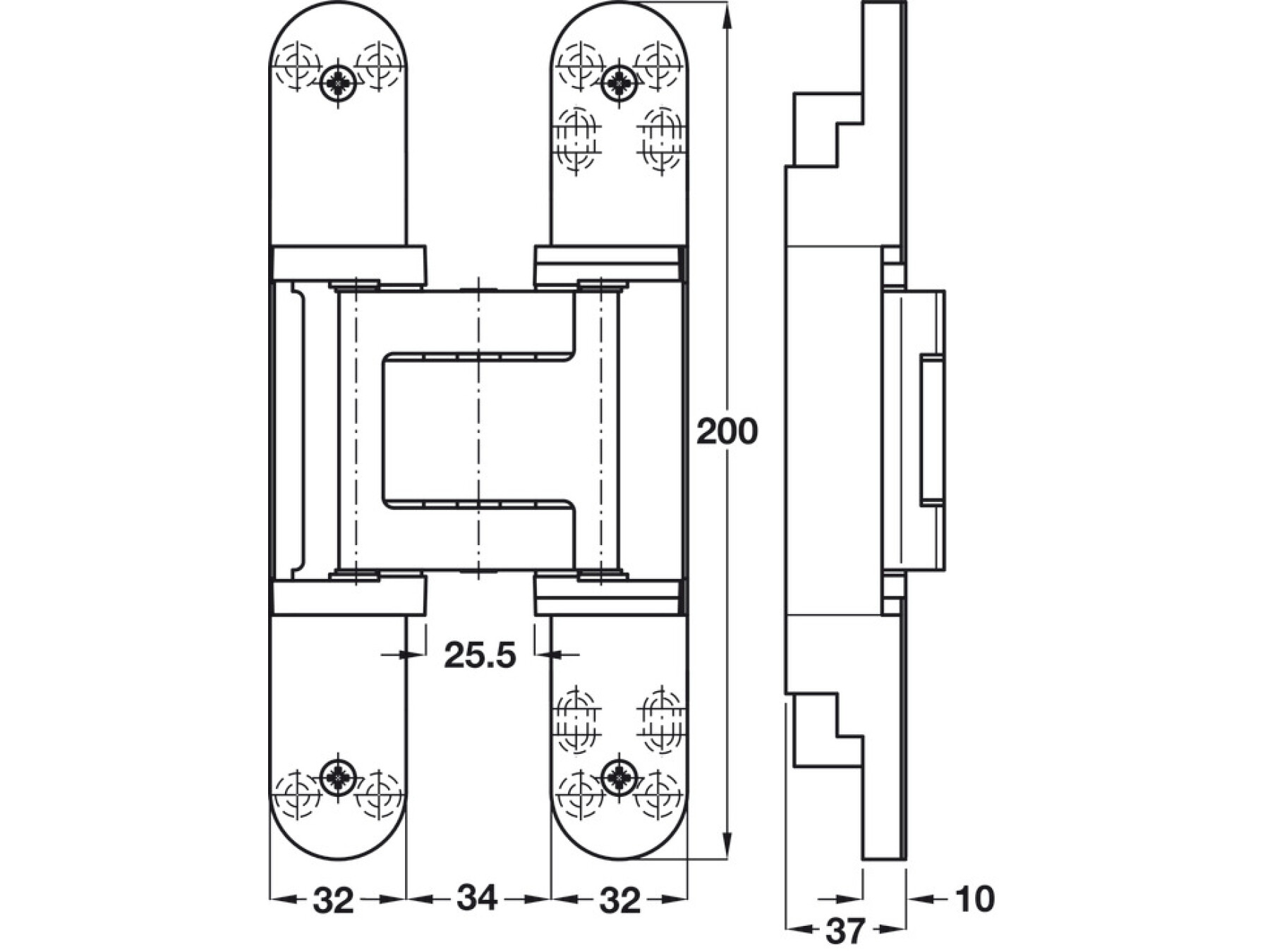

The rounded flange design provides a refined look, while the 32 mm flange width and 200 mm flange height help it sit neatly within the architectural lines of your door. Made from aluminium and steel, it’s made to handle everyday use while maintaining an elegant finish.

One of the standout features is the 3D adjustment capability: side adjustment of ±3 mm, height adjustment of -3 to +3 mm, and closing pressure fine-tuning of ±1 mm. This flexibility helps you dial in consistent gaps and alignment for a polished final appearance.

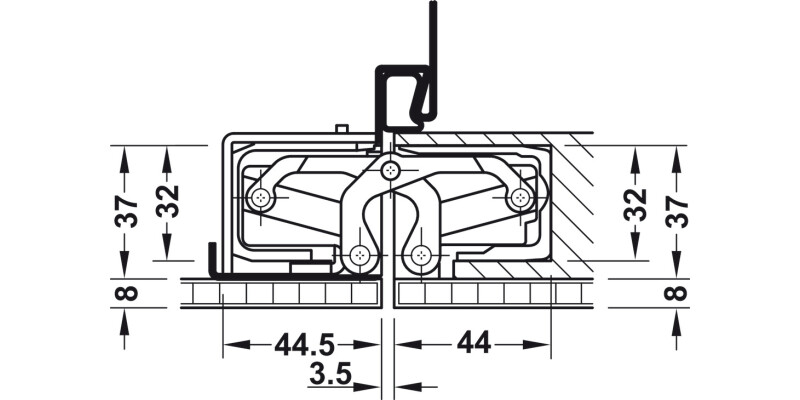

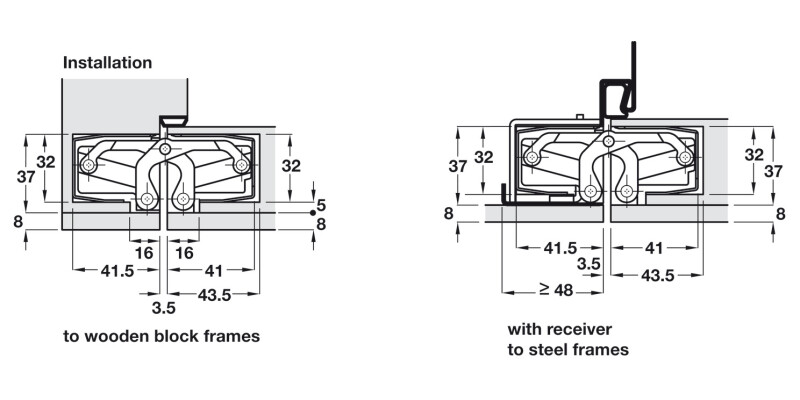

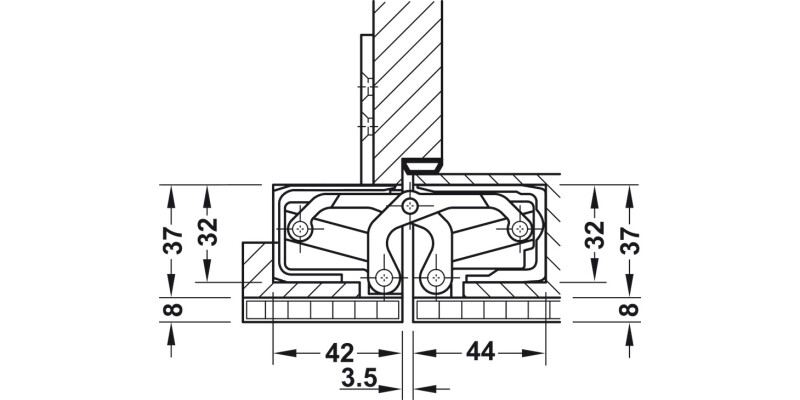

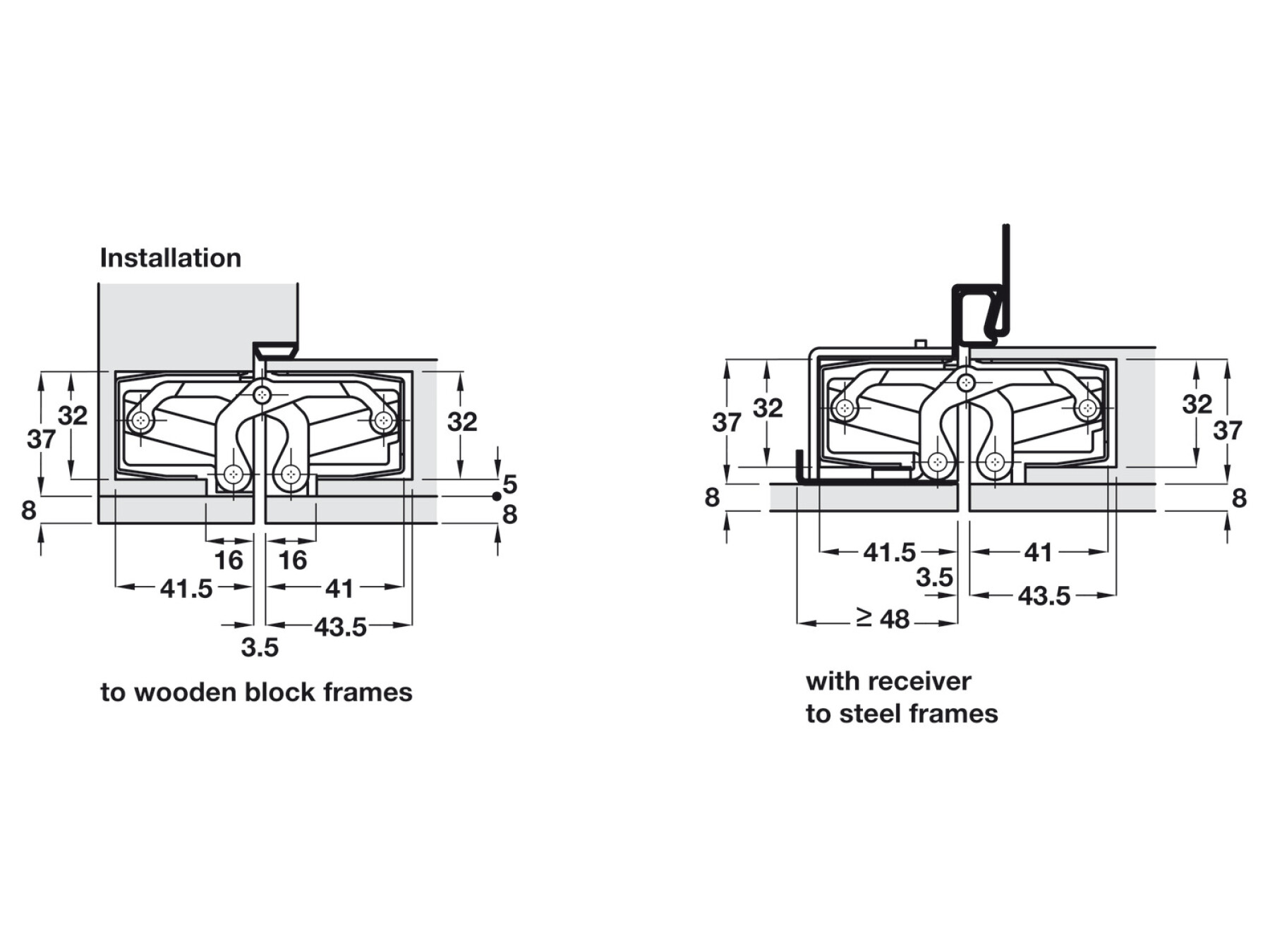

Installation is straightforward with the correct routing requirements: router bit Ø 24 mm and a thrust ring Ø 30 mm. The hinge includes fixing screws for the frame (not the door part), making it easy to get moving from the start.

Upgrade your door hardware with the 3D Hinge, 180�, Aluminium, Zinc Diecast and Steel, Tectus TE 540 A8—a practical, high-performance hinge choice for beautifully aligned, confidently closing doors.

Specifications

Mounting

For DIN left and DIN right hand use

Flange shape

rounded

Flange width

32 mm

Material

Aluminium, Steel

Model

TE 540 3D A8

Flange height

200 mm

Model series

TECTUS TE 540 3D A8

Area of application

For wooden, steel or aluminium frames
For flush doors

For frame type

Steel frame, Wooden frame, Aluminium frame

Max. door weight for 2 hinges

100.00 kg

Opening angle

180.00 °

Door thickness

≥40 mm

Router bit Ø

24.00 mm

Thrust ring Ø

30.00 mm

Adjustment facility

3D, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm

Supplied with

Fixing screws included for frame, not for door part

FAQ

Product Details

Is the Tectus TE540 3D hinge suitable for both left and right hand doors?

Yes. This hinge is designed for use with DIN left and DIN right applications. When installing, make sure you select the correct handed fixing position for your door set and follow the mounting guidance supplied with the hinge system.

How much adjustment does the TE540 3D hinge provide after the door is installed?

The hinge offers 3 way continuous adjustment to help you fine tune the door alignment. This includes side adjustment of 3 mm, height adjustment from minus 3 mm to plus 3 mm, and closing pressure adjustment of plus or minus 1 mm, so you can achieve a consistent fit.

What door thickness can this hinge be used with?

This hinge is intended for door thicknesses of at least 40 mm. Using the correct door thickness helps ensure the hinge geometry and adjustment range work as expected.

What is the maximum door weight when using this hinge set?

For safe performance, the hinge is rated for up to 100 kg maximum door weight for 2 hinges. If you are fitting more hinges, total door weight considerations may differ, so it is worth confirming the spec for your door size and layout.

Can it be used on different frame types such as steel, timber or aluminium?

Yes. It is suitable for steel, wooden, and aluminium frames and is also described for flush doors. This flexibility makes it a practical choice for many commercial and residential ironmongery projects.

What opening angle does this hinge allow?

The hinge supports an opening angle of 180 degrees. This is useful where you need full access to the doorway, such as in circulation spaces or for wider openings.

Does the hinge require a specific router bit size for installation?

Yes. The recommended router bit diameter is 24 mm, and the hinge leaf uses a thrust ring diameter of 30 mm. Using the correct cutter size helps you achieve a clean mortice and proper seating.
