3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 240

Product Details

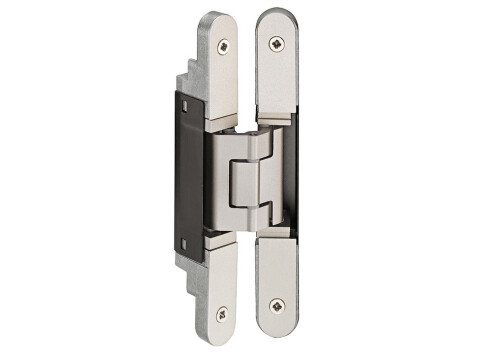

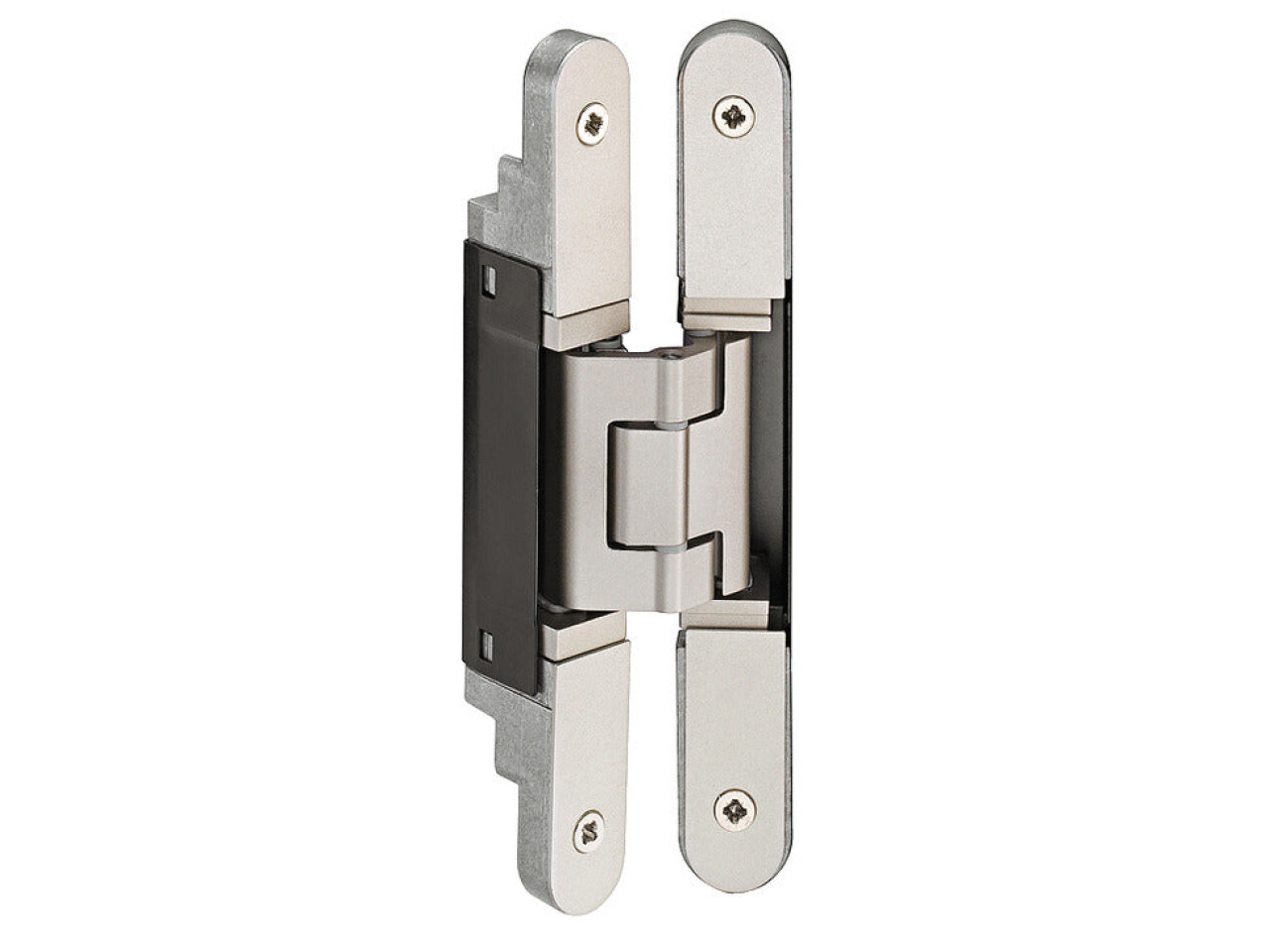

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 240 (Part No: 924.17.004) is a premium 3D architectural door hinge designed for smooth operation, precise alignment, and a clean, modern finish. If you’re upgrading a residential or commercial entrance, this hinge delivers the kind of accuracy and stability that makes doors feel perfectly fitted every day.

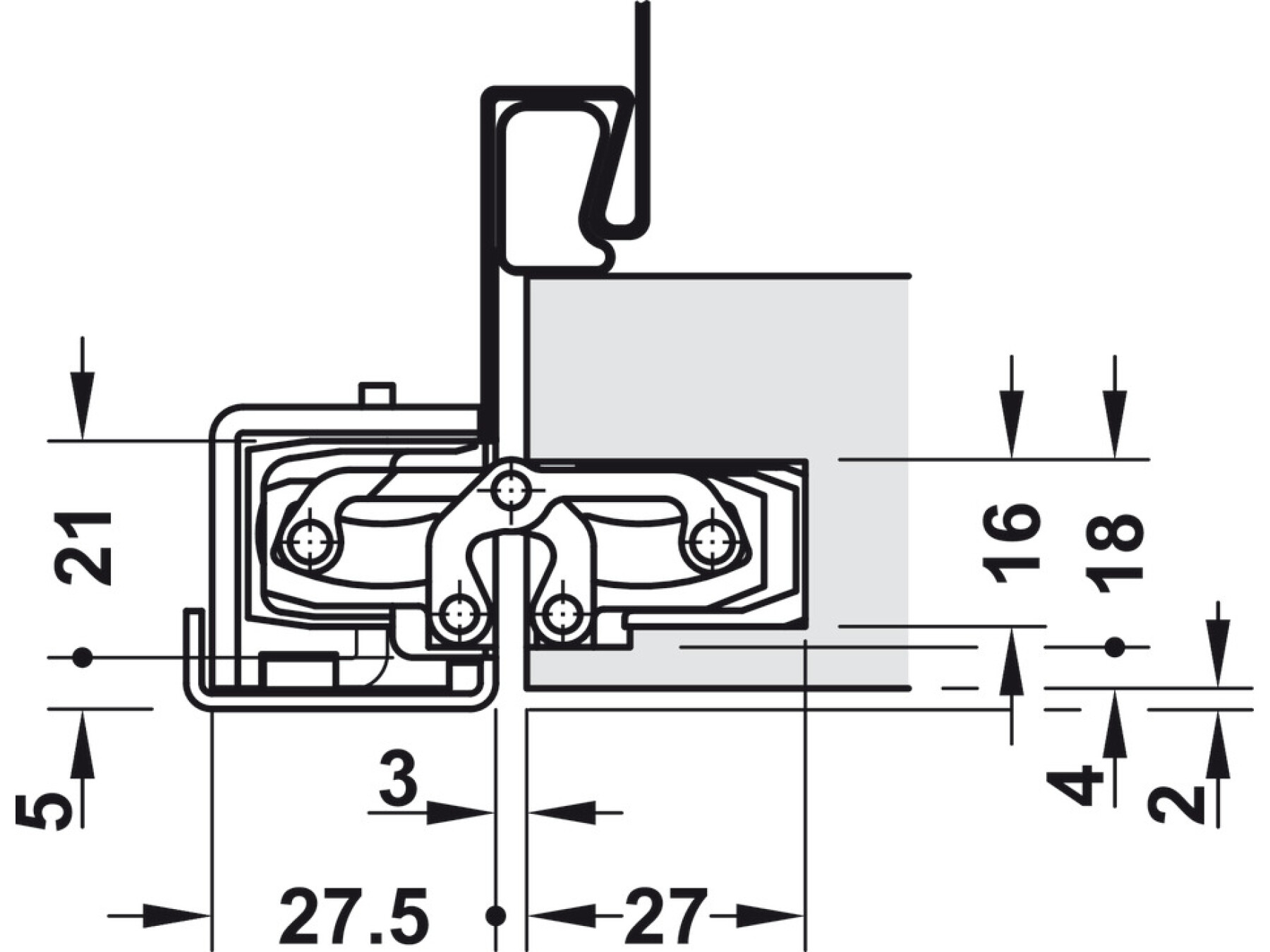

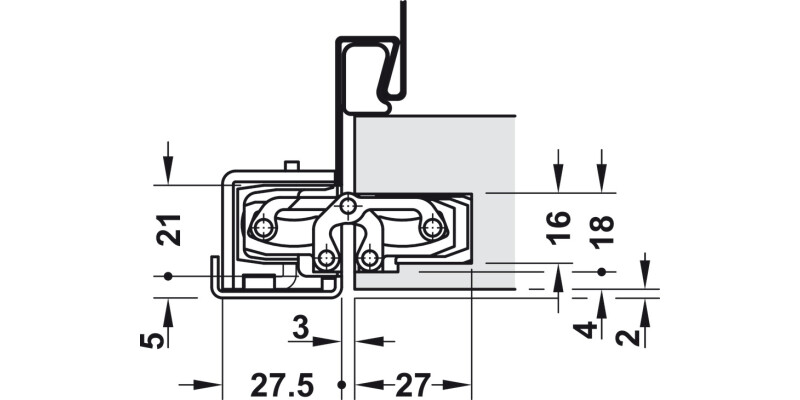

Featuring the 3D continuous adjustment system, the TE240 helps you fine-tune your door in seconds—supporting side correction of 3 mm, height adjustment of -3 to +3 mm, and closing pressure compensation of ±1.5 mm. That means fewer installation headaches and a more consistent result, even when your door requires subtle correction after fitting.

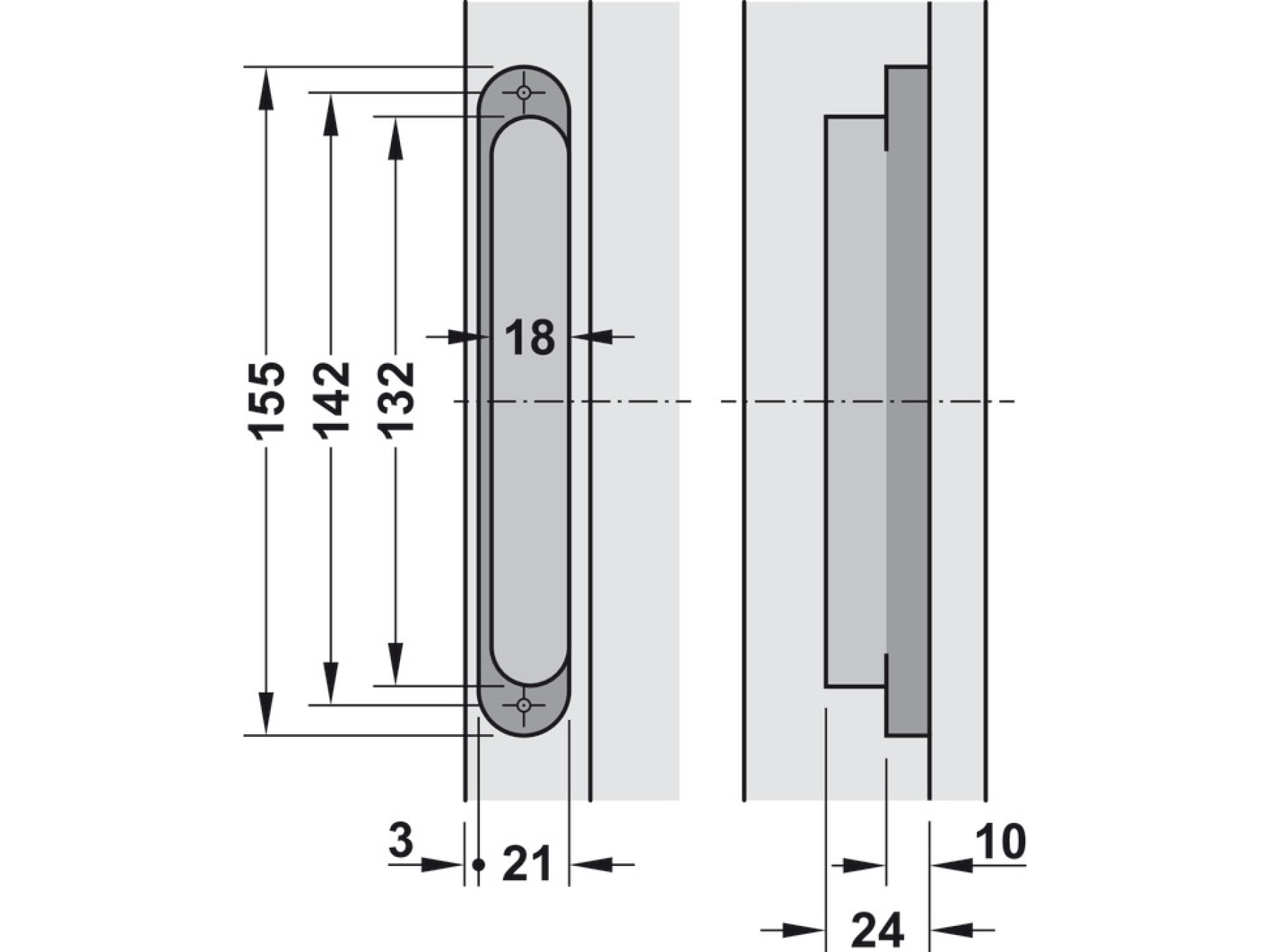

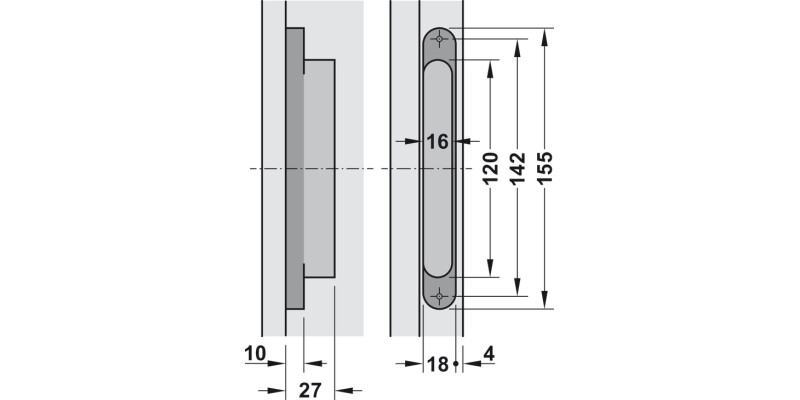

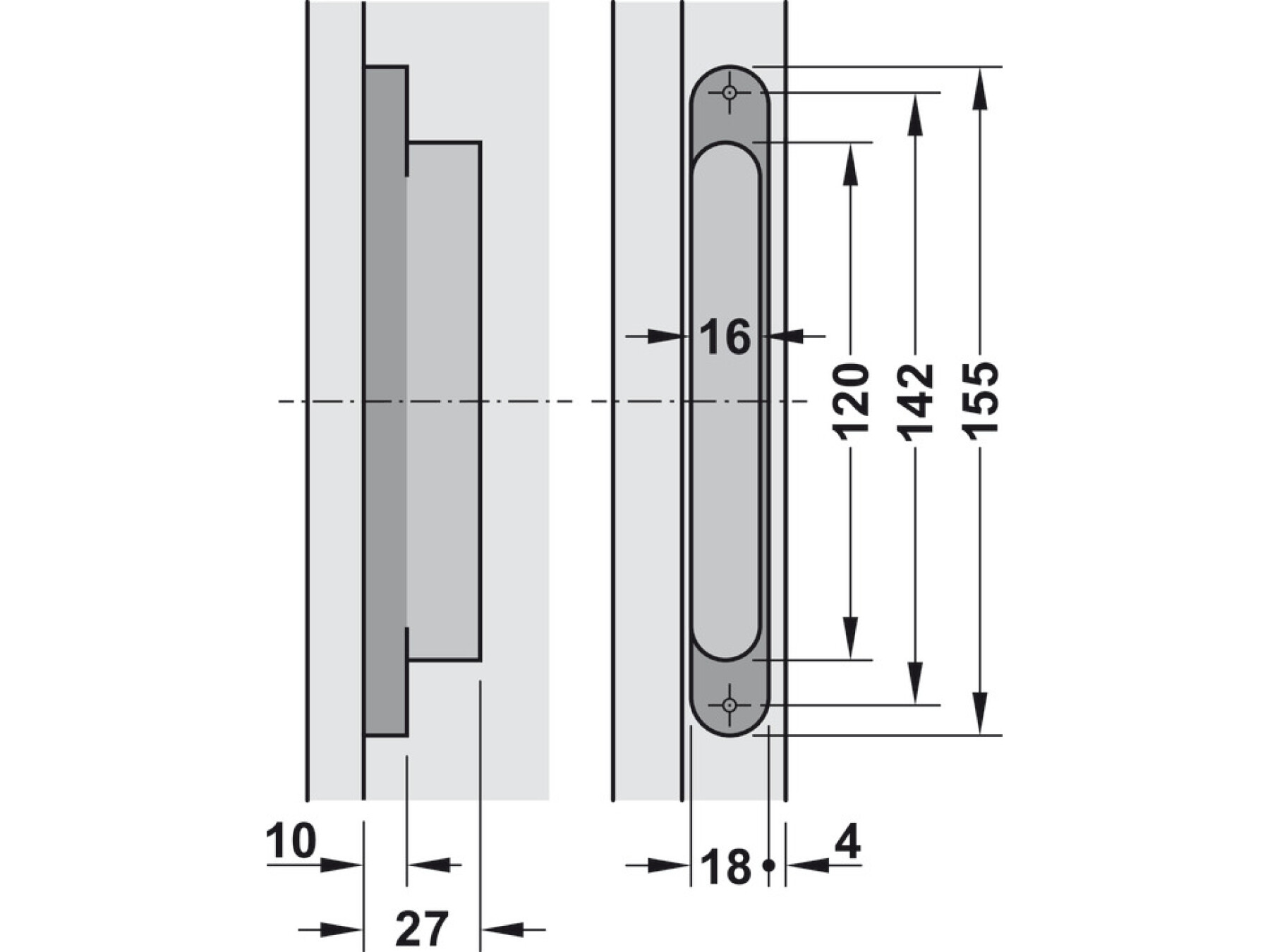

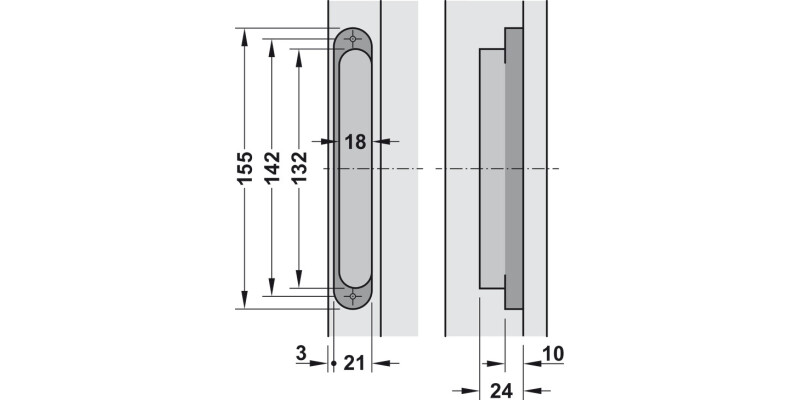

Built for real-world performance, the hinge is certified to EN 1935:2002 and uses maintenance-free friction bearings for reliable day-to-day movement. The Satin stainless steel effect (SSSE) provides an elegant look, while the rounded flange with a 21 mm / 18 mm width and 155 mm flange height creates a refined architectural profile.

Designed for wooden, steel, or aluminium frames and suitable for flush doors, this model supports an opening angle of 180°. With a maximum door weight of 60 kg for two hinges, it’s a dependable choice for medium-duty applications.

Choose the 3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 240 for confident alignment, lasting performance, and a premium finish—then enjoy a door that closes exactly the way it should.
