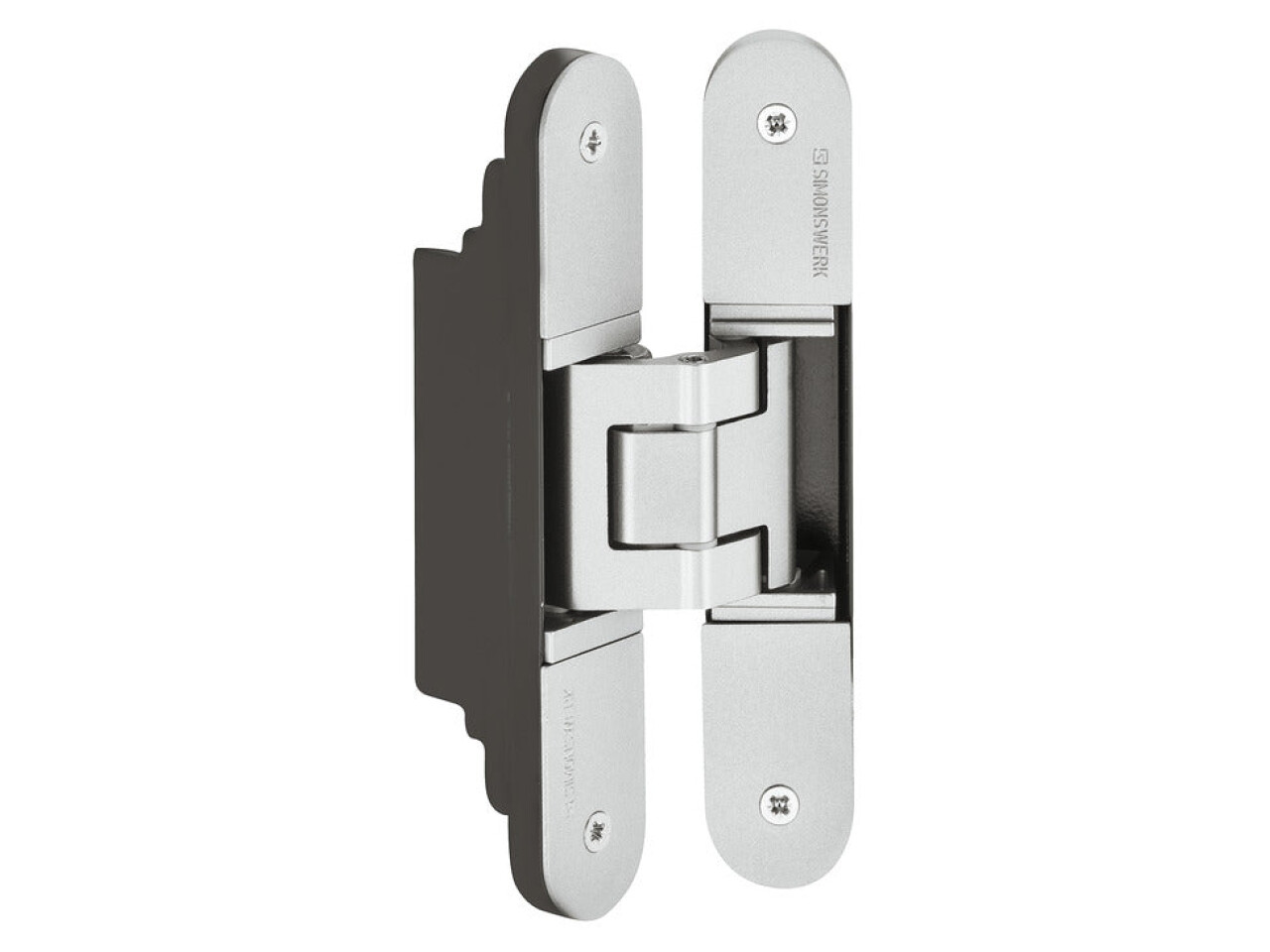

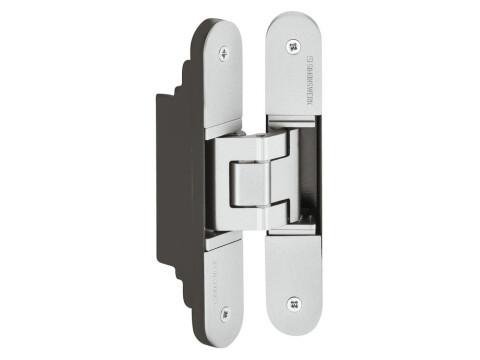

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 340

Product Details

FAQ for Tectus TE340 3D 180D Hinge BM (Part No. 924.17.150)

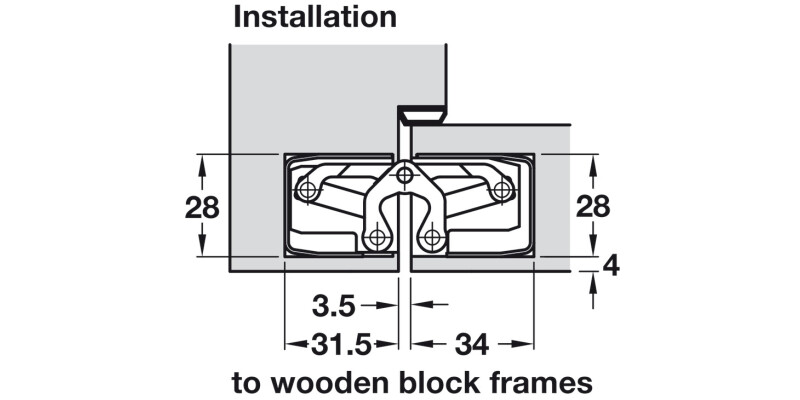

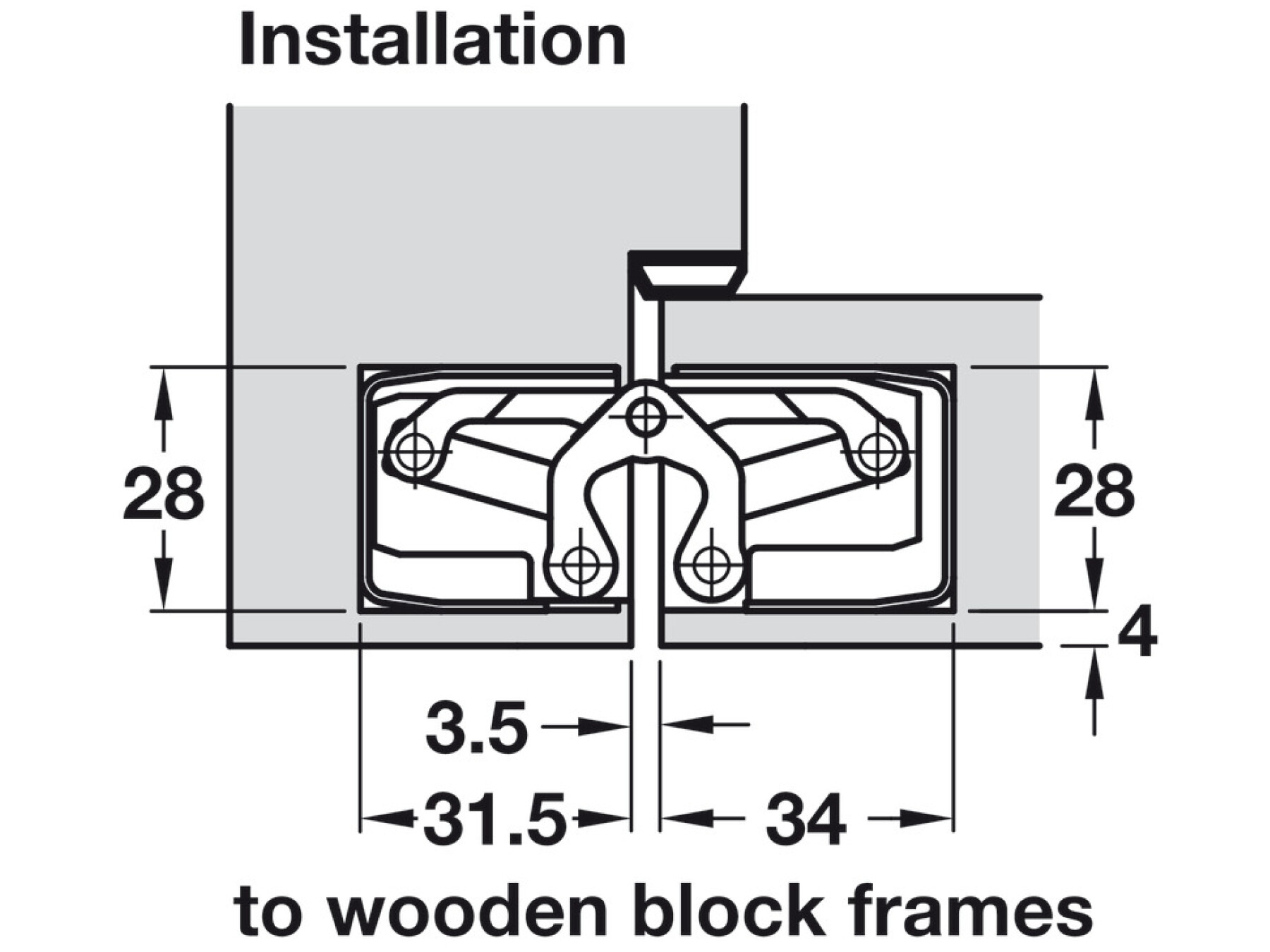

Can I use the Tectus TE340 3D hinge on different frame types?

Yes. This hinge is suitable for metal, aluminium, and wooden frames and is designed for flush doors. That flexibility makes it a practical choice when you are fitting multiple door types across the same project.

What door sizes and weight can it handle?

For two hinges, the maximum door weight is 80 kg. The hinge is rated for an opening angle up to 180 degrees, which is useful when you need full access clearances.

How does the 3 way continuous adjustment work?

It offers continuous, three dimensional adjustment to help you fine tune alignment after fitting. Side adjustment is plus or minus 3 mm, height adjustment is minus 3 to plus 3 mm, and closing pressure adjustment is plus or minus 1 mm. This helps achieve an even reveal and reliable door closing.

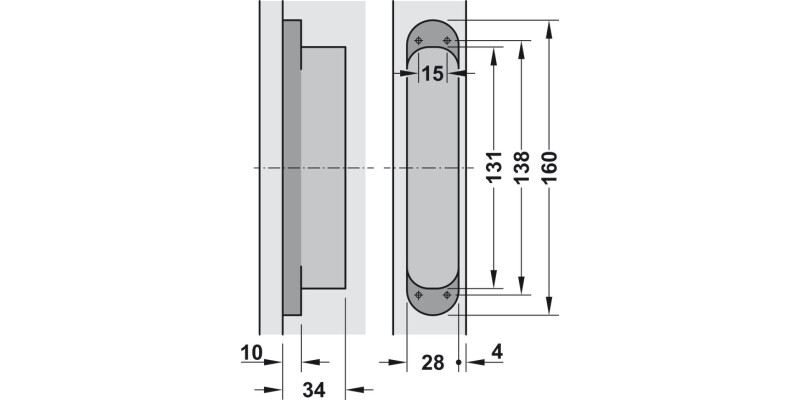

What door thickness and routing requirement do I need to prepare?

This hinge is designed for doors with thickness 38 mm or more. The required router bit diameter is 24 mm, which helps ensure the hinge pocket is sized correctly for a secure fit.

Is the bearing maintenance free?

Yes. The hinge uses a friction bearing that is maintenance free. In everyday use, this reduces ongoing upkeep compared with hinges that rely on regular lubrication.

What materials is the hinge built from?

The hinge is made from aluminium and steel. These materials are chosen to balance strength for the application with reliable performance over time, including smooth operation.

Does the hinge meet relevant standards?

It is certified in compliance with EN 1935:2002. That standard relates to performance requirements for hinges and helps you check that the product is built for the expected door hardware performance.

What comes in the box when I order?

The hinge is supplied with fixing screws. Having the correct screws included helps you complete the installation without needing to source compatibility separately.
