3D Hinge, 180°, with Integrated Intumescent Kit, Tectus TE 340 3D FR

Product Details

3D Hinge, 180°, with Integrated Intumescent Kit, Tectus TE 340 3D FR (Part No: 924.19.041) is a premium 3D hinge designed for smooth, precise door operation with a beautifully understated bronze finish. If you’re upgrading architectural ironmongery for a flush door, this hinge delivers confident performance while keeping your installation clean, stable, and professional.

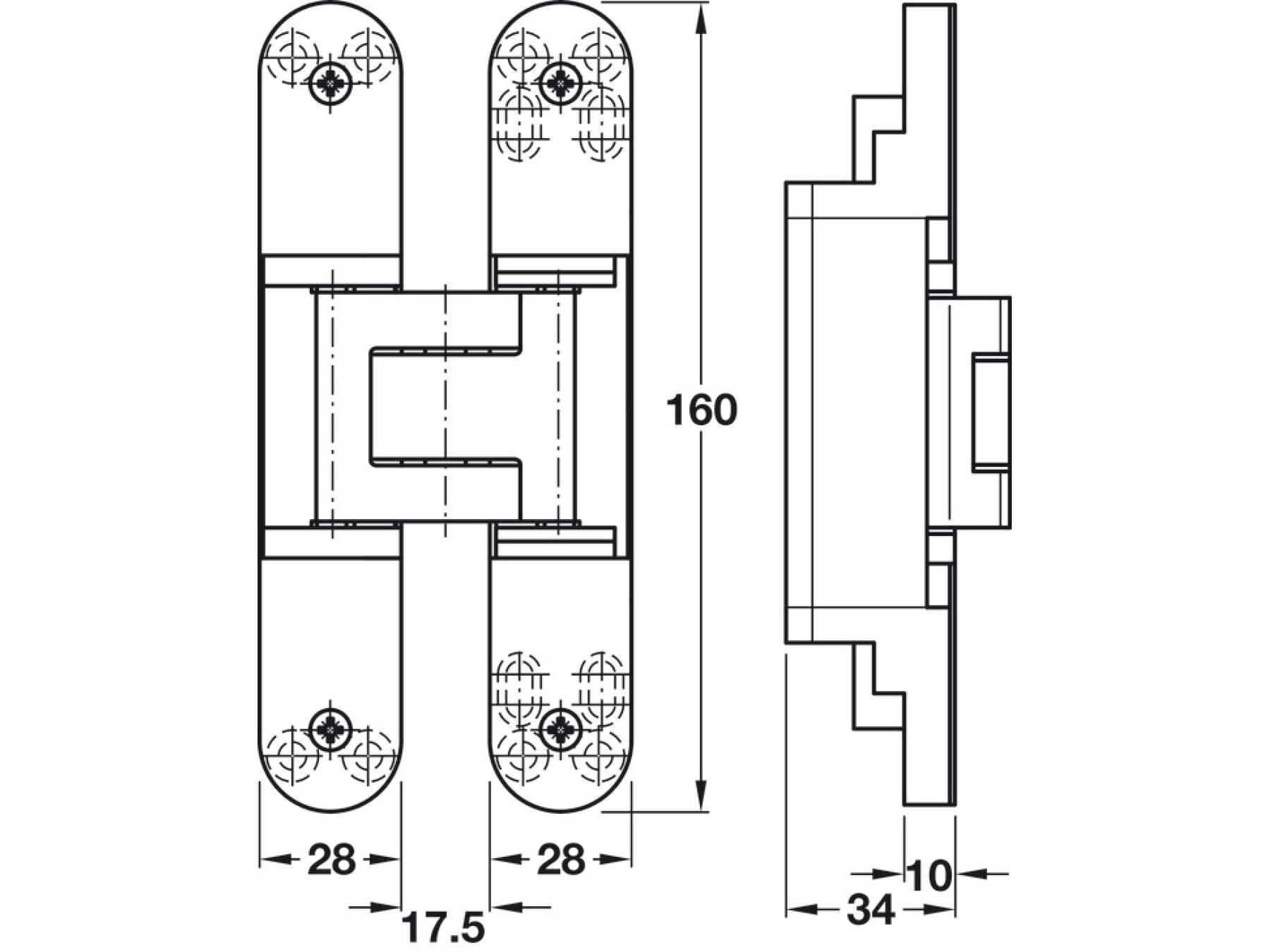

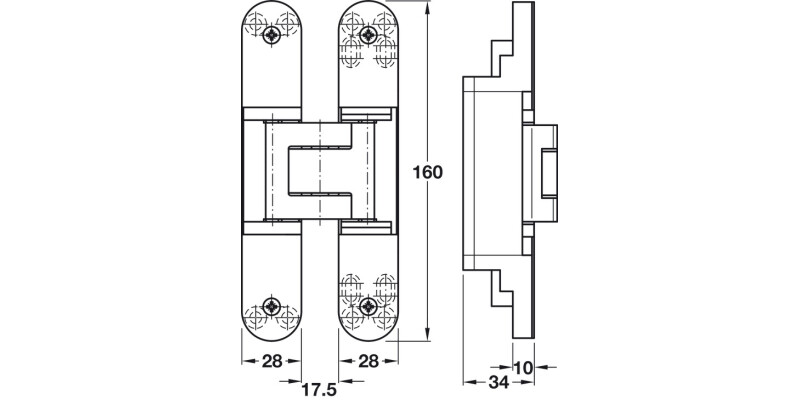

Engineered for versatility, the hinge features a rounded flange with a 28 mm flange width and a 160 mm flange height. Built from aluminium and steel, it’s made to handle demanding everyday use—ideal for quality metalwork and refined interior door systems.

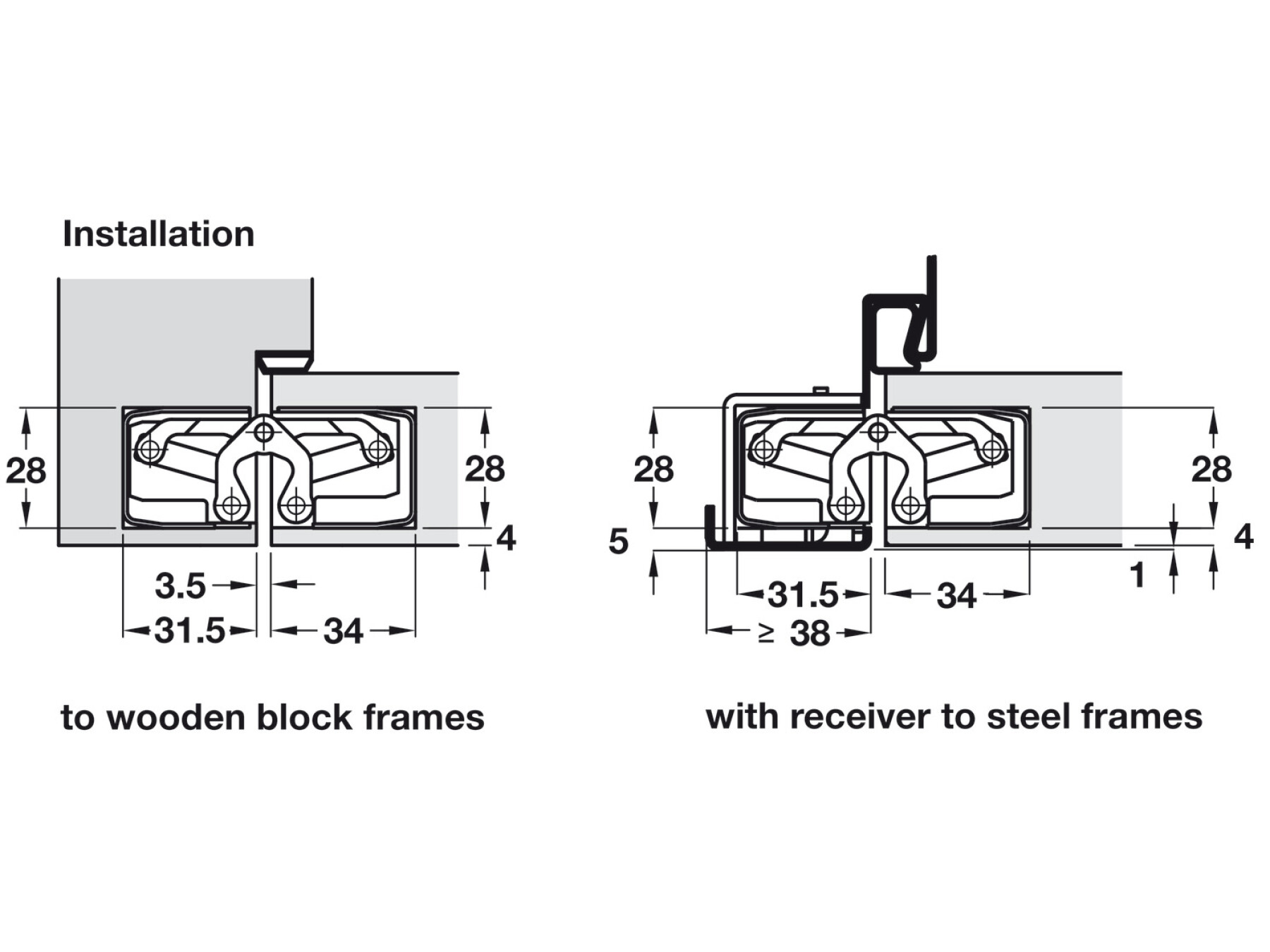

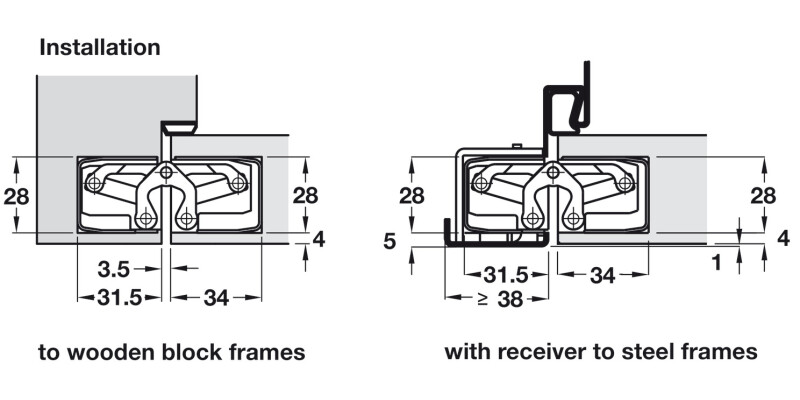

Designed for wooden, steel or aluminium frames, this hinge supports flush doors and is suitable for metal frames and wooden frames. With a maximum door weight of 80.00 kg for 2 hinges, you can fit it with confidence on appropriately specified doors.

Performance details are impressive: the opening angle of 180° makes it perfect for accessible spaces and flexible layouts. It accommodates door thicknesses of ≥30 mm and uses a router bit Ø 24.00 mm. The required thrust ring Ø 30.00 mm helps ensure accurate alignment and a secure fit.

Thanks to its 3D adjustment facility, installation and fine-tuning are straightforward: Side: 3 mm, Height: -3 to +3 mm, and closing pressure: ±1 mm. Supplied with fixings, the 3D Hinge, 180°, with Integrated Intumescent Kit, Tectus TE 340 3D FR simplifies your workflow from fitment to finishing.

Fixings
