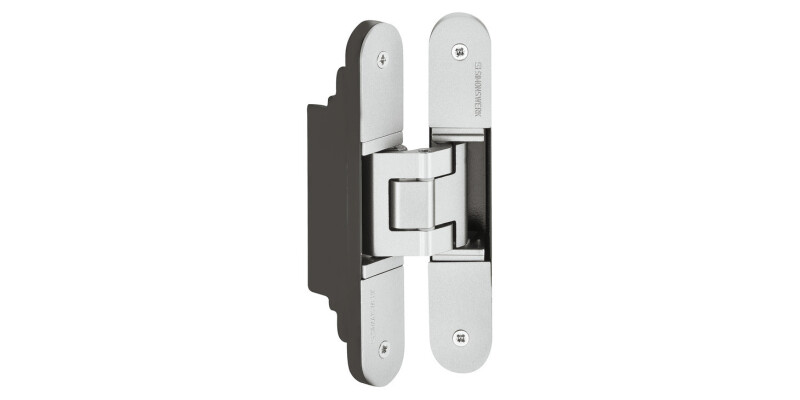

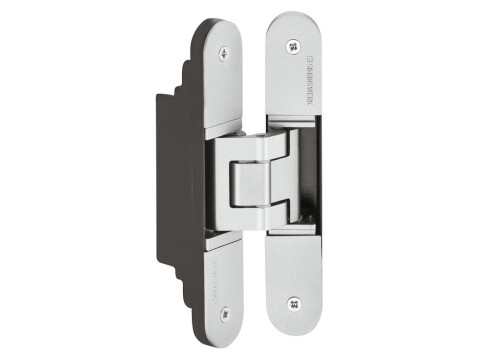

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 340

Product Details

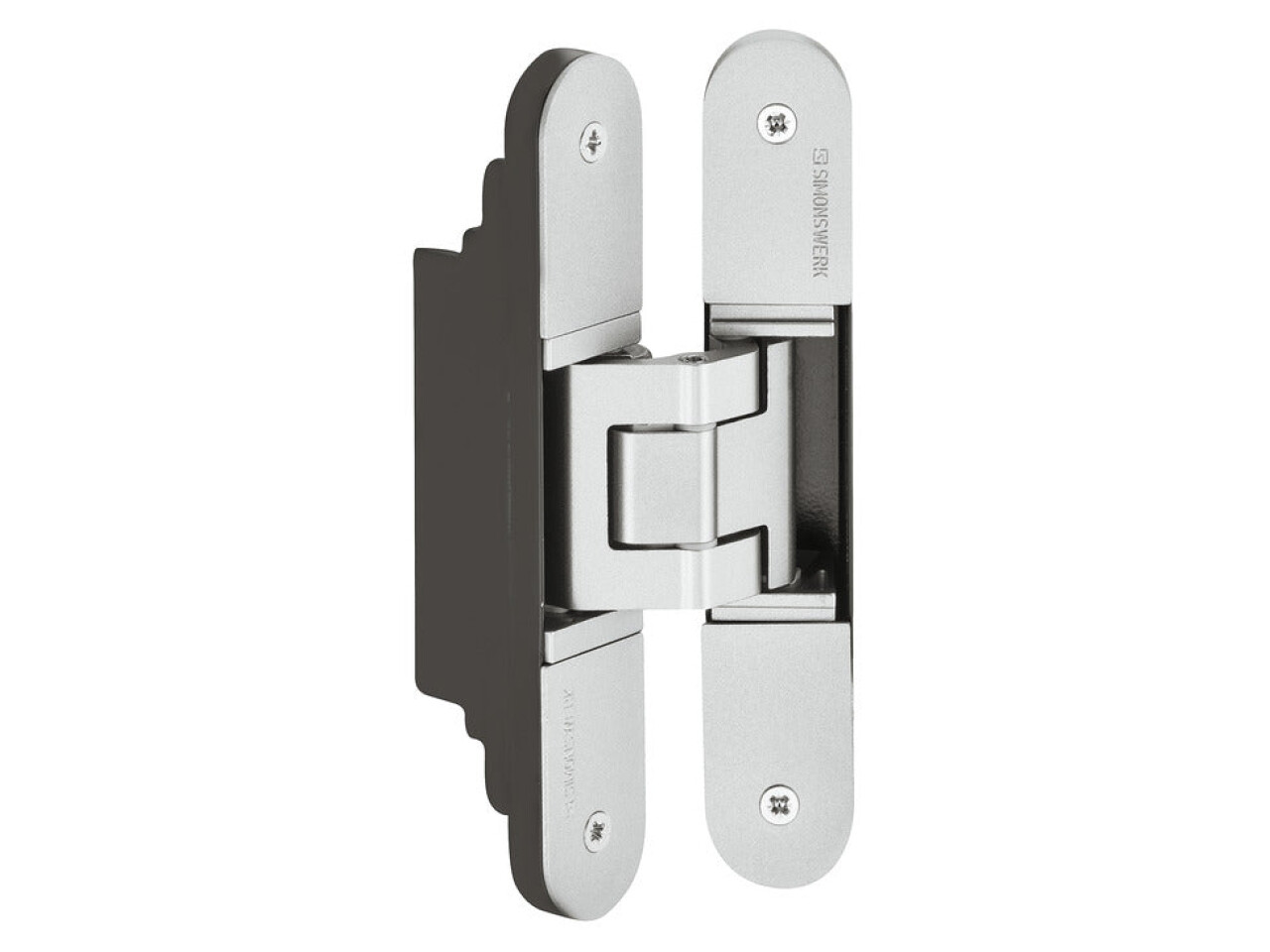

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 340 (Part No: 924.17.170) is a premium choice for anyone upgrading their door hardware with precision-engineered architectural ironmongery. Designed for flush doors and built for smooth, reliable performance, this 3-way continuous adjustment hinge helps you fine-tune door alignment for a clean, professional finish—ideal for installers and demanding residential or commercial projects.

The Polished nickel plated surface gives a refined look that complements modern interiors, while the robust construction from Aluminium and Steel supports long-term durability. With an opening angle of 180°, the hinge is perfect for doors that require a wide swing for comfortable daily use.

Thanks to its 3D continuous adjustment, you can dial in the fit exactly where it matters: side adjustment of 3 mm, height adjustment ranging from -3 to +3 mm, and closing pressure adjustment of ±1 mm. This flexibility makes it easier to achieve consistent gaps and smooth closing—especially when working with frames that need careful alignment.

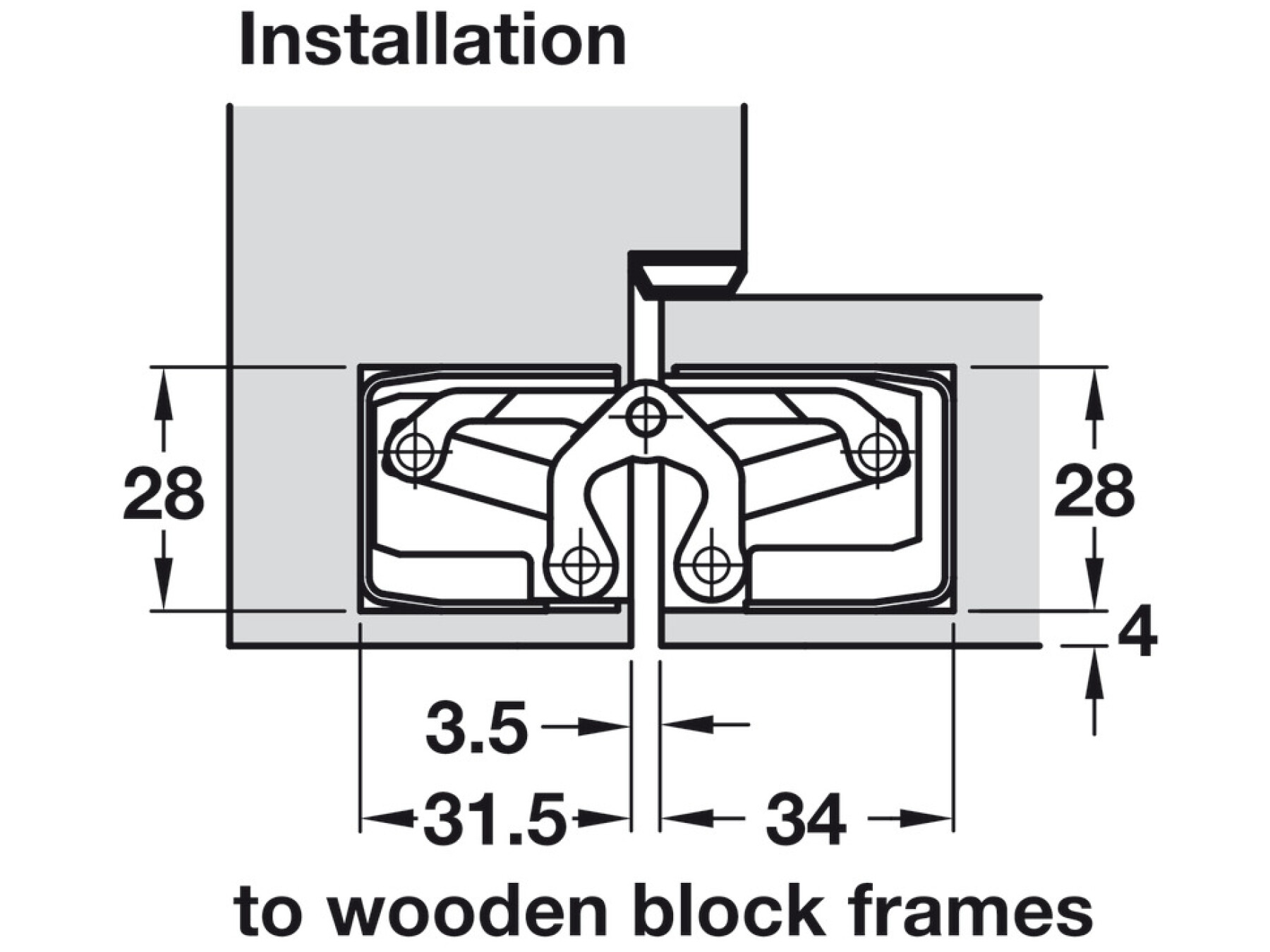

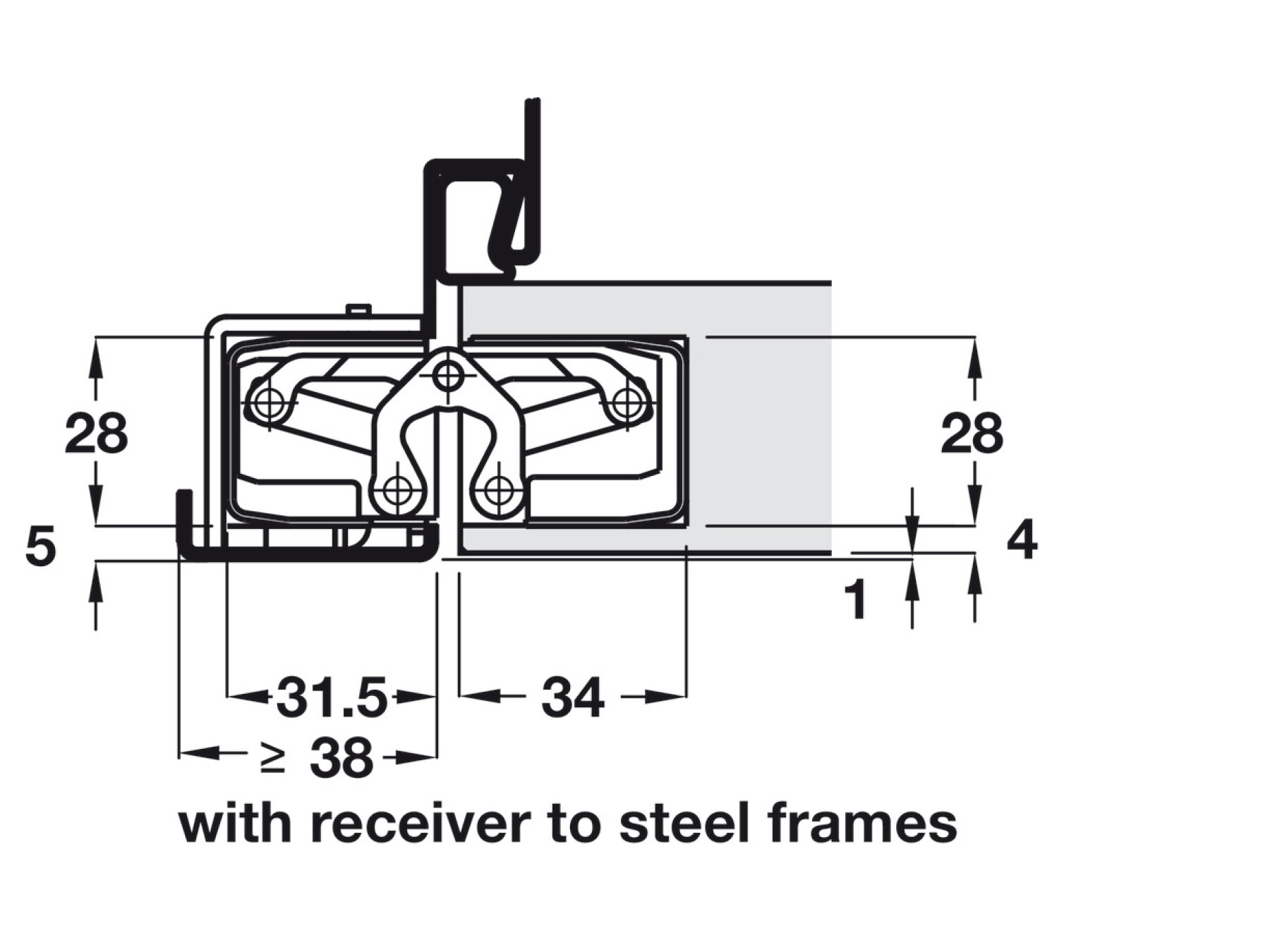

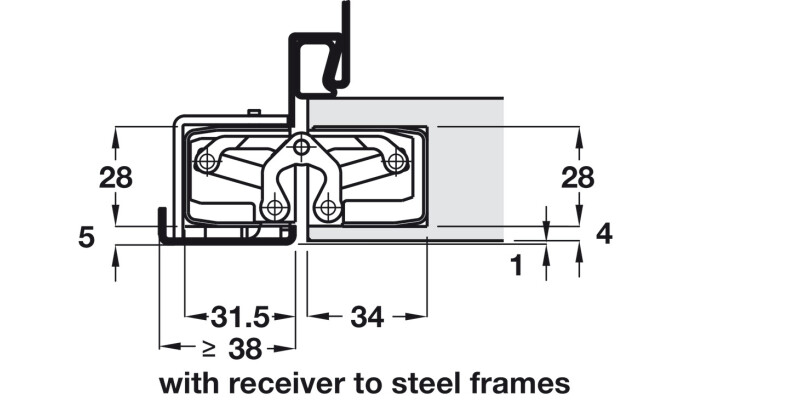

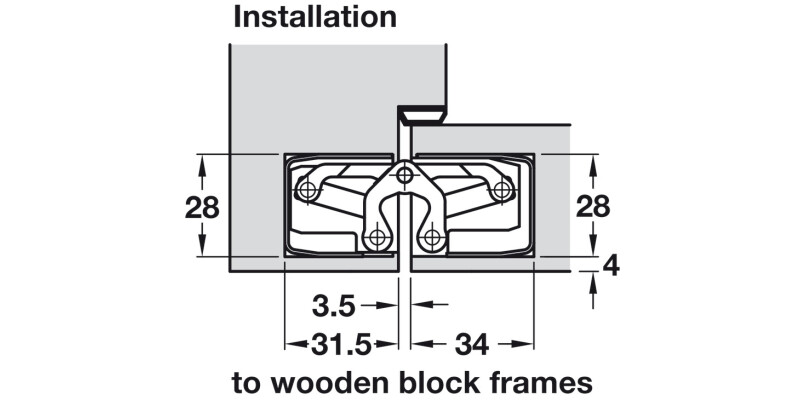

Suitable for metal, aluminium, or wooden frames, the TECTUS TE 340 3D hinge is intended for doors with a thickness of ≥38 mm. It supports up to 80 kg door weight per pair of hinges and uses a router bit Ø 24 mm for accurate installation. The maintenance-free friction bearing enhances long-lasting smooth operation.

Certified to EN 1935:2002, and supplied with fixing screws, this hinge combines performance, confidence, and an elegant polished nickel finish—making the 3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 340 an excellent upgrade you’ll feel every time the door opens.

Fixing screws
