3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 540

Product Details

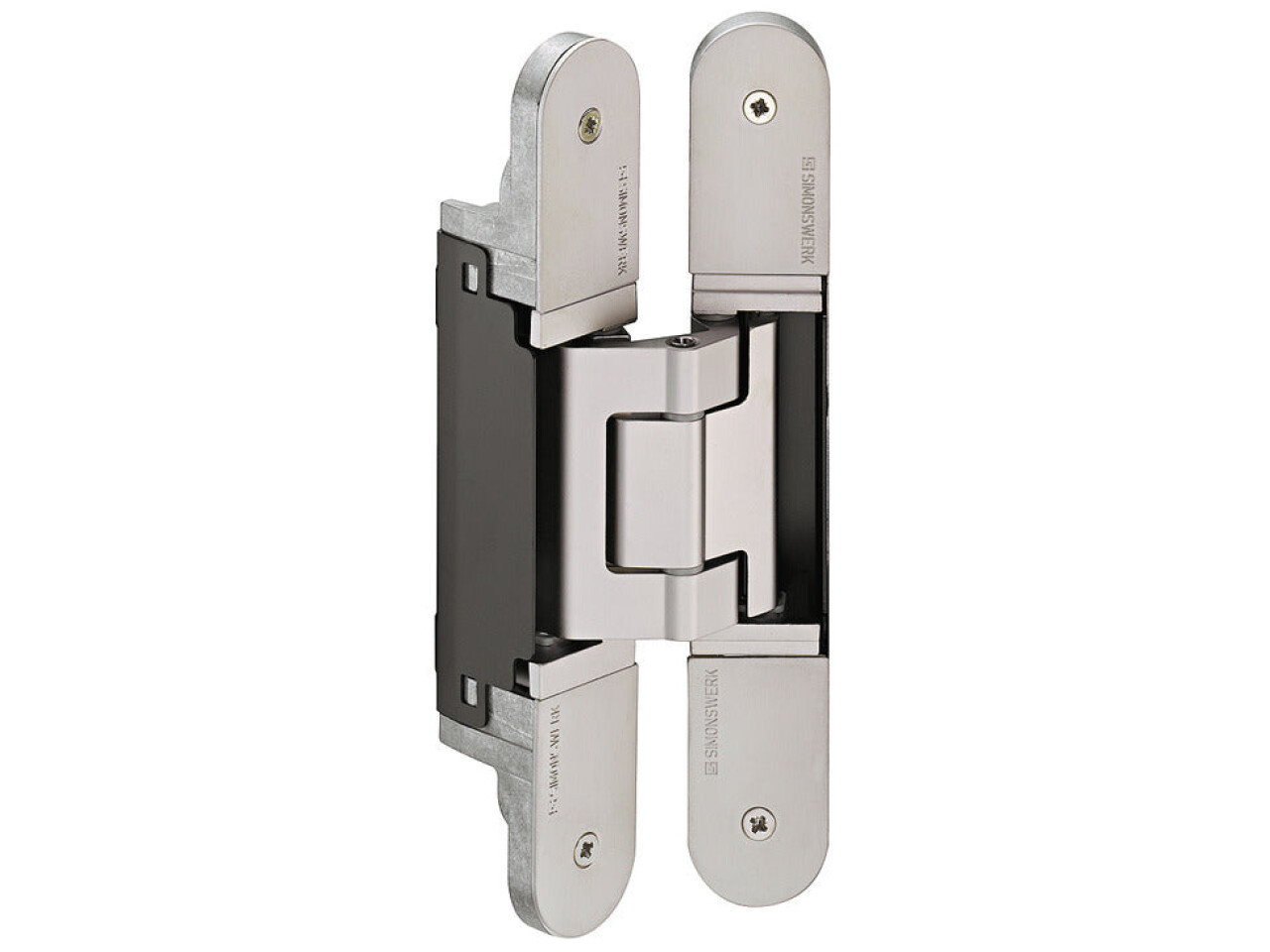

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 540 (Product Part No: 924.17.222) is a high-performance architectural door hinge designed for smooth, accurate alignment and long-lasting durability. Built for installers and specifiers who want dependable performance, this 3-way continuous adjustment 3D hinge helps you fine-tune the door for a professional finish—day one and for years to come.

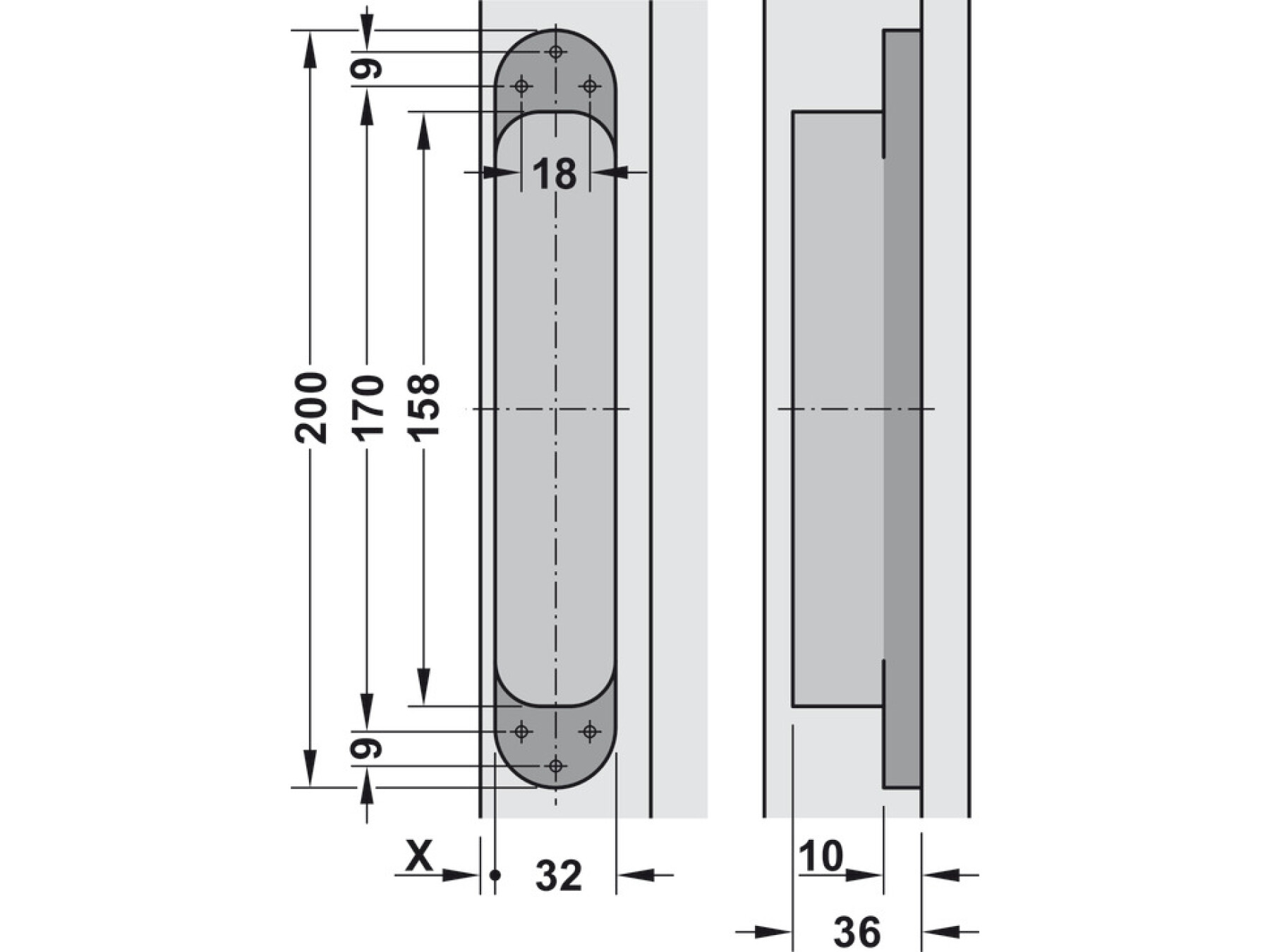

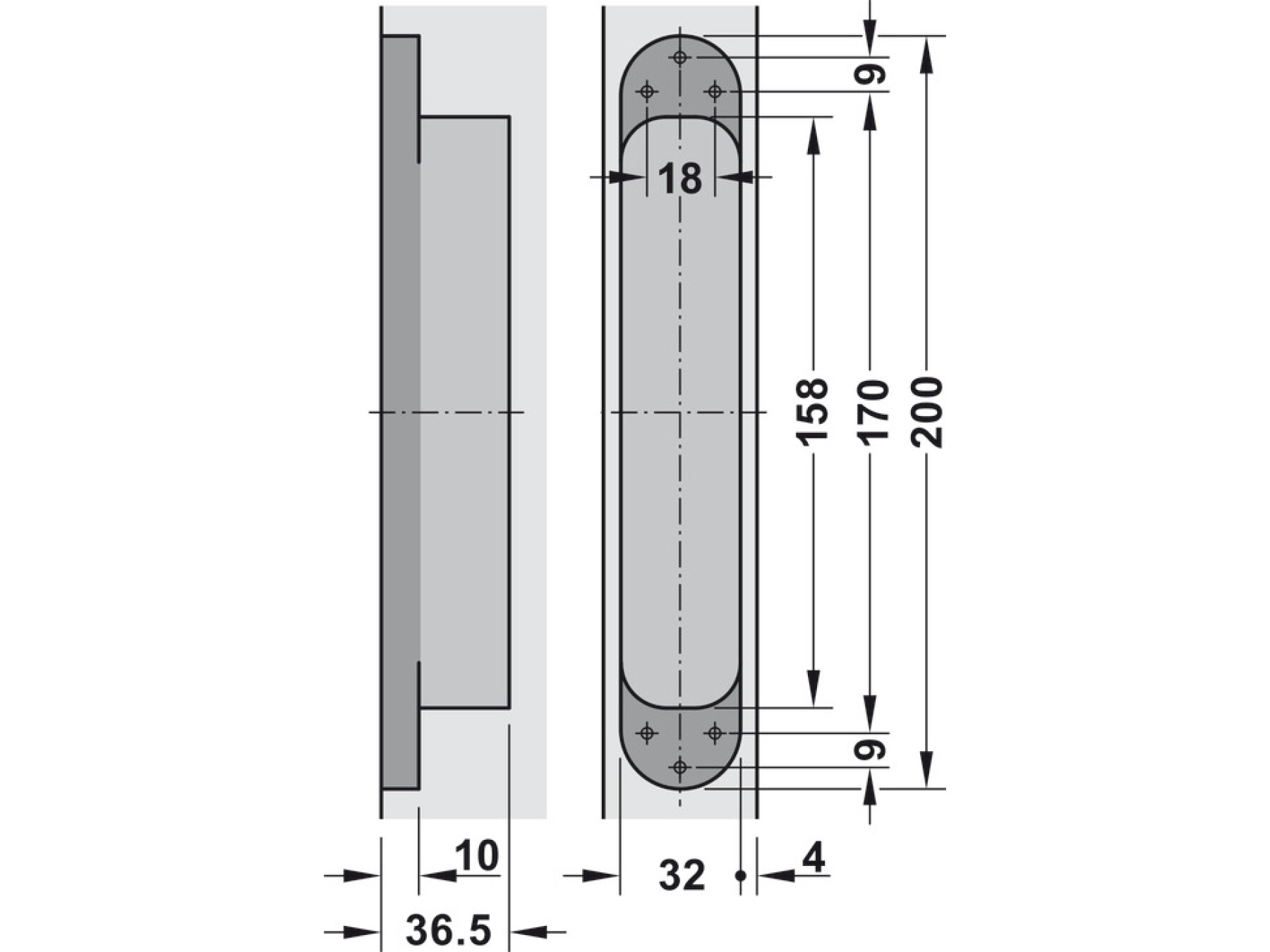

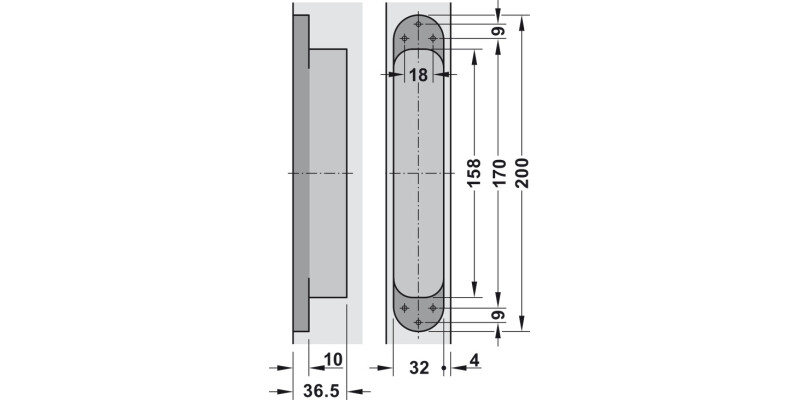

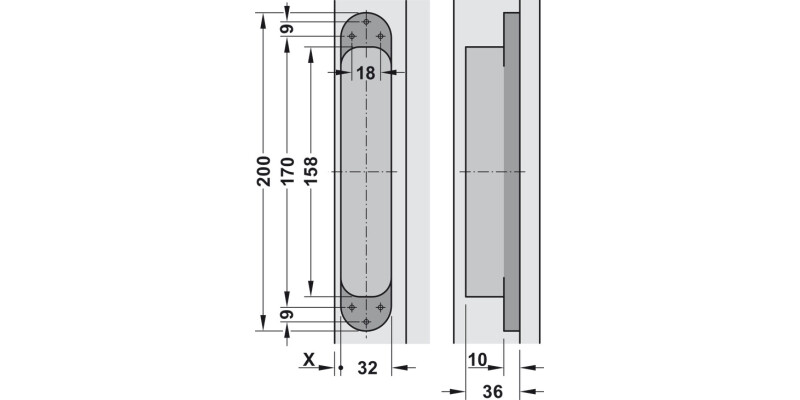

Finished in matt nickel (f2) powder coated, the hinge delivers a refined look that suits modern interiors while staying resistant to everyday wear. Its rounded flange shape and 32 mm flange width create a neat, streamlined installation.

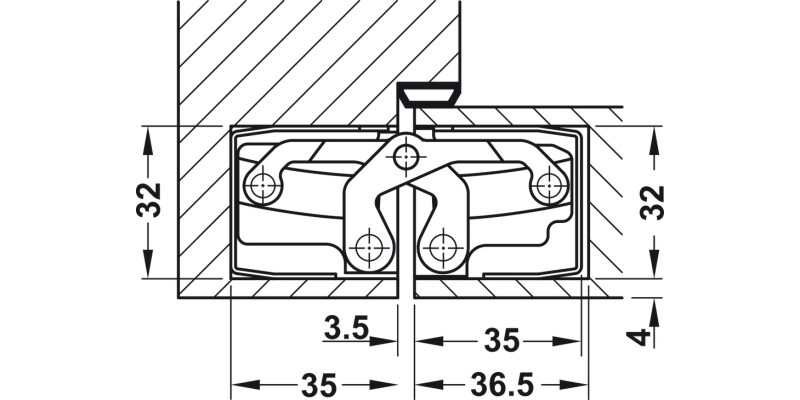

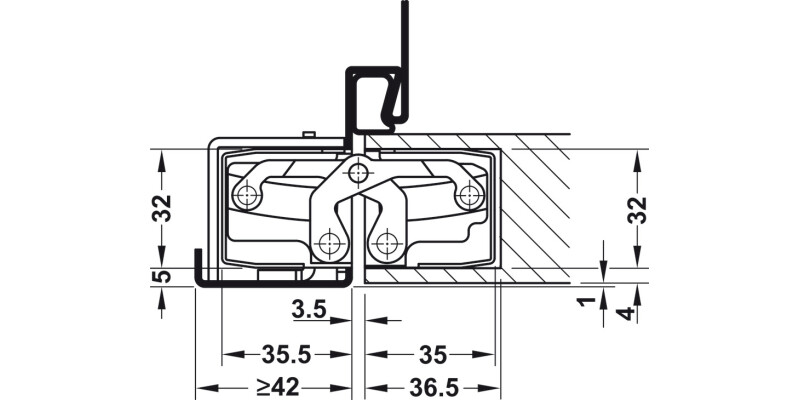

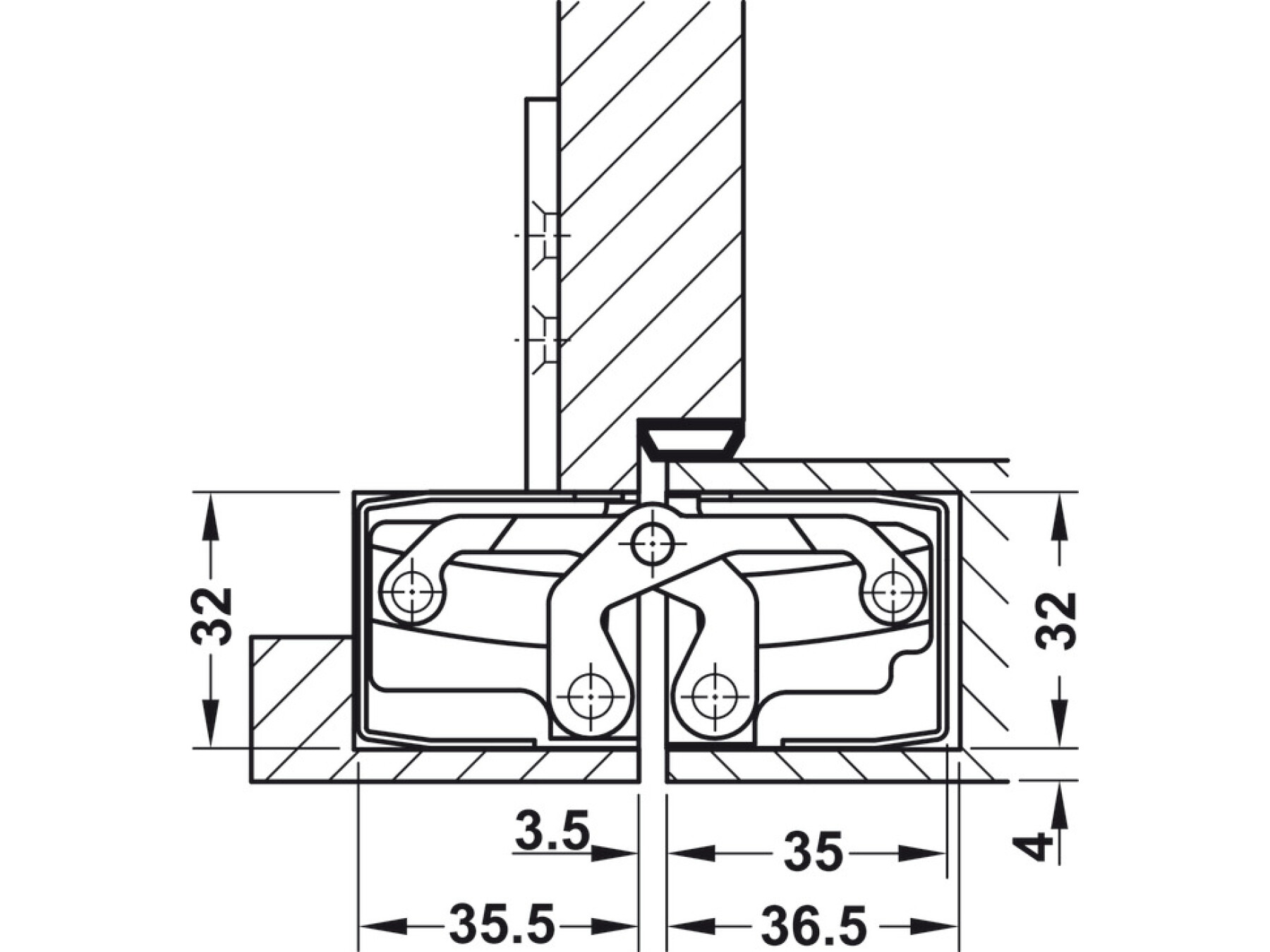

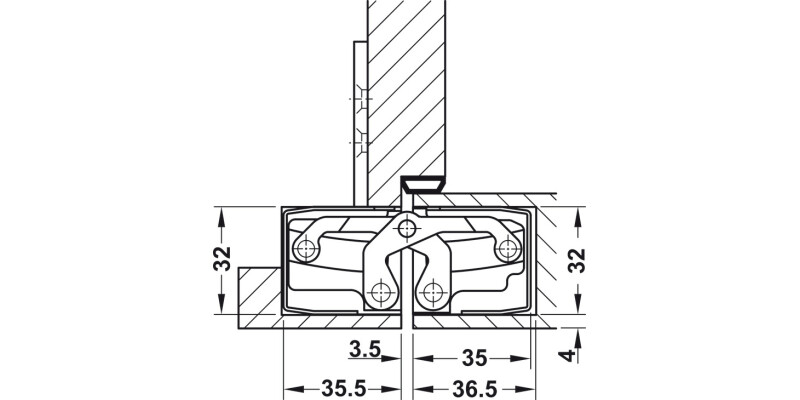

TE 540 3D is engineered for versatility: it’s suitable for wooden, steel, or aluminium frames and works with flush doors. With compatibility across frame types including steel frame, wooden/lining frame, and aluminium frame, you can confidently use it across a range of projects.

Key performance details include an opening angle of 180° and a recommended application for doors with thickness of ≥40 mm. For secure suitability on site, the maximum door weight for use with 2 hinges is 120 kg. Adjustment is truly continuous in 3D: side ±3 mm, height -3 to +3 mm, and closing pressure ±1 mm.

Installation is straightforward using the appropriate router bit Ø 24 mm, and the hinge is certified to EN 1935:2002. Supplied with fixing screws, it’s ready to fit—perfect for upgrading performance and presentation. Add the 3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 540 to your basket for a smoother, better-aligned door experience.

For 30 minute fire rating order intumescent kit separately

Fixing screws
