3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 340

Product Details

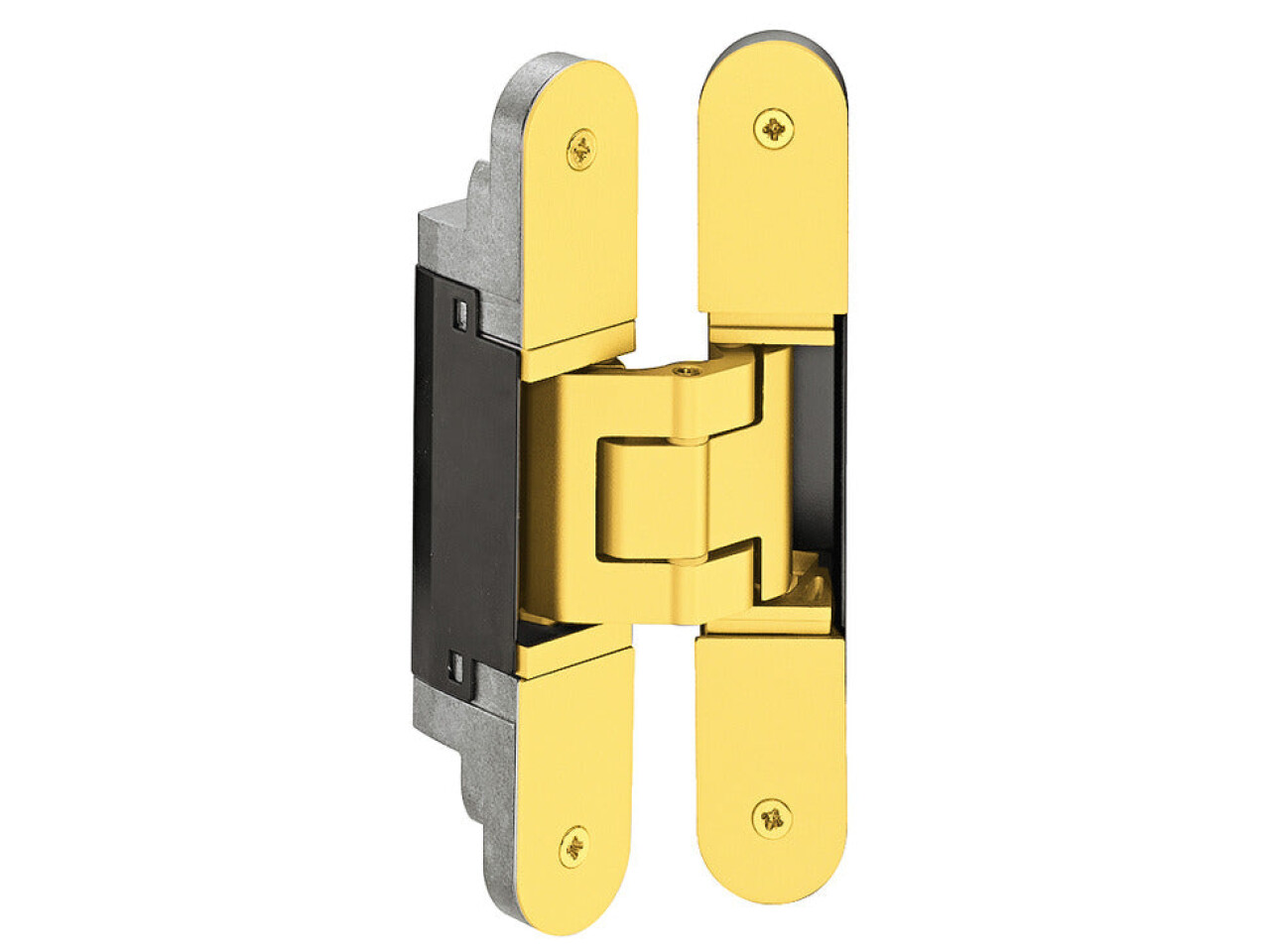

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 340 (Part No: 924.17.169) is a premium door hinge from the TECTUS TE 340 3D series—designed for smooth operation and precise alignment on modern architectural door sets. With an 180° opening angle and a robust build, this hinge is ideal for projects where performance and effortless finishing matter.

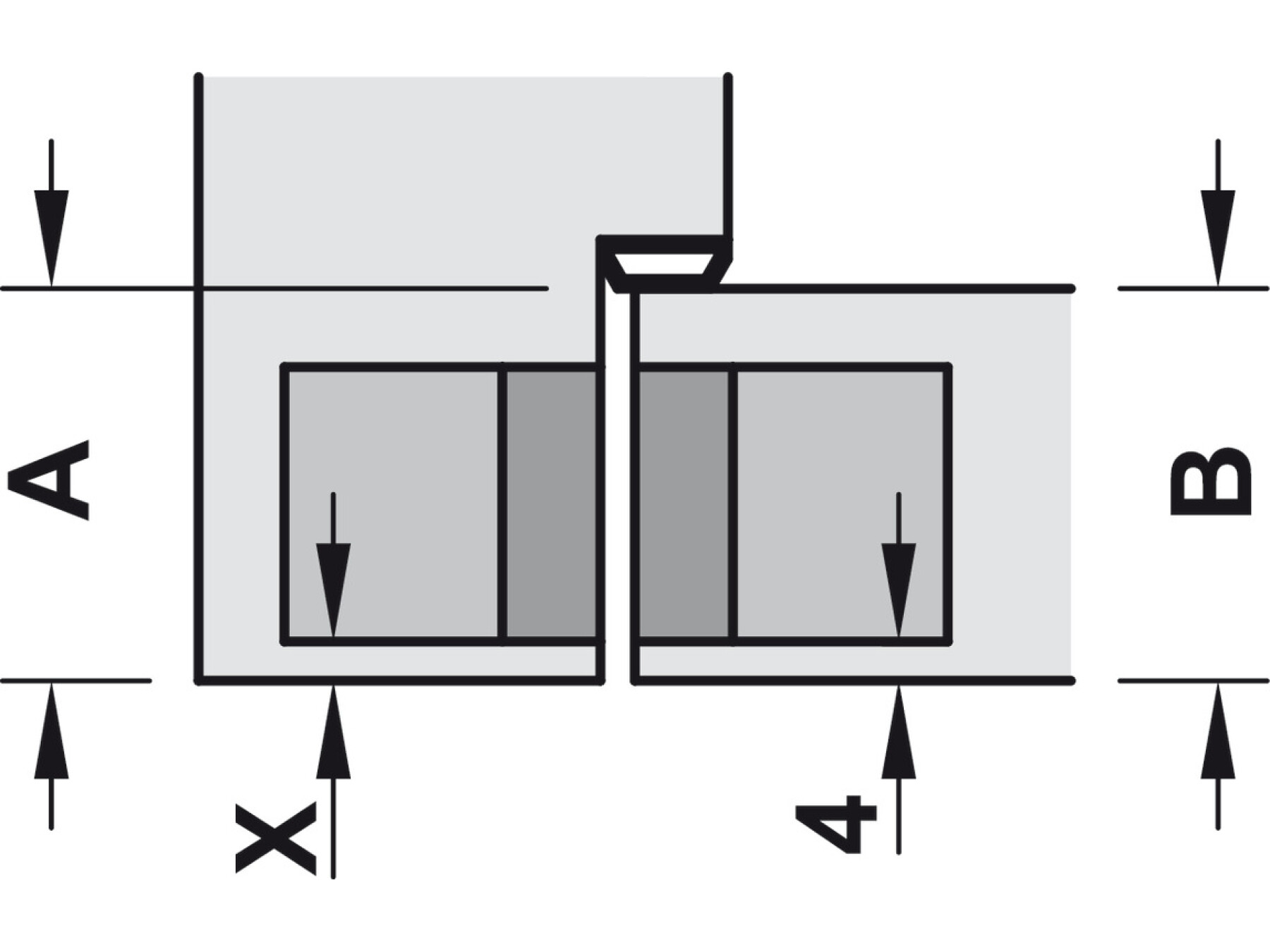

Featuring 3-way continuous adjustment, the hinge helps you dial in your door position after installation and keep it that way over time. The adjustment range includes side movement of 3 mm, height adjustment of -3 to +3 mm, and closing pressure of ±1 mm. That means cleaner lines, better closing consistency, and fewer headaches during fitting.

Built from aluminium and steel with a polished brass plated finish, the Tectus TE340 3D hinge brings both strength and an elegant architectural look to your interior doors. It’s friction bearing, maintenance-free, so you can enjoy reliable performance without the ongoing upkeep that some hinge types require.

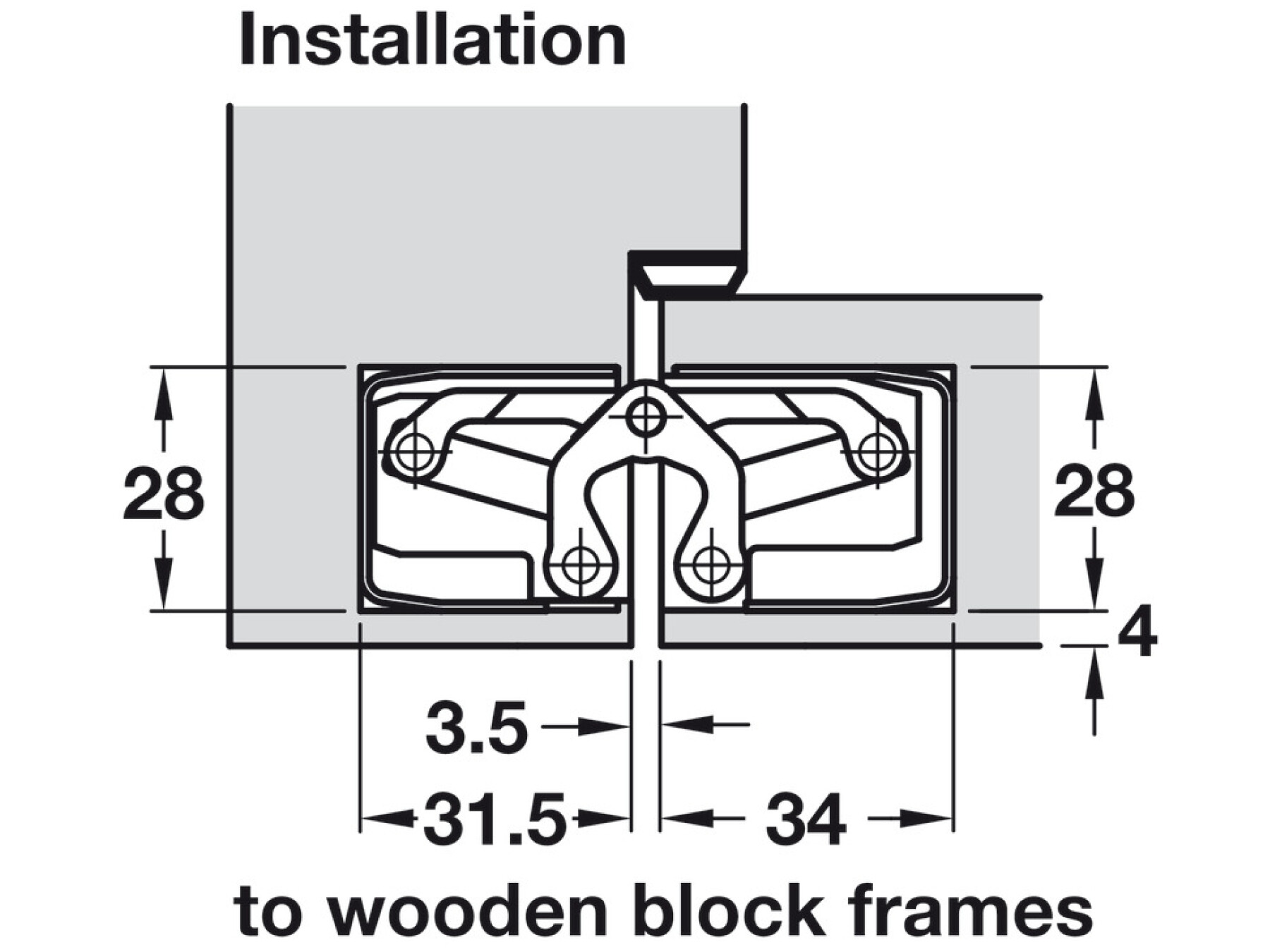

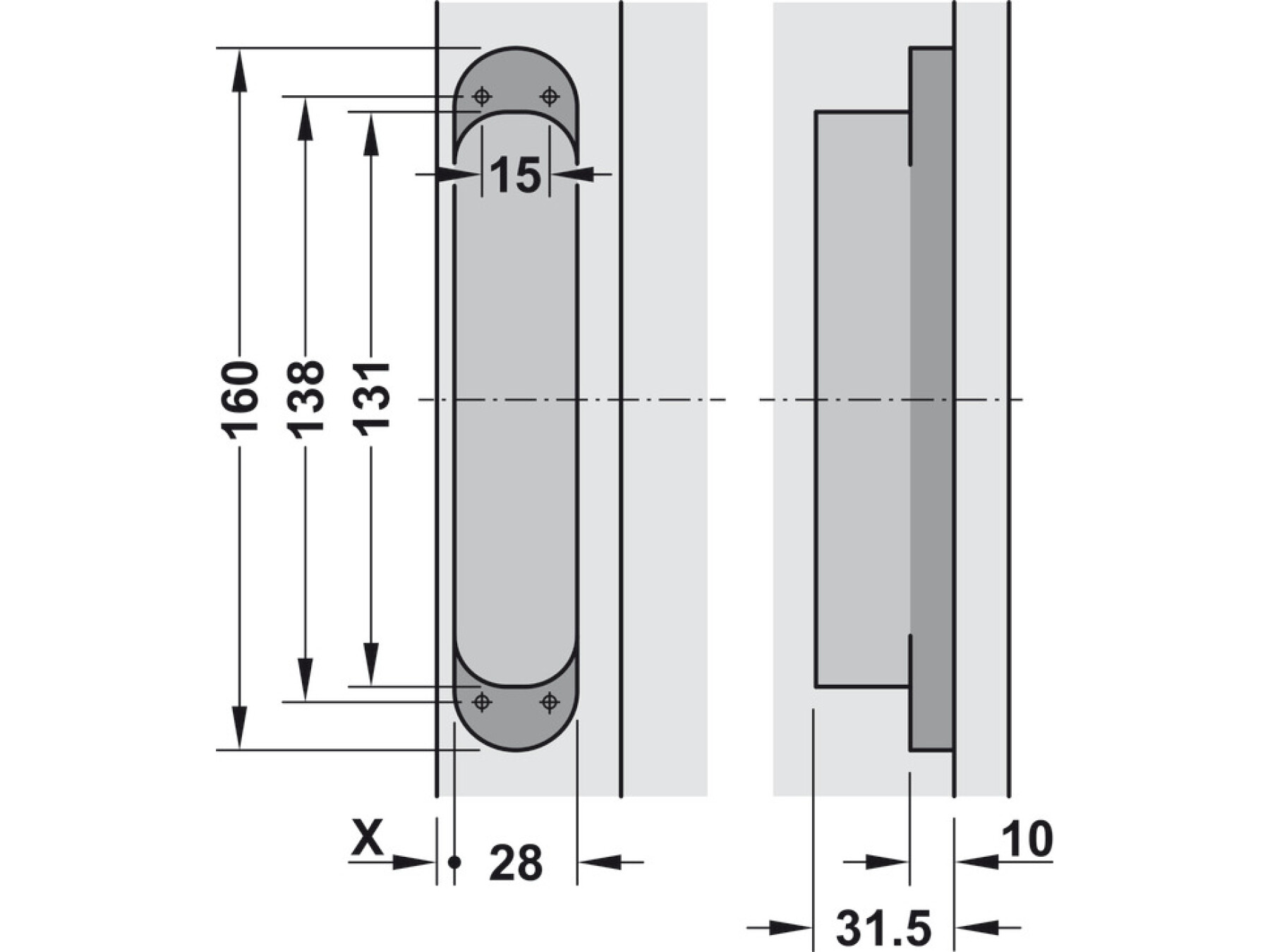

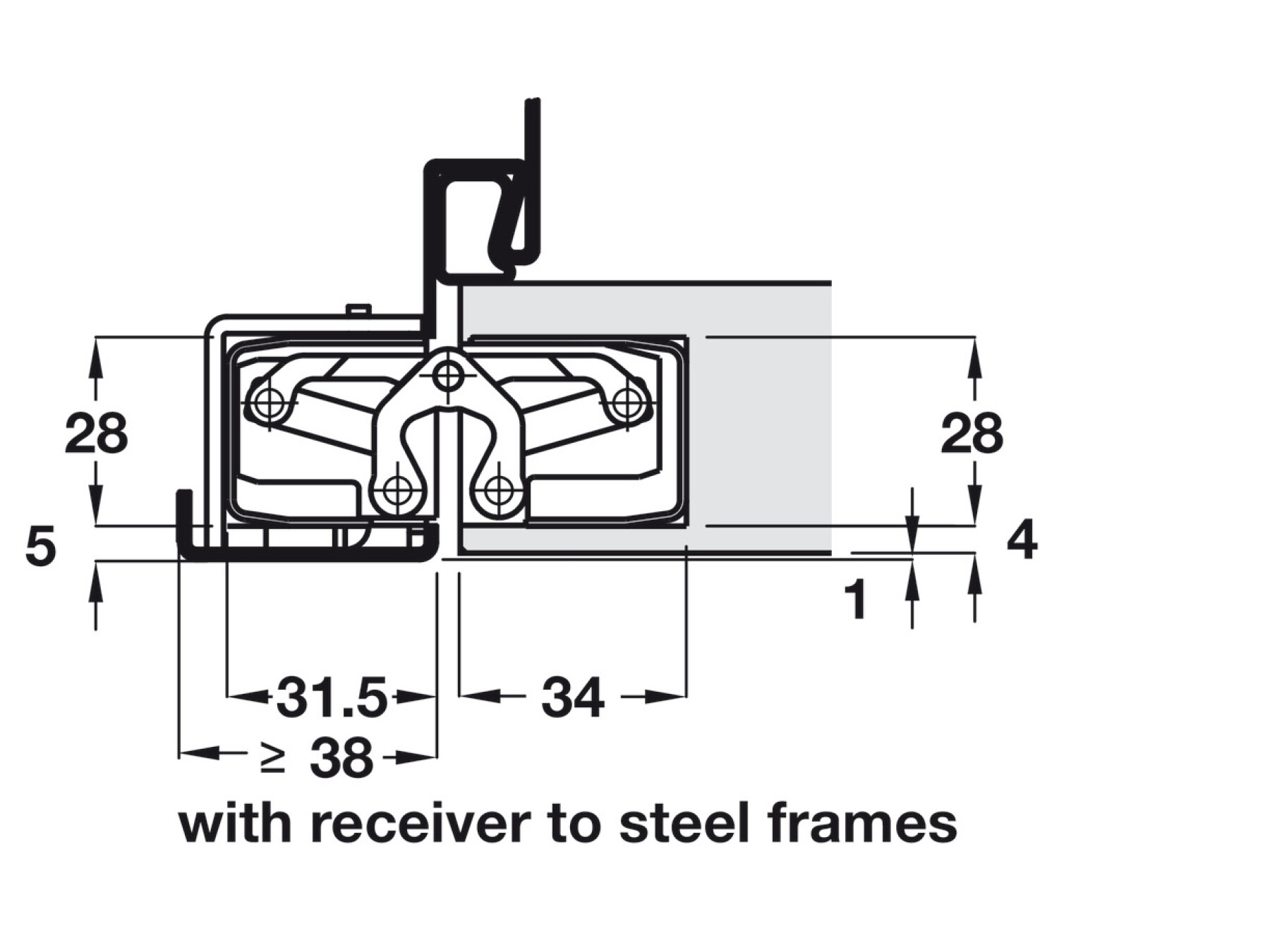

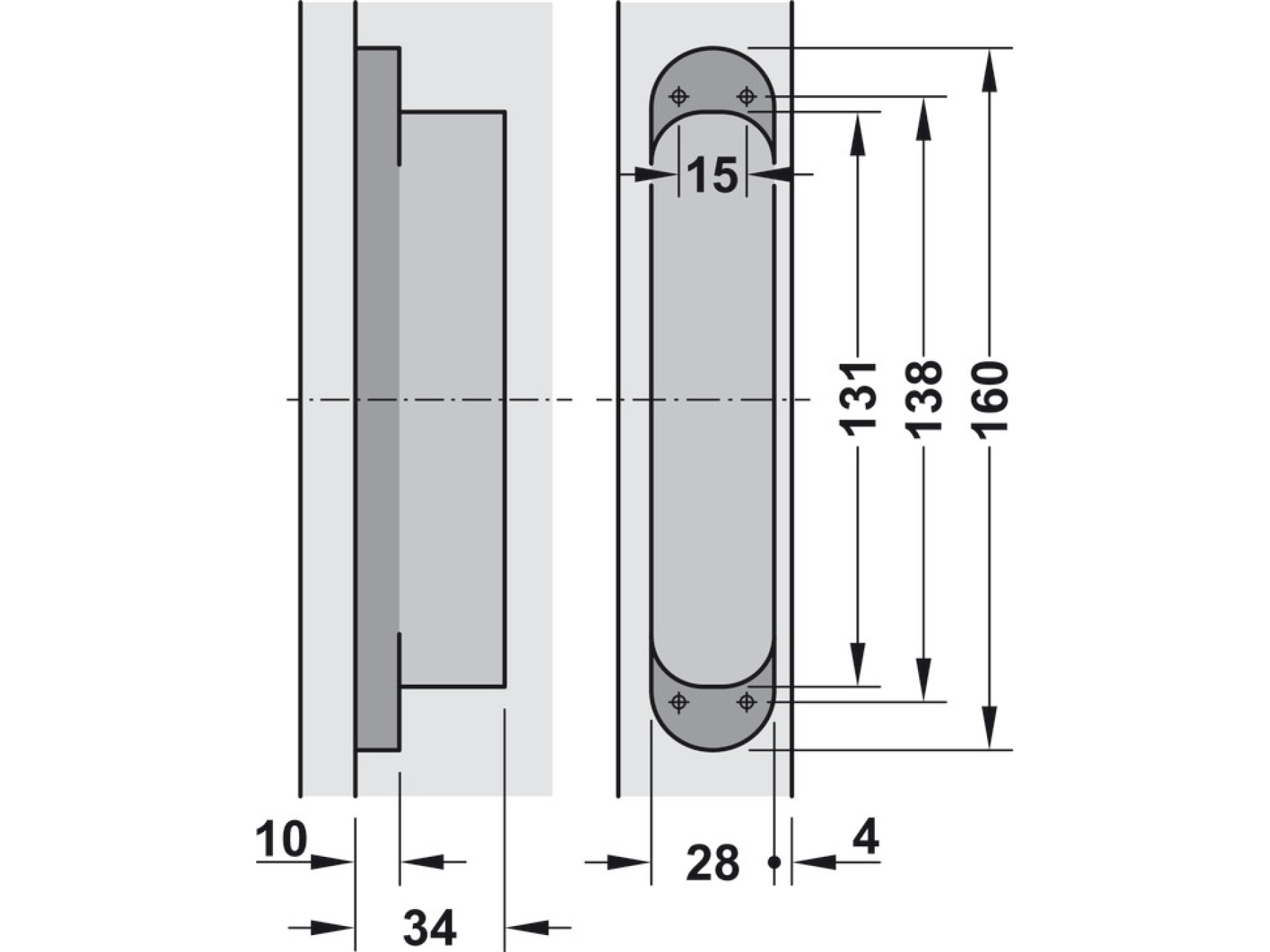

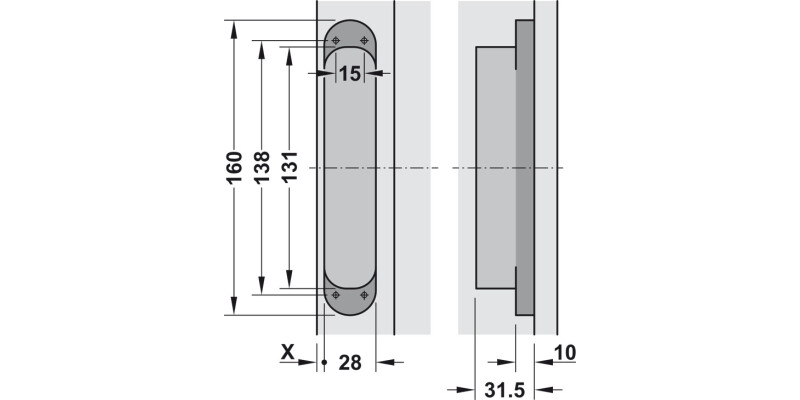

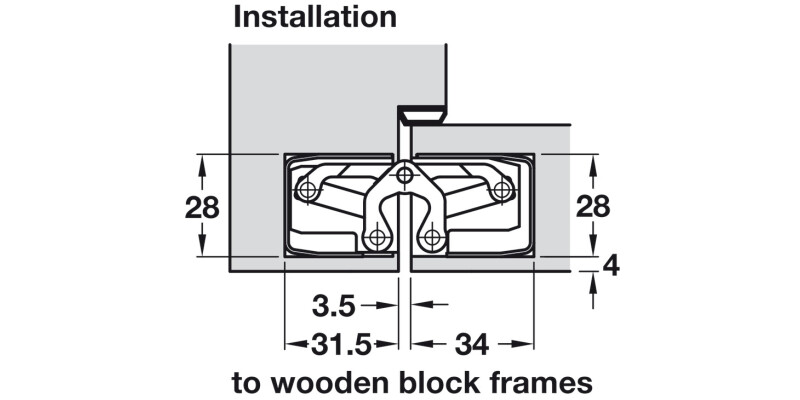

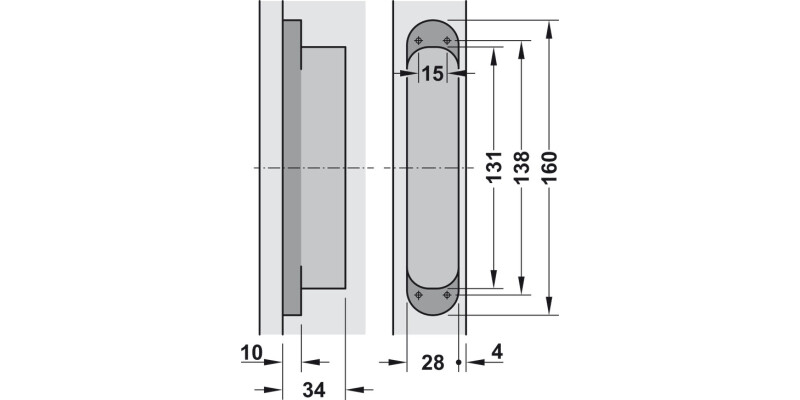

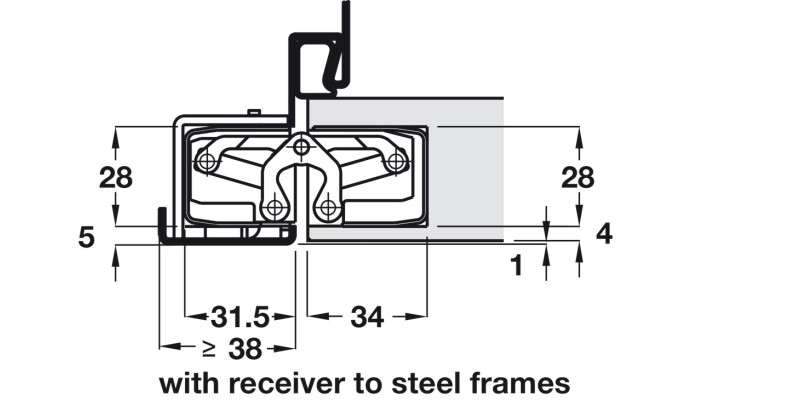

Suitable for wooden, steel, or aluminium frames, and for flush doors, this hinge supports doors with a minimum thickness of ≥38 mm. For installation, it uses a router bit Ø 24 mm and is rated for a maximum door weight of 80 kg for two hinges.

Certified in compliance with EN 1935:2002, it provides reassurance for specifiers and installers. The pack is supplied with fixing screws, making your upgrade straightforward—choose the 3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 340 for confident, high-quality door hardware.

Fixing screws
