3D Hinge, 180°, with Integrated Intumescent Kit, Tectus TE 340 3D FR

Product Details

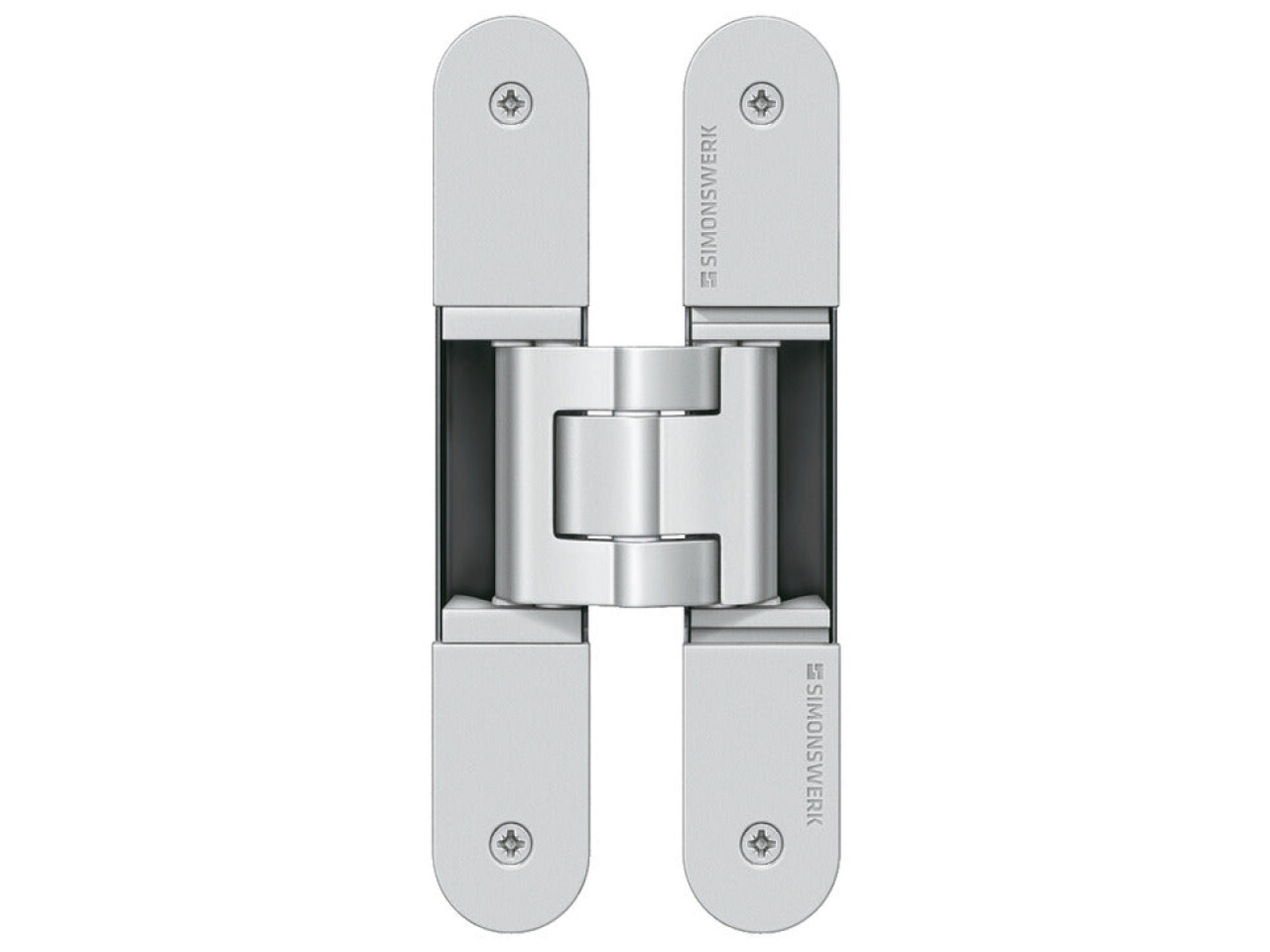

3D Hinge, 180°, with Integrated Intumescent Kit, Tectus TE 340 3D FR (Part No: 924.19.040) is a premium 3D hinge designed for smooth, controlled operation in demanding door applications. Finished with a stainless steel effect, this hinge delivers a clean, modern look while helping your doors stay perfectly aligned over time.

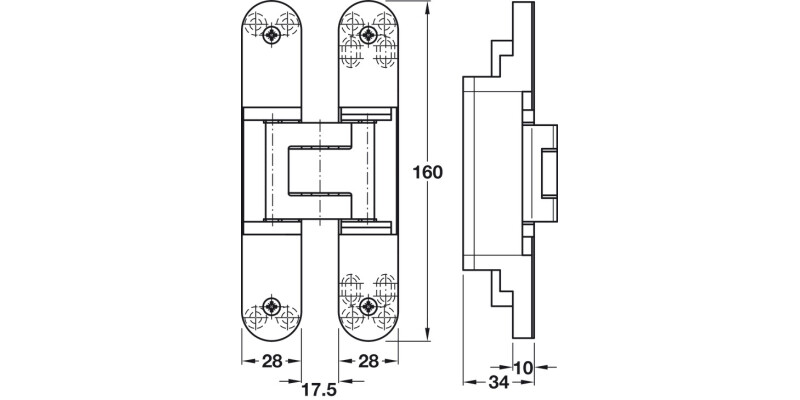

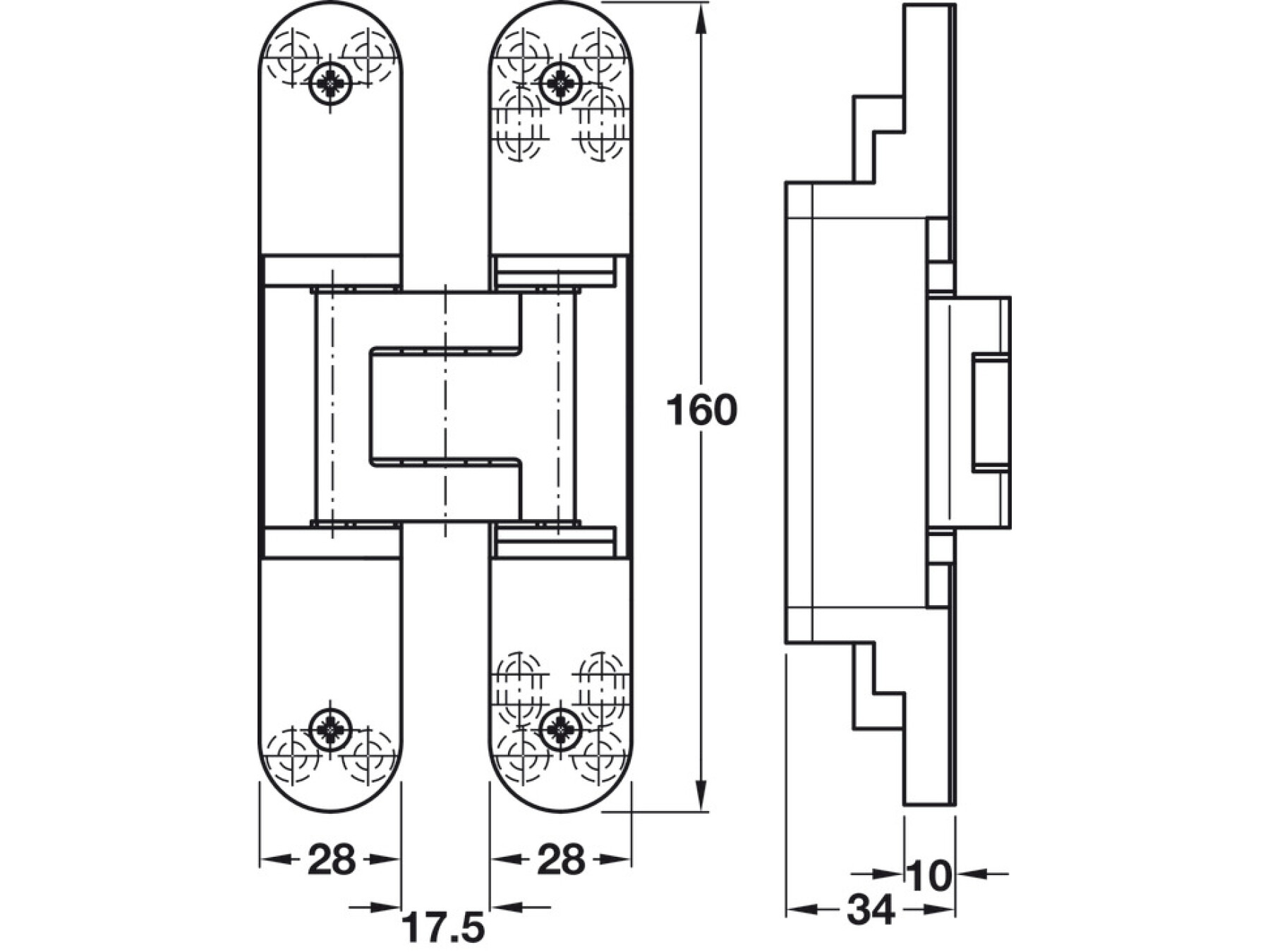

Built with aluminium and steel components, the rounded flange shape enhances both appearance and durability. With a flange width of 28 mm and a flange height of 160 mm, it’s well-suited to a wide range of architectural installations. The TE340 range is ideal for flush doors and is compatible with wooden, steel, or aluminium frames, making it a versatile choice for contemporary refurbishments and new builds.

Designed for performance, this hinge offers an opening angle of 180° and supports door weights up to 80 kg for 2 hinges. It is suitable for door thicknesses of 30 mm and above, and features precise adjustment to achieve professional alignment: 3D adjustment with side movement of 3 mm, height compensation of -3 to +3 mm, and closing pressure tolerance of ±1 mm.

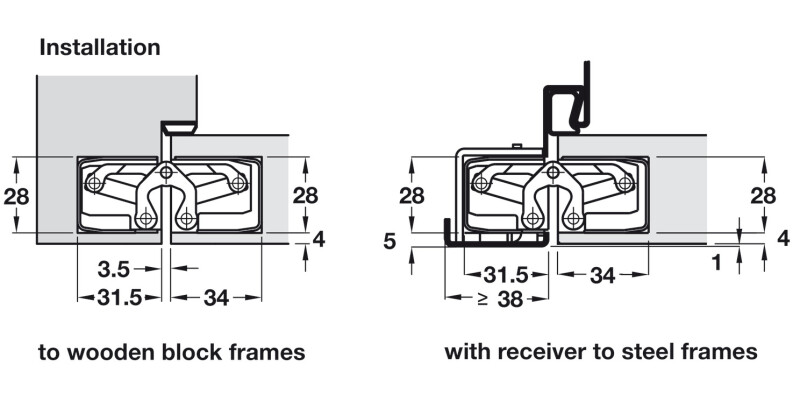

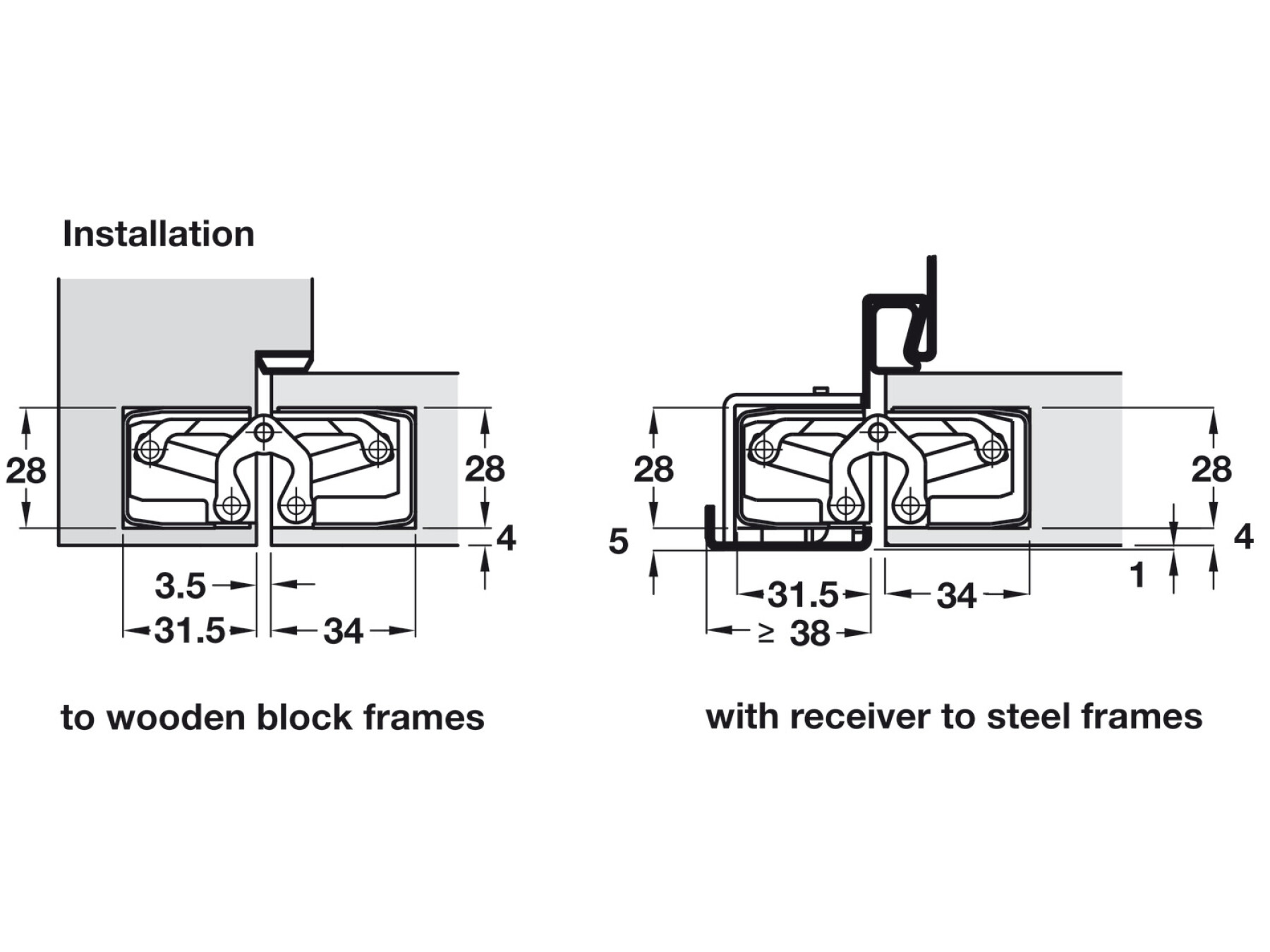

Installation is made simple with the correct machining guidance, including a router bit diameter of 24 mm and a thrust ring diameter of 30 mm. The hinge is supplied with fixings, so you can fit with confidence. Choose the 3D Hinge, 180°, with Integrated Intumescent Kit, Tectus TE 340 3D FR for reliable alignment, durable construction, and a striking stainless steel effect finish.
