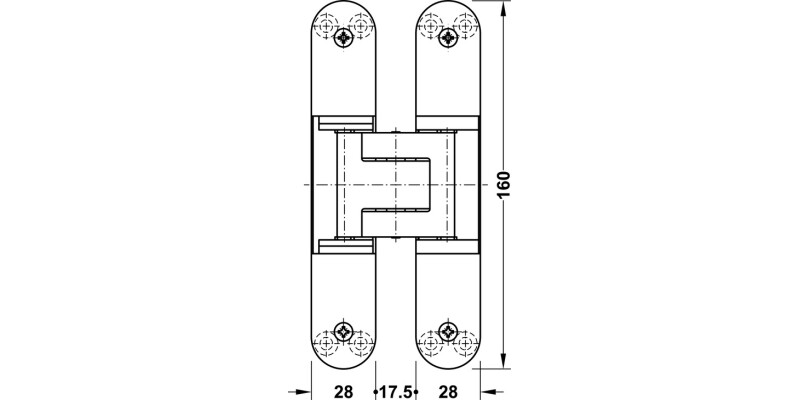

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 340

Product Details

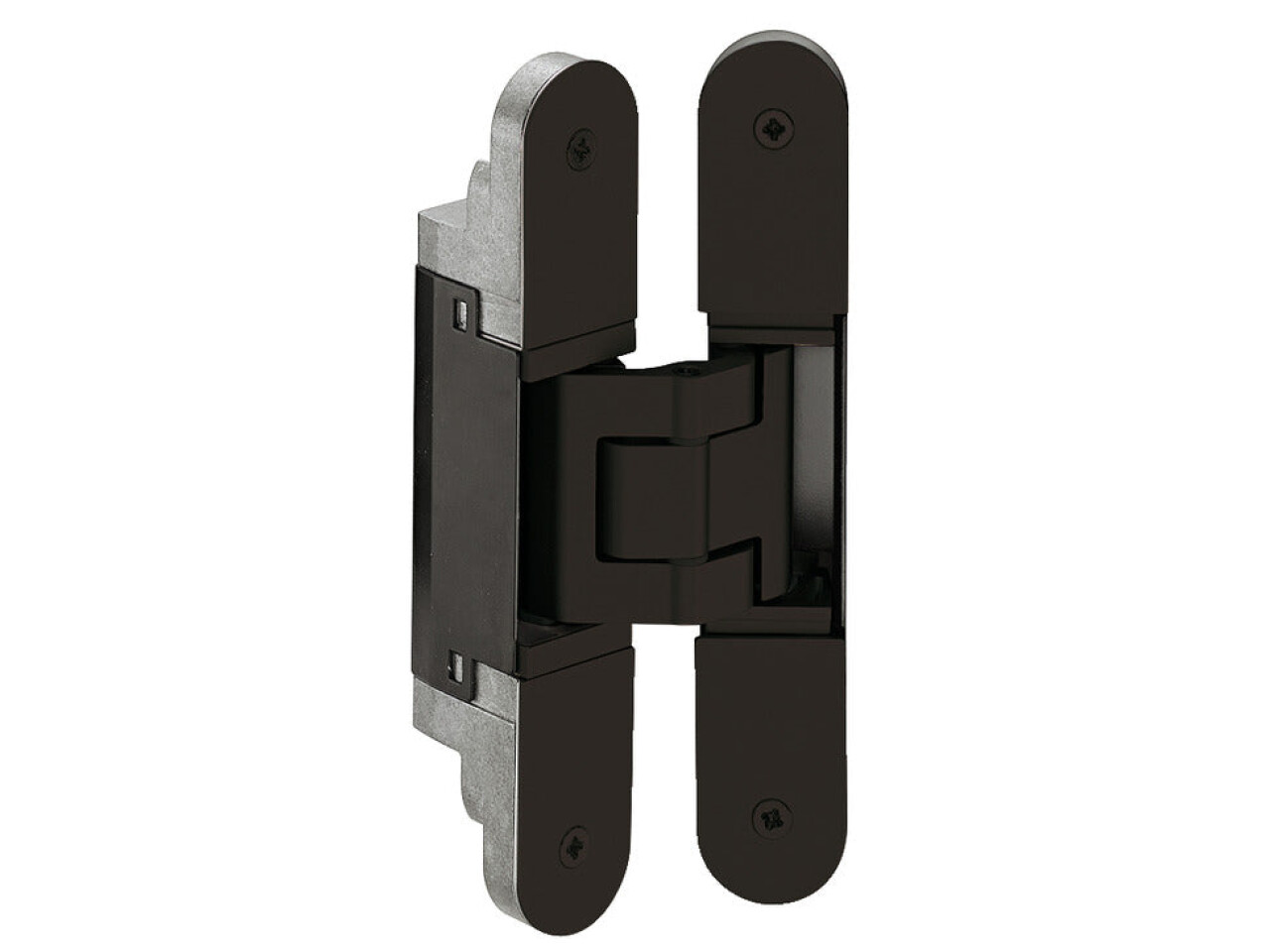

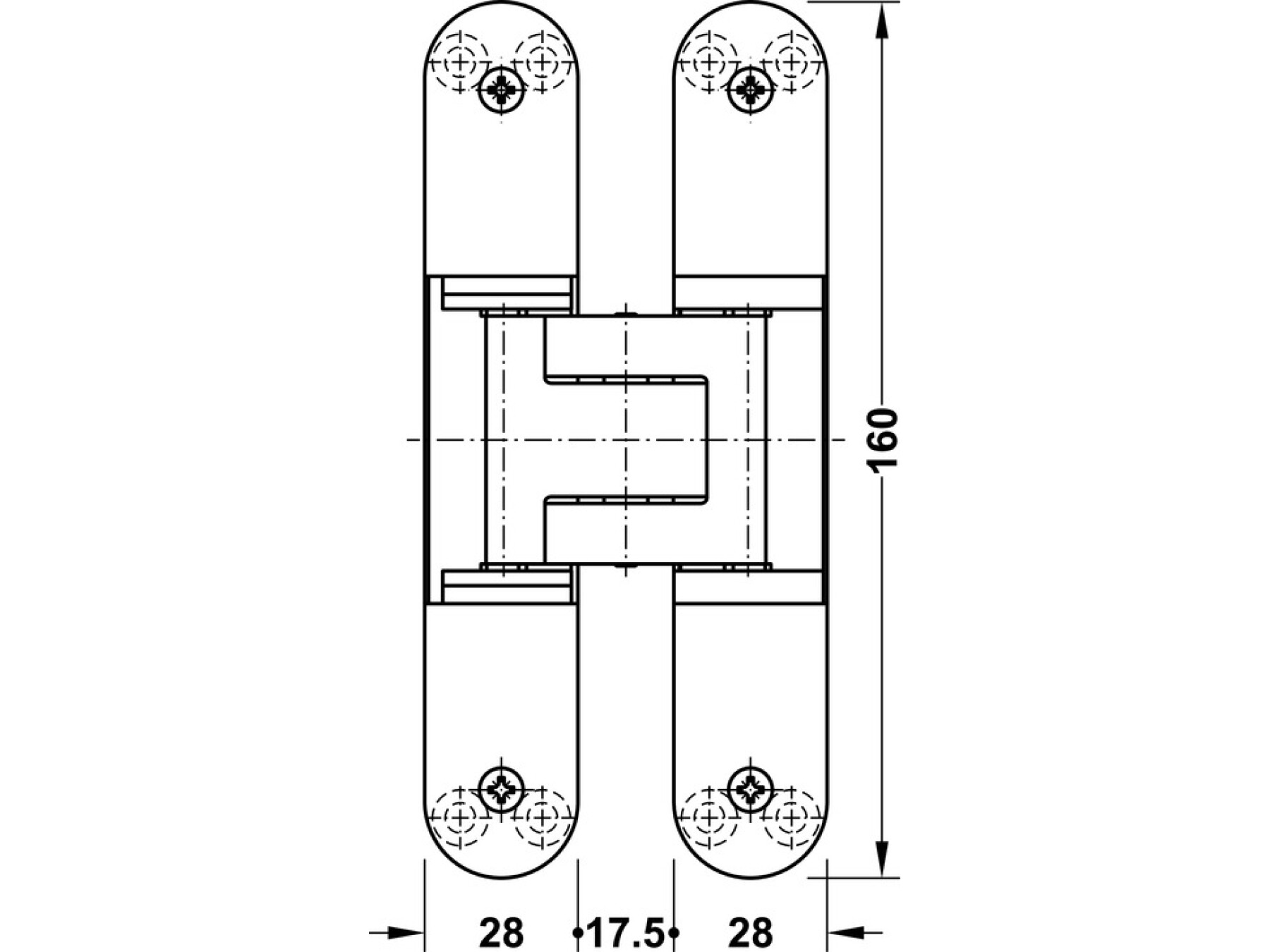

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 340 (Part No: 924.17.137) is a premium architectural door hinge designed for smooth, precise performance and a clean, modern finish. Finished in Matt black, this hinge brings understated style to contemporary interiors while delivering the versatility you expect from professional ironmongery.

Built for reliability, the TECTUS TE 340 3D series features a 3-way continuous adjustment system, allowing you to fine-tune alignment for a near-flawless fit. With side adjustment of 3 mm, height compensation from -3 to +3 mm, and closing pressure control of ±1 mm, you can set your door for consistent, gap-free operation—ideal for both new installations and upgrades.

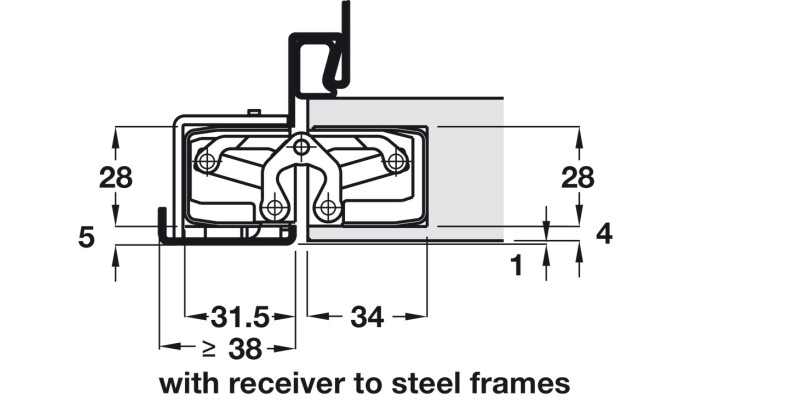

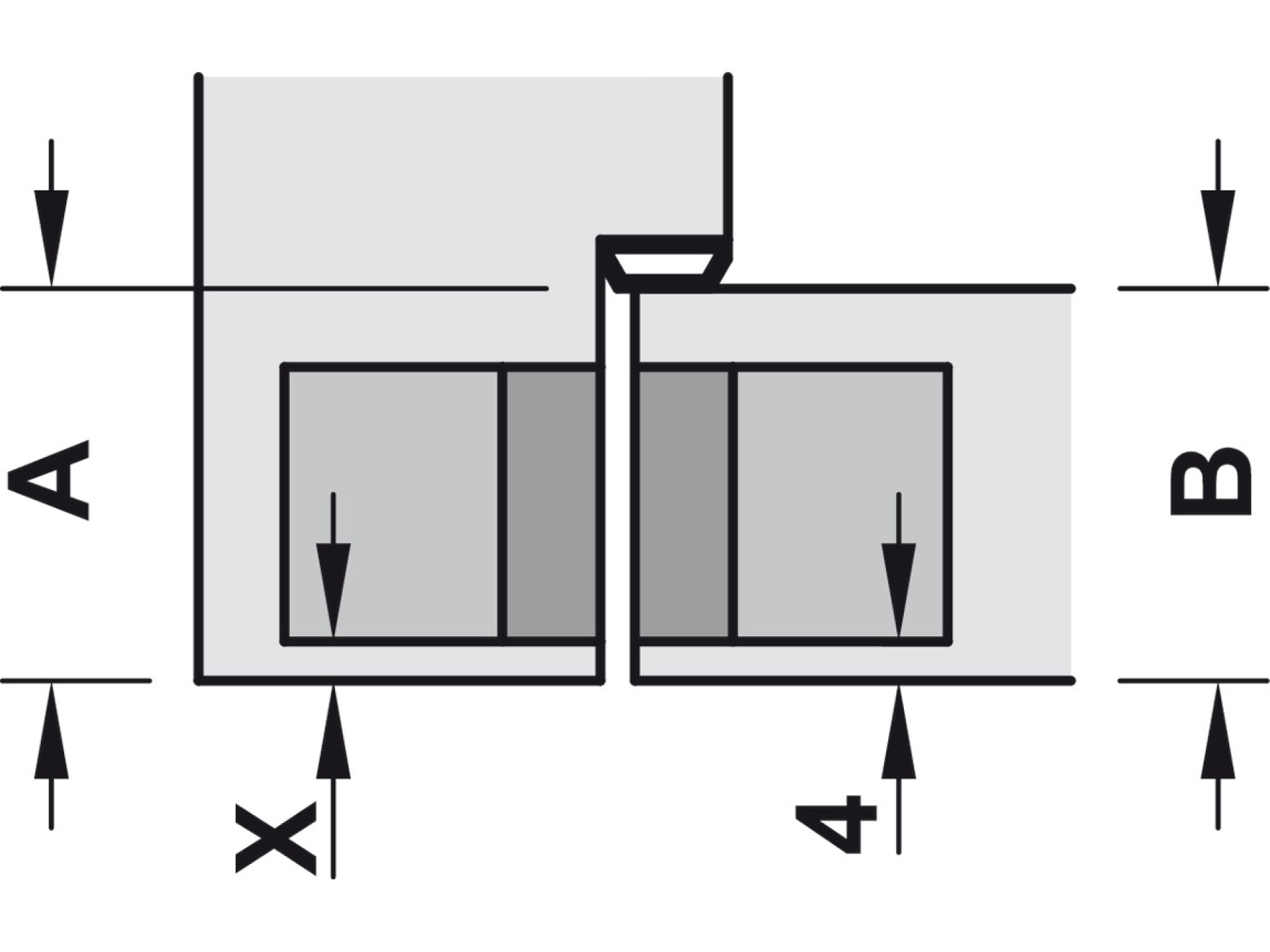

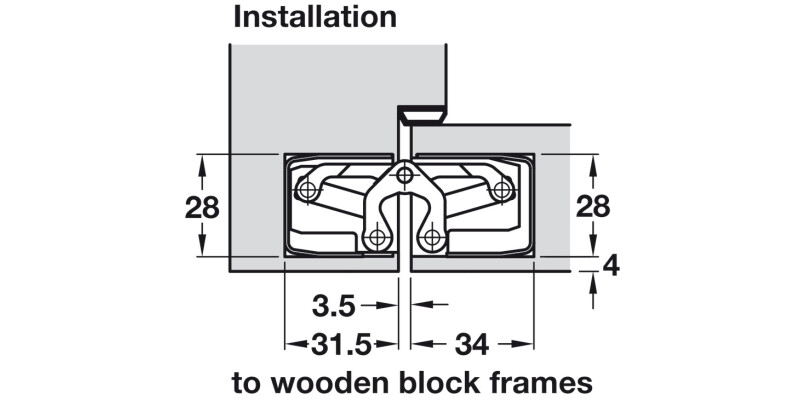

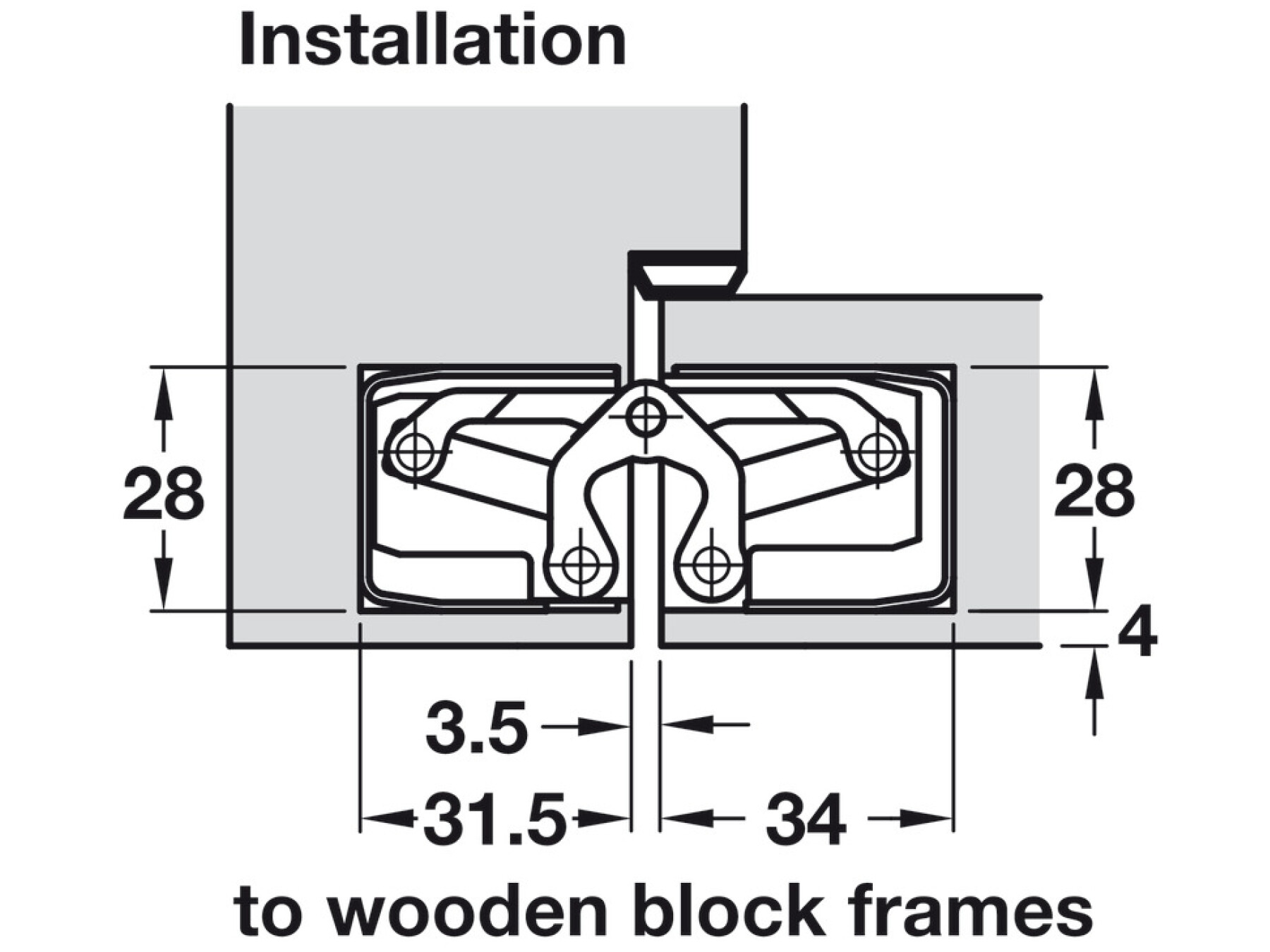

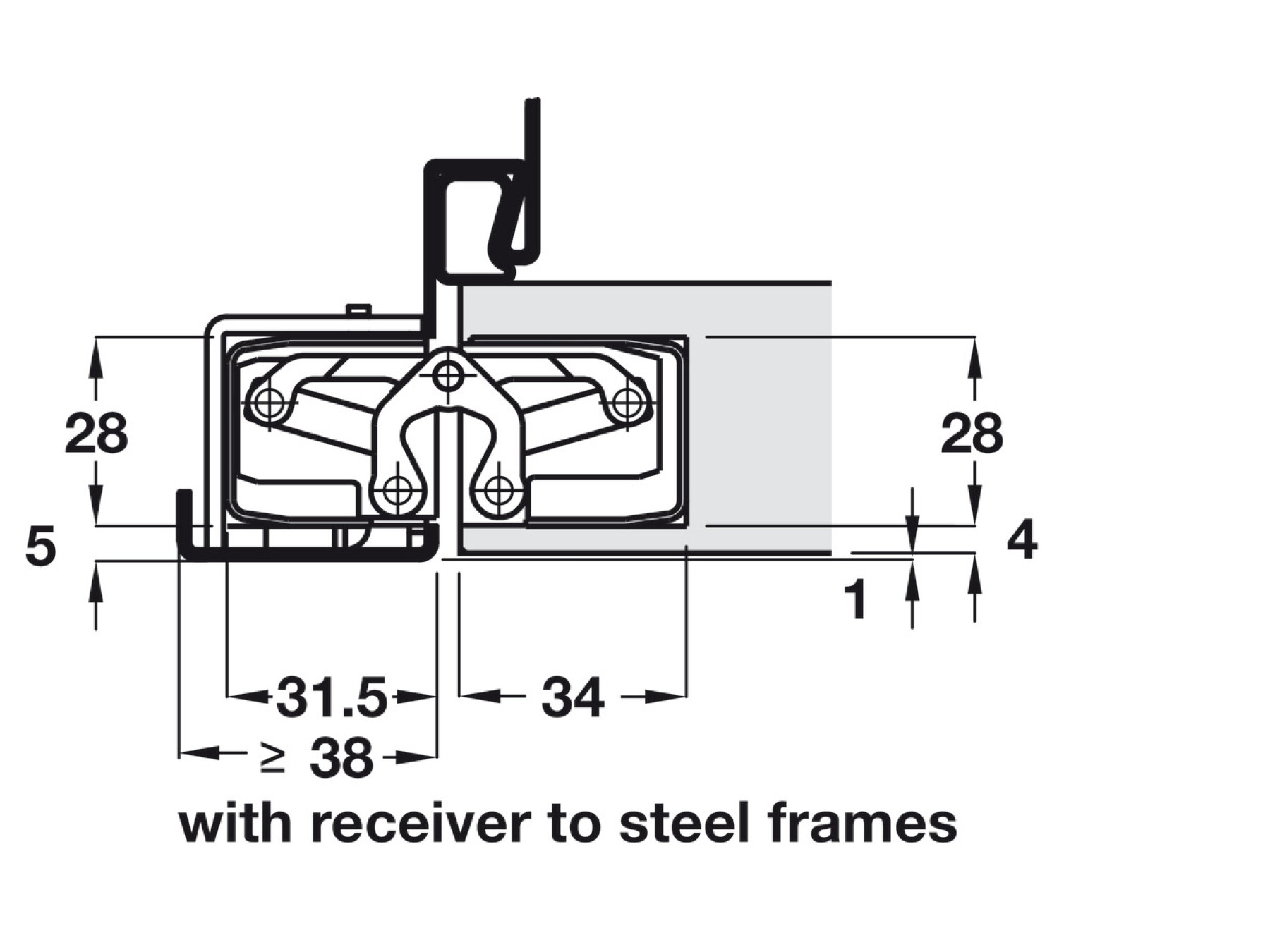

Engineered for practicality, the hinge supports doors up to 80 kg (for a pair of hinges) and offers a generous 180° opening angle. It’s suitable for wooden, steel, or aluminium frames, making it a flexible choice for a wide range of architectural projects. The hinge is also a great fit for flush doors, helping maintain a sleek door line.

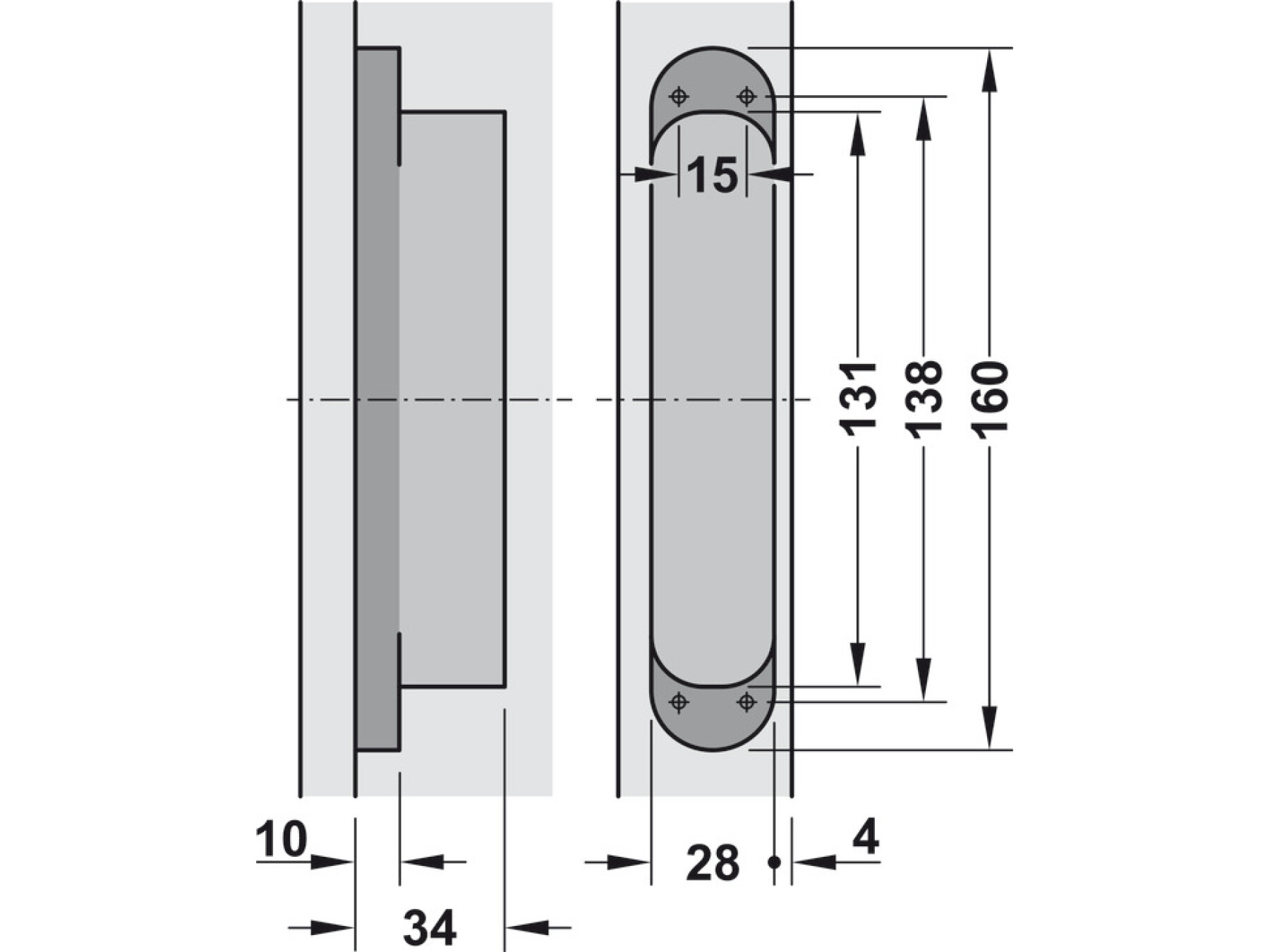

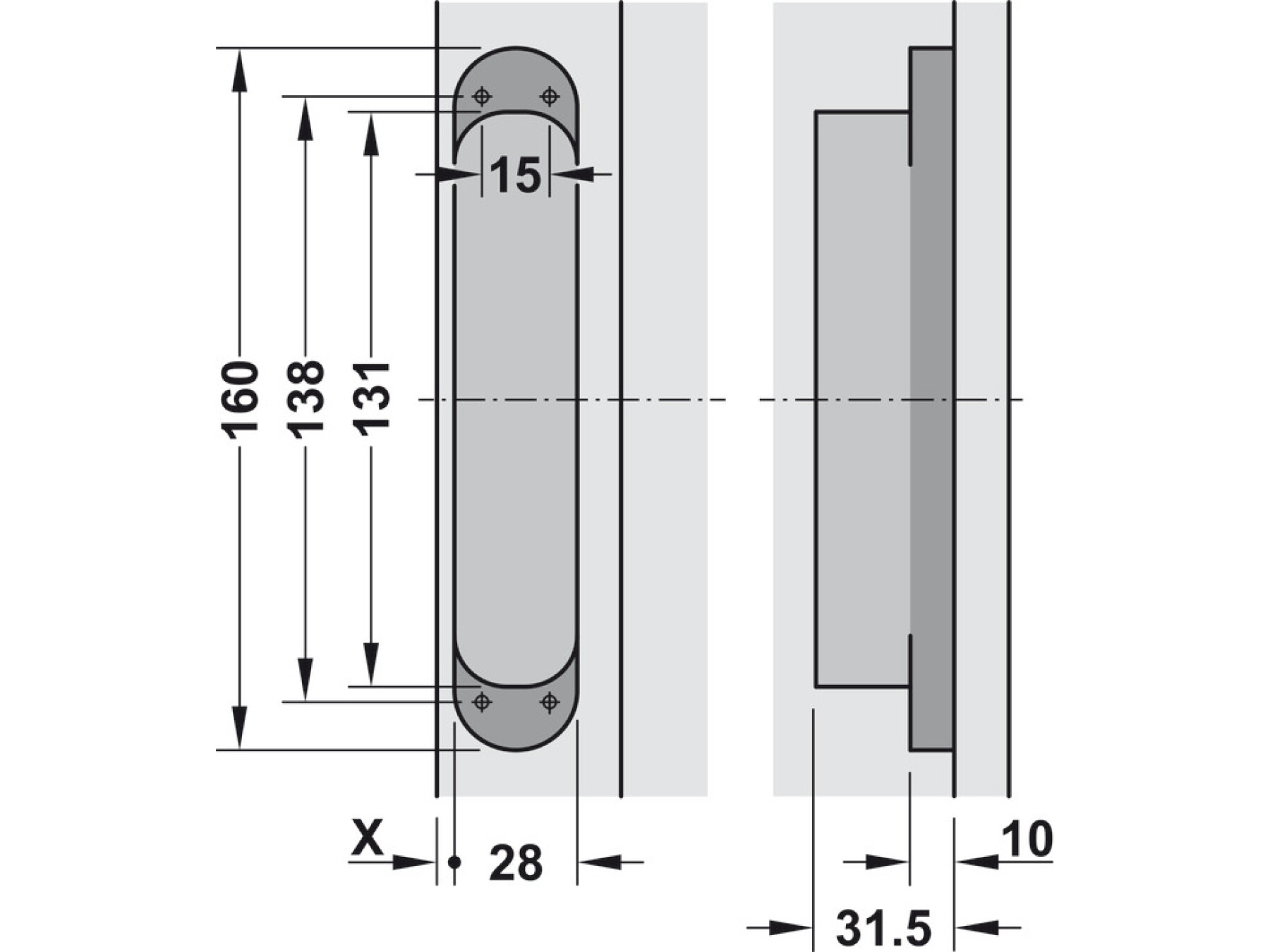

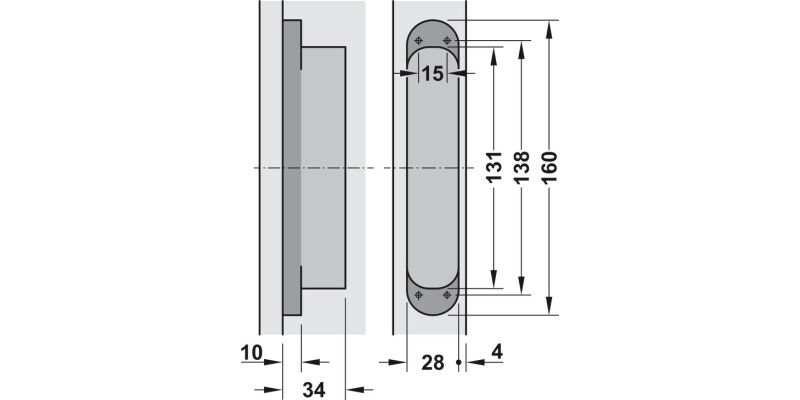

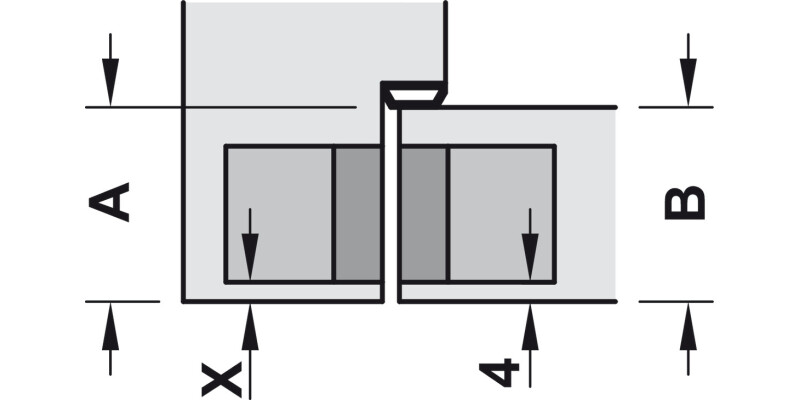

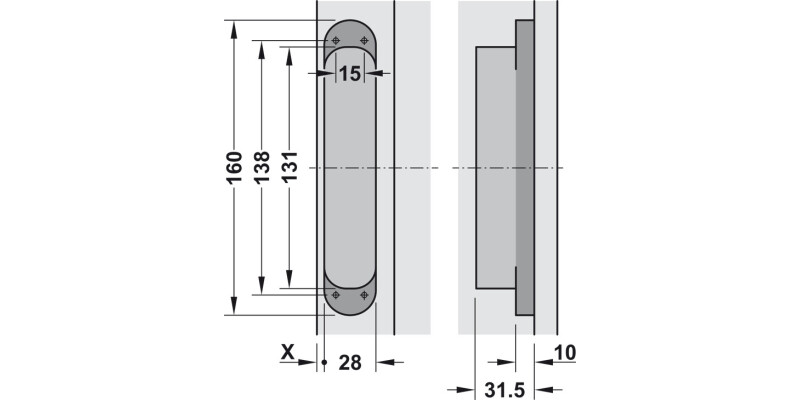

Constructed from aluminium and steel, the friction bearing is maintenance-free for long-lasting smooth movement. For installation, the hinge is designed for door thicknesses of ≥38 mm with a required router bit diameter of 24 mm.

Certified to EN 1935:2002 and supplied with fixing screws, the 3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 340 is a smart, secure choice for anyone seeking high-performance 3D adjustment and a refined matt black finish.

Fixing screws
