Concealed Cup Hinge, 120° Standard, Inset Mounting, Click On Arm, Tiomos

Product Details

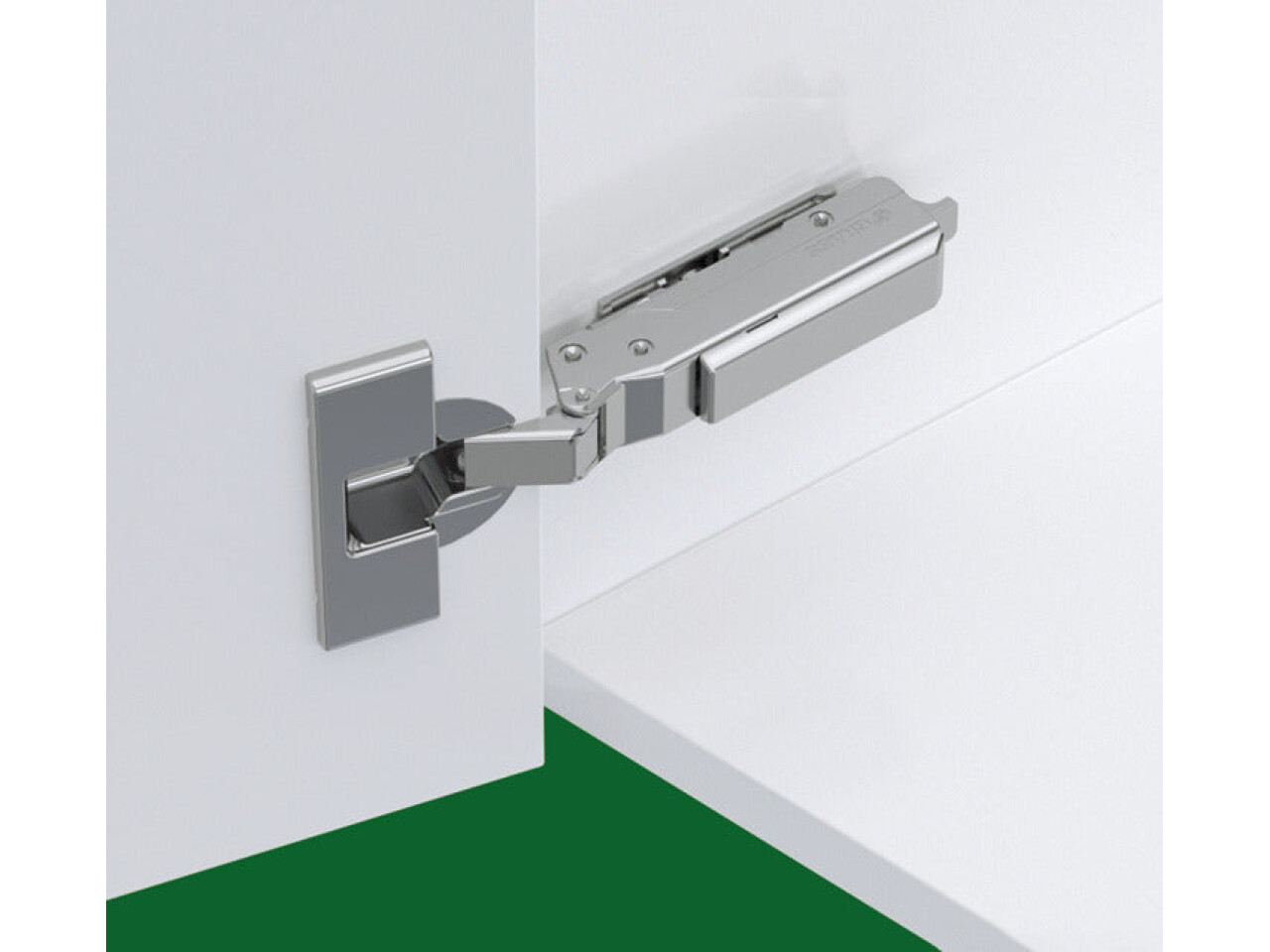

Concealed Cup Hinge, 120° Standard, Inset Mounting, Click On Arm, Tiomos. (Part No: 348.36.803) is a high-performance concealed cabinet hinge designed for clean, professional door fitting and smooth everyday operation. Built for practical living and commercial furniture solutions, this model features screw fixing and a refined soft close action—helping doors close gently and quietly, while reducing slams and wear over time.

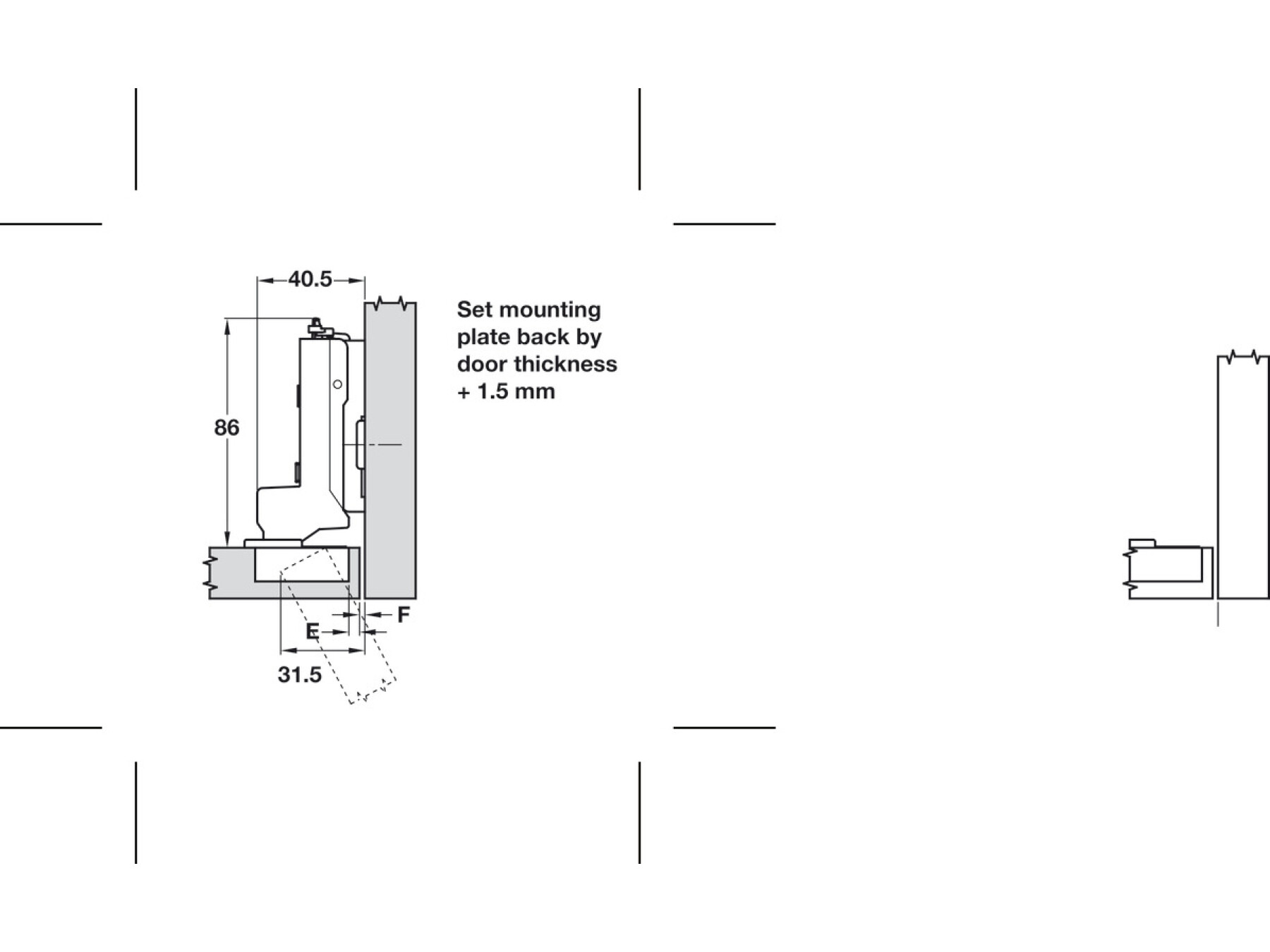

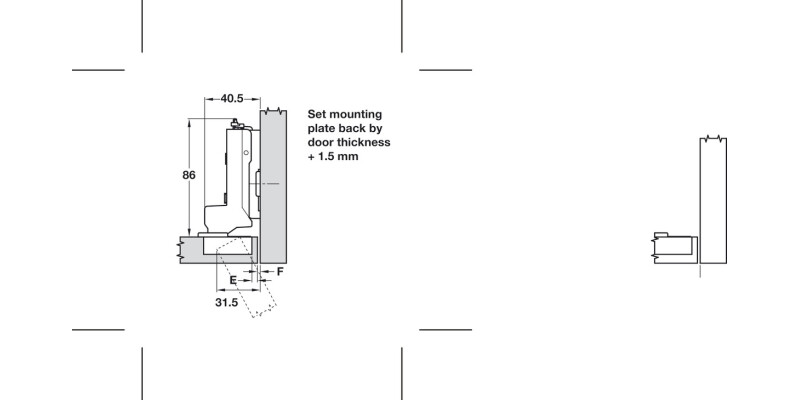

With an opening angle of 120°, you get excellent access to your cabinet interior—ideal for kitchens, wardrobes, and fitted storage where functionality matters. The hinge is intended for standard applications and offers a discreet concealed hinge version in an inset setup, keeping the hardware hidden for a sleek, modern look.

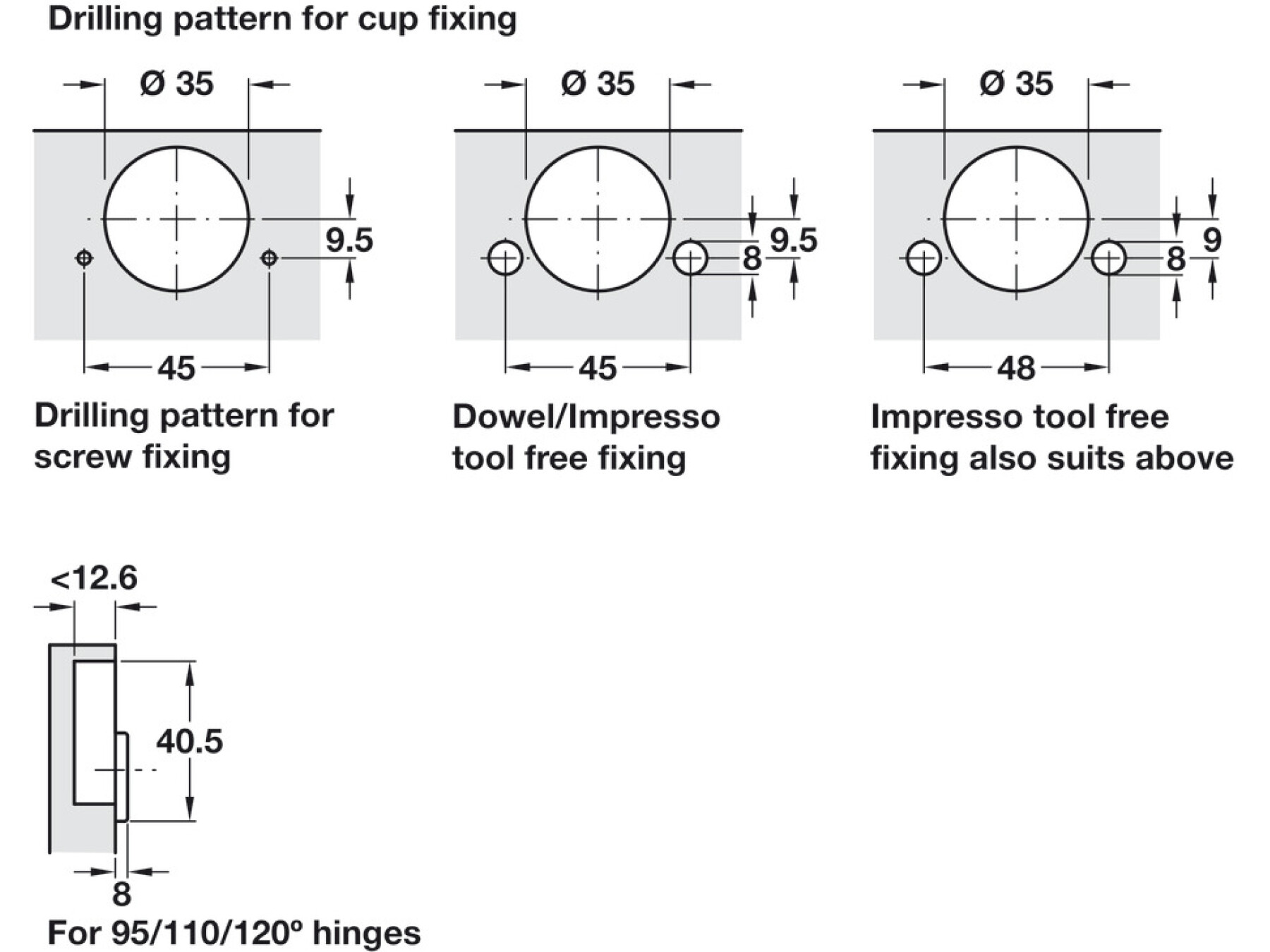

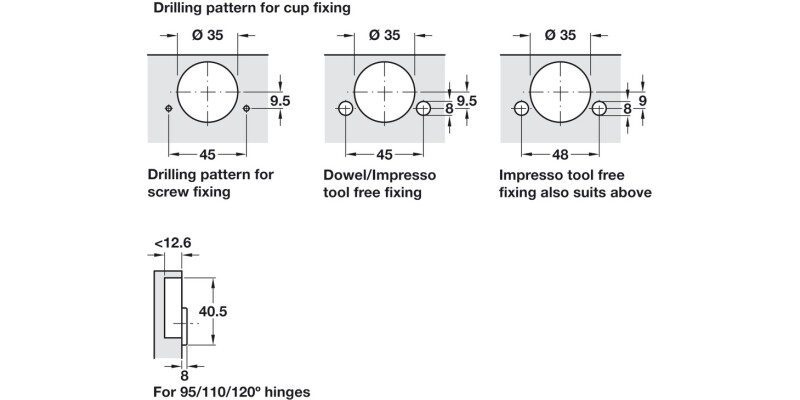

Crafted with durability in mind, the hinge cup is steel and the hinge arm is zinc alloy to support reliable alignment and long-term performance. Assembly is simplified thanks to cup drilling, and the cup diameter is 35.00 mm with a cup drilling depth of 12.60 mm.

The crank type is high cranked, making it a versatile option for furniture builders and installers. The drilling pattern is 45/9.5, so it’s straightforward to integrate with compatible cabinet panel preparations. If you’re upgrading or replacing concealed hinges, choose the confident fit and smooth closing feel of Concealed Cup Hinge, 120° Standard, Inset Mounting, Click On Arm, Tiomos.—a smart choice for quality hardware and a premium customer experience.
