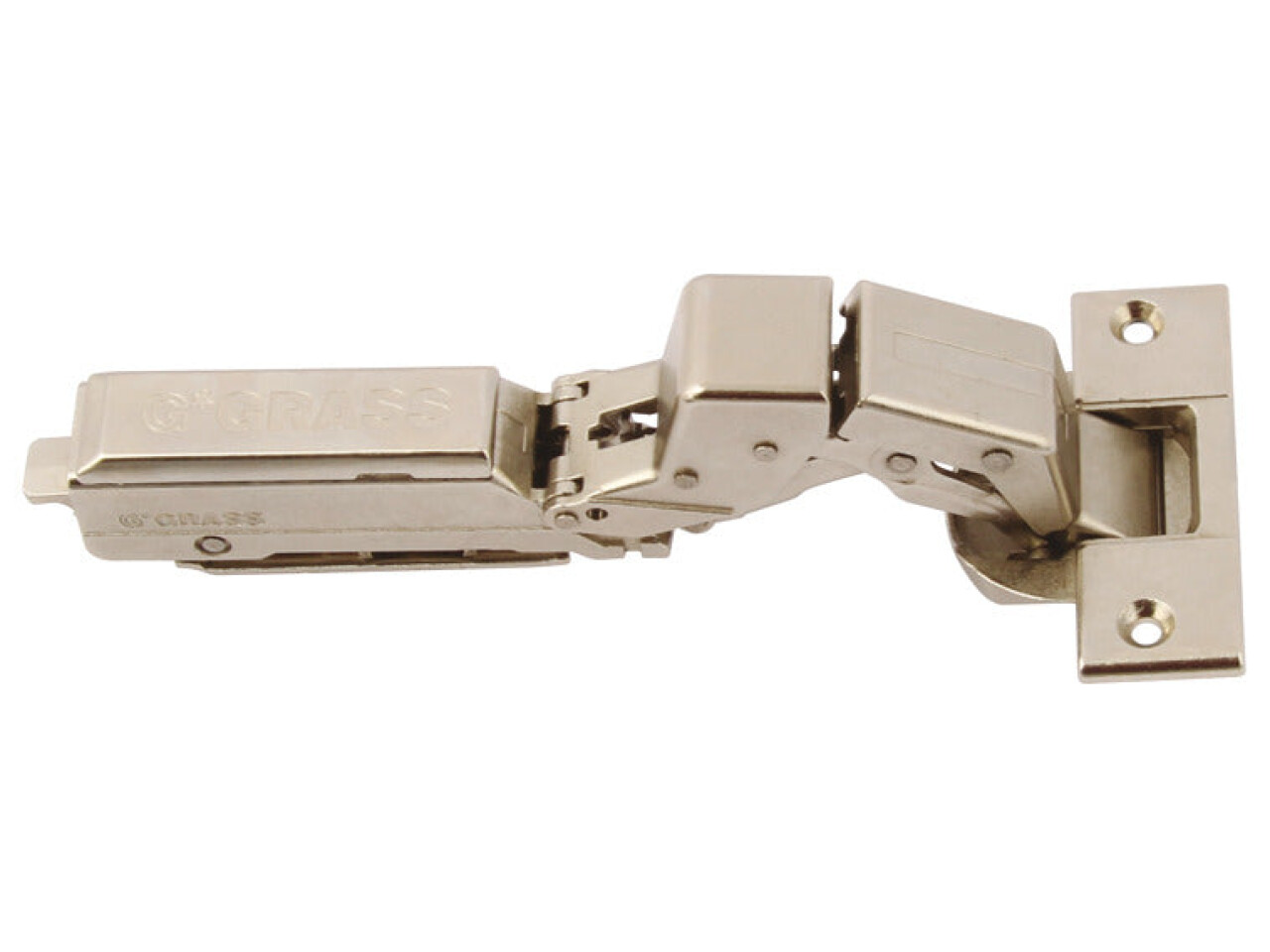

Concealed Cup Hinge, 110°, for Thin Doors, Tiomos M9

Product Details

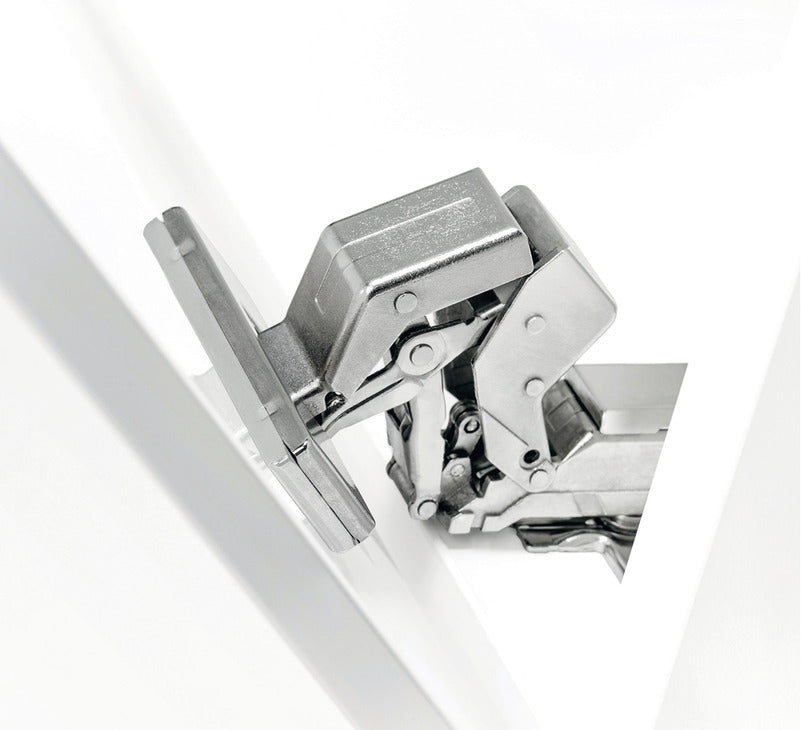

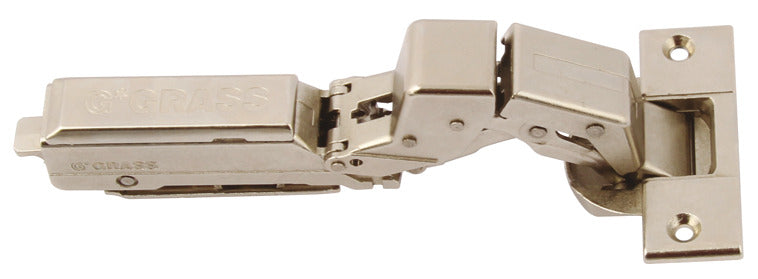

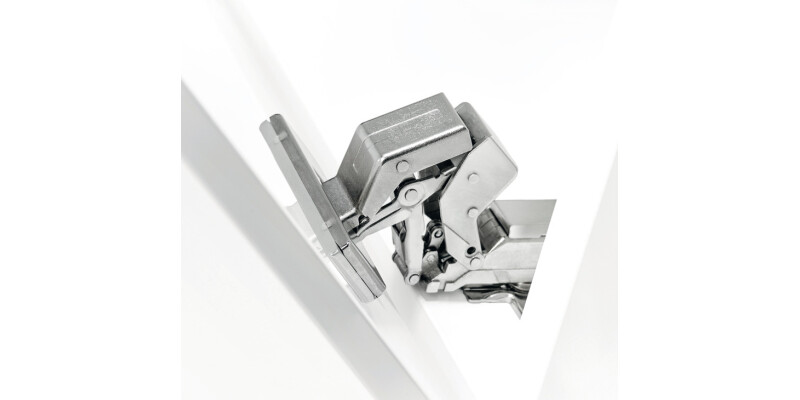

Concealed Cup Hinge, 110°, for Thin Doors, Tiomos M9. is a premium concealed cabinet hinge designed to bring smooth, controlled closing to your furniture. Built for reliable performance in living and commercial interiors, this hinge (Part No: 348.30.840) features an integrated damper and a sleek nickel-plated finish—ideal for modern cabinets where everyday use demands quiet comfort and consistent alignment.

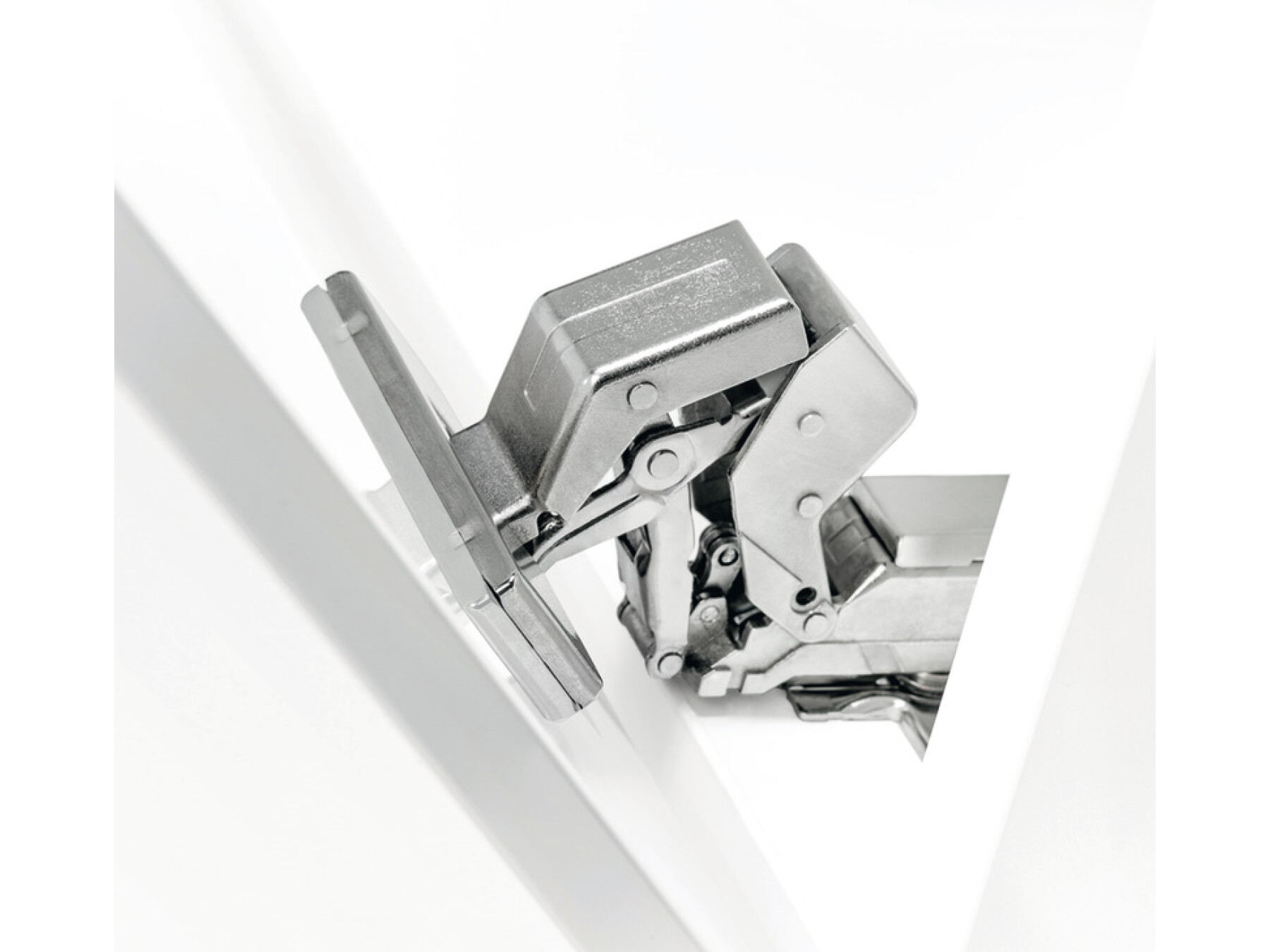

Designed for precision installation, the Tiomos M9 110D hinge suits a variety of cabinet door styles, including thin furniture doors and four-sided mitred applications. With a generous 110° opening angle, it offers excellent access while remaining fully concealed for a clean, professional look.

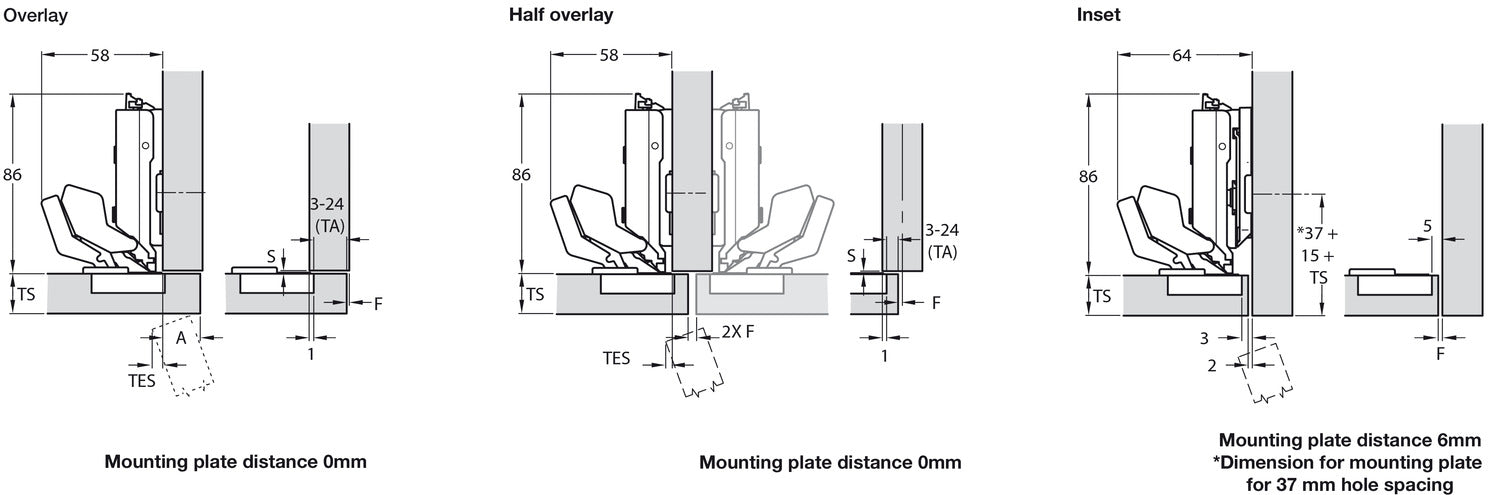

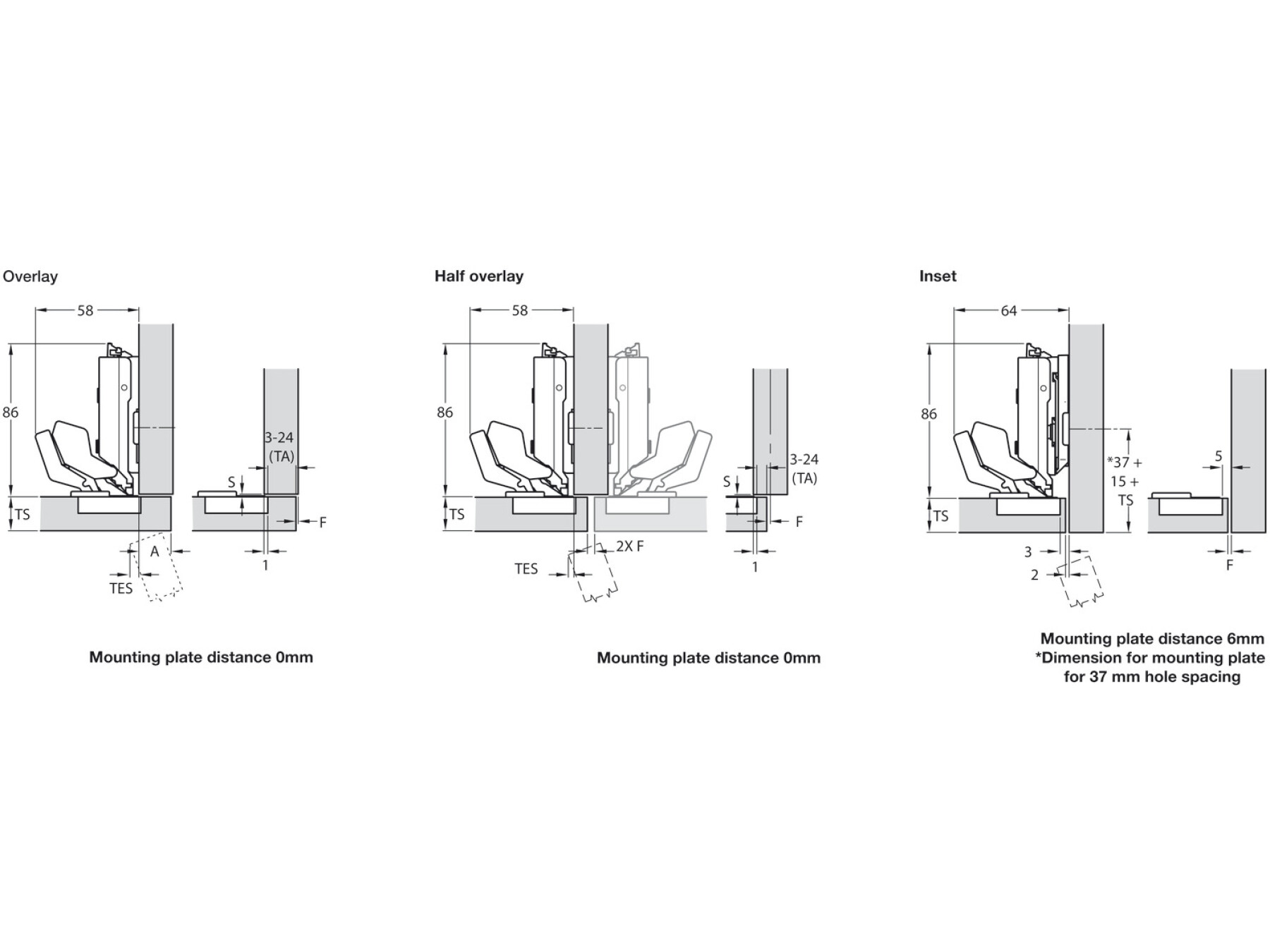

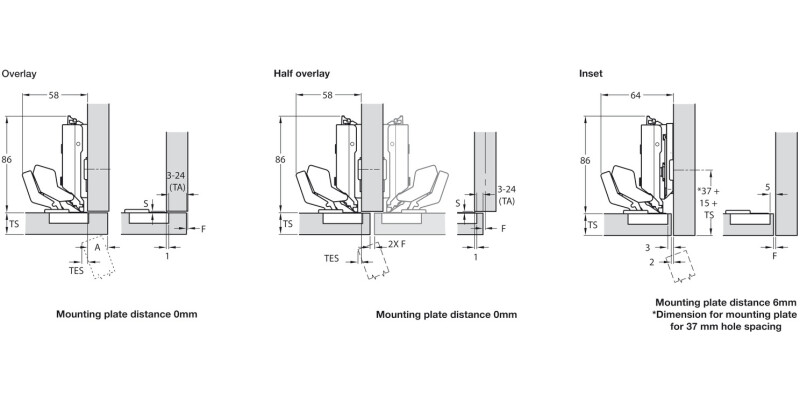

As a concealed cup hinge with full overlay, it creates a crisp door-to-frame fit that elevates both aesthetics and functionality. The hinge is high cranked, supporting smooth operation and stable positioning throughout repeated use.

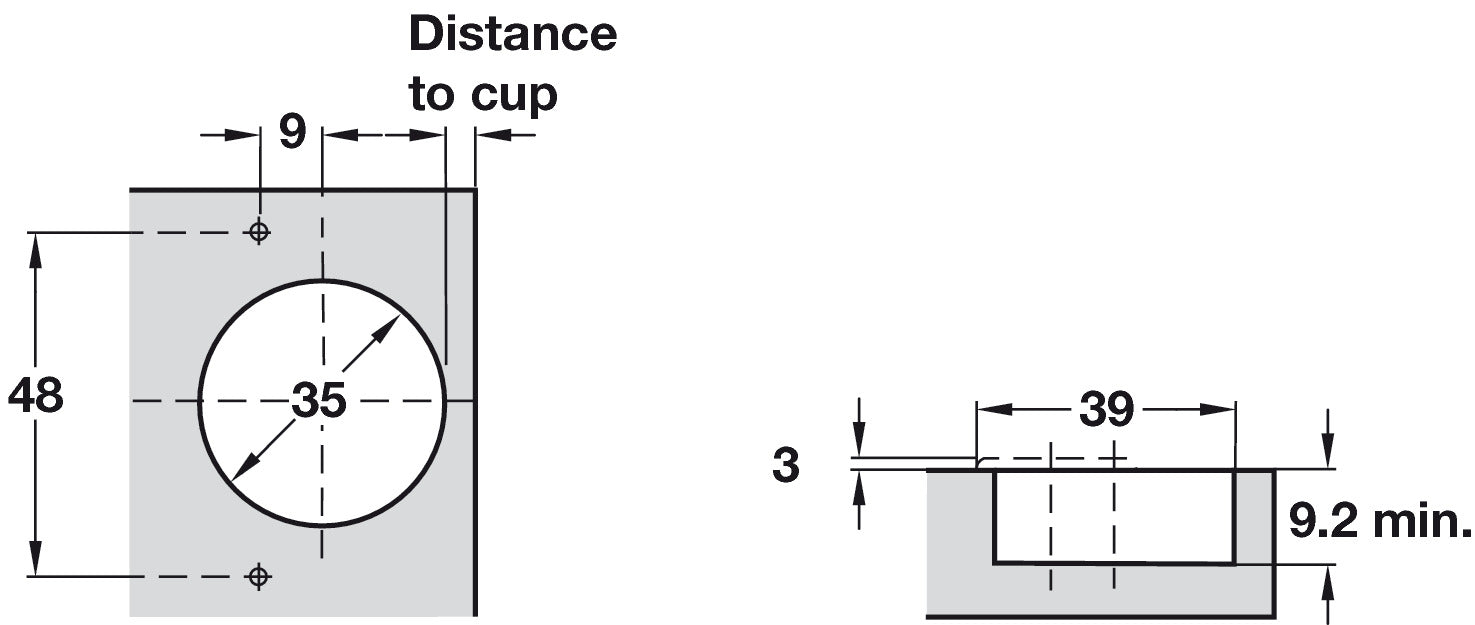

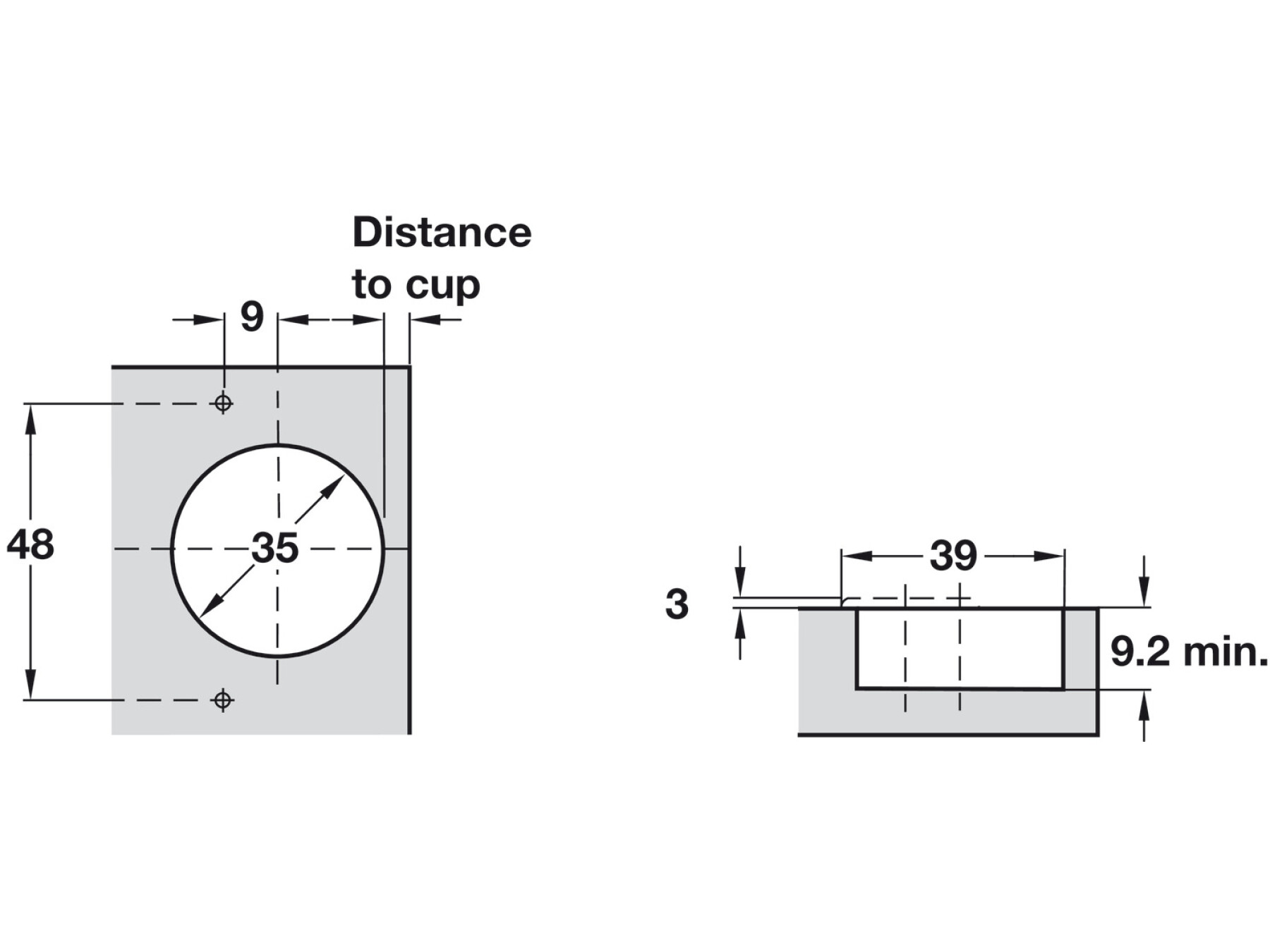

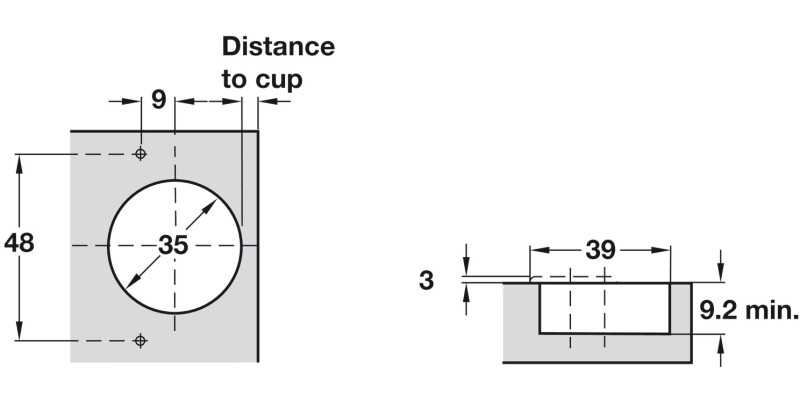

For streamlined assembly, this model comes ready for cup drilling—including the specified machining setup: cup drilling depth of 9.20 mm and a 35.00 mm cup diameter. The cup is secured with screw fixing, using a 48/9 drilling pattern. Door processing is provided with cup drilling, helping you achieve accurate results faster.

Upgrade your cabinet hardware with the dependable comfort of the Concealed Cup Hinge, 110°, for Thin Doors, Tiomos M9.—a confident choice for builders, installers, and homeowners seeking durable concealed hinges with integrated dampening.
