Concealed Cup Hinge, 100°, Refrigerator Door, Click On Arm, Tiomos

Product Details

Concealed Cup Hinge, 100°, Refrigerator Door, Click On Arm, Tiomos (Product Part No: 348.28.600) is a reliable concealed cabinet hinge designed for refrigerator doors where smooth operation and dependable alignment matter. Built specifically for a fridge door (sliding system) application, this flat hinge arm delivers a practical, space-saving solution for everyday use in both living and commercial settings.

Featuring a self-closing mechanism with an automatic closing spring, the Concealed Cup Hinge, 100°, Refrigerator Door, Click On Arm, Tiomos helps keep doors closing properly every time—without the added soft-close function. That means straightforward performance, easy fitment, and consistent results for refrigerator and cabinet door applications.

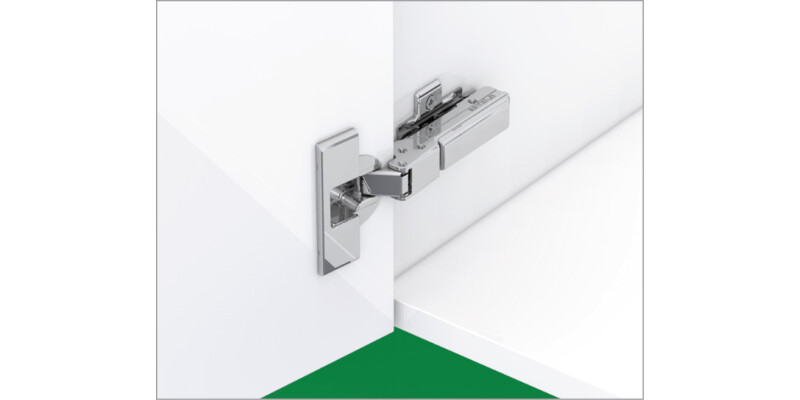

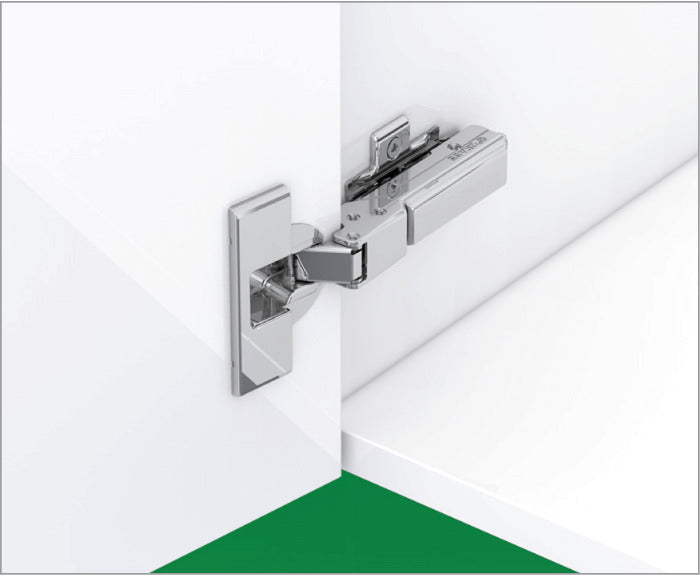

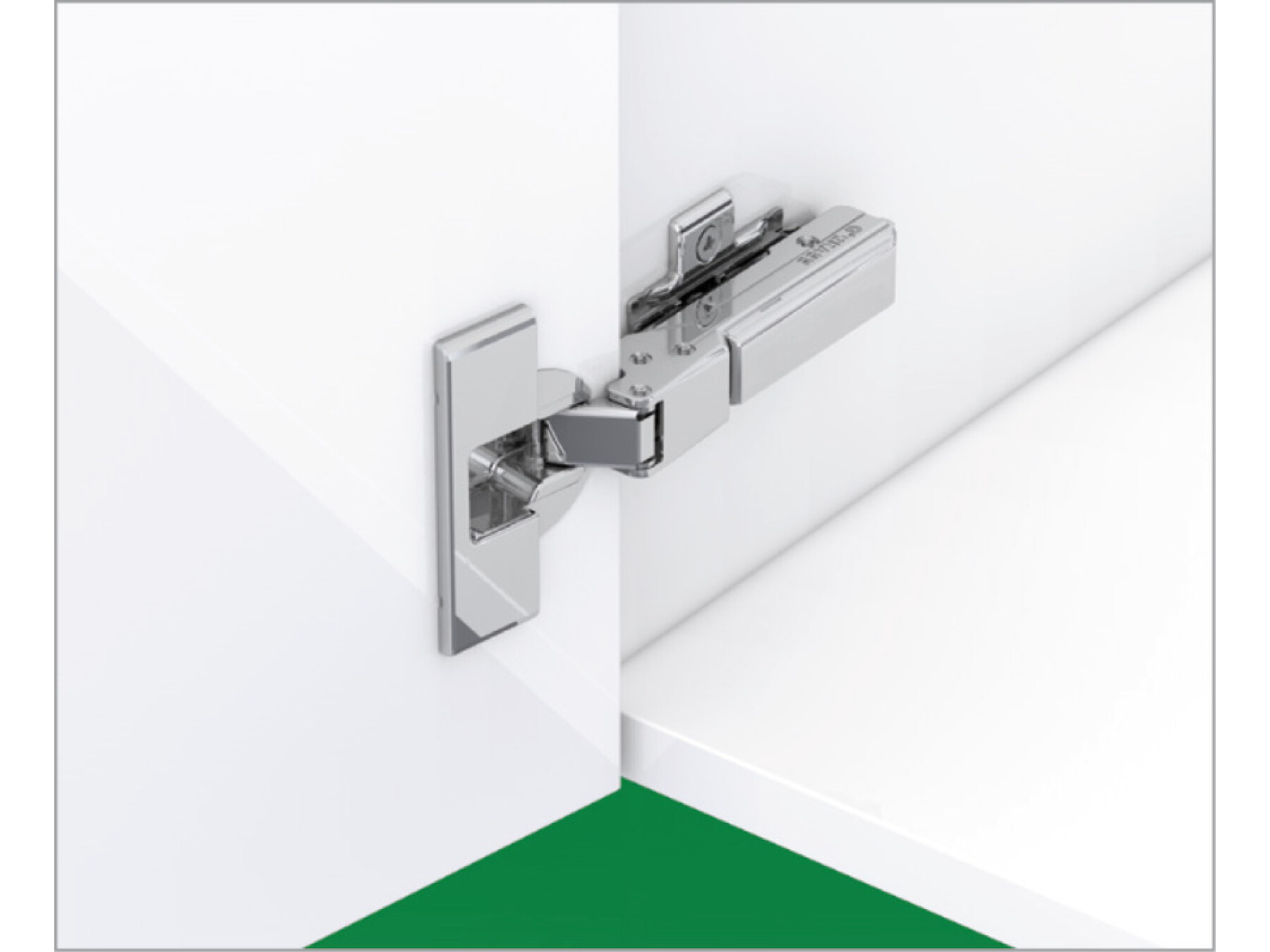

As a concealed hinge version, it’s made for refrigerator doors and provides a neat, professional look after installation. The straight crank type and concealed design help maintain clean lines while supporting smooth door movement.

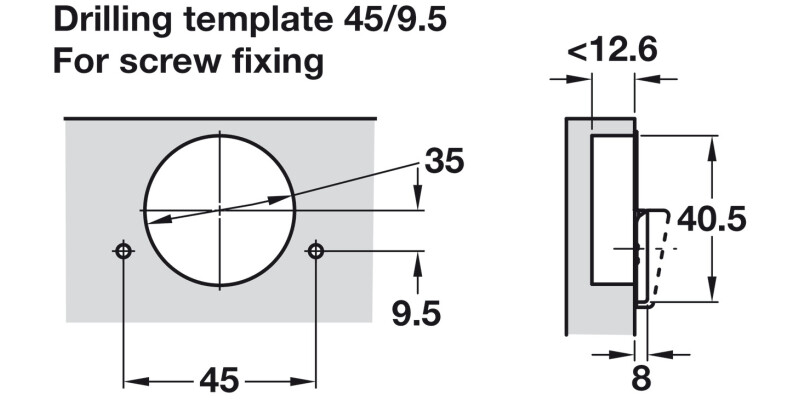

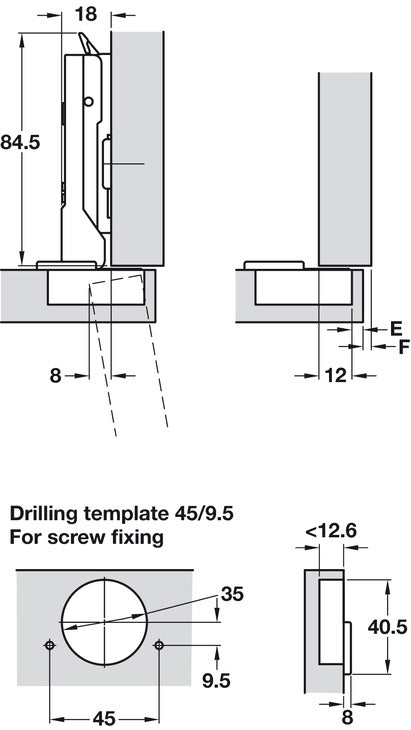

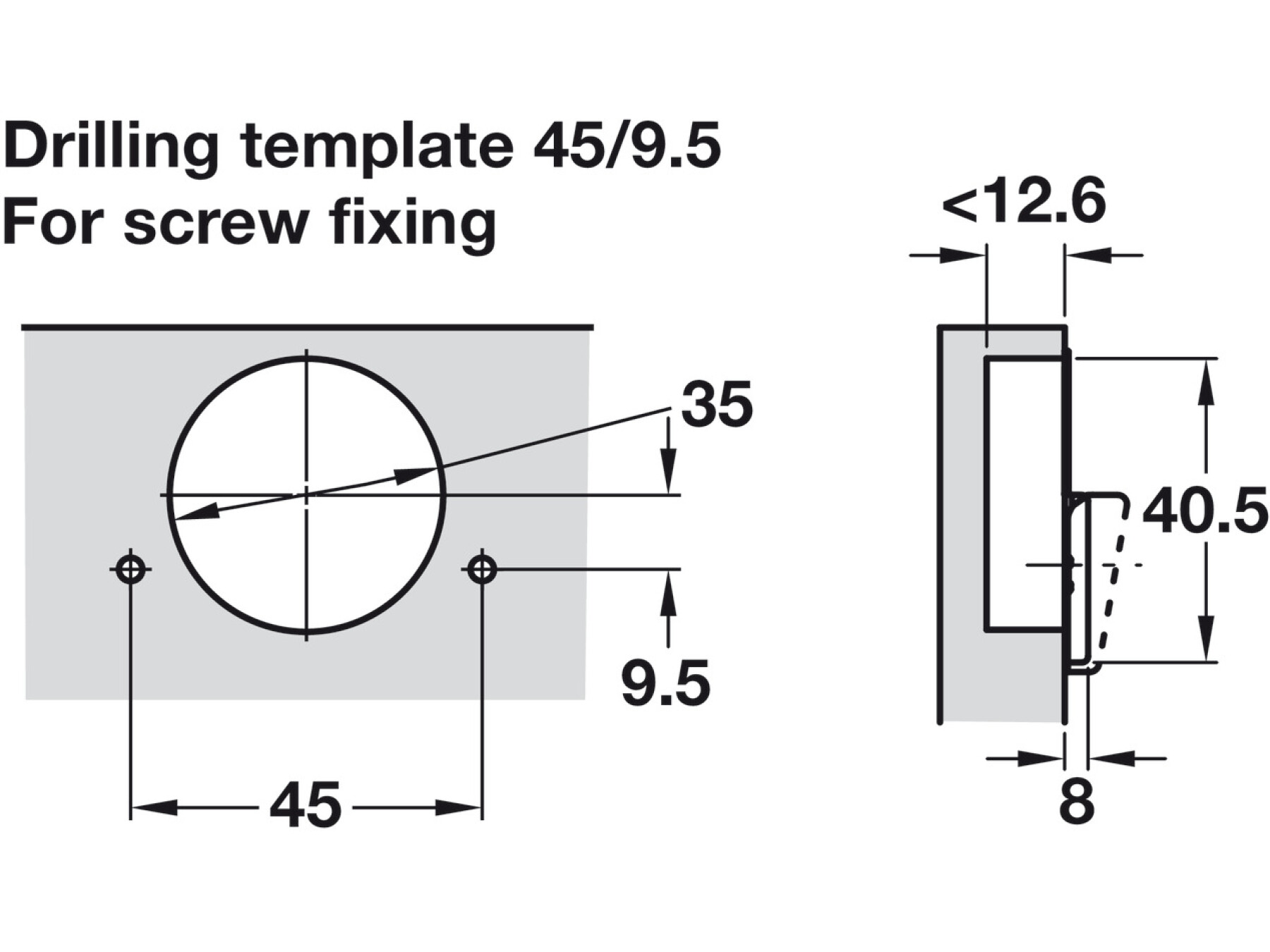

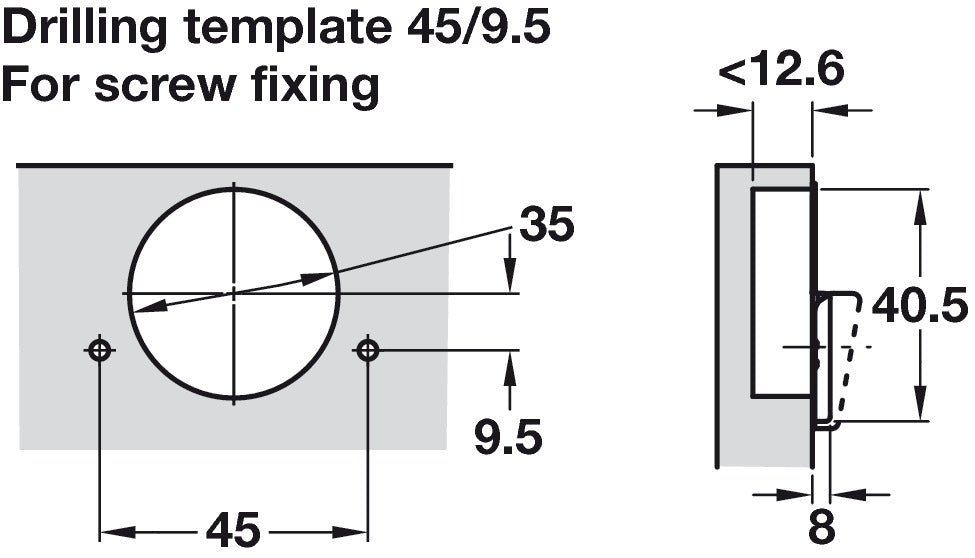

Key installation-ready features: cup drilling is supported for assembly, with a cup drilling depth of 12.60 mm and a 35.00 mm cup drilling diameter. The hinge is finished in durable steel construction for long-lasting strength. For the drilling pattern, it uses 45/9.5, and the cup fixing is for screw fixing (use separately ordered countersunk screws as noted for Ø 3.5 mm).

With an opening angle of 100°, this Tiomos fridge hinge (without soft close) is a smart choice for anyone upgrading or replacing concealed refrigerator hardware—choose 348.28.600 for a secure fit and dependable daily performance.

Order Hospa Ø 3.5 mm countersunk screws separately
