Concealed Cup Hinge, 95/120° Handle-less, Without Spring, Click on Arm, Tiomos T is a premium concealed cabinet... Read More

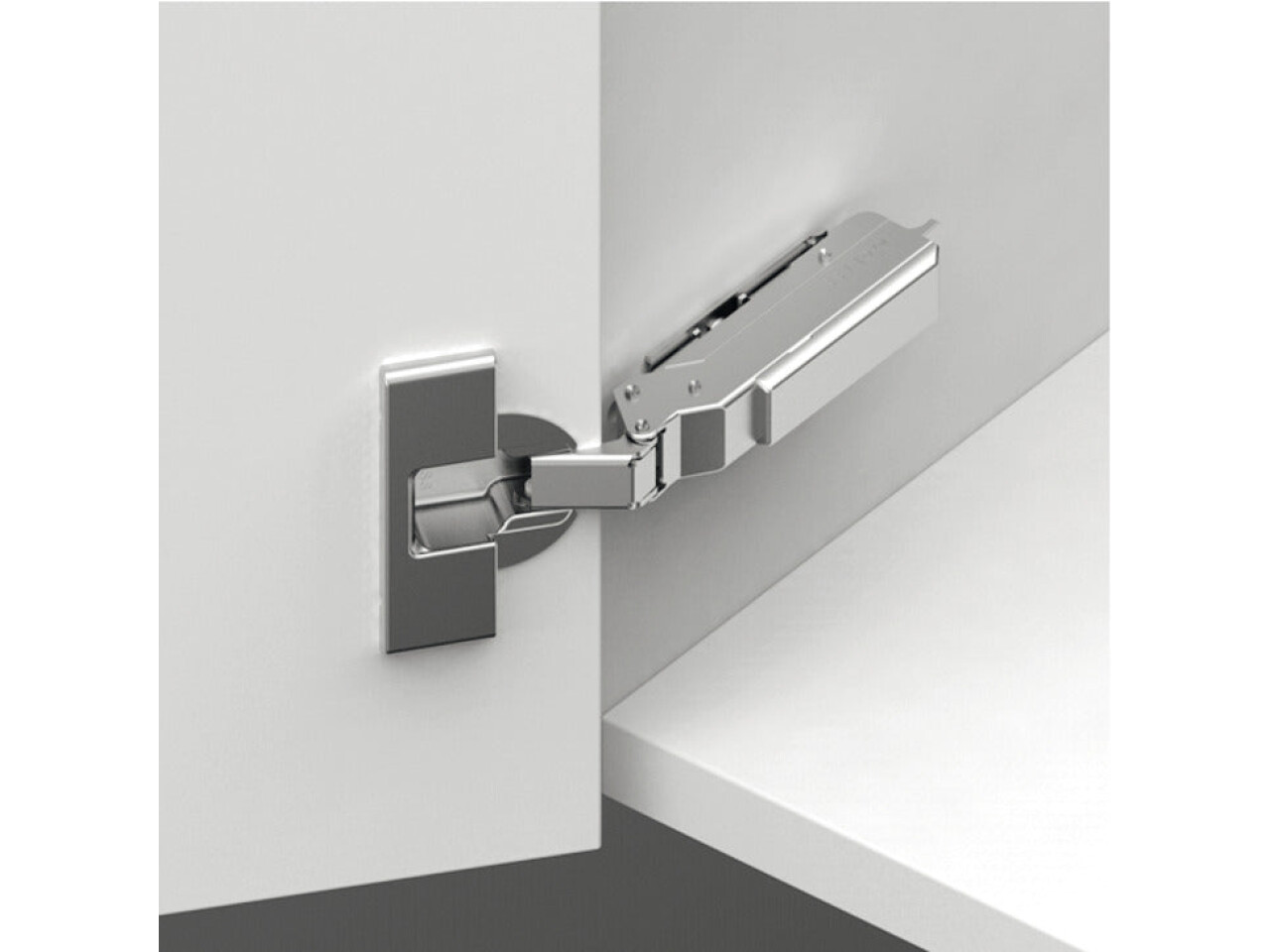

Concealed Cup Hinge, 95/120° Handle-less, Without Spring, Click on Arm, Tiomos T is a premium concealed cabinet hinge designed for smooth, reliable everyday performance in living and commercial furniture. Part of the Tiomos concealed cup hinge range, this model (Part No: 348.42.401) offers a generous 95° opening angle, making it ideal for cabinets where you want full, practical access to the interior.
Built for straightforward installation, the hinge features screw fixing cup convenience and is without soft close—perfect for customers who prefer a firmer closing feel. With an opening spring for handle-free opening, doors lift into position easily, helping create a more effortless user experience.

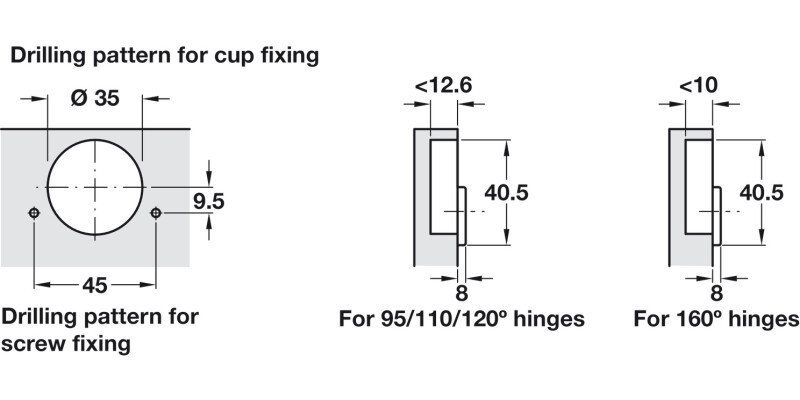

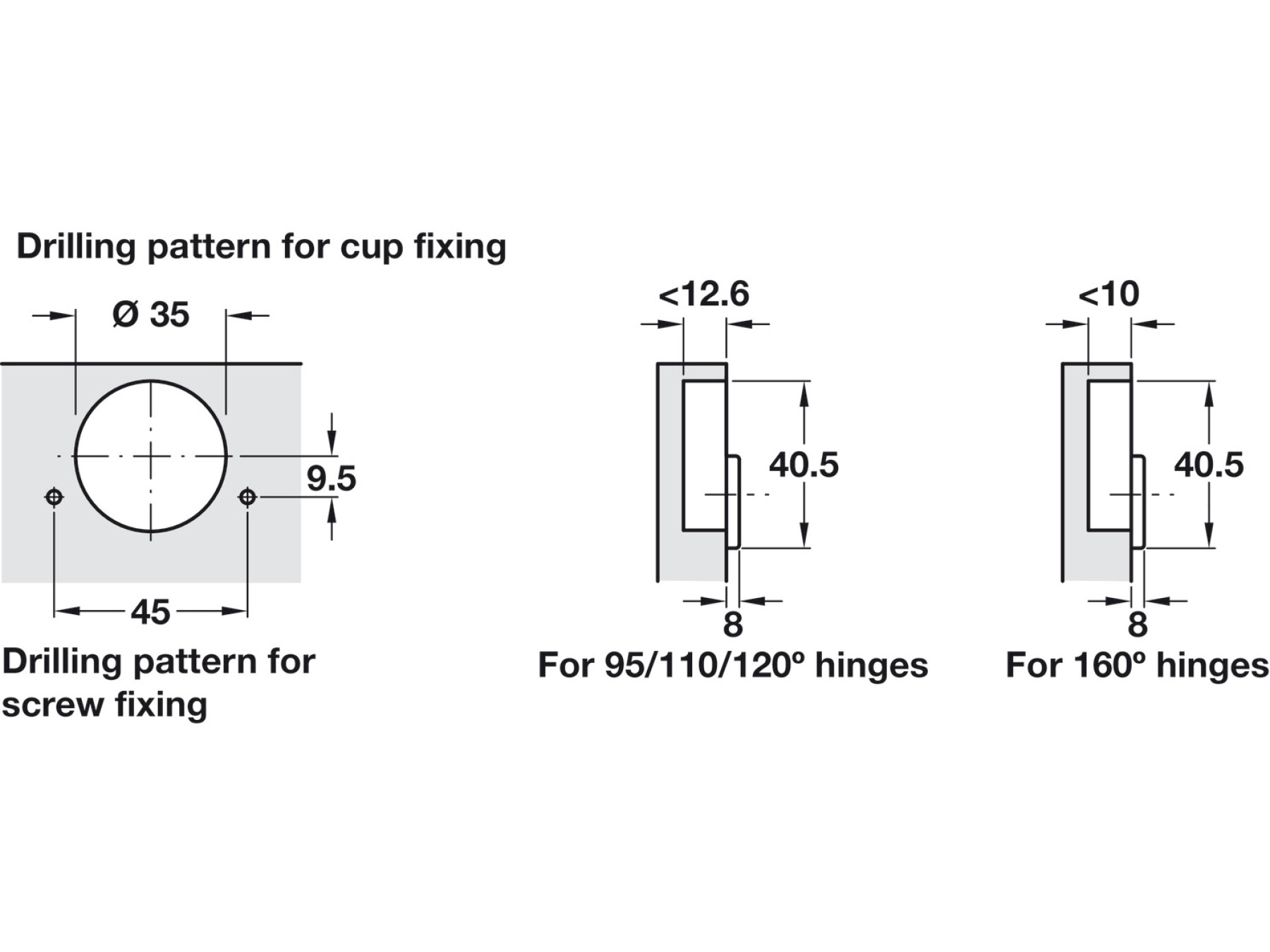

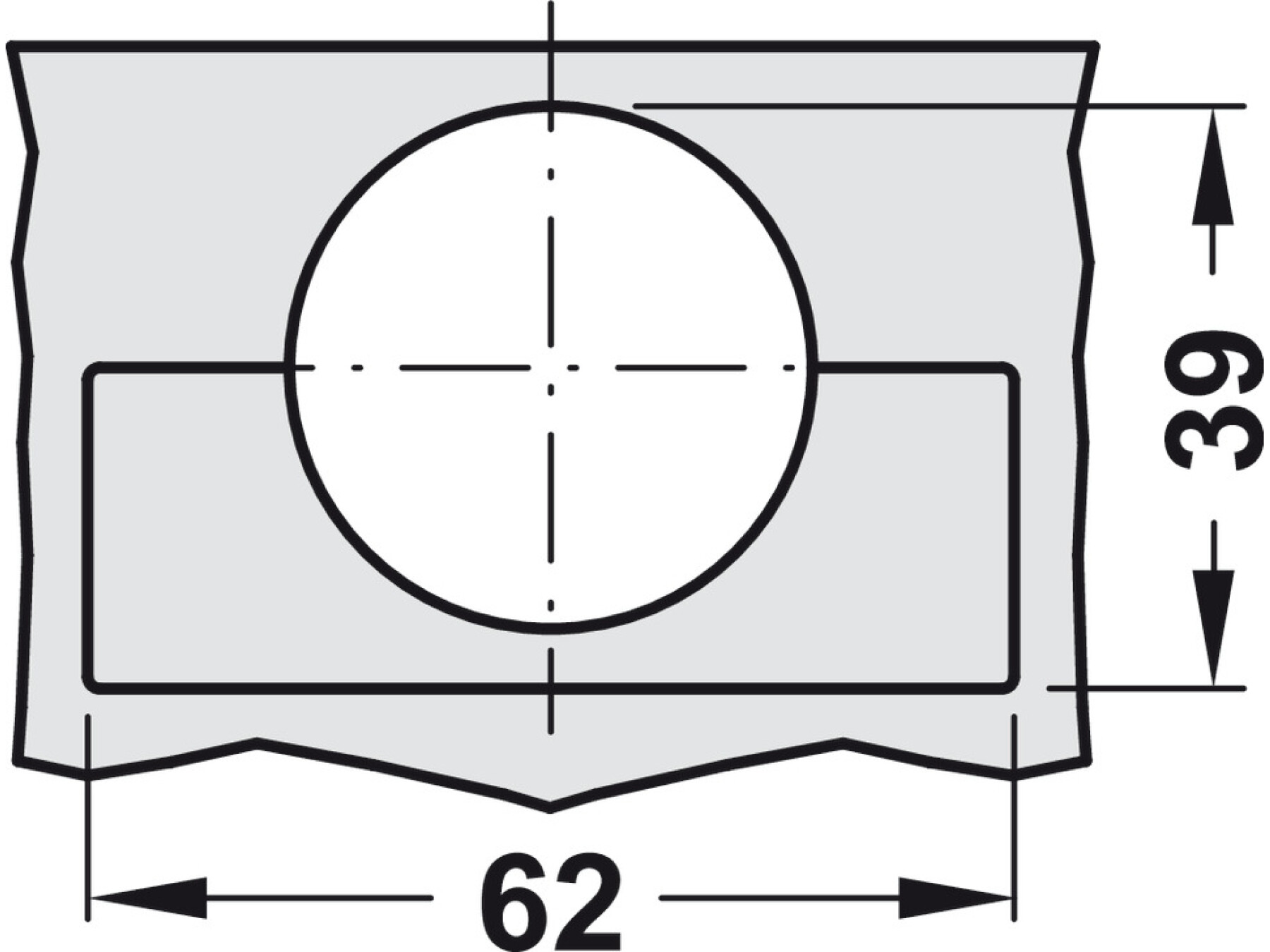

The hinge is straight in crank type and is supplied for door processing with cup drilling included. You can achieve a clean, professional fit with 35.00 mm cup drilling diameter and a precise 10.00 mm cup drilling depth. The drilling pattern 45/9.5 supports accurate alignment for a secure cabinet build.
For best results, use the correct order reference: Order Hospa ⌀ 3.5 mm countersunk screws separately. If you’re upgrading existing furniture fittings or planning a new build, Concealed Cup Hinge, 95/120° Handle-less, Without Spring, Click on Arm, Tiomos T delivers dependable concealed performance and a neat, modern finish—an excellent choice when you want strong function with a clean installation.
Order Hospa ⌀ 3.5 mm countersunk screws separately
Yes. The Tiomos Tipmatic 95D Click SF comes with an opening spring so the door can be opened comfortably without relying on a handle pull. This is especially useful for furniture designs where you want a neat, handle free look.
No soft close is included. This version is without a soft closing mechanism. If you need damped closing behaviour, you will want to choose a soft close model instead.
95 degrees. The opening angle is 95°, giving good access for everyday use in cabinets and furniture spaces.
Yes, it uses screw fixing. Cup fixing is designed for screw fixing, and the drilling pattern is 45 over 9.5 for cup installation.
Cup drilling is 35 mm. You will need a 35 mm cup with a drilling depth of 10 mm for correct alignment and fit.
Yes, screws are not supplied with this item. For installation, you are advised to use order reference Hospa ⌀ 3.5 mm countersunk screws separately.

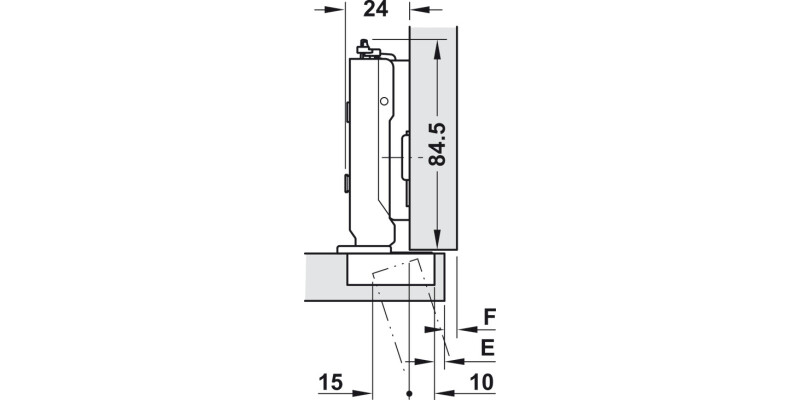

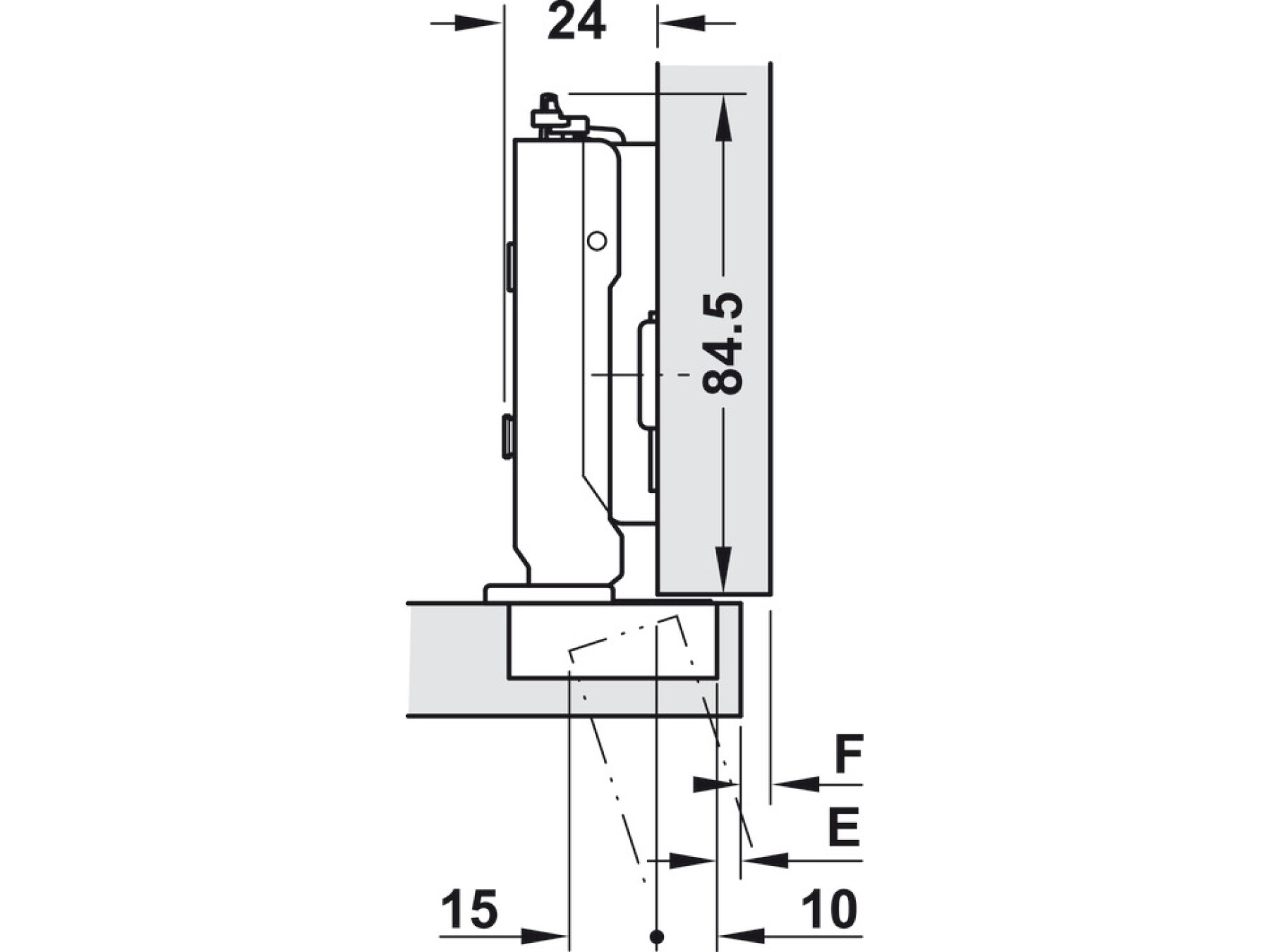

Straight crank type. The hinge uses a straight crank design, helping it suit many standard concealed cup hinge furniture builds.
