Concealed Cup Hinge, 95° Nexis Post, Sprung, Grass

Part Number: 322.27.530
Soft close compatible, Screw fixing cup, click on arm, 48/9
Price:
£8.32
Per Item
VAT excluded

Concealed Cup Hinge, 95° Nexis Post, Sprung, Grass (Part No: 322.27.530) is a quality concealed cabinet hinge... Read More

Product Information

Product Details

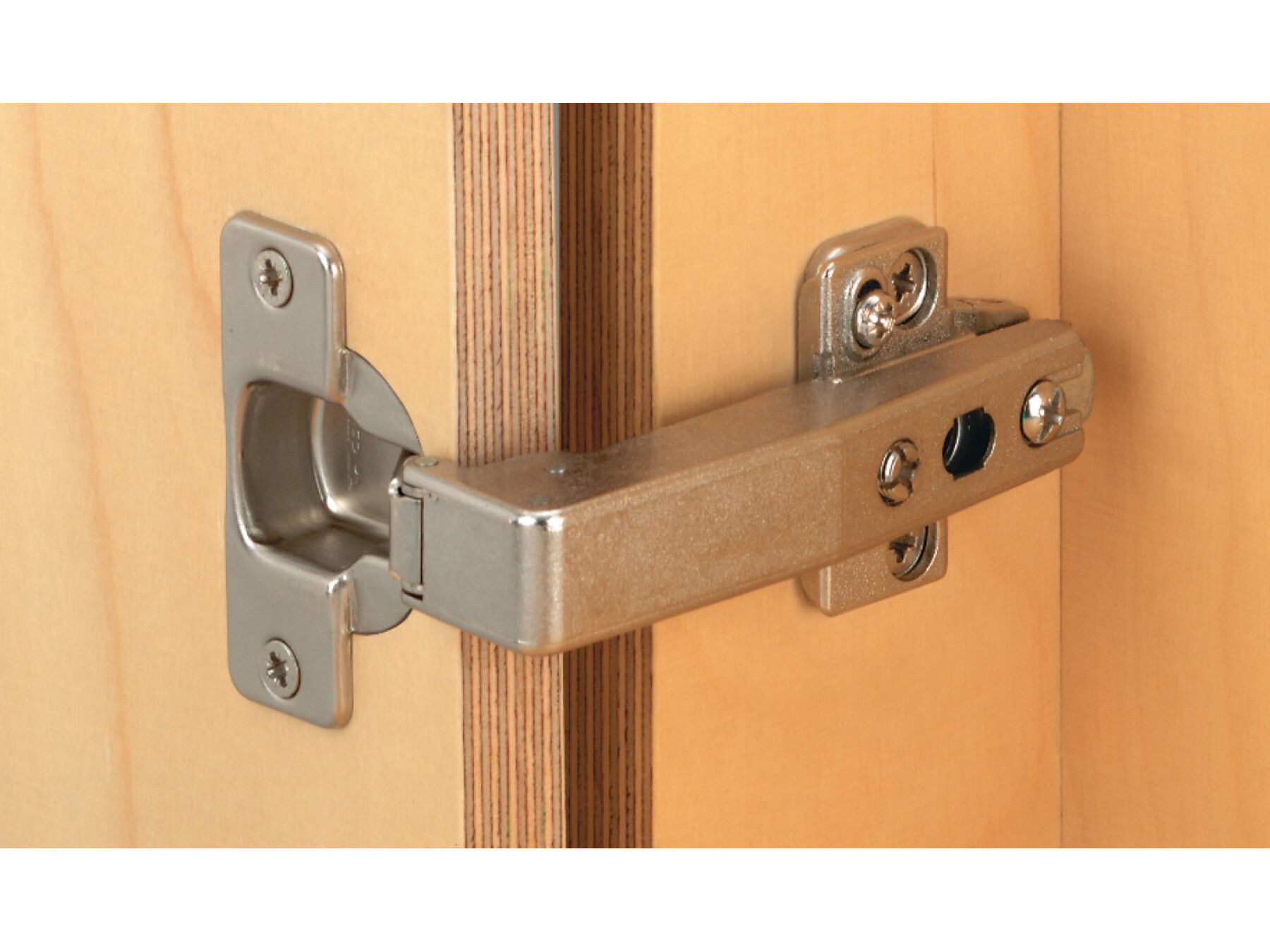

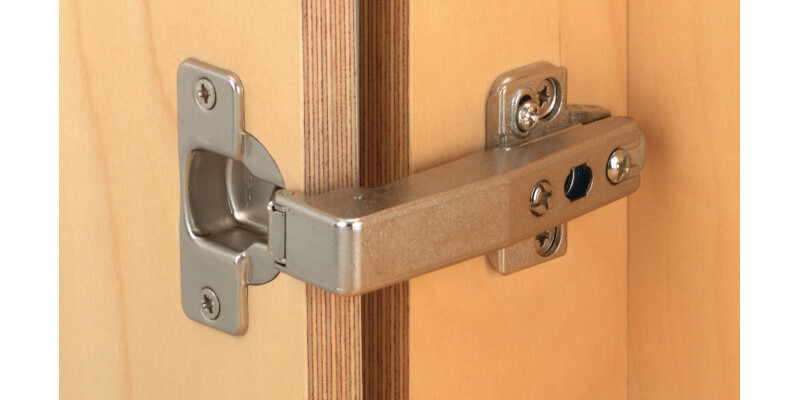

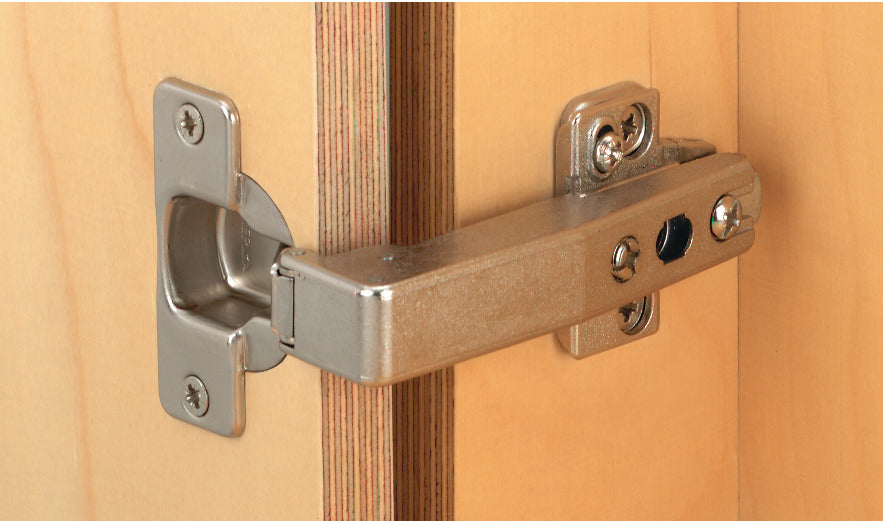

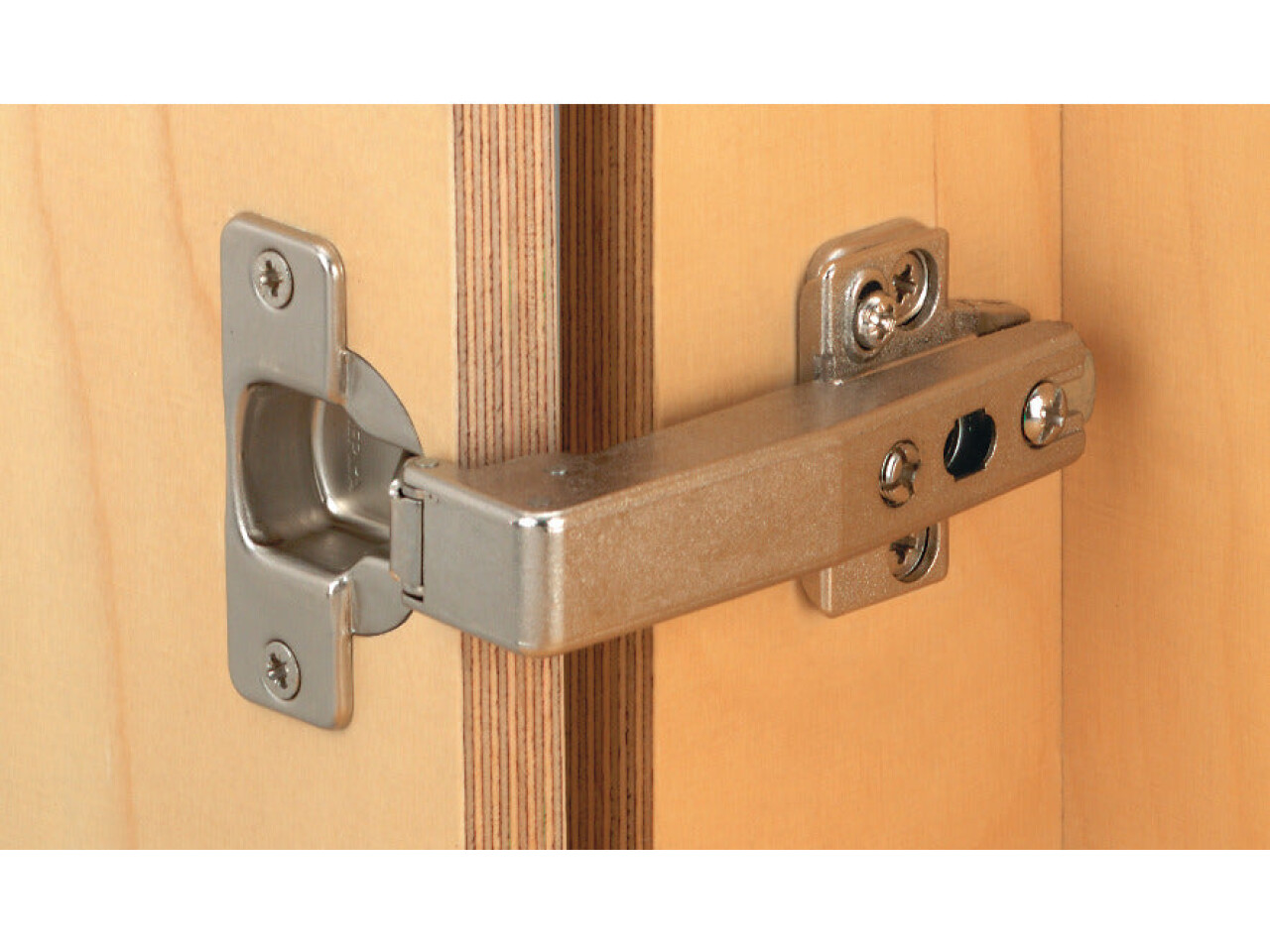

Concealed Cup Hinge, 95° Nexis Post, Sprung, Grass (Part No: 322.27.530) is a quality concealed cabinet hinge designed to deliver smooth, reliable operation in modern kitchens and commercial furniture alike. If you’re fitting bespoke cabinetry, upgrading hardware, or sourcing dependable cabinet hinges for living and commercial solutions, this hinge is a smart choice thanks to its click-on convenience and precise engineering.

This hinge is soft close compatible, making it ideal for projects where you want quiet, controlled closing and an improved user experience. The concealed design keeps the mechanism hidden for a clean, professional finish—perfect for doors that need to look as good as they perform.

Built for blind corner kitchen cabinets, the Nexis click hinge is suited to specialised furniture applications, helping you make the most of awkward spaces with a straight crank action and a generous 95° opening angle. For assembly, it’s with cup drilling, supporting a straightforward installation with a standard drilling pattern.

Crafted with a steel hinge cup and a zinc alloy hinge arm, this model offers strong durability for everyday use. The nickel plated finish adds a subtle, attractive look, while the cup drilling Ø 35.00 mm and cup drilling depth 11.80 mm are matched to the specified fitting requirements.

Choose the Concealed Cup Hinge, 95° Nexis Post, Sprung, Grass for dependable concealed performance—click on arm, 48/9 drilling pattern, and a hinge solution you’ll be pleased to install and use.

Specifications

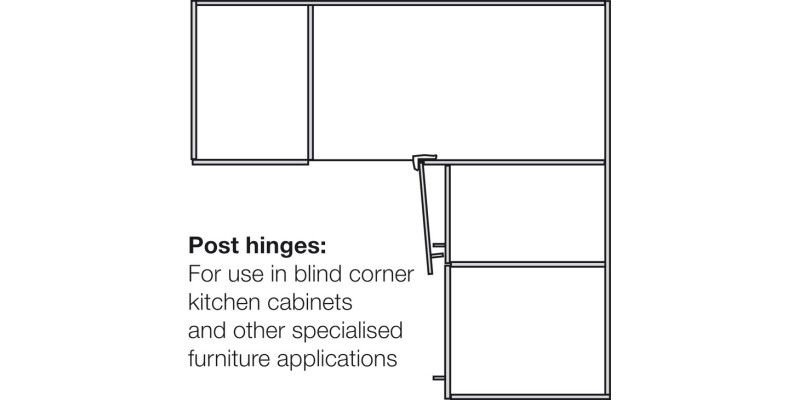

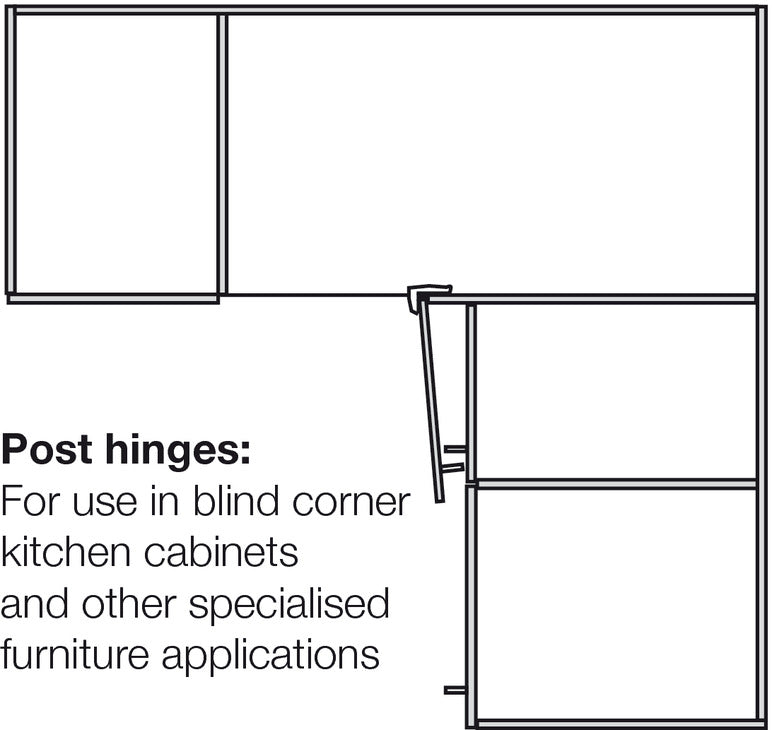

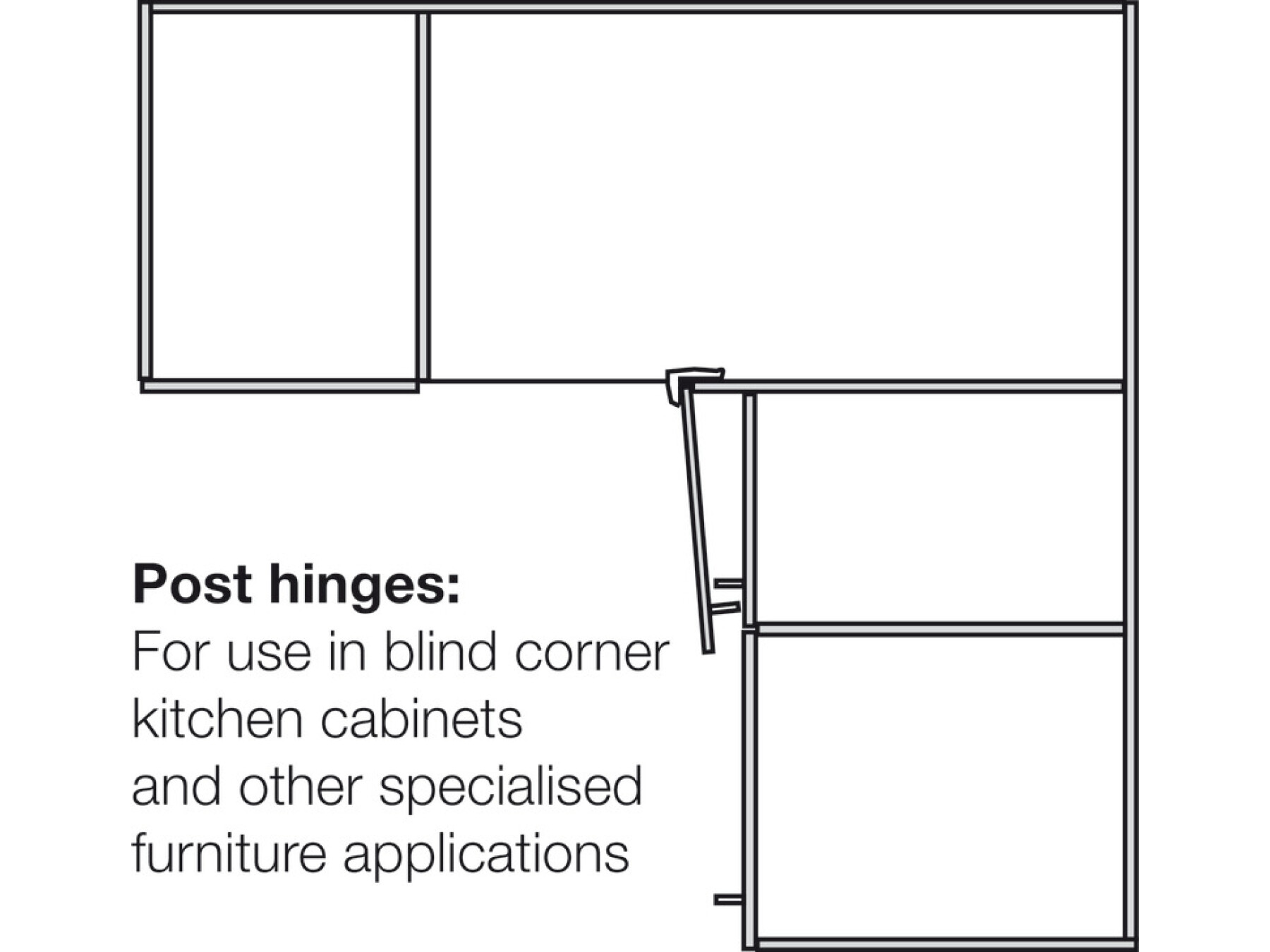

Area of application

For use in blind corner kitchen cabinets and other specialised furniture applications

Version

Click on

Concealed hinge version

Blind corner application

Crank type

Straight

Door processing for assembly

with cup drilling

Material

Cup: Steel, Hinge arm: Zinc alloy

Colour/finish

nickel plated

Opening angle

95°

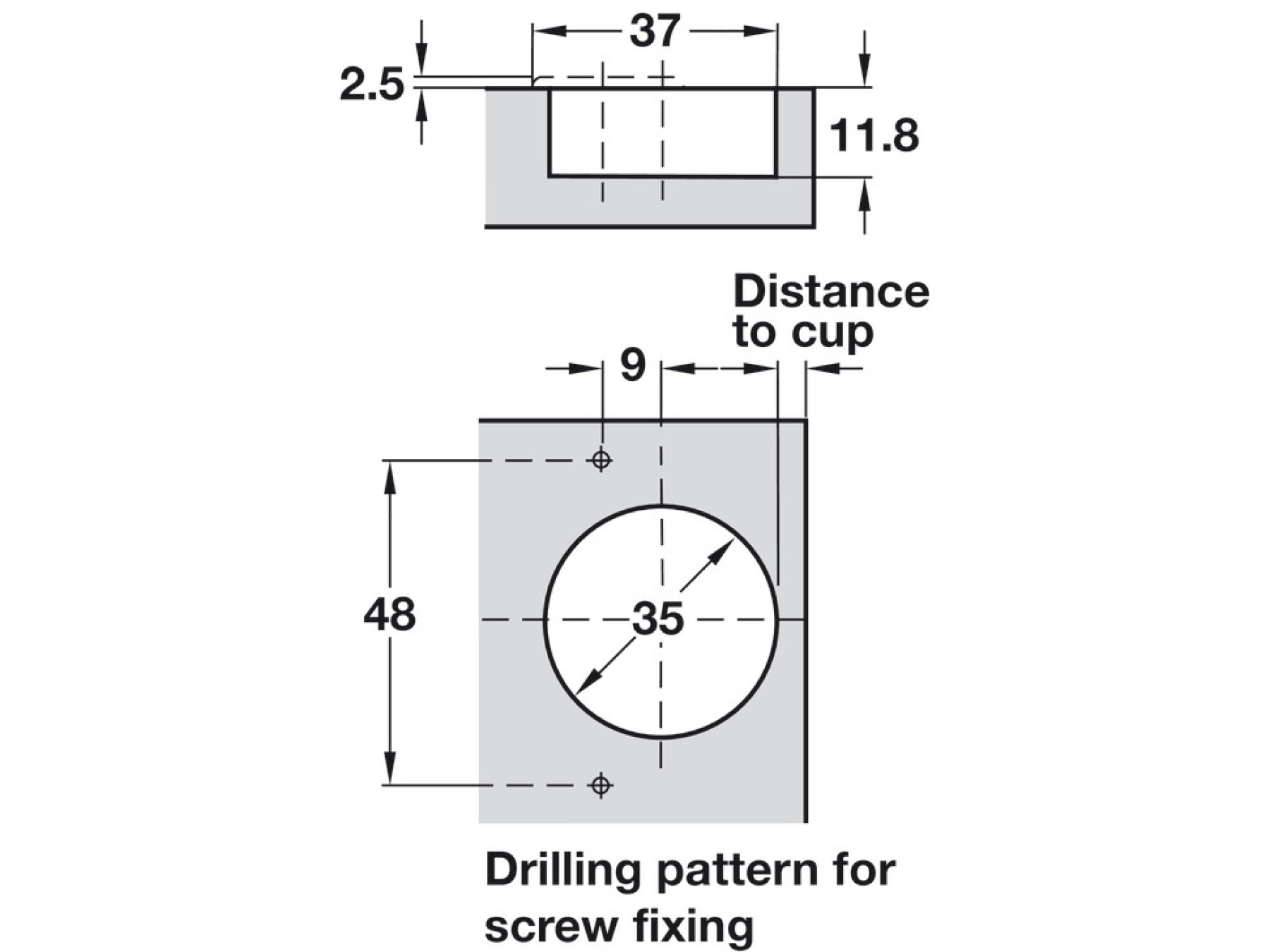

Cup drilling depth

11.80 mm

Cup drilling Ø

35.00 mm

Cup fixing

for screw fixing

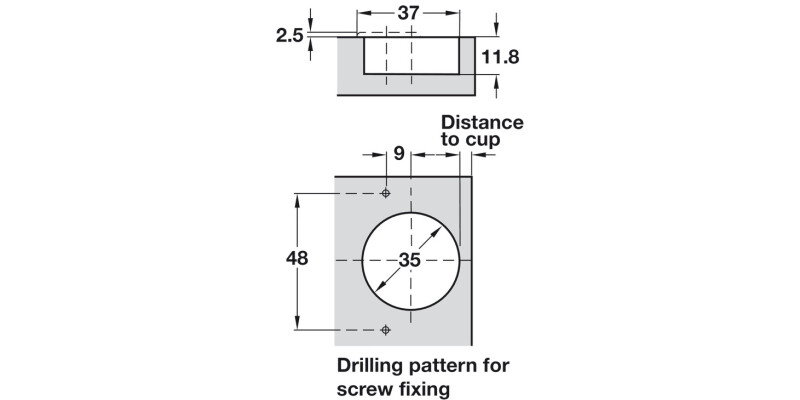

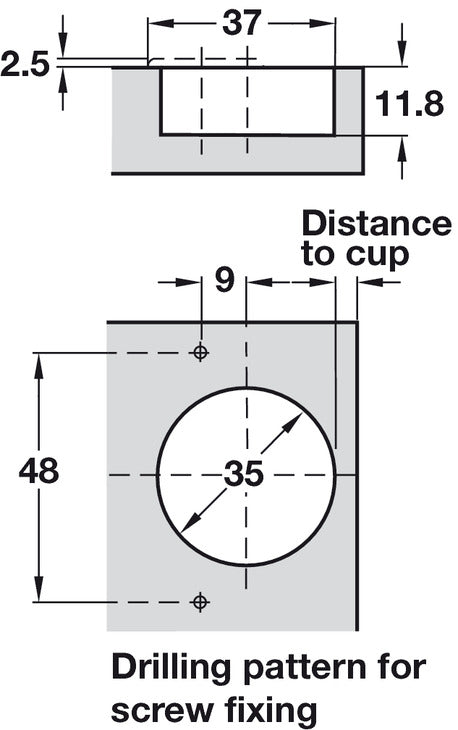

Drilling pattern

48/9
