Concealed Cup Hinge, 95/120° Handle-less, Without Spring, Click on Arm, Tiomos T (Part No: 348.36.401) is a... Read More

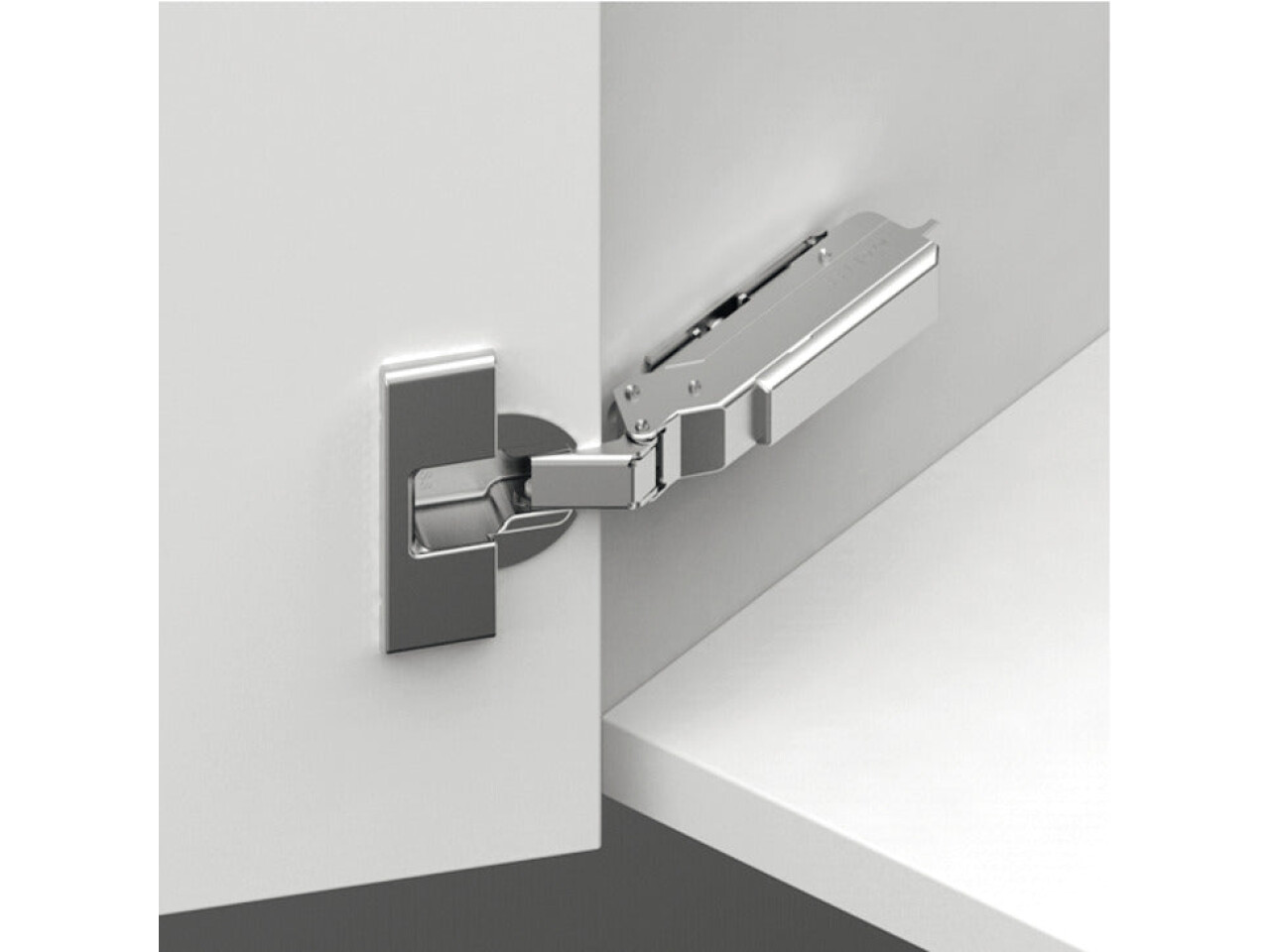

Concealed Cup Hinge, 95/120° Handle-less, Without Spring, Click on Arm, Tiomos T (Part No: 348.36.401) is a reliable concealed cabinet hinge designed for smooth, accurate door alignment in both living and commercial furniture. Built with a generous opening angle of 120°, it’s ideal for applications where easy access and comfortable door positioning are essential.
This concealed cup hinge features screw-fixing cup construction with cup drilling for straightforward installation. The drilling pattern 45/9.5 ensures compatibility with standard mounting dimensions, helping you achieve a professional fit with less effort.
Functionality matters, and this model is made for customers who prefer a dependable opening action without soft close. It includes an opening spring for handle-free opening, allowing the door to engage smoothly when pushed. If you’re maintaining a consistent feel across your cabinetry, the direct, controlled action of this straight crank hinge helps deliver a consistent result.
Key installation details include cup drilling depth of 10.00 mm and a cup diameter of 35.00 mm. The hinge is crank type: straight, supporting stable performance across day-to-day use.
Order reference: please note that Hospa ⌀ 3.5 mm countersunk screws are supplied separately (order separately as required). Choose the Concealed Cup Hinge, 95/120° Handle-less, Without Spring, Click on Arm, Tiomos T for a clean, concealed look and confident door operation—an excellent upgrade for cabinets that demand both function and finish.
Order Hospa ⌀ 3.5 mm countersunk screws separately
No. This concealed cabinet hinge is supplied without soft close, so it opens with the built in spring action but does not provide dampening on closing. If you need a quieter close with cushioning, you would look for a soft close version.
This hinge supports an opening angle of 120 degrees, which is useful for ensuring good access inside cupboards, from kitchens to living and commercial storage where space needs to be fully utilised.
Yes. The hinge cup is made for screw fixing, using a cup drilling setup. This makes it suitable for standard concealed hinge installations in compatible doors and carcasses.

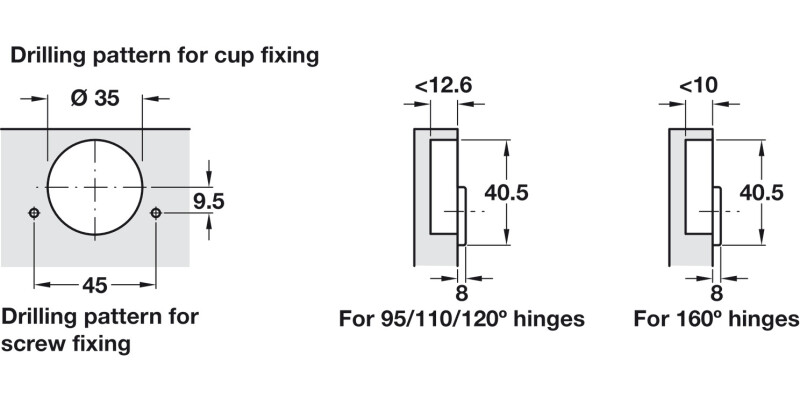

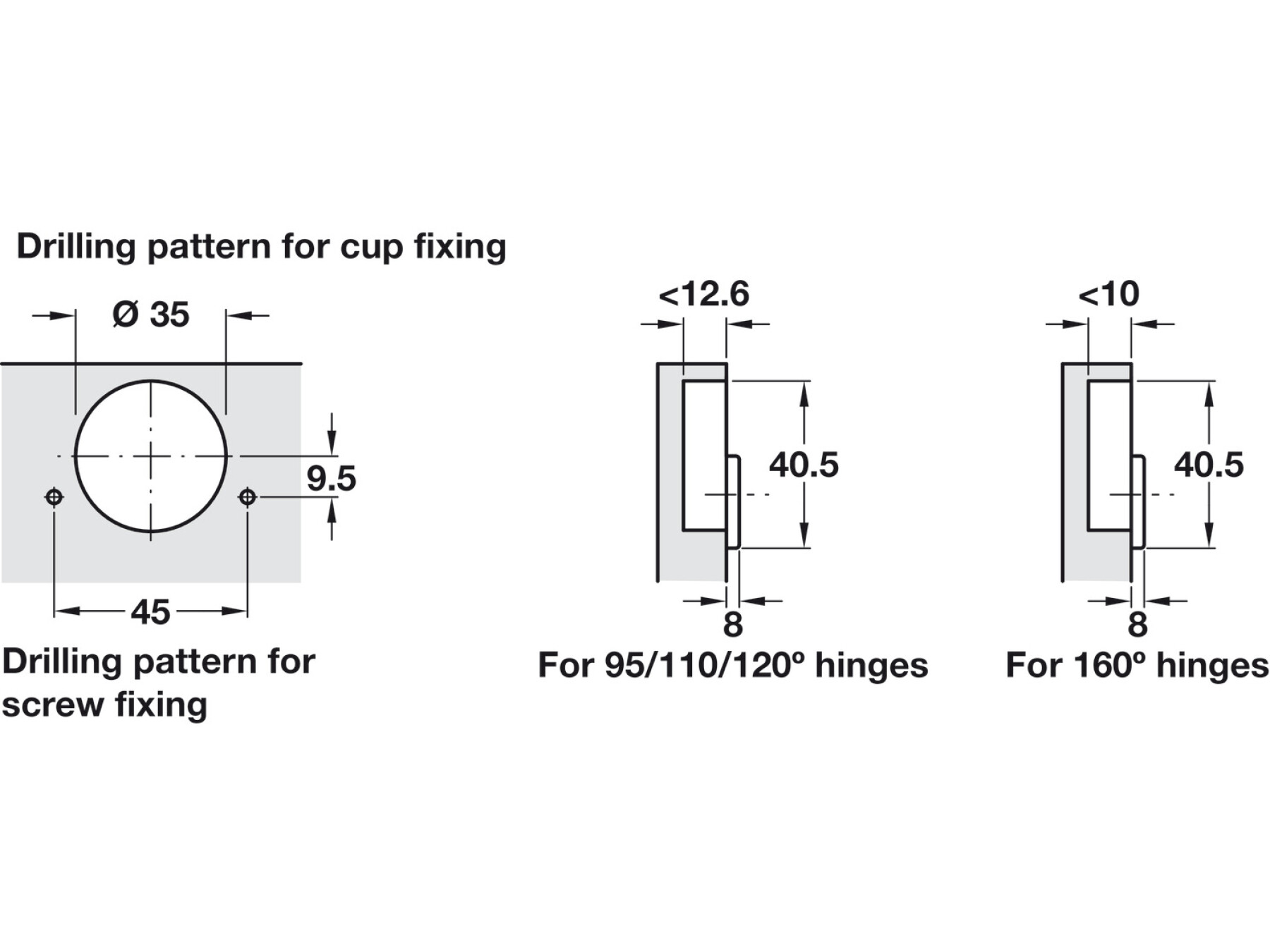

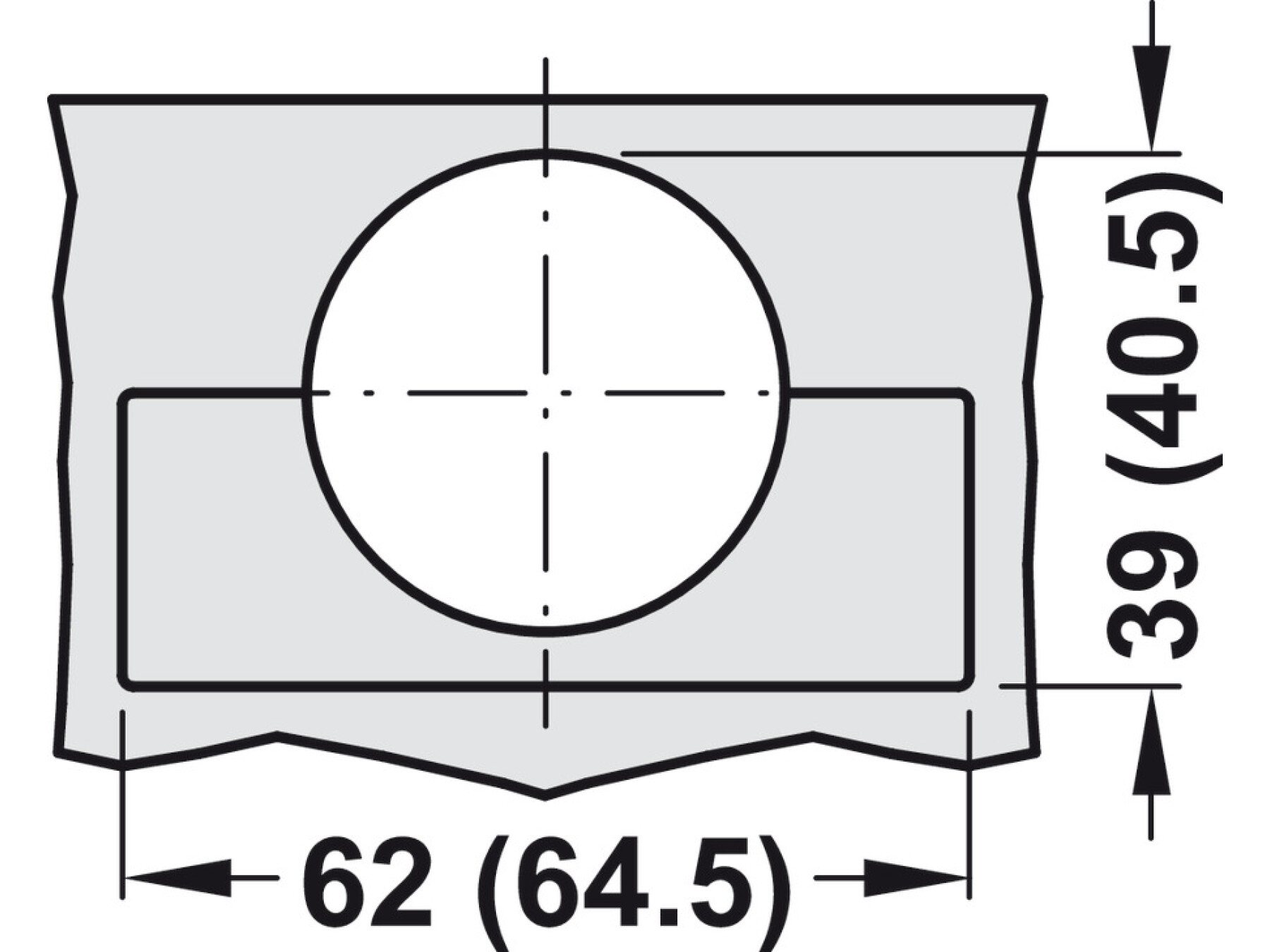

For installation, the hinge uses a 35 mm cup drilling diameter and a 45/9.5 drilling pattern. The cup drilling depth is 10 mm, so check your door drilling matches these figures before fitting.
Tipmatic 120D Click SF wo Spring is designed so the door can be opened using the hinge mechanism during operation. The functionality is intended for handle free opening convenience in everyday use, with a straightforward, concealed hinge look.
For correct fixing, use the order reference guidance for countersunk screws. The recommended option is Hospa 3.5 mm countersunk screws, supplied separately, to match the installation requirements of this hinge.
