Concealed Cup Hinge, 110° Standard, Click on Arm, Tiomos

Product Details

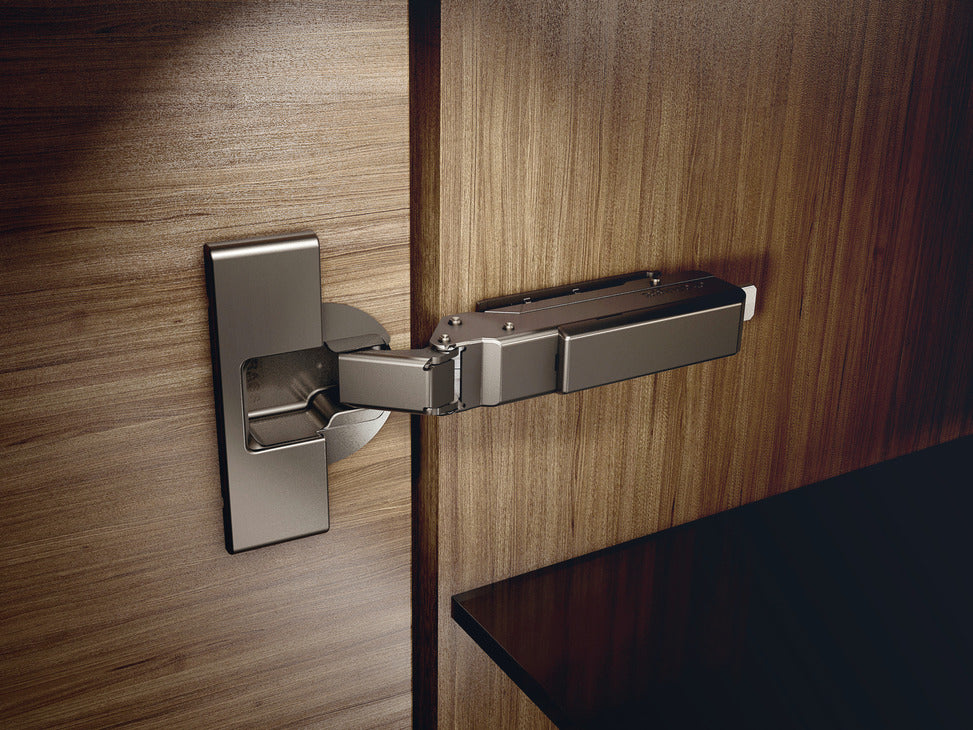

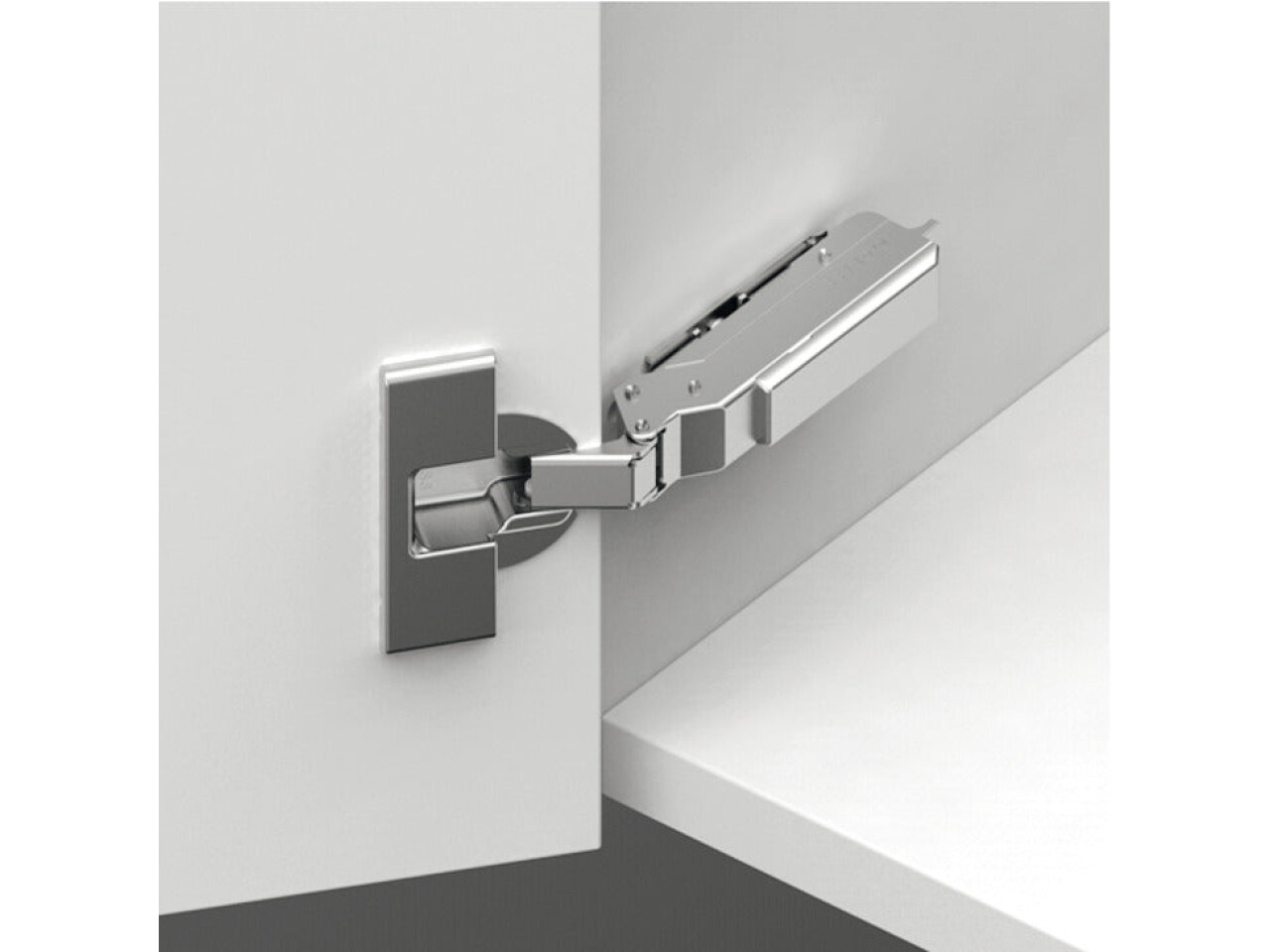

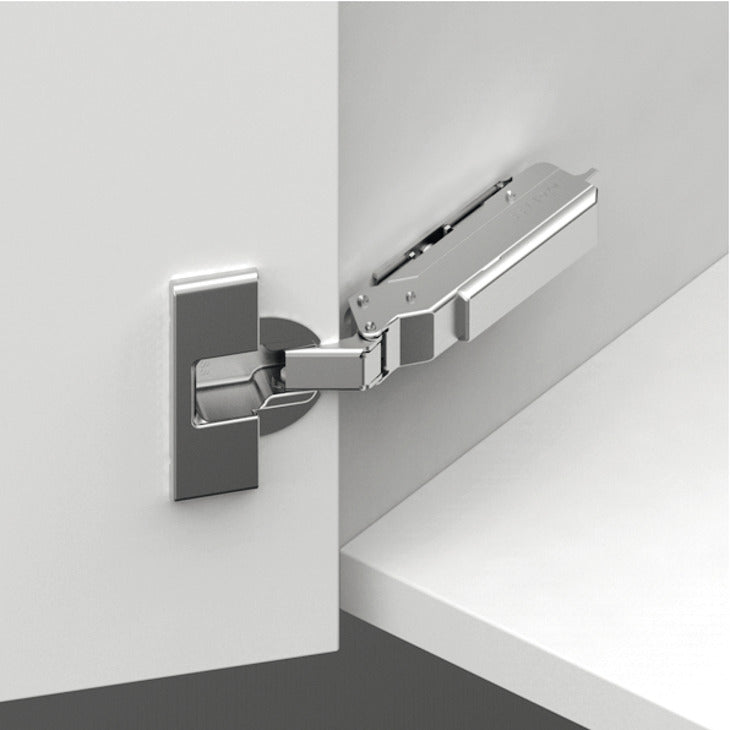

Concealed Cup Hinge, 110° Standard, Click on Arm, Tiomos. (Part No: 348.31.806) is a premium concealed cabinet hinge designed for homeowners and professional installers who want clean aesthetics, smooth operation, and dependable performance. Finished in Tiomos Night – anthracite, this hinge brings a modern, discreet look to your living or commercial furniture while keeping doors perfectly aligned.

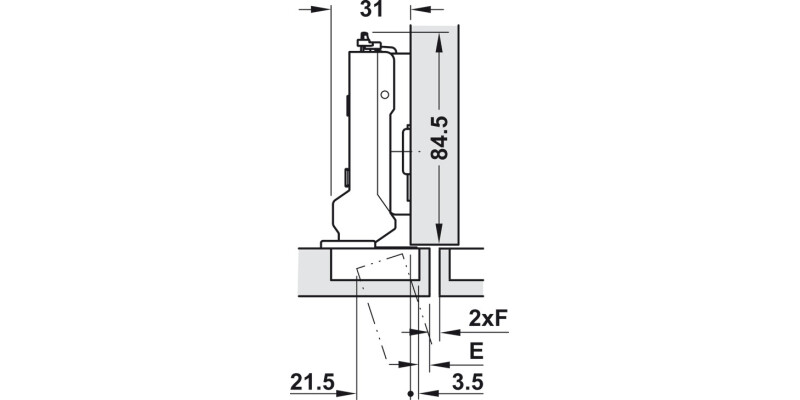

Built for standard applications, the hinge features a half overlay/twin mounting setup with a screw-fixing cup, making it ideal for wood cabinet doors. The concealed hinge version supports a neat, integrated installation—so your furniture stays looking streamlined from every angle.

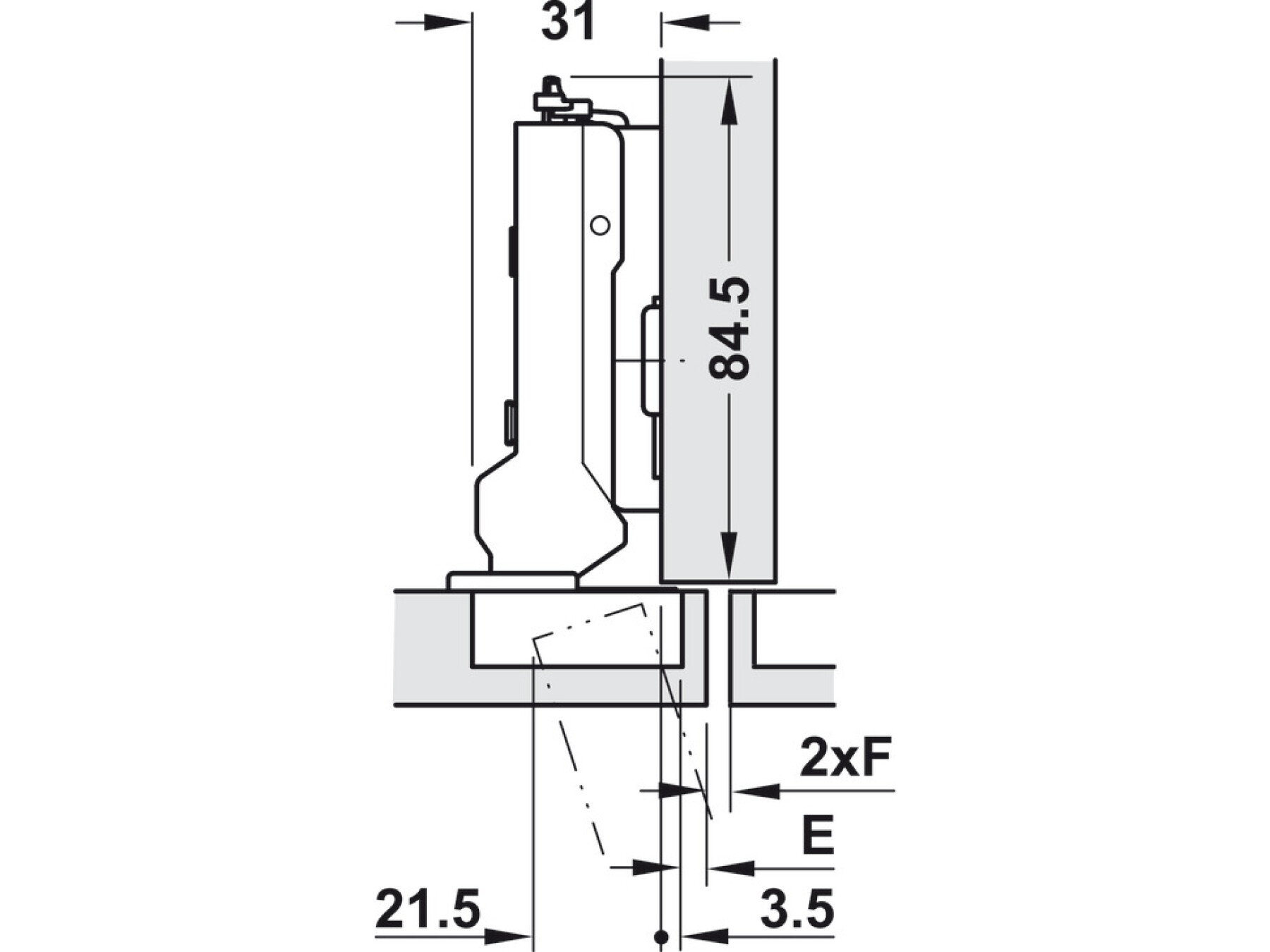

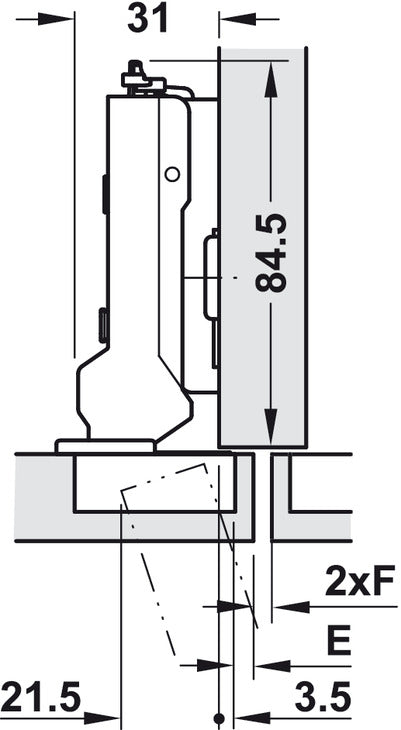

Enjoy a comfortable, controlled closing thanks to the included soft close function. The hinge arm is cranked, delivering an opening angle of 110° for convenient access in everyday use.

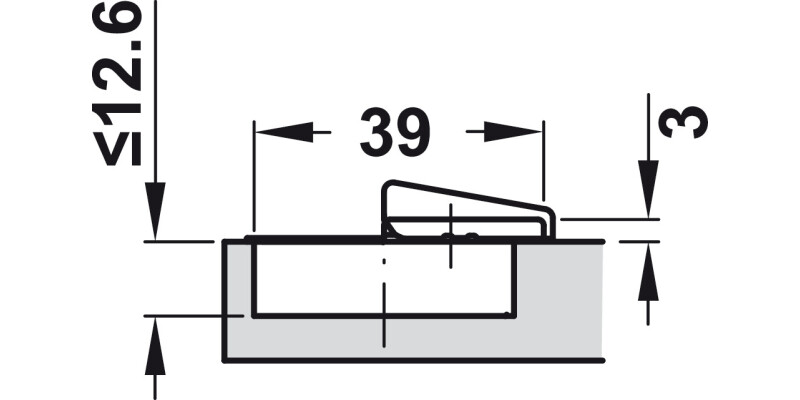

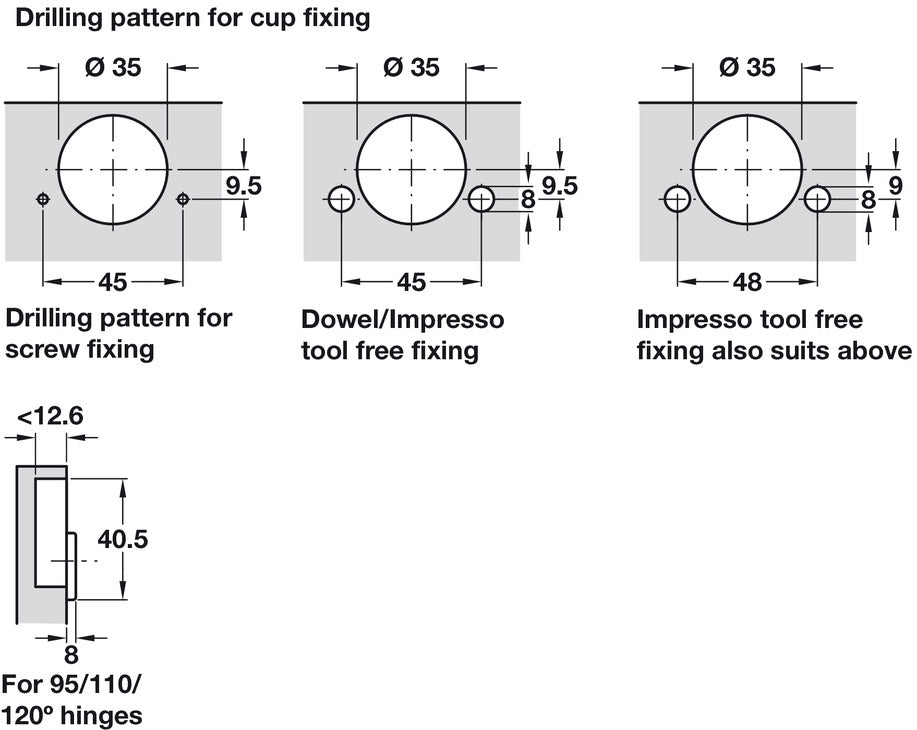

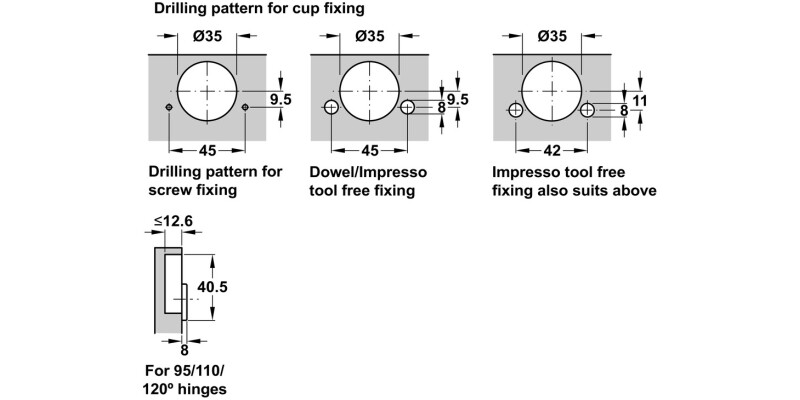

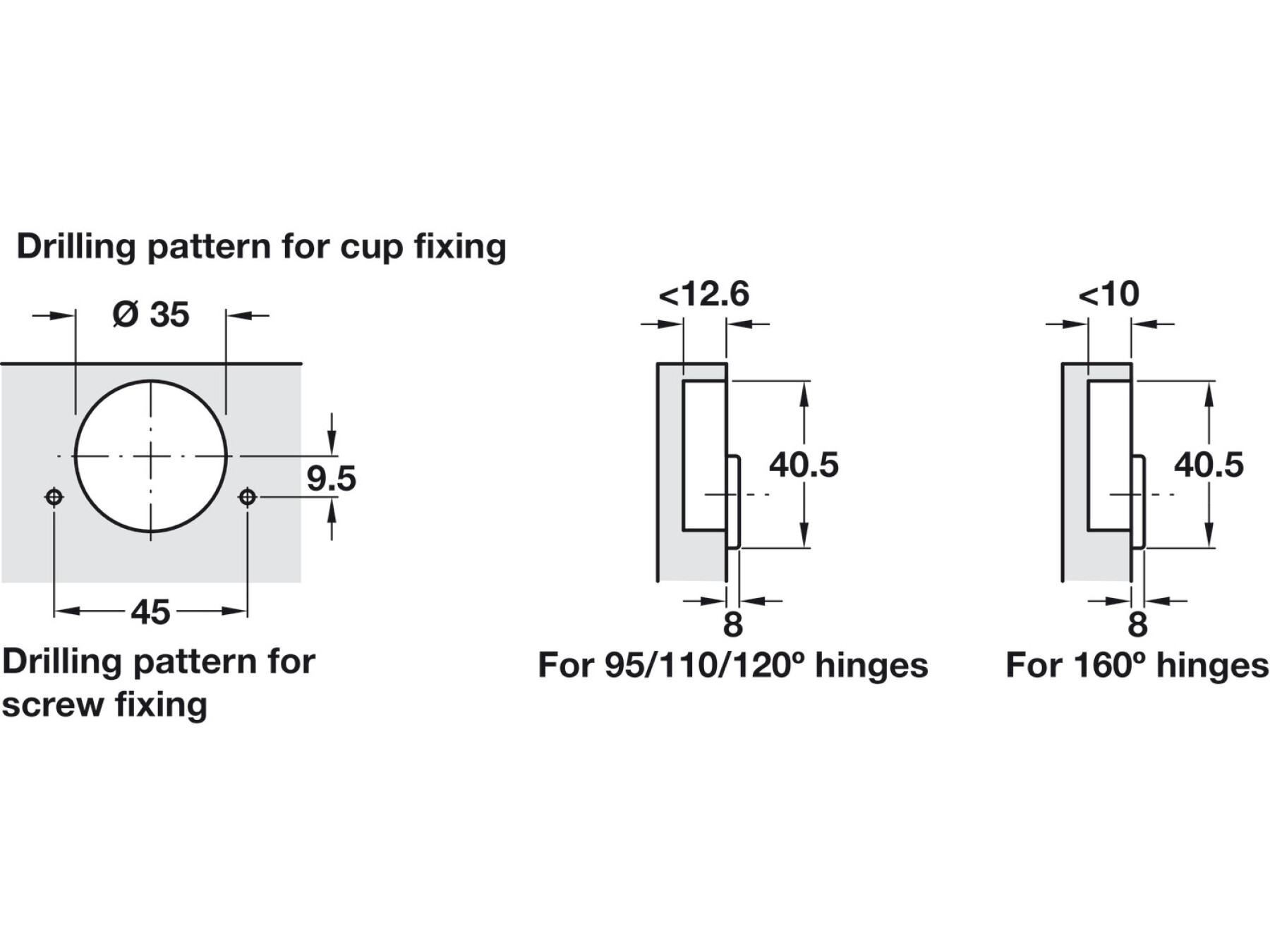

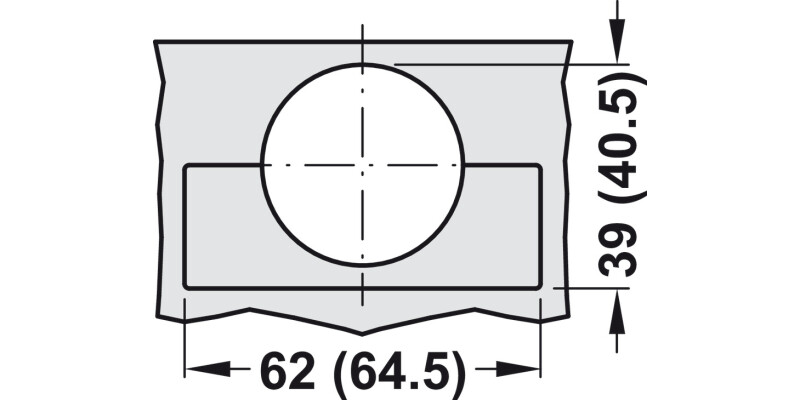

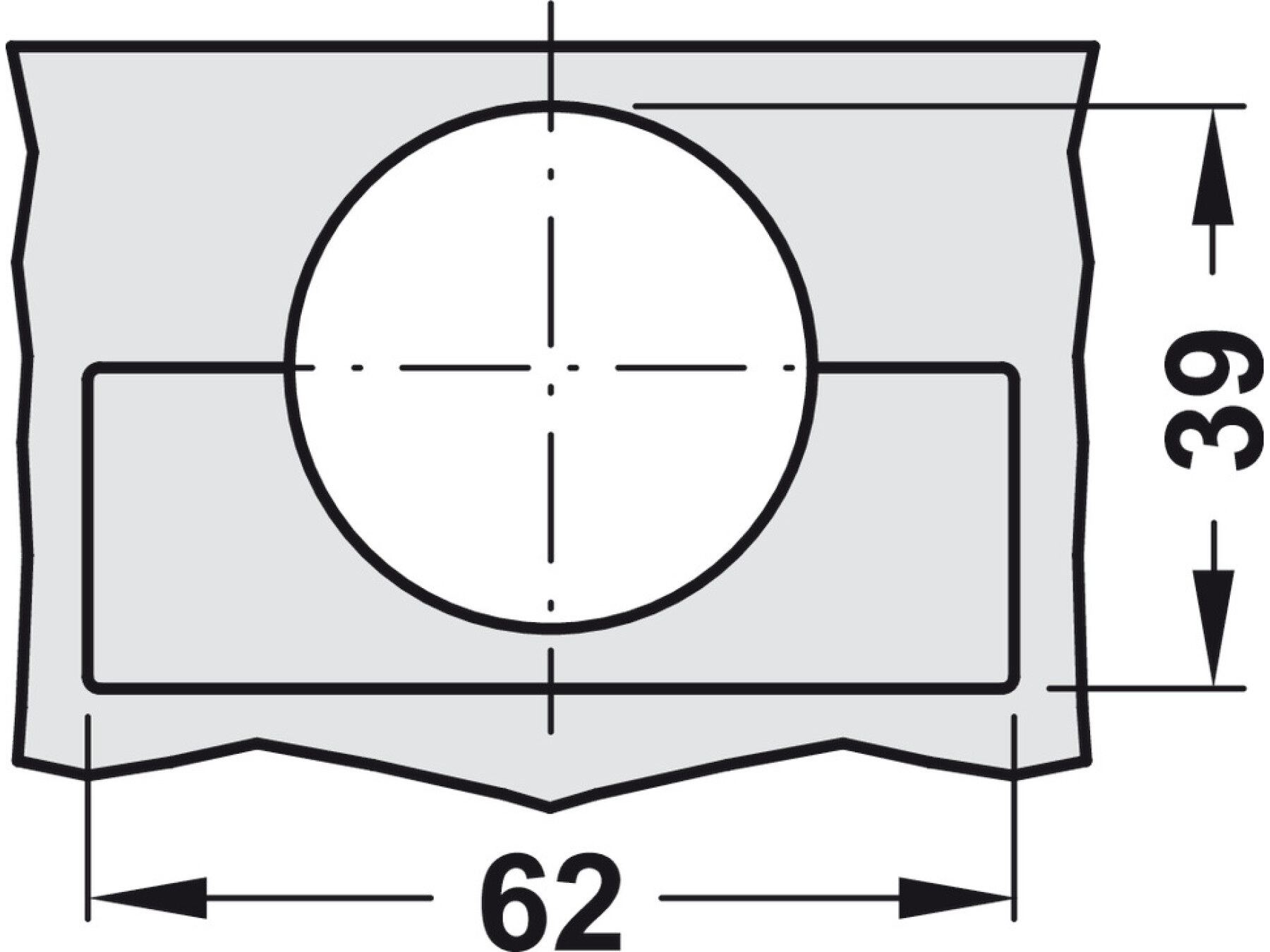

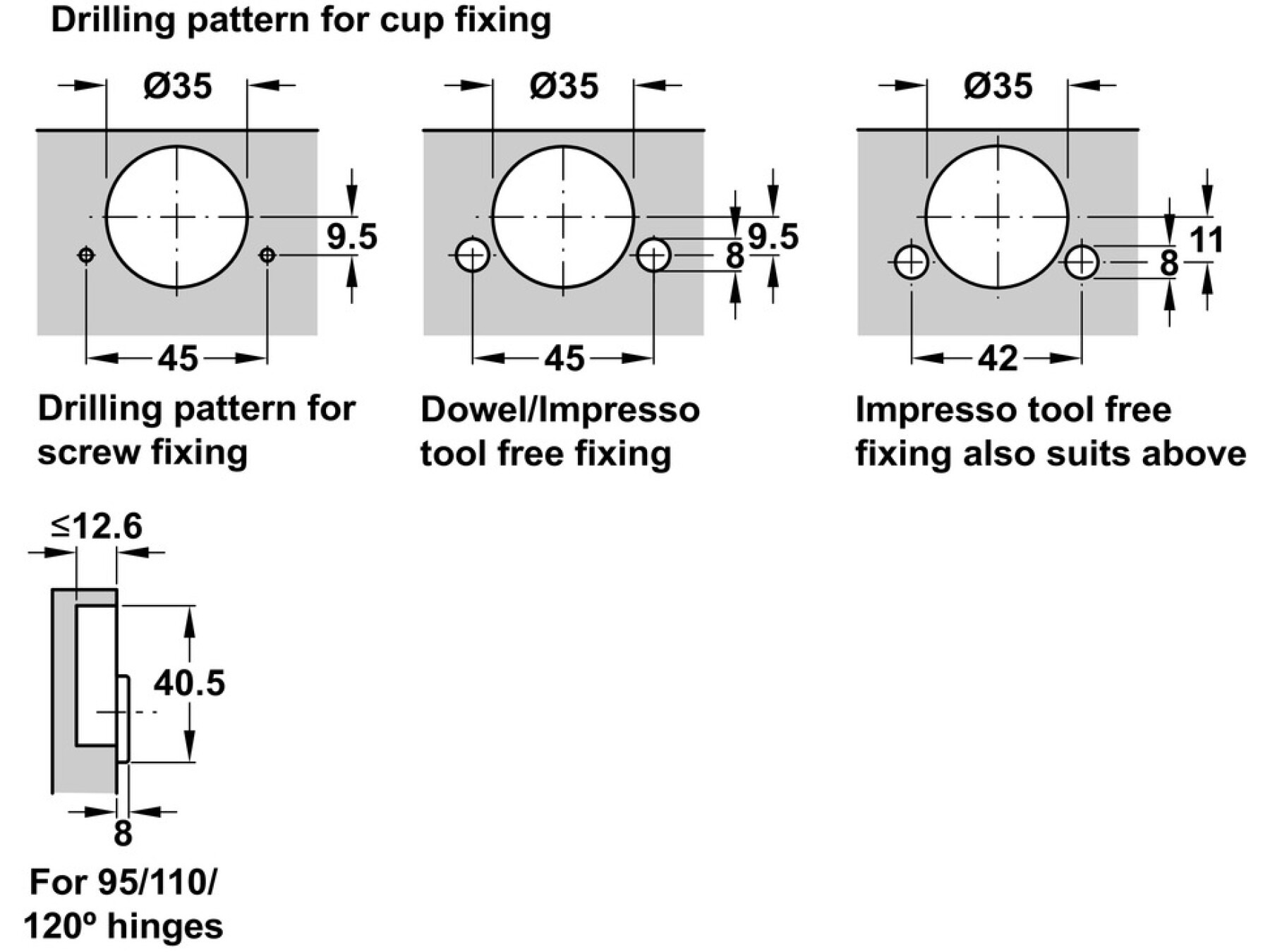

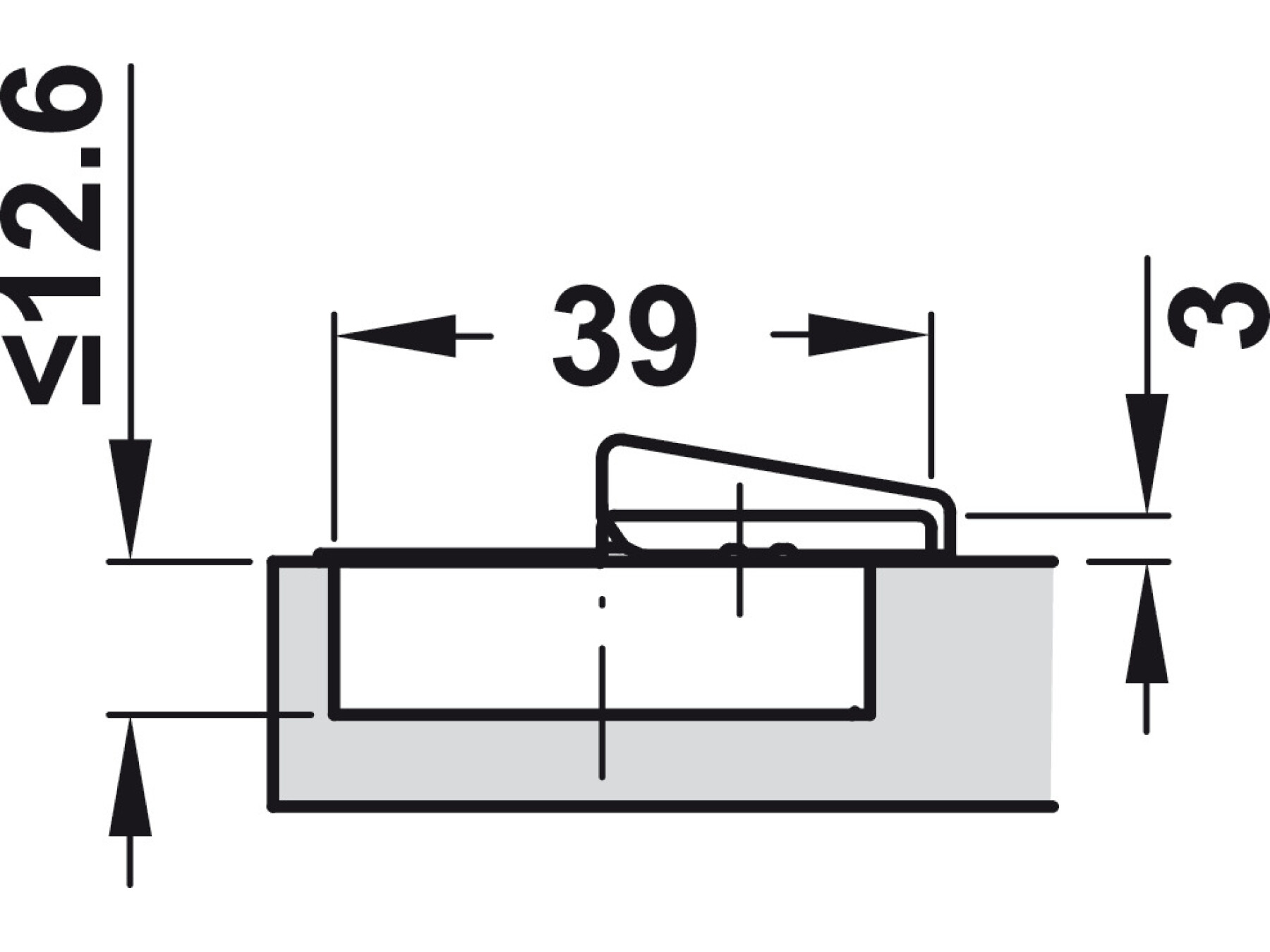

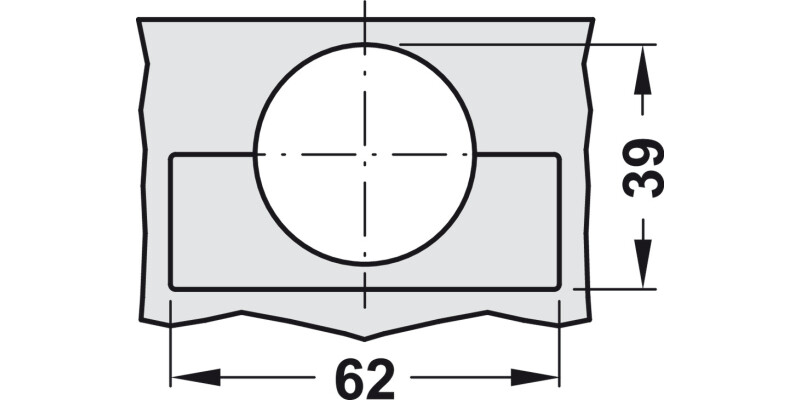

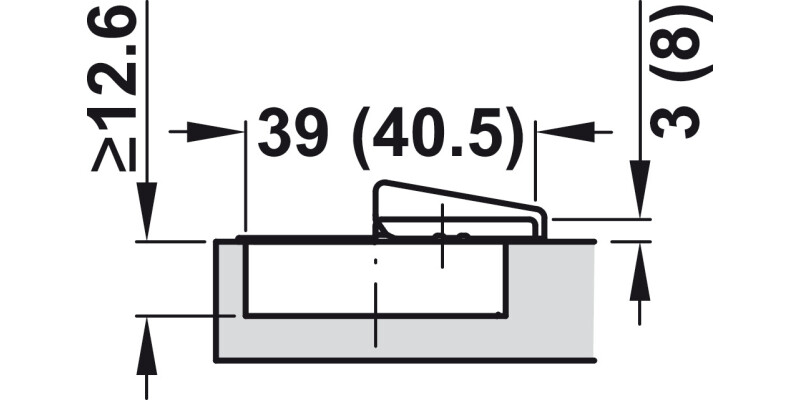

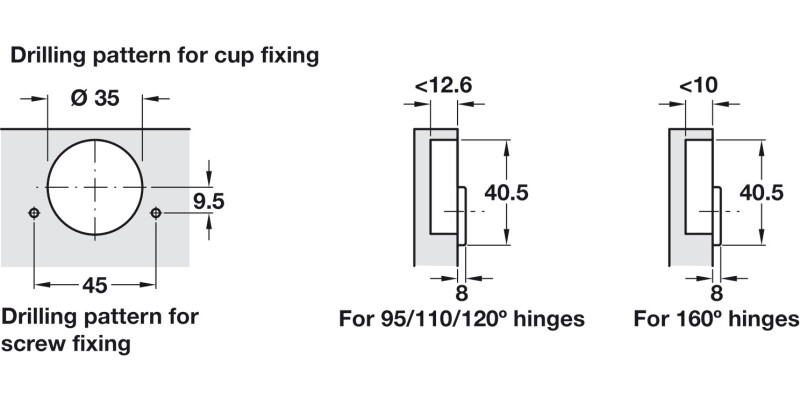

Installation is quick and hassle-free. With the clip system, you can mount the door on the cabinet without tools, snapping securely in place for a reliable fit. The door is prepared for assembly with cup drilling, sized to 35.00 mm diameter and a cup drilling depth of 12.60 mm.

Crafted for durability, the cup is steel and the hinge arm is zinc alloy. For the complete mounting solution, order the mounting plate and Hospa Ø 3.5 mm countersunk screws separately.

Upgrade your cabinets with the Concealed Cup Hinge, 110° Standard, Click on Arm, Tiomos.—the concealed hinge choice that combines smart design, effortless fitting, and quiet comfort. Add it to your cart today.

Order mounting plate and Hospa Ø 3.5 mm countersunk screws separately
