Concealed Cup Hinge, 155° Standard, Full Overlay Mounting, Tiomos (Part No: 348.32.601) is a concealed, full... Read More

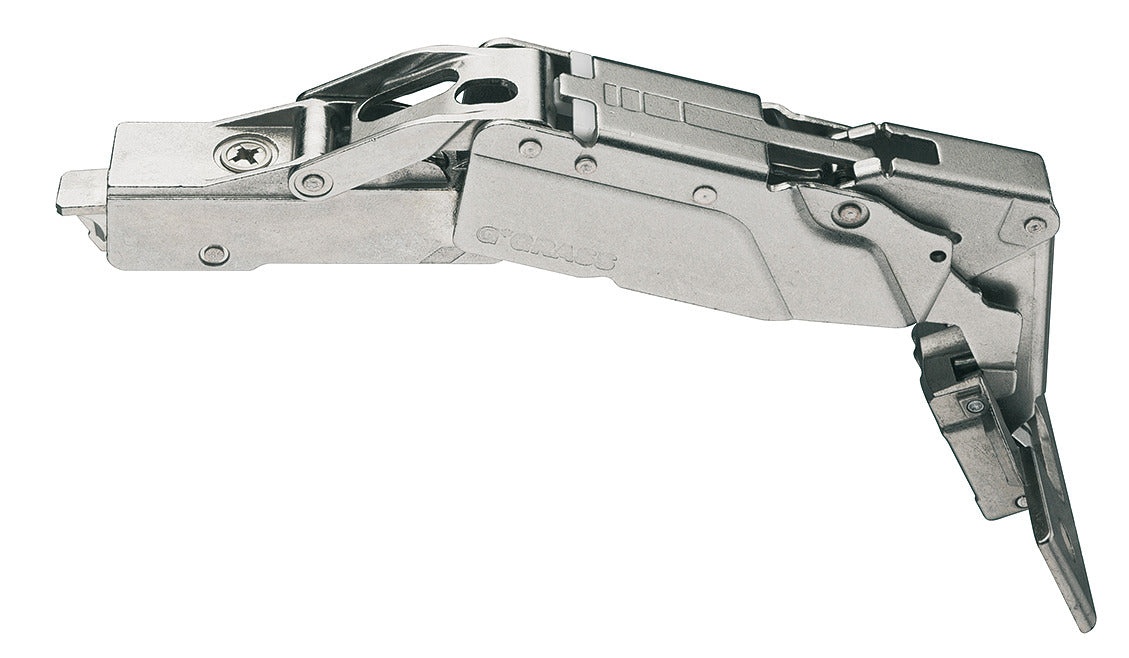

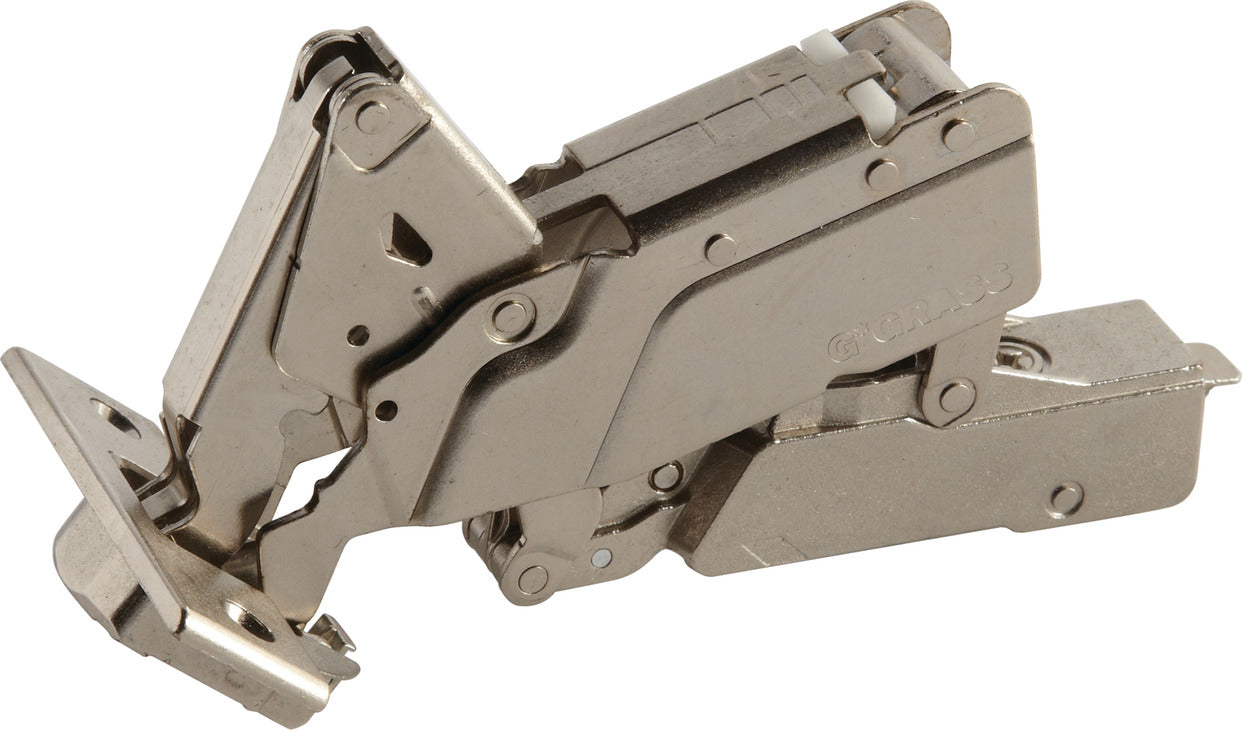

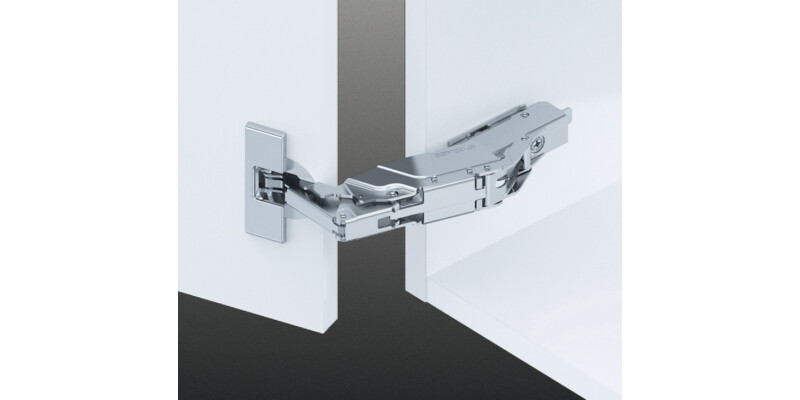

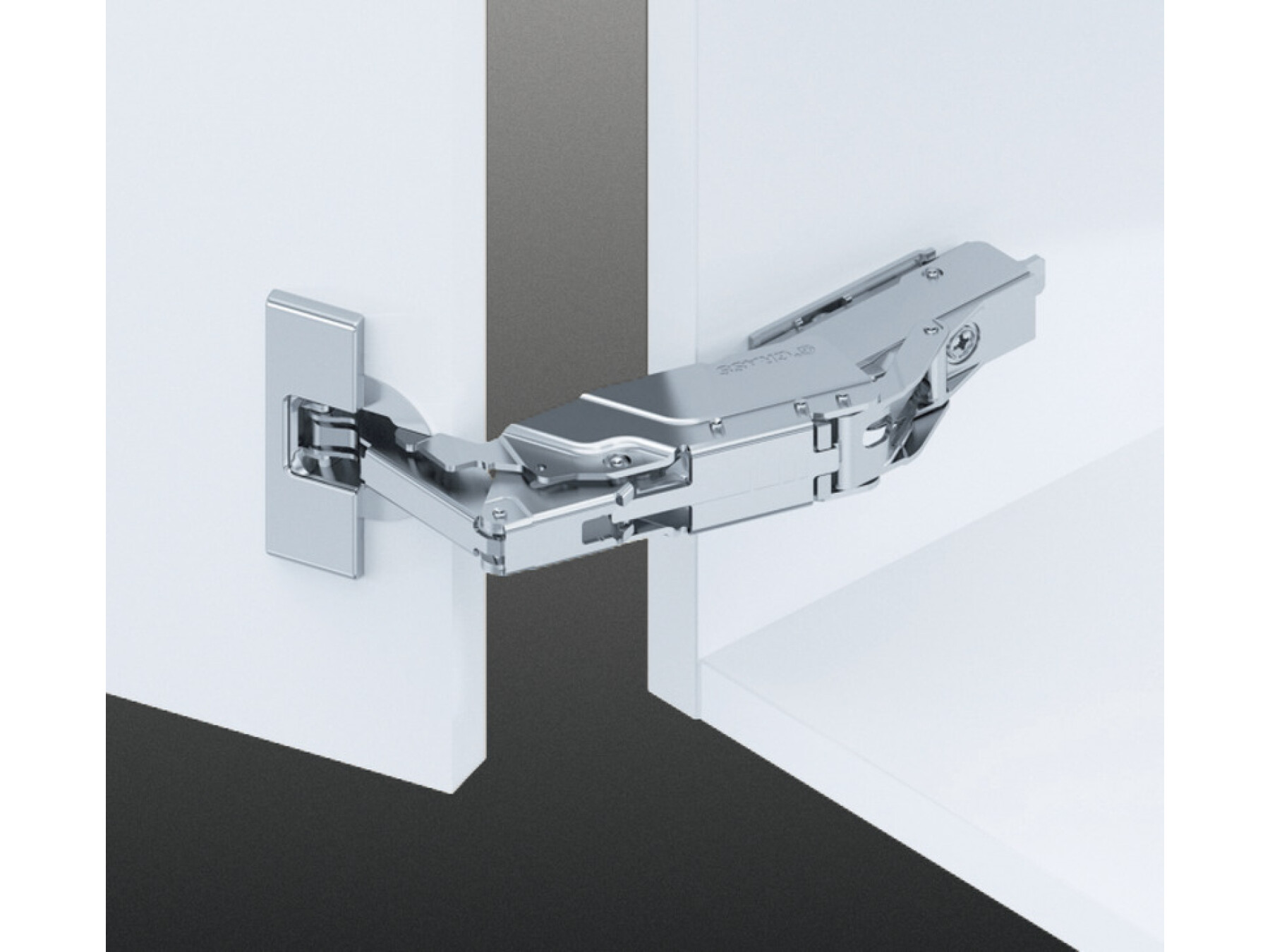

Concealed Cup Hinge, 155° Standard, Full Overlay Mounting, Tiomos (Part No: 348.32.601) is a concealed, full overlay cabinet hinge designed to deliver smooth, reliable performance for modern furniture and commercial fit-outs. Built for a clean, minimal look, this hinge hides neatly inside the cabinet while keeping everyday use effortless and secure.
This Click hinge features a simple click-on arm installation approach—ideal for quick assembly. It is supplied as Without soft close, so you get a direct, responsive closing action that’s perfect for practical kitchen cabinetry, utility storage, and workspace cabinets.
Area of application: excellent for cabinets with internal pull outs or extending trays, helping doors move naturally as drawers and pull-out systems operate.
Concealed hinge version: Full overlay, providing a consistent door alignment and a premium front finish.
Key specifications:
• Material: Cup in zinc alloy with steel hinge arm for dependable strength and long service life.
• Finish: Nickel plated for a durable, attractive appearance.
• Crank type: Straight
• Opening angle: 155°
• For door material: Wood

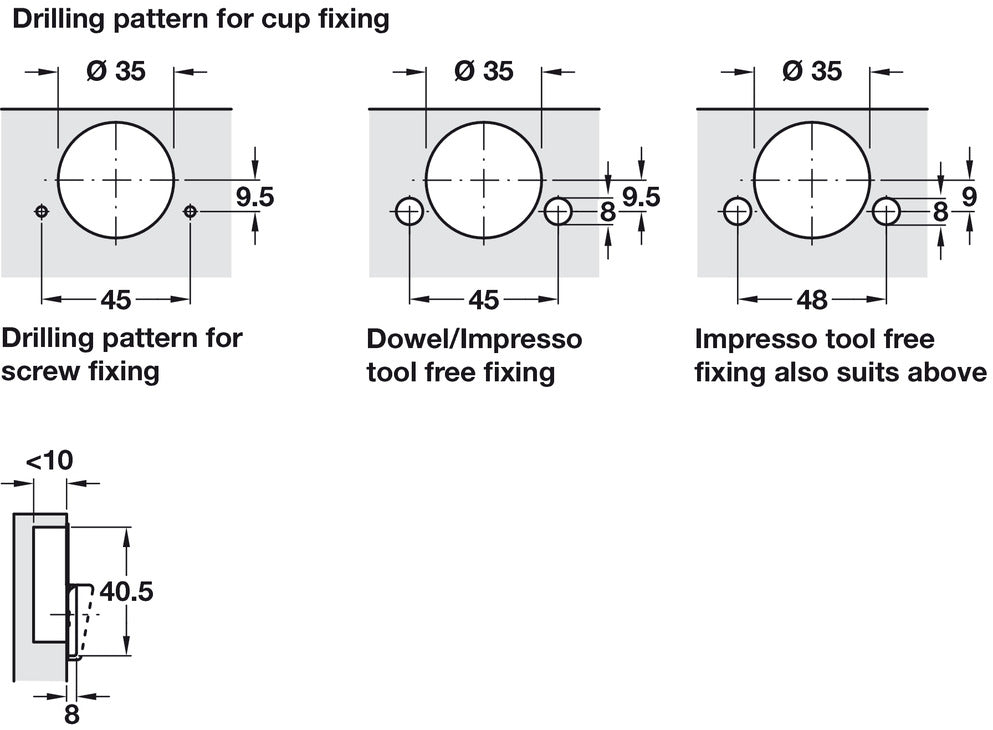

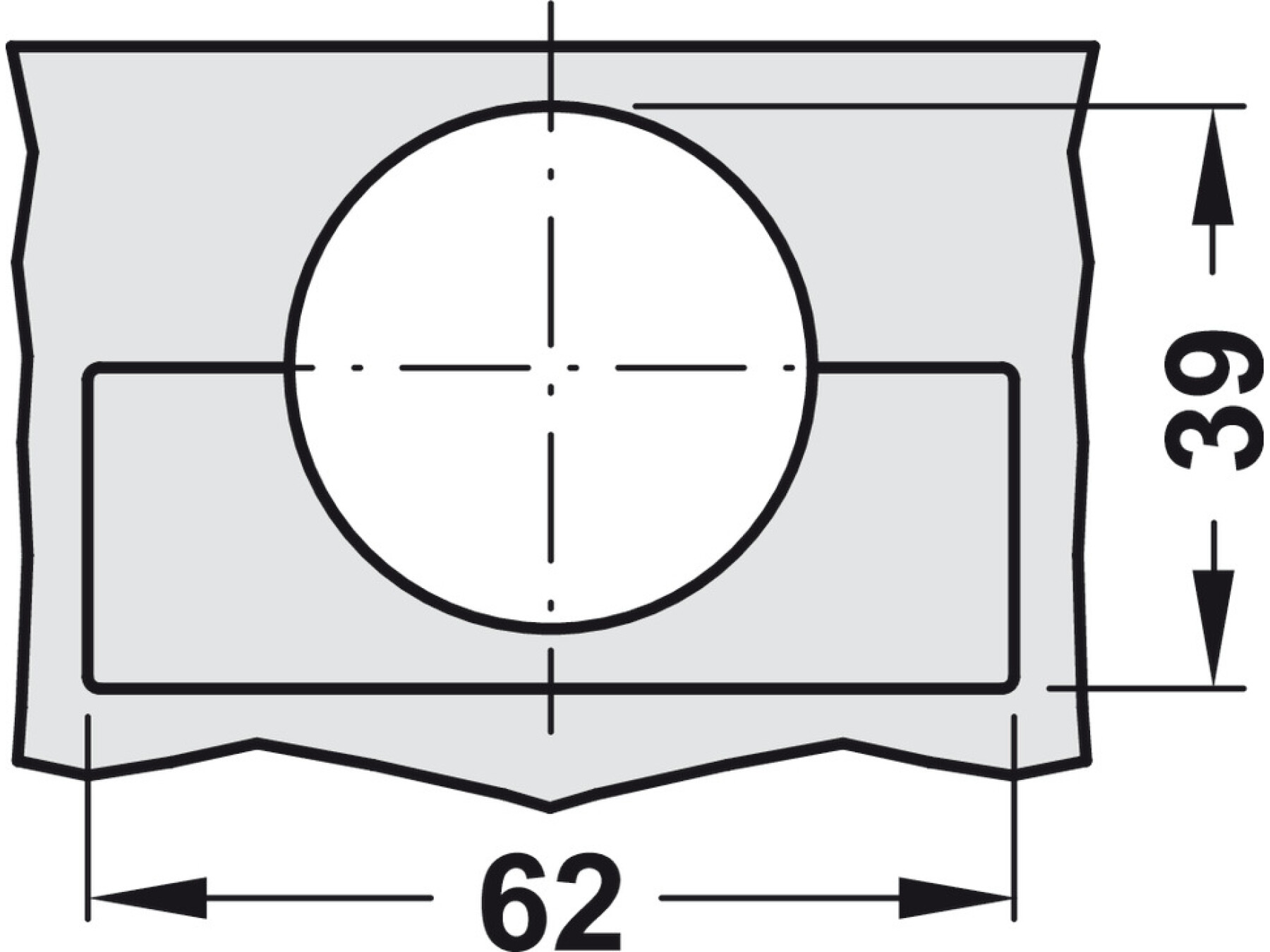

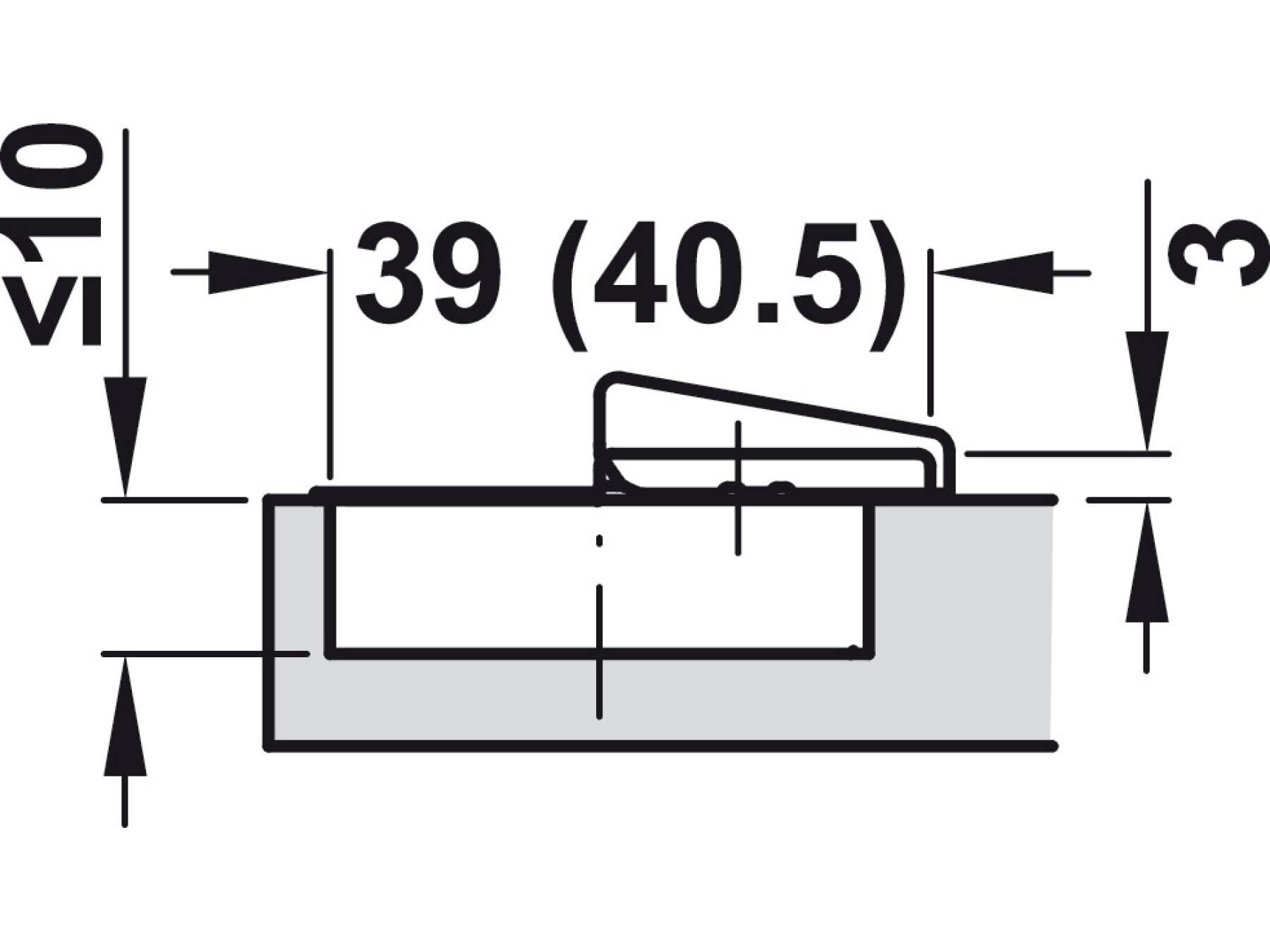

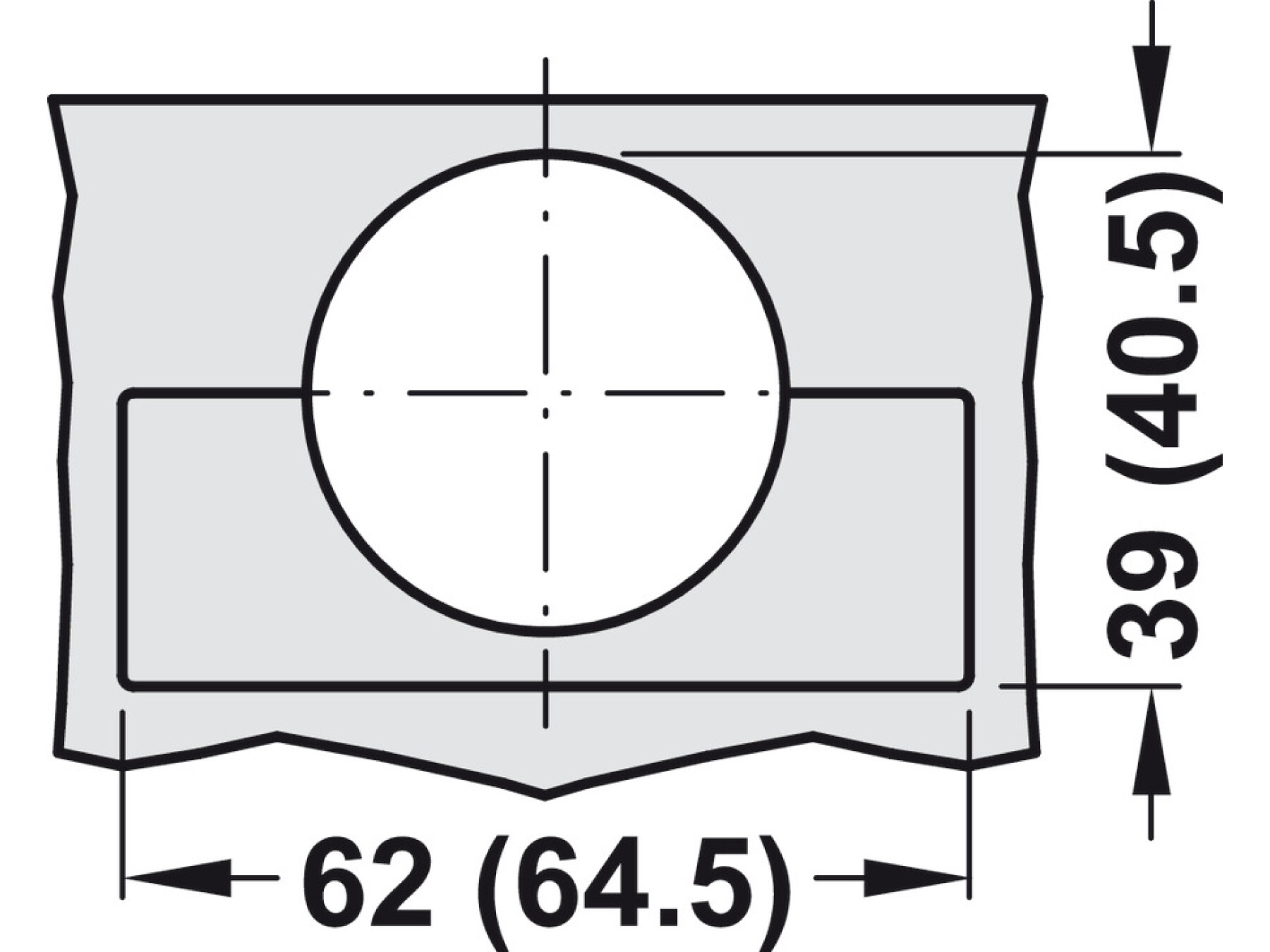

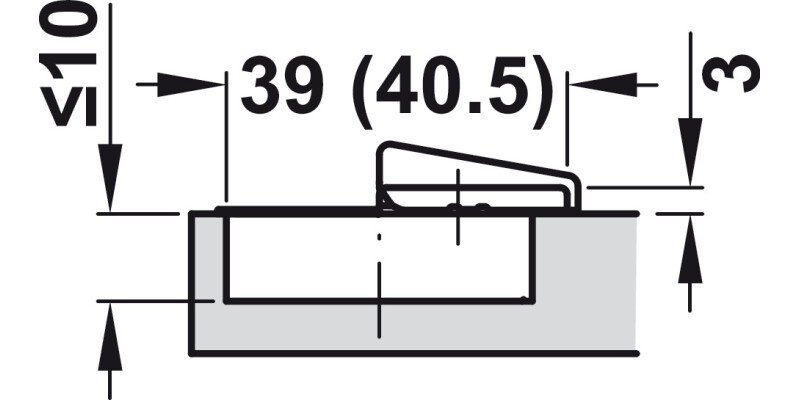

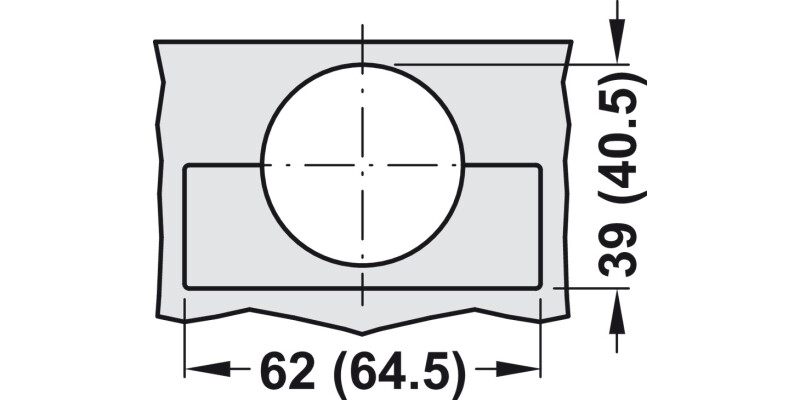

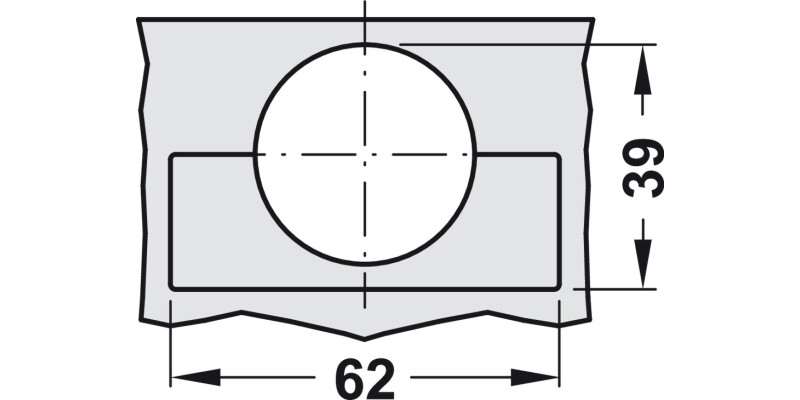

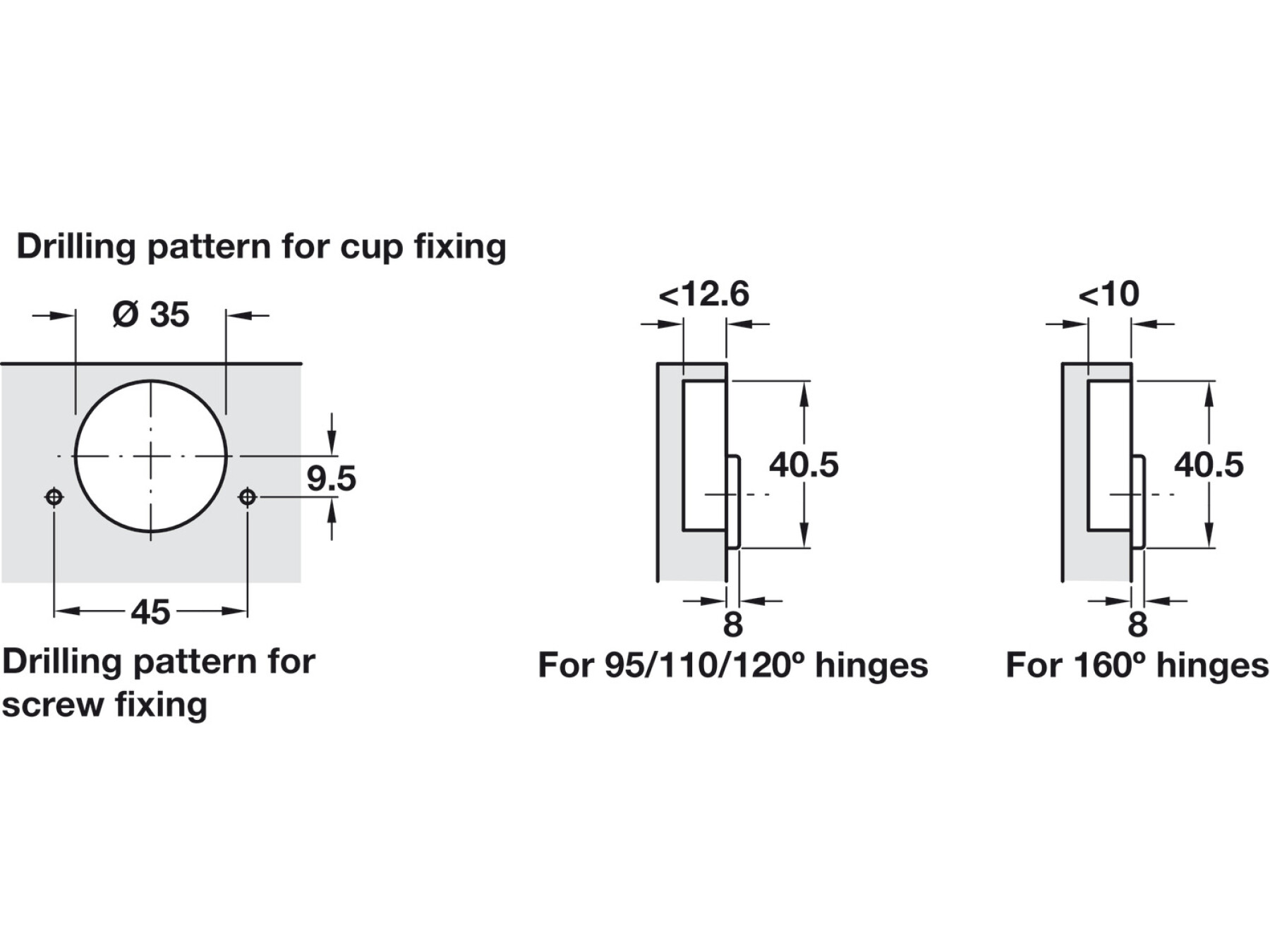

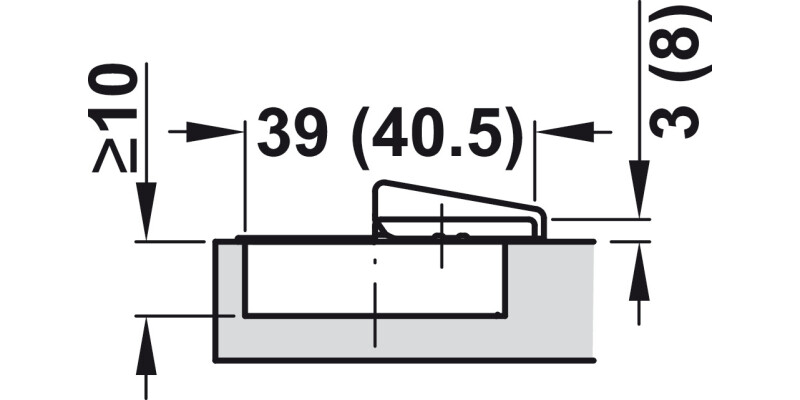

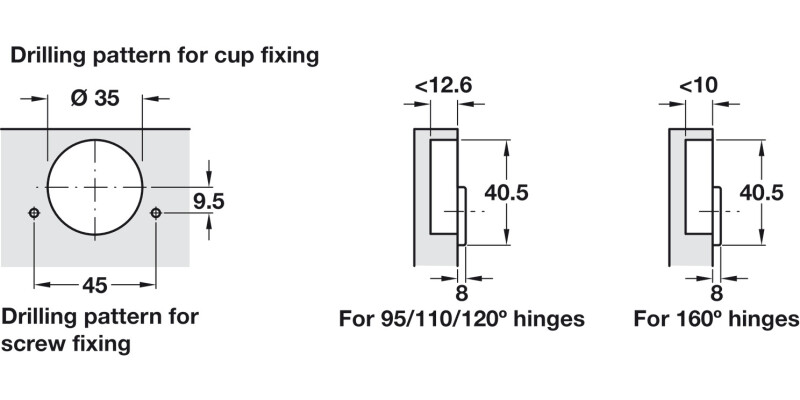

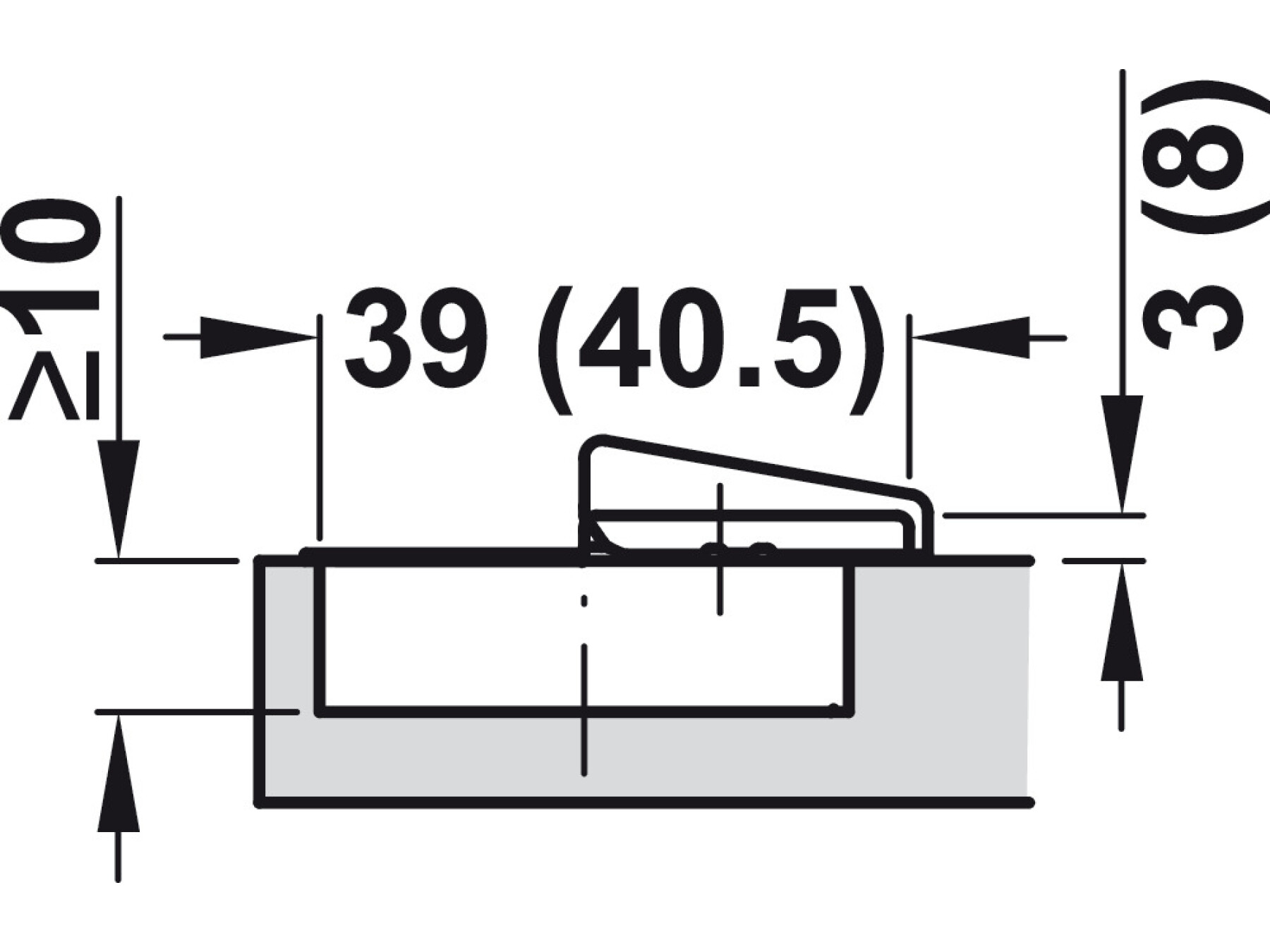

• Cup drilling Ø / depth: 35.00 mm with 10.00 mm drilling depth

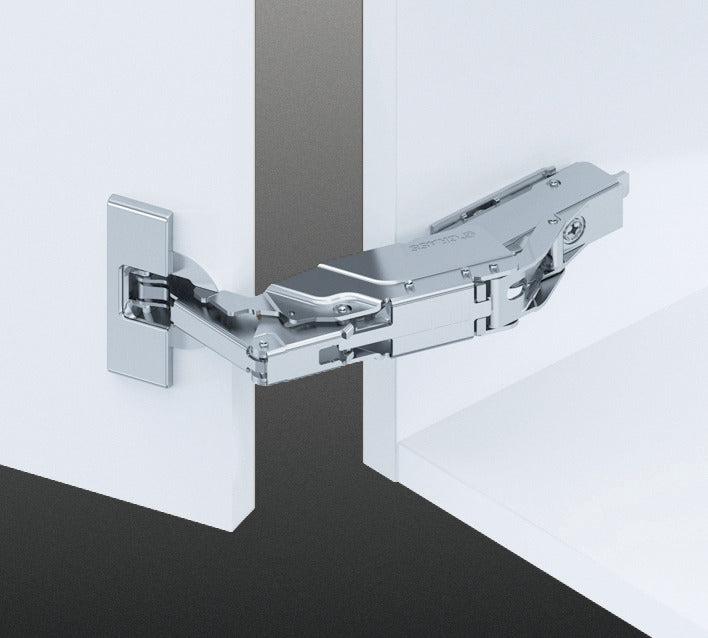

Installation: door on cabinet without tools using the clip system, with assembly supported by cup drilling for the hinge cup. Choose Tiomos 160D Hinge Click for furniture hardware that looks refined and works beautifully—add Part No. 348.32.601 to your cart today.
for cabinets with internal pull outs or extending trays
nickel plated
Door on cabinet without tools with clip system
