Concealed Cup Hinge, 95° Standard, for Up to 28 mm Thick Doors, Half Overlay/Twi

Product Details

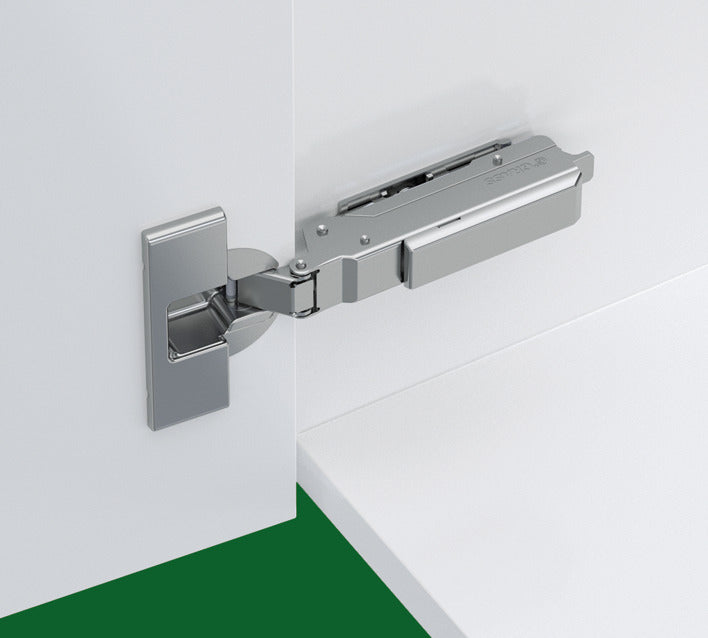

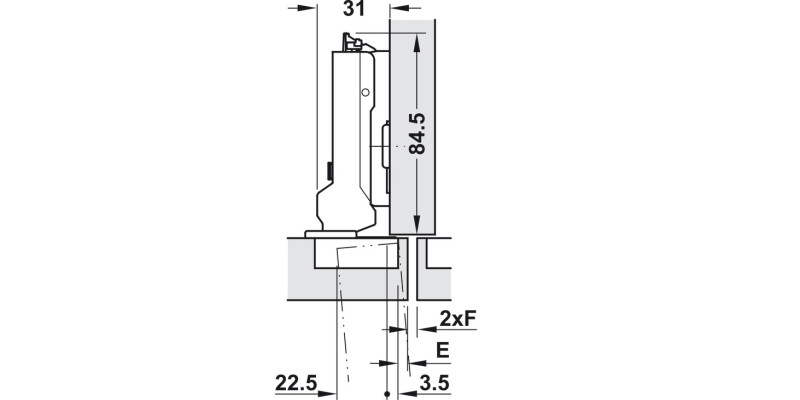

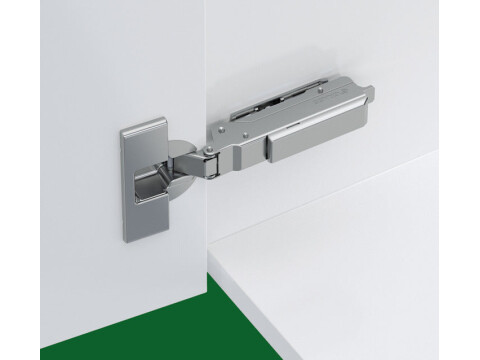

Concealed Cup Hinge, 95° Standard, for Up to 28 mm Thick Doors, Half Overlay/Twi. : Cabinet Hinges, Furniture Fittings, Living & Commercial Solutions (Part No: 348.42.802) is a premium concealed cup hinge designed for smooth, reliable cabinet door performance in both living and commercial settings. Built for a clean, professional look, it features a half overlay design that helps you achieve a neat alignment between cabinet doors while keeping the hardware discreet.

Thanks to the soft close mechanism, doors glide shut quietly and gently—reducing everyday noise and helping protect your cabinetry from harsh impacts. This hinge is an excellent choice when you want a comfortable closing feel without compromising on strength or durability.

Ideal for standard application, the cranked hinge arm supports confident door movement, offering an opening angle of 95° for convenient access. The hinge is supplied for assembly with cup drilling, making it straightforward to install and align.

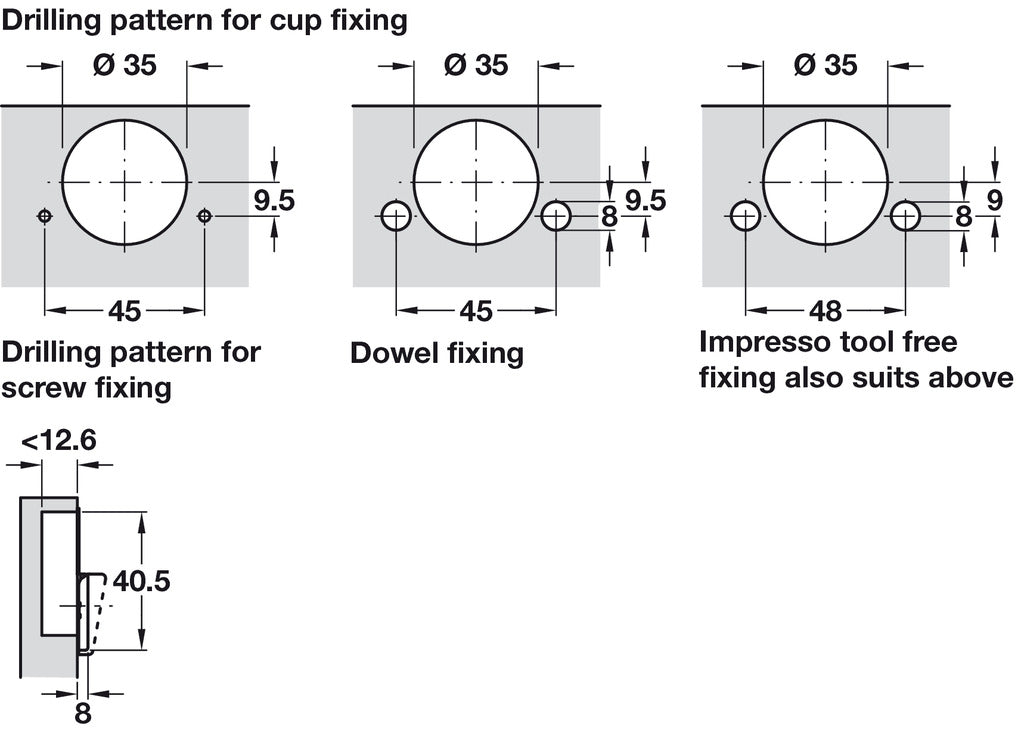

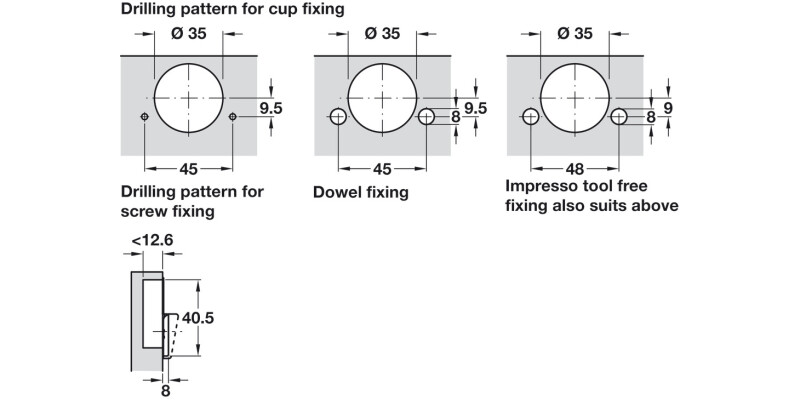

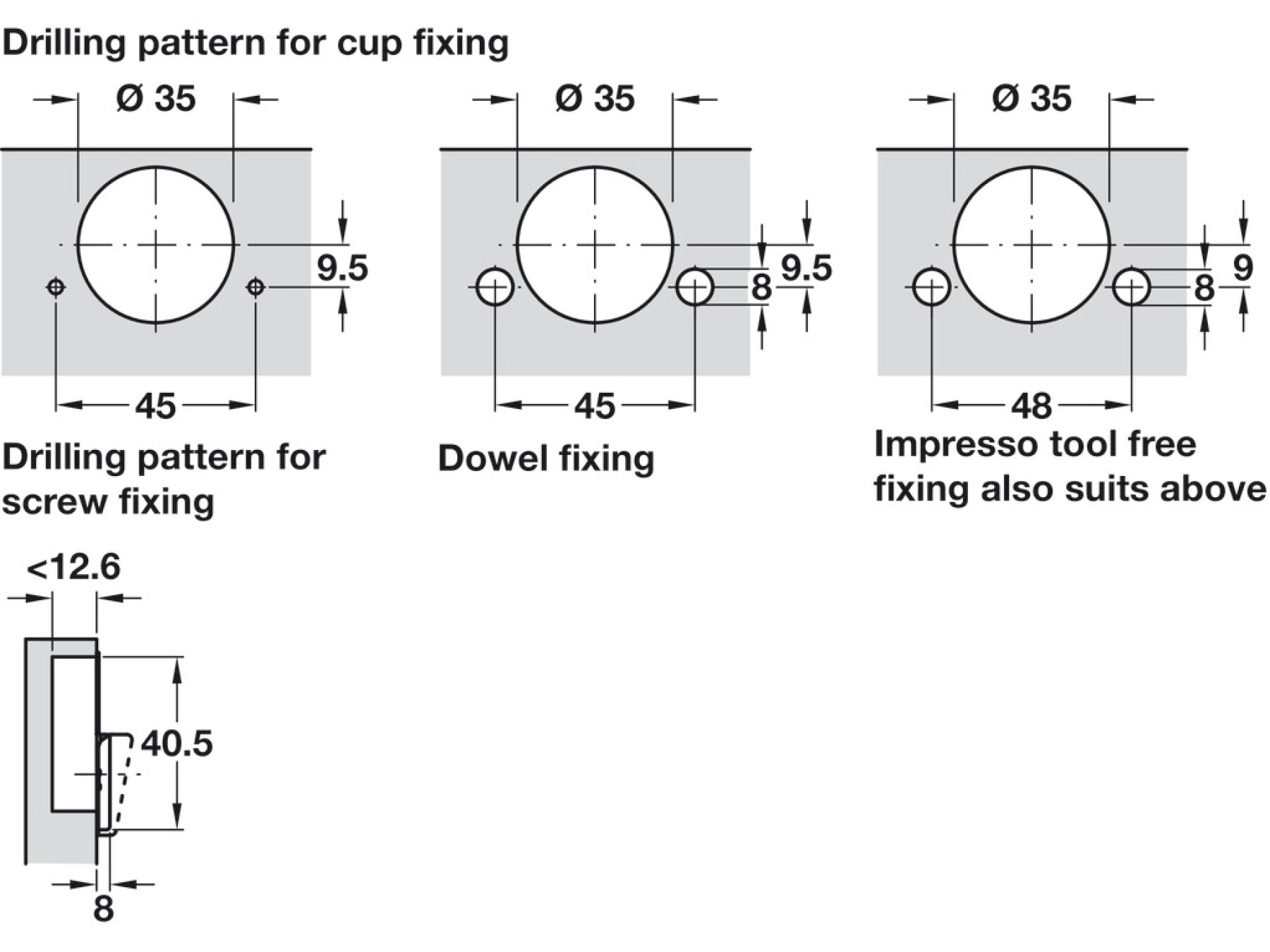

For accurate placement, the hinge uses a drilling pattern of 45/9.5 and a 35.00 mm cup drilling diameter with a cup drilling depth of 12.60 mm. Cup fixing is designed for screw fixing, giving you a secure, stable fit.

Crafted with a steel hinge cup and a zinc alloy hinge arm, the Concealed Cup Hinge, 95° Standard, for Up to 28 mm Thick Doors, Half Overlay/Twi is made to last—delivering smooth operation, stylish concealment, and dependable everyday performance.

Upgrade your cabinets today with Concealed Cup Hinge, 95° Standard, for Up to 28 mm Thick Doors, Half Overlay/Twi and enjoy soft-close comfort with a refined, concealed finish.
