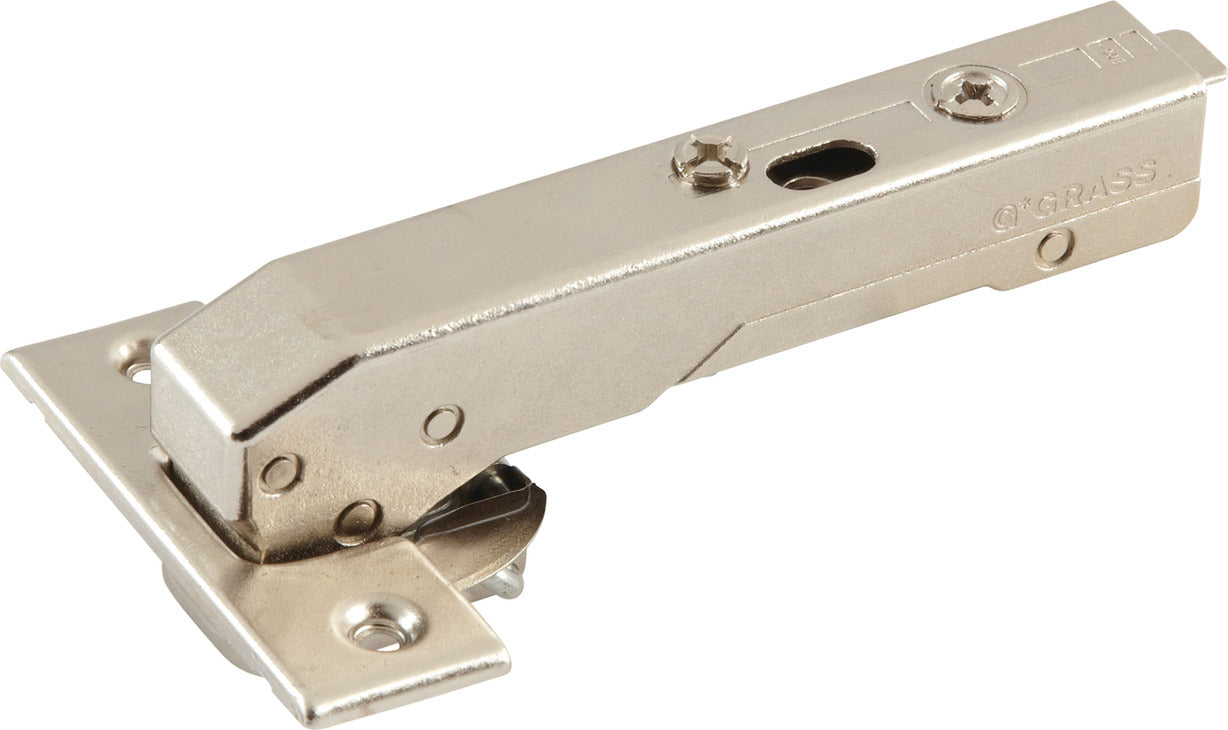

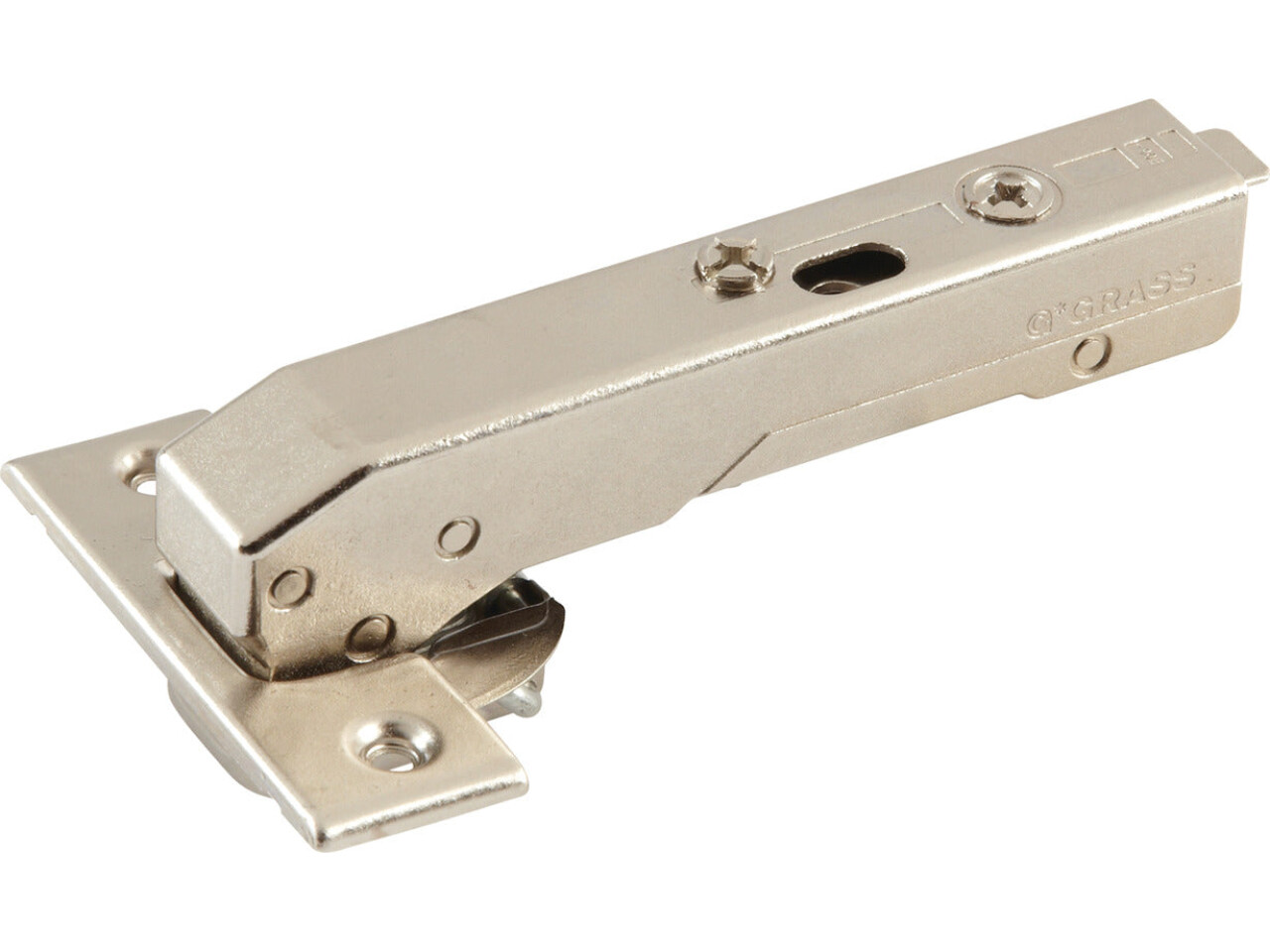

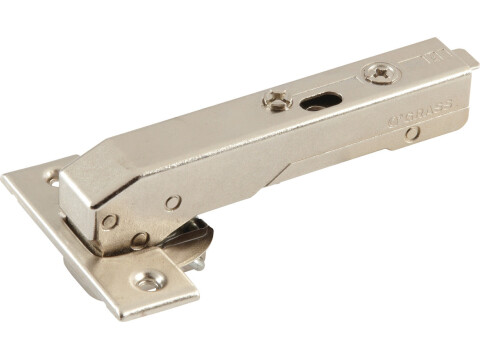

Concealed Post Hinge, for Blind Corner Applications, Tiomos 110°

Product Details

Concealed Post Hinge, for Blind Corner Applications, Tiomos 110° (Product Part No: 348.37.600) is a high-performance concealed post hinge made for installers and furniture makers who want a clean, professional finish with reliable everyday performance. Designed for wooden doors, this hinge delivers smooth, controlled movement with a generous 110° opening angle, making it ideal for cabinets and built-in applications where easy access and strong alignment matter.

With its click-on arm design, the Tiomos 110D post hinge simplifies installation by allowing the door to be connected to the cabinet without tools (clip system). For assembly, it supports cup drilling, ensuring a secure fit and consistent results—great for both new projects and confident replacements.

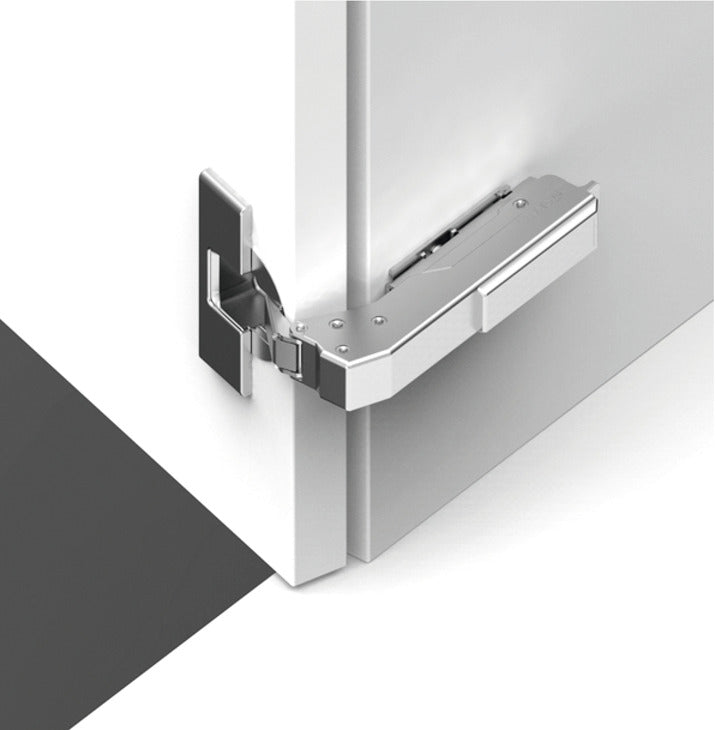

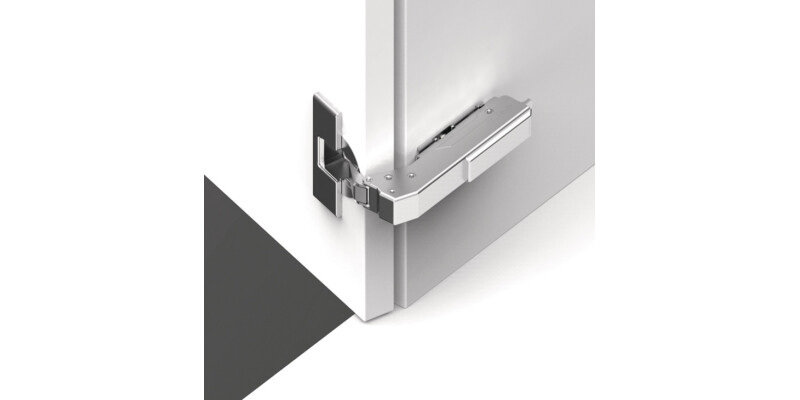

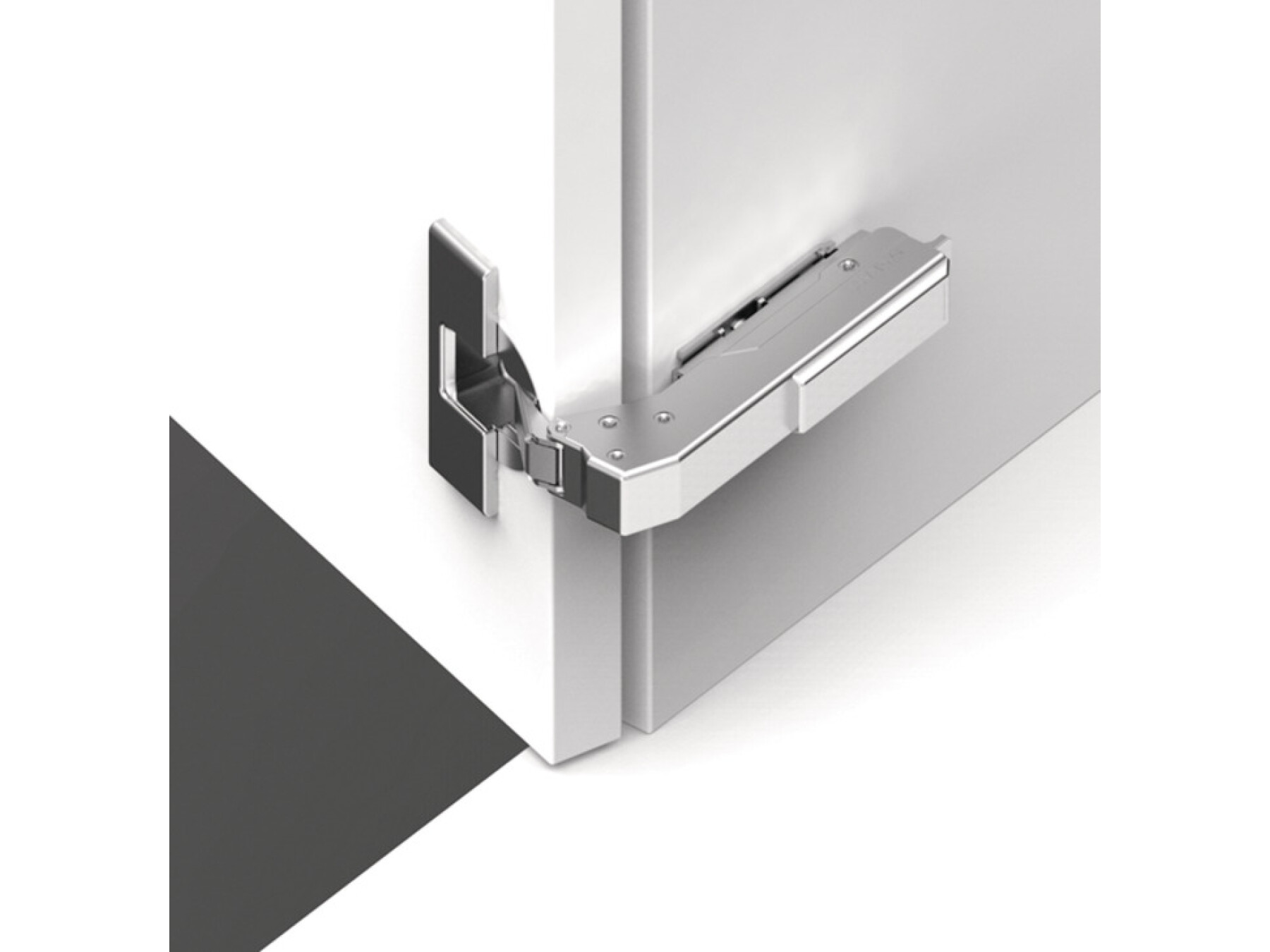

This concealed hinge version is a blind corner application solution, helping you maximise usability in spaces where door angles and clearance are often challenging. The hinge is built with a durable combination of materials—cup in steel and hinge arm in zinc alloy—and features nickel plated hardware for a neat, corrosion-resistant look.

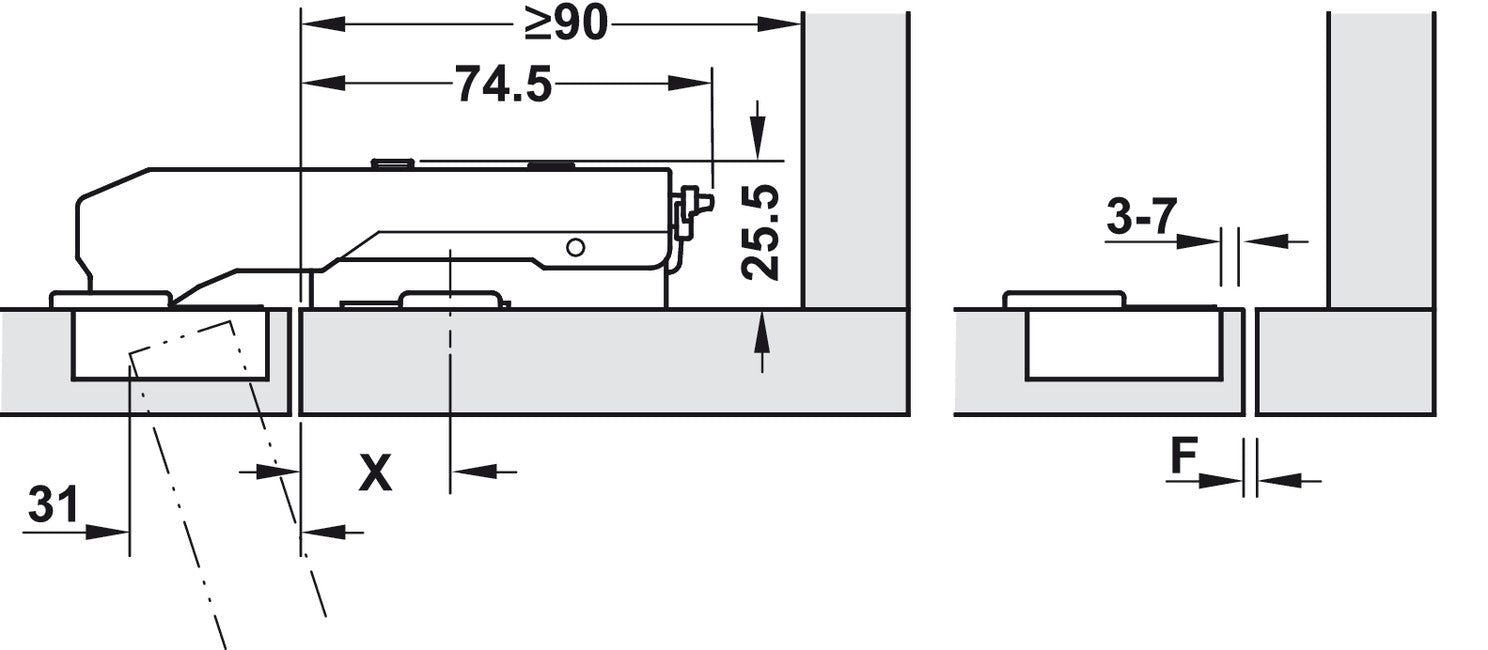

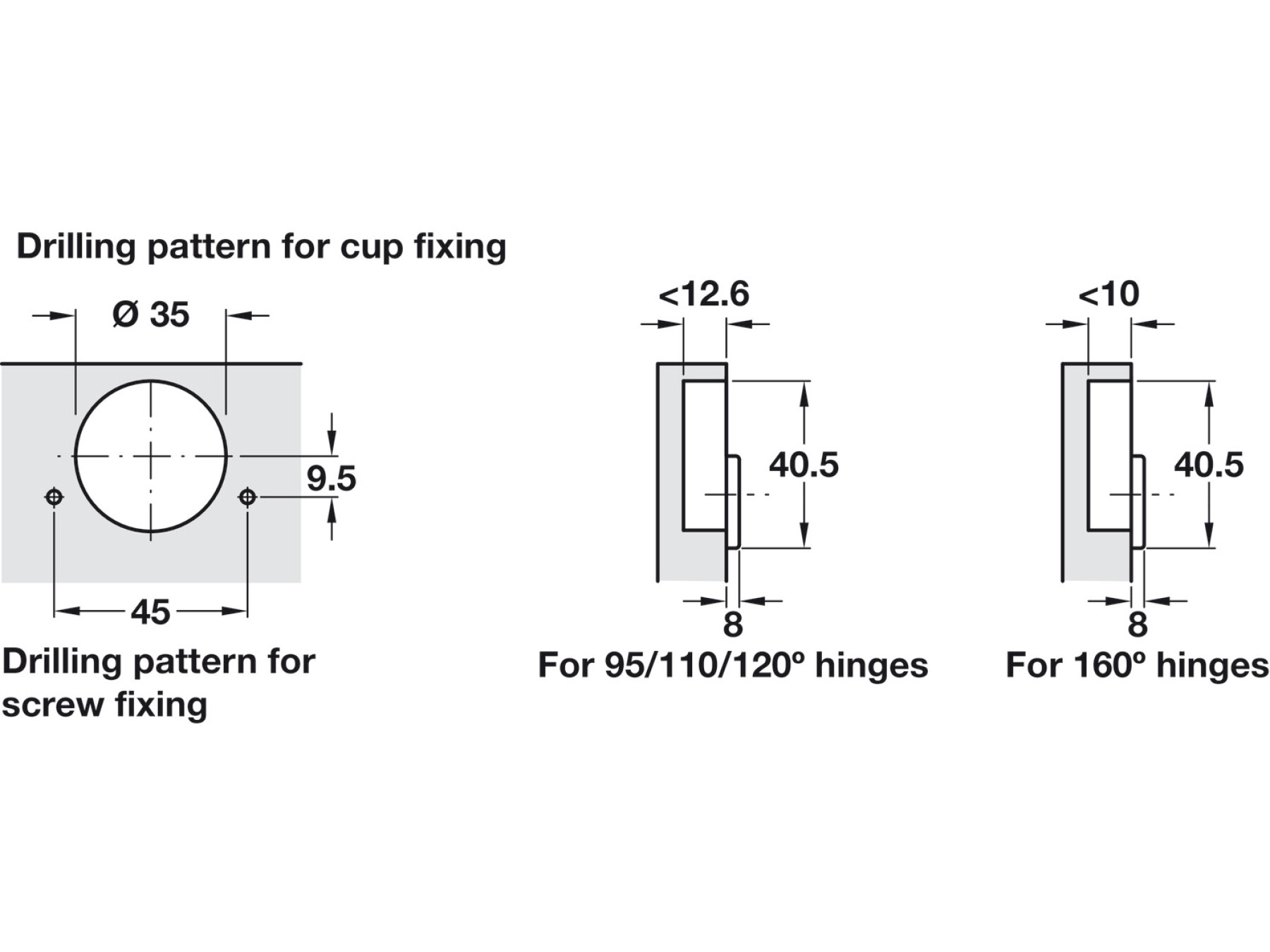

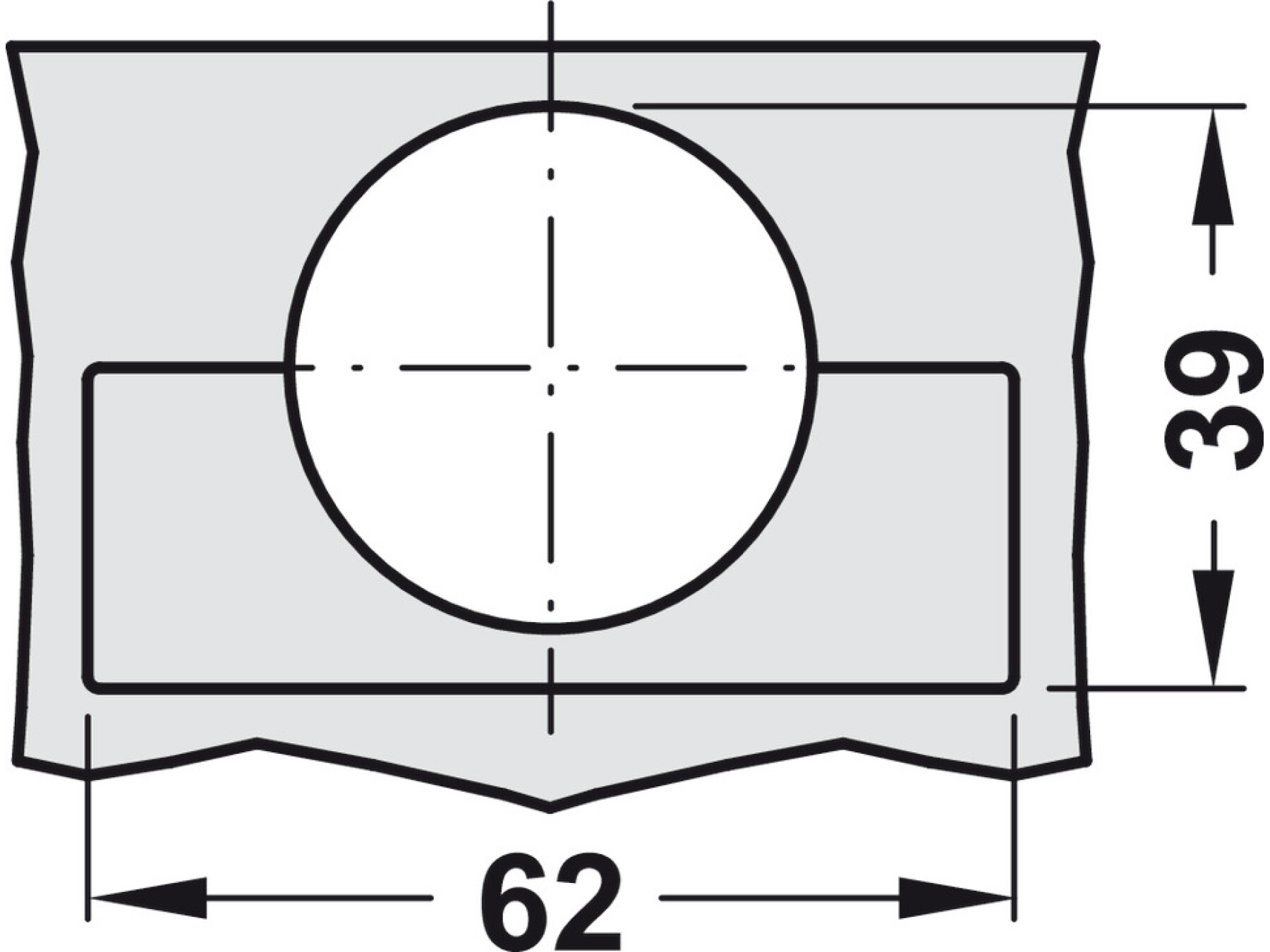

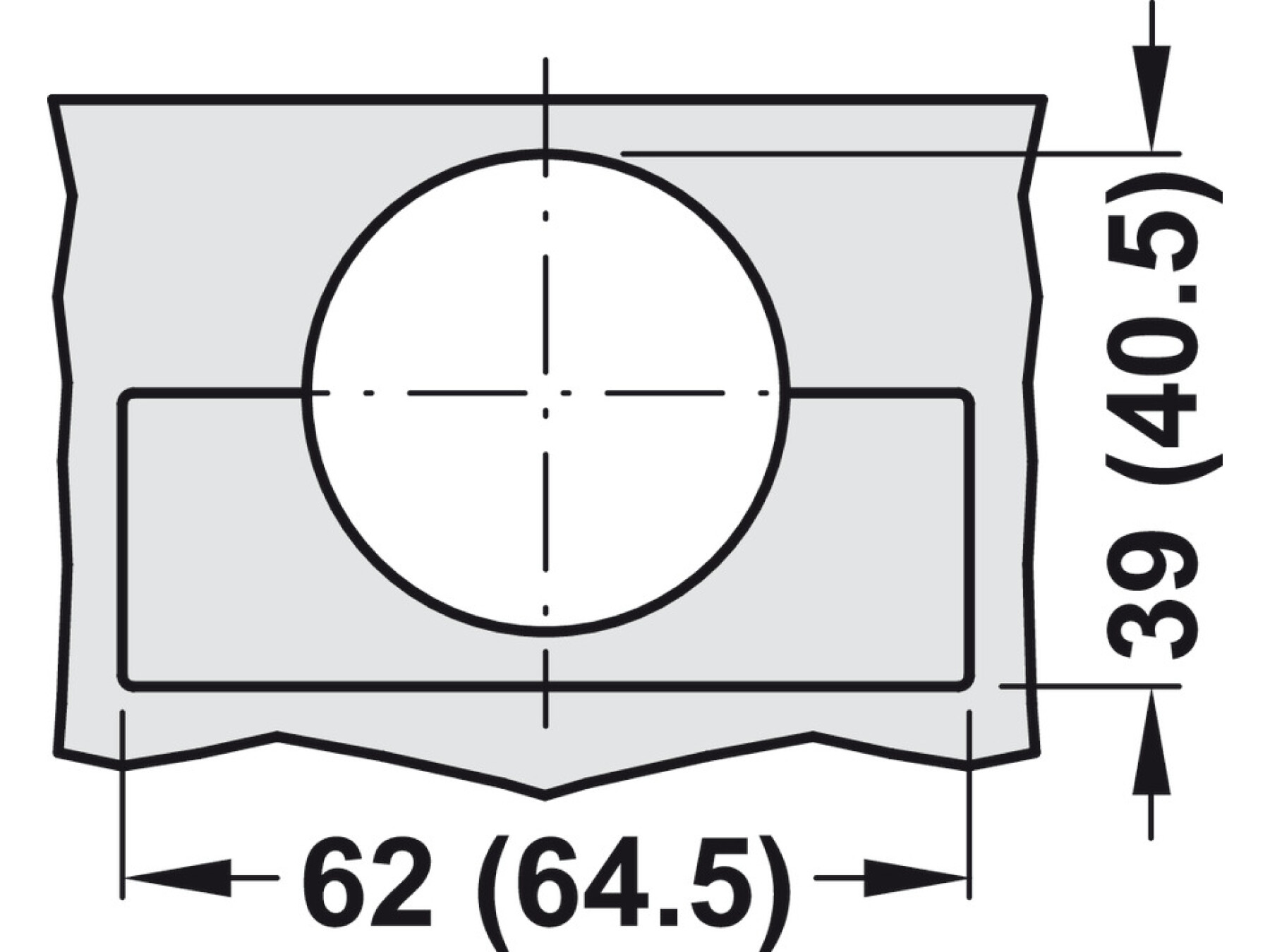

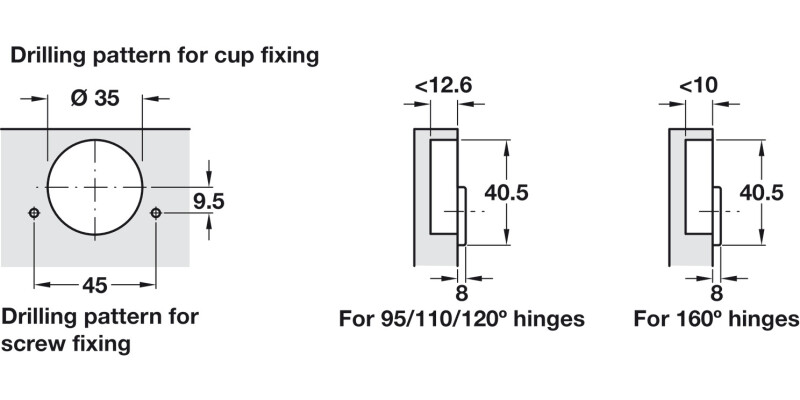

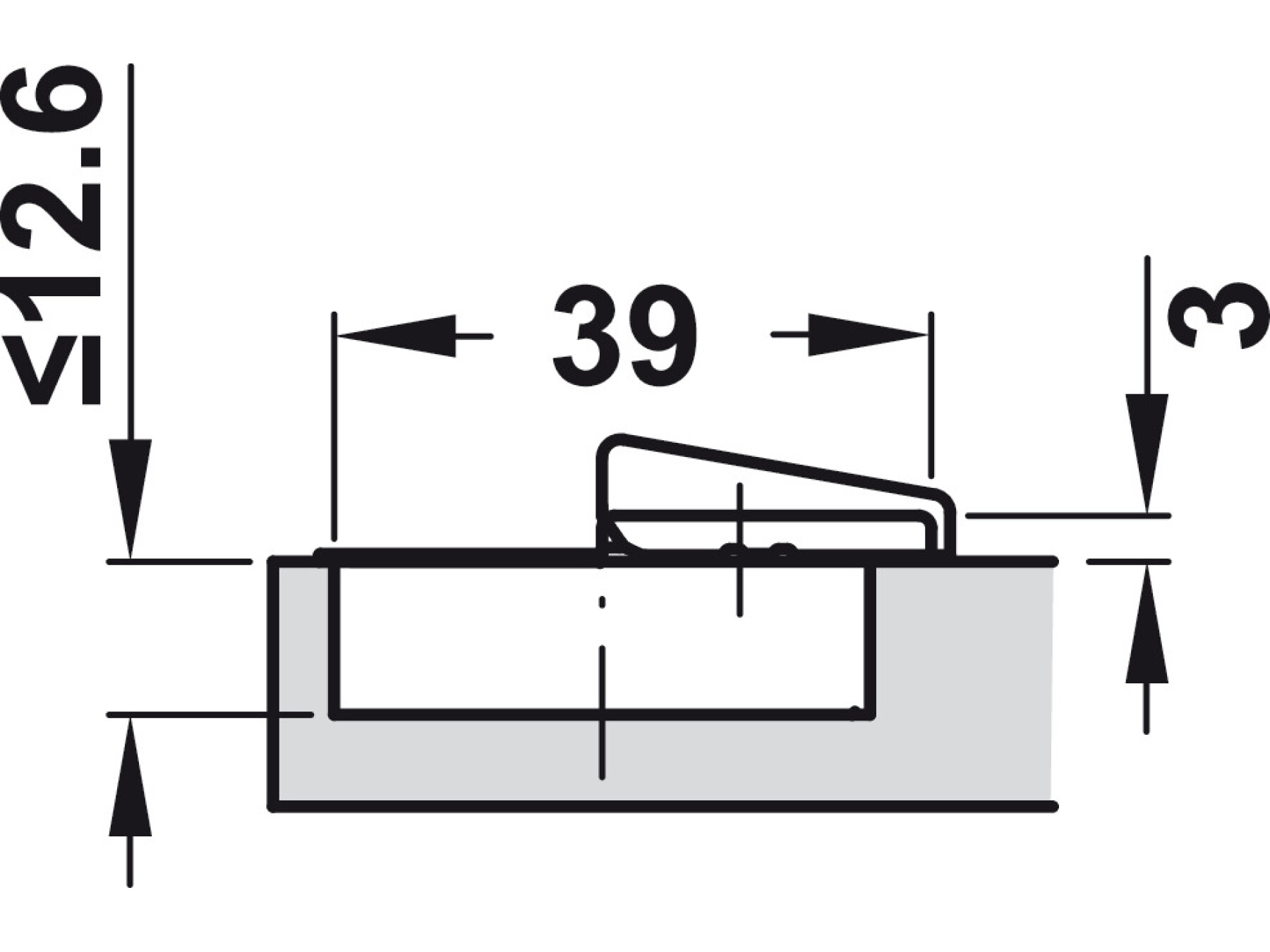

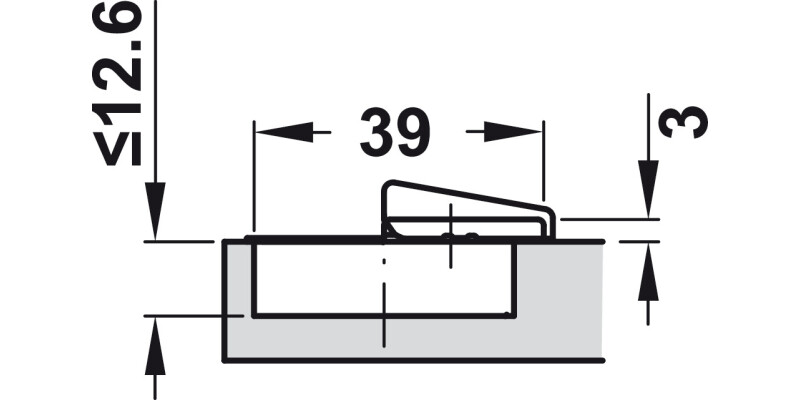

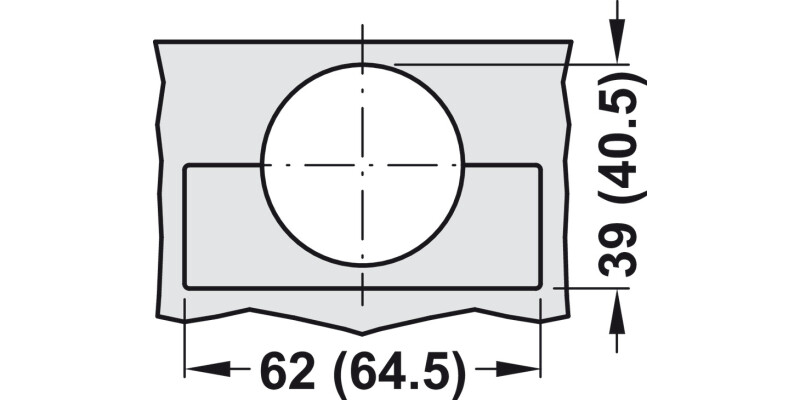

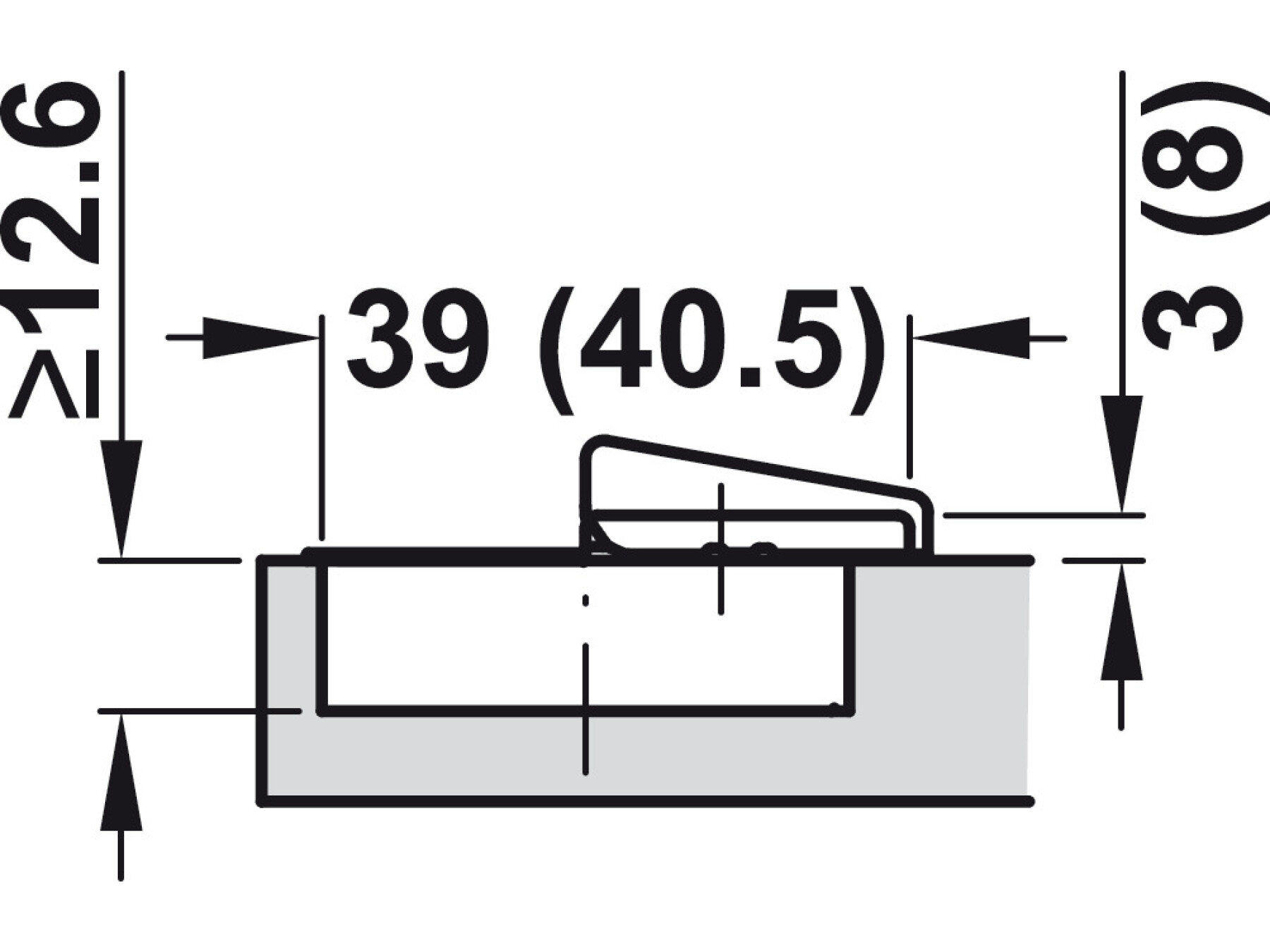

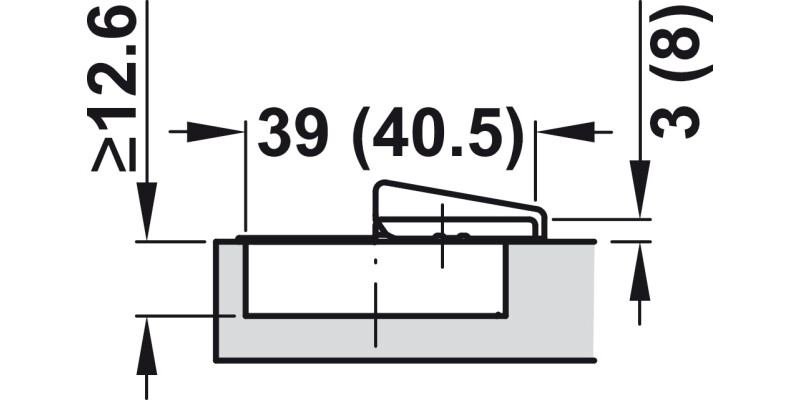

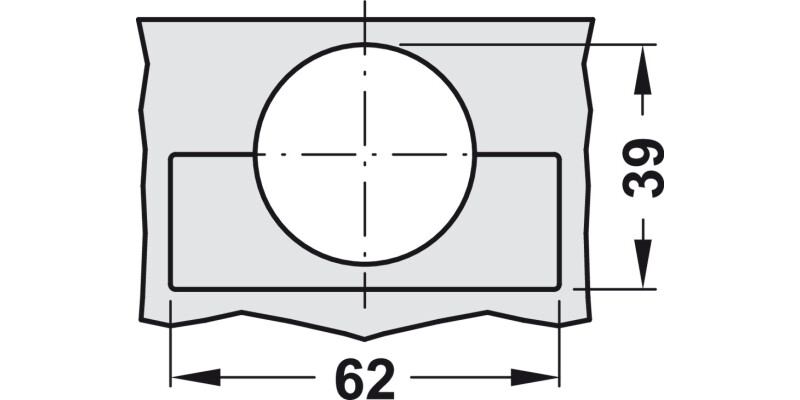

Key fitment details include a 35.00 mm cup drilling diameter with a 12.60 mm cup drilling depth. For a flush front design in blind corner setups, follow the installation note: use mounting plate 3 mm (Mounting plate 348.38.513) and order the required Ø 3.5 mm countersunk screws separately.

Choose Concealed Post Hinge, for Blind Corner Applications, Tiomos 110° to upgrade your cabinet hardware with a streamlined install process, dependable concealed performance, and a refined nickel-plated finish.

Mounting plate 348.38.513 and Hospa Ø 3.5 mm countersunk screws to be ordered separately
