Concealed Cup Hinge, 110°, for Thin Doors, Tiomos M9

Product Details

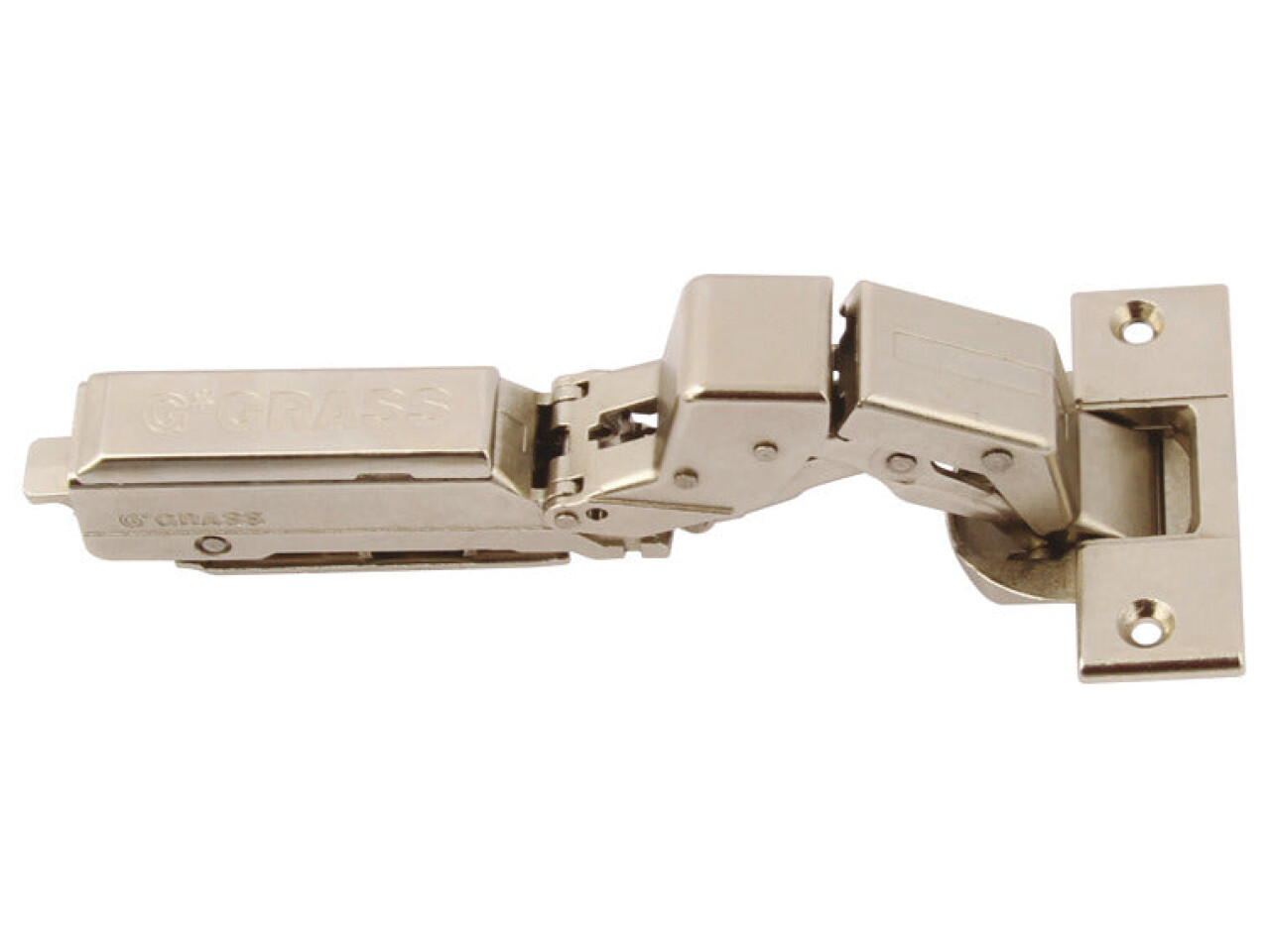

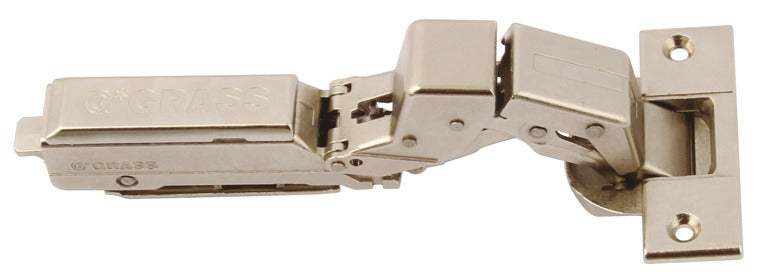

Concealed Cup Hinge, 110°, for Thin Doors, Tiomos M9 (Part No: 348.30.440) is a premium concealed cabinet hinge designed for smooth, precise door movement and a clean, modern look. With its Tipmatic, nickel plated finish, this hinge brings a refined touch to living room cabinets, wardrobes, and also supports dependable performance in light commercial furniture applications.

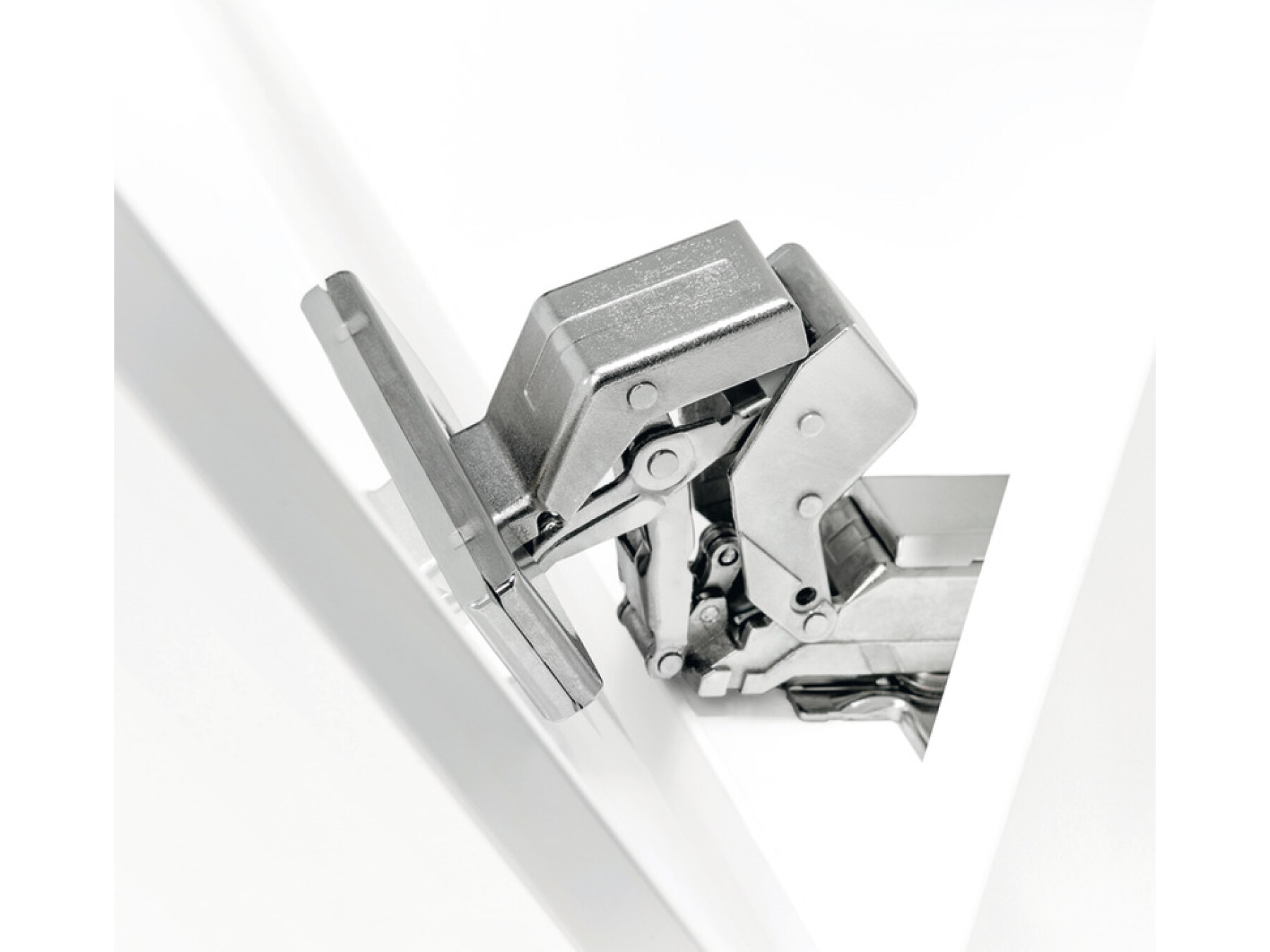

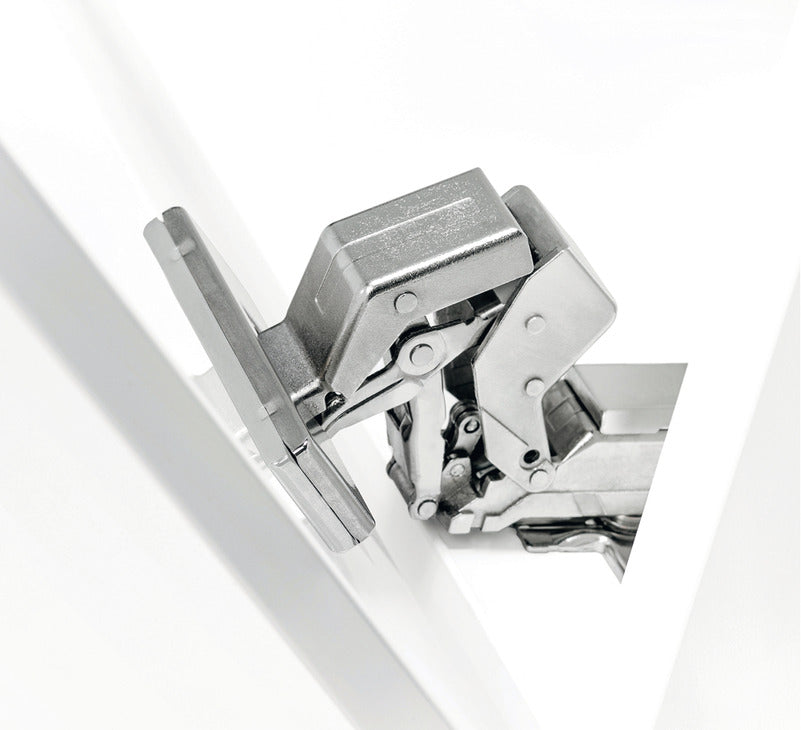

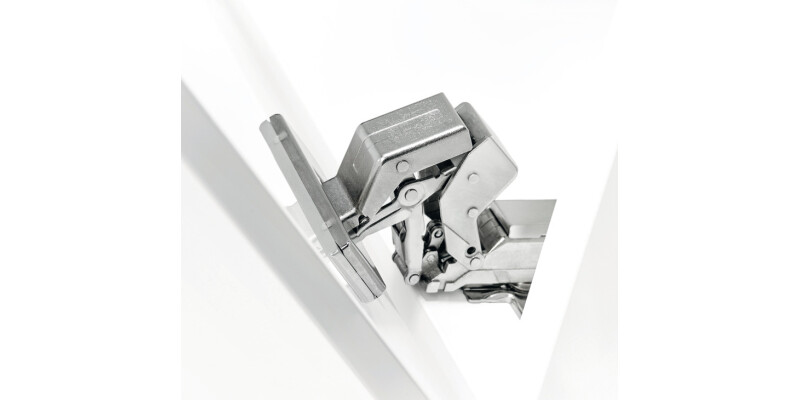

Built for versatility, the Tiomos M9 hinge is ideal for thin furniture doors and four-sided mitred applications, giving you flexibility when planning contemporary cabinetry layouts. Whether you’re upgrading existing furniture or planning new builds, this concealed hinge helps you achieve a professional fit and finish.

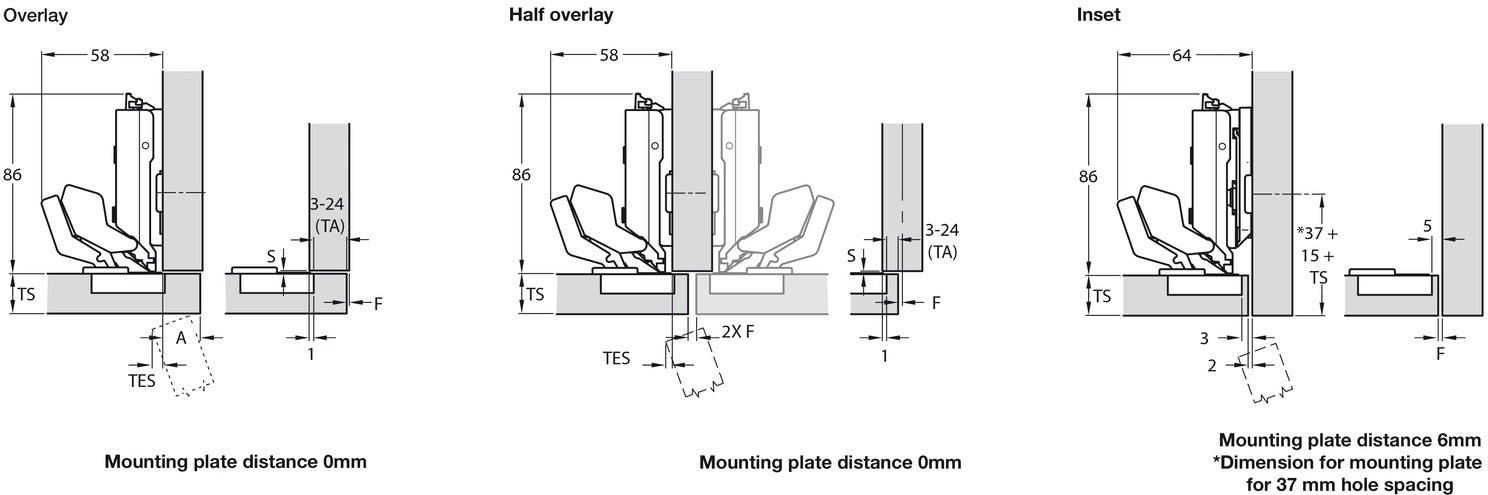

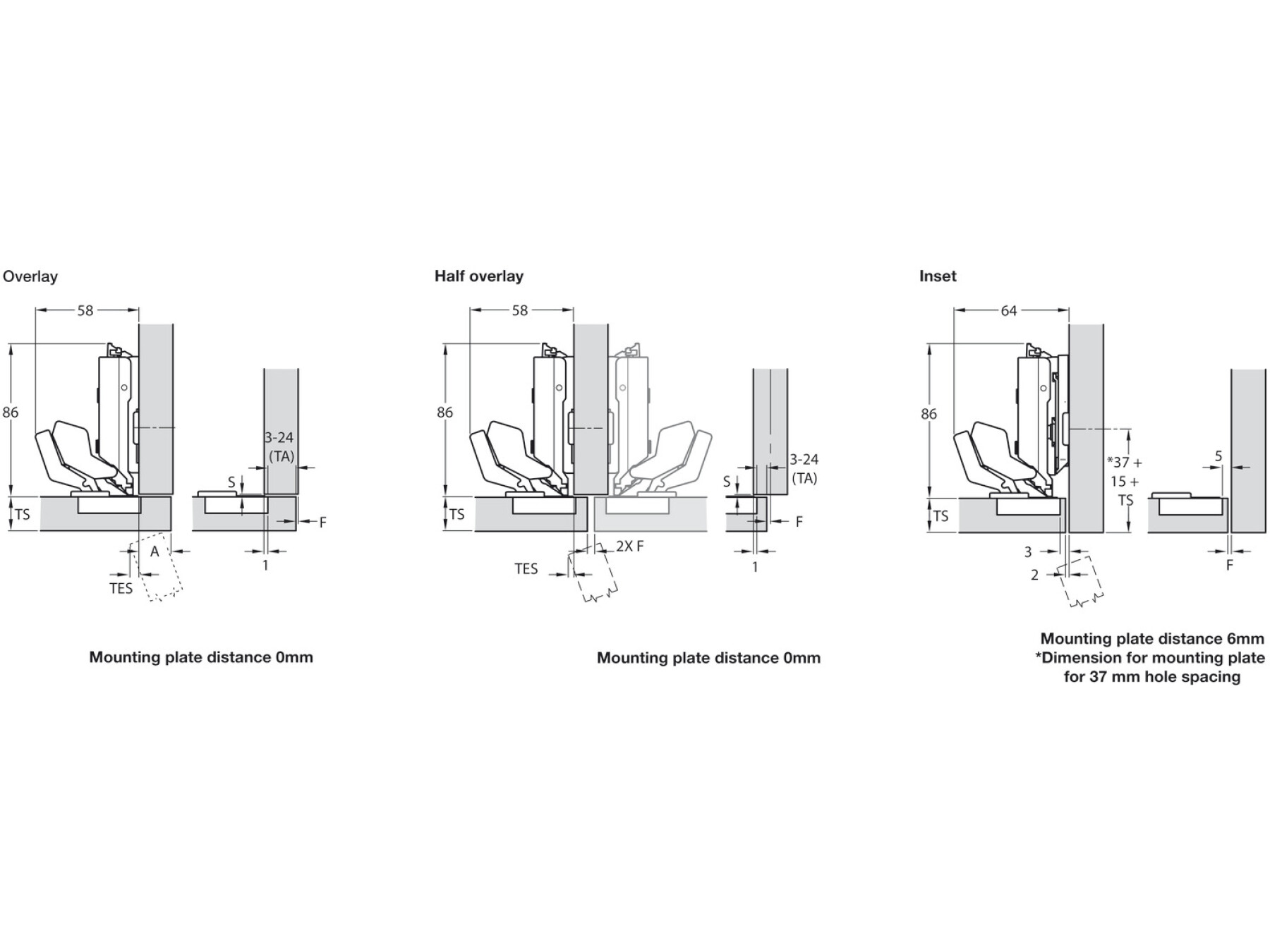

As a concealed hinge version with full overlay, it creates an elegant appearance by hiding the mechanism from view when the door is closed. The hinge features a high cranked design, supporting smooth operation and reliable alignment during everyday use.

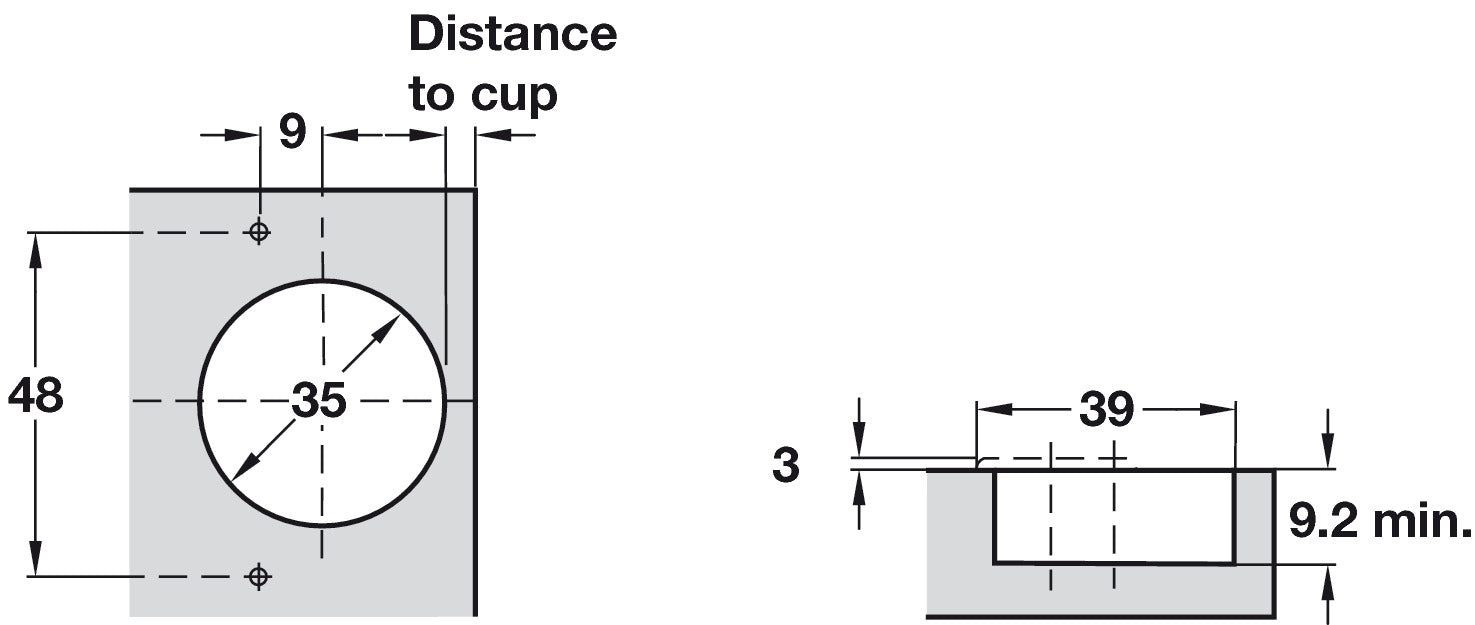

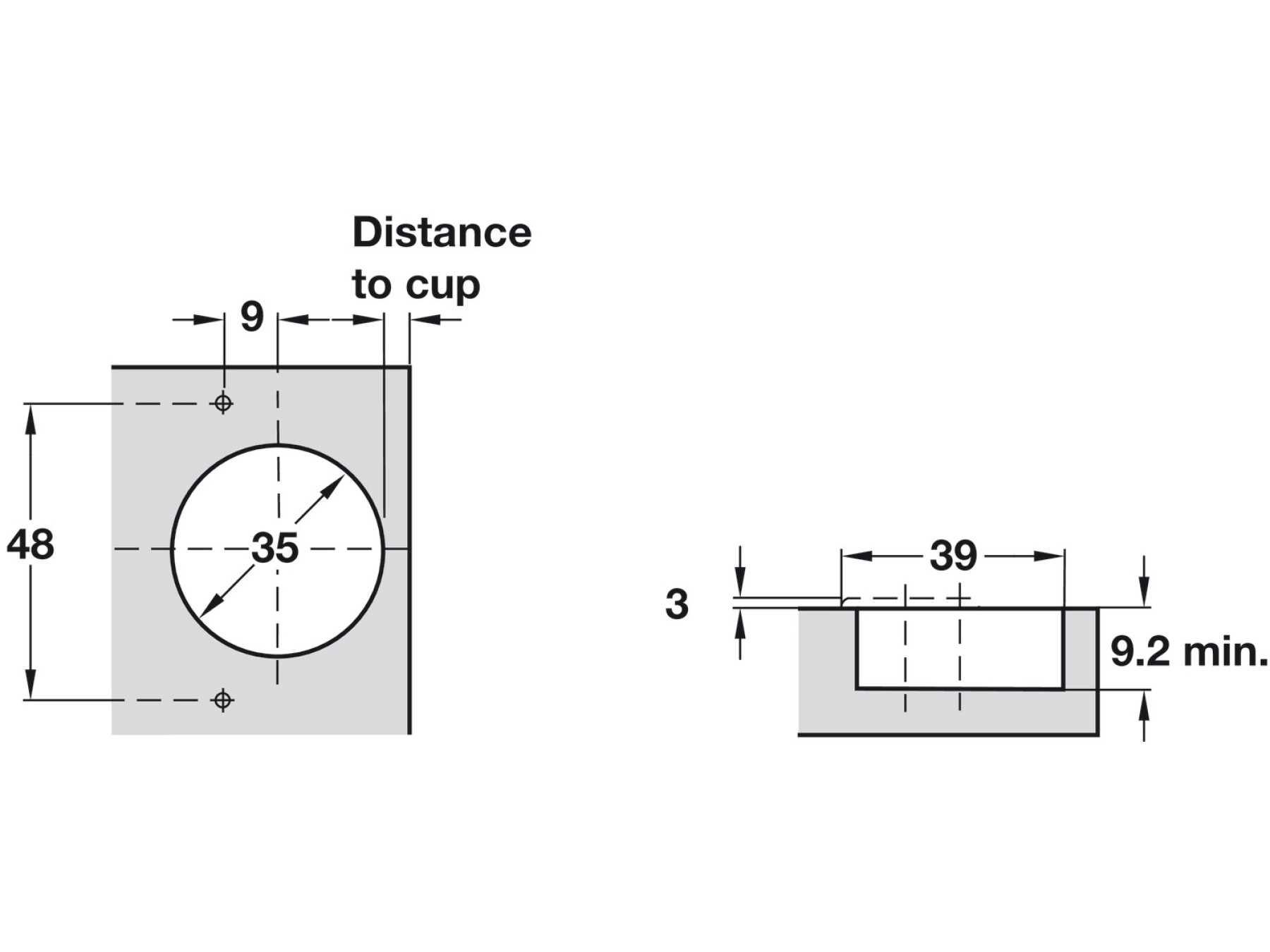

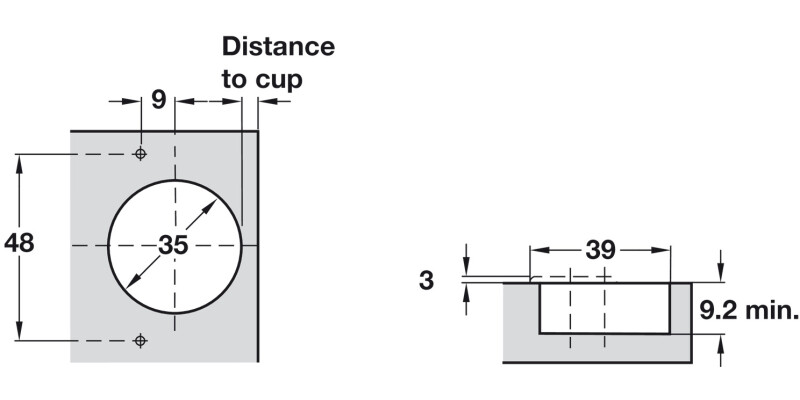

For assembly-friendly installation, this hinge is supplied for door processing with cup drilling. Key technical details include an opening angle of 110°, cup drilling depth of 9.20 mm, and a cup diameter of 35.00 mm. The hinge is designed for screw fixing and follows a practical 48/9 drilling pattern, making it easier to plan your installation accurately.

Choose the Concealed Cup Hinge, 110°, for Thin Doors, Tiomos M9 to upgrade your furniture hardware with confidence—durable, neat, and built to make cabinet doors look and perform their best.
