Mounting Plate, Super Compact Cruciform, for Grass Click On System Hinges

Product Details

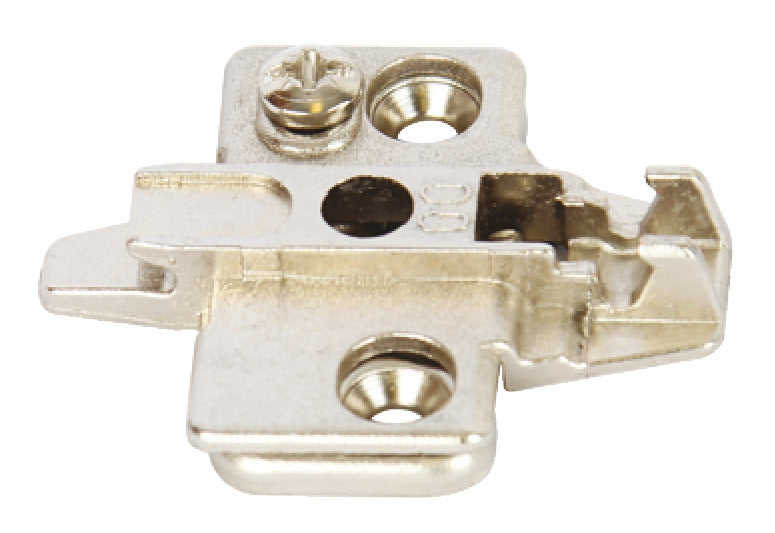

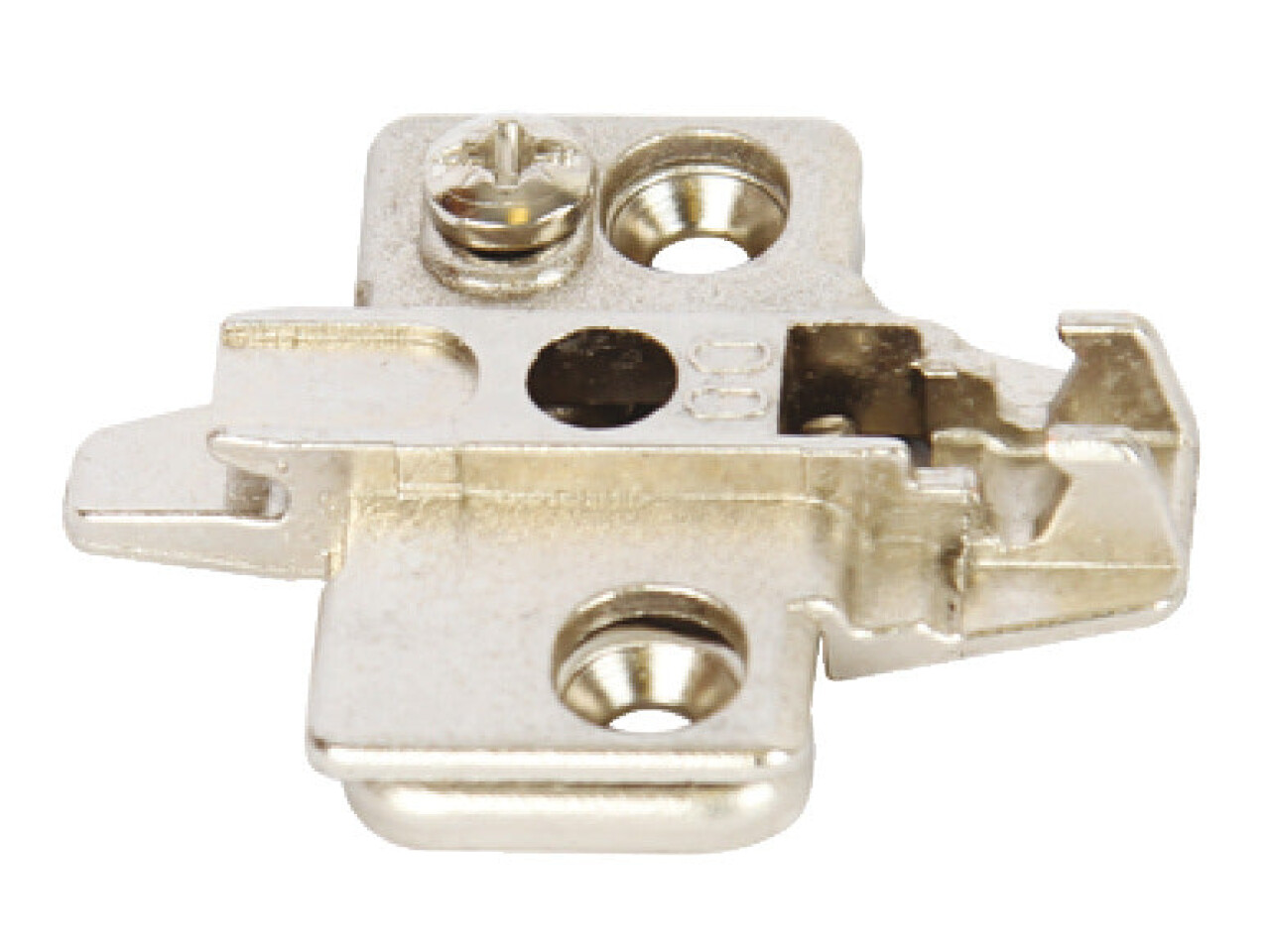

Nexis 4mm Mounting Plate (2prt Click SupCruci Hos.) is a smart, reliable solution for fitting cabinet hinges and improving the accuracy of your door alignment. Designed for click on systems, this mounting plate helps you achieve a clean, professional installation—ideal for both living spaces and commercial furniture projects.

Built for dependable performance, the Nexis 4mm Mounting Plate is made from a zinc alloy and pressed steel combination, offering strength and long-lasting durability. Finished in nickel plated, it not only looks neat but also supports smooth day-to-day use in busy environments.

With a height of 4 mm, this model uses Hospa screw fixing for secure mounting. The plate comes as a two part system with external height adjustment, making it easier to fine-tune positioning during installation—so your doors sit correctly from the start and remain properly aligned over time.

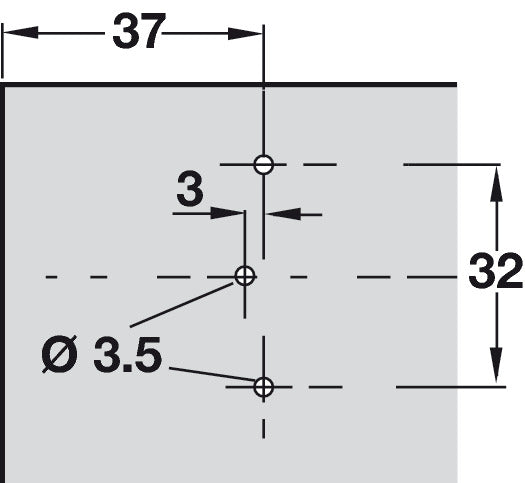

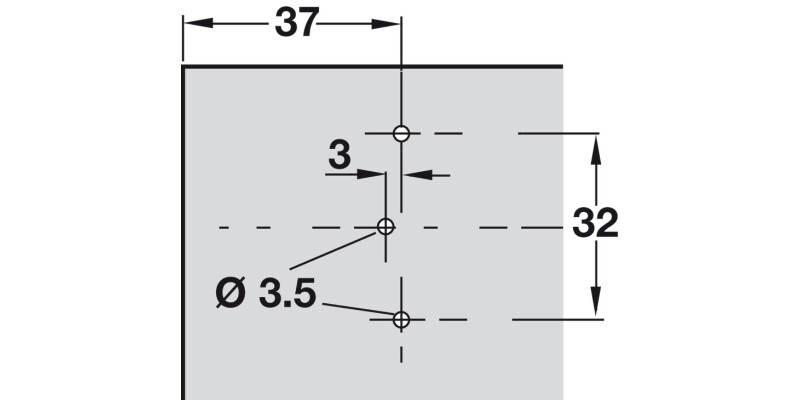

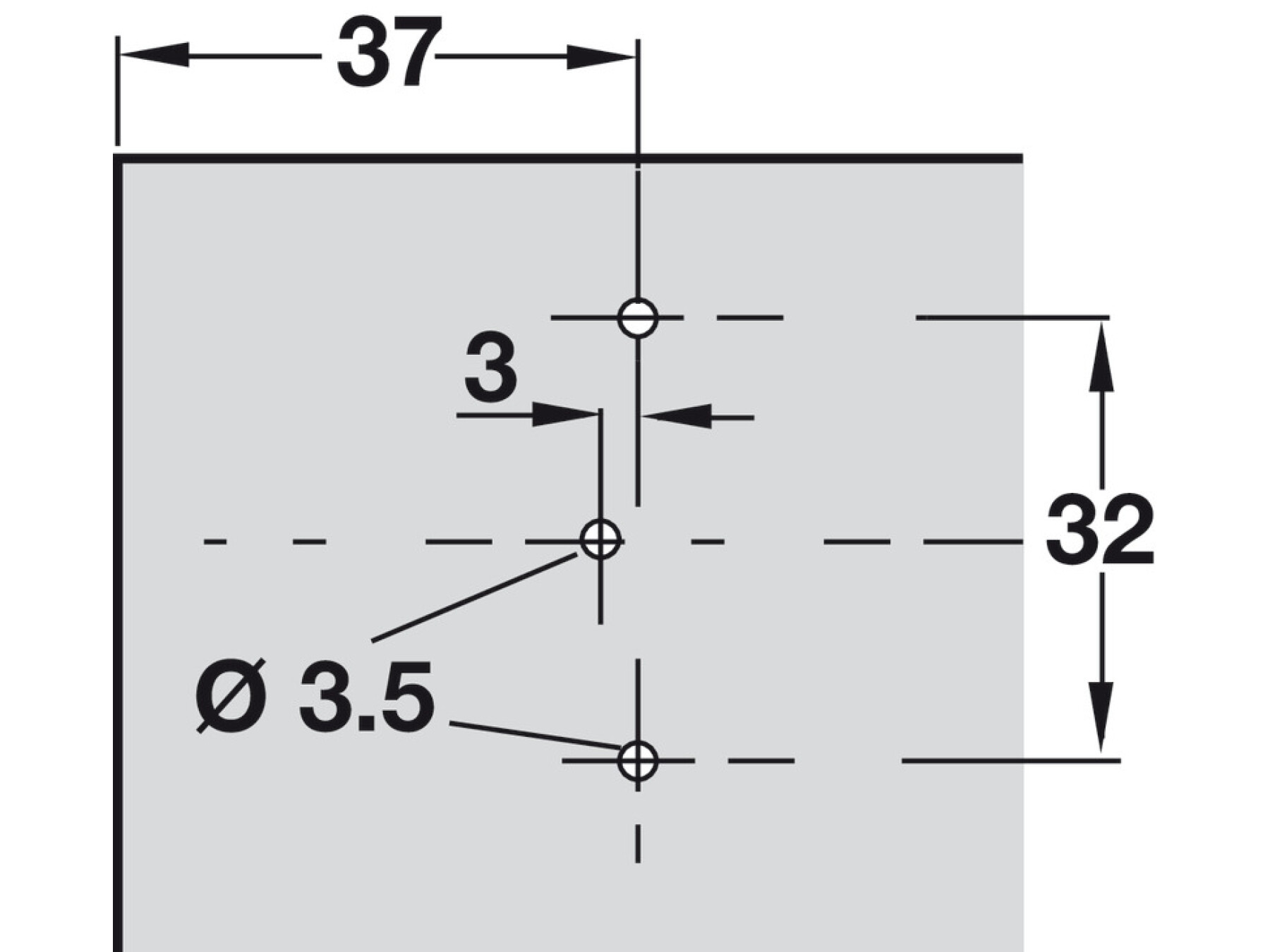

Key fitment details include a screw distance of 32.00 mm and an edge distance of 37.00 mm. The area of application is clearly set for click on systems, helping you select the right components with confidence.

Part No: 322.85.754. Order reference note: Order variants ⌀ 5.0 mm countersunk or Hospa ⌀ 3.5 mm countersunk screws separately.

If you want a precise, durable mounting plate that simplifies adjustment and supports a neat finish, choose the Mounting Plate, Super Compact Cruciform, for Grass Click On System Hinges. today.

Order Varianta ⌀ 5.0 mm countersunk or Hospa ⌀ 3.5 mm countersunk screws separately
