Mounting Plate, Inline, Screw Fixing, for Tiomos Click On System Hinges

Product Details

What is Tiomos 348.38.033 used for?

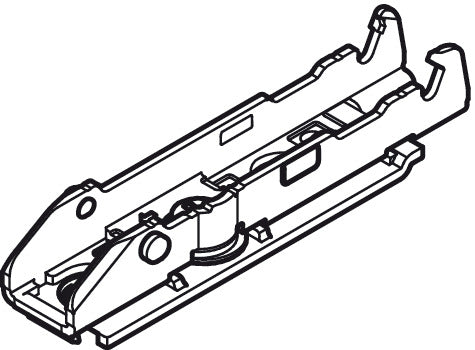

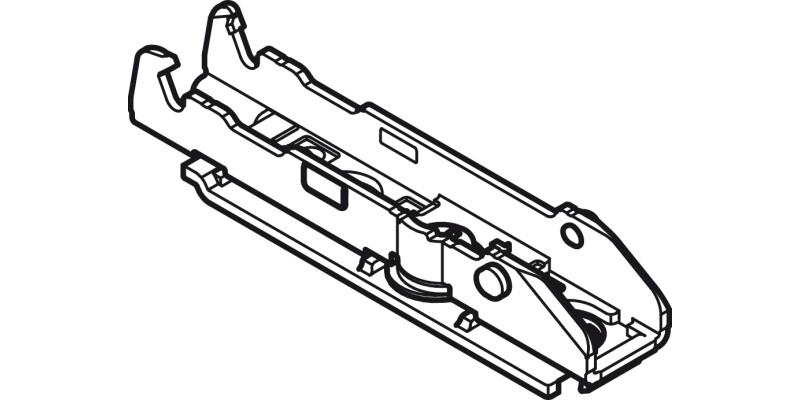

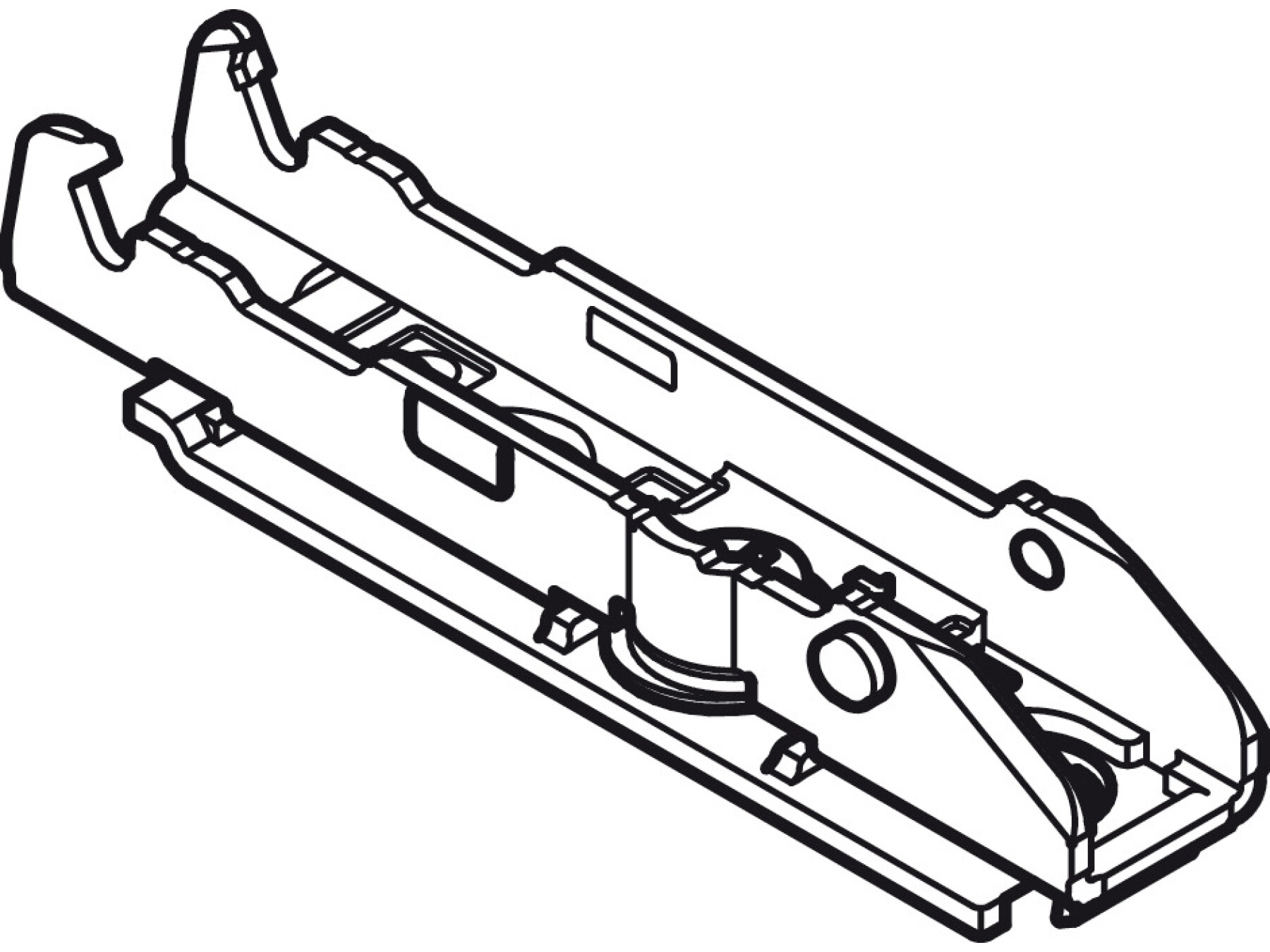

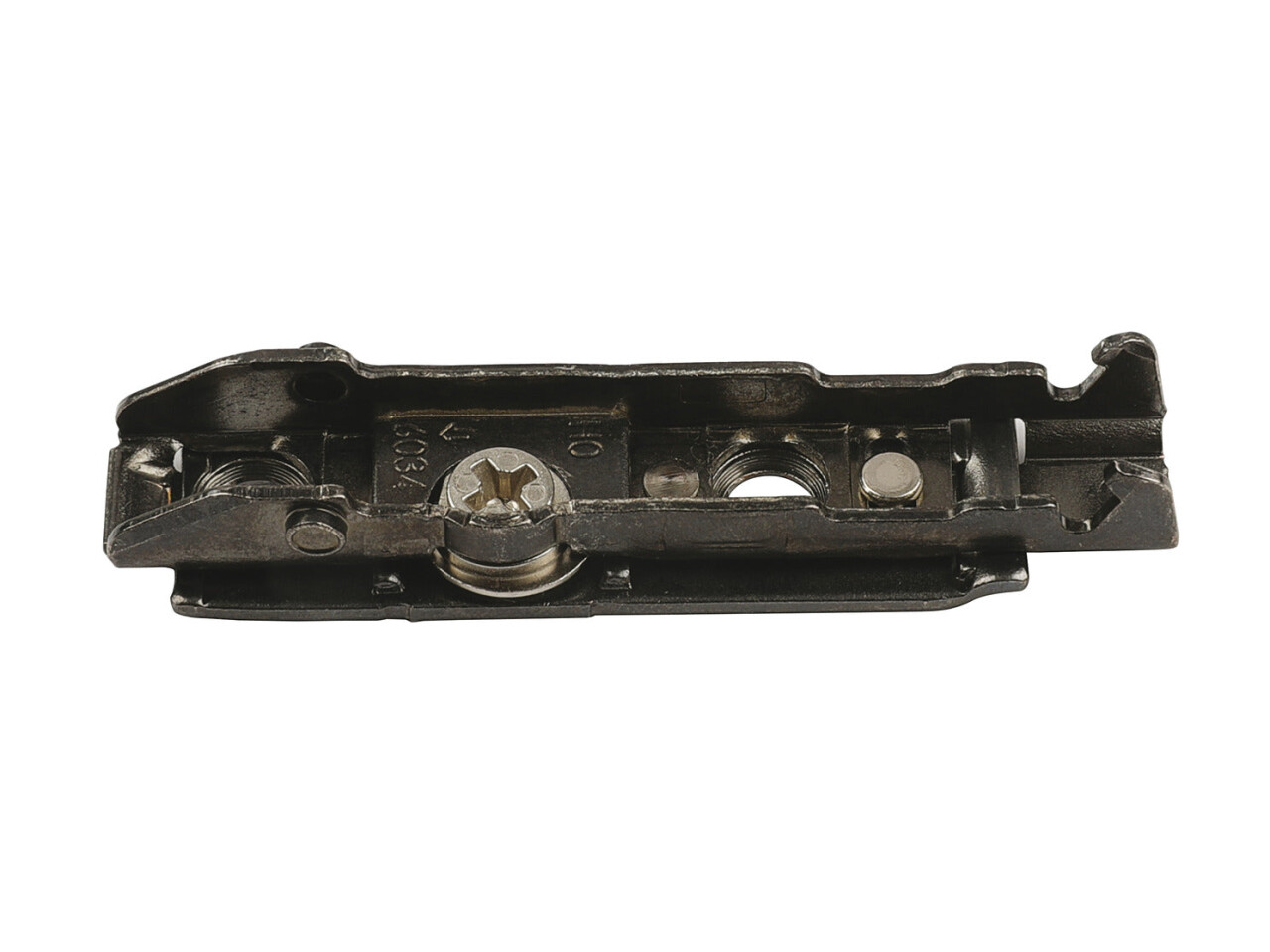

Tiomos 348.38.033 is a mounting plate for TIOMOS click on fixing hinges. It is designed to work with compatible cabinet hinge systems for living and commercial furniture applications.

How much height adjustment does this mounting plate provide?

Height adjustment is 3 mm. It uses a worm gear to fine tune positioning with a range of plus or minus 2 mm to help align cabinet doors and drawers accurately.

How do I attach the mounting plate to my cabinet?

This version uses a clip system for fixing, plus screw fixing to the mounting plate using chipboard screws or Euro screws. This helps secure the plate firmly before your hinge is clicked into place.

Which drill hole size is required?

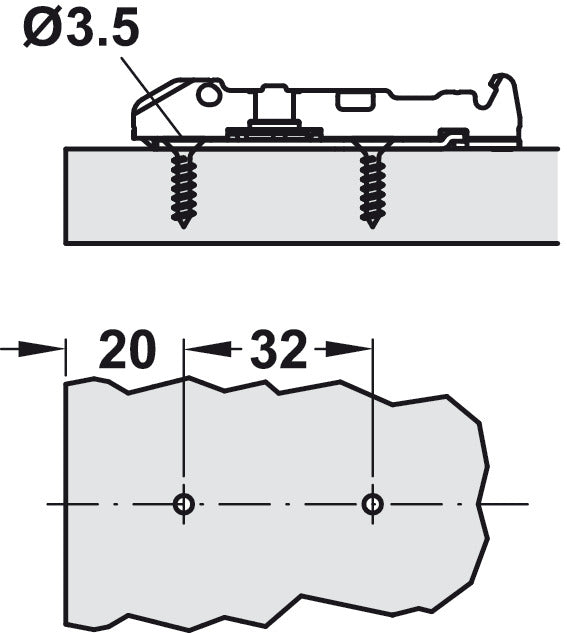

For proper fitting, this plate is designed for a 3.50 mm drill hole during installation. Using the correct hole size helps ensure the screws seat correctly and the hinge alignment stays stable.

Do I need special screws, or can I use common Euro screws?

Euro screws or chipboard screws are suitable for mounting the plate. The mounting plate is made for screw fixing with those common screw types, making installation straightforward for most cabinet builds.

What screw and edge spacing should I follow?

Screw distance is 32 mm and edge distance is 29 mm. Matching these measurements helps you avoid misalignment and ensures the fixing points line up correctly with the cabinet structure.

Is this part compatible with other hinge brands?

This mounting plate is intended for TIOMOS click on fixing hinges only. If your hinge system is not part of the TIOMOS range, it may not fit the clip system correctly.

Will the plate suit both residential and commercial furniture use?

Yes. The Tiomos system is made for reliable cabinet fitting, supporting both living and commercial solutions where consistent door alignment and durable positioning are important.
