Mounting Plate, Cruciform, 4 Point Fixing, Pre-Mounted Euro Screw Fixing, for Ti

Product Details

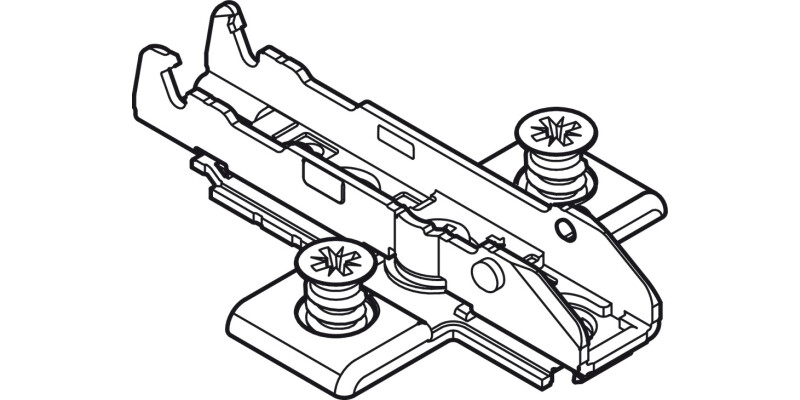

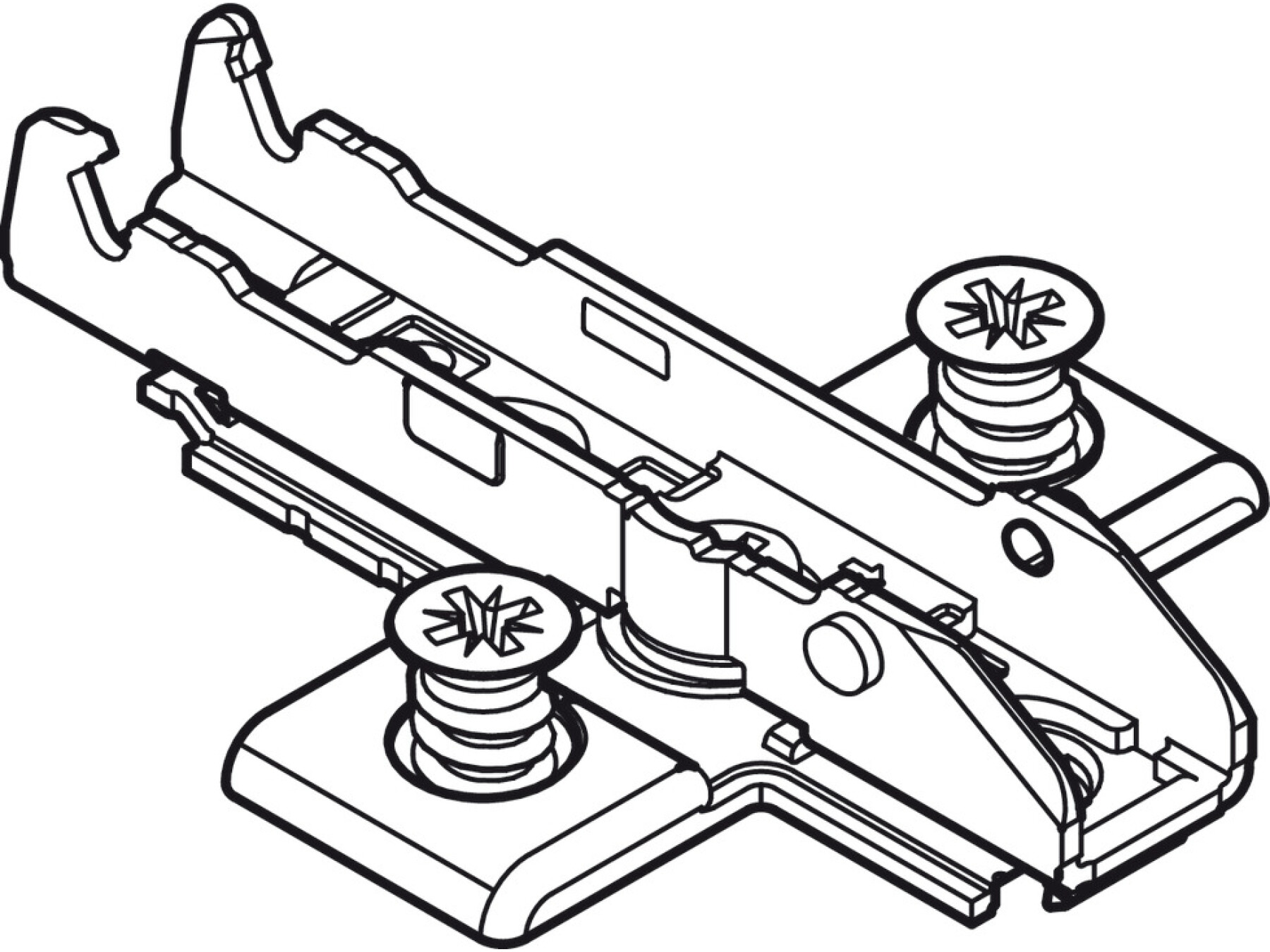

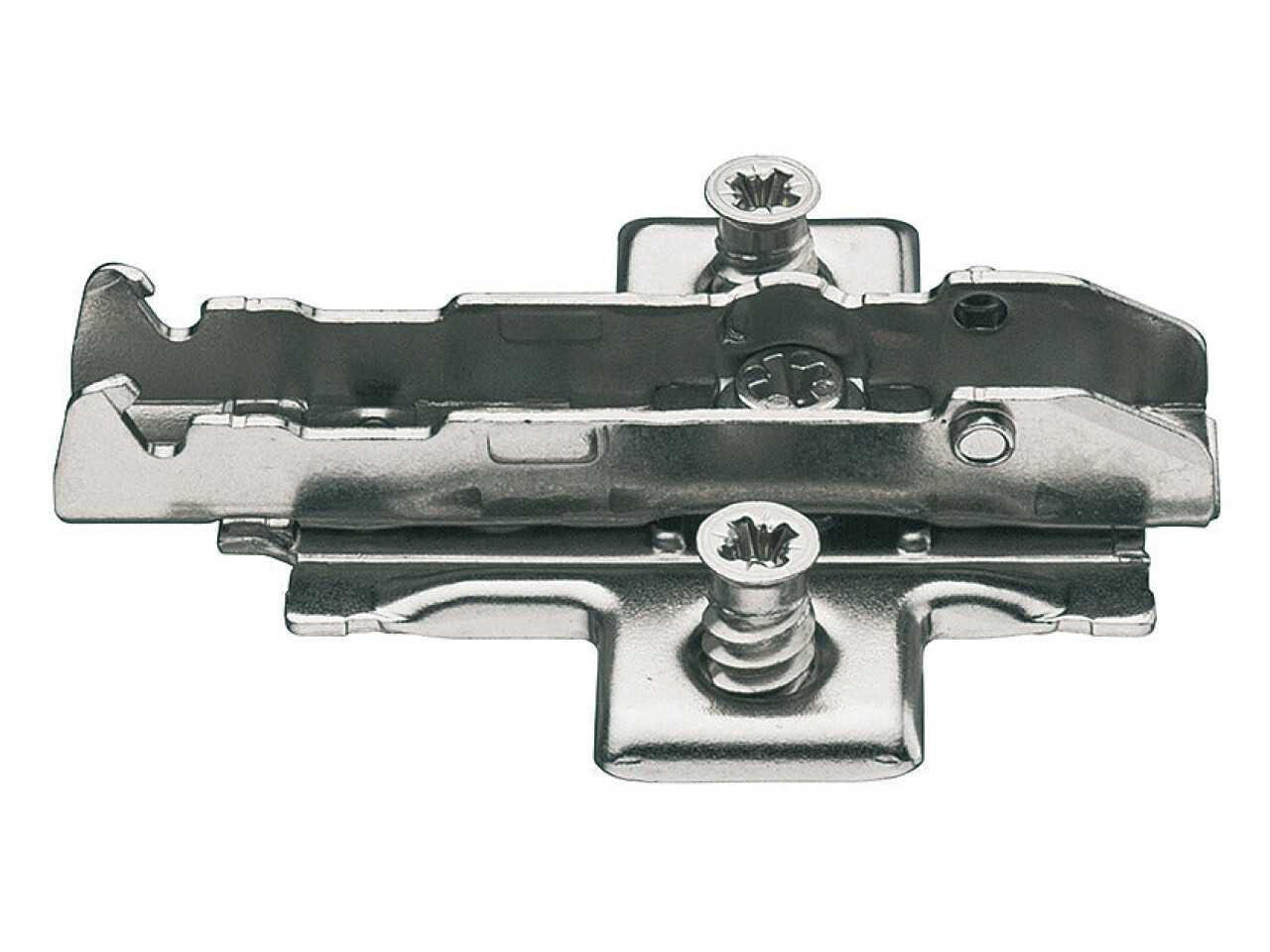

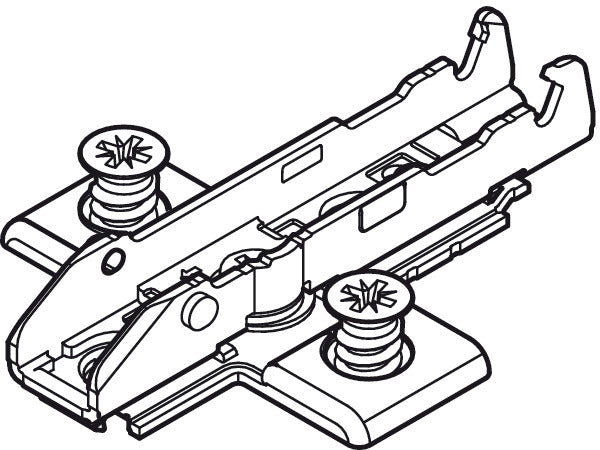

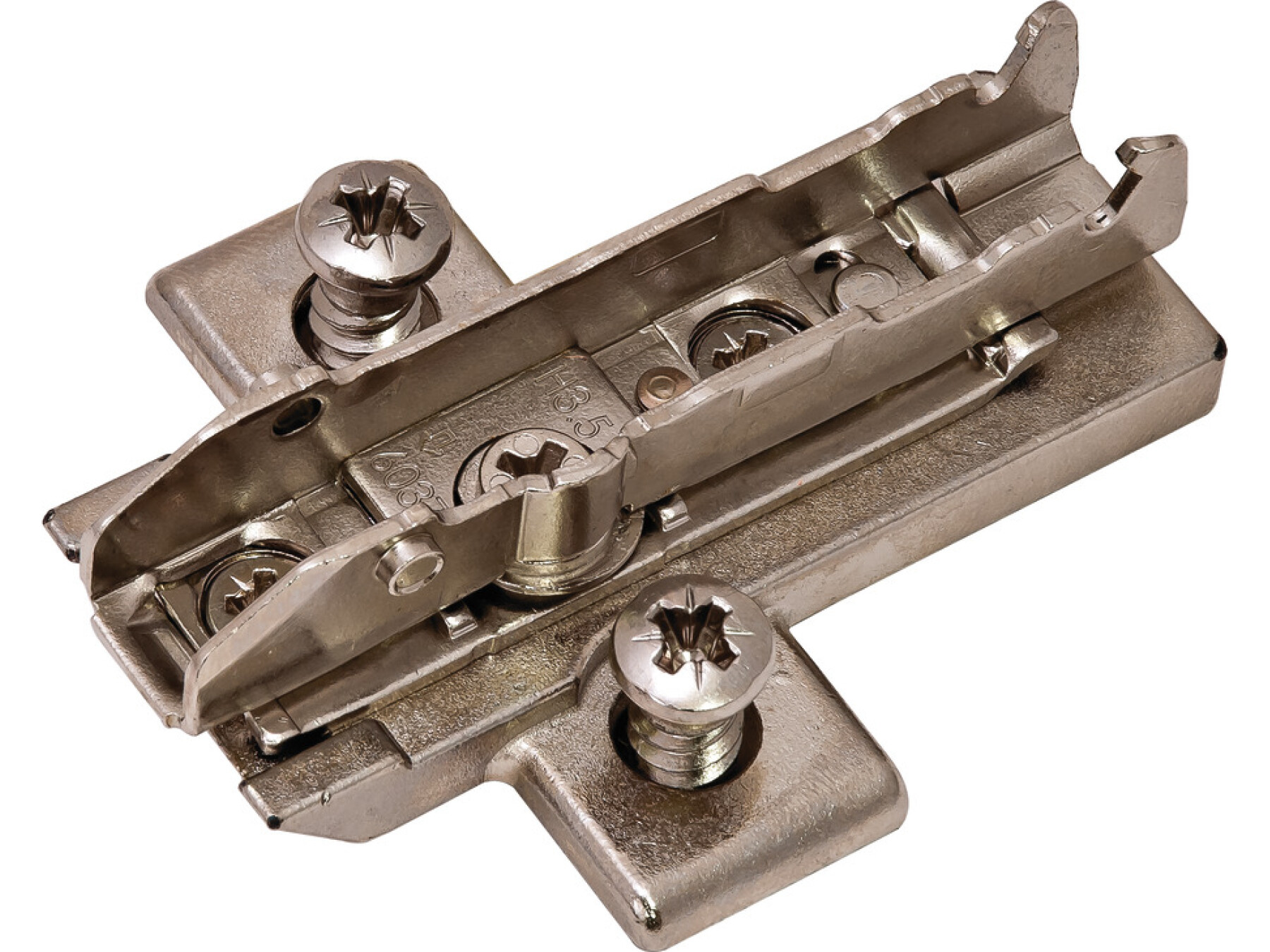

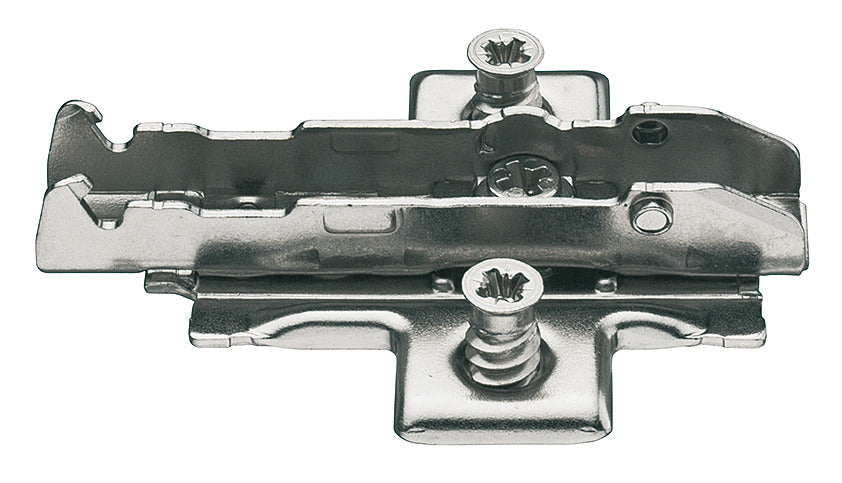

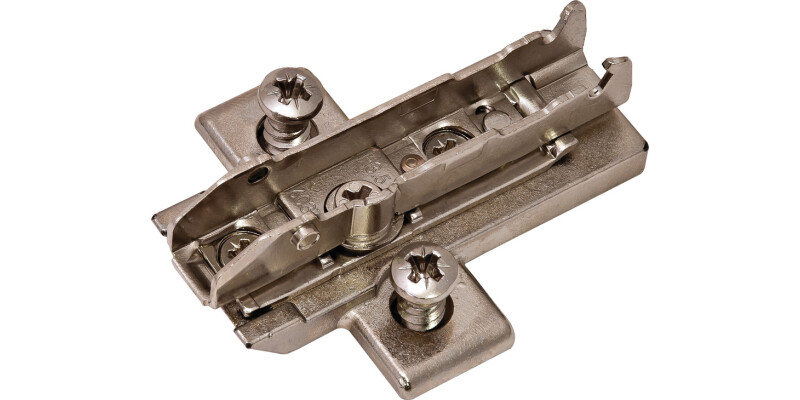

Mounting Plate, Cruciform, 4 Point Fixing, Pre-Mounted Euro Screw Fixing, for Ti (Part No: 348.38.521) is a precise, space-saving solution for cabinet hinge setups—designed to help you achieve smooth alignment and a clean, professional finish. If you’re using TIOMOS click-on fixing hinges only, this two-part mounting plate makes it easy to install while keeping adjustments consistent and reliable.

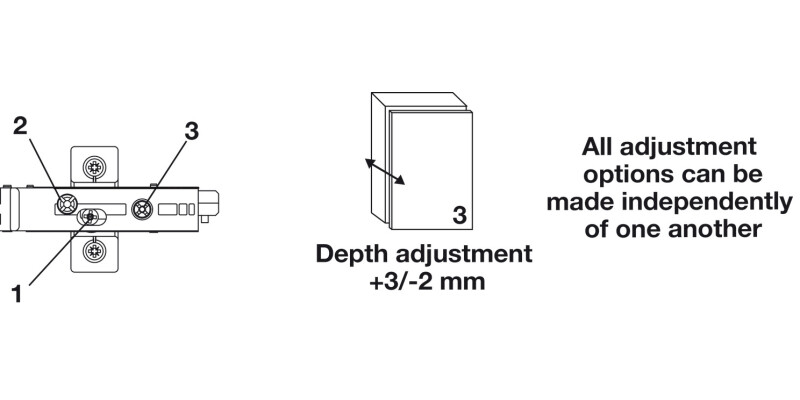

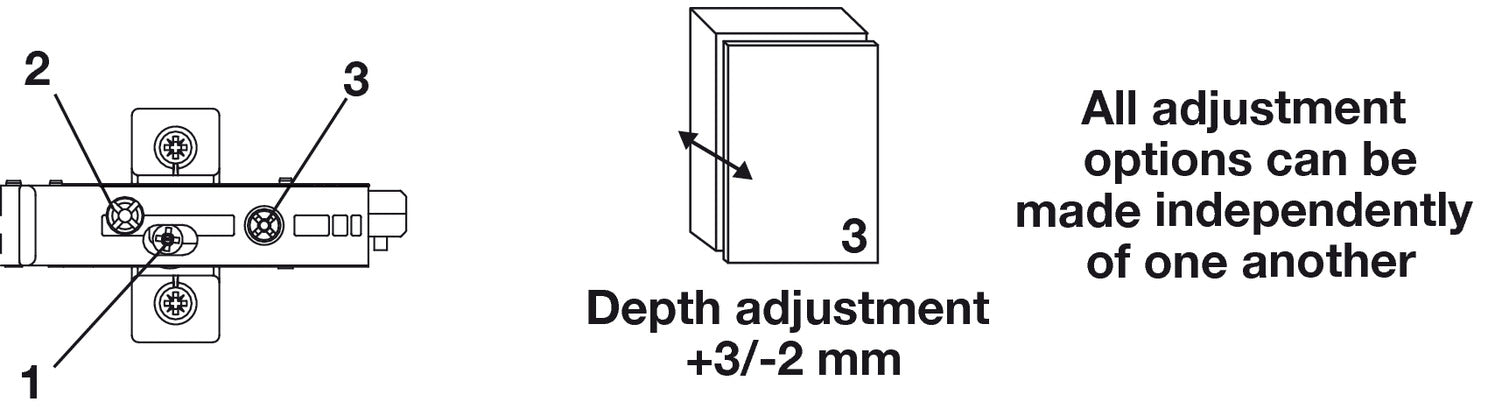

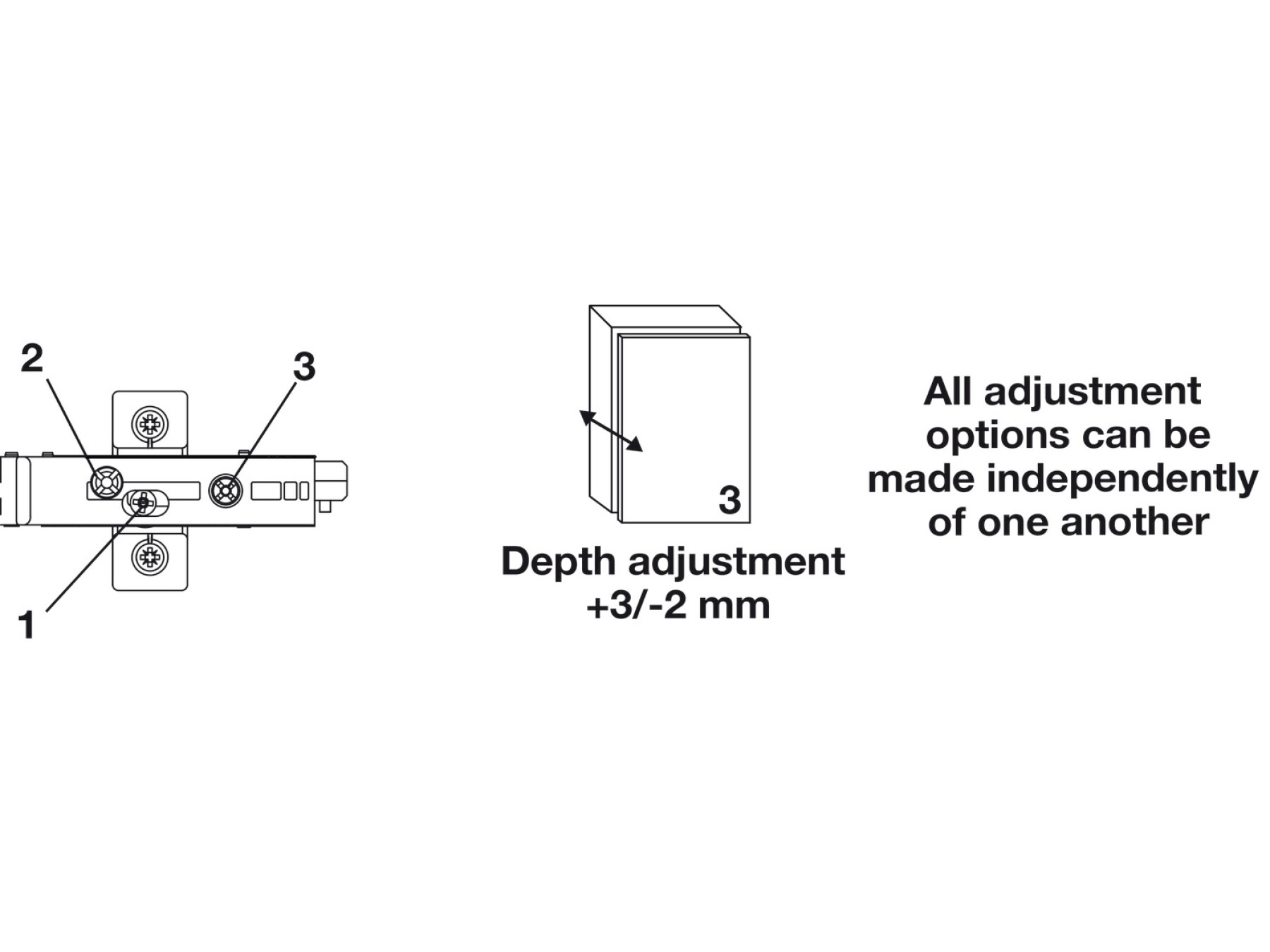

Built for accuracy and durability, this Tiomos mounting plate features a two part plate with ± 2 mm height adjustment using a worm screw. That means you can fine-tune door positioning for an even reveal and comfortable, well-aligned operation—ideal for kitchens, wardrobes, and commercial furniture projects.

Product highlights:

• Height adjustment: Worm gear height control at 0 mm with ±2 mm range
• Fixing method: Clip system for secure mounting
• Material & finish: Made from steel, nickel plated for enhanced corrosion resistance
• Compatibility: For screw fixing with pre-mounted Euro screws (with optional Hospa screw and dowel fixing versions available)

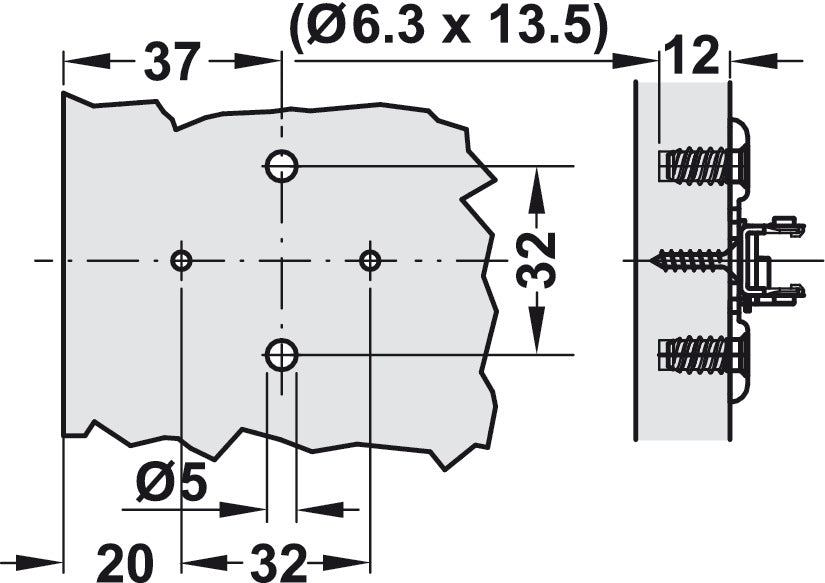

For correct installation, it supports a 5.00 mm drill hole, with 12.00 mm drilling depth and 13.50 mm screw length. The screw distance (32.00 mm) and edge distance (37.00 mm) help ensure consistent positioning across cabinet frames.

Upgrade your hinge alignment with the Mounting Plate, Cruciform, 4 Point Fixing, Pre-Mounted Euro Screw Fixing, for Ti—a dependable choice for anyone aiming for confident fitting results.

Hospa screw and dowel fixing versions available
