Mounting Plate, Econ Cruciform, 3 Point Fixing, Pre-Mounted Euro Screw Fixing, f
Part Number: 348.38.552
Height adjustment via slot, Height 2 mm
Price:
£1.23
Per Item
Mounting Plate, Econ Cruciform, 3 Point Fixing, Pre-Mounted Euro Screw Fixing, f (Part No: 348.38.552) is a... Read More
Product Information
Product Details

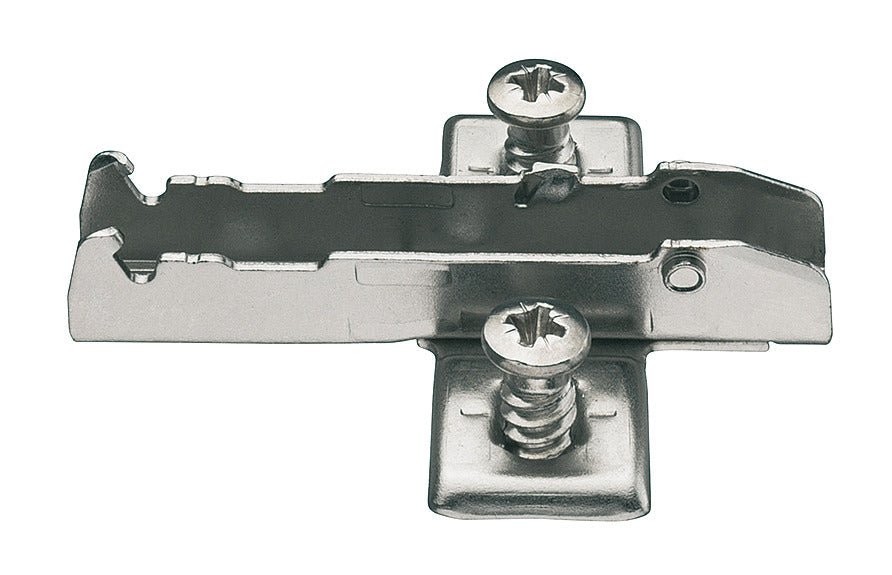

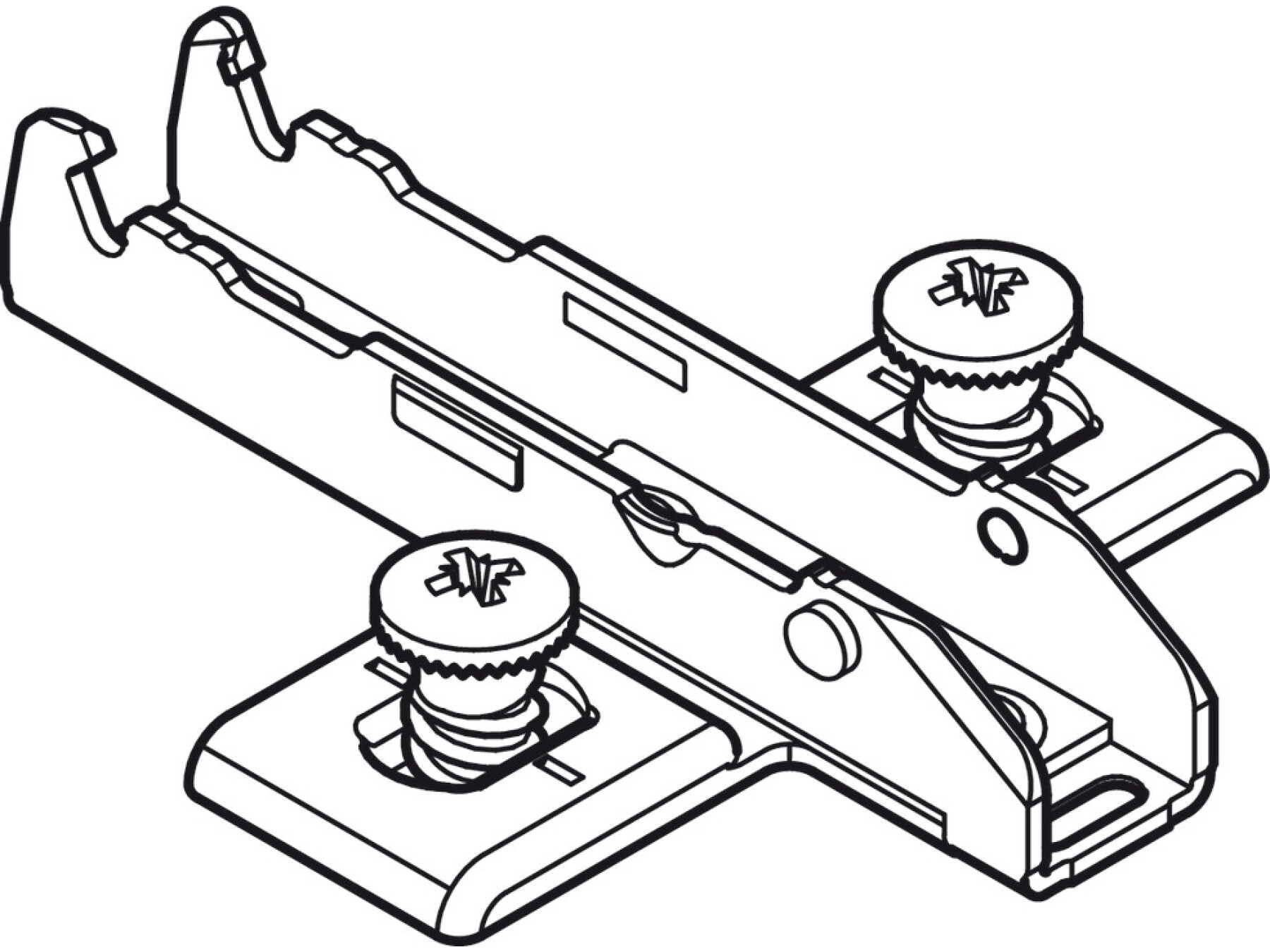

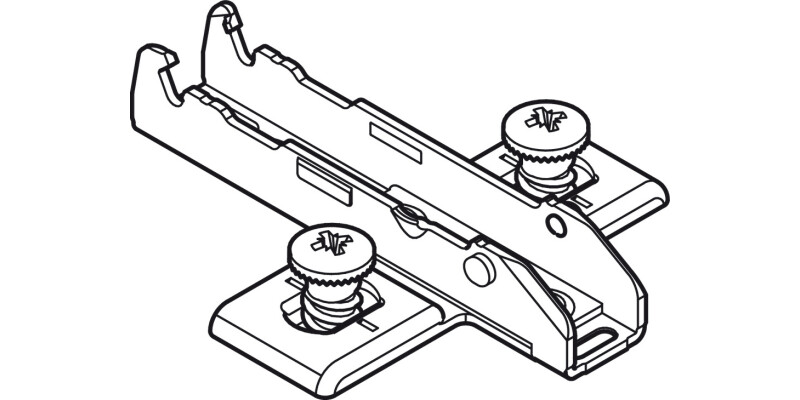

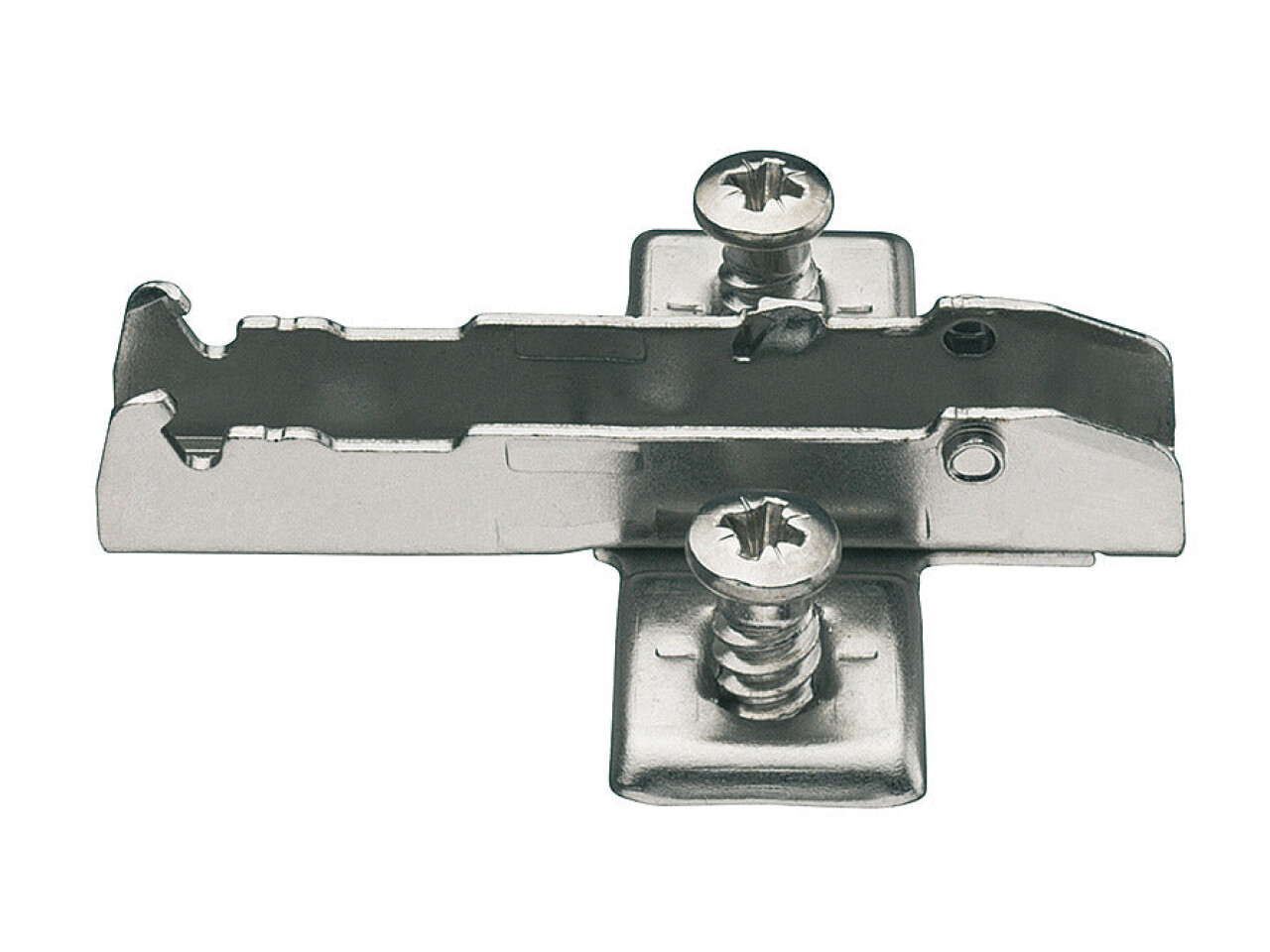

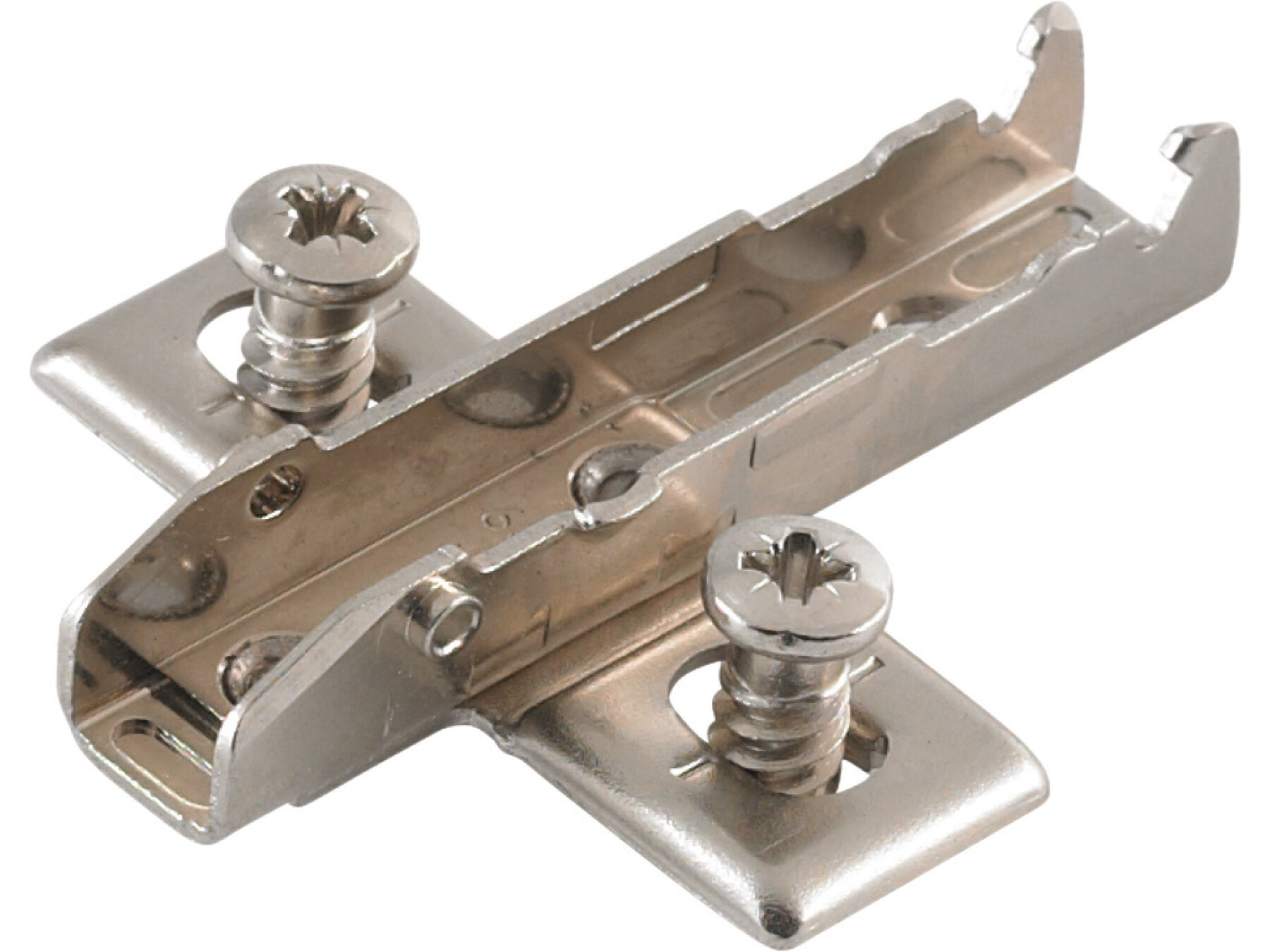

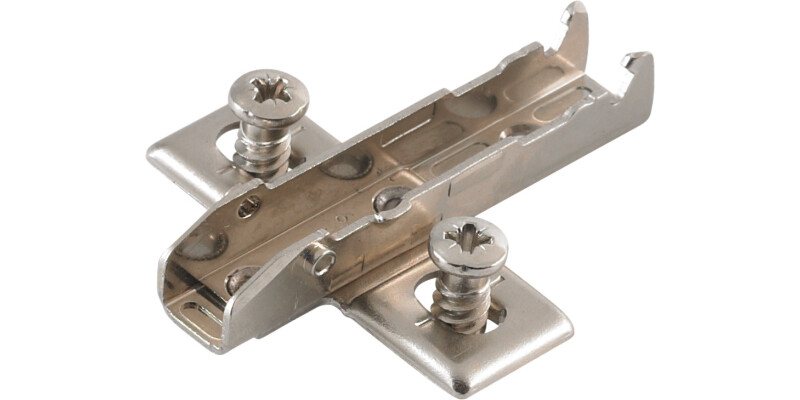

Mounting Plate, Econ Cruciform, 3 Point Fixing, Pre-Mounted Euro Screw Fixing, f (Part No: 348.38.552) is a precision furniture fitting designed for installers and makers who want quick, accurate alignment when mounting Tiomos click-on fixing hinges. If you’re upgrading cabinet hardware or fitting new cabinetry, this nickel-plated mounting plate helps deliver a clean, professional result—without unnecessary fuss.
Product subtitle: Height adjustment via slot, Height 2 mm—so you can fine-tune the final door position with confidence. The slot-based adjustment offers height adjustment ±2.5 mm, making it easier to correct gaps and ensure smooth door operation, especially on larger cabinet projects or refurbishments.

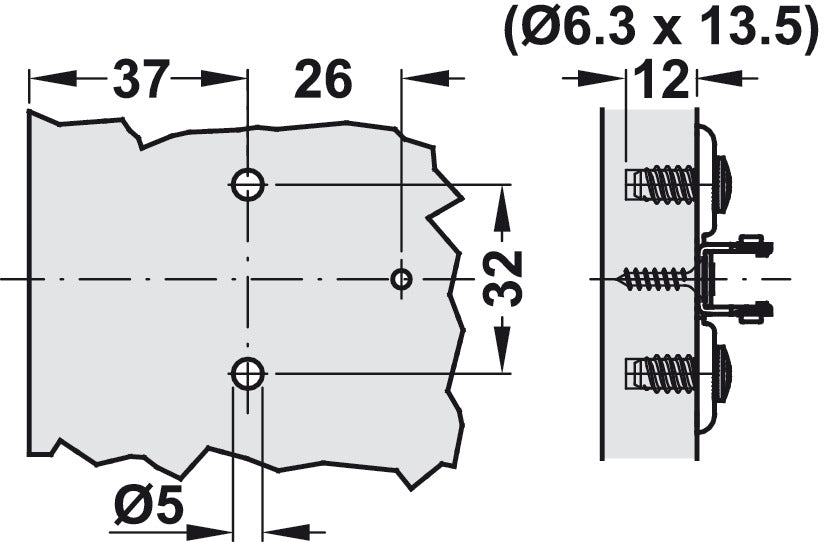

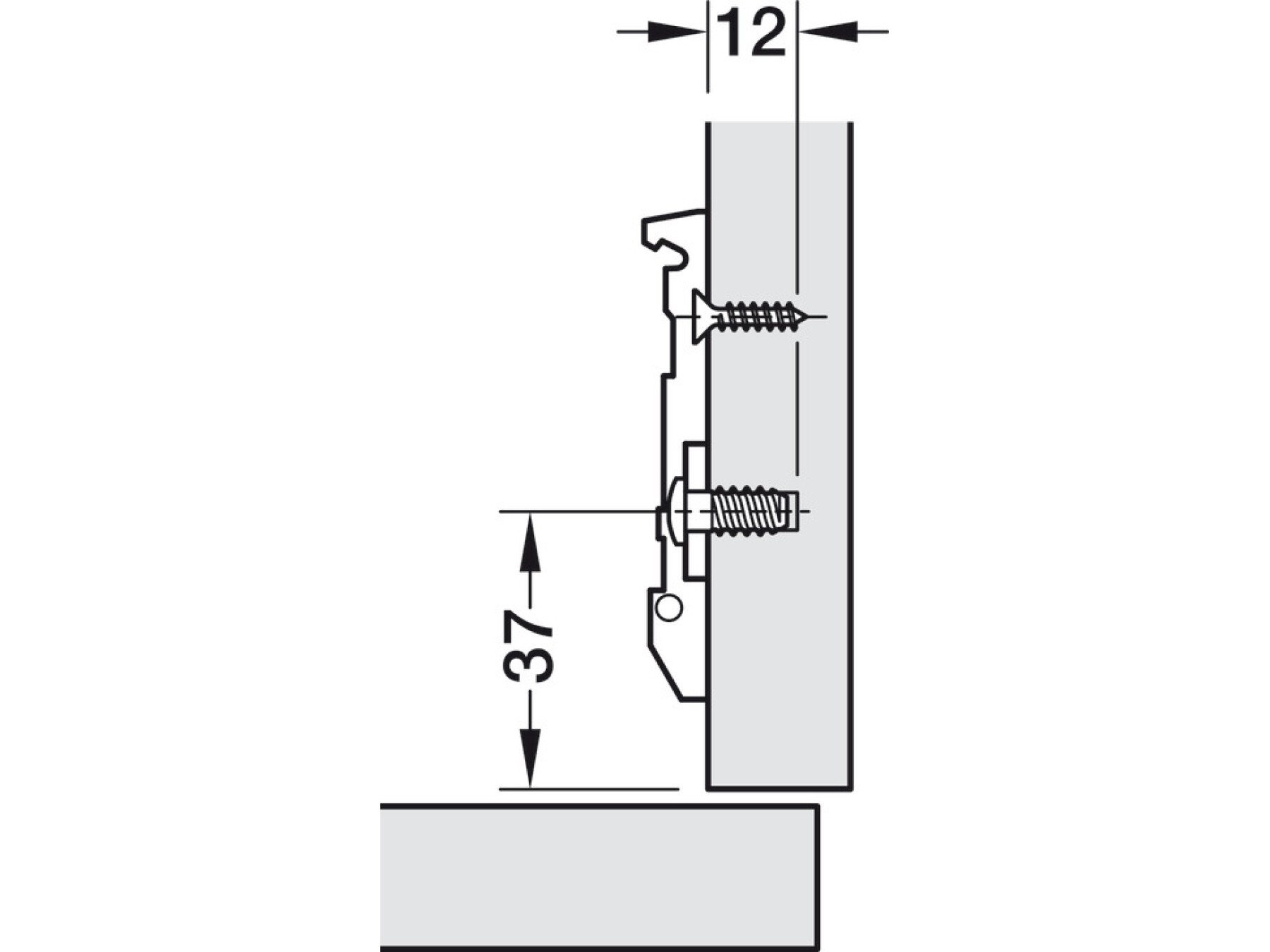

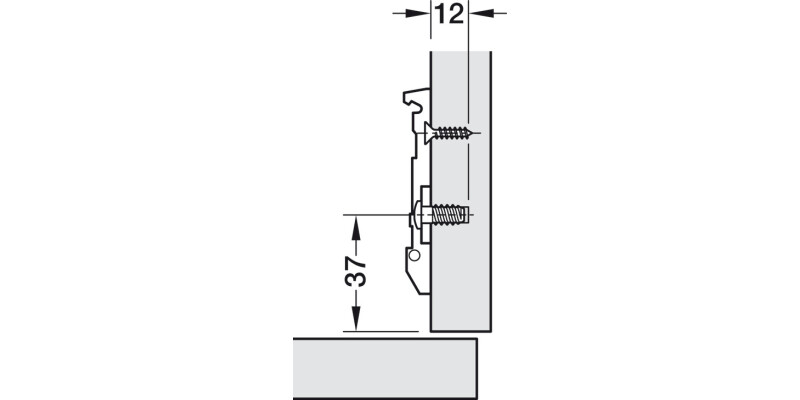

Built for reliable performance, this two-part steel mounting plate features a durable nickel plated finish for long-lasting appearance and corrosion resistance. It’s engineered for 5.00 mm drill holes with a 12.00 mm drilling depth, and uses 13.5 mm screws spaced at 32 mm, with an edge distance of 37 mm for consistent mounting.
Designed for a 2.00 mm mounting plate distance, it uses a clip system for secure installation. The mounting plate version supports screw fixing with pre-mounted pan head Euro screws, helping you achieve a strong, dependable hold.
Area of application: For Tiomos click fixing hinges only. Add the Mounting Plate, Econ Cruciform, 3 Point Fixing, Pre-Mounted Euro Screw Fixing, f to your cart today and complete your cabinet hinge setup with confidence.
Specifications
Area of application
For Tiomos click on fixing hinges only
Version
Two part plate
Material
Steel
Colour/finish
nickel plated
For drill hole Ø
5.00 mm
Drilling depth
12.00 mm
Screw length
13.50 mm
Screw distance
32.00 mm
Edge distance
37.00 mm
Adjustment facility
Height adjustment Via slot ±2,5 mm
Fixing method
clip system
Mounting plate version
for screw fixing with pre-mounted pan head Euro screws
Distance
2.00 mm
Model
Tiomos
Model series
Tiomos
Order reference
Hospa screw and dowel fixing versions available
