Mounting Plate, Cruciform, 4 Point Fixing, Pre-Mounted Euro Screw Fixing, for Ti

Product Details

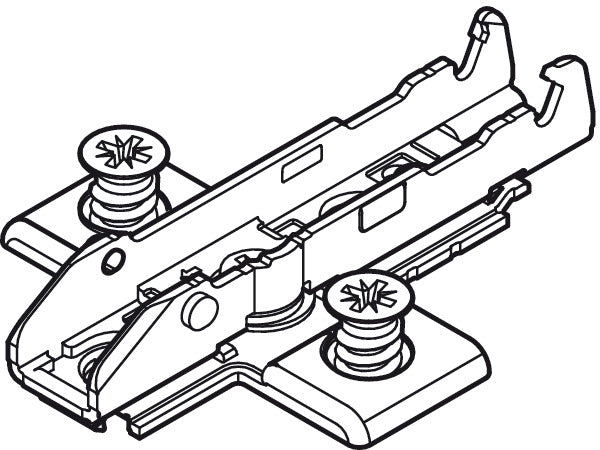

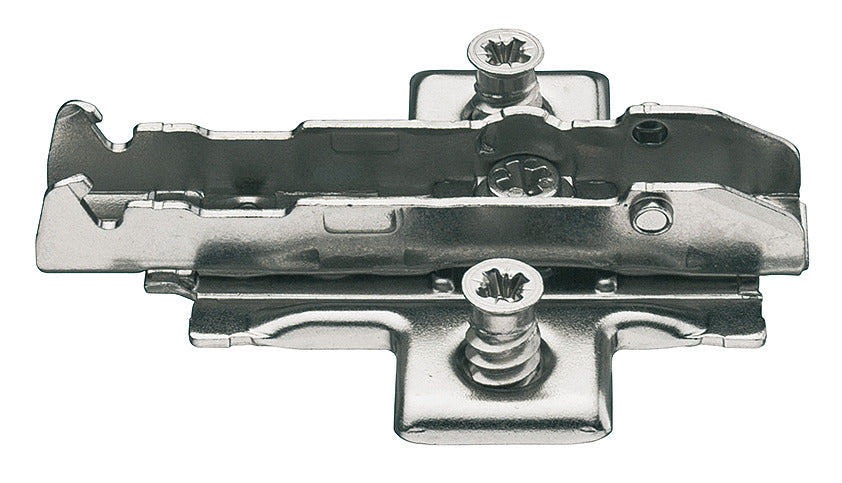

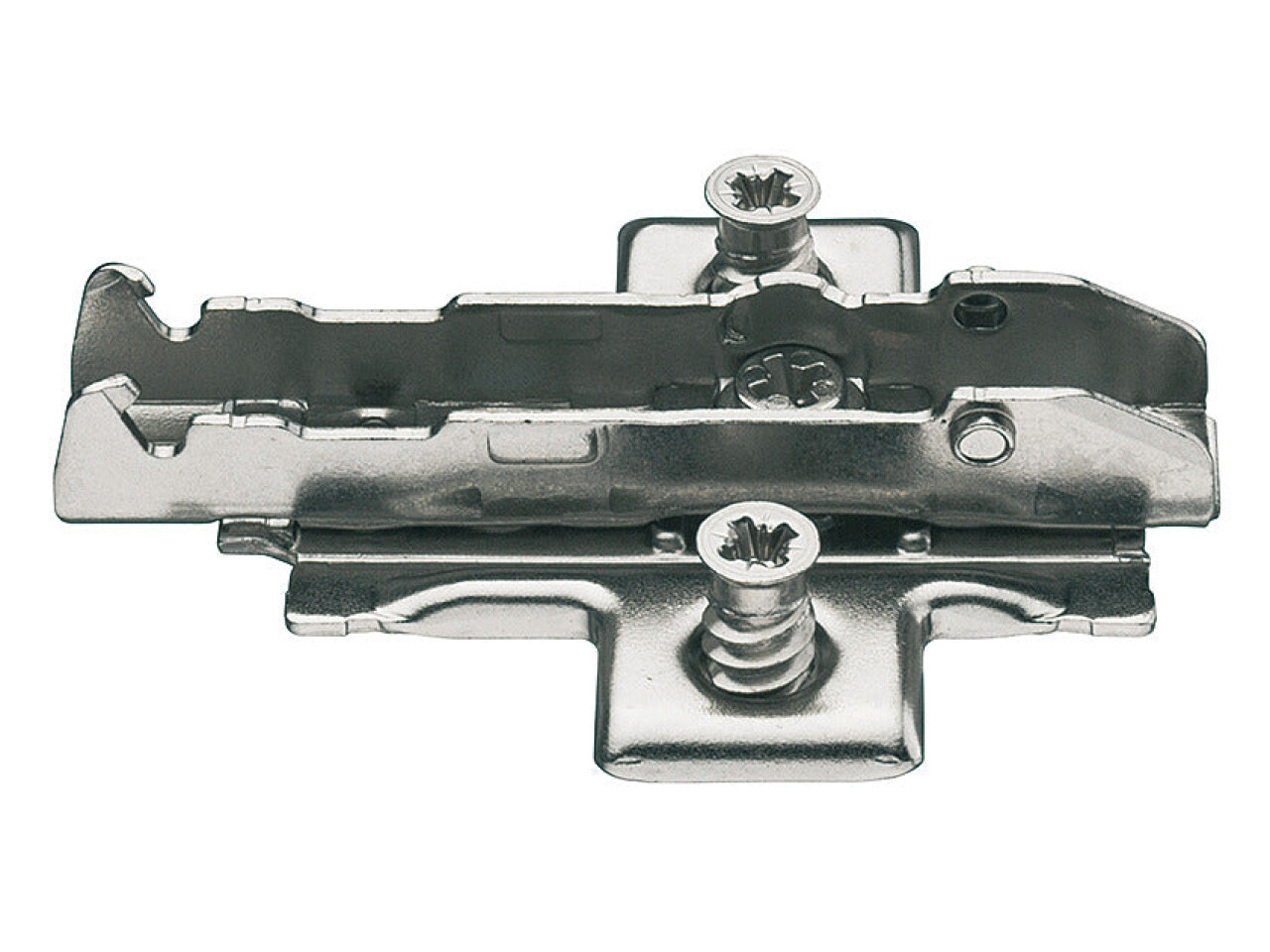

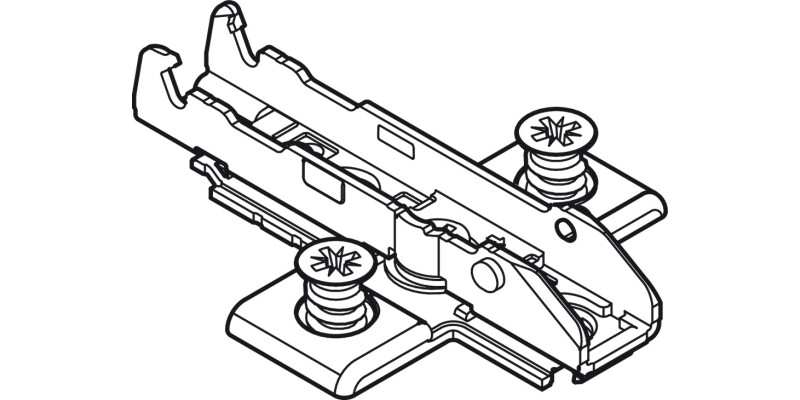

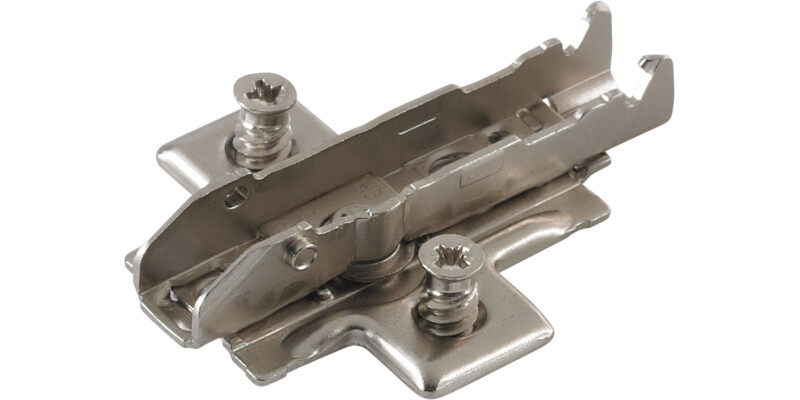

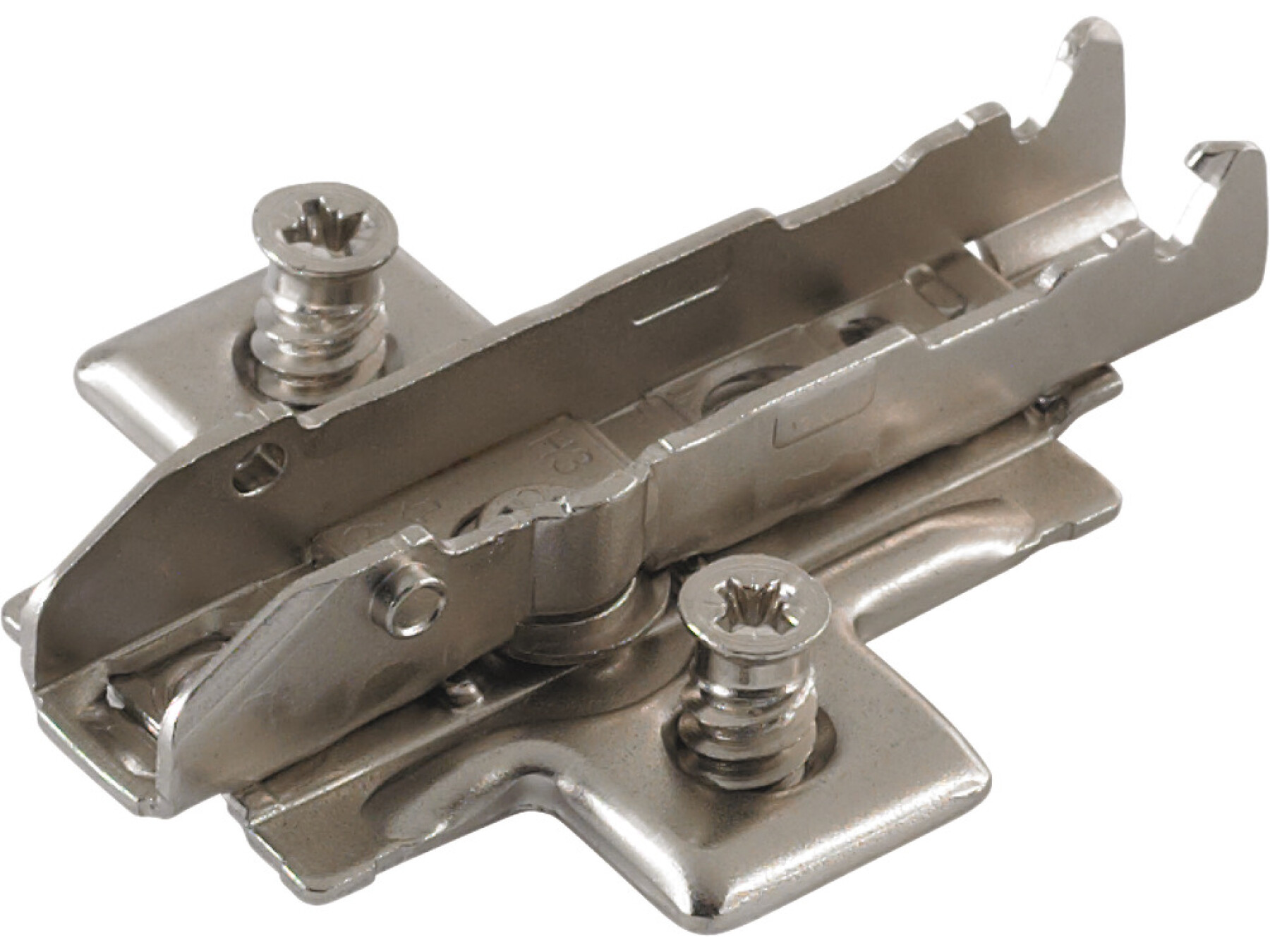

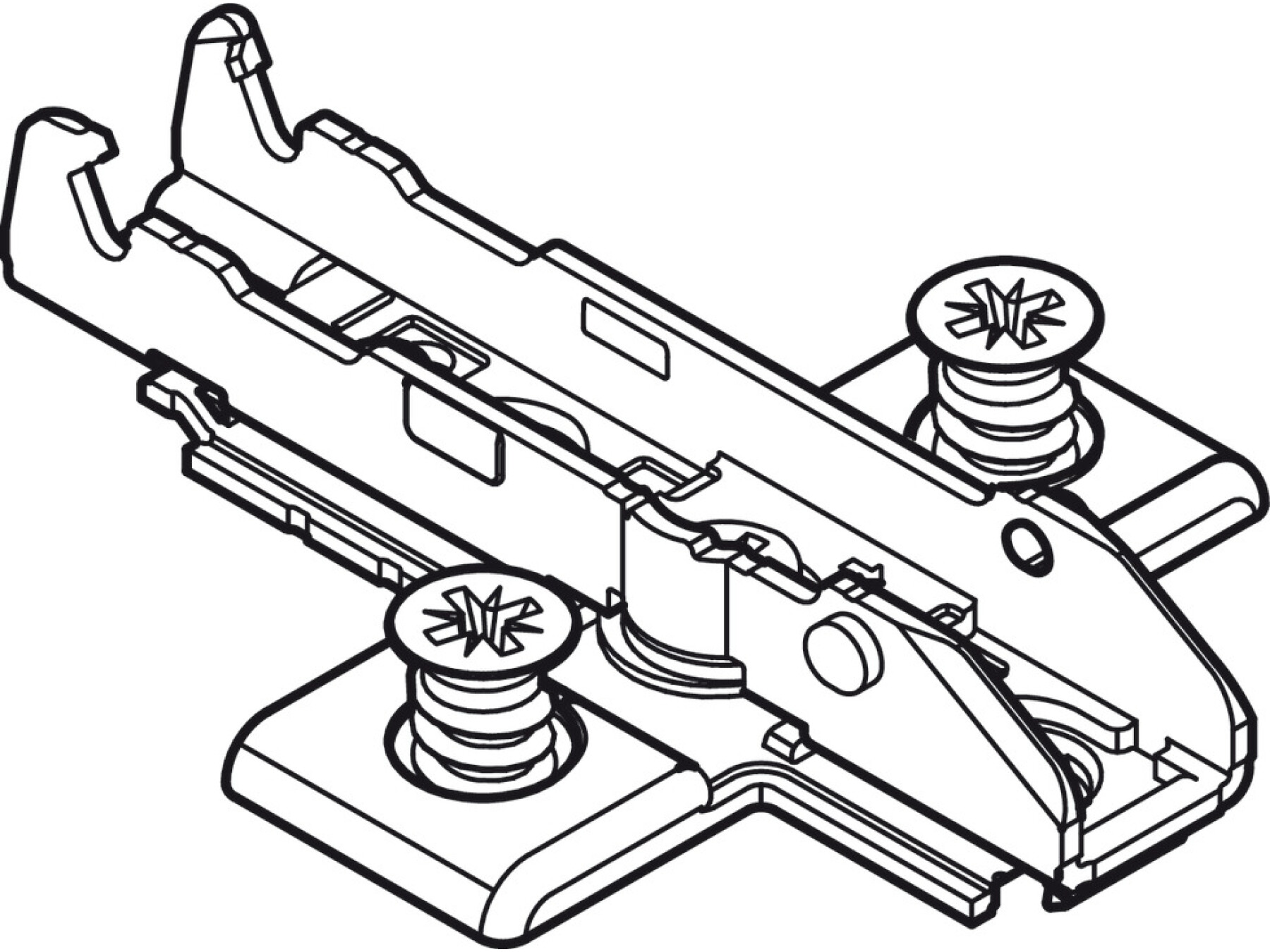

Mounting Plate, Cruciform, 4 Point Fixing, Pre-Mounted Euro Screw Fixing, for Ti (Part No. 348.38.523) is a precision cabinet hinge mounting component designed to help you achieve consistent alignment and a professional finish. Built for smooth installation using a reliable click-style fixing system, this mounting plate is an ideal choice for furniture fittings in both living and commercial settings.

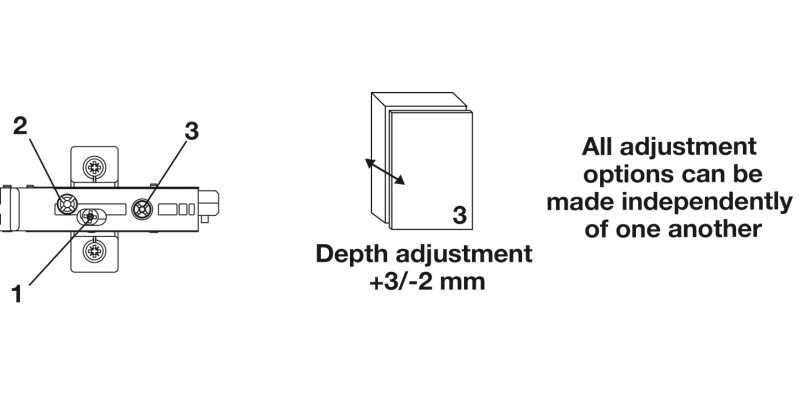

Effortless positioning with 3mm height control

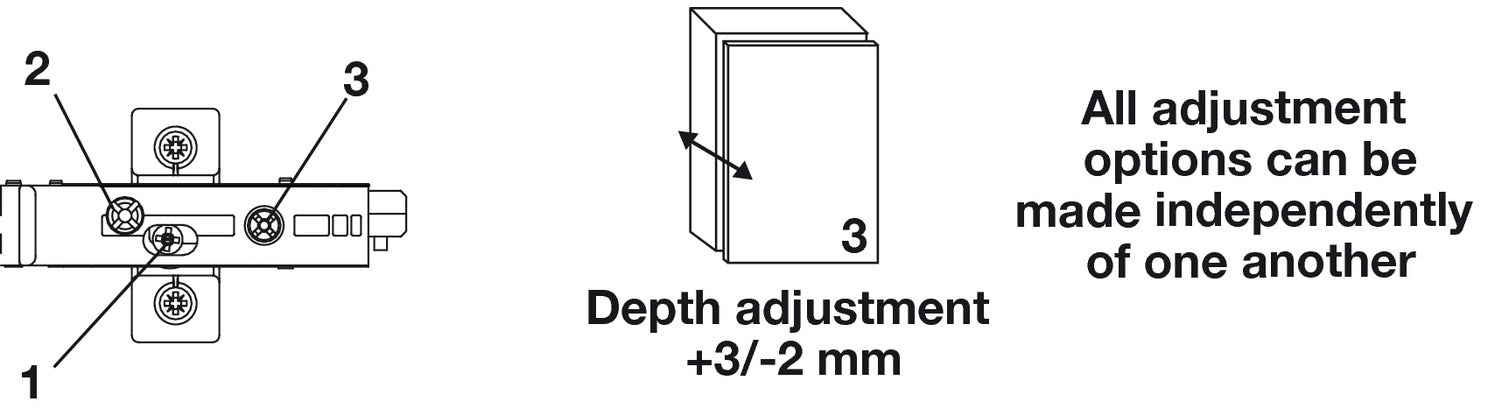

The Tiomos mounting plate features height adjustment via a worm gear. You get fine tuning with a ± 2 mm adjustment range, allowing doors and panels to sit exactly where you want them for a clean, even reveal.

Engineered for compatibility

This mounting plate is for use with TIOMOS click on fixing hinges only, making it a great match for installers and workshops already using the Tiomos system. The two-part plate design supports stable alignment and efficient installation, while the clip system helps streamline mounting.

Strong steel build with a premium nickel finish

Made from steel and finished in a nickel plated coating, the plate is built for durability and dependable performance over time.

Key fit and fixing details

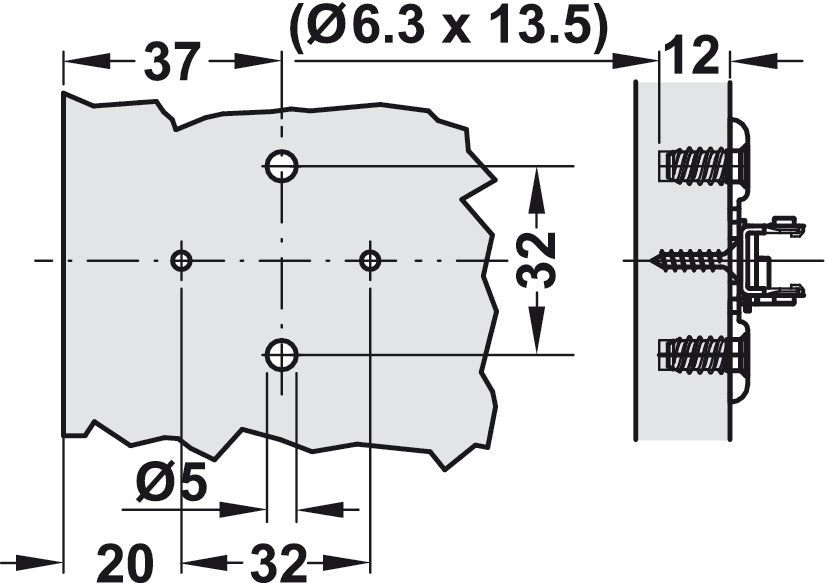

For drill hole diameter Ø5.00 mm, with drilling depth 12.00 mm. The screw length is 13.50 mm, with a screw distance of 32.00 mm and edge distance of 37.00 mm. Mounting supports screw fixing with pre-mounted Euro screws (and Hospa screw and dowel fixing versions are also available).

Choose the Mounting Plate, Cruciform, 4 Point Fixing, Pre-Mounted Euro Screw Fixing, for Ti for accurate adjustment, solid construction, and a smarter way to fit cabinet hinges.

Hospa screw and dowel fixing versions available
