Mounting Plate, Cruciform, for use with Hospa Countersunk Screws, Häfele Metalla
Part Number: 311.70.610
For quick fixing hinges, Nickel plated, height 0 mm
Price:
£0.27
Per Item
Mounting Plate, Cruciform, for use with Hospa Countersunk Screws, Häfele Metalla (Part No: 311.70.610) is the... Read More
Product Information
Product Details

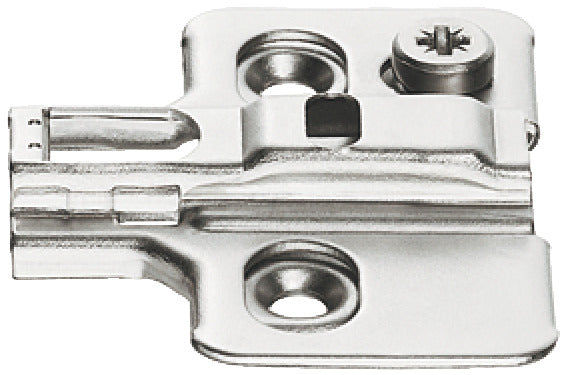

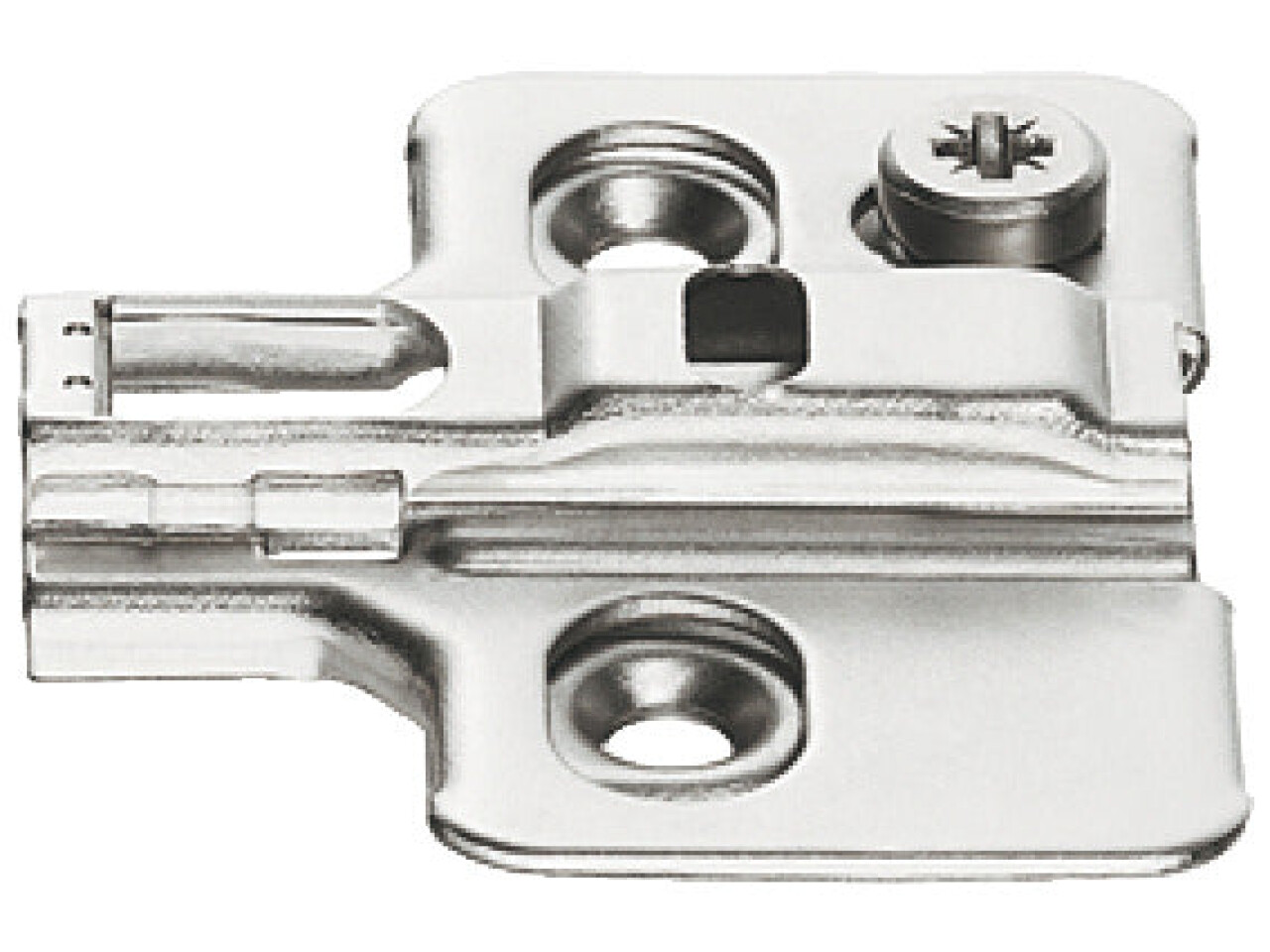

Mounting Plate, Cruciform, for use with Hospa Countersunk Screws, Häfele Metalla (Part No: 311.70.610) is the ideal solution for fast, secure installation of cabinet hinges. Designed for smooth, professional results, this Nickel plated two-part mounting plate combines clean aesthetics with reliable performance—making it a smart choice for kitchens, wardrobes, and commercial furniture projects.
Built for quick fixing, this mounting plate uses the Häfele quick fixing system SM, helping you reduce setup time without compromising stability. The steel construction delivers strength for everyday use, while the nickel finish enhances durability and supports a refined look inside your cabinetry.

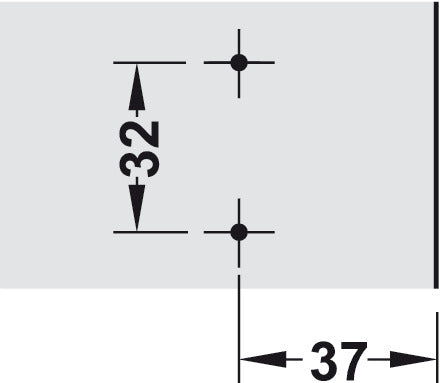

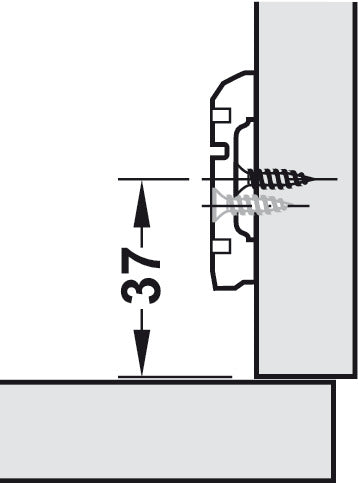

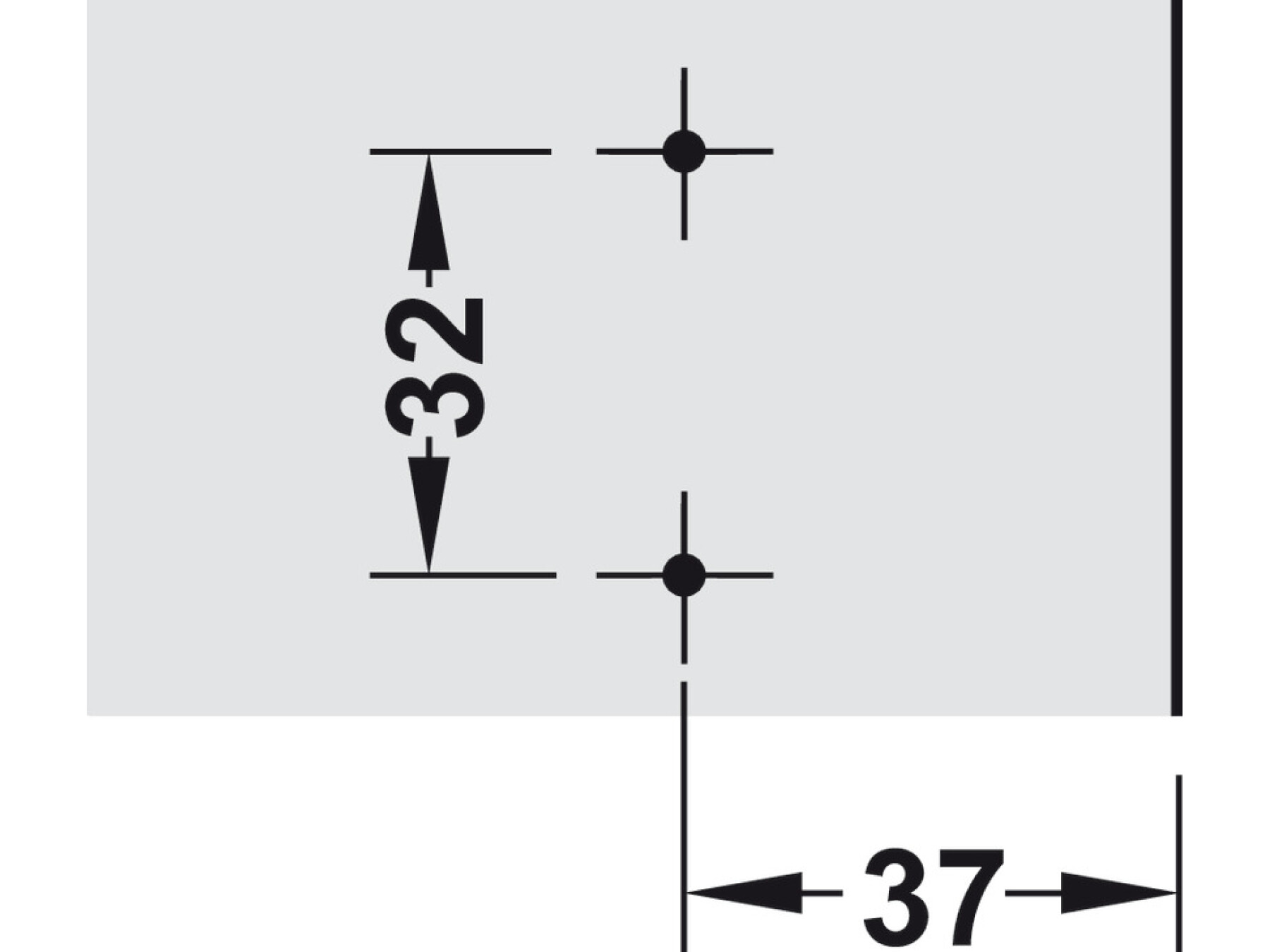

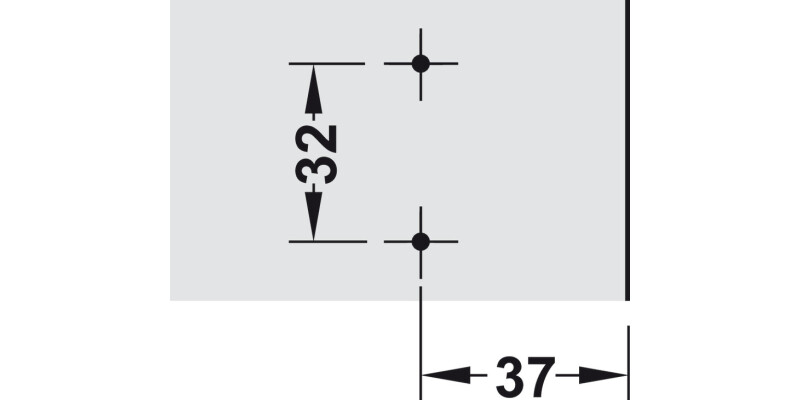

With a two part plate design, installation becomes simpler and adjustment becomes more flexible. It offers ±2 mm height adjustment, giving you the fine-tuning needed to align doors perfectly. The screw layout is engineered for compatibility and precision, including a screw distance of 32.00 mm and an edge distance of 37.00 mm.
This plate is suitable for Häfele quick fixing hinges from the Metalla 300 series and specifically matches the model Metalla 310 SM. For mounting, it is intended for screw fixing with chipboard screws (required).
Order note: Order reference requires Hospa Ø 3.5 mm countersunk screws separately. If you’re upgrading hinge hardware or outfitting new cabinets, choose the Mounting Plate, Cruciform, for use with Hospa Countersunk Screws, Häfele Metalla for a faster, more accurate install.
Specifications
Area of application
Accessories
Version
Two part plate
Material
Steel
Screw distance
32.00 mm
Edge distance
37.00 mm
Adjustment facility
Two part plate with ±2 mm height adjustment
Fixing method
Quick fixing system SM
Mounting plate version
for screw fixing with chipboard screws
Model
Metalla 310 SM
Manufacturer
Häfele
Model series
Metalla 300
Suitable for
Häfele quick fixing hinges
Order reference
Order Hospa Ø 3.5 mm countersunk screws separately
FAQ
Product Details
What is the Smuso Quick Mounting Plate 2prt Cruci 0 mm Hospa used for?
The Smuso Quick Mounting Plate 2prt is an accessory designed for quick fixing cabinet hinges. It provides the mounting interface on the cabinet so compatible Häfele hinges can be attached accurately and consistently.
Is this mounting plate suitable for Häfele quick fixing hinges?
Yes. This two part plate is for Häfele quick fixing hinges, specifically the Häfele Metalla 310 SM family within the Metalla 300 series.
How does the quick fixing system work with this plate?
It uses the SM quick fixing system. The hinge is positioned and secured using the matching quick fixing method, helping reduce setup time while maintaining alignment for repeated hinge installs.
Does the 0 mm height adjustment mean there is no adjustment at all?
No. Although the subtitle refers to height 0 mm, the plate itself includes ±2 mm height adjustment as part of the two part plate system. This helps fine tune hinge height after fixing.
Which screws are required to fit this mounting plate?
The plate is for screw fixing with chipboard screws. Häfele recommends purchasing the correct countersunk screws separately, noted as Hospa Ø 3.5 mm countersunk screws.
What fixing spacing should I expect on the cabinet?
For accurate drilling and repeatability, this plate specifies a screw distance of 32 mm and an edge distance of 37 mm. These dimensions help you match the pre drilling layout for consistent results.
Is it a two part mounting plate or a single plate?
It is a two part plate system. This design supports the quick fixing process and provides the adjustment facility associated with the SM mounting method.
Why choose a Nickel plated steel mounting plate?
Nickel plated steel helps deliver a robust, corrosion resistant finish for furniture fitting applications. Using the correct plate for compatible quick fixing hinges also supports reliable alignment and easier maintenance over time.
