Mounting Plate, Super Compact Flanges, with Pre-Mounted Euro Screws, Häfele Meta

Product Details

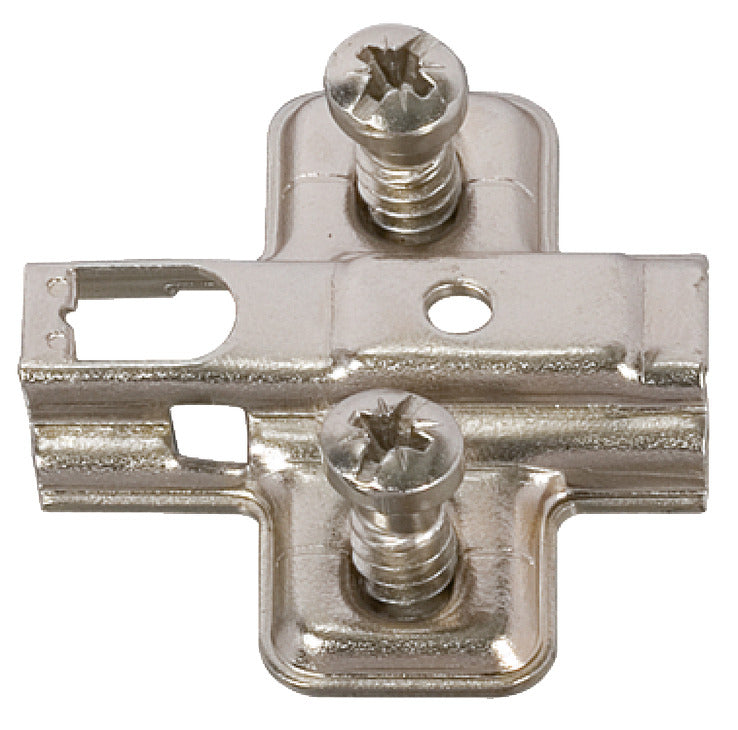

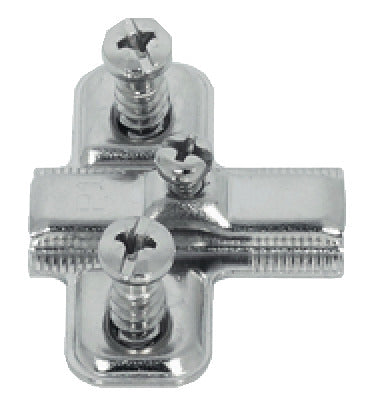

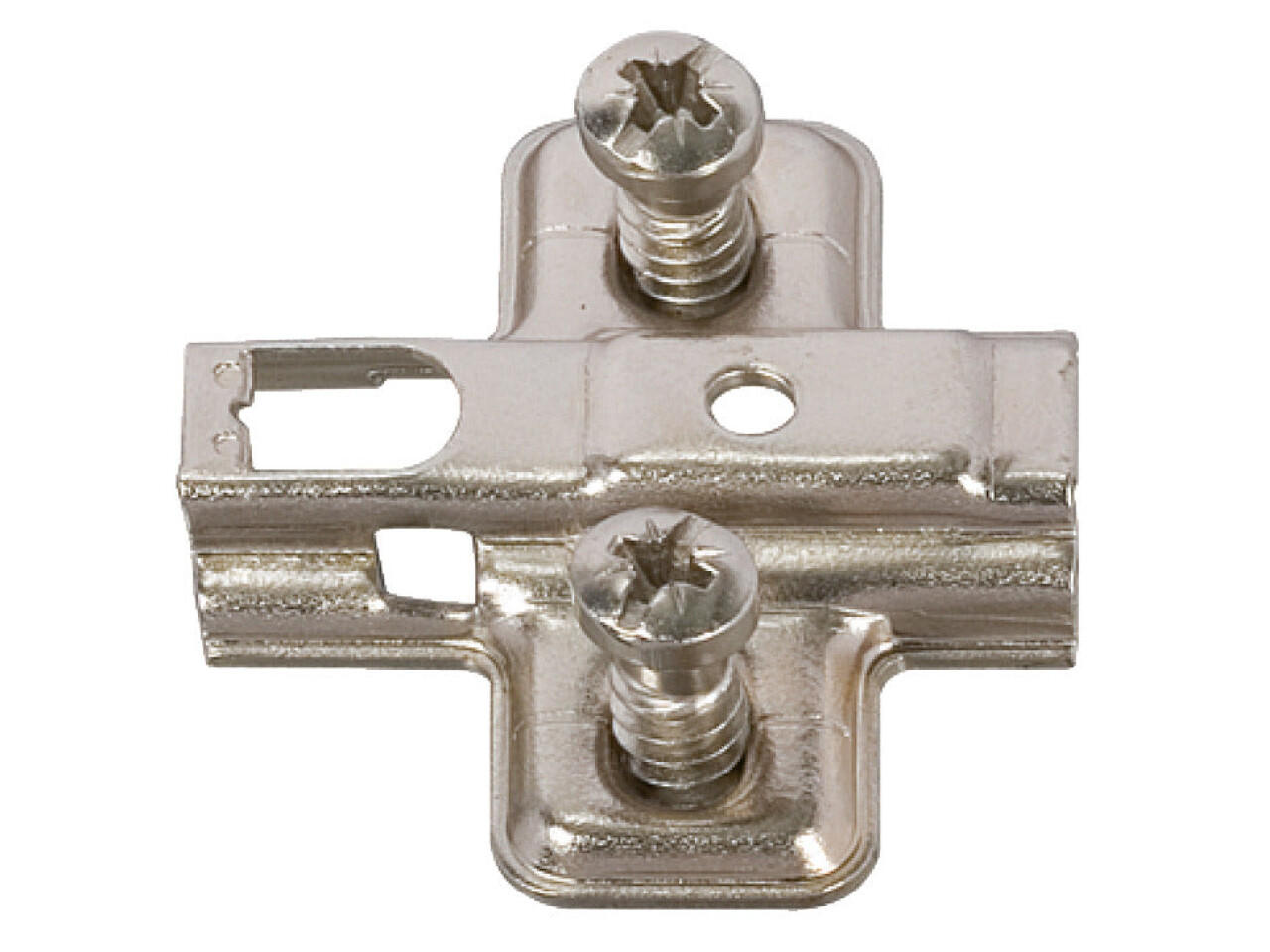

Mounting Plate, Super Compact Flanges, with Pre-Mounted Euro Screws, Häfele Meta (Part No: 311.71.510) is the smart choice for fitting Häfele concealed cabinet hinges fast and accurately. Designed as a nickel plated, 0 mm height mounting plate, it helps you achieve a clean, precise installation while keeping the fixing process simple and efficient.

Made for quick fixing, this mounting plate works with the Häfele Metalla 310 SM concealed hinges and uses the quick fixing system SM—ideal when you want reliable results without unnecessary measuring and rework. The plate is supplied as one part, making it easy to manage during assembly and installation.

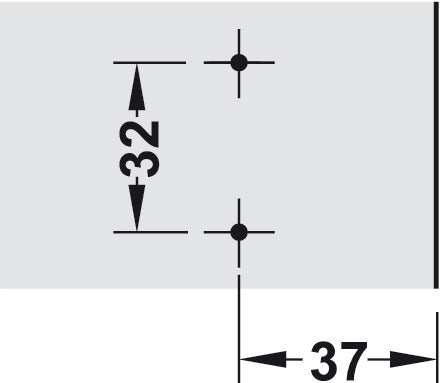

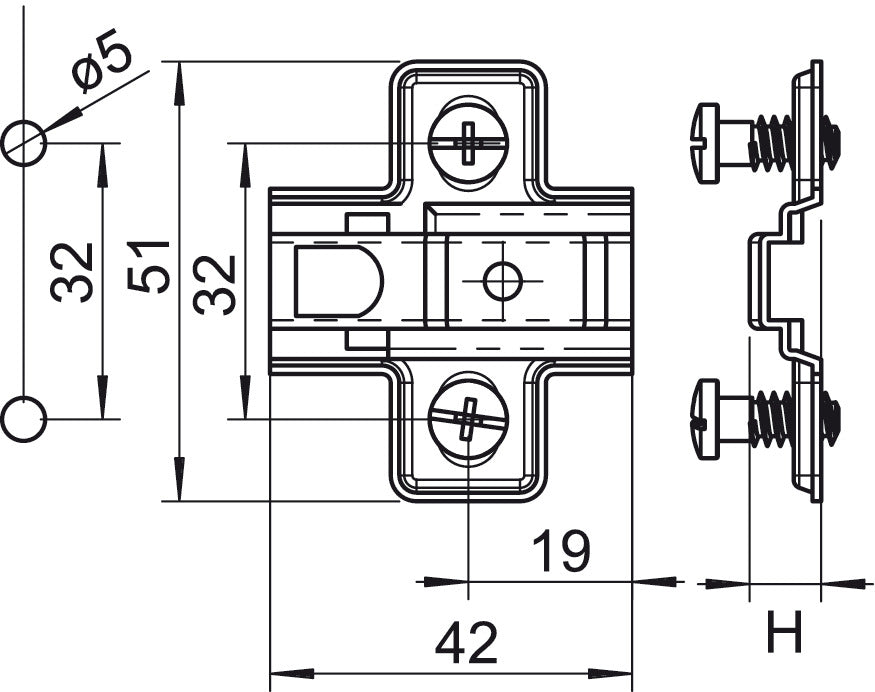

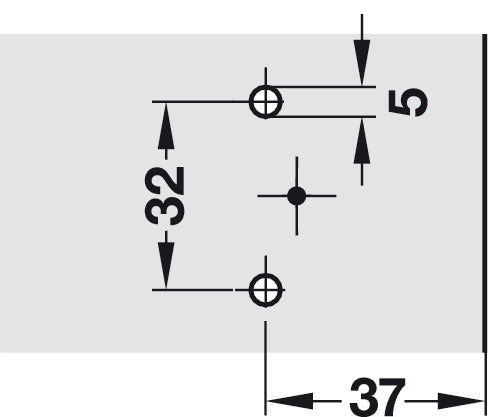

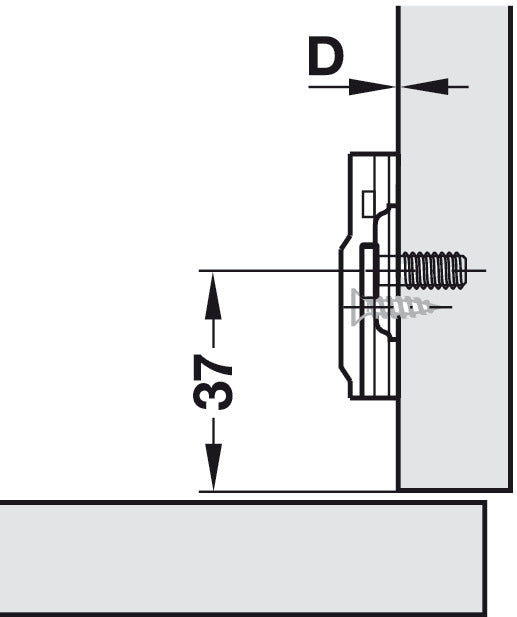

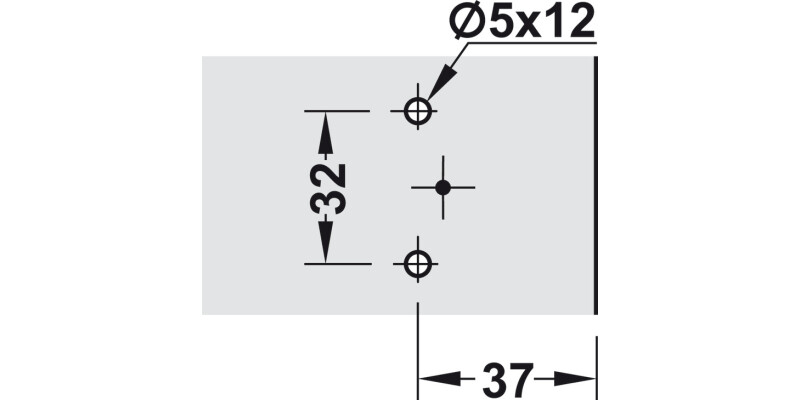

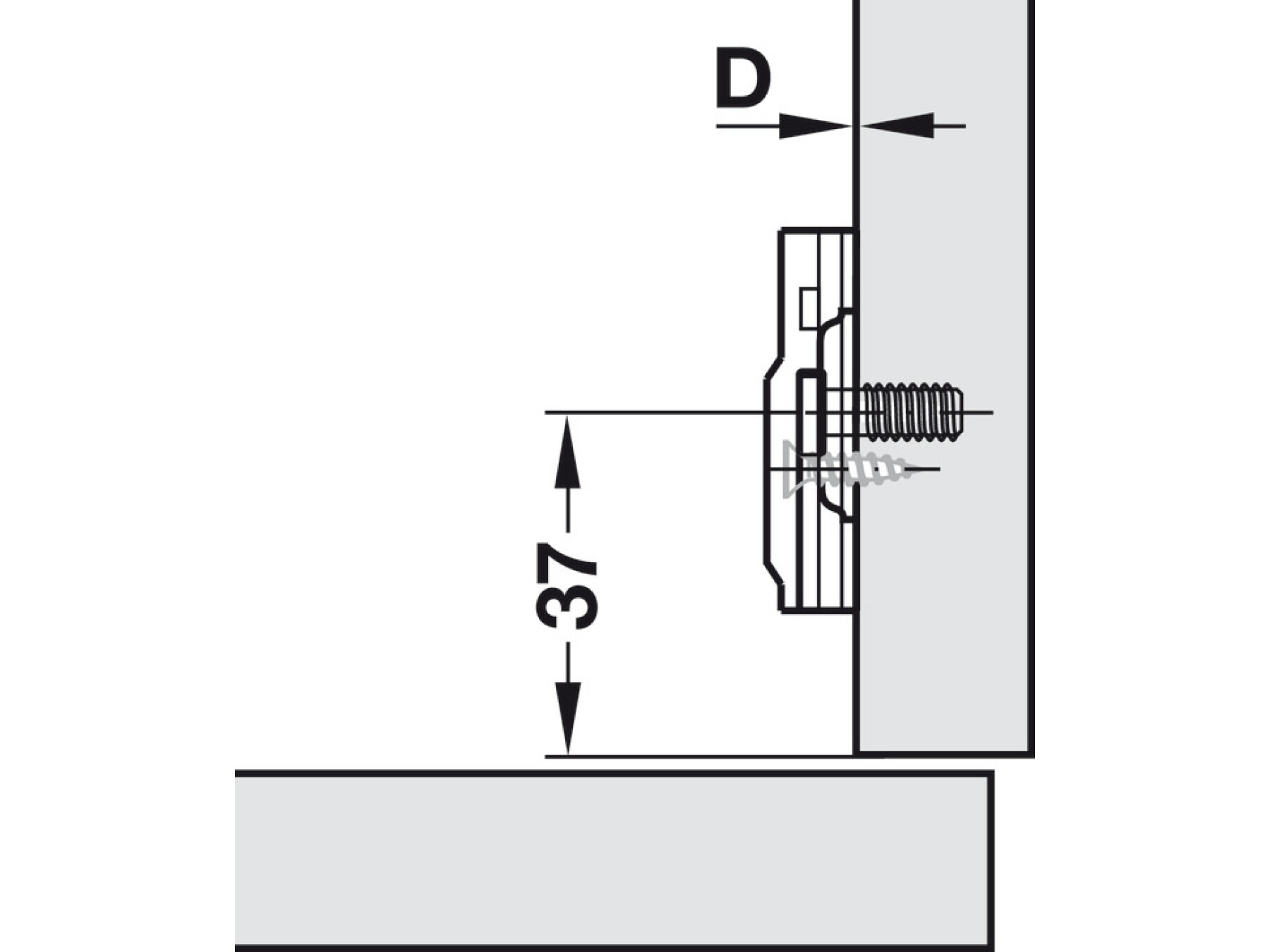

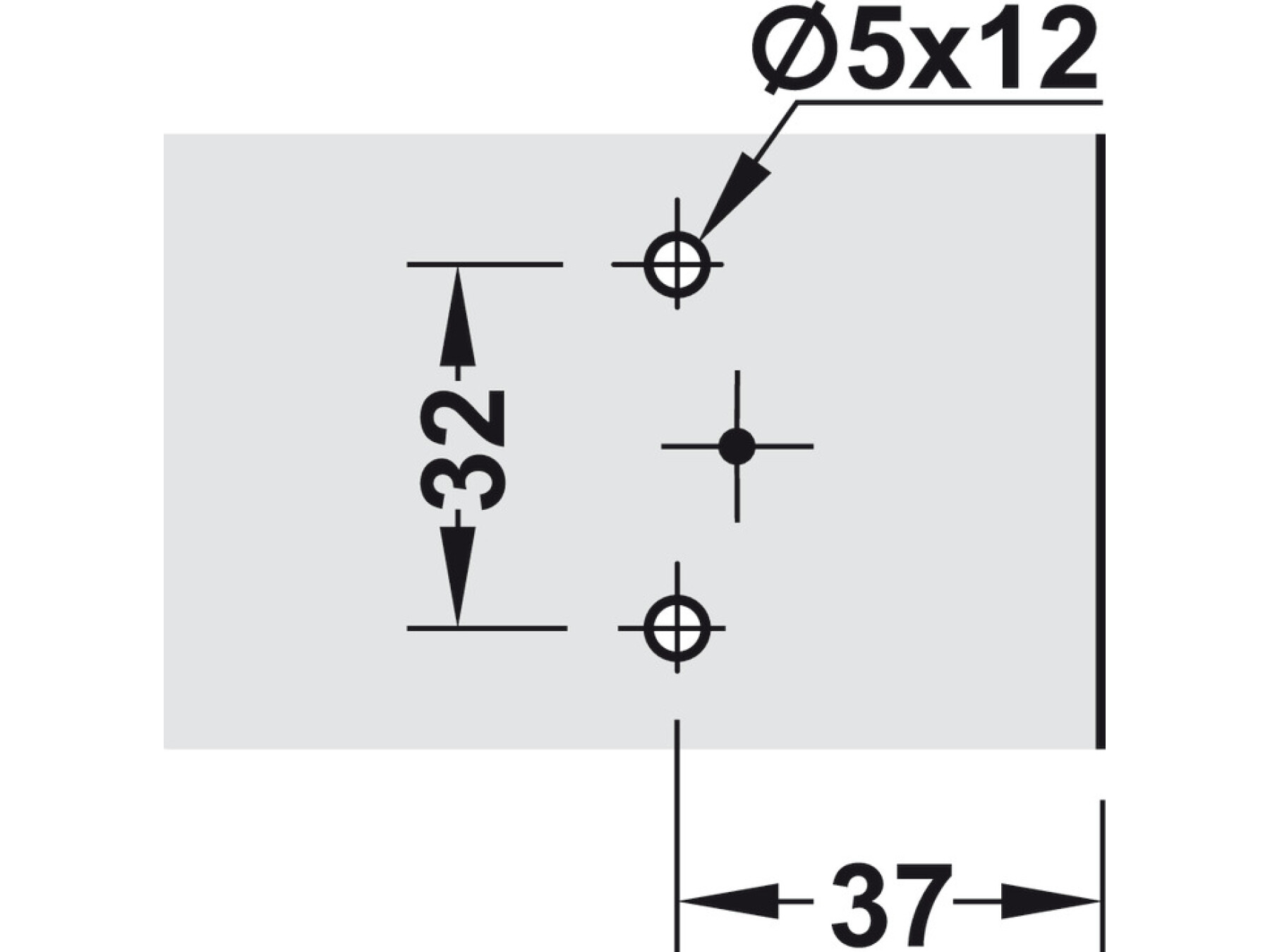

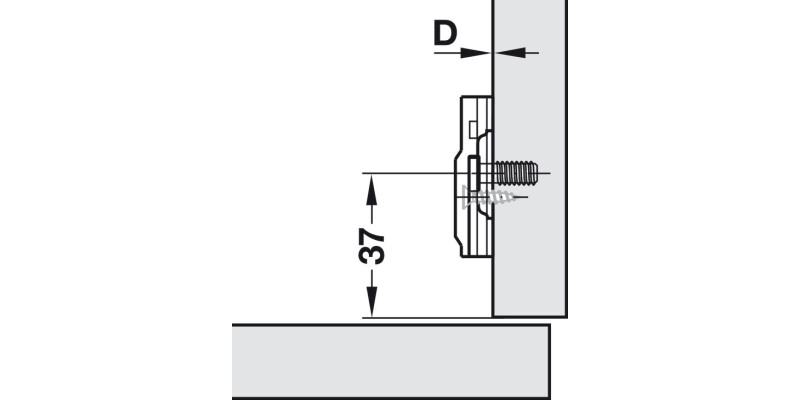

Built from steel and finished in a durable nickel plating, the Smuso Quick mounting plate supports long-term performance in living and commercial furniture applications. It is engineered for a drill hole diameter of 5.00 mm with a drilling depth of 12.00 mm. For consistent alignment, it features a screw distance of 32.00 mm and an edge distance of 37.00 mm.

Installation is designed to be adjustable: enjoy height adjustment via slot ±2 mm to fine-tune door alignment after mounting. This plate is also for screw fixing with pre-mounted Euro screws, and it suits the Metalla 310 SM model series.

Choose the Smuso Quick 0mm Mounting Plate from Häfele and take advantage of the 25 years Hafele Lifetime Guarantee—a dependable upgrade for every cabinet hinge project.
