3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 540 3D A8 FR

Product Details

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 540 3D A8 FR. (Part No: 924.19.121) is a premium architectural ironmongery solution designed for precise, effortless door alignment. Finished in Bronze metallic, this 3D hinge blends modern performance with an elegant appearance—ideal for projects where both function and aesthetics matter.

Built for durability and stability, the hinge is made from a strong combination of Aluminium, Steel, Zinc, and Die-cast components. This robust material mix helps the hinge deliver reliable performance over time, making it a smart choice for professional installations.

With a 180° opening angle, the TE540 supports smooth access and flexibility for a wide range of door applications. It’s suitable for wooden, steel, or aluminium frames, and works beautifully with flush doors. The recommended door thickness is ≥40 mm, allowing compatibility across many standard interior and architectural setups.

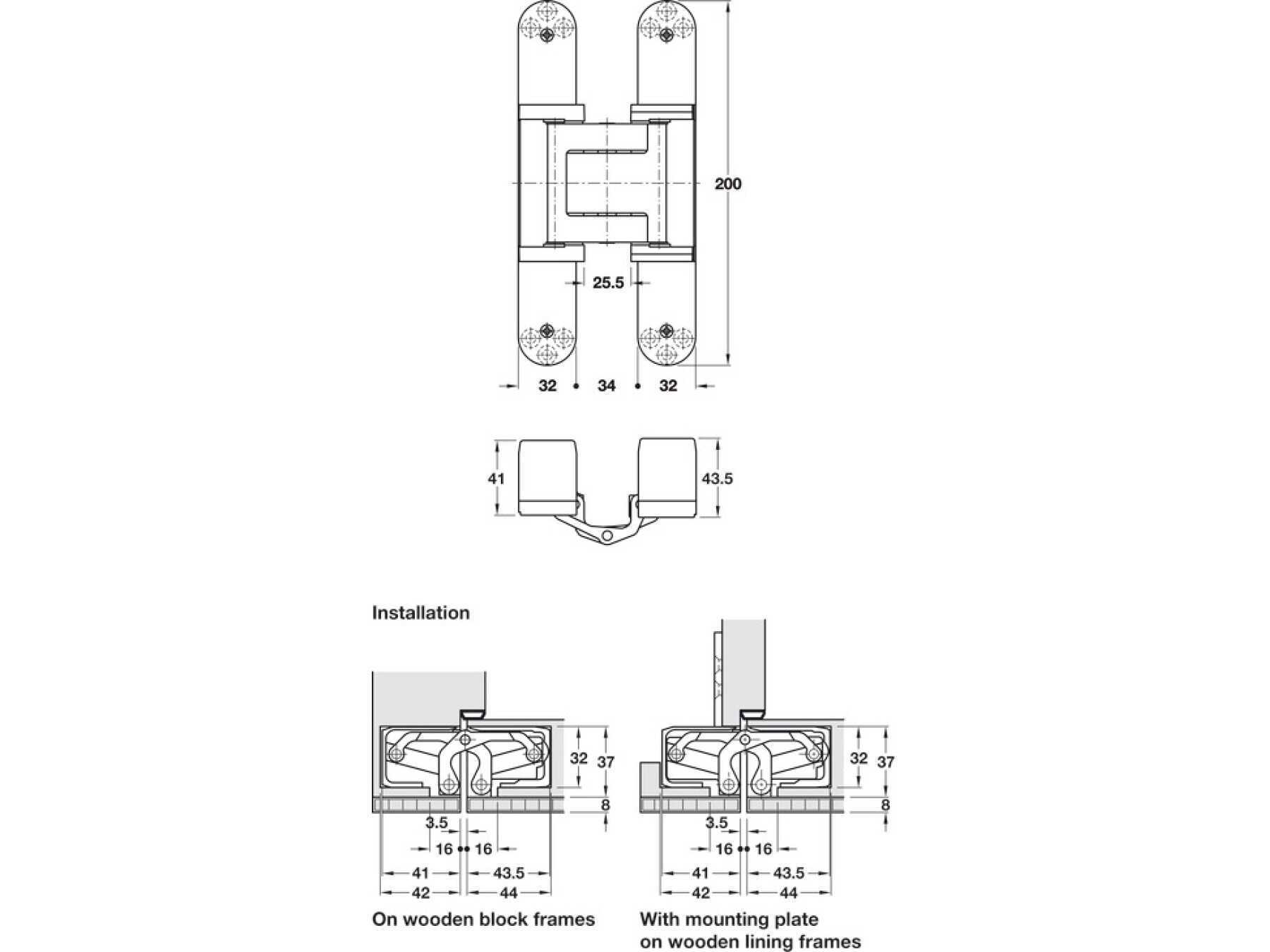

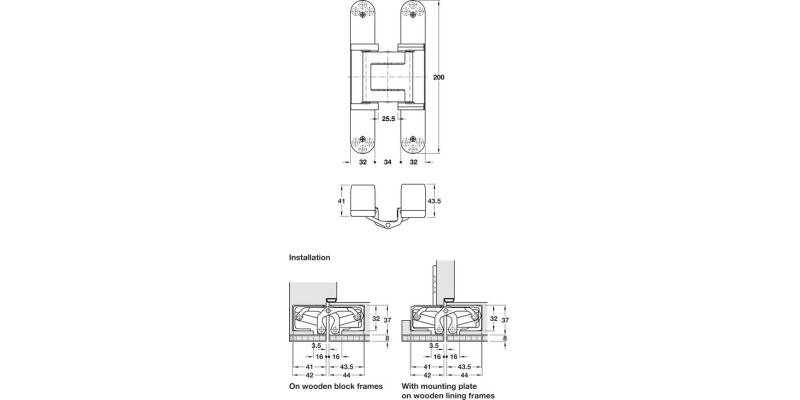

One of the standout features is its 3-way continuous adjustment: Vertical ±3 mm, Horizontal ±3 mm, and Depth ±1.0 mm. This means you can fine-tune alignment during installation for a clean, professional finish and consistent performance.

The hinge is supplied with fixings, helping you move from preparation to installation with confidence and efficiency.

If you’re upgrading door hardware or completing an architectural project, choose the 3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 540 3D A8 FR. and enjoy secure mounting, precise adjustment, and a refined Bronze metallic look.

Fixings
