3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 240 3D Energy

Product Details

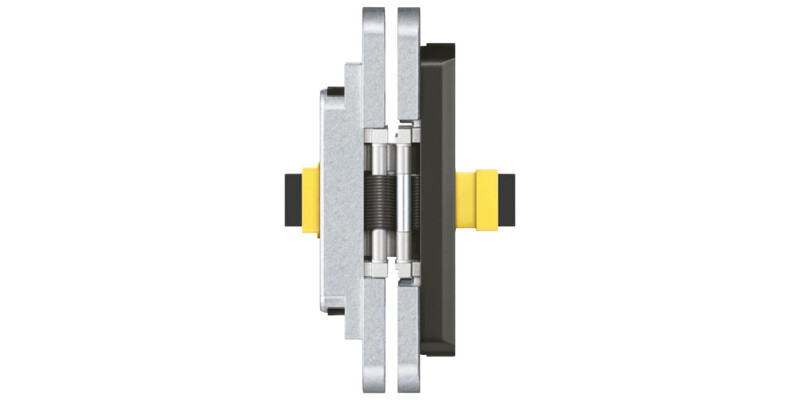

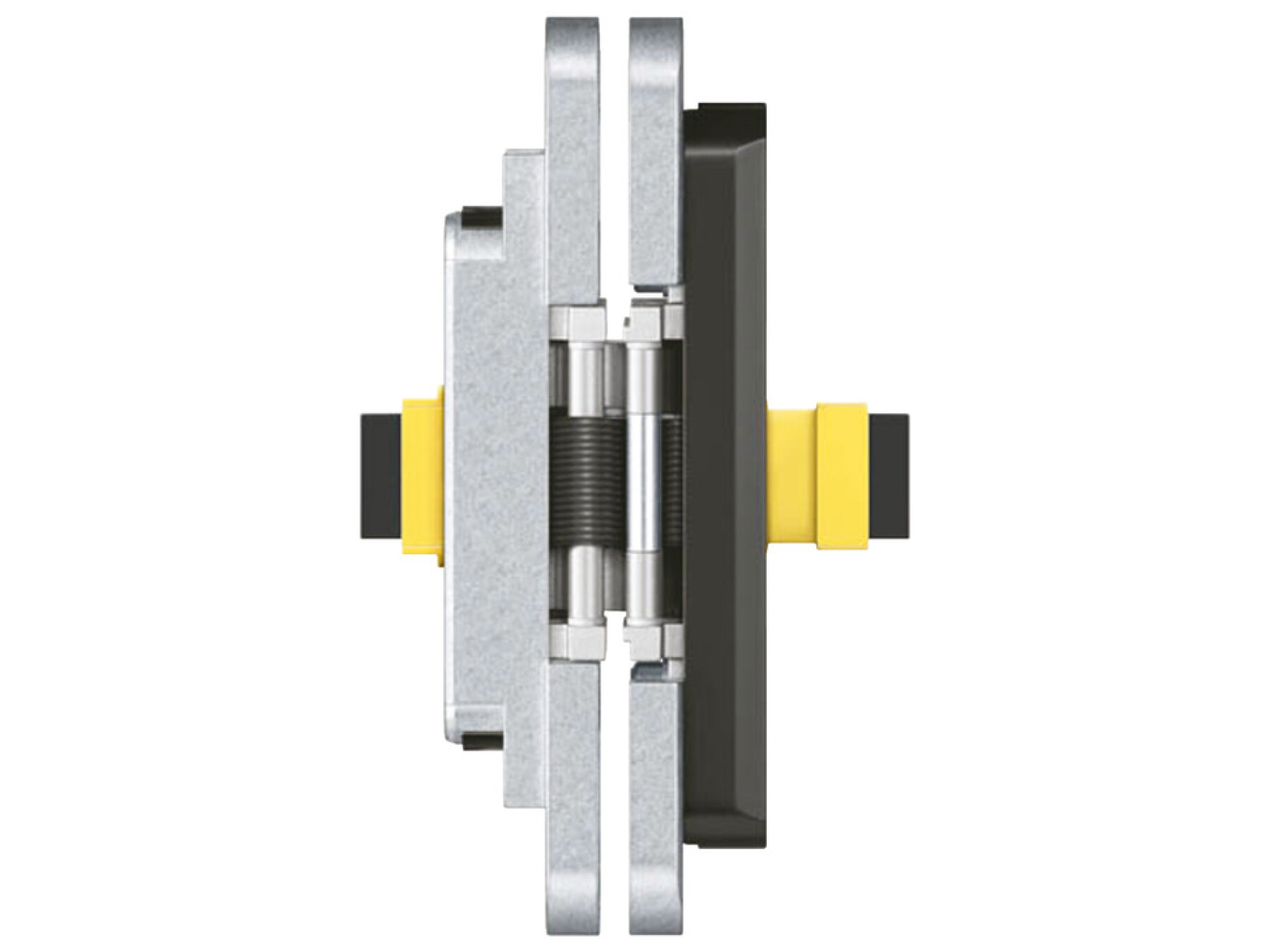

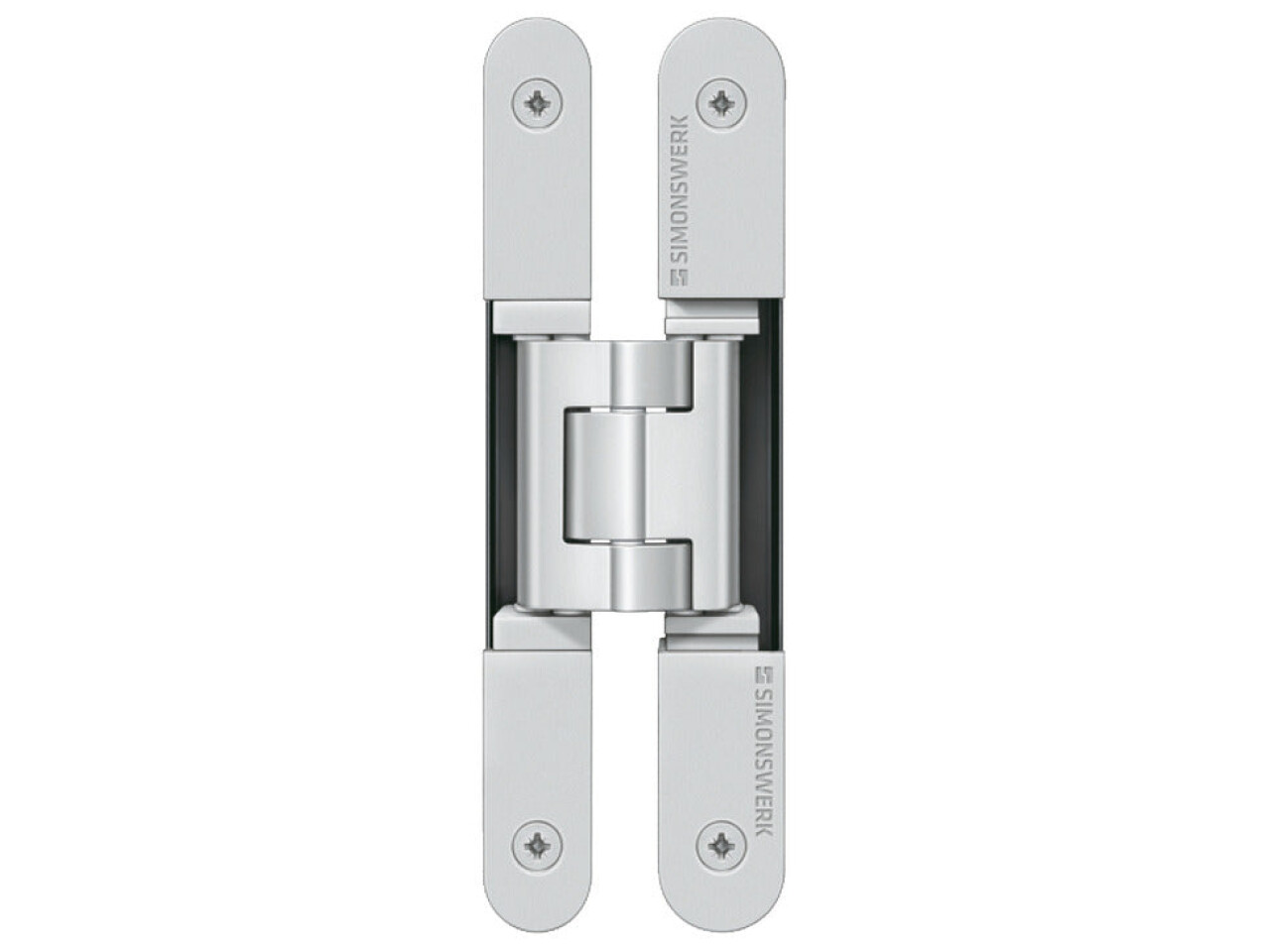

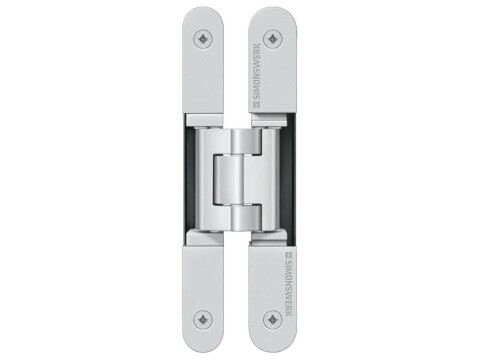

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 240 3D Energy (Part No: 924.17.440) is a premium architectural door hinge designed to deliver smooth performance and precise alignment—ideal for modern flush door installations. With its 3D hinge technology and a refined satin stainless steel effect, this energy-focused hinge helps create a clean, high-end finish while supporting long-term reliability.

Engineered for versatility, the Tectus TE240 is crafted from a strong blend of aluminium, steel, zinc, and die-cast components. This robust construction makes it suitable for a range of frame types, including wooden, steel, or aluminium frames, and it’s specifically designed for flush doors.

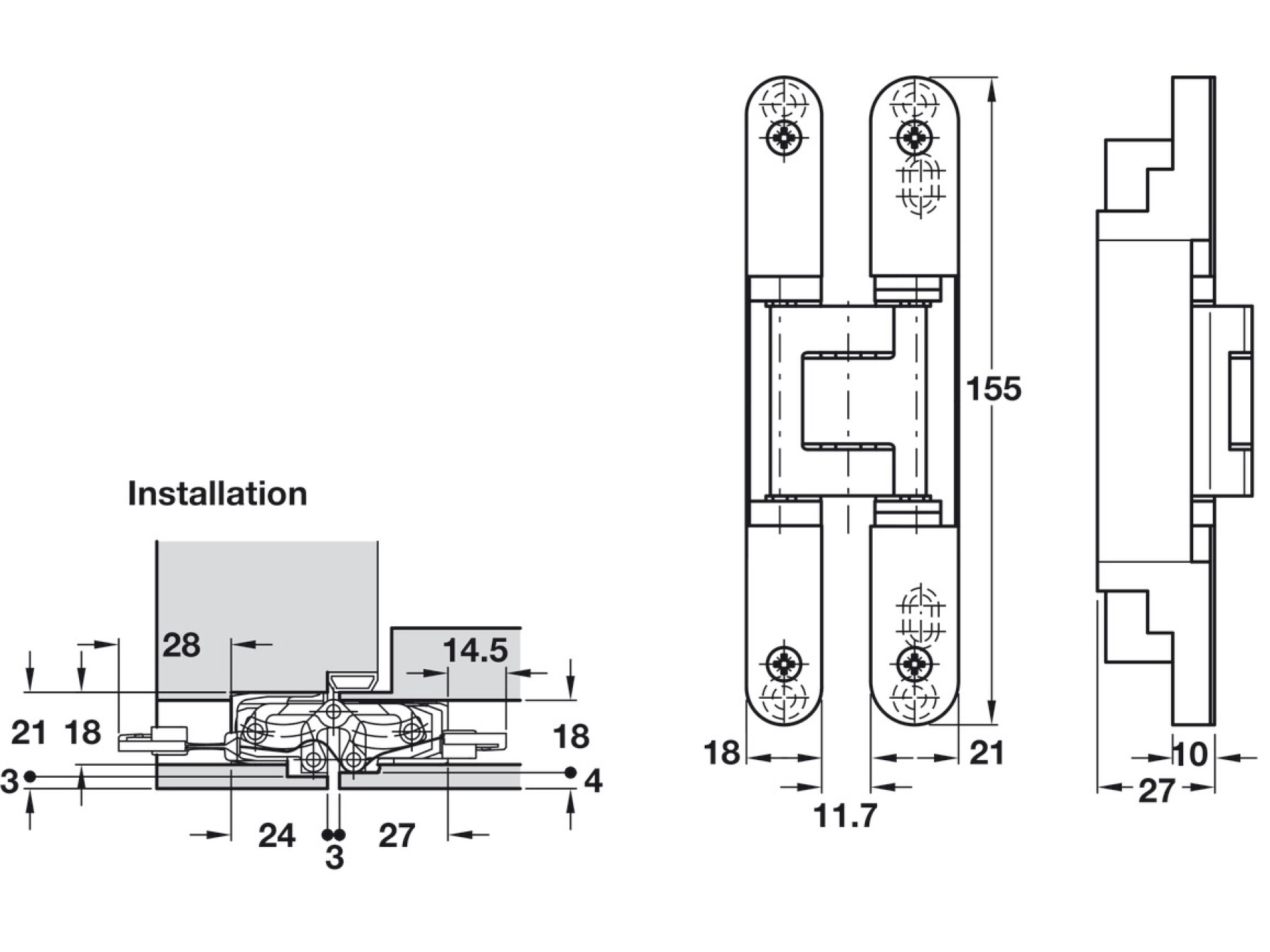

Installation and ongoing adjustment are made easy thanks to 3-way continuous adjustment. You can fine-tune the door alignment with vertical adjustment of ± 3 mm, horizontal adjustment of ± 3 mm, and depth adjustment of ± 1.5 mm. This flexibility helps you achieve a consistent, professional fit even after initial settling or door use.

The hinge supports an opening angle of 180°, making it ideal for comfortable, fully accessible movement. It is compatible with door thicknesses of 40 mm and above (≥40 mm), ensuring confident suitability for a wide selection of projects.

Supplied with the necessary fixings, the 3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 240 3D Energy is a smart choice for architects, installers, and homeowners looking for performance, adjustability, and a stylish satin stainless-steel look. Choose it for your next door project and enjoy a beautifully aligned result from day one.

Fixings
