3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 540 A8

Product Details

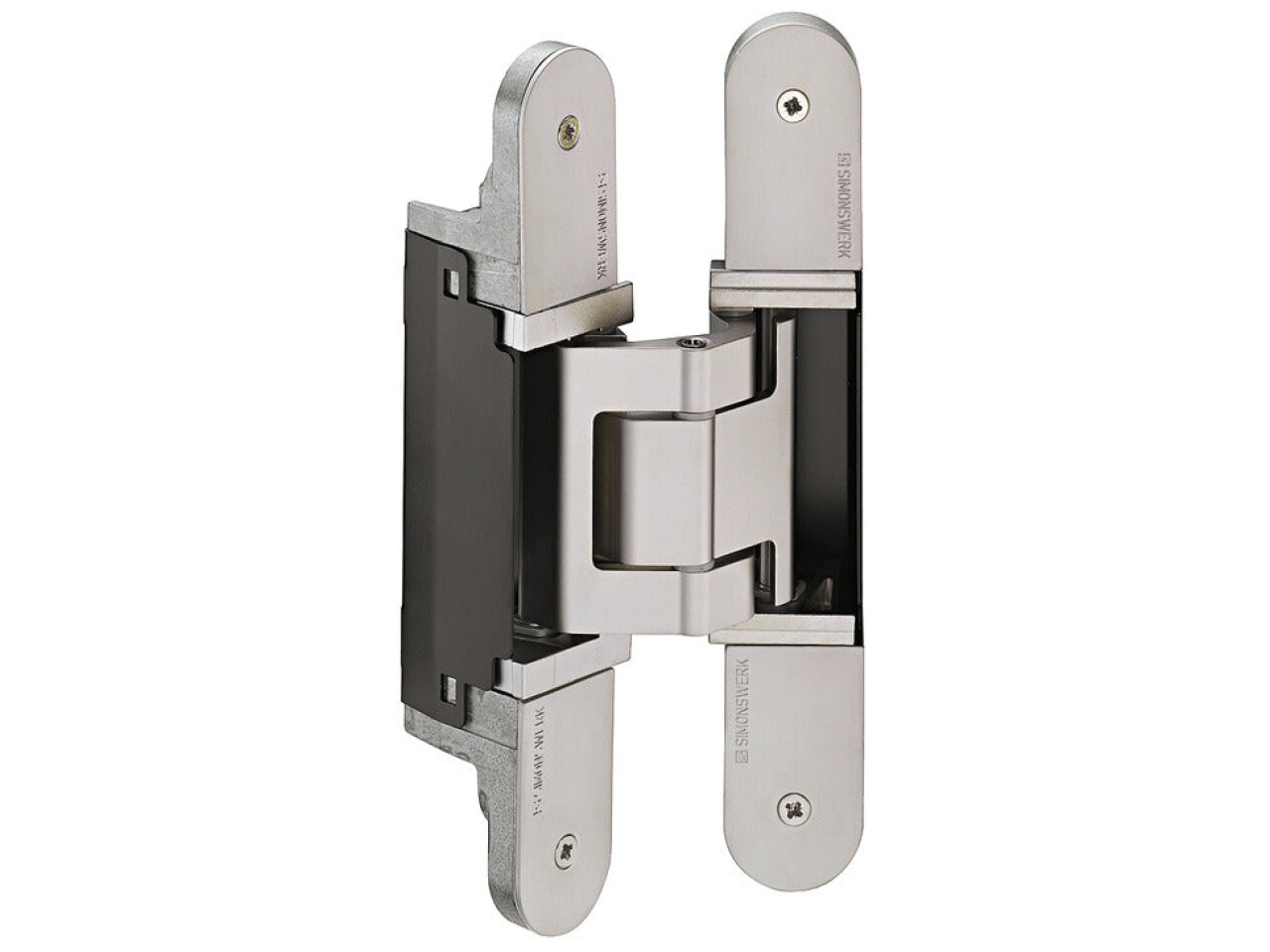

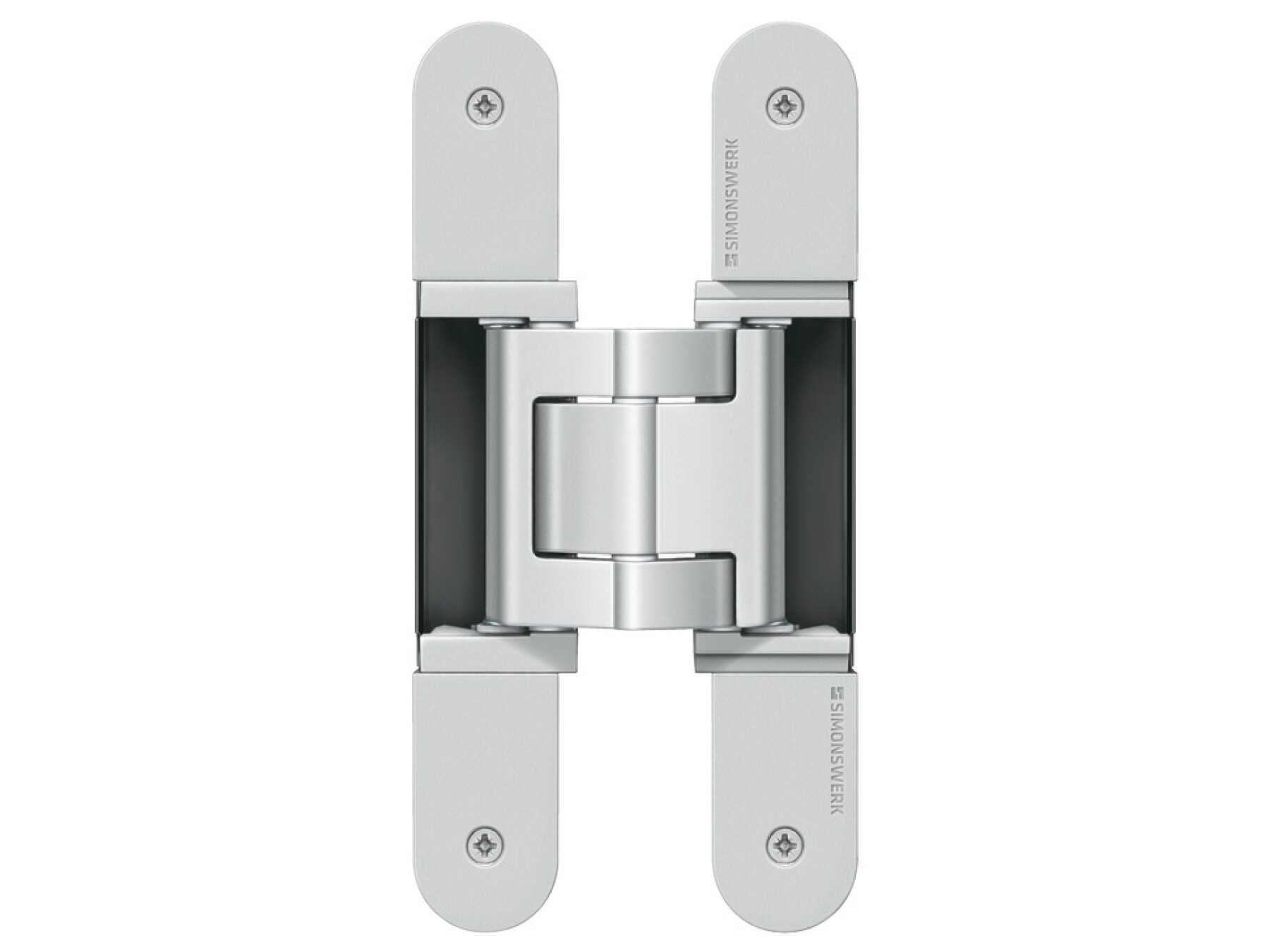

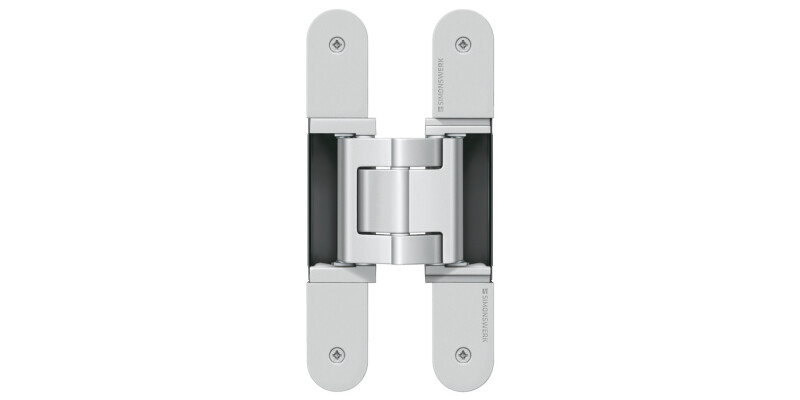

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 540 A8 (Part No: 924.17.337) is a premium architectural door hinge designed for smooth, reliable performance and a clean, modern look. Finished in matt black, this hinge is ideal for projects where appearance and precision hardware go hand in hand.

Built for quality and adjustability, the TECTUS TE 540 3D A8 features a 3-way continuous adjustment system to help you dial in perfect alignment during installation. You can fine-tune the door’s positioning with Side adjustment of 3 mm, height adjustment of -3 to +3 mm, and closing pressure adjustment of ±1 mm. That means fewer headaches at fitting time and a more consistent closing action over the life of the door.

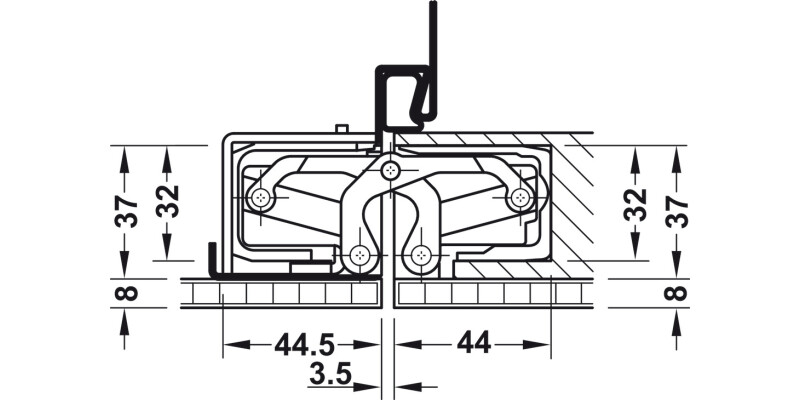

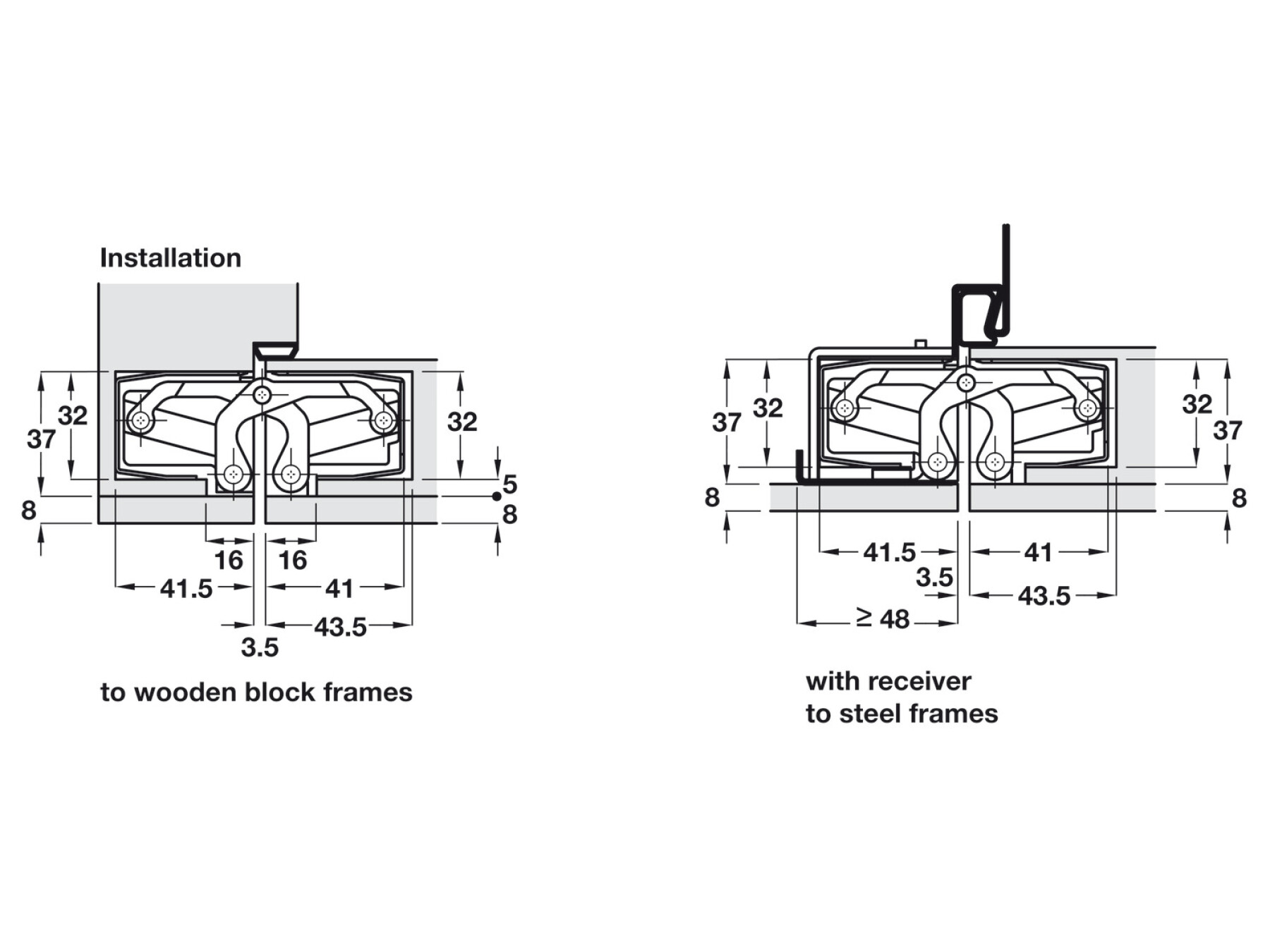

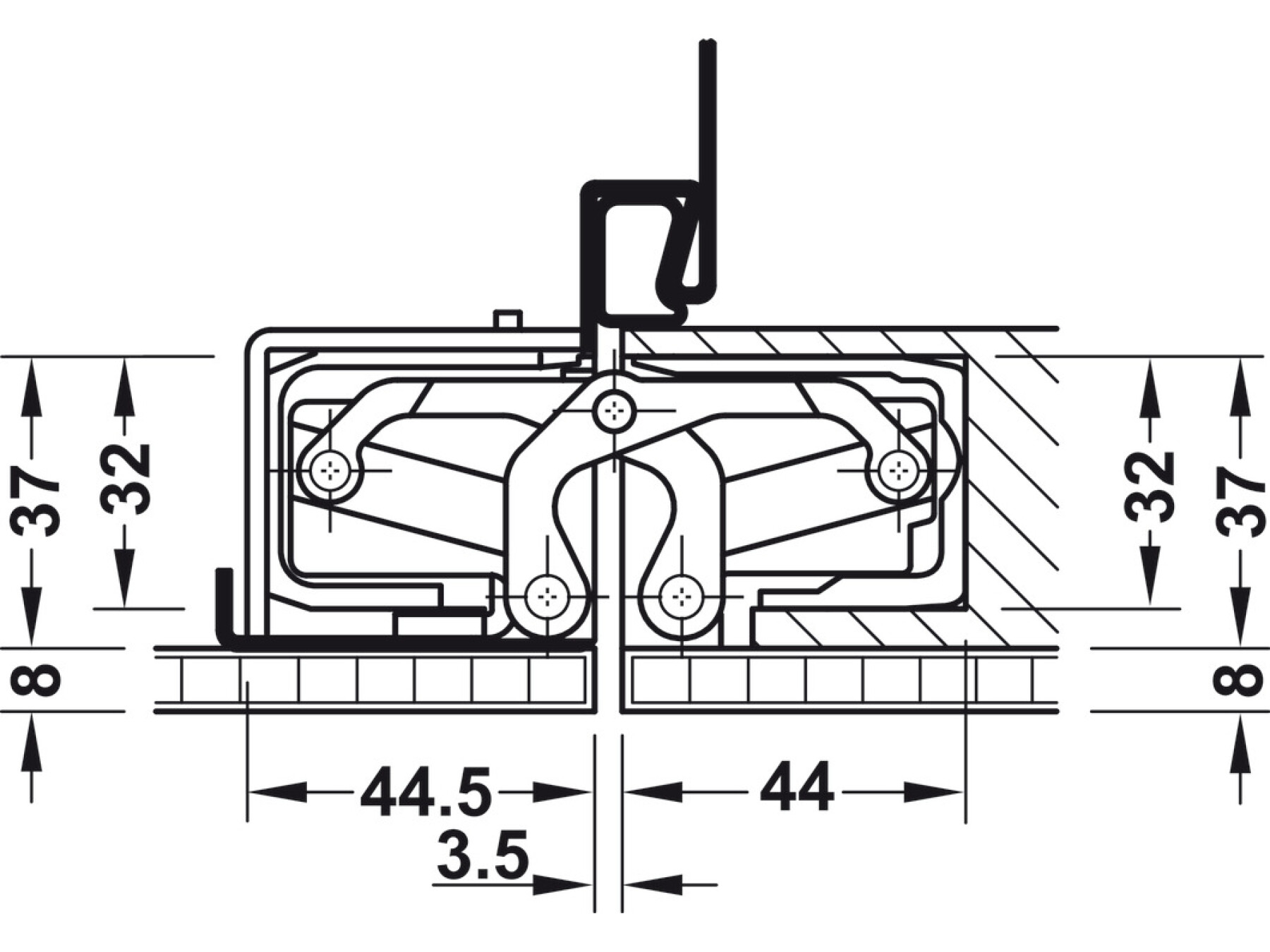

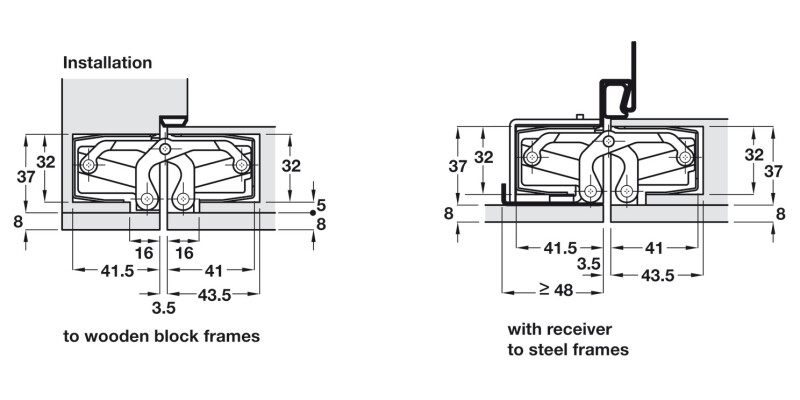

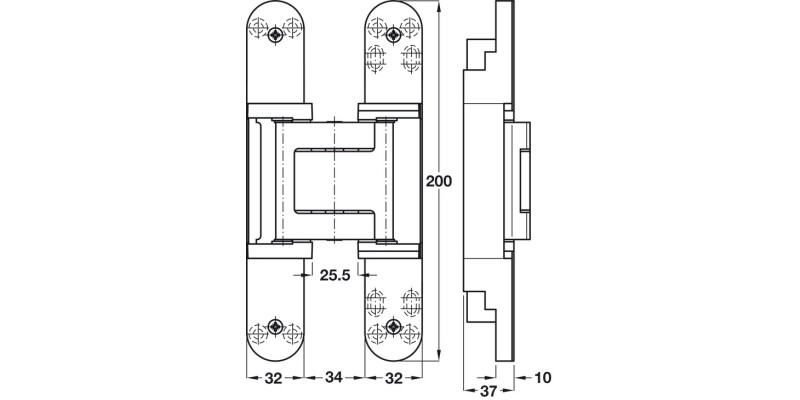

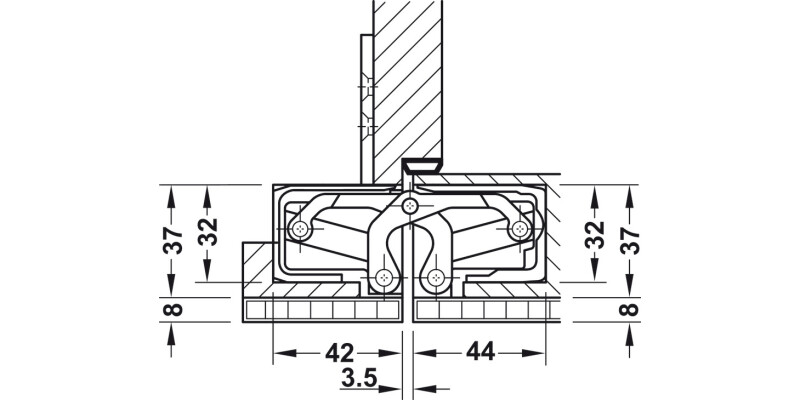

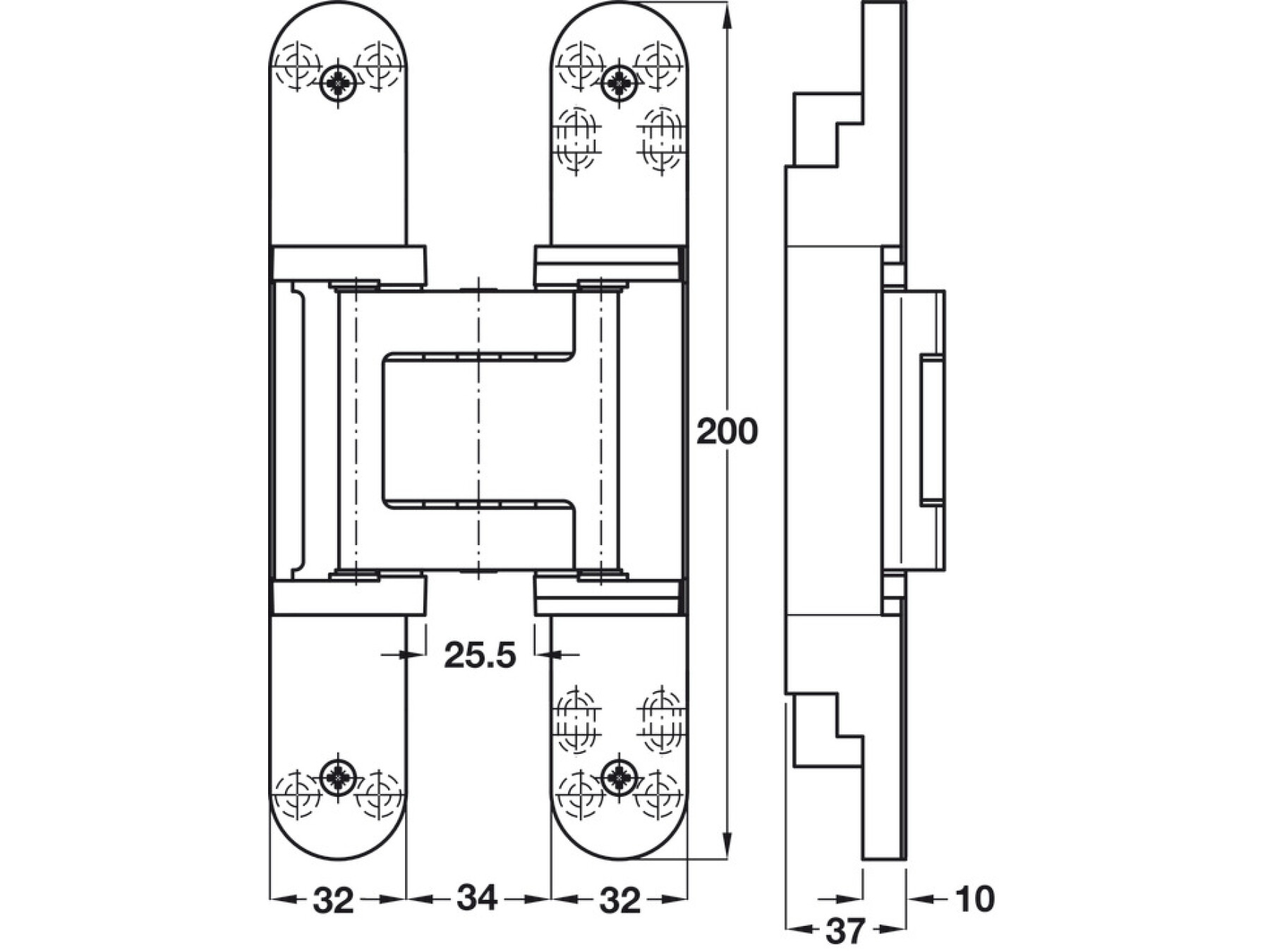

With a rounded flange (32 mm flange width, 200 mm flange height), this hinge suits a wide range of applications. It’s suitable for wooden, steel, and aluminium frames, including flush doors. The hinge is engineered to support doors up to 100 kg (for two hinges), and offers an opening angle of 180°—a great choice for high-traffic entrances.

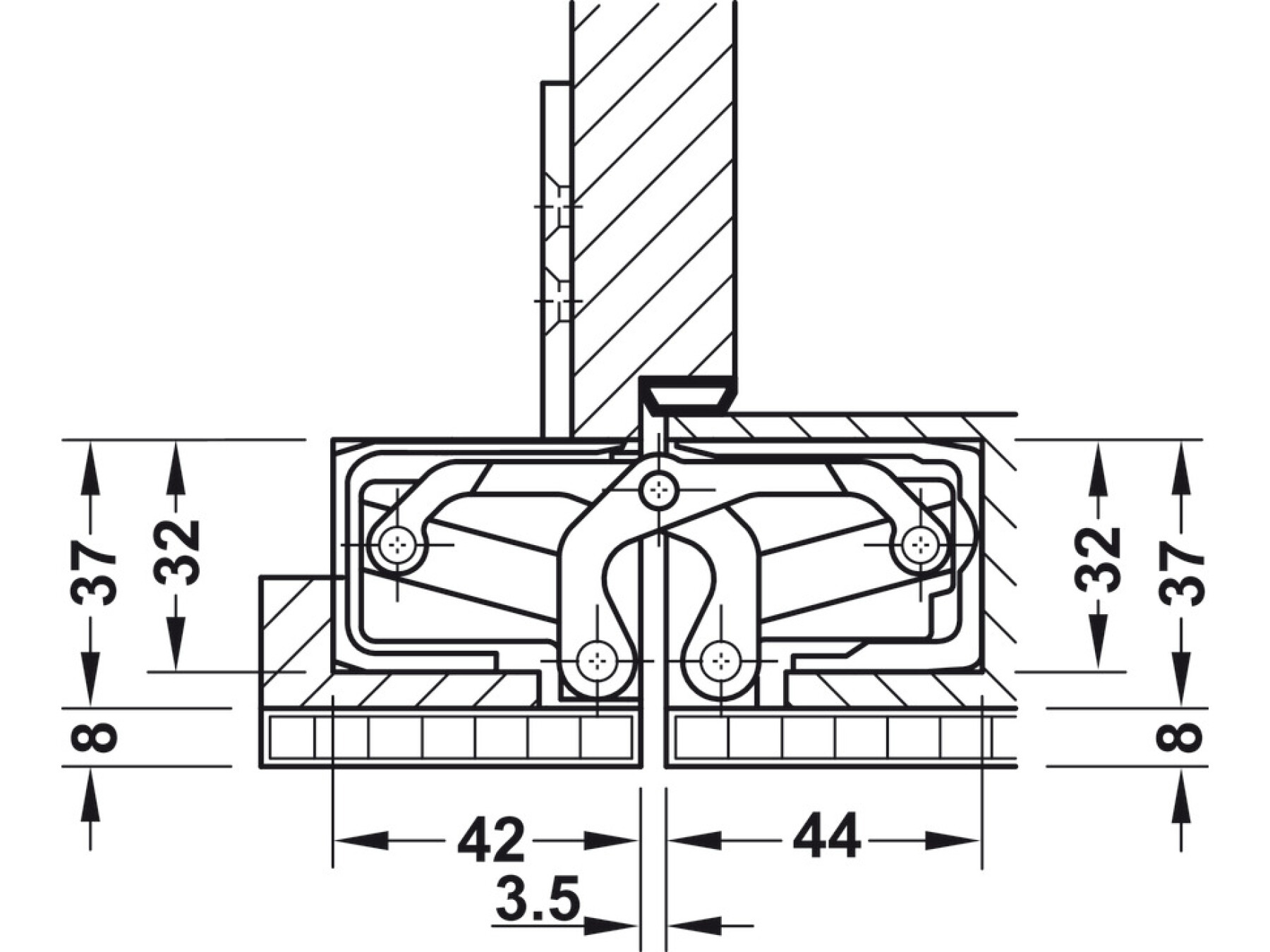

Designed for door thickness ≥ 40 mm and using the correct routing tools (router bit Ø 24 mm, thrust ring Ø 30 mm), it’s a versatile component for both modern and commercial builds. The package includes fixing screws for the frame (not for the door part), making installation straightforward.

Upgrade your door hardware with the 3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 540 A8—precision adjustment, robust performance, and a stylish matt black finish in one elegant hinge.

Fixing screws included for frame, not for door part
