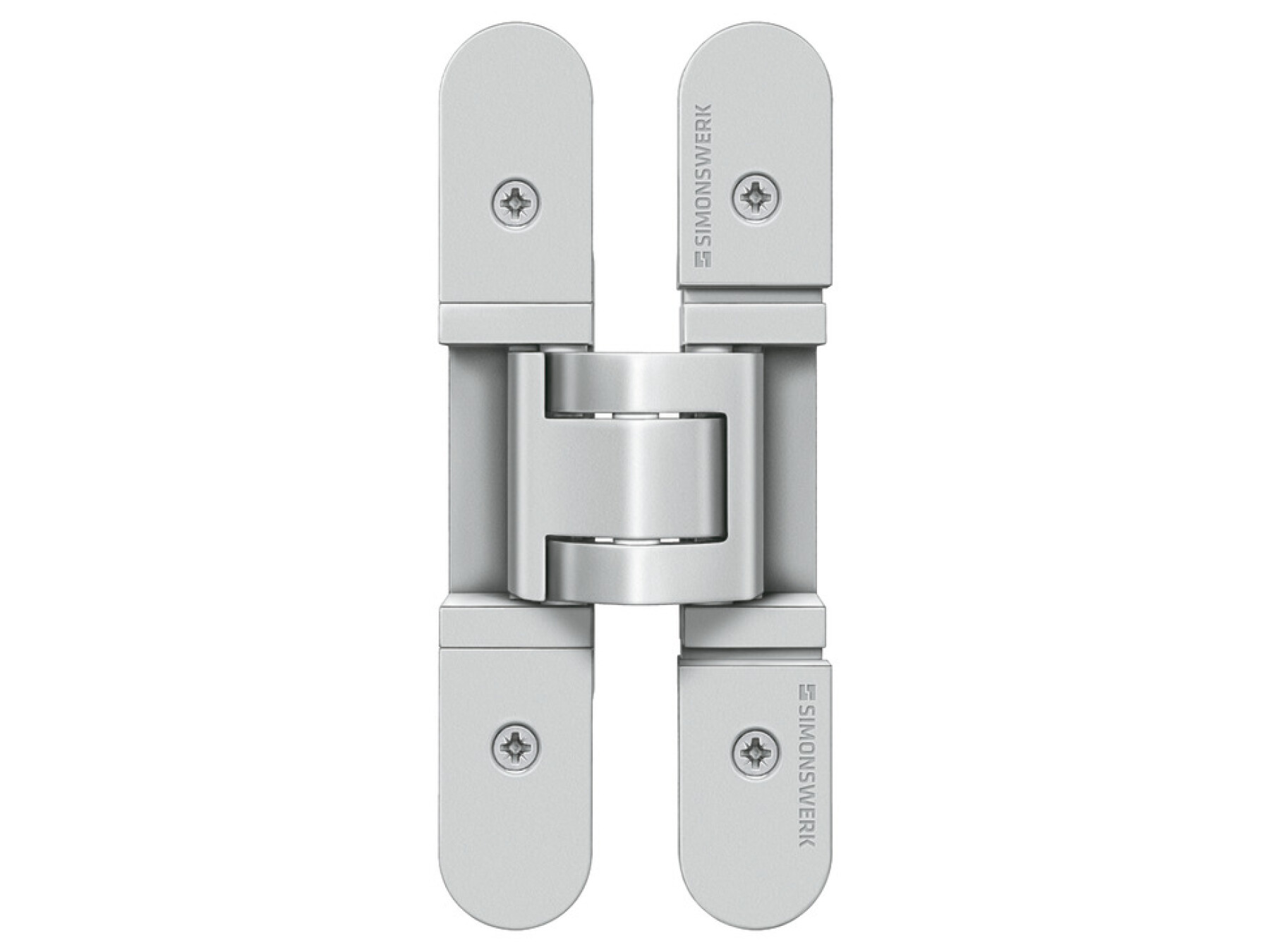

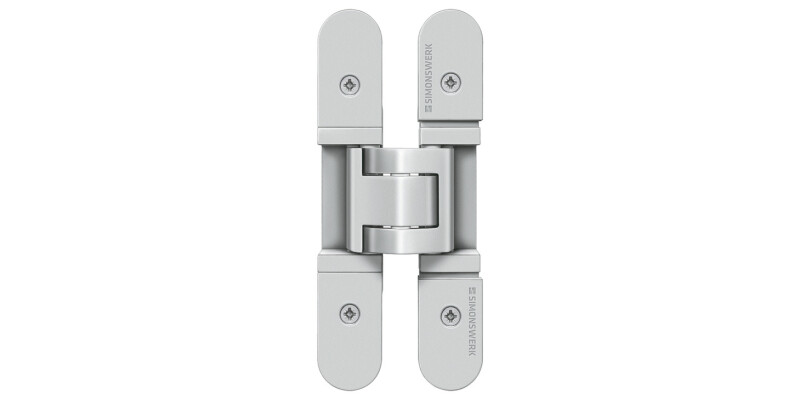

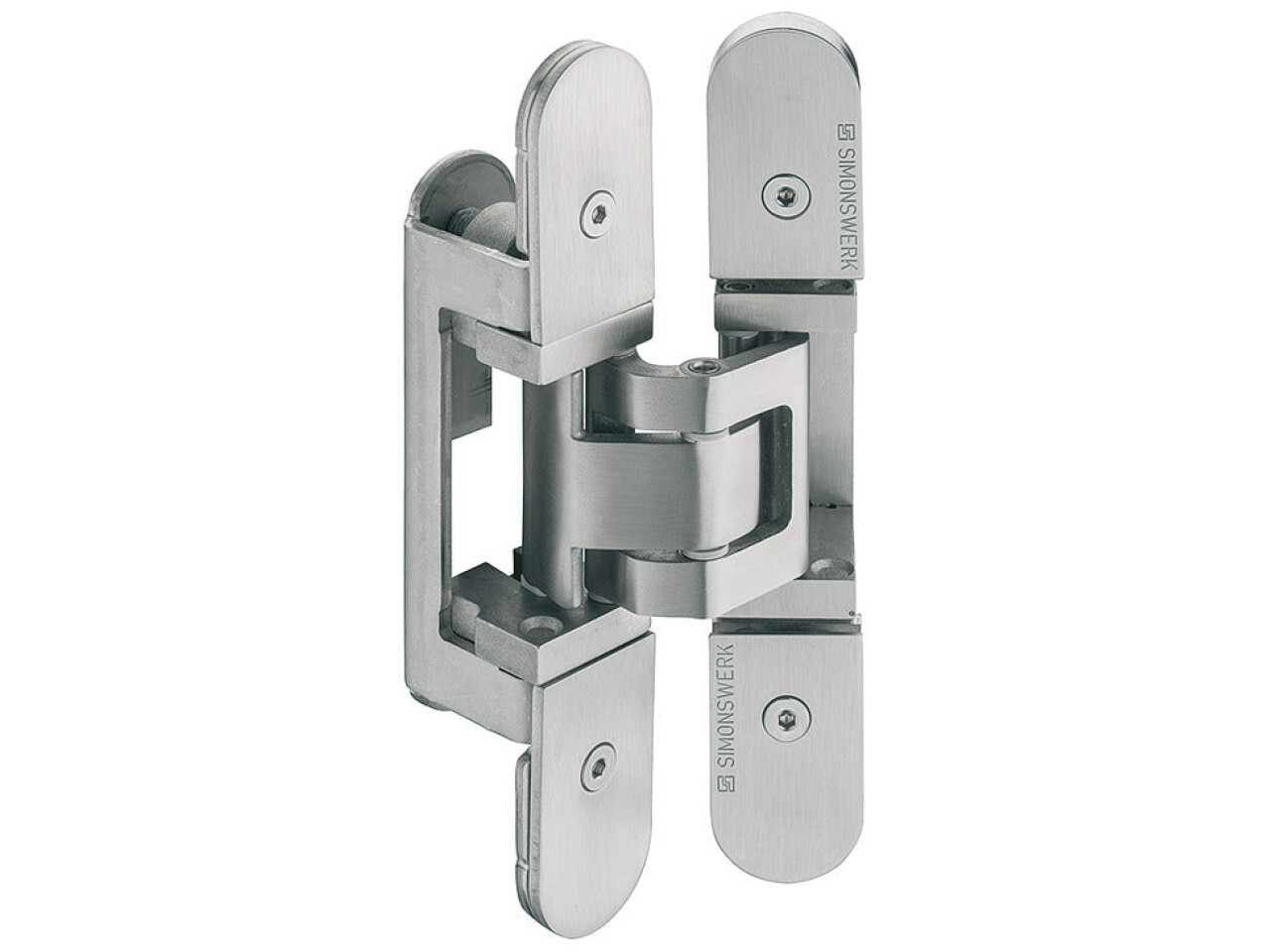

3D Hinge, 180°, Mild Steel, Tectus TE 527

Product Details

3D Hinge, 180°, Mild Steel, Tectus TE 527 (Part No. 924.19.035) is a precision-engineered architectural hinge designed for smooth, reliable performance on a wide range of doors. If you’re aiming for a clean, flush finish with effortless alignment, this Tectus TE527 3D hinge with its Matt chrome look delivers a professional result that complements modern interiors.

Built from stainless steel, the hinge is well suited to demanding everyday use while offering a refined, contemporary appearance. The TE 527 model features 3-way continuous adjustment, making it easier to fine-tune door position for a consistent fit and improved closing performance. With an opening angle of 180°, it’s ideal for practical access and versatile door operation.

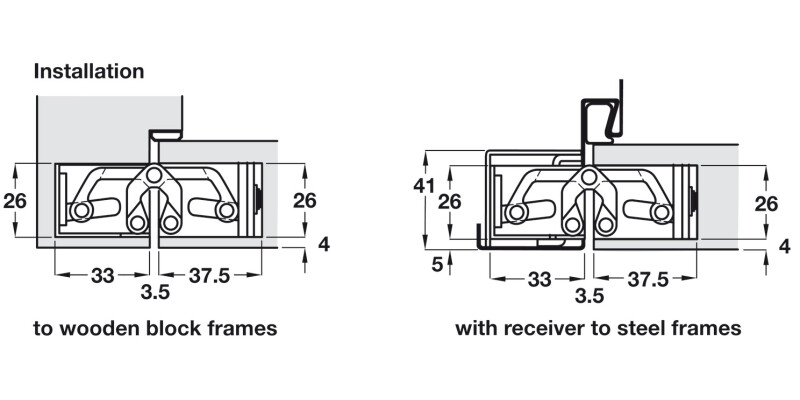

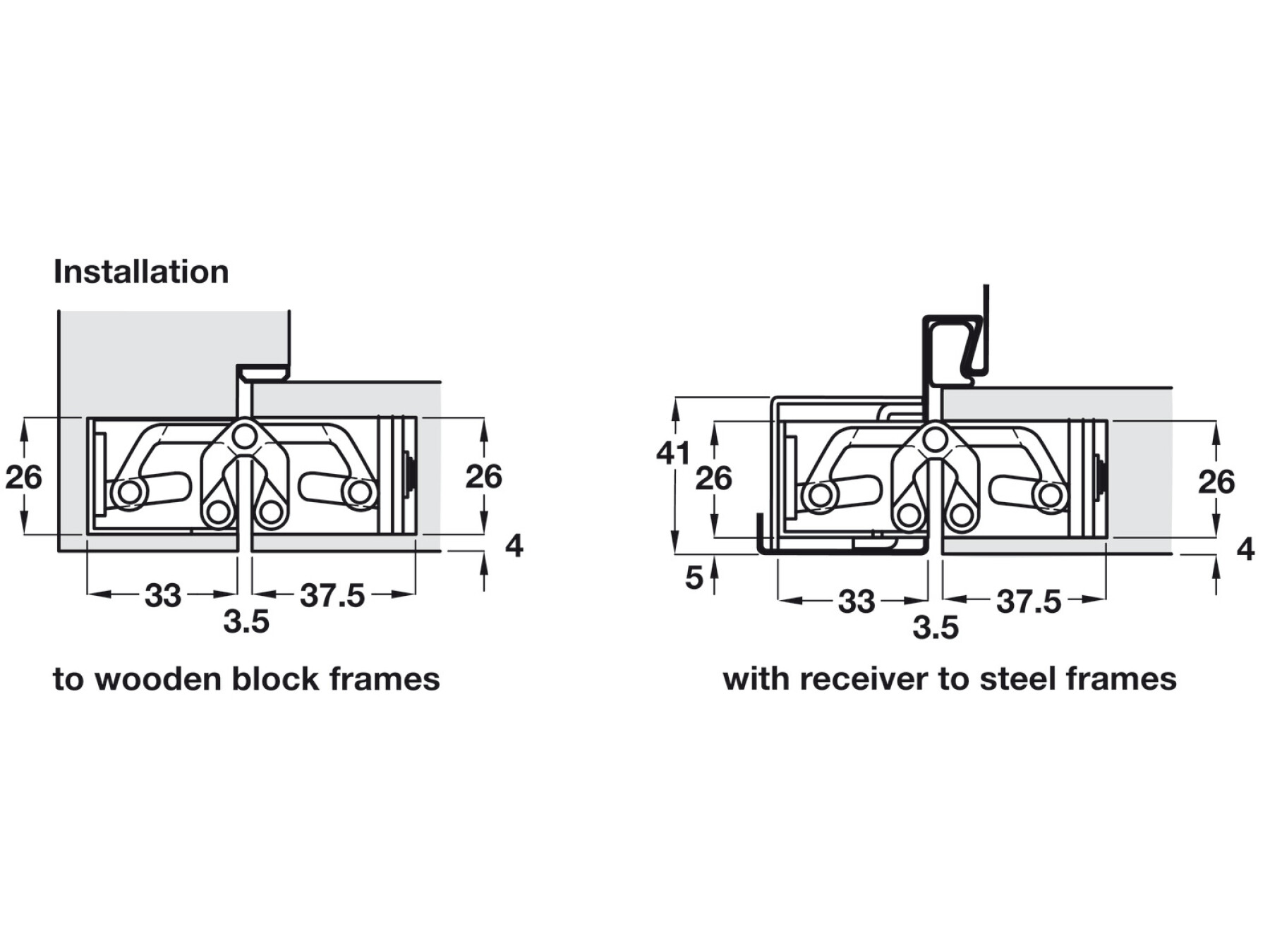

Designed for wooden, steel, or aluminium frames and compatible with flush doors, this hinge supports door thicknesses of ≥40 mm. The 3D adjustment system helps you achieve the ideal alignment in all key directions—so doors sit correctly from installation day through everyday life.

For safety-focused projects, please note the order reference: FD 60 fire rated performance is available when installed with the intumescent kit (Cat. No. 924.17.697), ordered separately. The hinge is supplied with fixing screws for both frame and door parts, helping you get underway quickly.

Upgrade your door hardware with the 3D Hinge, 180°, Mild Steel, Tectus TE 527—a smart choice for installers and homeowners who want both style and precise adjustment in one dependable hinge.

FD 60 fire rated when installed with intumescent kit Cat. No. 924.17.697, to be ordered separately

Fixing screws included for frame and door part
