3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 540 A8

Product Details

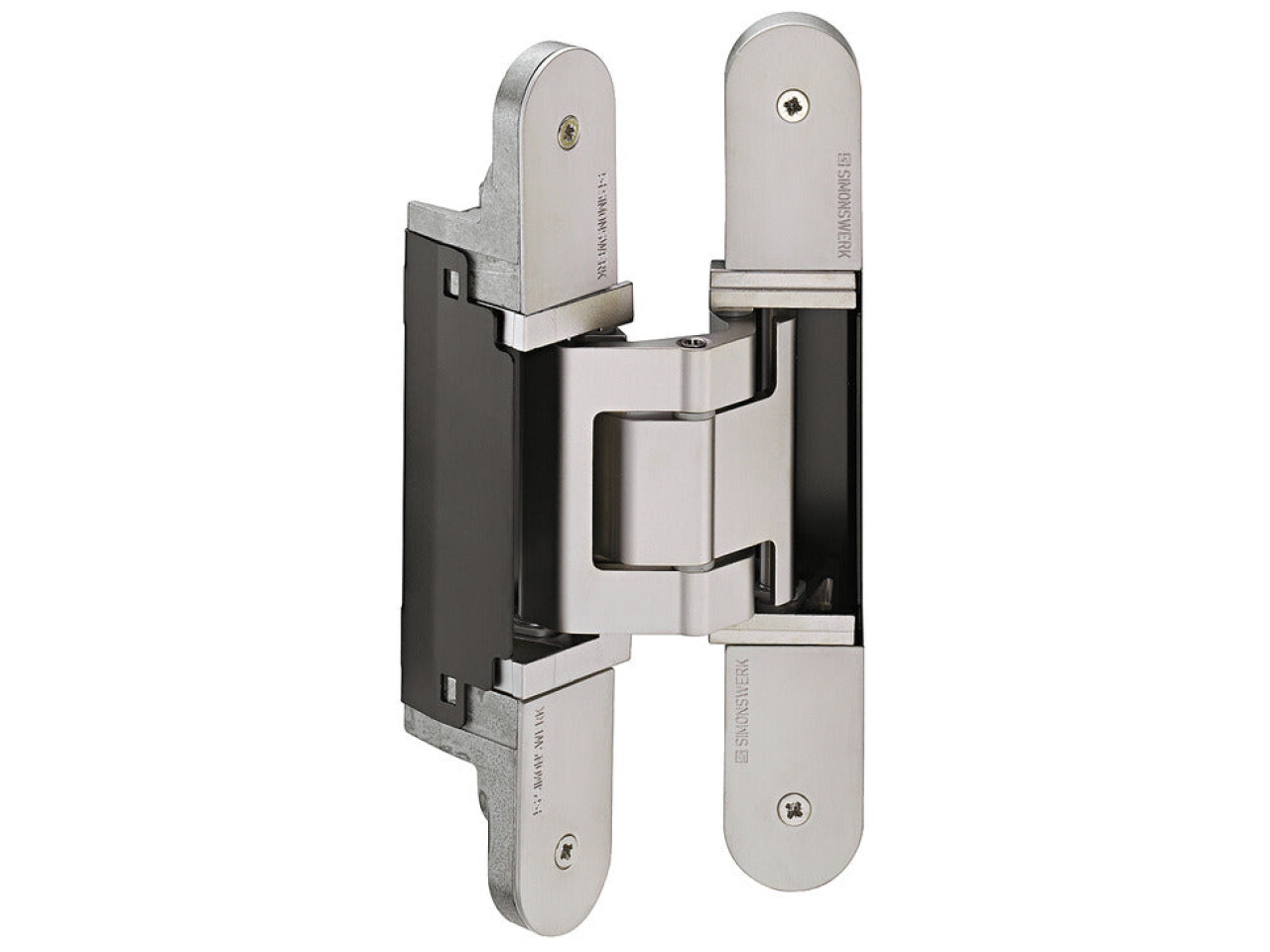

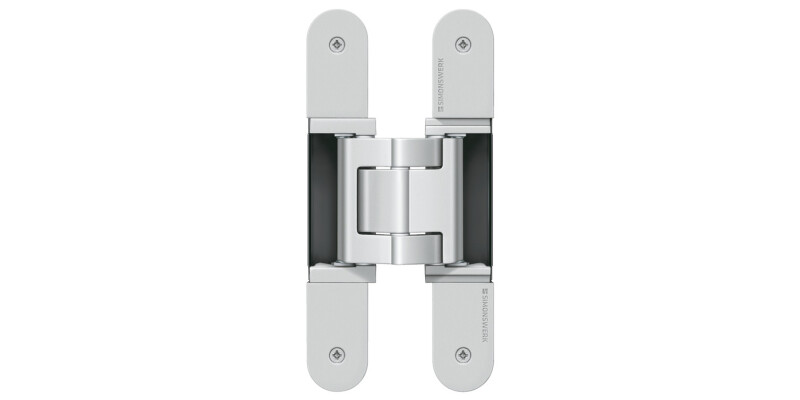

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 540 A8 (Part No: 924.17.300) is a premium architectural door hinge designed for builders and installers who want precision, stability, and a clean finish. With its polished brass plated surface, it brings a refined look to modern interiors while delivering smooth, dependable operation.

This hinge is part of the TECTUS TE 540 3D A8 range and features 3-way continuous adjustment. That means you can fine-tune your door alignment for a professional result—day one and long after installation. Adjust the hinge laterally, vertically, and compensate during closing pressure to achieve consistent, even door performance.

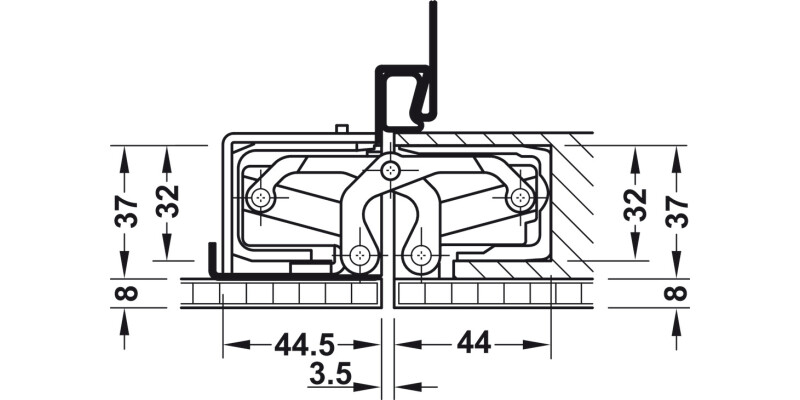

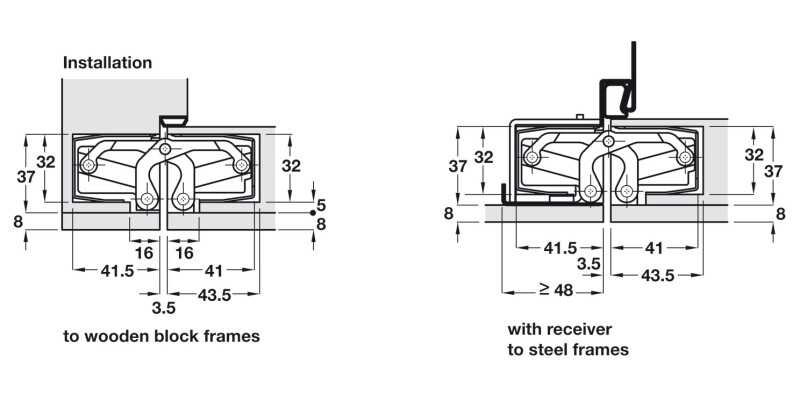

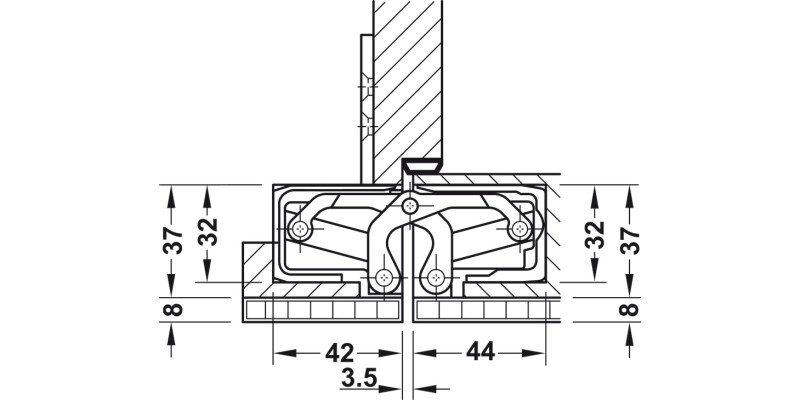

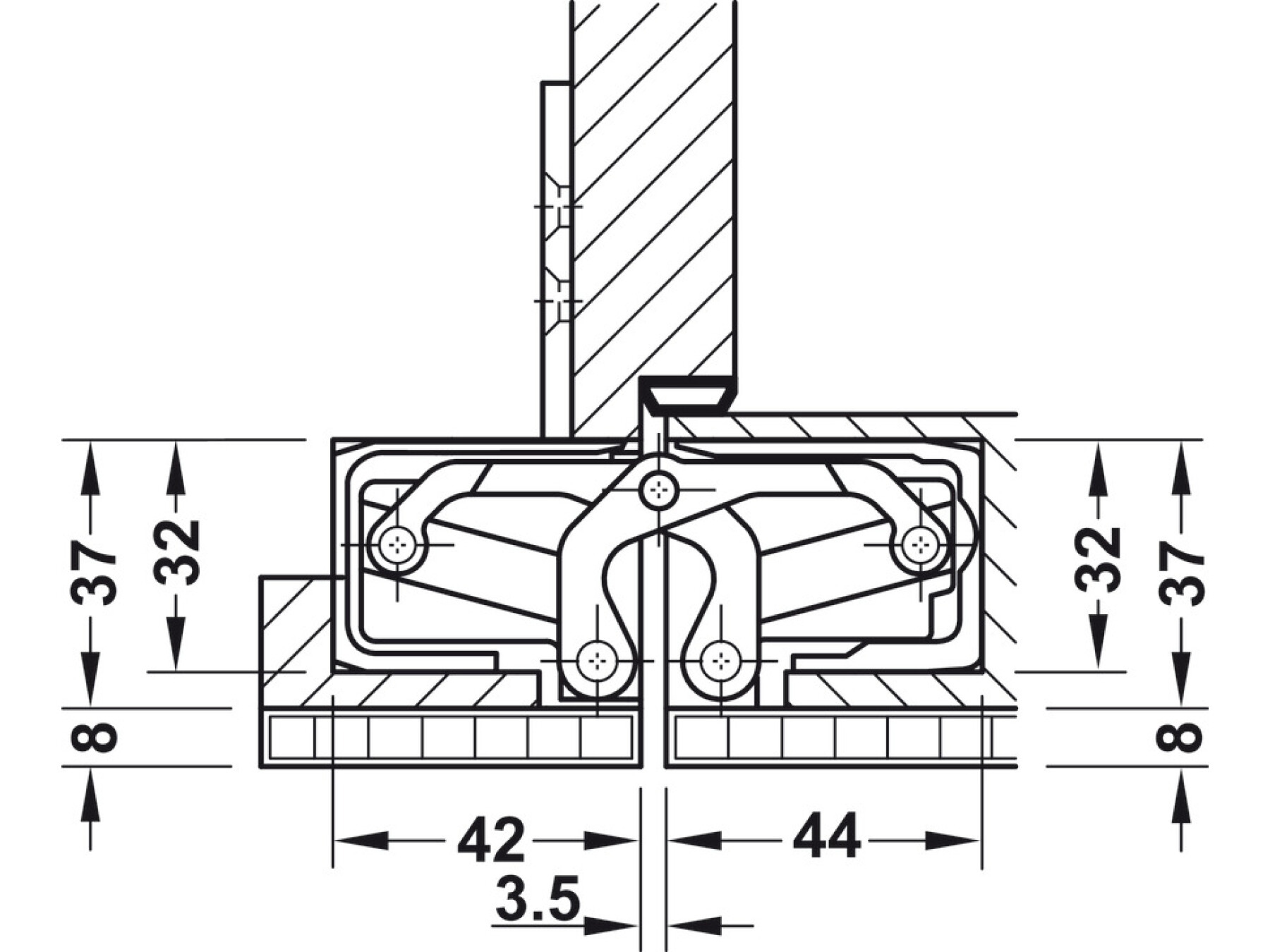

Designed for a versatile range of projects, the TE540 3D A8 is suitable for wooden, steel, or aluminium frames and is ideal for flush doors. The hinge supports an opening angle of 180° and is suitable for doors up to 100 kg (for 2 hinges), making it a smart choice for demanding commercial and residential applications.

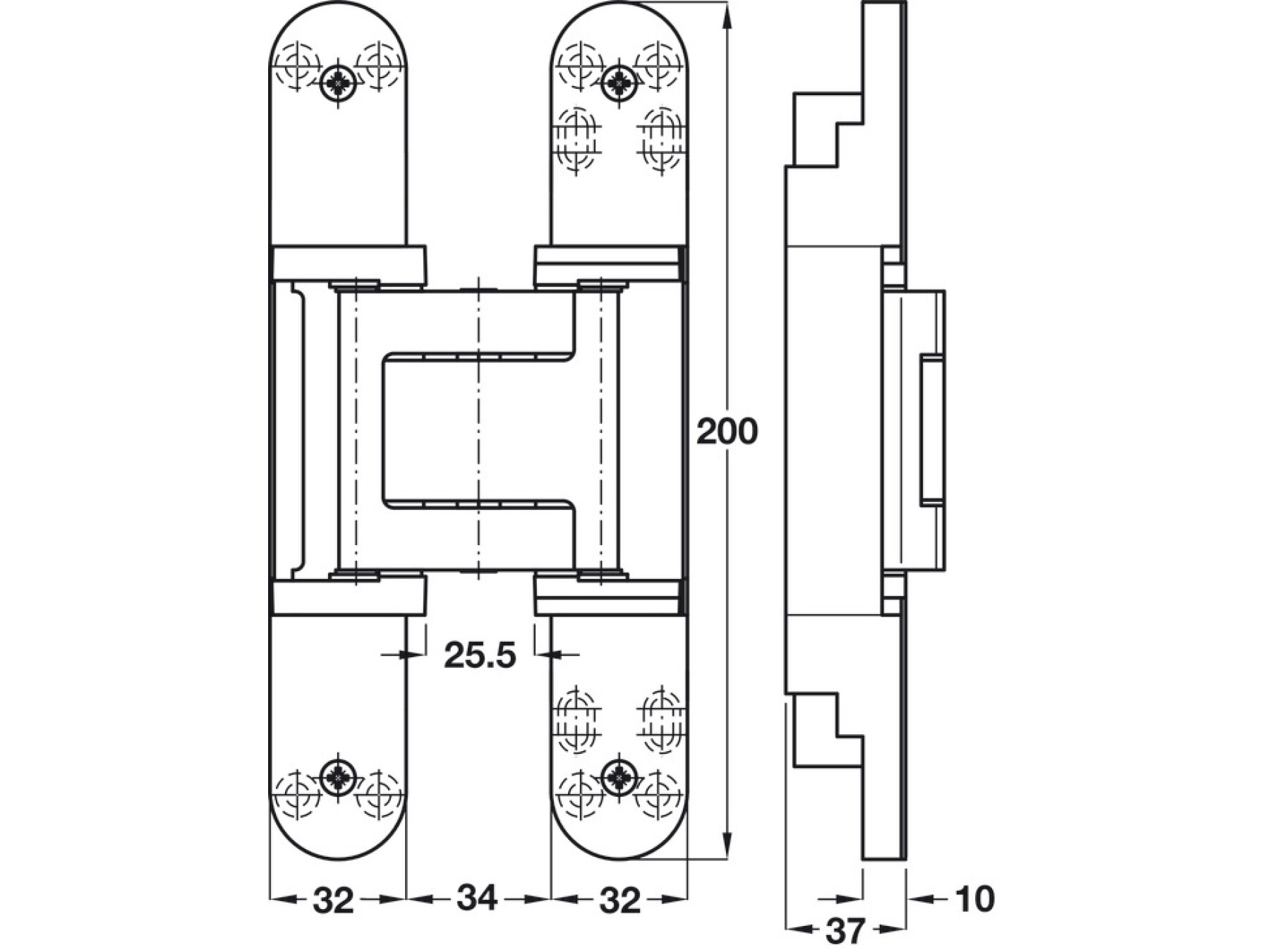

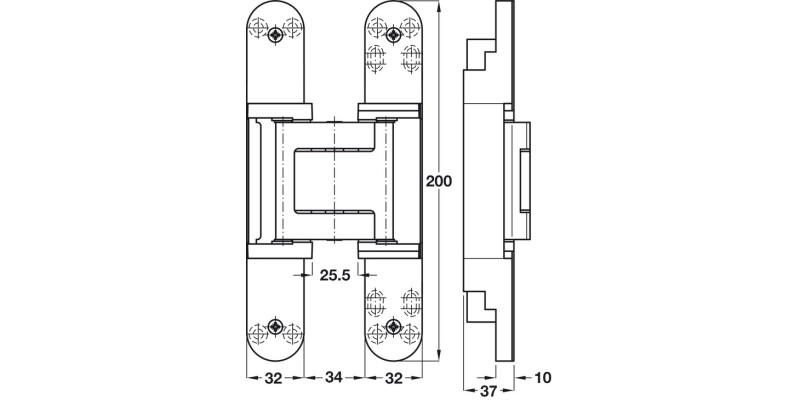

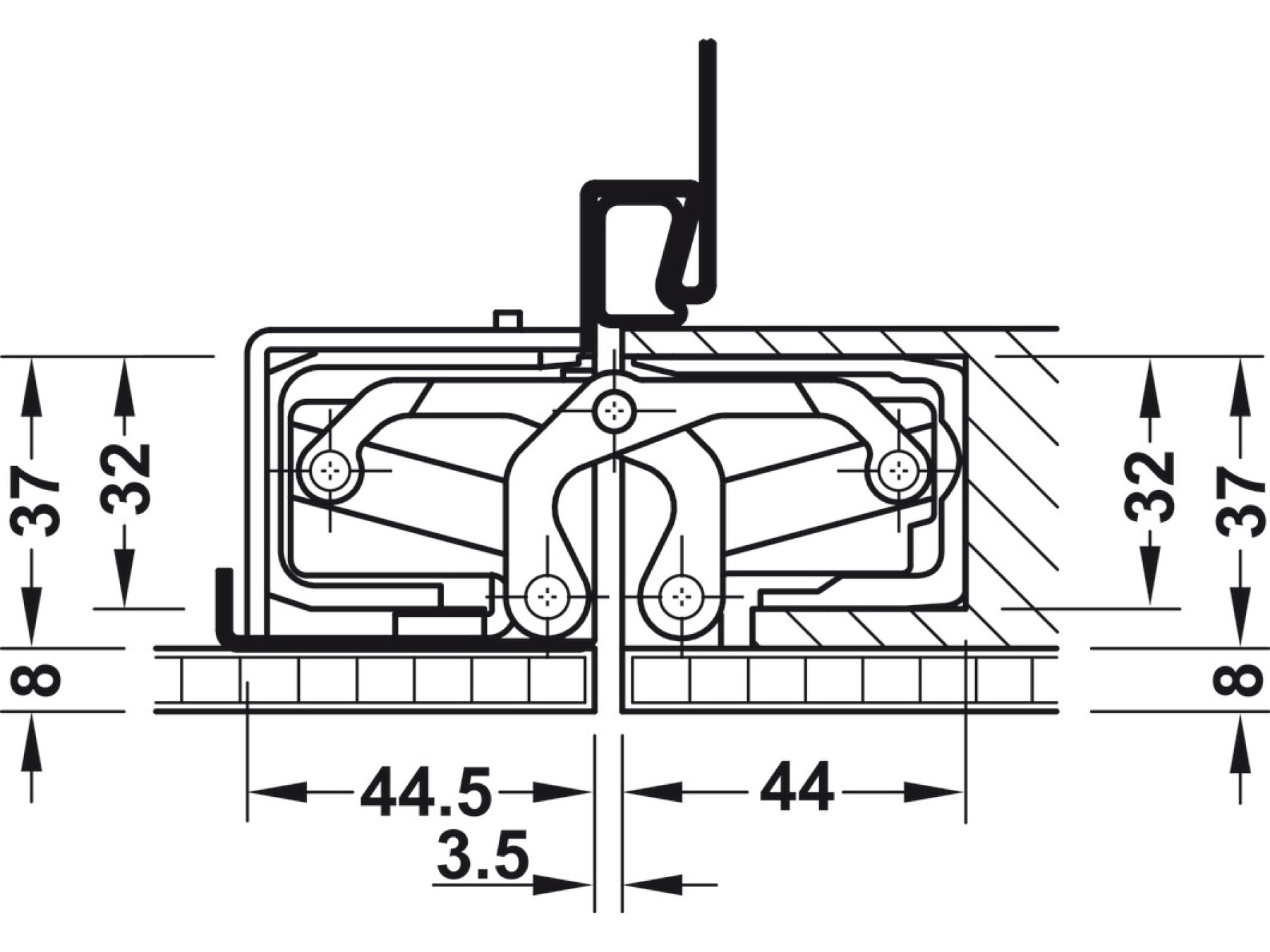

Key specifications at a glance: aluminium and steel construction, a rounded flange profile, 32 mm flange width, and a 200 mm flange height. It is built for door thickness ≥40 mm and requires a router bit of Ø 24 mm with a thrust ring of Ø 30 mm.

For ease of installation, the hinge is supplied with fixing screws for the frame (not the door part). If you’re upgrading door hardware with confident alignment and elegant finishing, this 3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 540 A8 is the hinge to choose.

Fixing screws included for frame, not for door part
