3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 645 3D

Product Details

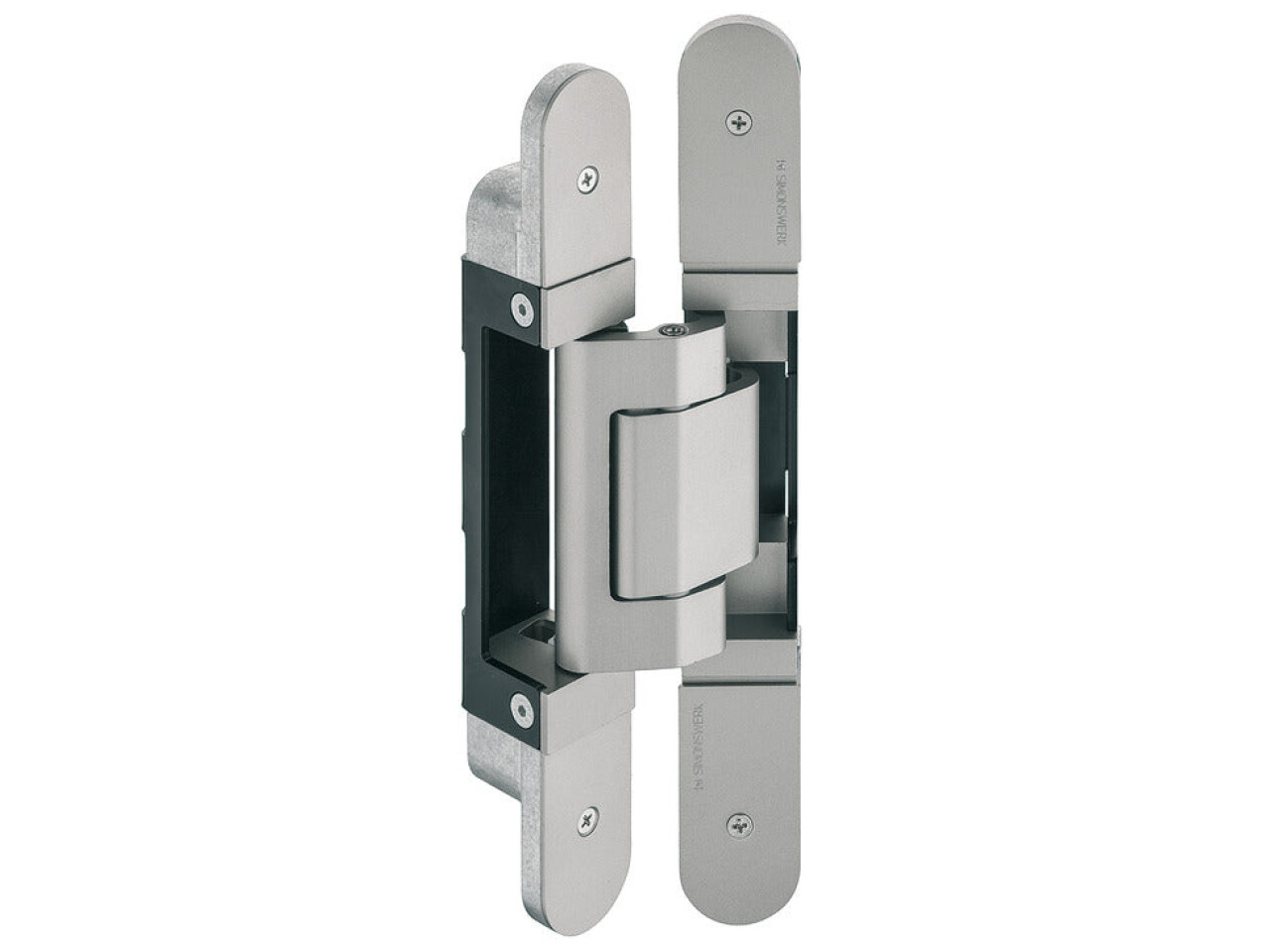

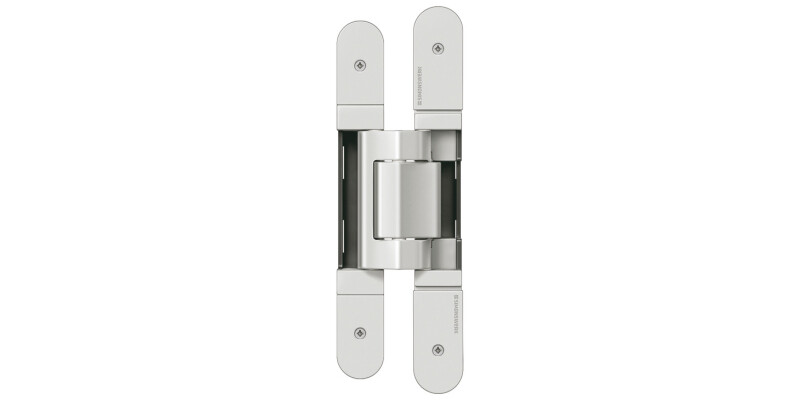

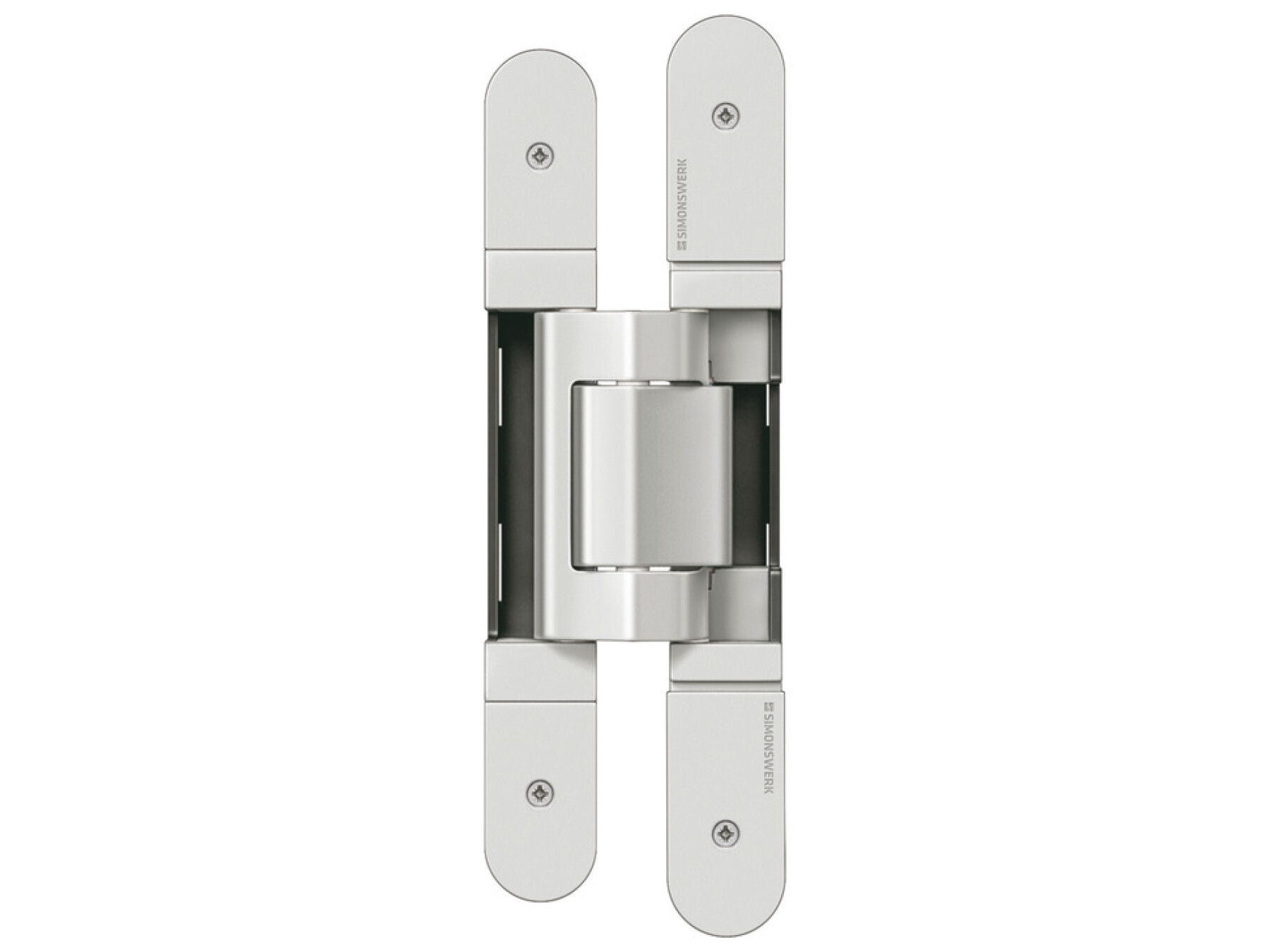

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 645 3D. (Part No: 924.19.081) is a premium architectural door hinge designed for precise alignment and long-lasting performance. If you’re installing a flush door and want smooth operation with reliable stability, this 3D hinge in bronze metallic brings both engineering and refined style to your project.

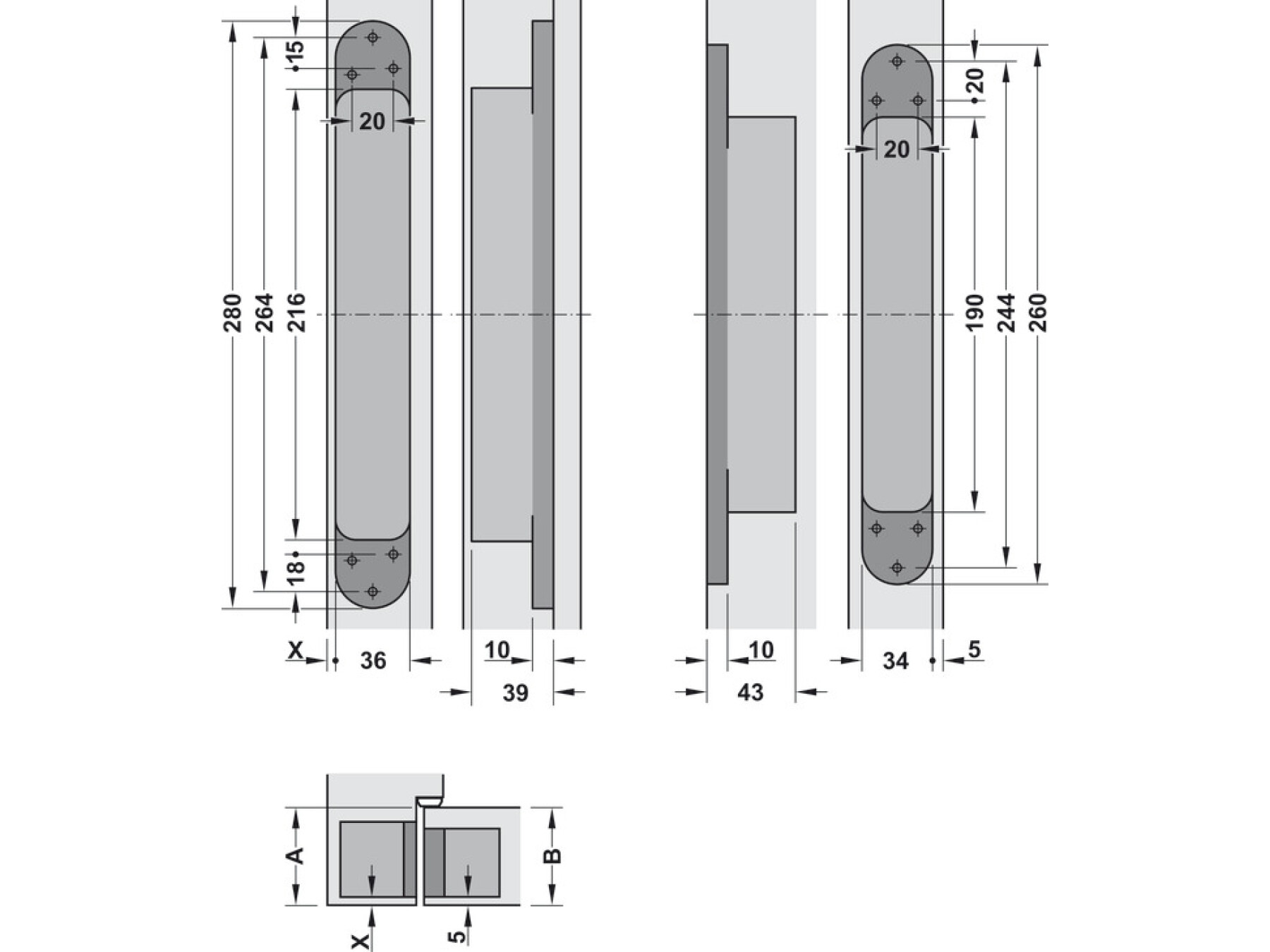

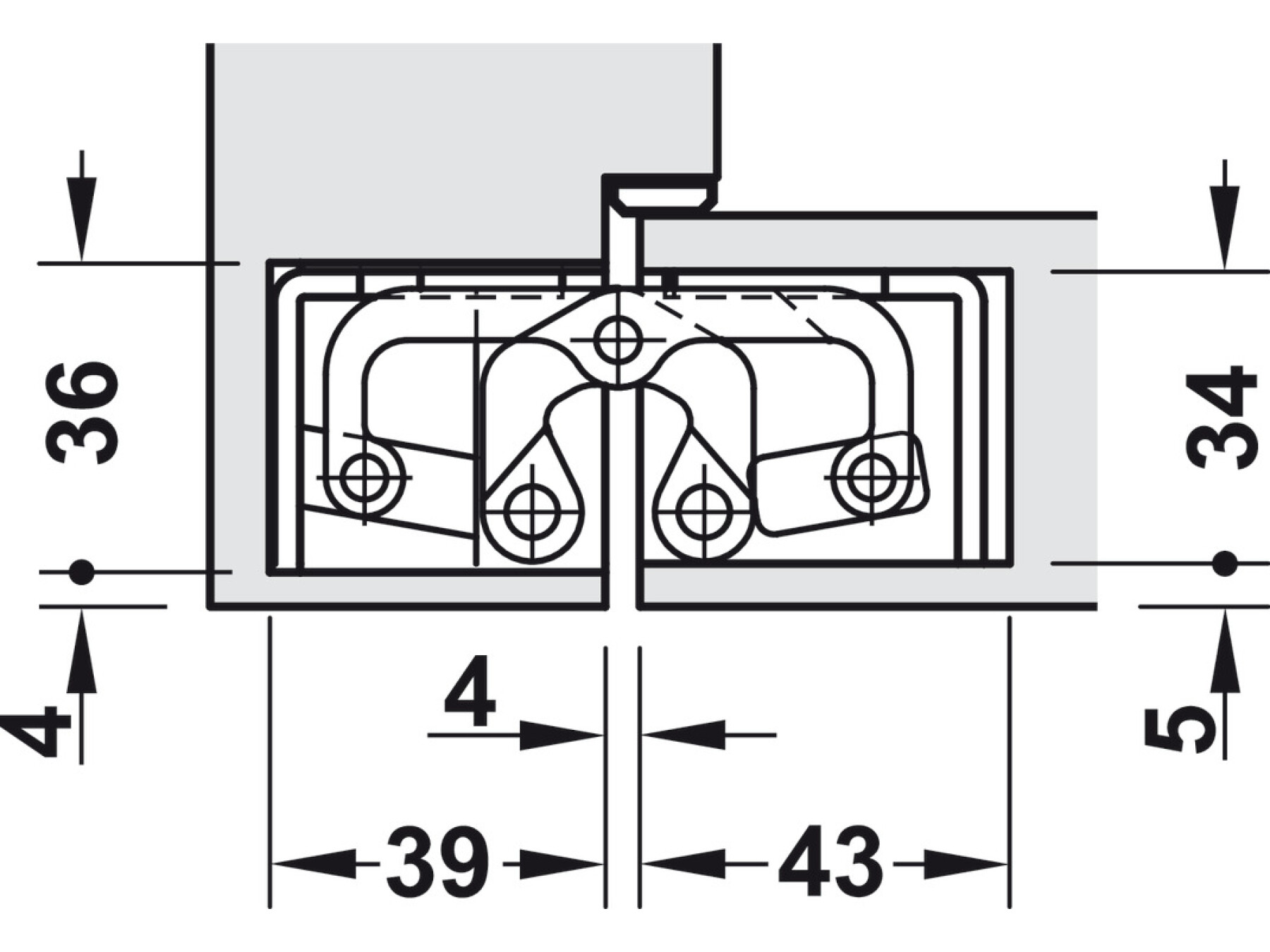

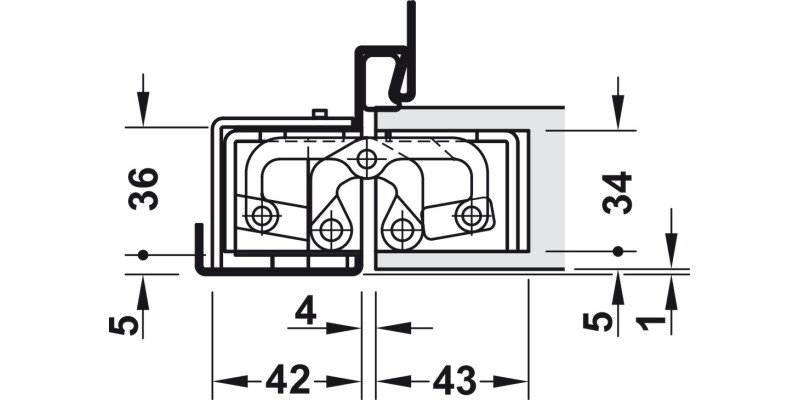

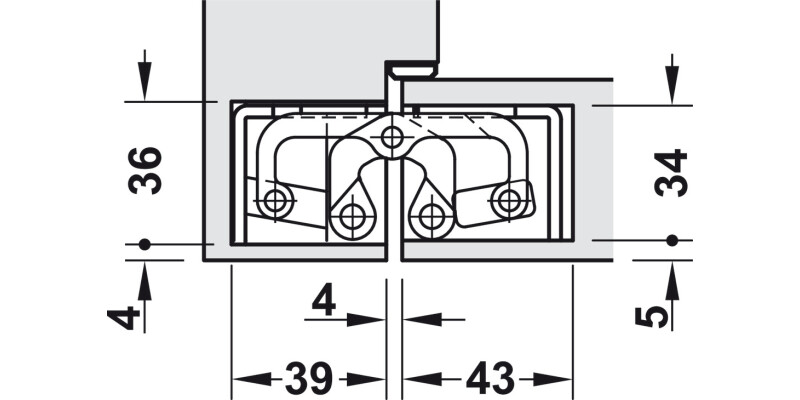

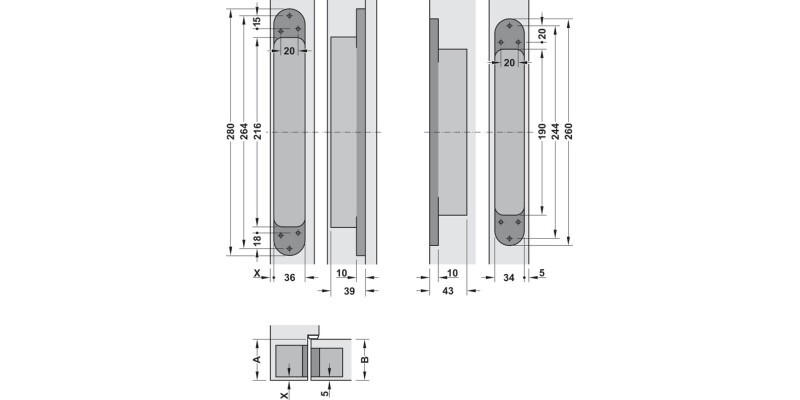

Built for versatility, the TECTUS TE 645 3D hinge suits a wide range of applications. It’s ideal for wooden, steel, or aluminium frames and is perfectly matched to flush doors. The rounded flange design offers a clean, professional finish, while the flange width of 36 mm / 34 mm and flange height of 280 mm / 260 mm help ensure compatibility during installation.

What sets this hinge apart is its 3-way continuous adjustment. You can fine-tune alignment in seconds—side adjustment: 3 mm, height adjustment: -3 to +3 mm, and closing pressure: ±1 mm—so your door sits perfectly and operates effortlessly.

Engineered from aluminium and steel, with EN 1935:2002 certification, it’s rated for a maximum door weight of 300 kg (using 2 hinges). The hinge supports an opening angle of 180°, making it suitable for demanding environments and comfortable daily use. The hinge is designed for door thickness ≥ 40 mm and uses a router bit diameter of 24 mm (thrust ring Ø 30 mm).

Choose the 3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 645 3D and enjoy the confidence of expert-grade alignment, durable construction, and a sophisticated bronze metallic finish.
