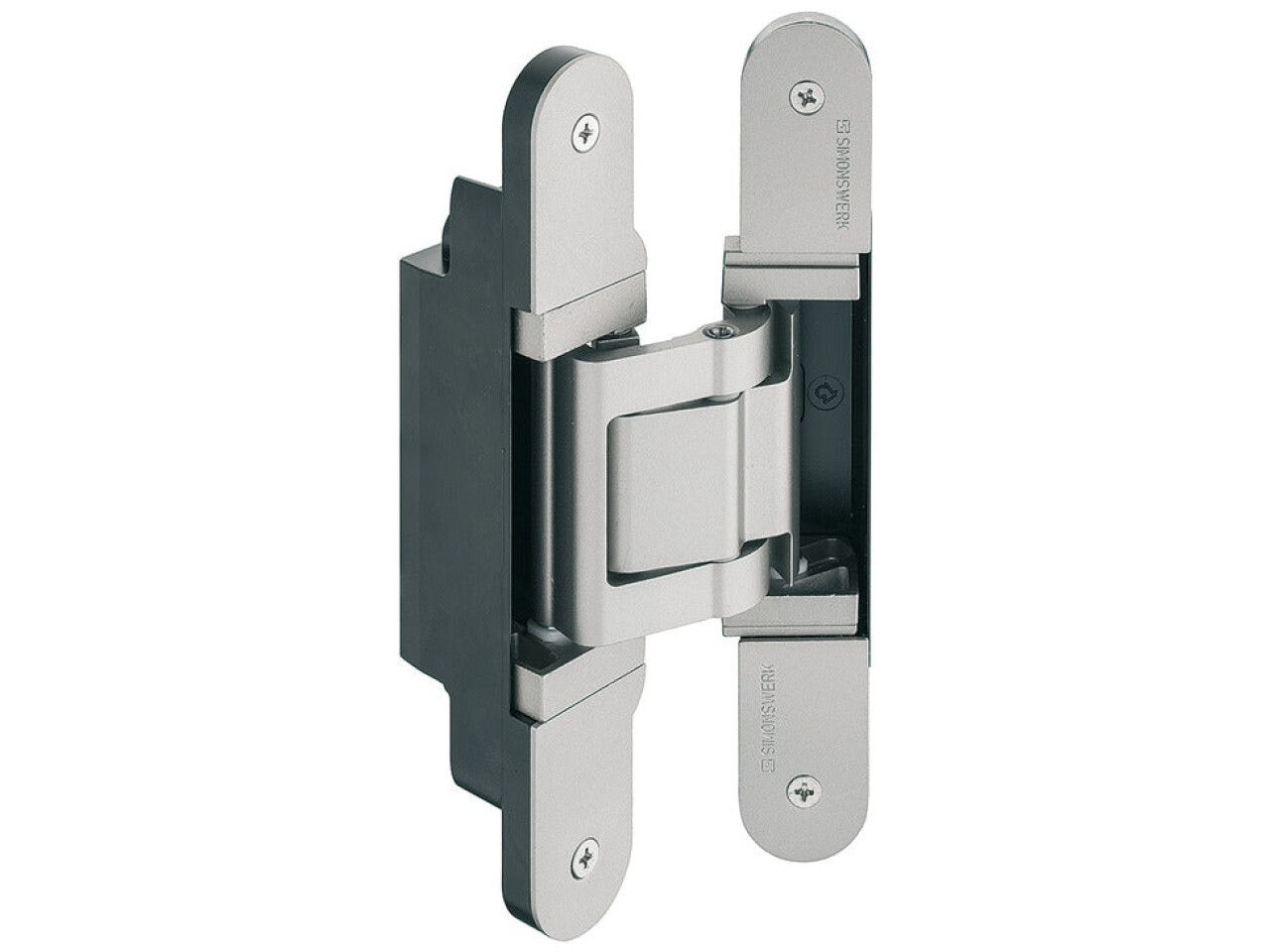

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 541 3D FVZ

Product Details

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 541 3D FVZ (Product Part No: 924.19.018) is a premium choice for anyone fitting architectural ironmongery with a clean, precision-engineered finish. Designed specifically as a 3D continuous adjustment hinge, this model makes it easy to achieve a perfect door alignment—ideal for installers and high-spec joinery projects where final fit matters.

With a polished brass plated surface, the TE541 3D FVZ adds a refined, lasting look that complements modern and traditional interiors. The rounded 28 mm flange width and 185 mm flange height suit flush door styles, helping you create an elegant, minimal reveal.

Installation is straightforward across common construction types. This hinge is suitable for wooden, steel, or aluminium frames and supports doors with a minimum thickness of ≥40 mm. For frame compatibility, it’s intended for DIN left and DIN right hand use (adjustable for correct fitting).

Performance features include an opening angle of 180° and a maximum door load (when used with two hinges) of 100 kg. The 3D adjustment facility offers continuous fine-tuning for:

Side: 3 mm, Height: -3 to +3 mm, and Closing pressure: ±1 mm.

Engineered with durable aluminium and steel components and certified to EN 1935:2002, the Tectus TE541 3D FVZ 180D hinge delivers confidence, stability, and smooth operation. Upgrade your door hardware with a hinge that looks premium and fits perfectly—choose TE541 3D FVZ today.
