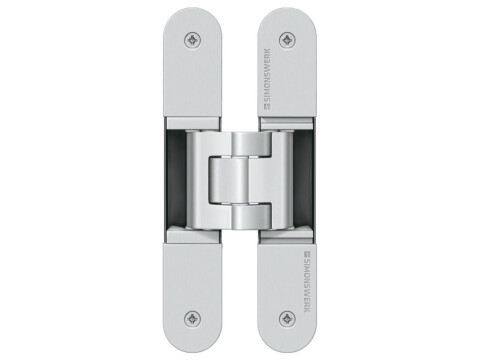

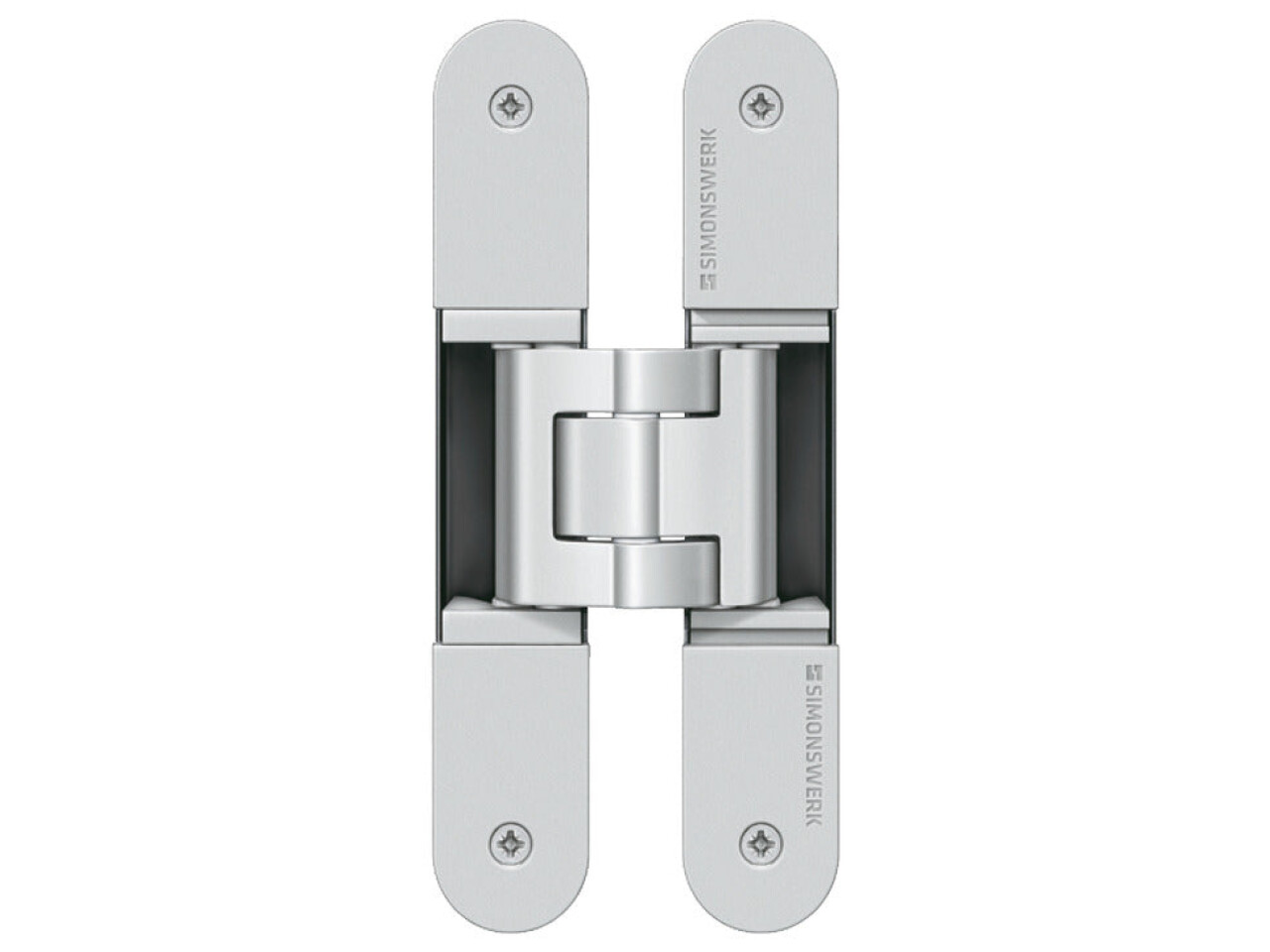

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 340 3D Energy

Product Details

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 340 3D Energy is a premium architectural door hinge designed to deliver smooth performance and a clean, modern finish for residential and commercial projects. With its Matt chrome look and advanced alignment features, this hinge helps you achieve a perfectly balanced door—time after time.

Engineered from a durable blend of Aluminium, Steel, Zinc and Die-cast components, the TE340 is built for long-term reliability while maintaining stable operation. It’s ideal for a wide range of applications, supporting wooden, steel or aluminium frames and suitable for flush doors—making it a versatile choice for installers and specifiers.

Thanks to the TE340’s impressive 180° opening angle, the hinge provides excellent access and flexibility. It’s also designed for doors with a thickness of ≥ 40 mm, ensuring a secure, professional installation.

One of the standout benefits is the 3-way continuous adjustment system. This enables fine-tuning in the key alignment directions: Vertical ± 3 mm, Horizontal ± 3 mm, and Depth ± 1.0 mm. The result is a door that sits correctly, closes neatly, and looks right from day one.

Part of the Tectus architectural ironmongery range, this model (Product Part No: 924.17.734) comes supplied with fixings to help streamline your installation workflow.

Choose the 3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 340 3D Energy for dependable alignment, a sophisticated matt chrome finish, and a confident fit on your next flush door project.

Fixings
