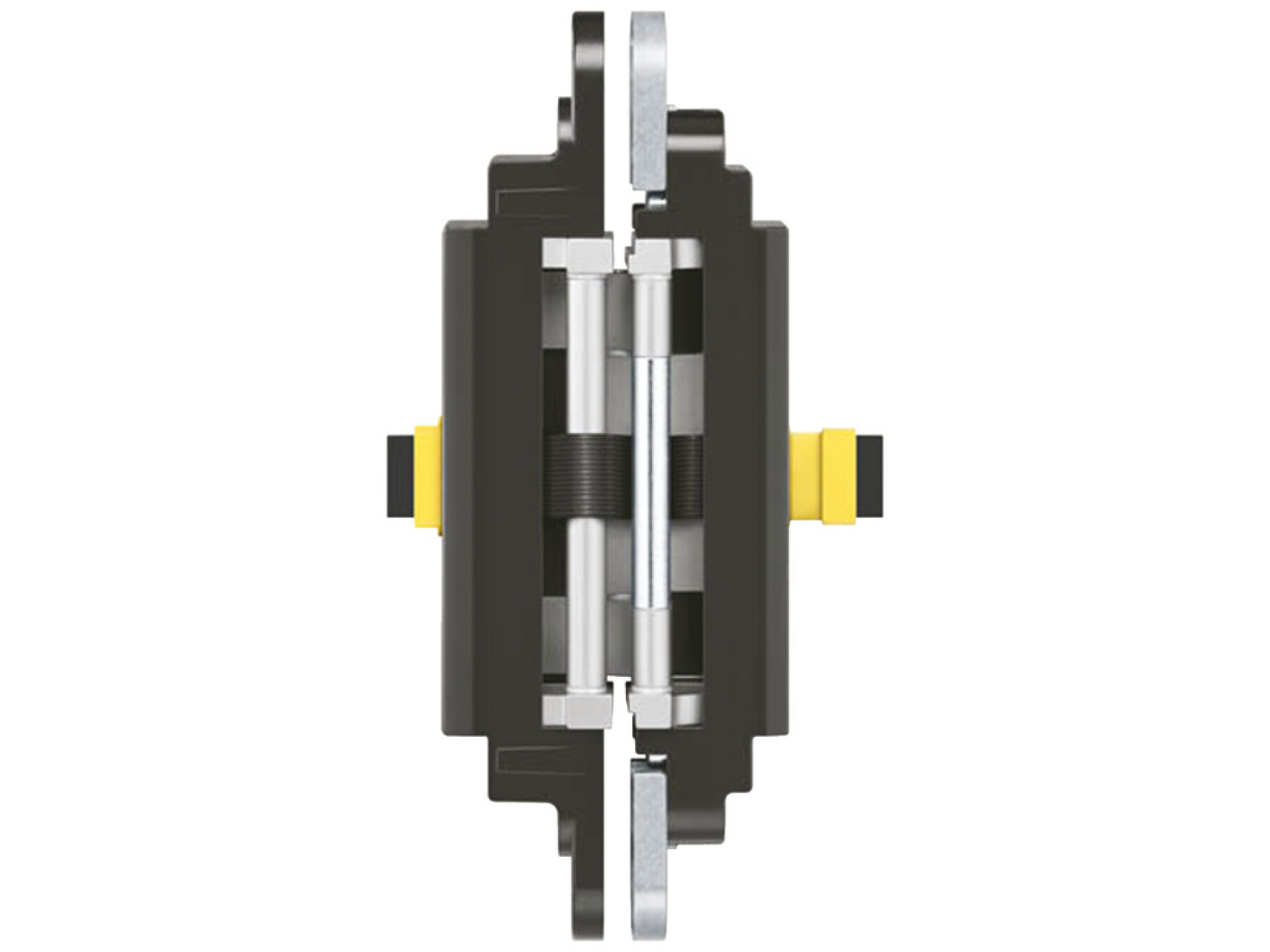

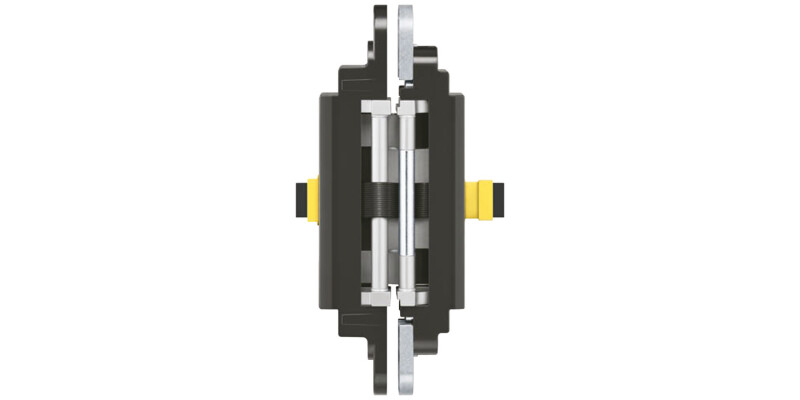

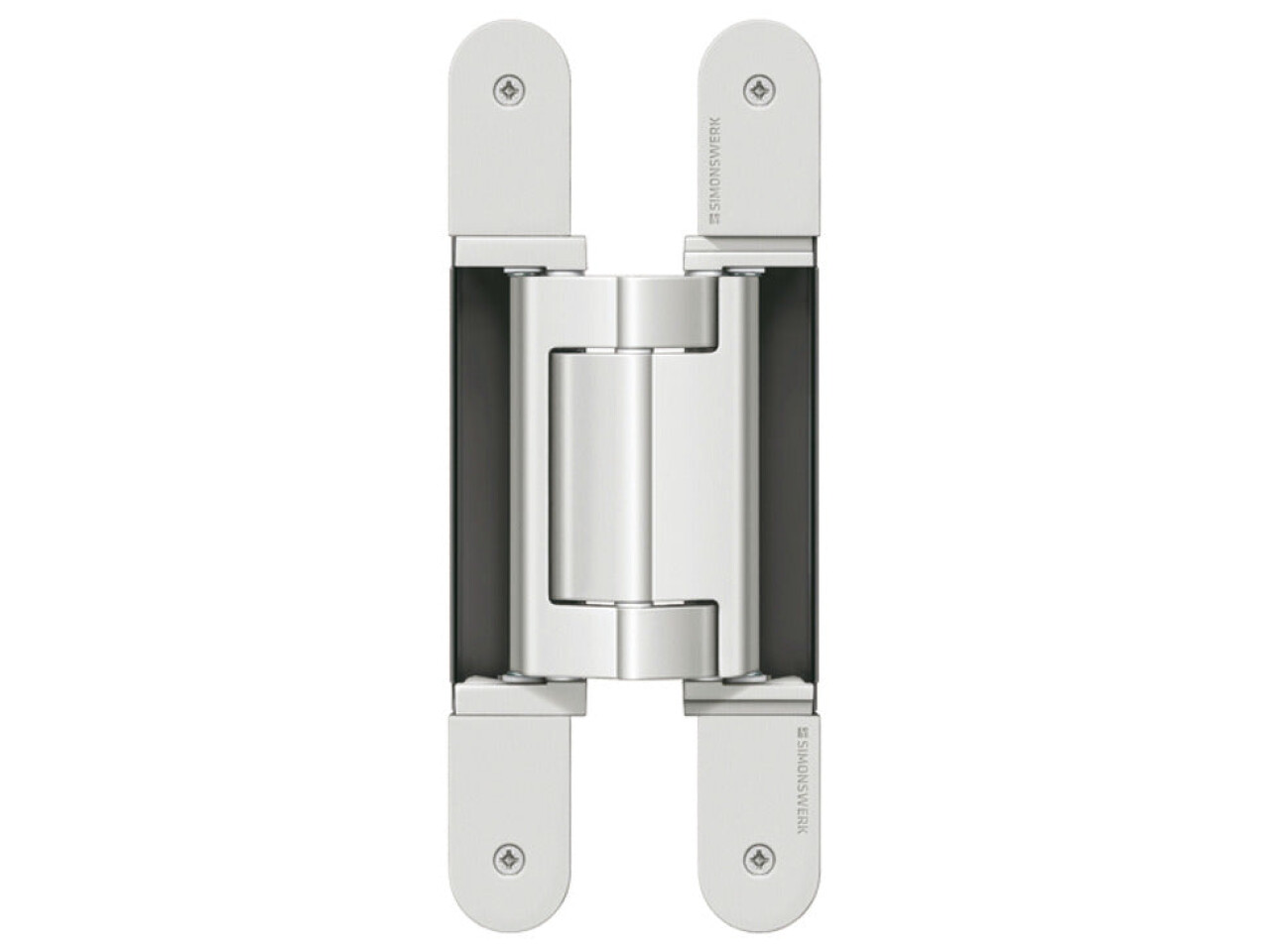

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 640 3D A8 Energy

Product Details

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 640 3D A8 Energy is a high-performance, architectural door hinge designed to deliver a precise, smooth fit and reliable everyday performance. Finished in a stylish matt nickel, this 3D hinge part of the Tectus TE640 range blends clean modern aesthetics with practical engineering—ideal for specification projects and quality home installations.

Part No. 924.17.756, this 180° energy hinge features 3-way continuous adjustment to help you fine-tune alignment after fitting. You can correct the door position with vertical adjustment of ±3 mm, horizontal adjustment of ±3 mm, and depth adjustment of ±1.0 mm. That means easier installation, improved performance, and a consistently even door gap.

Built for durability, the hinge is made from a robust combination of aluminium, steel, zinc, and die-cast components. It’s suitable for wooden, steel, or aluminium frames and is particularly well-suited to flush doors. With an opening angle of 180.00° and compatibility for doors with door thickness of ≥40 mm, it’s a versatile choice for a wide range of door types.

Supplied with the necessary fixings, the 3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 640 3D A8 Energy (Architectural Ironmongery) helps you achieve a professional finish with confidence—making it an excellent purchase for anyone upgrading door hardware with 3D adjustability.

Fixings
