3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 645 3D

Product Details

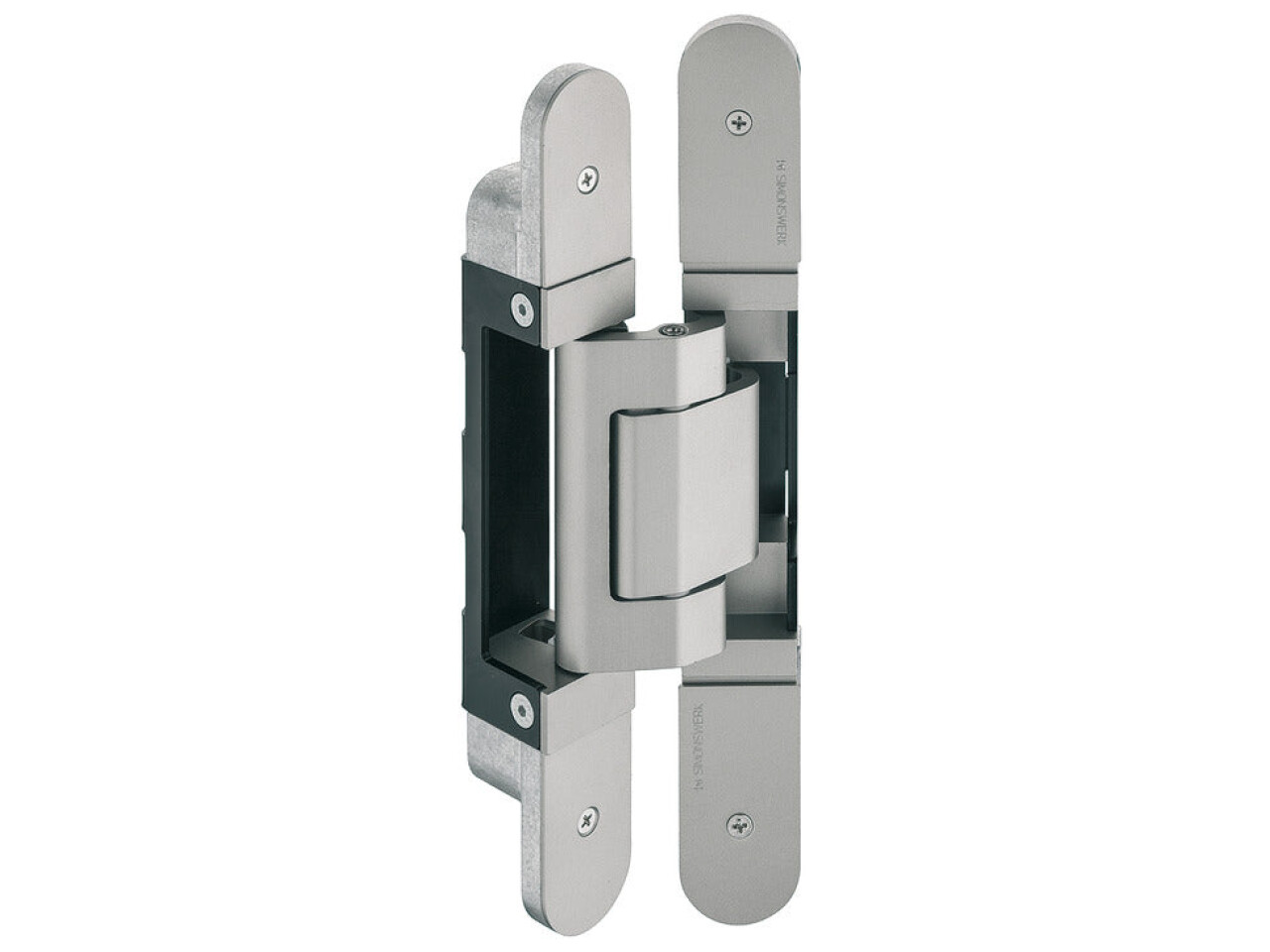

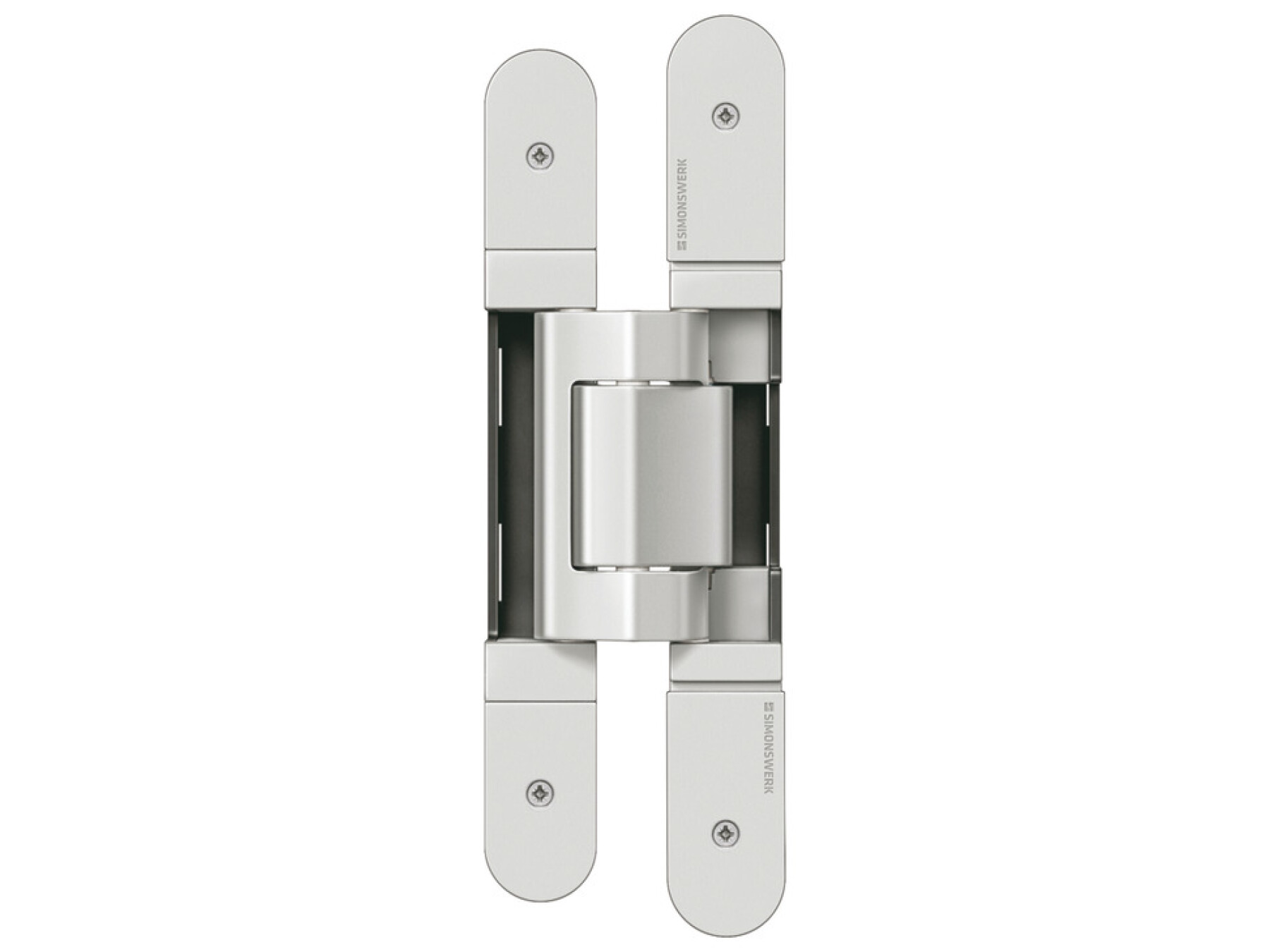

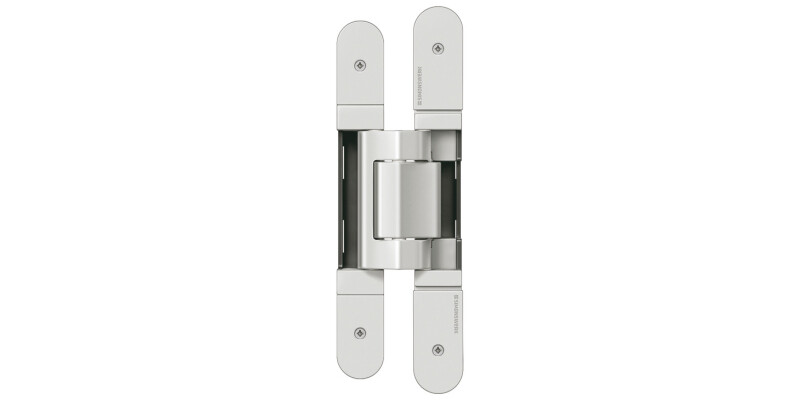

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 645 3D (Part No: 924.19.087) is a premium architectural door hinge designed for smooth, precise alignment—ideal when you want a flush, high-quality finish and reliable long-term performance. Part of the TECTUS TE 645 3D series, this hinge features a refined polished nickel surface that enhances modern interiors while delivering dependable hardware function.

Built for versatility and everyday strength, the TE645 3D supports doors up to 300 kg (for 2 hinges). With an impressive opening angle of 180°, it’s a strong choice for commercial and residential applications where clear access matters.

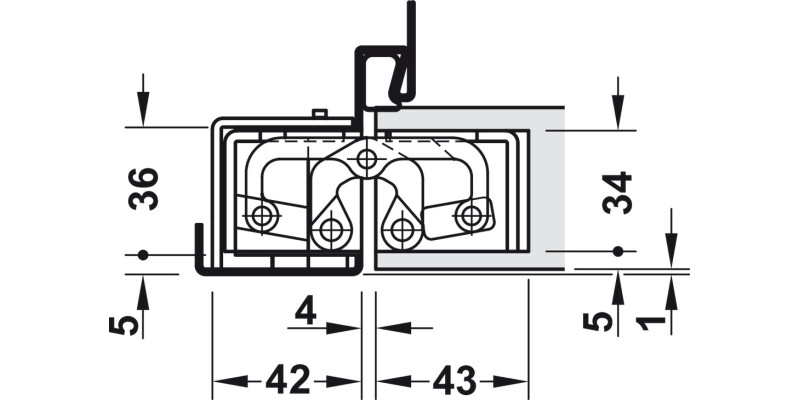

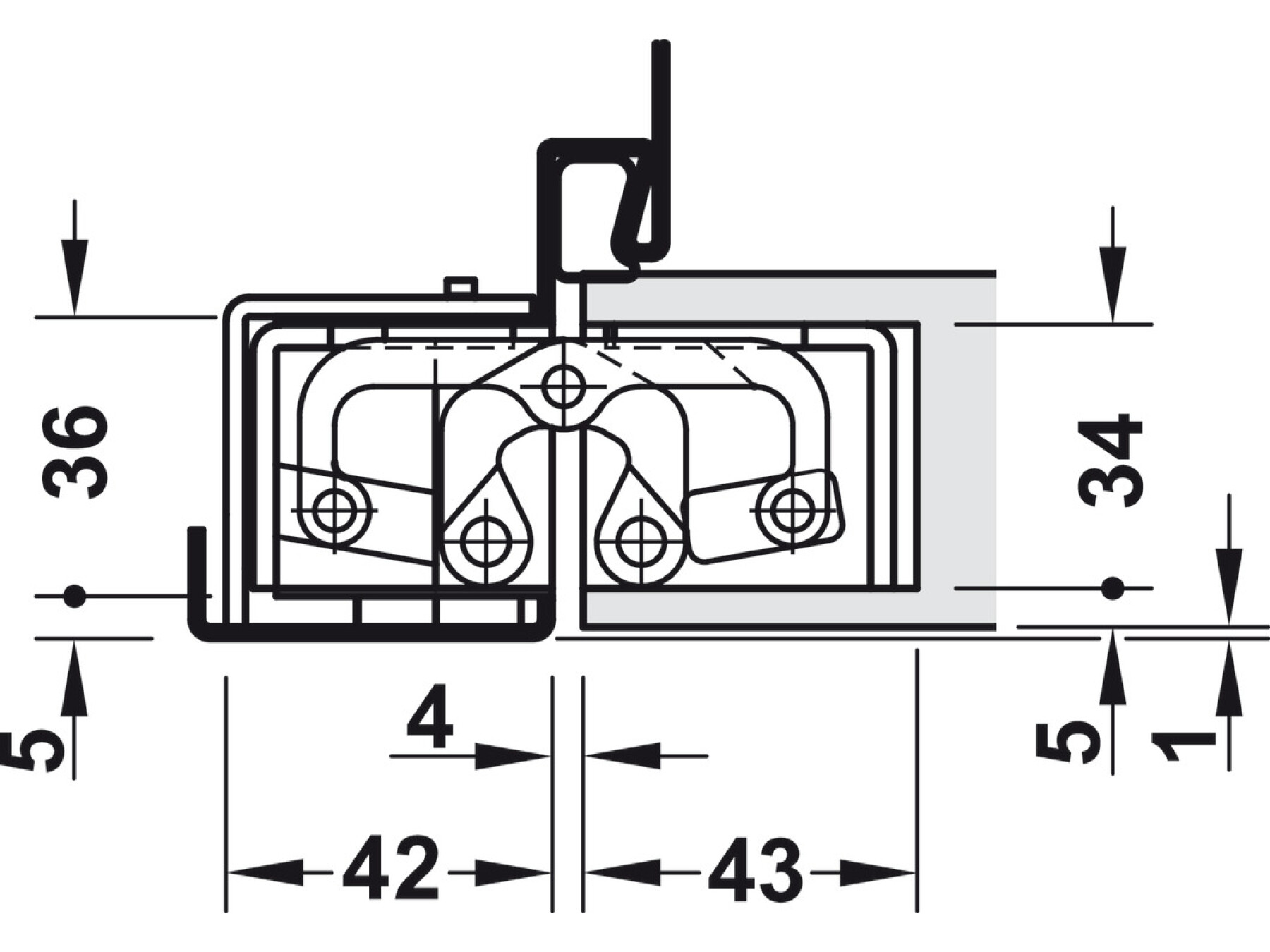

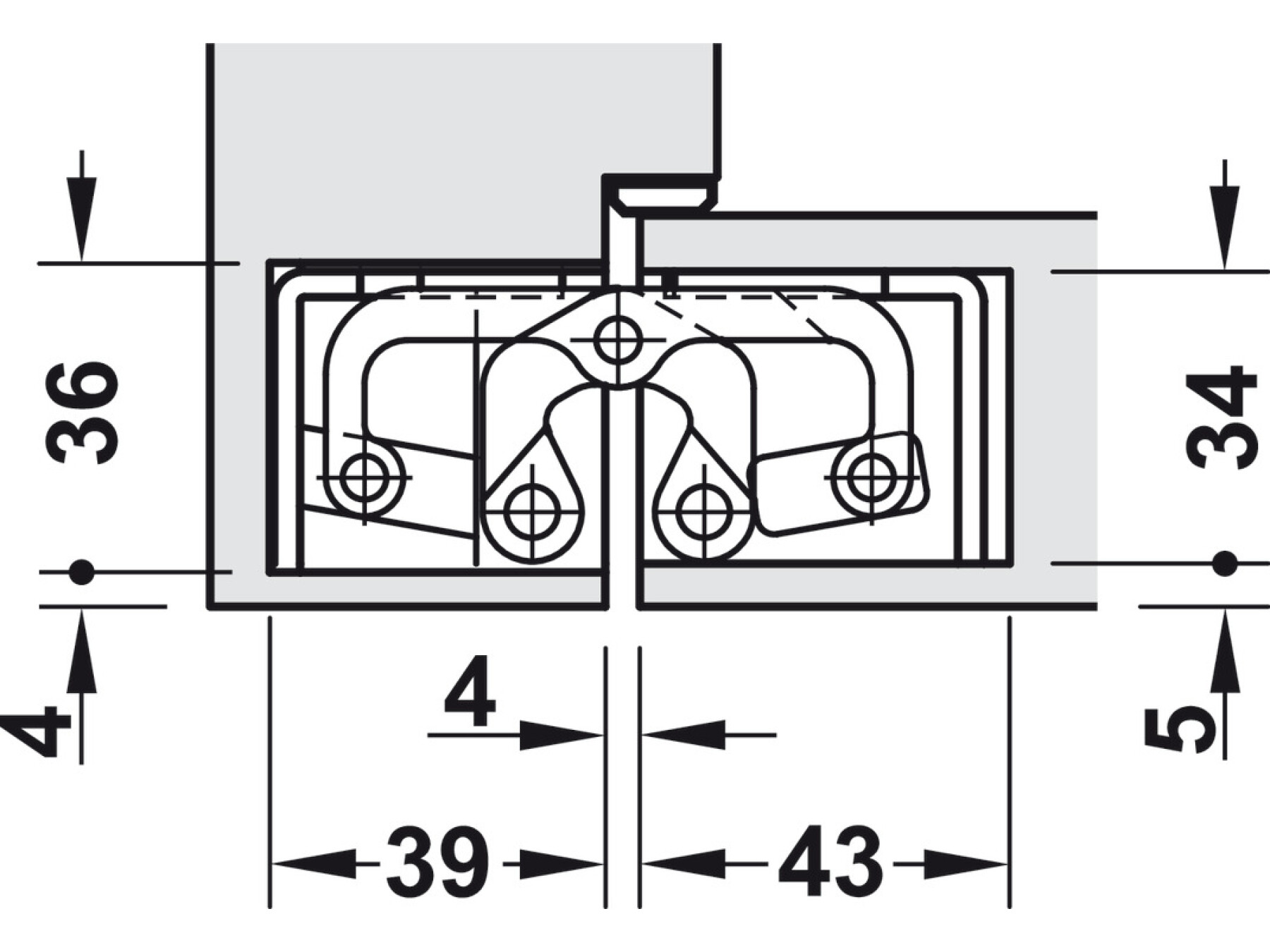

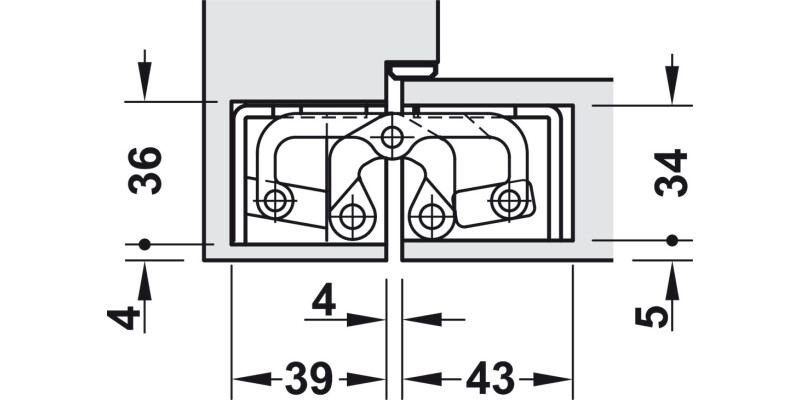

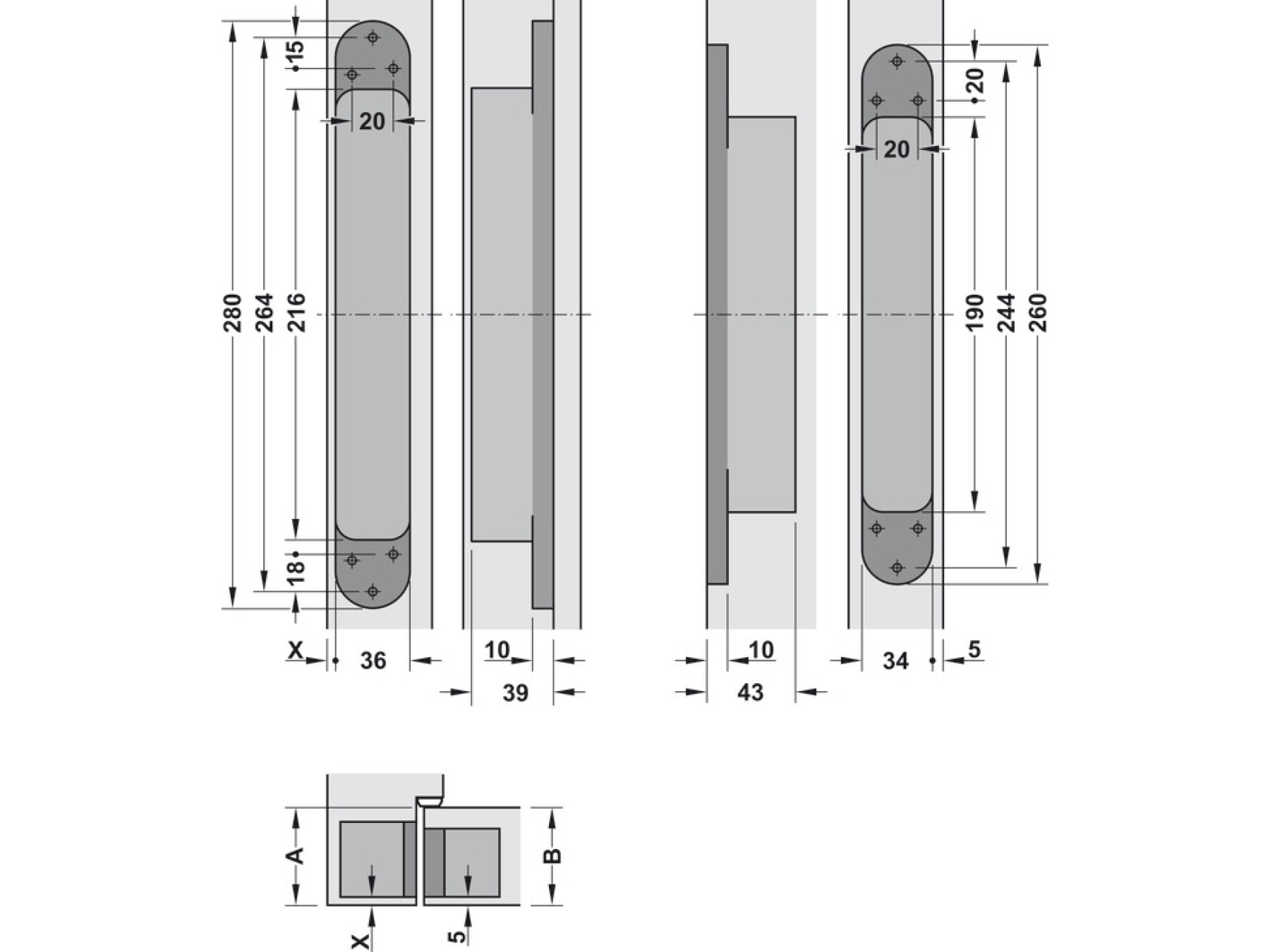

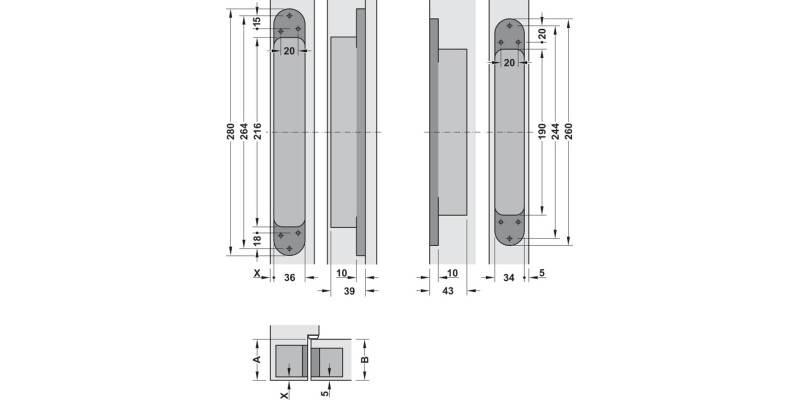

Installation is straightforward and flexible. The hinge is suitable for DIN left and DIN right applications, with a rounded flange profile and a flange width of 36 mm / 34 mm (depending on configuration). Flange height is 280 mm / 260 mm, supporting a secure fit with the correct routing and clearances.

For confident adjustment once installed, this 3DContinuous adjustment hinge lets you fine-tune in three directions: side adjustment ±3 mm, height adjustment (-3 to 3 mm), and closing pressure ±1 mm. This makes it easier to dial in even, professional door alignment over time.

Designed for wooden, steel, or aluminium frames and compatible with flush doors, the TE645 3D hinge meets EN 1935:2002 requirements. If you’re upgrading door hardware with precision and style, choose 3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 645 3D—engineered to look great and work effortlessly.
