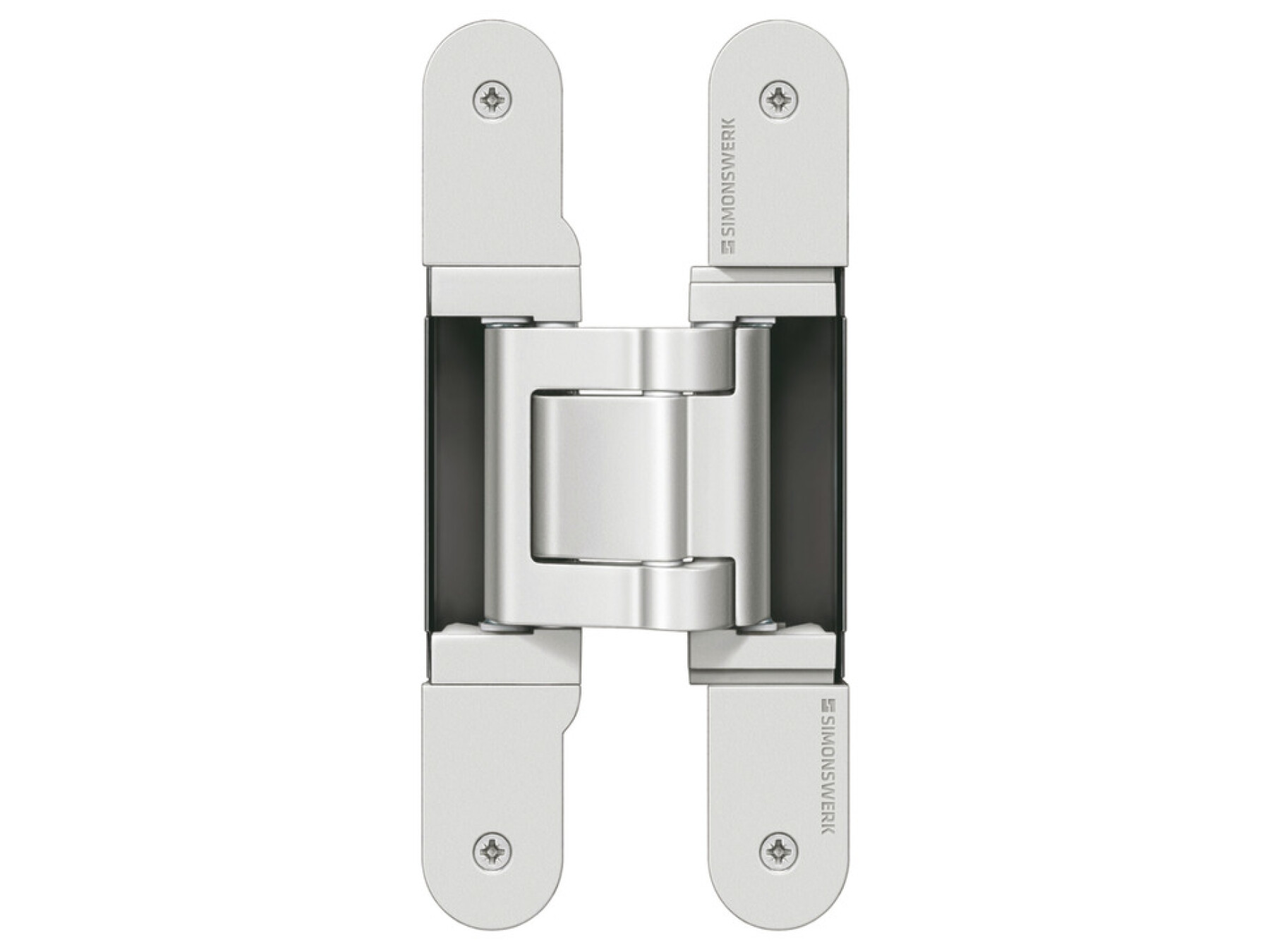

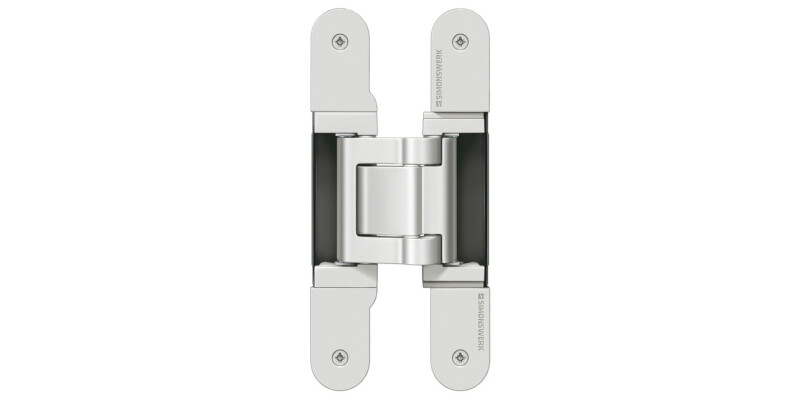

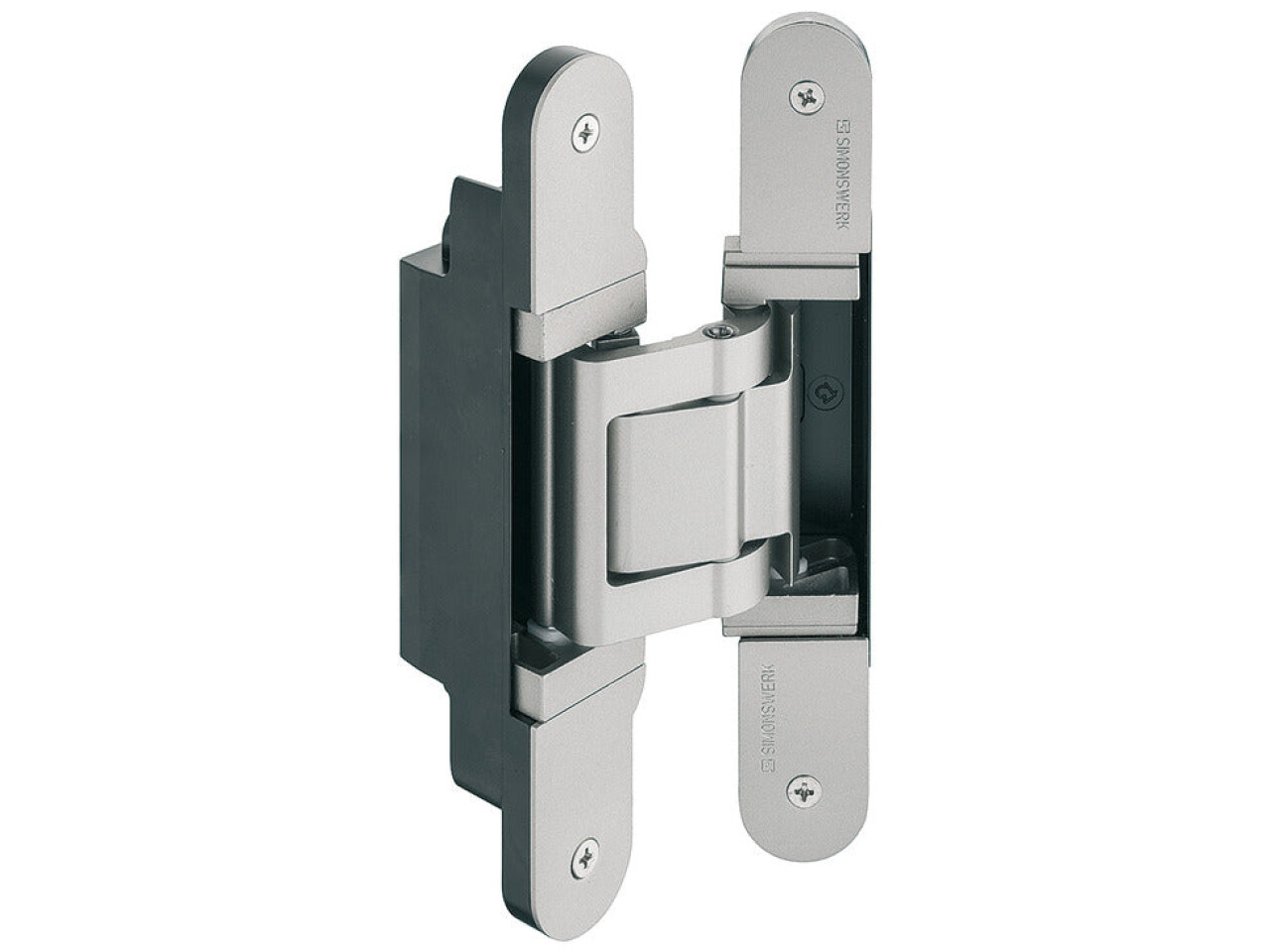

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 541 3D FVZ

Product Details

3D Hinge, 180°, Aluminium, Zinc Diecast and Steel, Tectus TE 541 3D FVZ. is a premium choice for anyone upgrading door hardware with both performance and a refined, stainless steel effect. Designed for smooth everyday operation, this architectural door hinge combines precise control with a clean, modern finish—perfect for residential and commercial installations.

Built for flexibility, the 3-way continuous adjustment lets you fine-tune alignment for an impressive fit. With side adjustment of 3 mm and height correction from -3 to +3 mm, plus closing pressure tolerance of ±1 mm, you can achieve a consistent, professional result even after installation.

Featuring rounded flanges with a 28 mm flange width and an 185 mm flange height, the TE 541 3D FVZ (Part No. 924.19.010) suits flush doors across a range of frame types. It is suitable for wooden, steel, and aluminium frames, making it a versatile solution for new builds and refurbishment projects.

Engineered for strength and stability, the hinge supports up to 100 kg maximum door weight when used with two hinges. The opening angle reaches 180°, while the recommended door thickness is ≥40 mm. For accurate installation, a 24 mm router bit and a 30 mm thrust ring Ø are used.

Certified to EN 1935:2002, this hinge model belongs to the TECTUS TE 541 3D FVZ series and is supplied with fixings, so you can move from planning to fitting with confidence.

Upgrade your door alignment and hardware finish today—choose the Tectus TE541 3D FVZ stainless steel effect hinge.

Fixings
