3D Hinge, 180�, Aluminium, Zinc Diecast and Steel, Tectus TE 540

Product Details

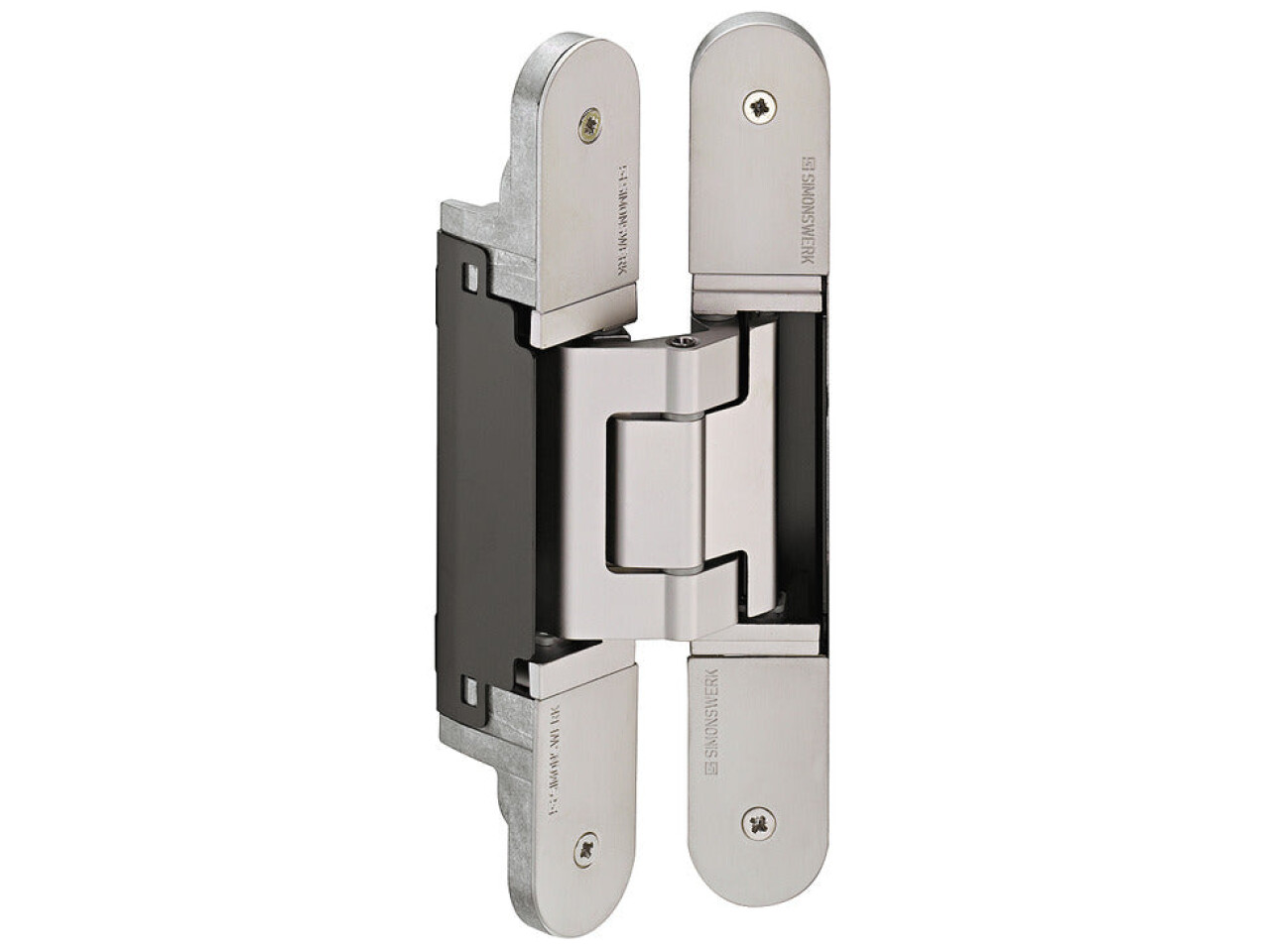

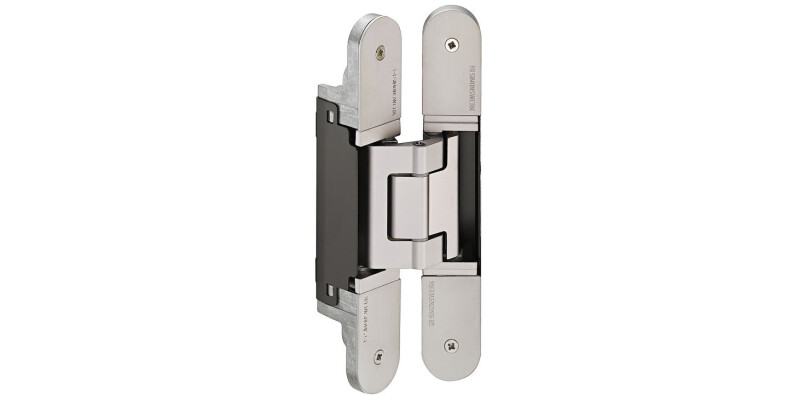

3D Hinge, 180�, Aluminium, Zinc Diecast and Steel, Tectus TE 540 (Part No: 924.17.204) is a premium architectural door hinge designed for smooth operation, precise positioning, and a clean satin stainless steel effect finish. Ideal for customers seeking reliable 3-way adjustment and a professional result on modern flush doors, this hinge brings controlled performance to both residential and commercial installations.

The “3-way continuous adjustment” feature makes alignment effortless. With side adjustment of ±3 mm, height adjustment of -3 to +3 mm, and closing pressure tolerance of ±1 mm, you can fine-tune door positioning for consistent gaps and an attractive, balanced look. This is especially useful when fitting doors in frames that demand accuracy and repeatability.

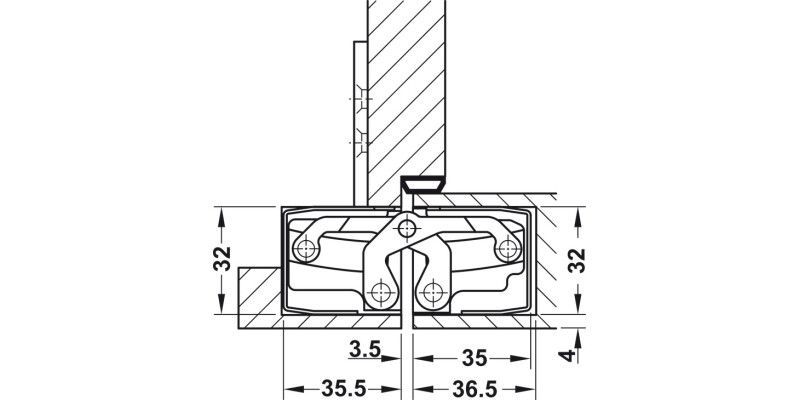

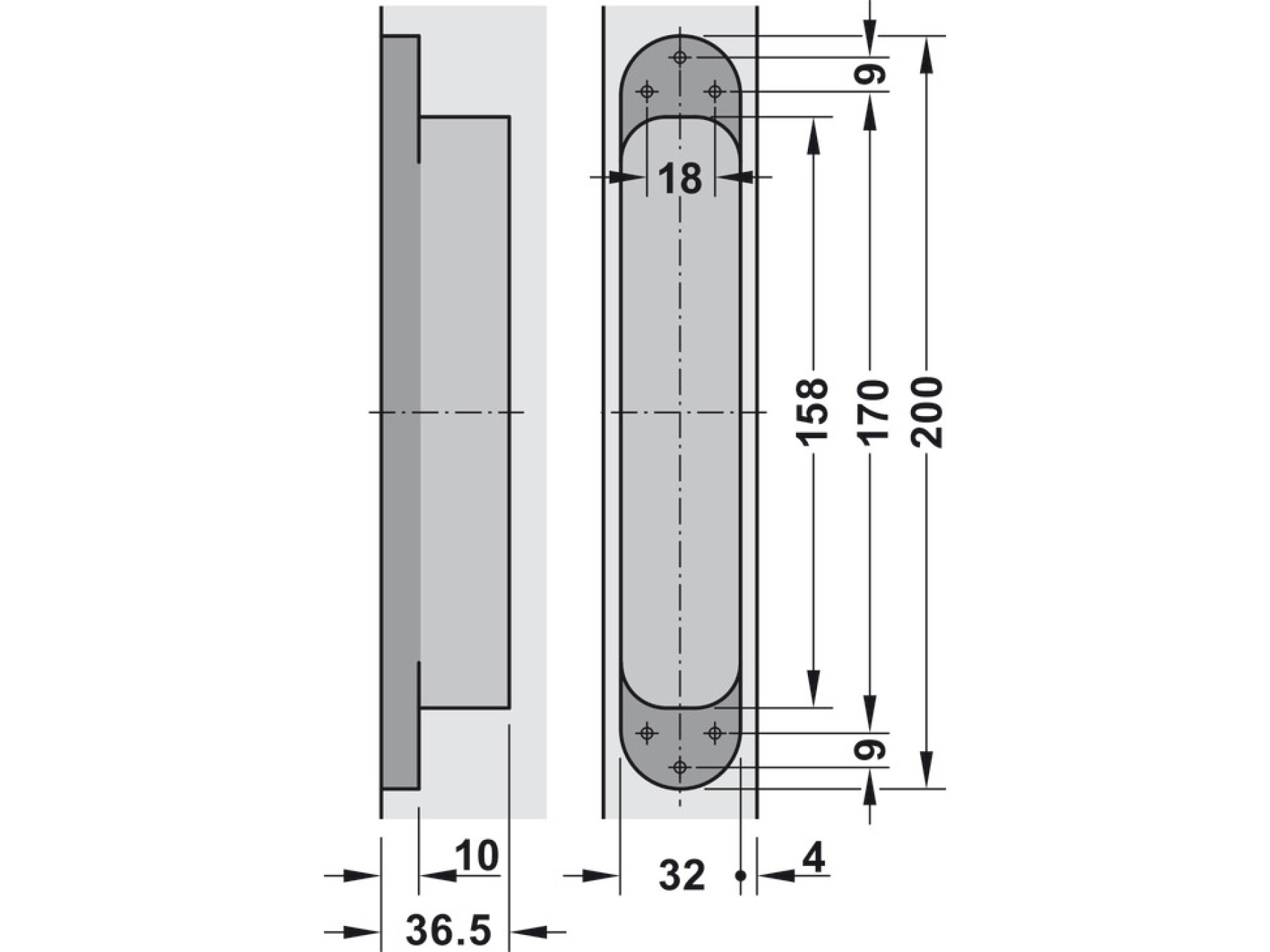

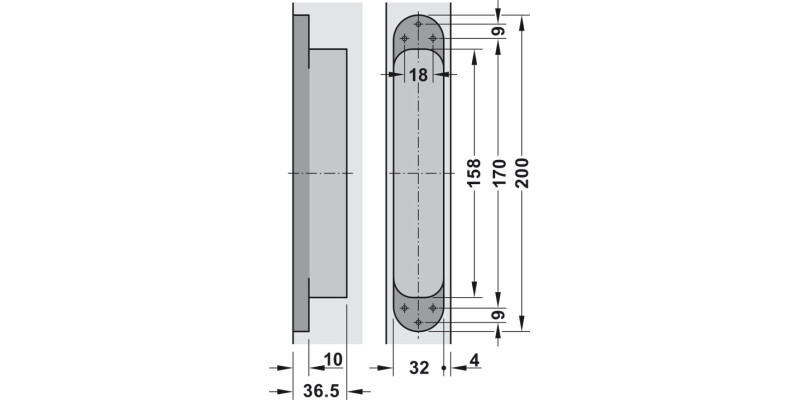

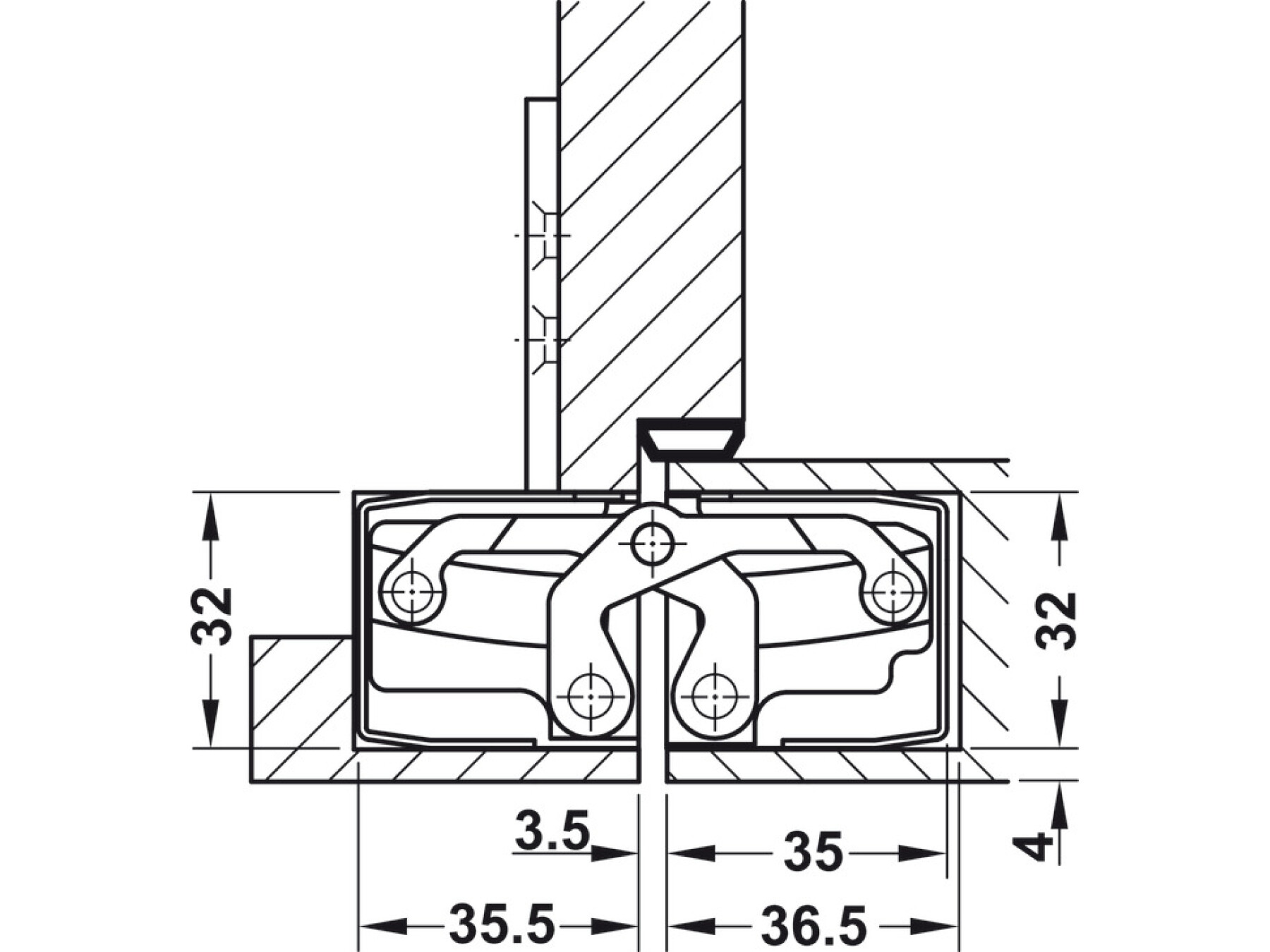

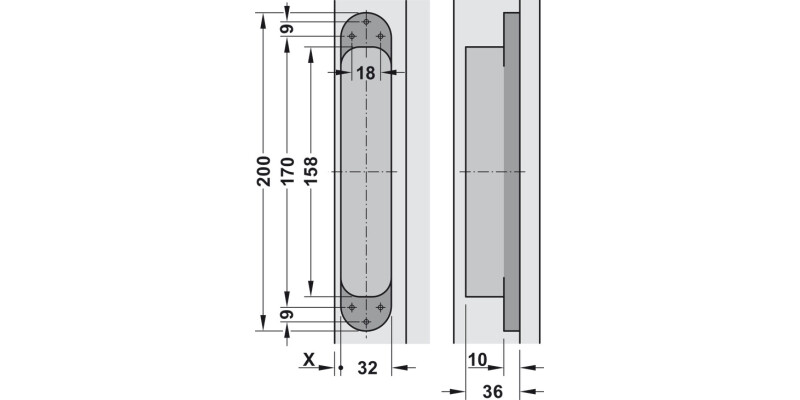

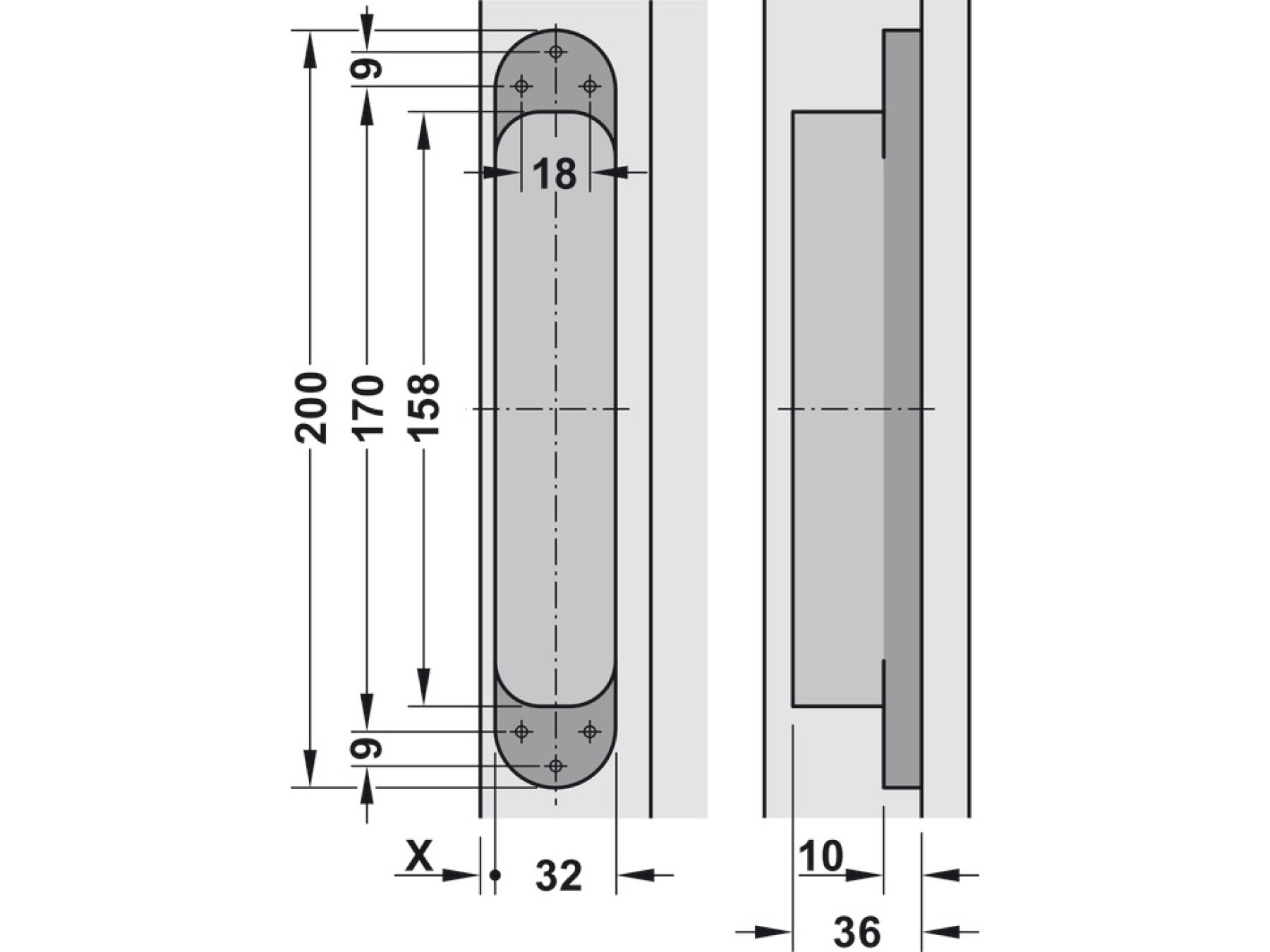

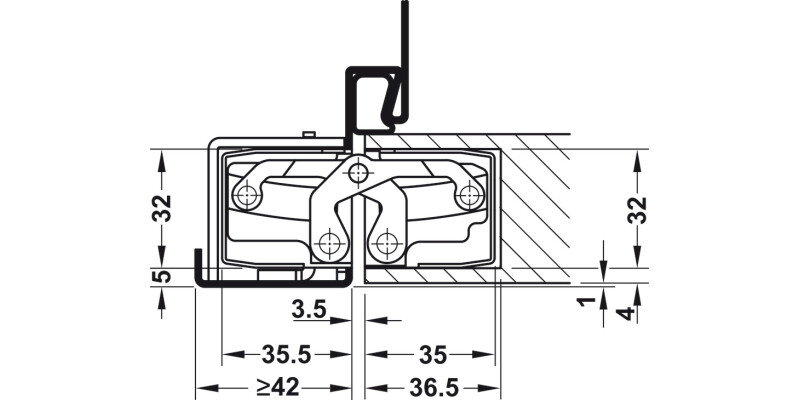

Designed for durability, the flange is rounded and delivers an architectural appearance with a 32 mm flange width and 200 mm flange height. Built from aluminium and steel, the TE540 3D hinge is certified to EN 1935:2002, supporting confidence in long-term use.

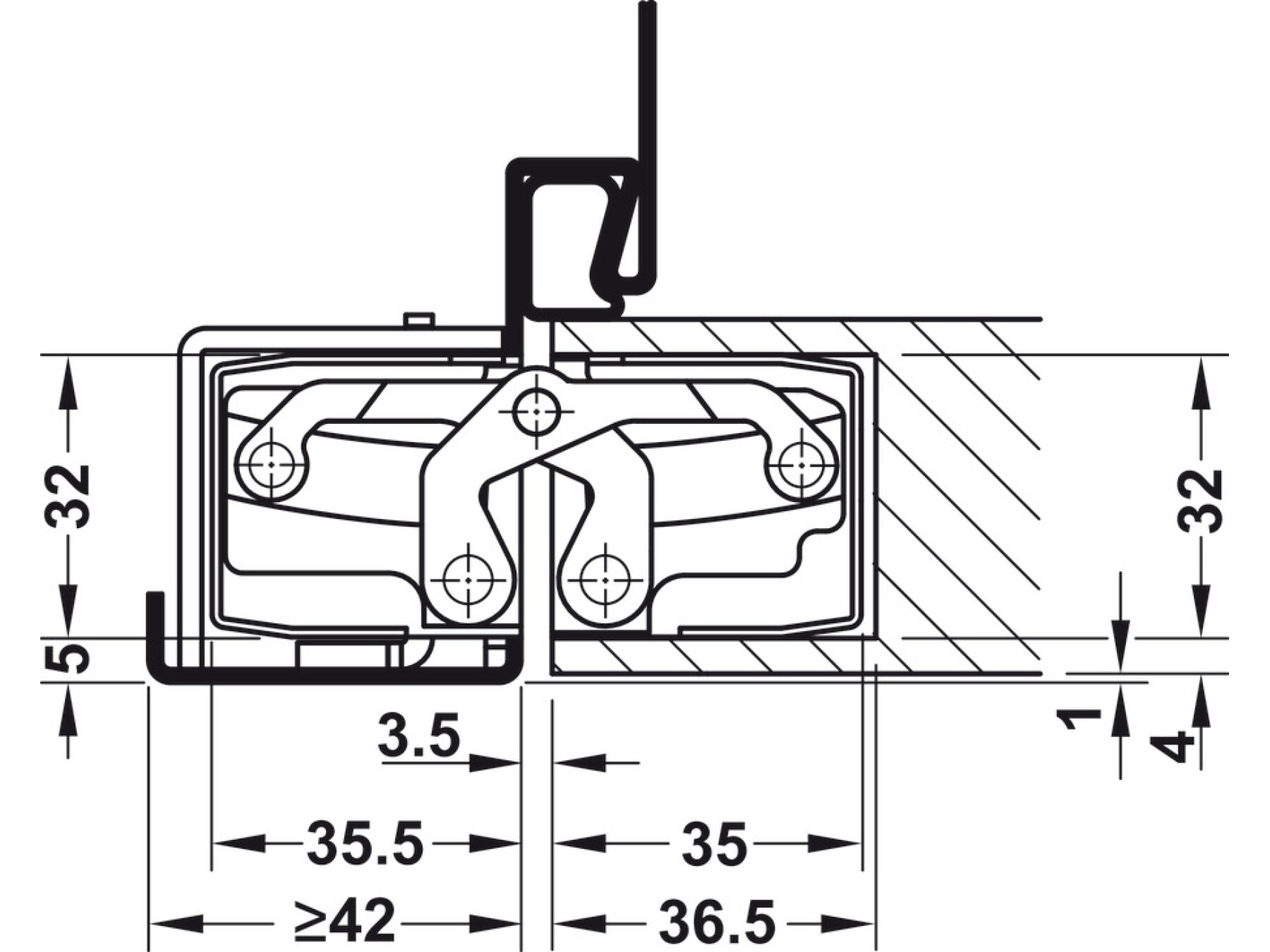

For installation flexibility, it is suitable for wooden, steel, or aluminium frames and supports DIN left and DIN right mounting. The hinge enables up to 180° opening angle and is rated for a maximum door weight of 120 kg (for 2 hinges). It works with door thickness ≥40 mm and typically uses a router bit Ø 24 mm.

Supplied with fixing screws, the Tectus TE540 3D 180D hinge is the smart choice when you want refined looks, accurate alignment, and dependable door control in one complete solution.

For 30 minute fire rating order intumescent kit separately

Fixing screws
