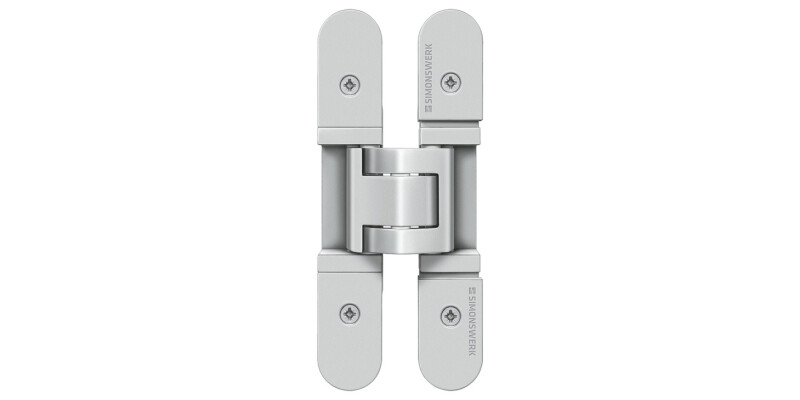

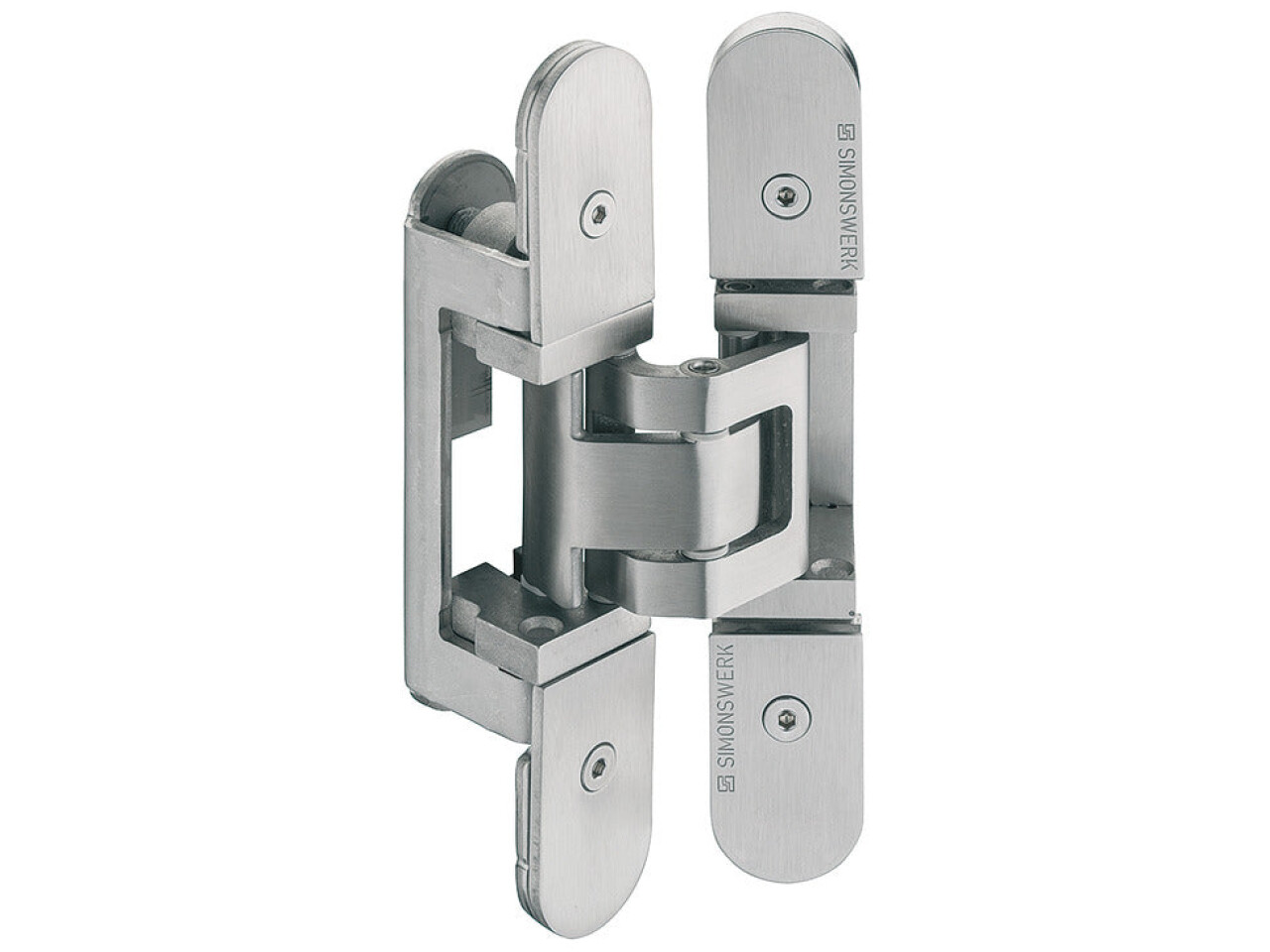

3D Hinge, 180°, Aluminium, Grade 304 Stainless Steel, Tectus TE 526 3D

Product Details

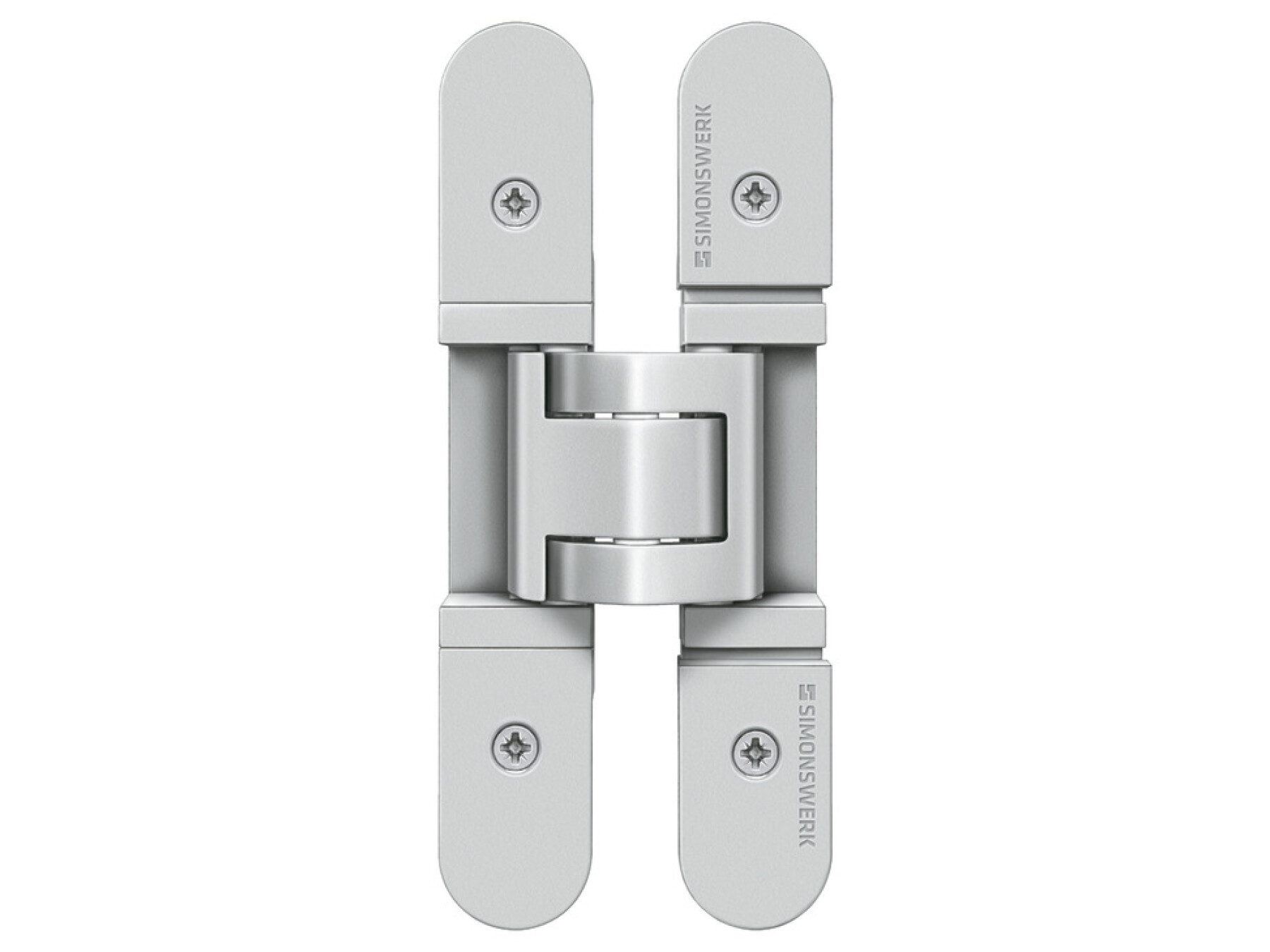

3D Hinge, 180°, Aluminium, Grade 304 Stainless Steel, Tectus TE 526 3D (Product Part No: 924.16.803) is a premium architectural door hinge designed for smooth, reliable performance and precise alignment. Finished in a satin, matt look, this TE 526 3D hinge brings an elegant, contemporary finish to flush doors while offering the kind of adjustability that installers and specifiers value.

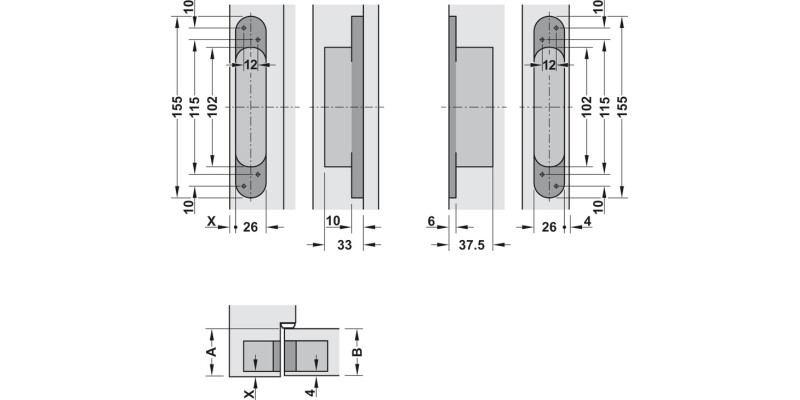

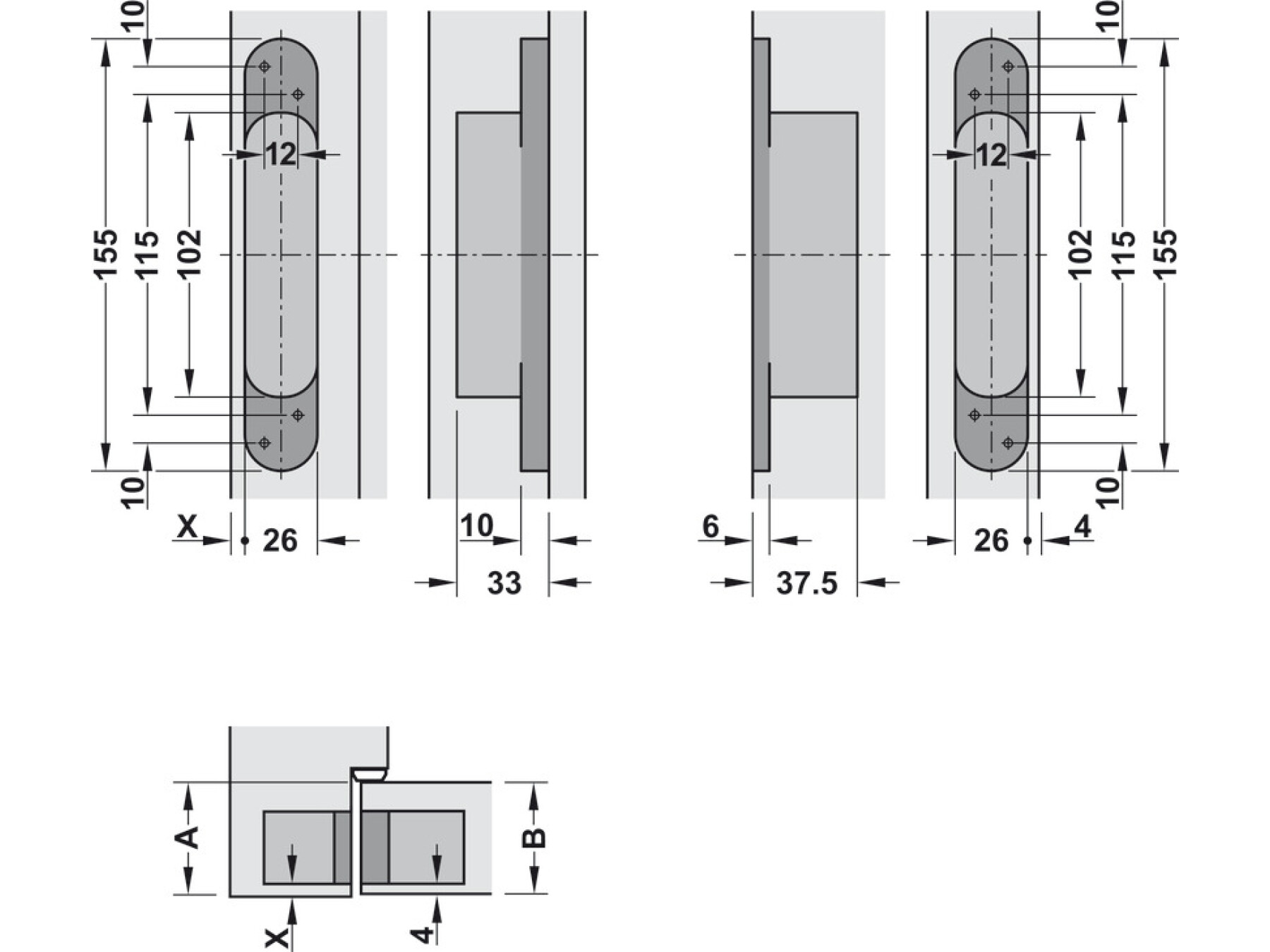

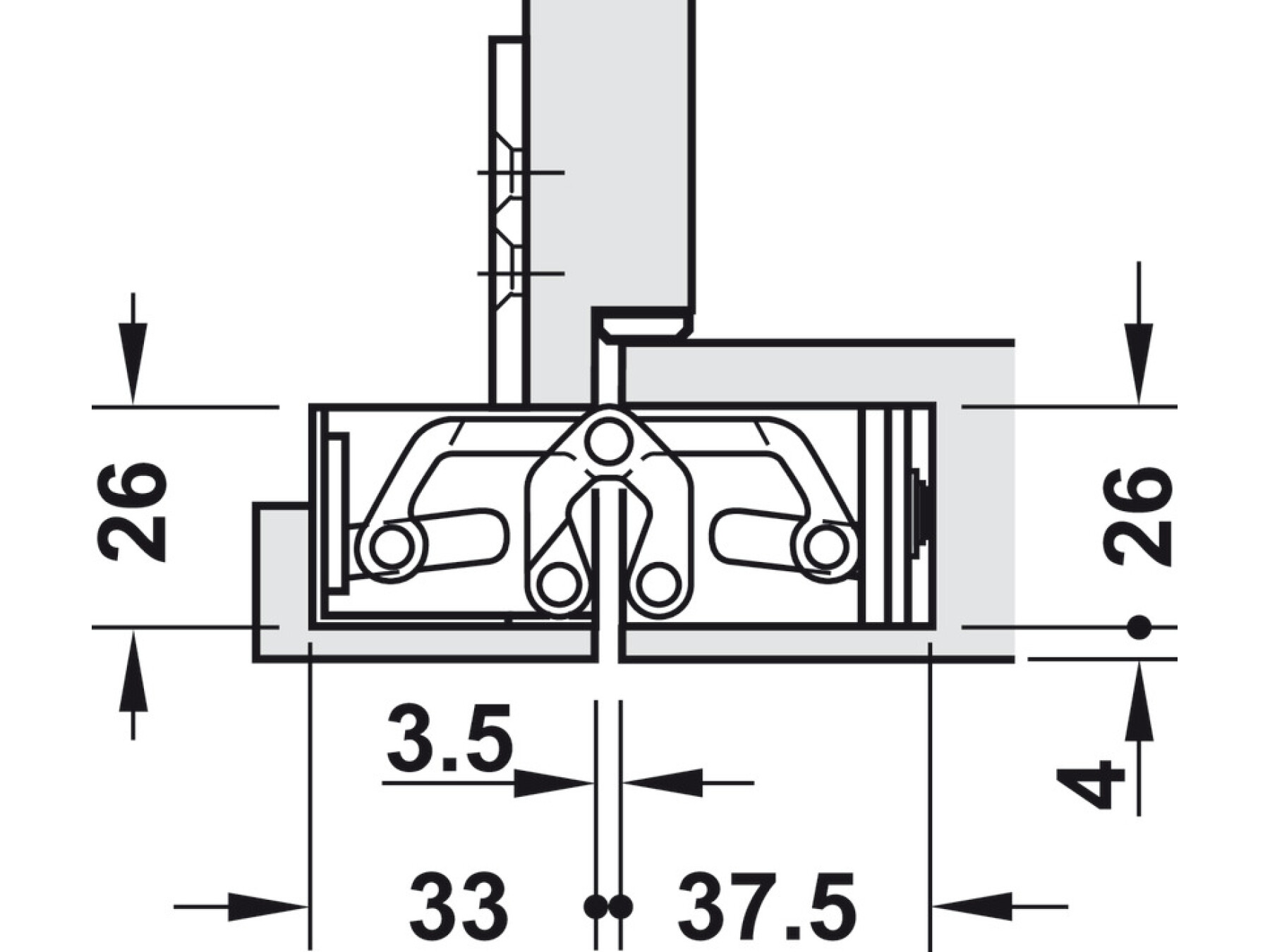

Built from stainless steel and certified to EN 1935:2002, the Tectus TE526 supports confident, long-term use on wooden, steel, or aluminium frames. Its rounded flange shape with a 26 mm flange width and 155 mm flange height delivers a clean installation profile.

What sets this hinge apart is its 3-way continuous adjustment: side adjustment of 3 mm, height adjustment of -3 to +3 mm, and closing pressure adjustment of ±1 mm. This helps you achieve a consistent door gap and refined closing action—ideal when fitting new doors or making fine adjustments after installation.

Engineered for versatility, the hinge supports an opening angle of 180°, suitable for door thickness ≥35 mm. It uses a router bit Ø 24 mm and a thrust ring Ø 30 mm, and features a maintenance-free friction bearing for dependable operation.

For fire performance, the TE 526 (fire resistant with intumescent kit) option is available—FD 60 fire rating when installed with intumescent kit Cat. No. 924.17.697 (ordered separately). Supplied with fixing screws for both frame and door part, this hinge is a smart choice for professional results.

Max. door weight for 2 hinges: 100.00 kg.

FD 60 fire rated when installed with intumescent kit Cat. No. 924.17.697, to be ordered separately

Fixing screws included for frame and door part
