3D Hinge, 180°, Grade 304 Stainless Steel, Tectus TE 526 3D Energy

Product Details

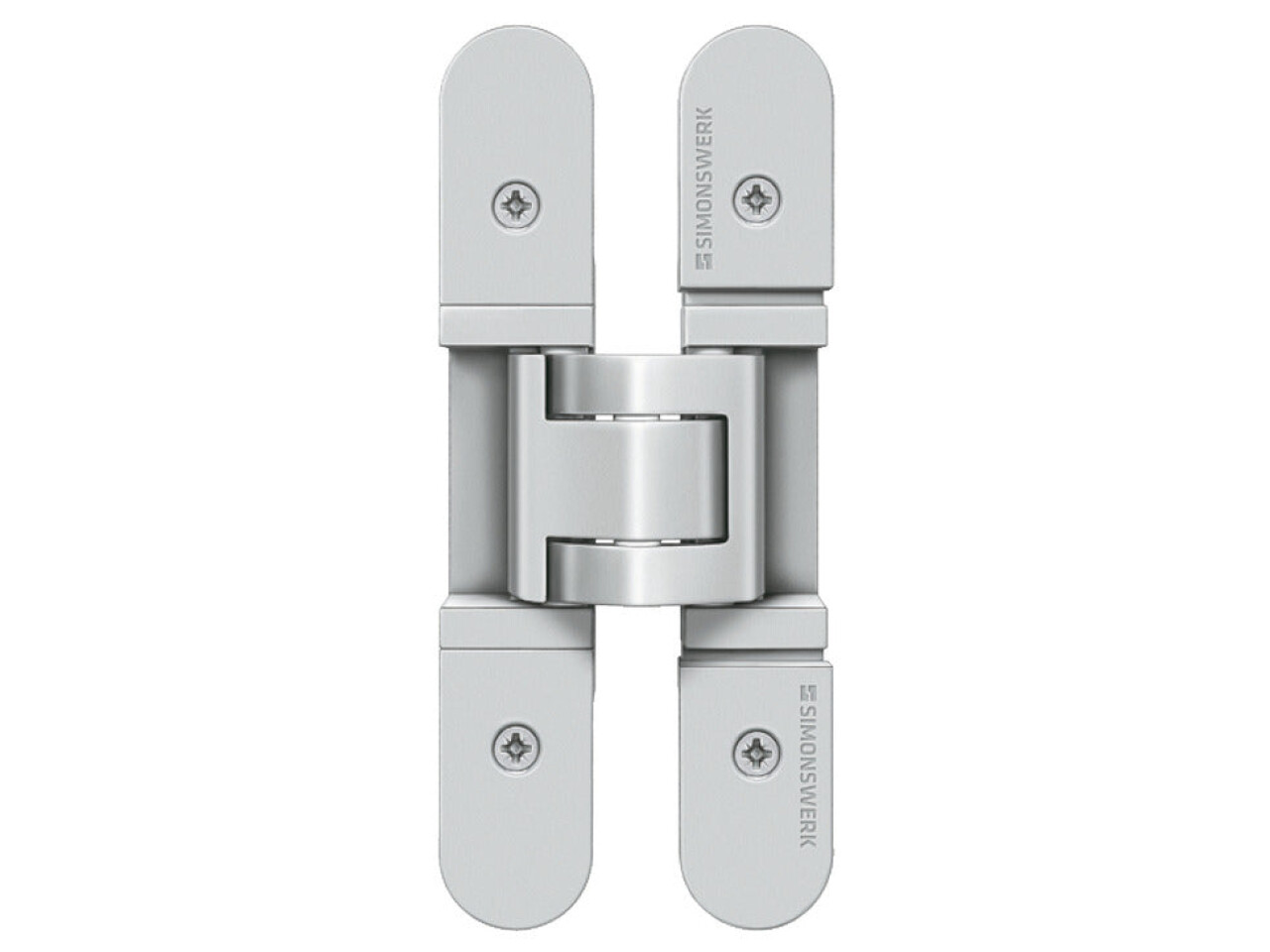

3D Hinge, 180°, Grade 304 Stainless Steel, Tectus TE 526 3D Energy (Part No: 924.16.800) is a precision-engineered architectural hinge designed for effortless alignment and long-lasting performance. With its clean, modern look, this 3D hinge is a great choice for projects where accuracy, durability, and a refined satin appearance are essential.

Featuring a satin stainless steel finish, the TE526 blends seamlessly with contemporary interiors while resisting everyday wear. Constructed from stainless steel quality 1.4301 / AISI 304, it’s built for dependable service and smooth, controlled operation—ideal for commercial and residential door installations alike.

This hinge offers 3-way continuous adjustment, making it simple to achieve a perfect fit and consistent door gaps. Adjust vertically by ± 3 mm, horizontally by ± 3 mm, and fine-tune the depth by ± 1.0 mm, ensuring your door hangs true from day one through ongoing maintenance.

Designed for versatility, it is suitable for wooden, steel, or aluminium frames and works well with flush doors. It supports an opening angle of 180° and is compatible with door thicknesses of ≥ 40 mm.

Safety note: FD 60 fire rating can be achieved when installed with the appropriate intumescent kit Cat. No. 924.17.697 (ordered separately). Supplied with fixings for a straightforward installation.

Choose the 3D Hinge, 180°, Grade 304 Stainless Steel, Tectus TE 526 3D Energy for confident alignment, refined aesthetics, and professional-grade performance—an ideal upgrade for any door hinge requirement.

FD 60 fire rated when installed with intumescent kit Cat. No. 924.17.697, to be ordered separately

Fixings
