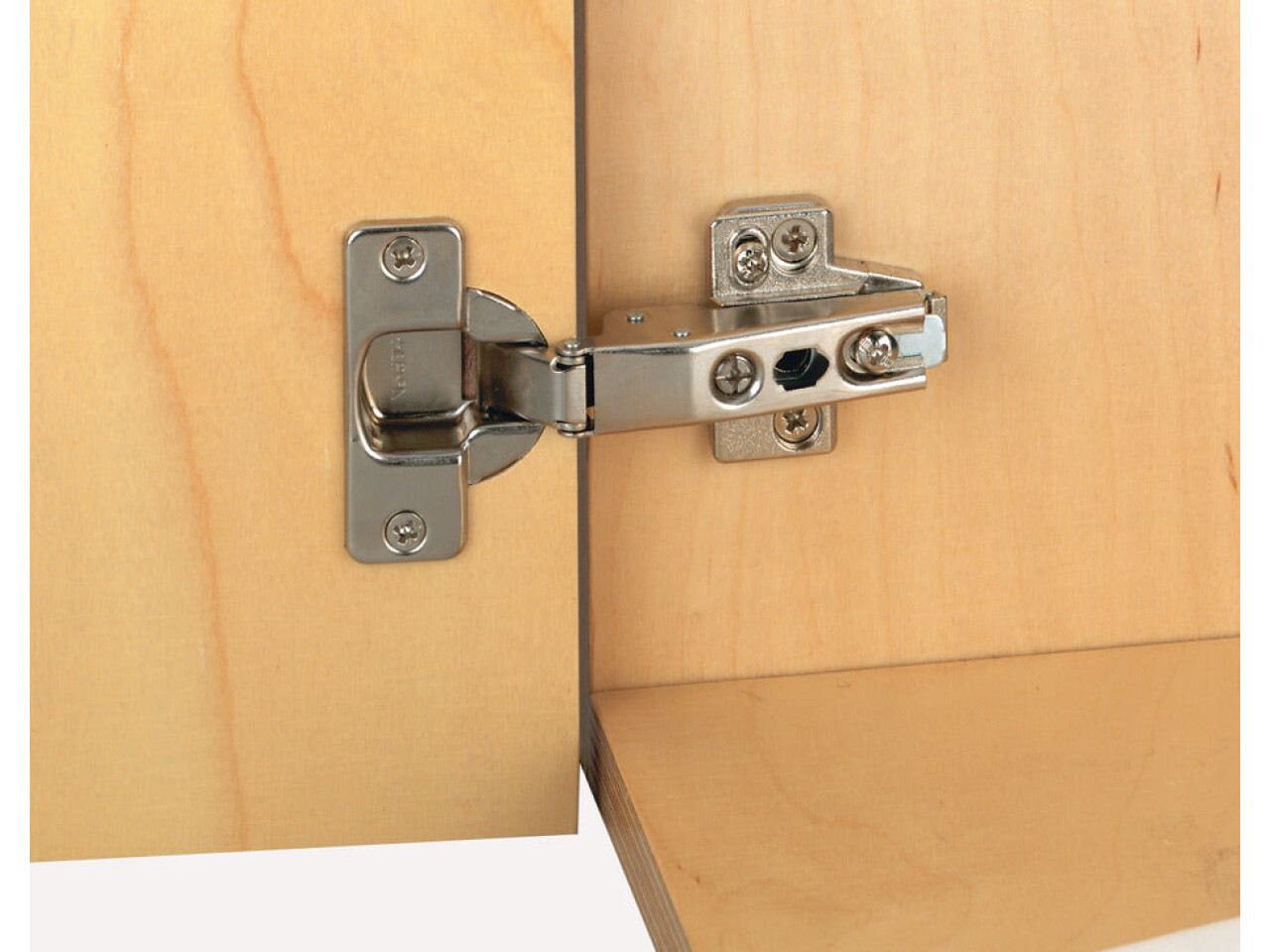

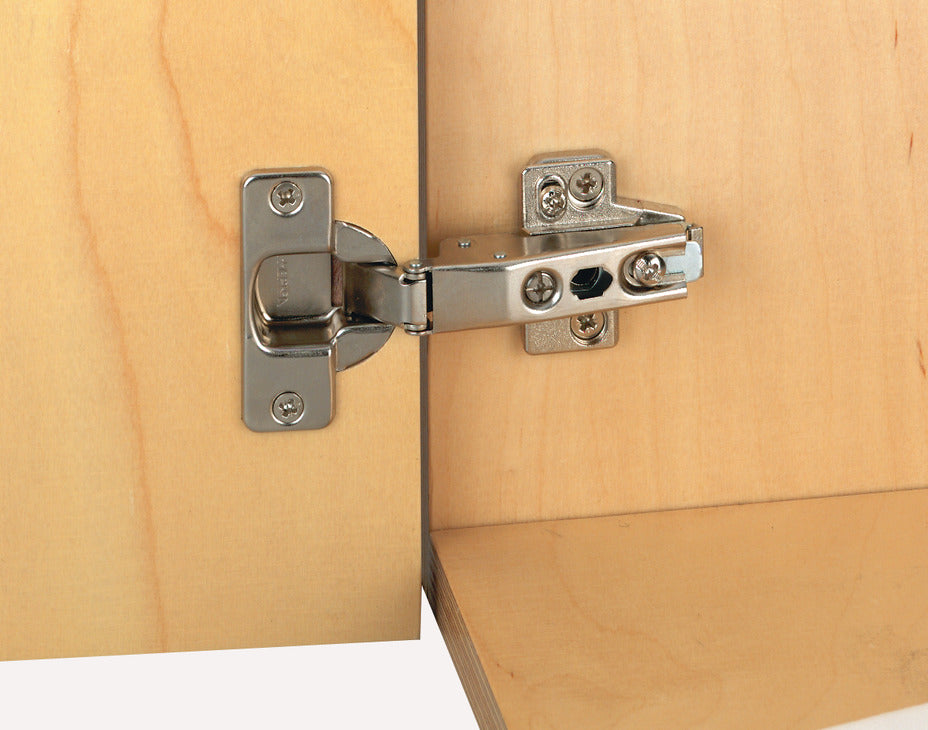

Concealed Cup Hinge, 95° Nexis, Unsprung, Grass Tipmatic

Product Details

Concealed Cup Hinge, 95° Nexis, Unsprung, Grass Tipmatic. (Part No: 323.10.508) is a premium concealed cabinet hinge designed for smooth operation, clean alignment, and a professional finish. Built for everyday furniture use and commercial installations alike, this hinge brings reliable performance without visual bulk—ideal for modern cabinet doors where style and functionality must work together.

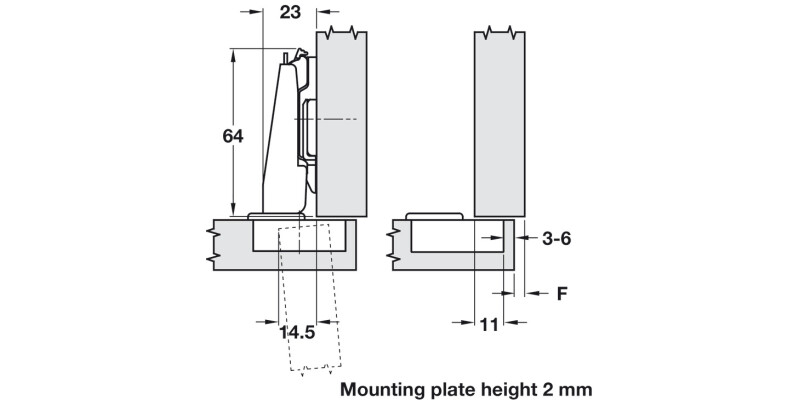

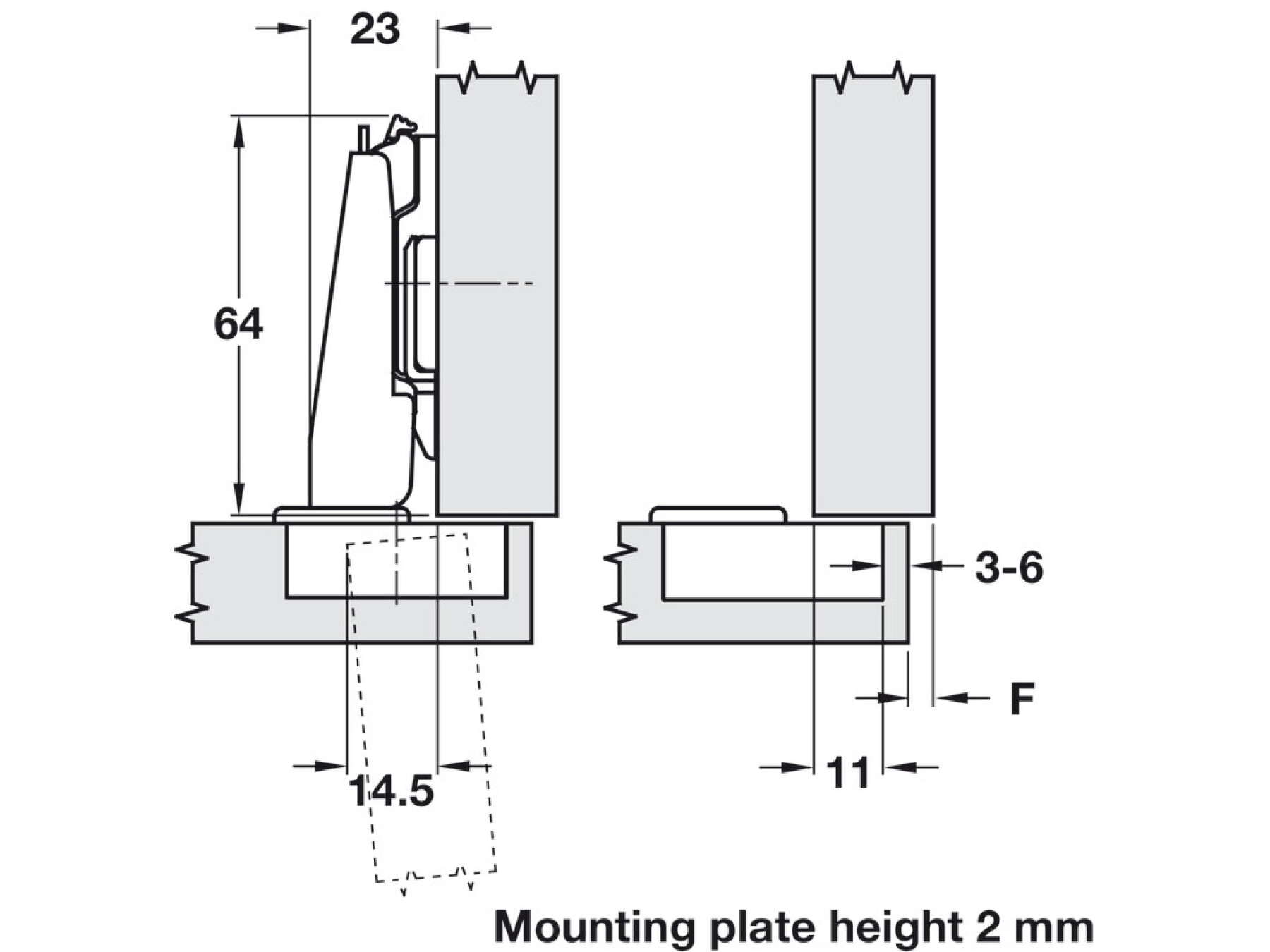

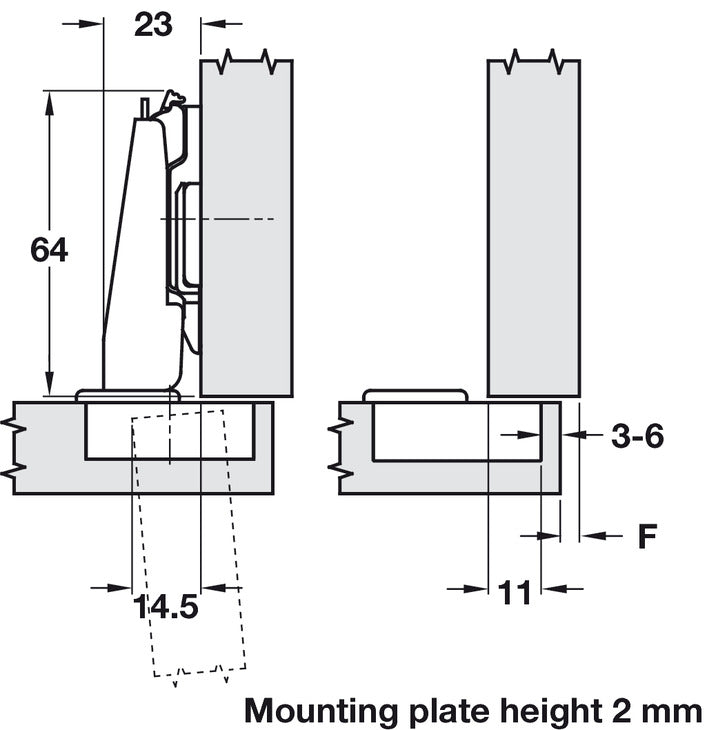

The 0 mm crank configuration helps you achieve precise door positioning, while the screw fixing cup and slide on arm design make installation straightforward and efficient. With straight crank geometry and engineered compatibility for standard applications, it’s a dependable choice for upgrading existing cabinets or fitting new projects.

Key specifications at a glance: suitable for doors with cup drilling during assembly, the hinge uses steel construction for strong durability and long-term service. Finished in nickel plated hardware, it resists everyday wear and complements a wide range of interiors. The hinge offers a 95° opening angle, providing generous access for comfortable use.

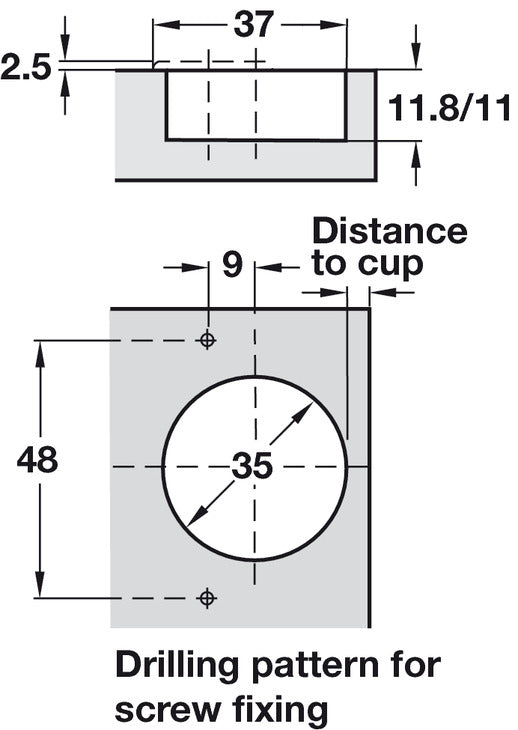

For precise fitting, the cup drilling depth is 11.80 mm, with a 35.00 mm cup diameter. The fixing is for screw fixing, using a 48/9 drilling pattern for secure mounting and stable performance.

If you’re searching for a concealed hinge that combines accuracy, durability, and a clean look, the Concealed Cup Hinge, 95° Nexis, Unsprung, Grass Tipmatic. is an excellent solution—order today for confident cabinet fitting results.
