Mounting Plate, Super Compact Flanges, with Pre-Mounted Euro Screws, Häfele Meta

Product Details

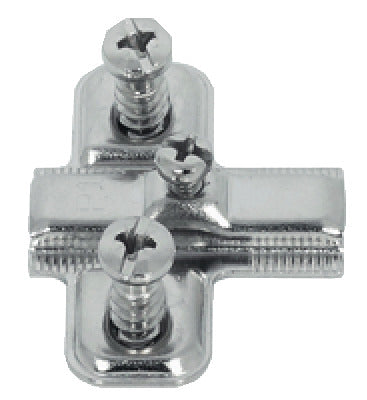

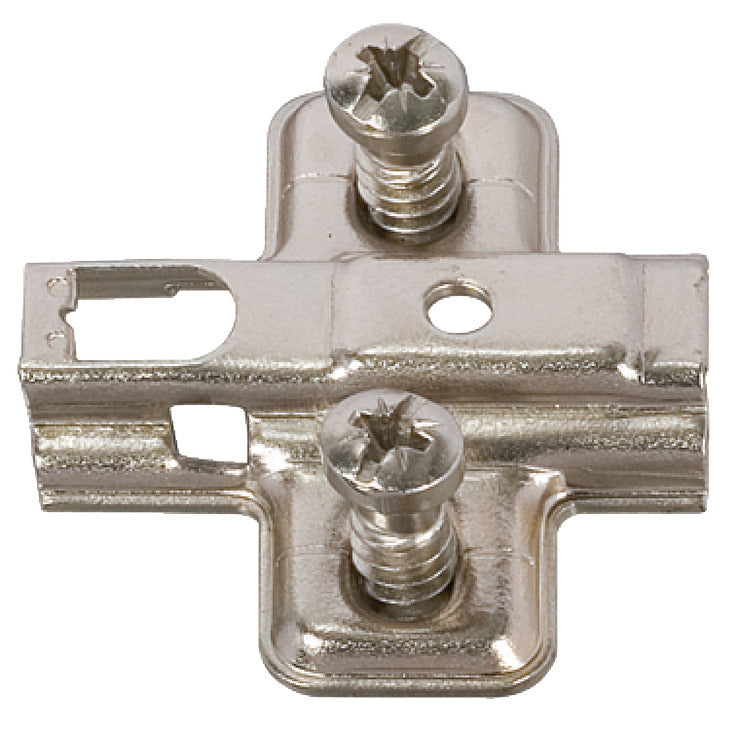

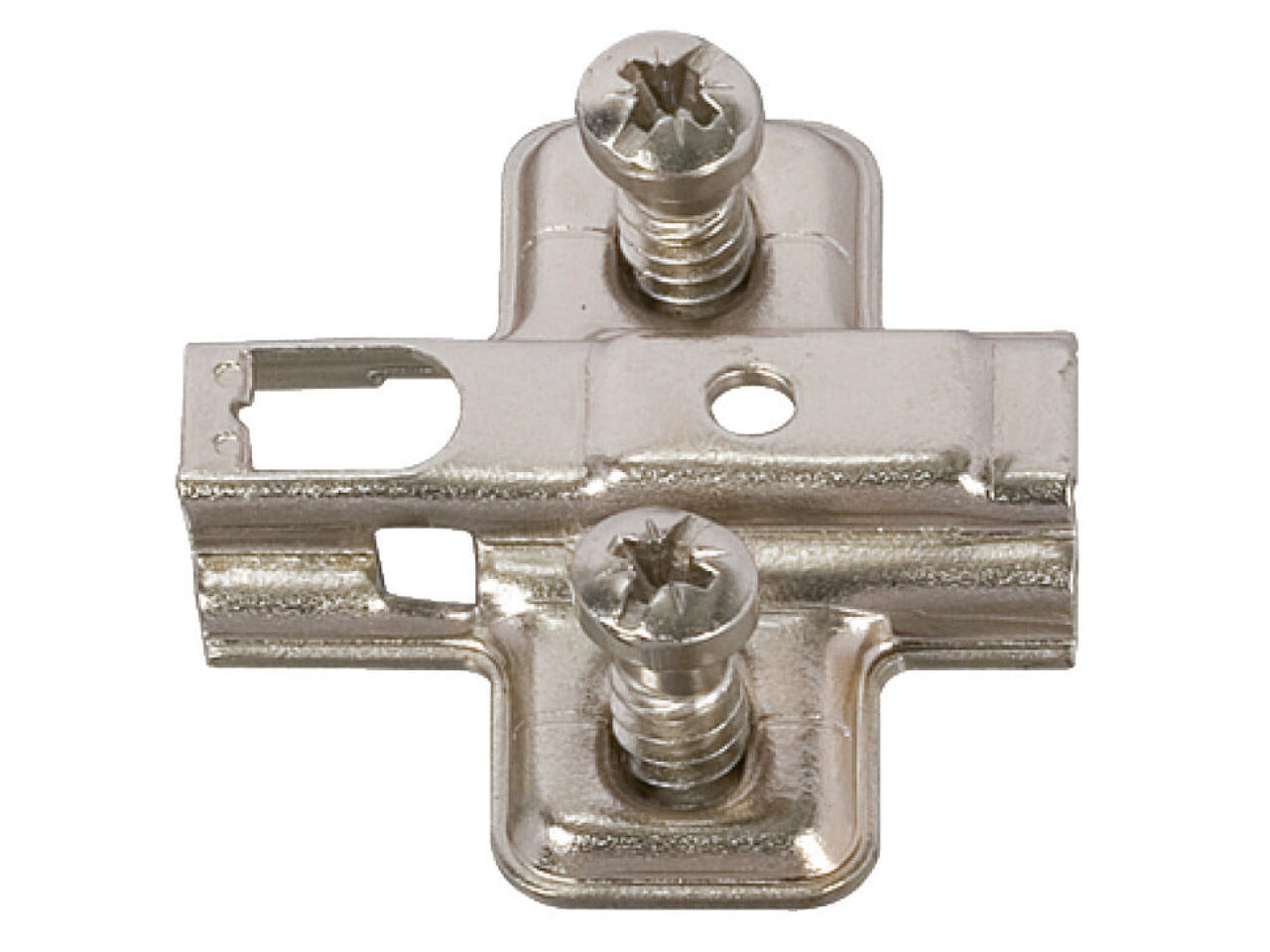

Mounting Plate, Super Compact Flanges, with Pre-Mounted Euro Screws, Häfele Meta (Part No: 311.71.514) is the smart, space-saving choice for installers and furniture makers who want fast, accurate hinge fitting. Designed as a height 4 mm nickel plated mounting plate, it’s made to work smoothly with modern Häfele quick-fixing hinge systems—helping you reduce setup time while keeping results professional.

Built for quick fixing, this mounting plate uses the SM quick fixing system for reliable attachment and clean alignment. It’s specifically for Häfele Metalla 310 SM concealed hinges, making it ideal when you’re building kitchens, wardrobes, cabinetry, or commercial fit-outs where speed and consistency matter.

Material & finish: Constructed from steel and finished in nickel plating for durable performance and a neat appearance.

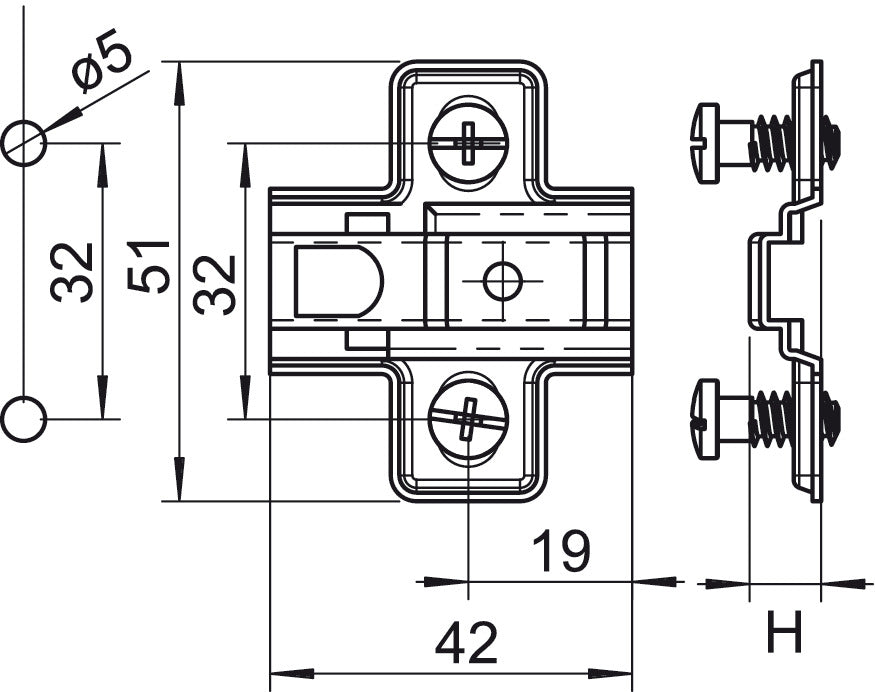

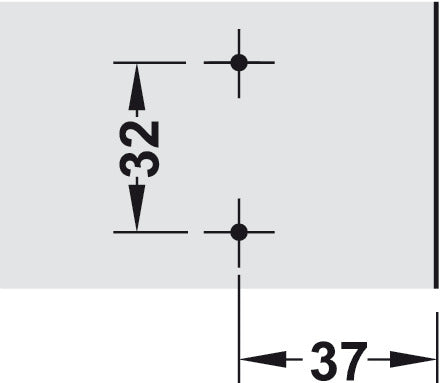

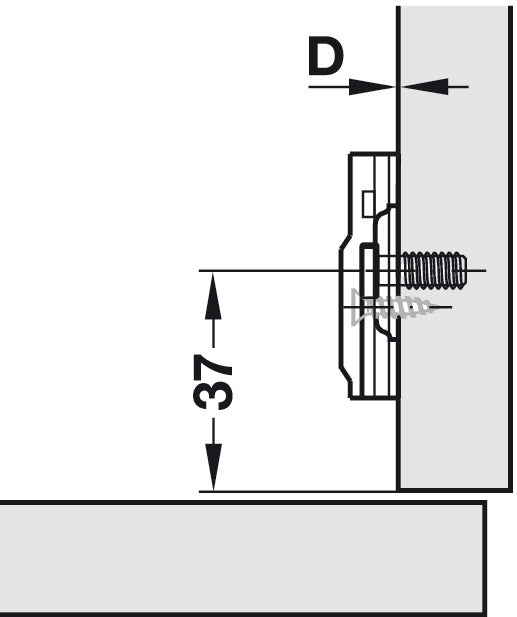

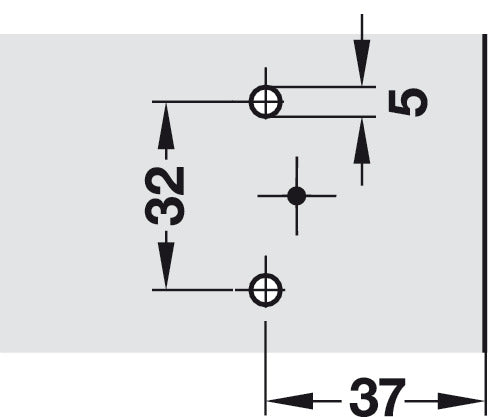

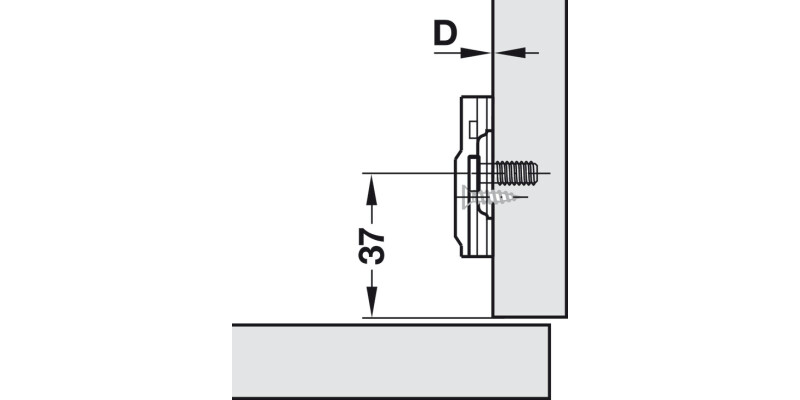

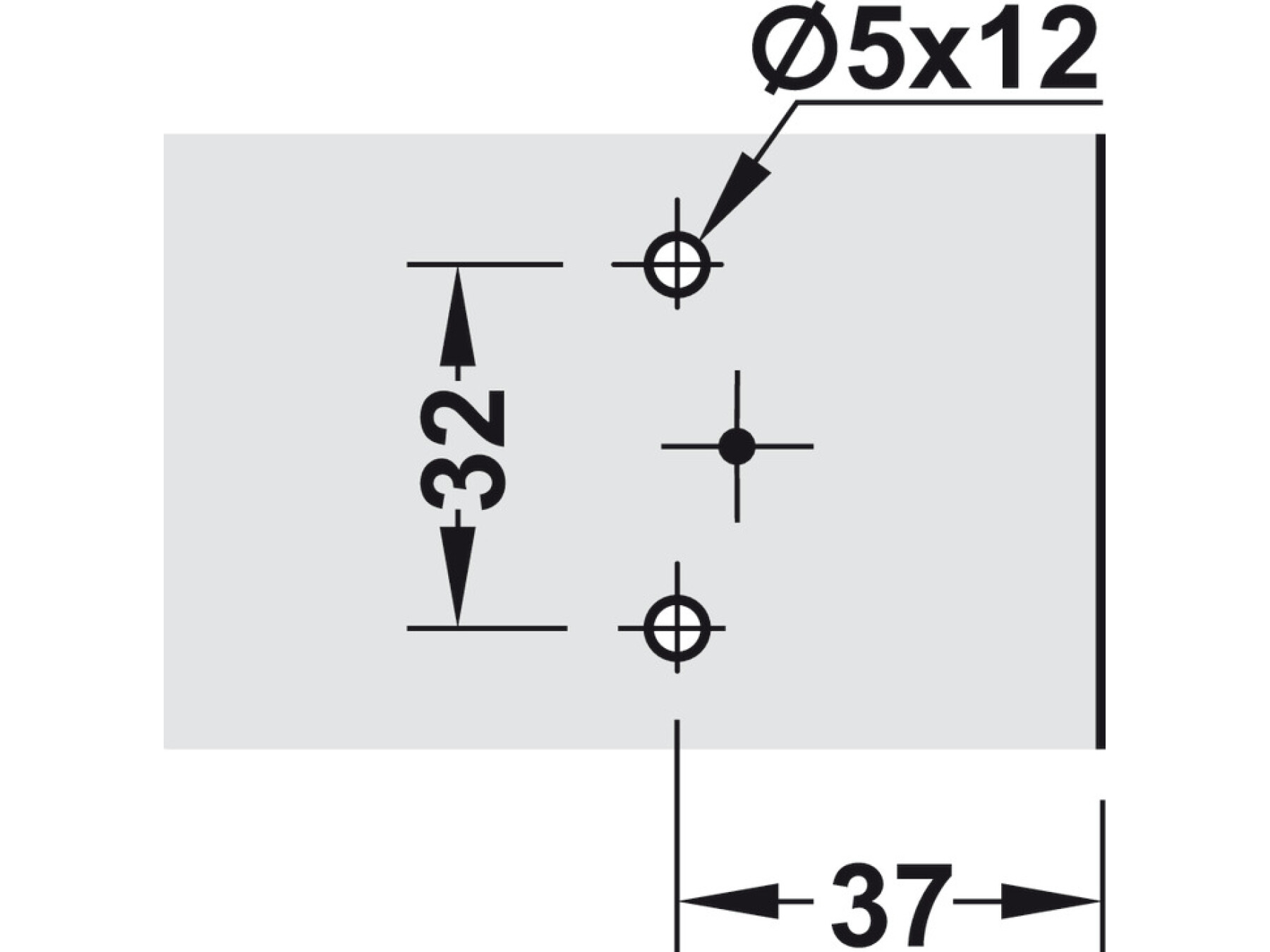

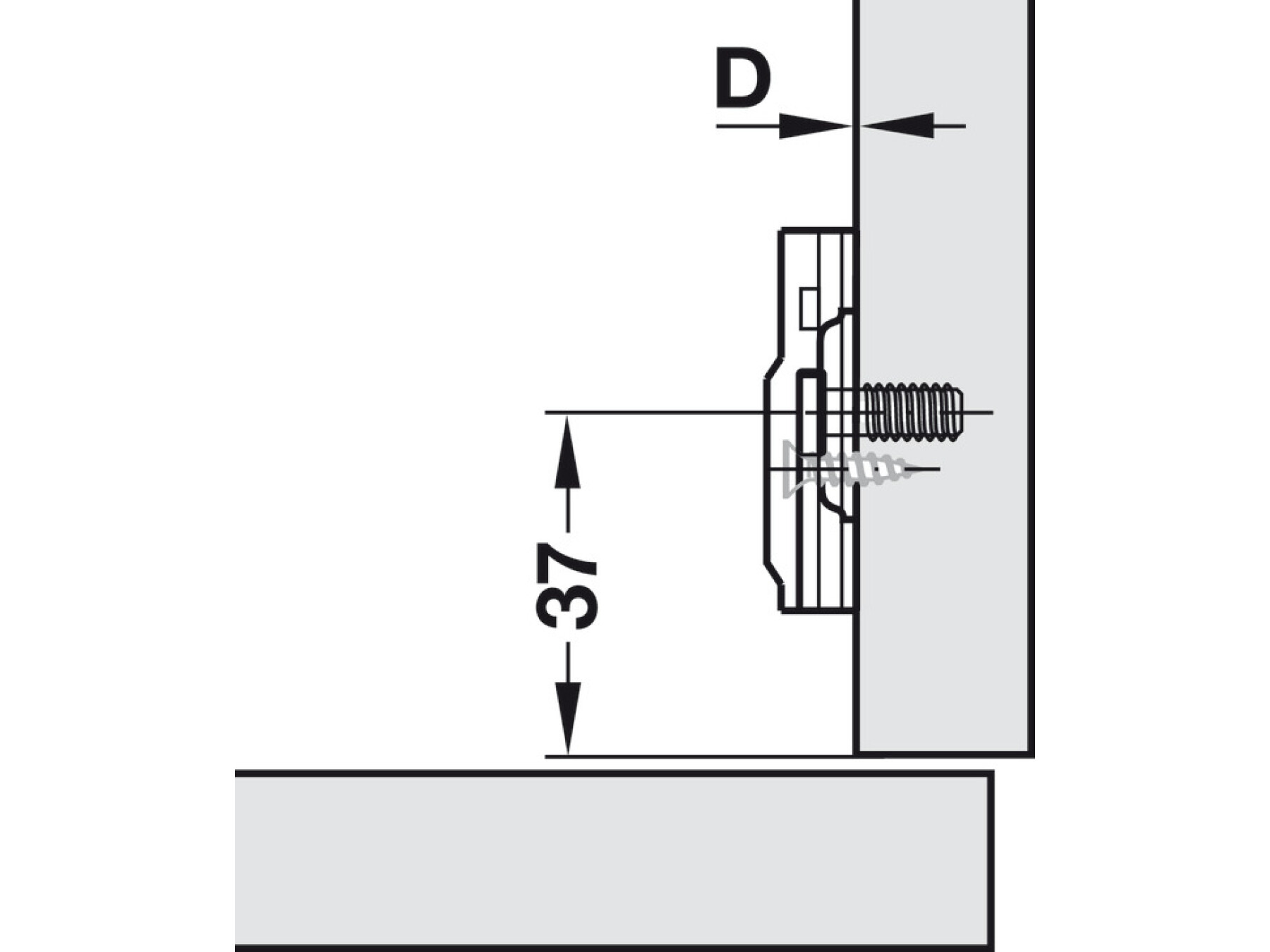

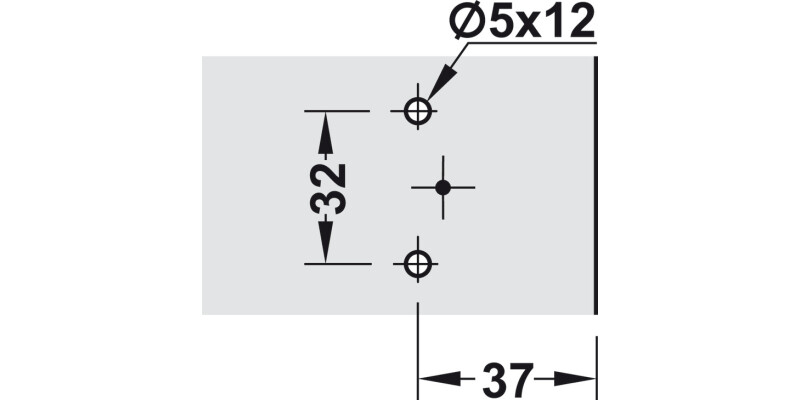

Designed to fit perfectly: This one-part plate is configured for screw fixing with pre-mounted Euro screws. For drilling compatibility, it supports a 5.00 mm drill hole with a 12.00 mm drilling depth. The screw and edge distances are engineered at 32.00 mm and 37.00 mm respectively.

Precise adjustment: Achieve easy fine-tuning using the slot with height adjustment ±2 mm.

Choose the Mounting Plate, Super Compact Flanges, with Pre-Mounted Euro Screws, Häfele Meta from Häfele and enjoy peace of mind with the Häfele Lifetime Guarantee (25 years). Upgrade your next project with a hinge mounting solution that saves time, supports accuracy, and delivers long-lasting quality.
