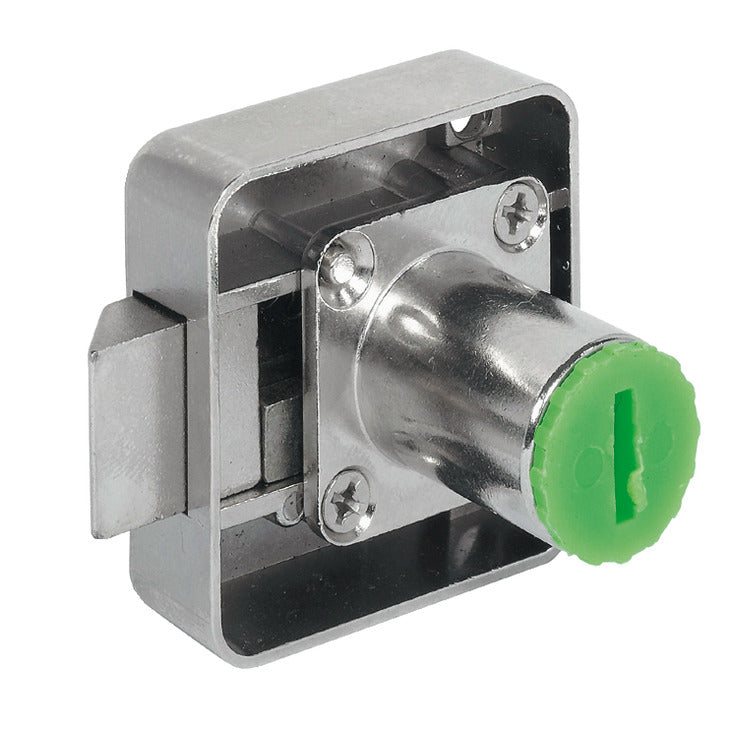

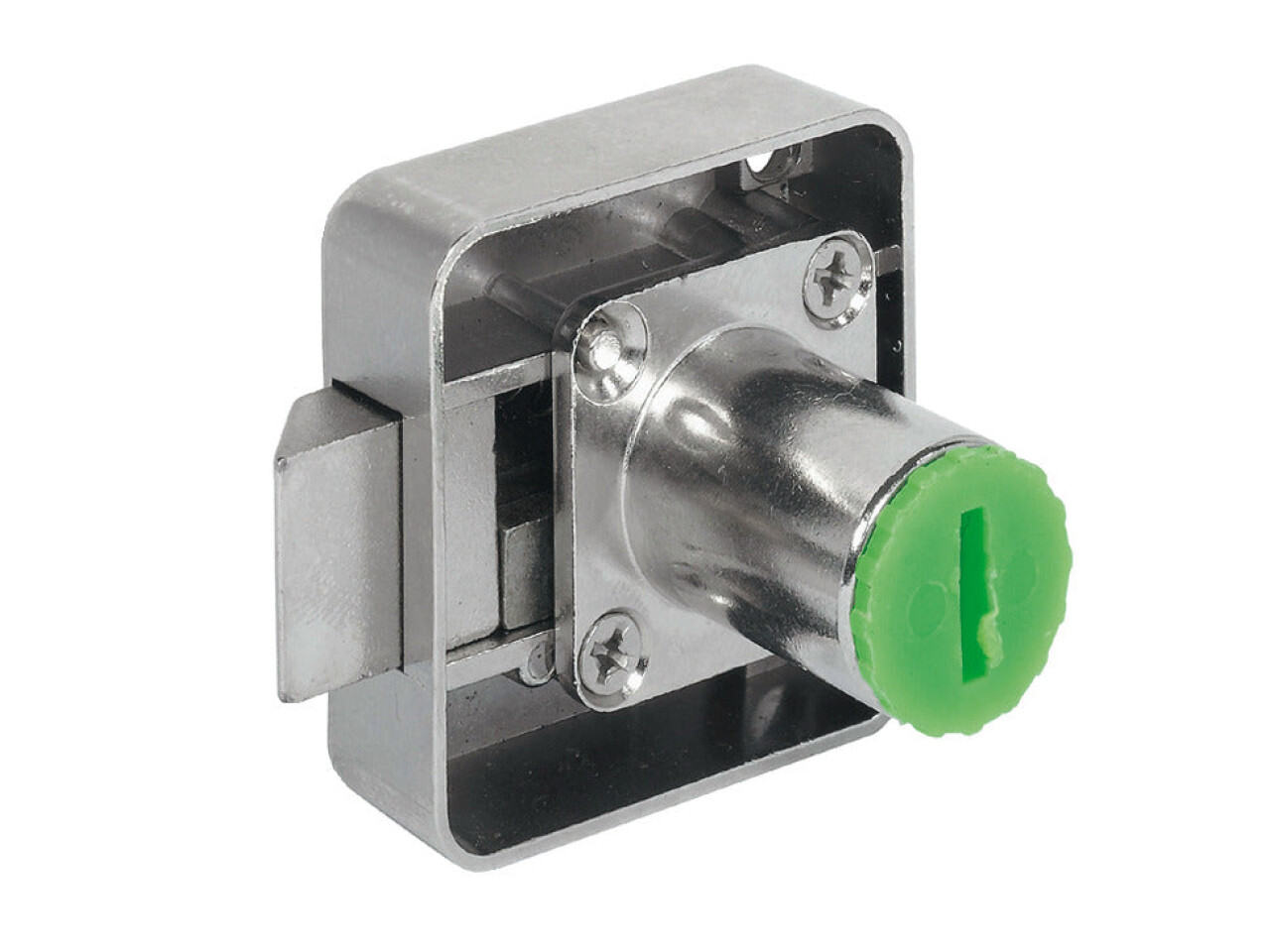

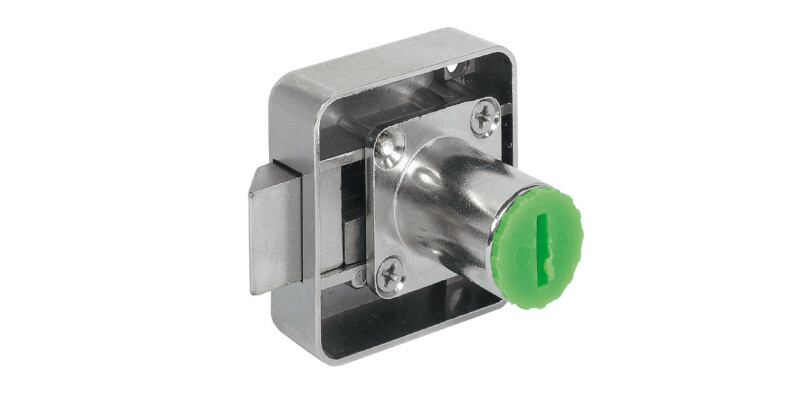

Rim Lock Case, Spring Bolt, Backset 25 mm, Symo 3000

Product Details

Rim Lock Case, Spring Bolt, Backset 25 mm, Symo 3000 (Product Part No: 232.37.623) is a robust, practical solution for upgrading or fitting reliable cabinet locking systems in both living and commercial environments. Designed as a right-hand version, this rim lock case is ideal if you’re combining it with a Symo cylinder removable core for a clean, secure locking setup.

Finished in nickel plated metalwork, the Symo3000 rim lock not only looks smart but is also built to withstand everyday use. Constructed from zinc alloy, it offers dependable strength for doors and cabinets where you want dependable security without complexity.

What makes this model particularly convenient is its on-site compatibility. The area of application is specifically for cylinder cores inserted from the front on site, making installation straightforward during fitting and maintenance. The lock is prepared for a round cylinder style, ensuring a neat and secure cylinder fit.

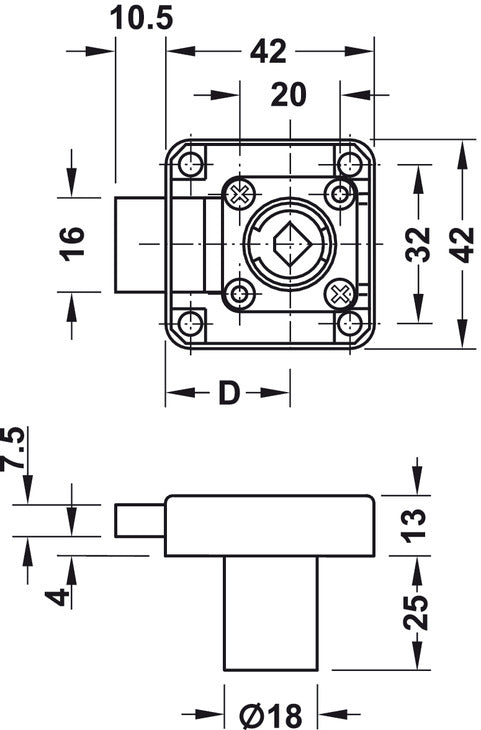

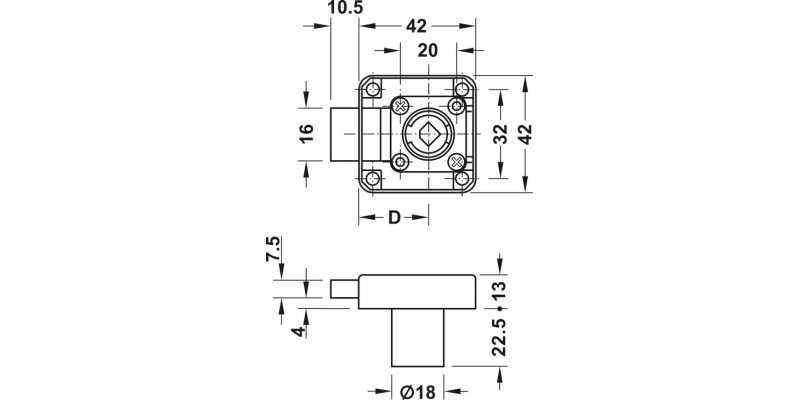

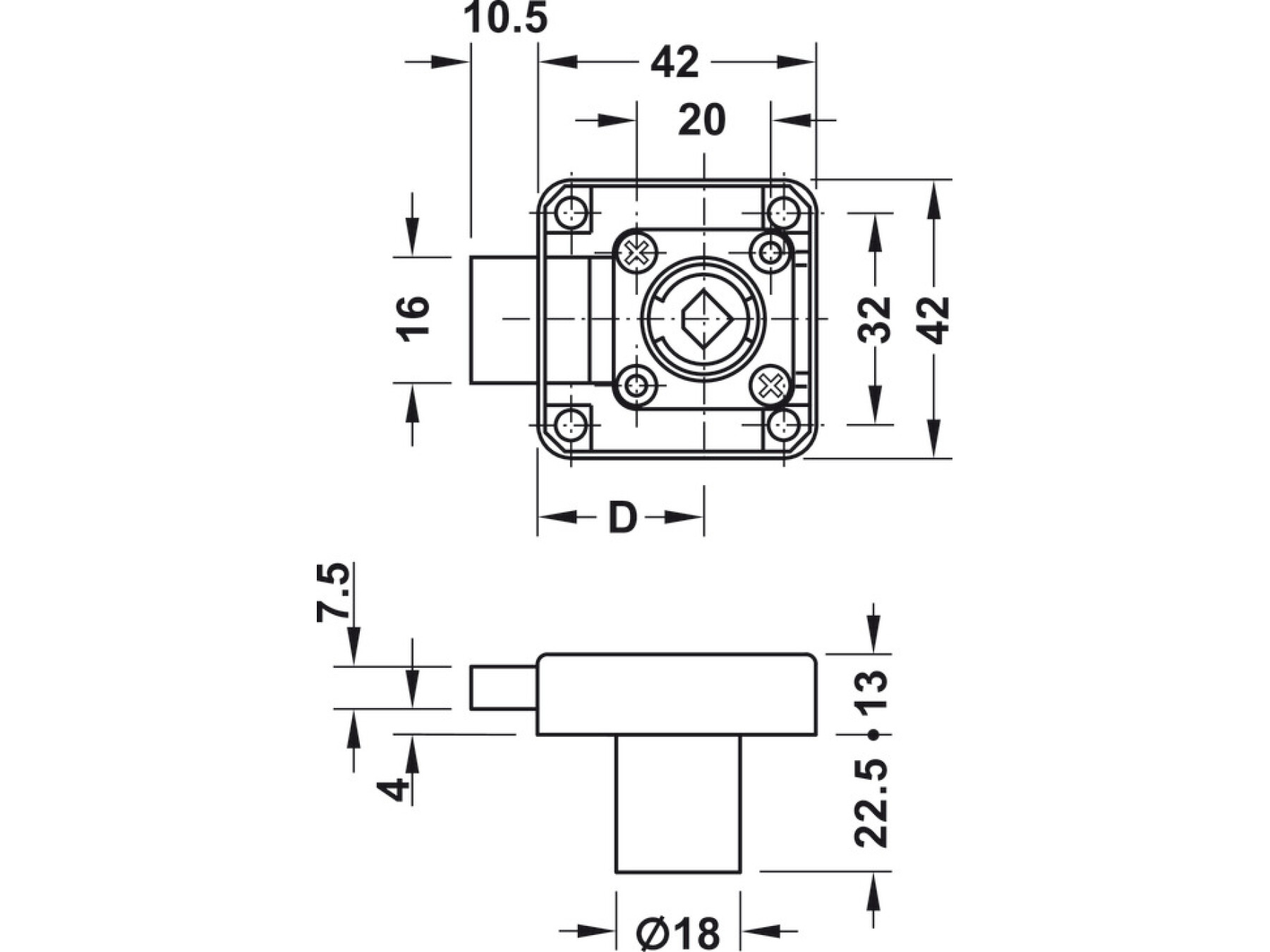

Key specifications include a forend type of 25.00 mm, a cylinder housing length of 22.50 mm, and a cylinder diameter of 18.00 mm. Installation is right hand and the lock is supplied without a key.

Supplied with: 1 latchbolt rim lock. Choose the Rim Lock Case, Spring Bolt, Backset 25 mm, Symo 3000 to complete your Symo removable-core cylinder combination with confidence and professional-grade performance.

1 latchbolt rim lock
