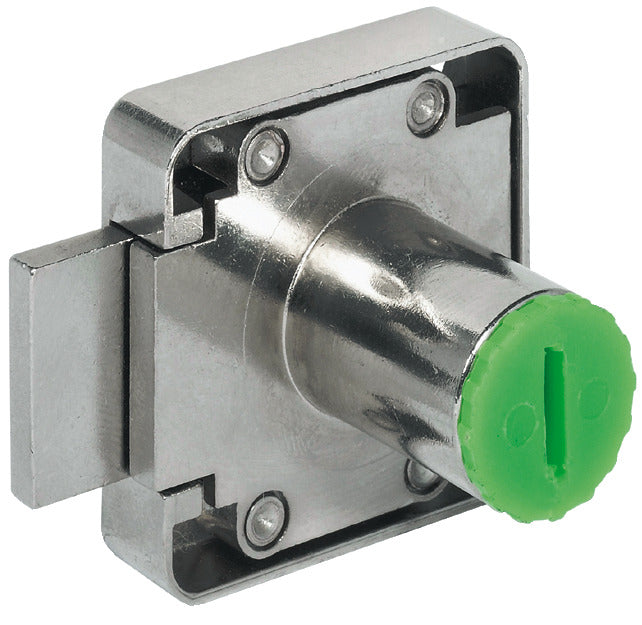

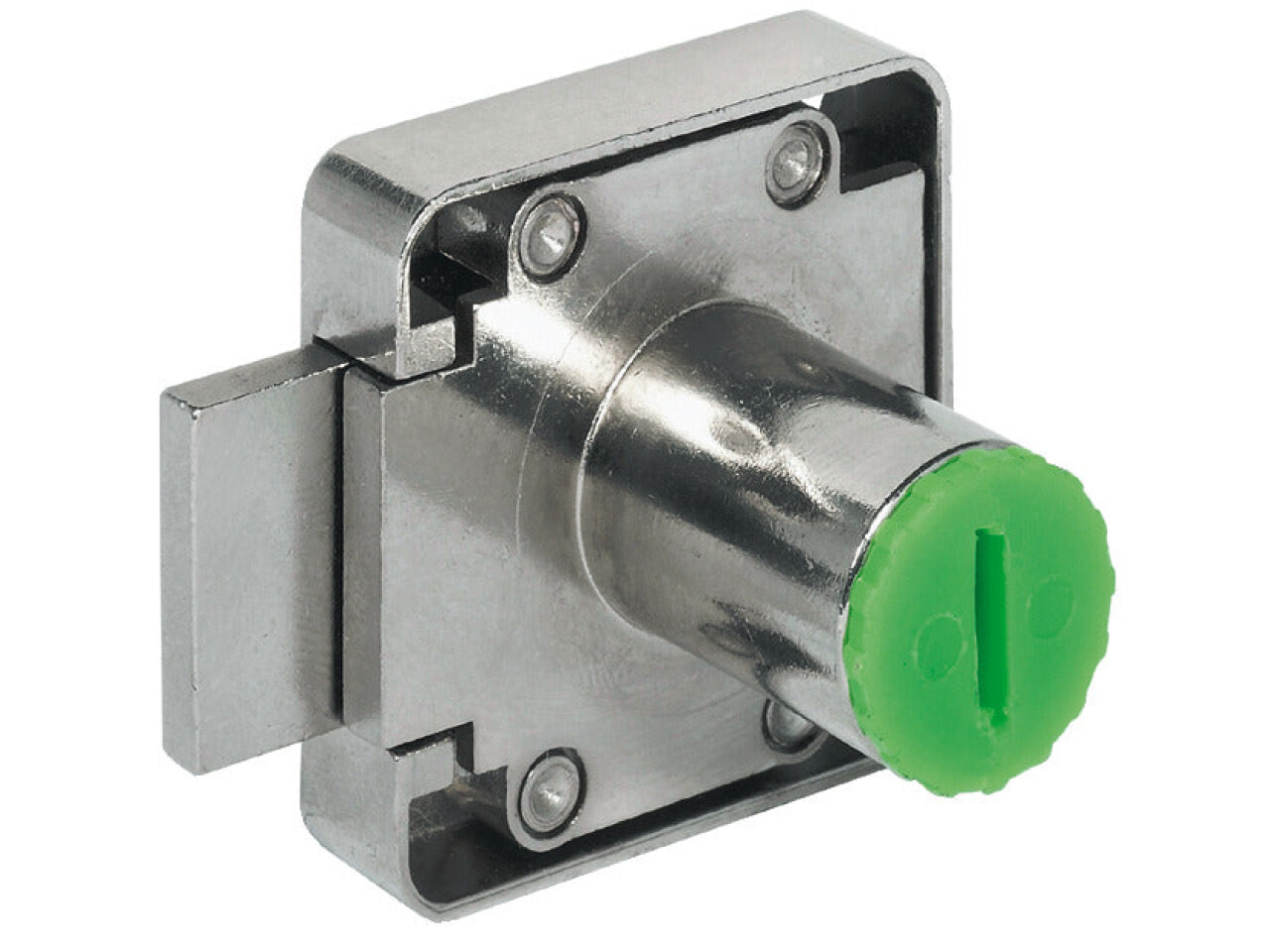

Rim Lock Case, for On-Site Installation of Cylinder Cores, Symo 3000

Product Details

Is the Symo3000 Rim Lockcase compatible with a removable core Symo cylinder?

Yes. This rim lockcase is designed for combination with a Symo cylinder removable core, so you can use a front inserted core on site and keep the lockcase suitable for the cylinder system you choose.

Which hand version is this lockcase, and how do I check that I need right hand?

This model is the right hand version. For rim locks, the hand determines how the locking action aligns with the door or cabinet. If you are unsure, compare your existing lock orientation or confirm the hand with the cylinder and faceplate arrangement before ordering, so installation matches your hardware layout.

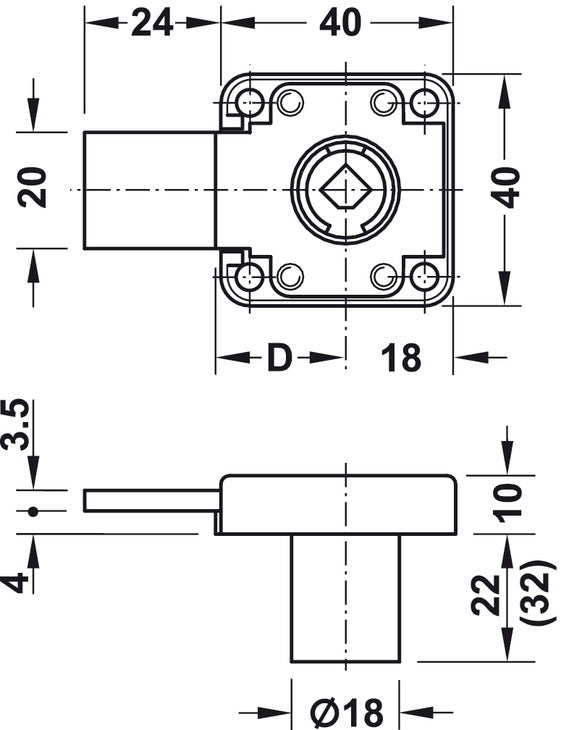

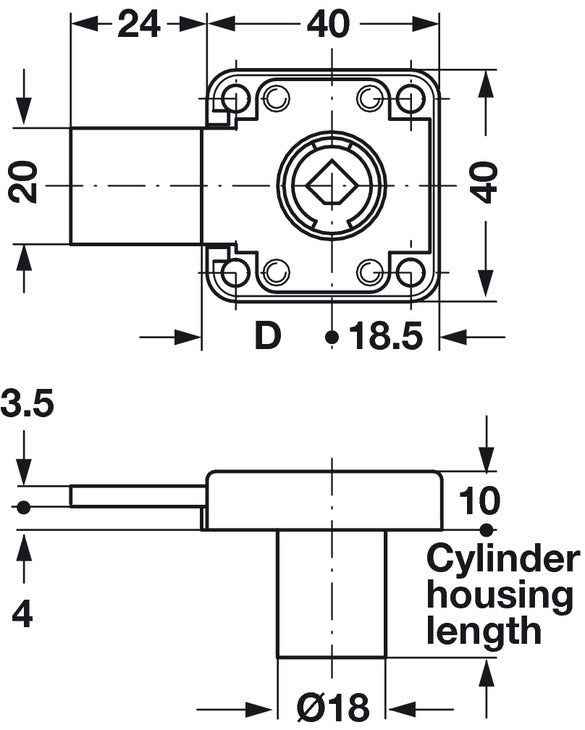

What cylinder housing length does the Symo3000 rim lockcase accept?

The cylinder housing length is 22 mm, so it is intended for cylinders and cores that match this dimension for a proper fit and correct alignment of the locking mechanism.

Does this lockcase come with a cylinder or key?

No. This item is the rim lockcase only, so you should order the cylinder rosette and the cylinder separately. The product is listed without a key, meaning you will need to source the matching removable core and relevant components for the locking function.

Do I need to order screws and a rosette, and what size are the screws?

Yes, you must order some parts separately. You should order the cylinder rosette and Hospa Ø 3.5 mm screws separately to complete the installation, as they are not included with this lockcase.

How far does the bolt travel, and is it suitable for rim lock applications?

This rim lockcase is specified with long bolt travel and a deadbolt throw of 22.5 mm. That combination is intended to give reliable engagement for rim lock installations where a longer reach improves security and contact with the strike area.

What kind of cylinder shape and diameter is the lockcase prepared for?

It is prepared for a round cylinder with an 18 mm cylinder diameter. Using a cylinder shape and diameter outside these parameters may prevent correct fit and alignment, so it is worth checking your cylinder core before purchasing.

Is the nickel plated finish suitable for living and commercial furniture use?

The lockcase has a nickel plated finish which is commonly selected for furniture and commercial applications where a durable, presentable surface is needed. If you are matching existing cabinet hardware, this finish helps you keep a consistent look across systems.
