Rim Lock Case, for On-Site Installation of Cylinder Cores, Symo 3000

Product Details

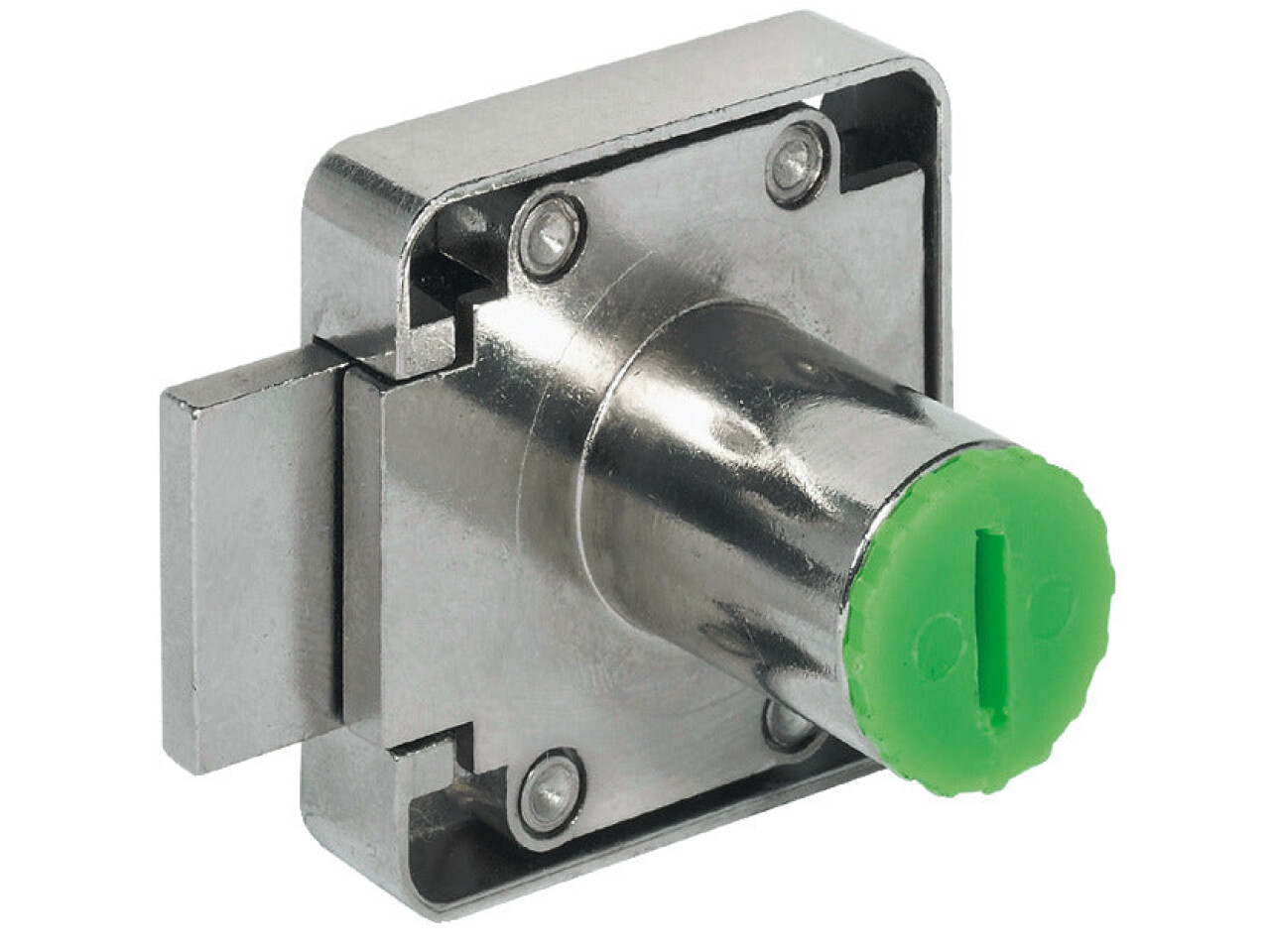

Rim Lock Case, for On-Site Installation of Cylinder Cores, Symo 3000 (Product Part No: 232.25.620) is a premium cabinet rim lockcase designed for smooth, secure locking solutions in both living and commercial settings. If you’re upgrading hardware or fitting a new cabinet lock system, this lockcase offers dependable performance with an easy, professional installation approach.

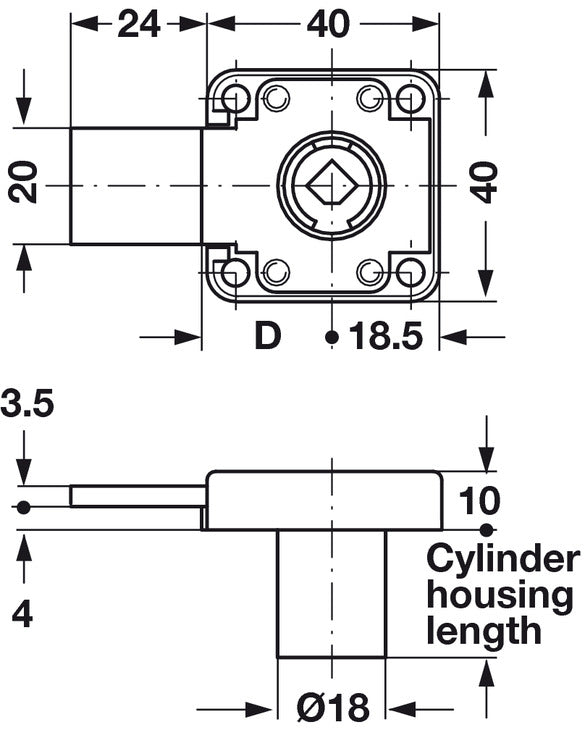

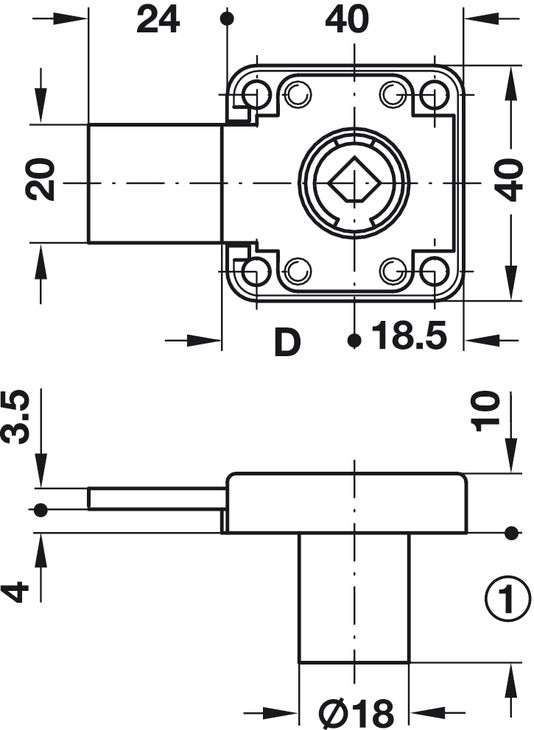

Built for a combination with Symo cylinder removable core, the Symo3000 Rim Lockcase is made with a 22 mm cylinder housing length and a drawer-compatible configuration—making it ideal for drawer version applications where the key turn direction matters. The installation is specified as drawer version (key turn to the right), helping you achieve the correct operation from day one.

Crafted from zinc alloy with a nickel plated finish, this durable lockcase is engineered to withstand daily use while maintaining a refined look. It features long bolt travel for confident engagement and a deadbolt throw dimension of 22.50 mm that supports secure closure.

With a forend type of 25.00 mm and a backset of 25.00 mm, it’s well-suited for cabinet and furniture installations where precise alignment is essential. The lockcase is prepared for round cylinders with a cylinder diameter of 18.00 mm, making it a flexible choice for front-inserted cylinder core setups on site.

Please note: Order cylinder rosette and Hospa Ø 3.5 mm screws separately

Choose the Rim Lock Case, for On-Site Installation of Cylinder Cores, Symo 3000 and complete your cabinet locking system with confidence—secure, reliable, and built for the way modern furniture is used.

Order cylinder rosette and Hospa Ø 3.5 mm screws separately,
