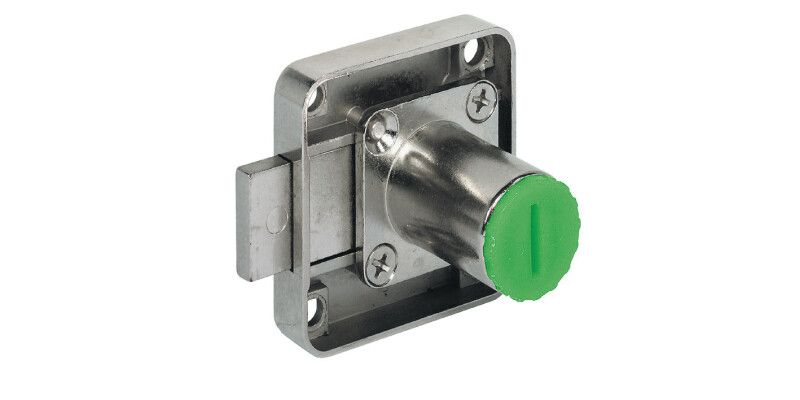

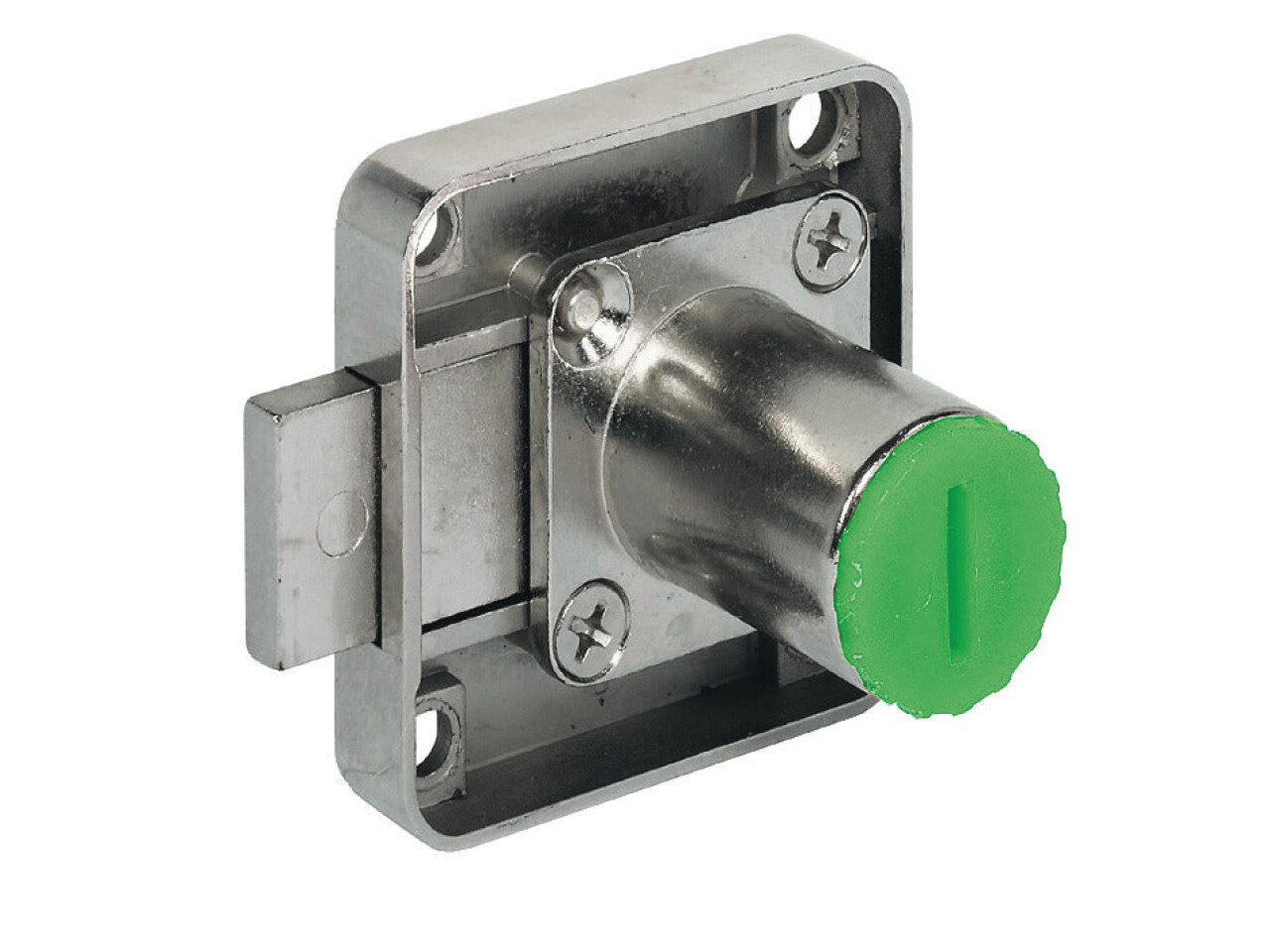

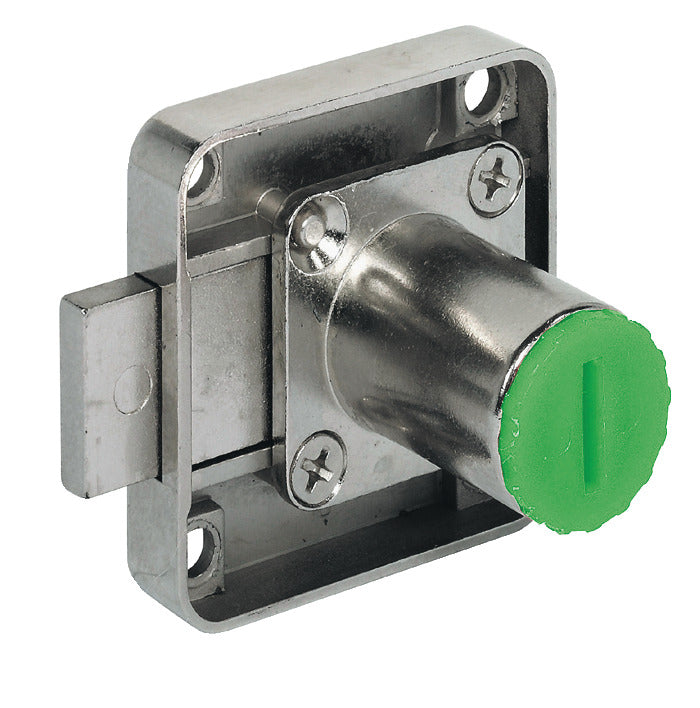

Rim Lock Case, Short Bolt Travel, Backset 23 mm, Symo 3000

Product Details

Rim Lock Case, Short Bolt Travel, Backset 23 mm, Symo 3000 (Product Part No: 232.26.600) is a premium rim lock case designed for reliable, day-to-day security on cabinets and furniture systems. Built to suit modern lock upgrades, this Symo3000 rim lock case is the ideal choice for combination with a Symo cylinder removable core, giving you a flexible solution that can be maintained or refreshed with less hassle.

This version features a right-hand (RH) installation for a smooth fit on compatible applications. The cylinder housing length is 22 mm, making it well-suited where a compact yet secure lock setup is required. If you’re looking for a lockcase that’s engineered to work with front-installed removable cylinder cores, this model is specifically for cylinder cores inserted from the front on site.

Crafted from zinc alloy, the lockcase offers strength and durability without unnecessary bulk. Finished in nickel plated, it provides an attractive, corrosion-resistant surface that complements a wide range of cabinet and furniture styles.

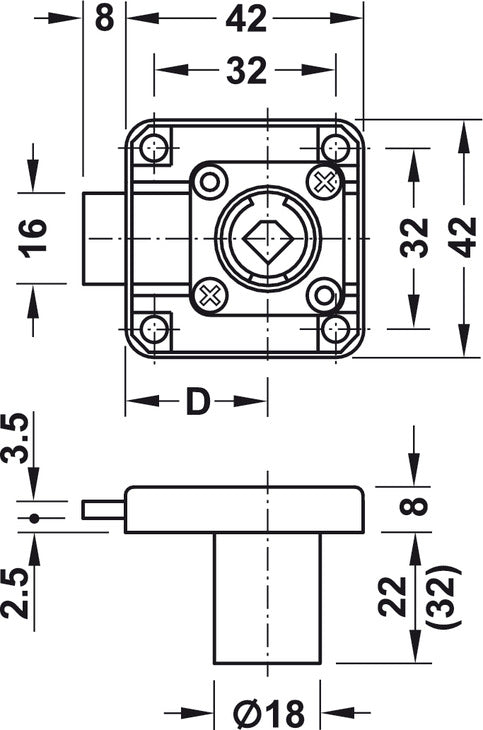

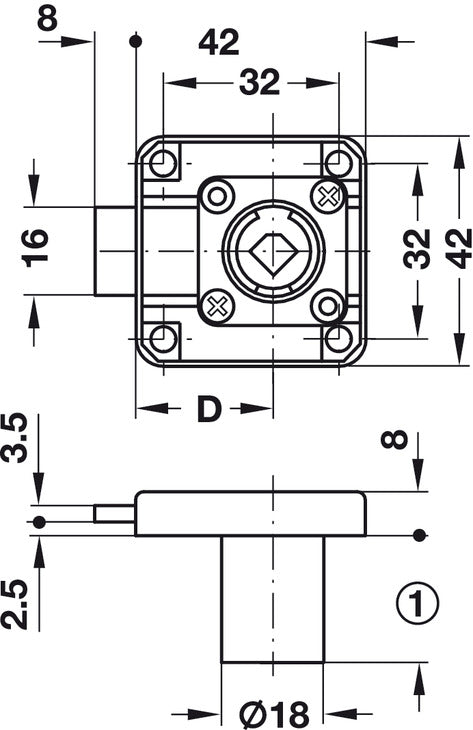

For smooth operation, the lockcase includes short bolt travel and delivers a deadbolt throw of 8 mm. The lockcase supports a round cylinder profile and is prepared for a cylinder diameter of 18 mm, with a backset of 25 mm for dependable alignment.

Choose the Rim Lock Case, Short Bolt Travel, Backset 23 mm, Symo 3000 and upgrade your cabinet security with a component made for secure, removable-core performance.
