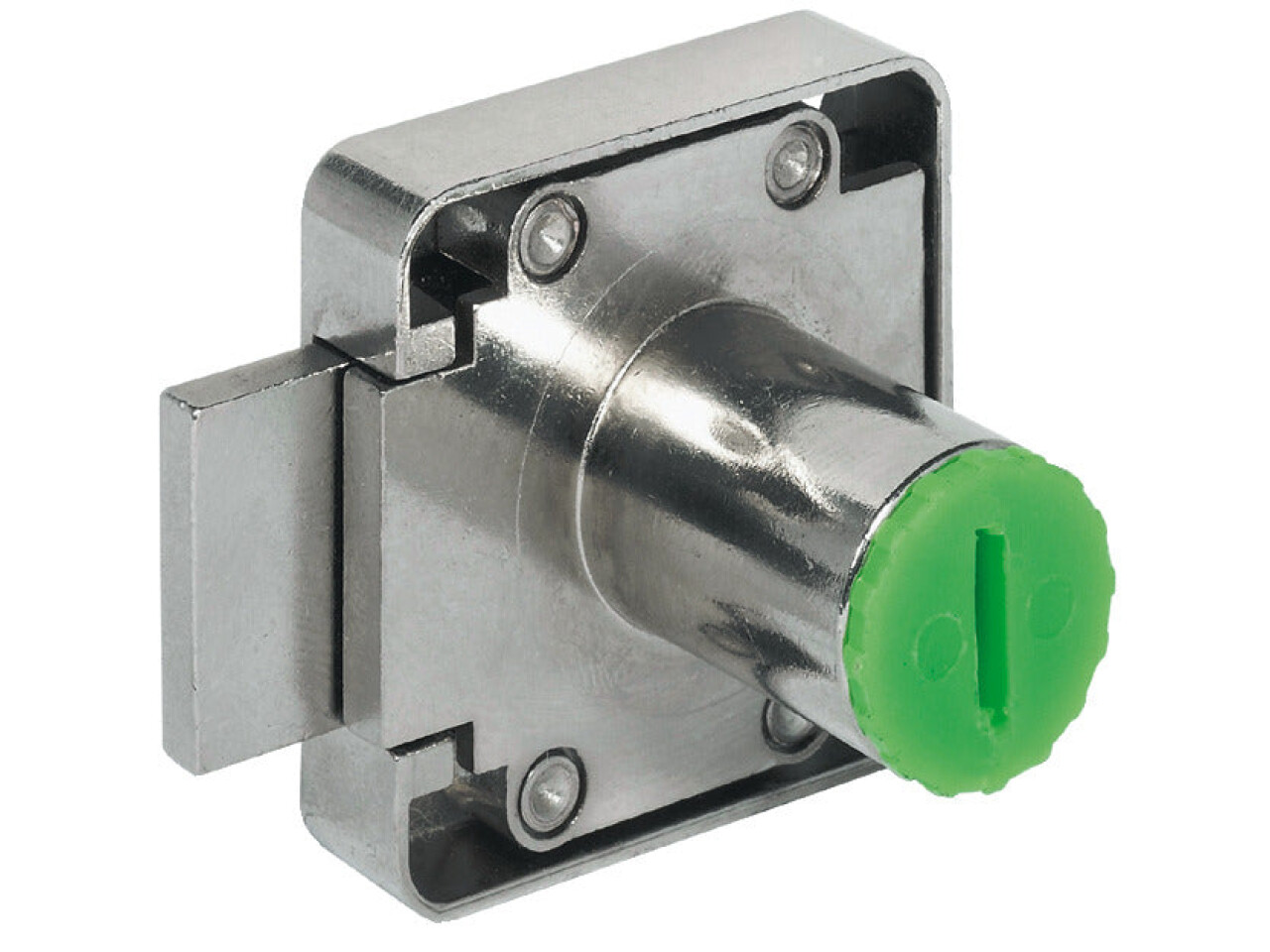

Rim Lock Case, for On-Site Installation of Cylinder Cores, Symo 3000

Product Details

Rim Lock Case, for On-Site Installation of Cylinder Cores, Symo 3000 (Product Part No: 232.25.610) is a robust rim lock case designed to deliver secure, reliable performance for cabinet and furniture locking applications. If you’re upgrading hardware or building a solution for a commercial or living space, this left-hand rim lock case is an excellent choice thanks to its durable build and precise fit.

For combination with Symo cylinder removable core, this rim lockcase is made to work with a front-inserted cylinder core fitted on site—ideal when you want flexibility during installation. The cylinder housing length 22 mm and carefully engineered dimensions make it a practical option for achieving a clean, professional result.

Crafted from zinc alloy, the lockcase features a strong, long-lasting structure. The long bolt travel helps ensure dependable locking action, while the 25.00 mm forend type supports secure mounting on compatible furniture doors and cabinet fronts. With a nickel plated finish, it not only looks smart but also resists everyday wear.

Designed with a backset D of 25.00 mm, and a deadbolt throw of 22.50 mm, the Symo3000 Rim Lockcase is built for correct alignment and smooth operation. It is prepared for a round cylinder with a cylinder diameter of 18.00 mm, supporting a tailored cylinder setup for your needs.

Order reference: Order the cylinder rosette and Hospa Ø 3.5 mm screws separately. Choose the Rim Lock Case, for On-Site Installation of Cylinder Cores, Symo 3000 for a secure, high-quality locking solution.

Order cylinder rosette and Hospa Ø 3.5 mm screws separately,
